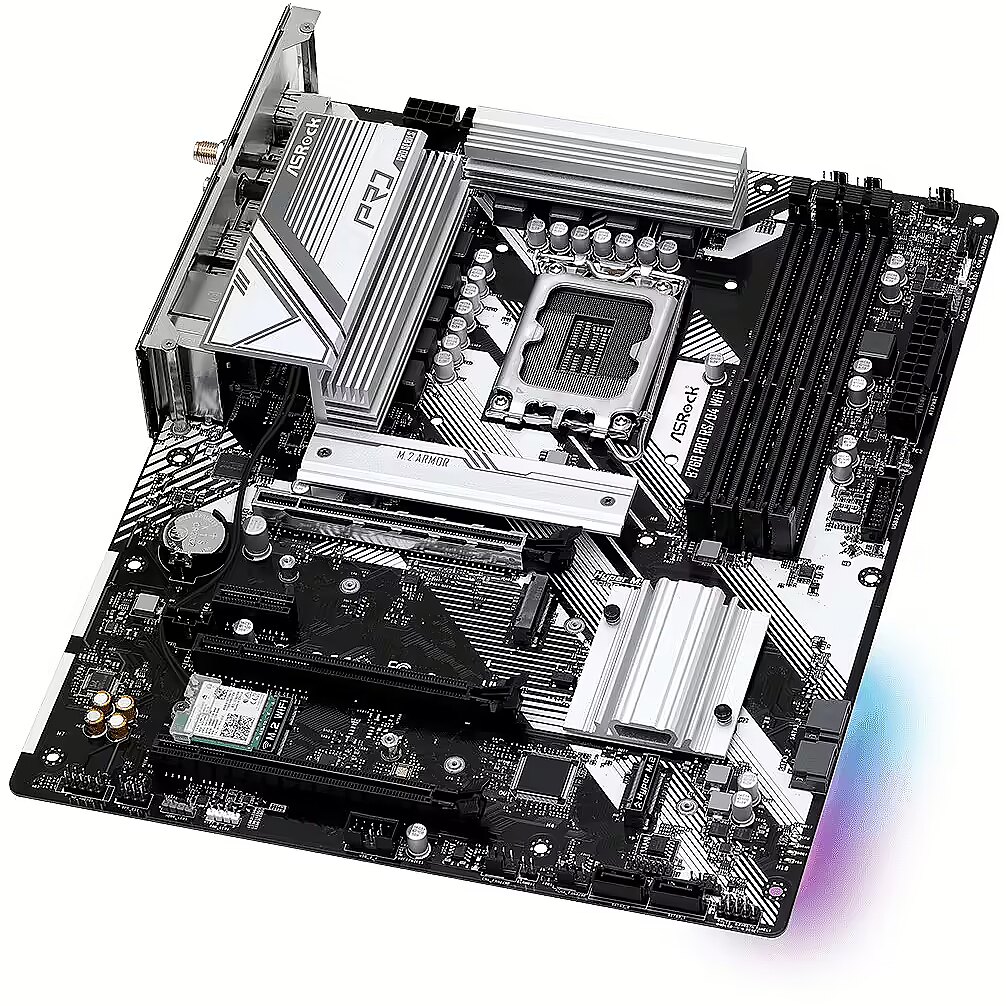

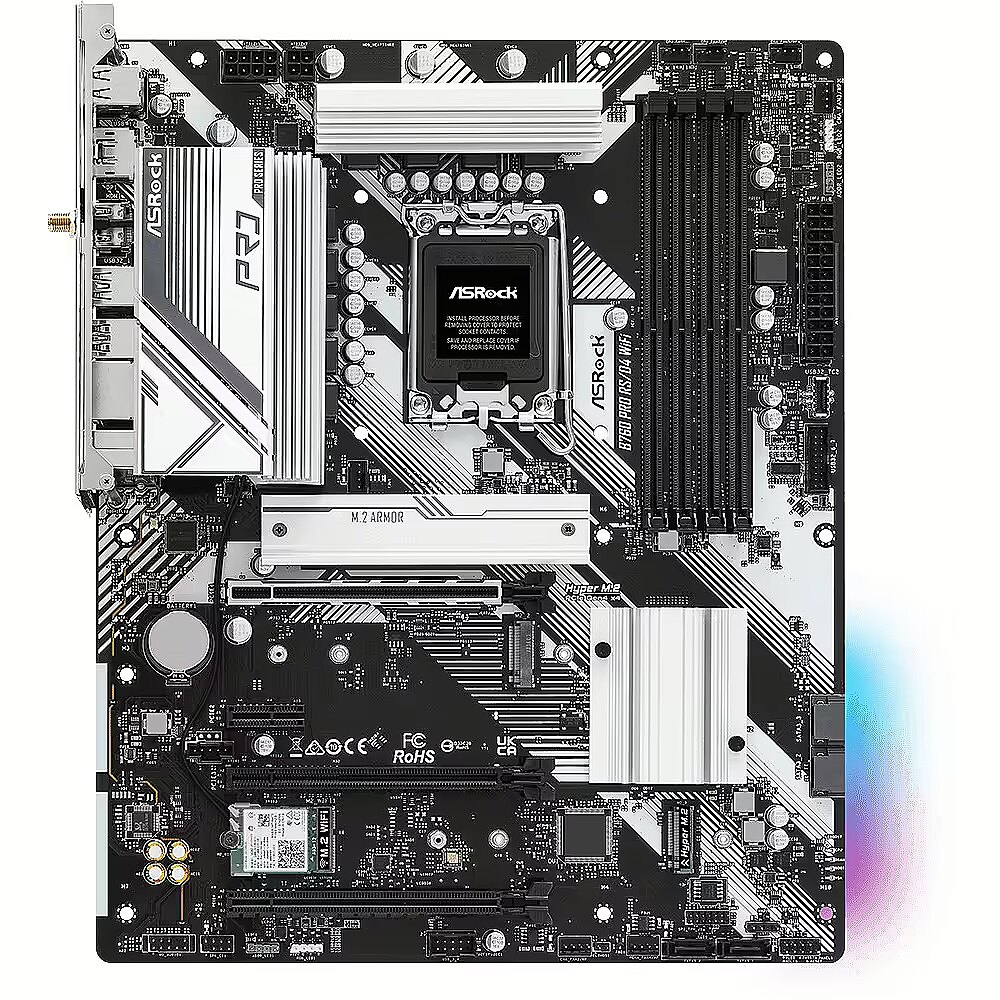

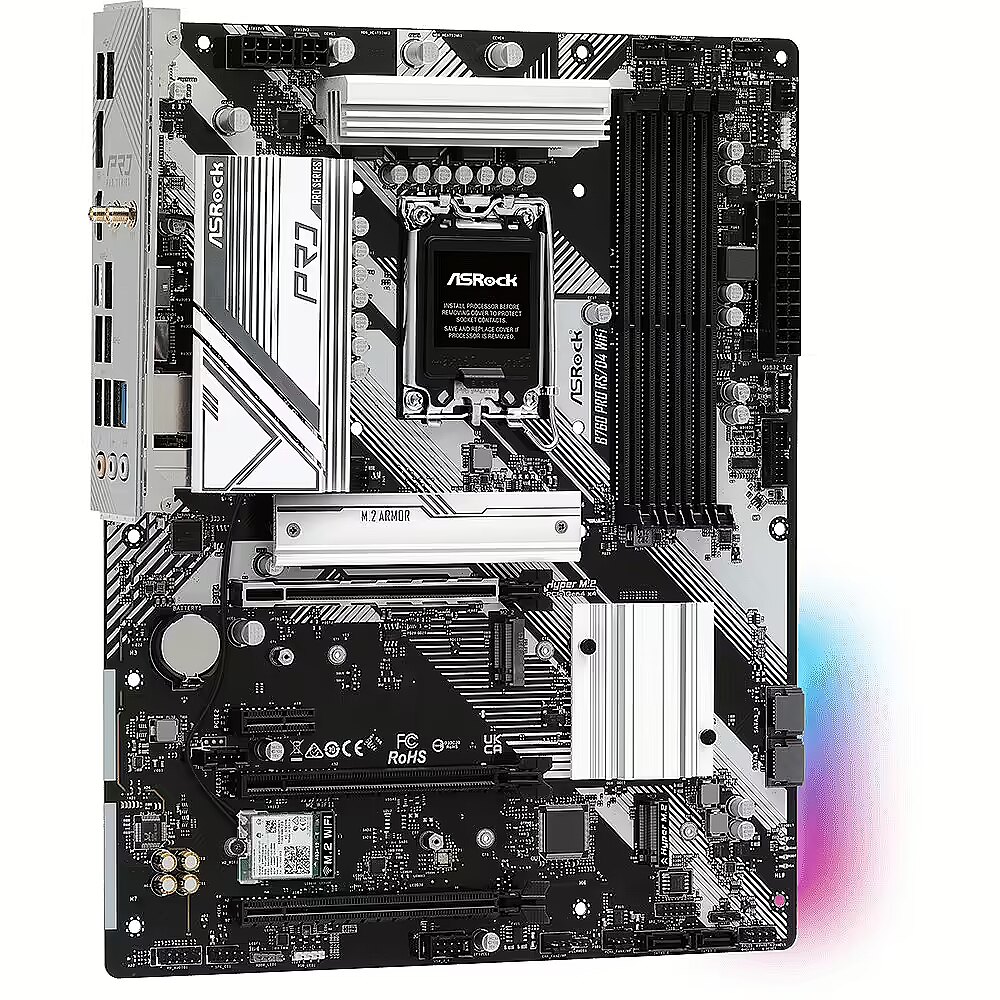

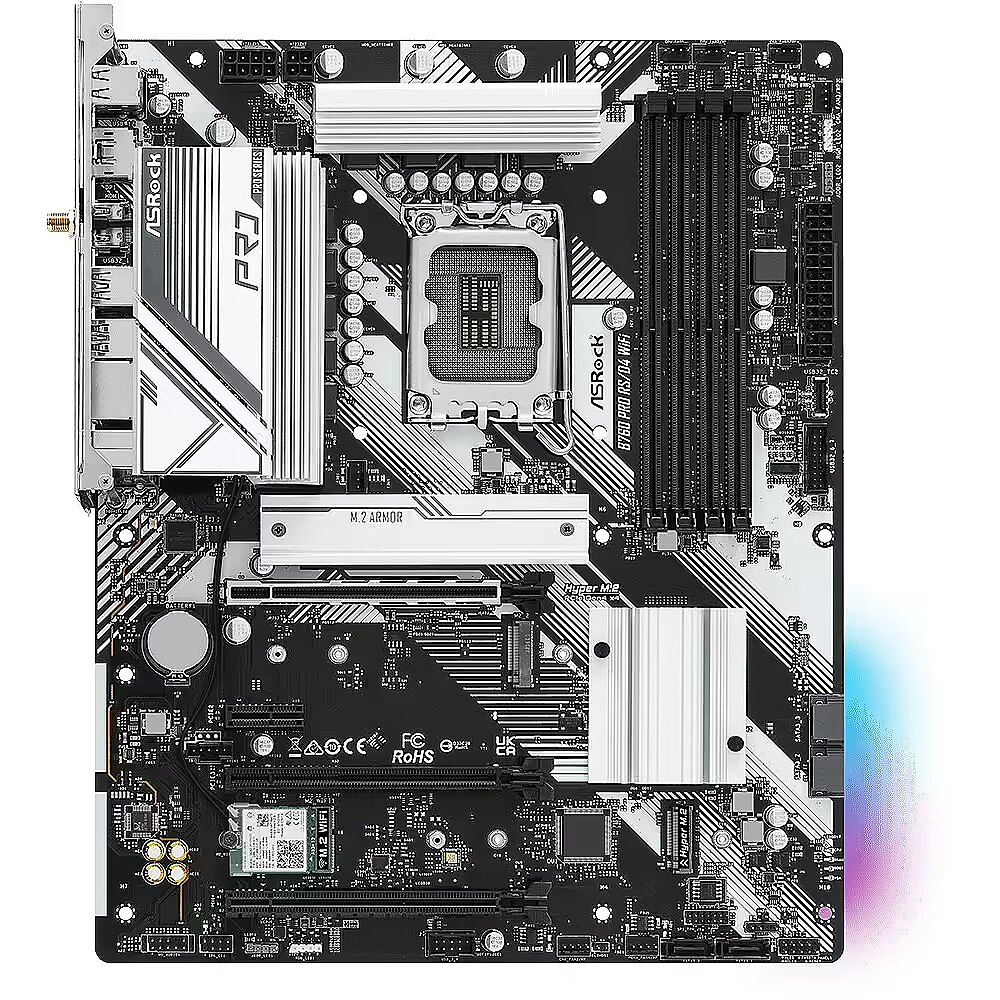

Asrock B760 Pro RS/D4 WiFi
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: 19.11.2024
- Series: ASRock Pro
- CPU Socket: LGA 1700
- Chipset: Intel B760
- Form factor: ATX
- Type: DDR4
- RAM Slots: 4
- Built-in Wi-Fi: Ir
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Audio port Input/Output connectors - 3
BIOS - 128Mb AMI UEFI Legal BIOS with GUI support
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBI
Chipset - Intel B760 Express
Chipset manufacturer - Intel
Chipset type - Intel B760
Code - B760 PRO RS/D4 WIFI
COM connector / port - No
CPU socket - LGA1700
Description - B760 Pro RS/D4 WiFi - Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) - 7+1+1 Power Phase, Dr.MOS for VCore+GT - 4 x DDR4 DIMMs - Supports Dual Channel, up to 5333+ (OC) - 2 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1 - Graphics Output Options: HDMI, DisplayPort - Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio - 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen4x2) - 1 USB 3.2 Gen2 Type-C (Front), - 1 USB 3.2 Gen1 Type-C (Rear), - 7 USB 3.2 Gen1 Type-A (5 Rear, 2 Front) - 4 USB 2.0 (2 Rear, 2 Front) - Dragon 2.5G LAN, - 802.11ax WiFi 6E + Bluetooth 5.3 - Supports ASRock Auto Driver Installer, Pre-installed I/O Shield
Description - B760 PRO RS/D4 WIFI Supports 13th, 12th and next generation Intel Core processors (LGA1700) Power phase 7+1+1, Dr.MOS for VCore+GT Supports DDR4 5333 MHz (OC) 2 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1 Graphics output options: HDMI, DisplayPort Realtek ALC897 7.1 CH HD audio codec, Nahimic sound 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen4x2) 1 USB 3.2 Gen2 Type-C port (front), 1 USB 3.2 Gen1 Type-C port (rear), 7 USB 3.2 Gen1 Type-A ports (5 rear, 2 front) 4 USB 2.0 ports (2 rear, 2 front) Smok 2.5G LAN, 802.11ax Wi-Fi 6E + Bluetooth 5.3 Supports ASRock Auto Driver Installer, I/O Shield pre-installed
Detailed data on disk/drive interfaces - PROCESSOR: 1 x Hyper M.2 slot (M2_1, M key), supports 2260/2280 PCIe Gen4x4 mode (64Gb/s)* Chipset: 1 x M.2 slot (M2_2, M key), supports 2260/2280 PCIe Gen4x2 (32Gb/s) mode* 1 x Hyper M.2 slot (M2_3, M key), supports 2260/2280 PCIe Gen4x4 (64Gb/s) mode* 4 SATA3 6.0 Gb/s connectors Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
dimension depth - 75 mm
dimension height - 300 mm
Dimensions - 30.5 x 24.4 cm
dimension weight - 1595 g
dimension width - 360 mm
DisplayPort Input/Output connectors - 1
EAN -
ean - 4710483943645
Eans - 4710483943645
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 3.0 x 16
Expansion slots - 2 x PCIe 4.0 x 16

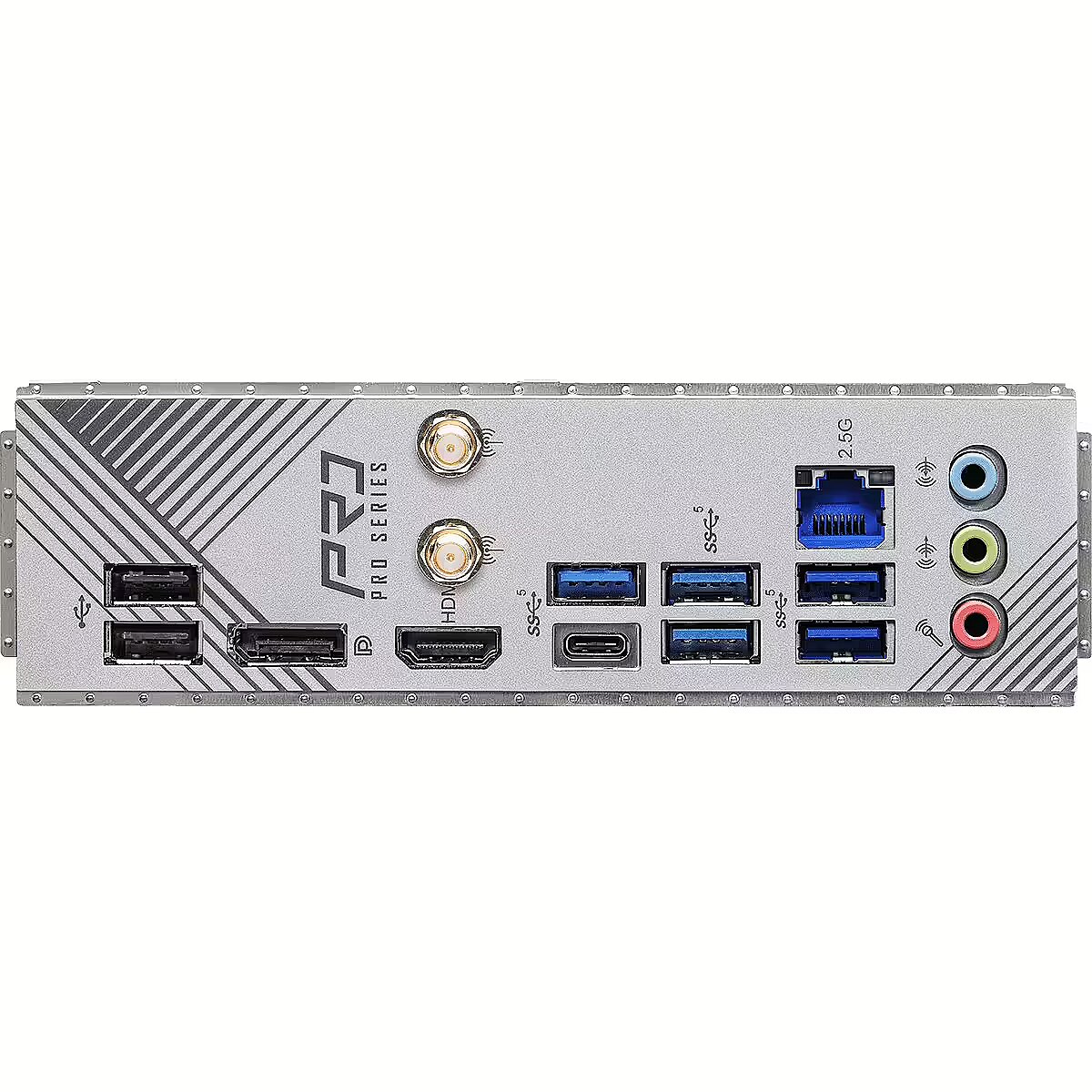

External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.1 Type-C
External connectors - 2 x SMA
External connectors - 2 x USB 2.0
External connectors - 5 x USB 3.0
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 3200/4000/4266/4400/5333 MHz
Full Description Line - Intel B760 Express|LGA1700|ATX|DDR4|5333/4400/4266/4000/3200 MHz|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|2xPCI-Express 4.0 16x|1xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|5xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC897|RAID SATA 0, 1, 5, 10
Graphics - Intel Xe graphics architecture (12th generation) 1 x HDMI 2.1 TMDS compatible, supports HDCP 2.3 and max. resolution up to 4K 60 Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1

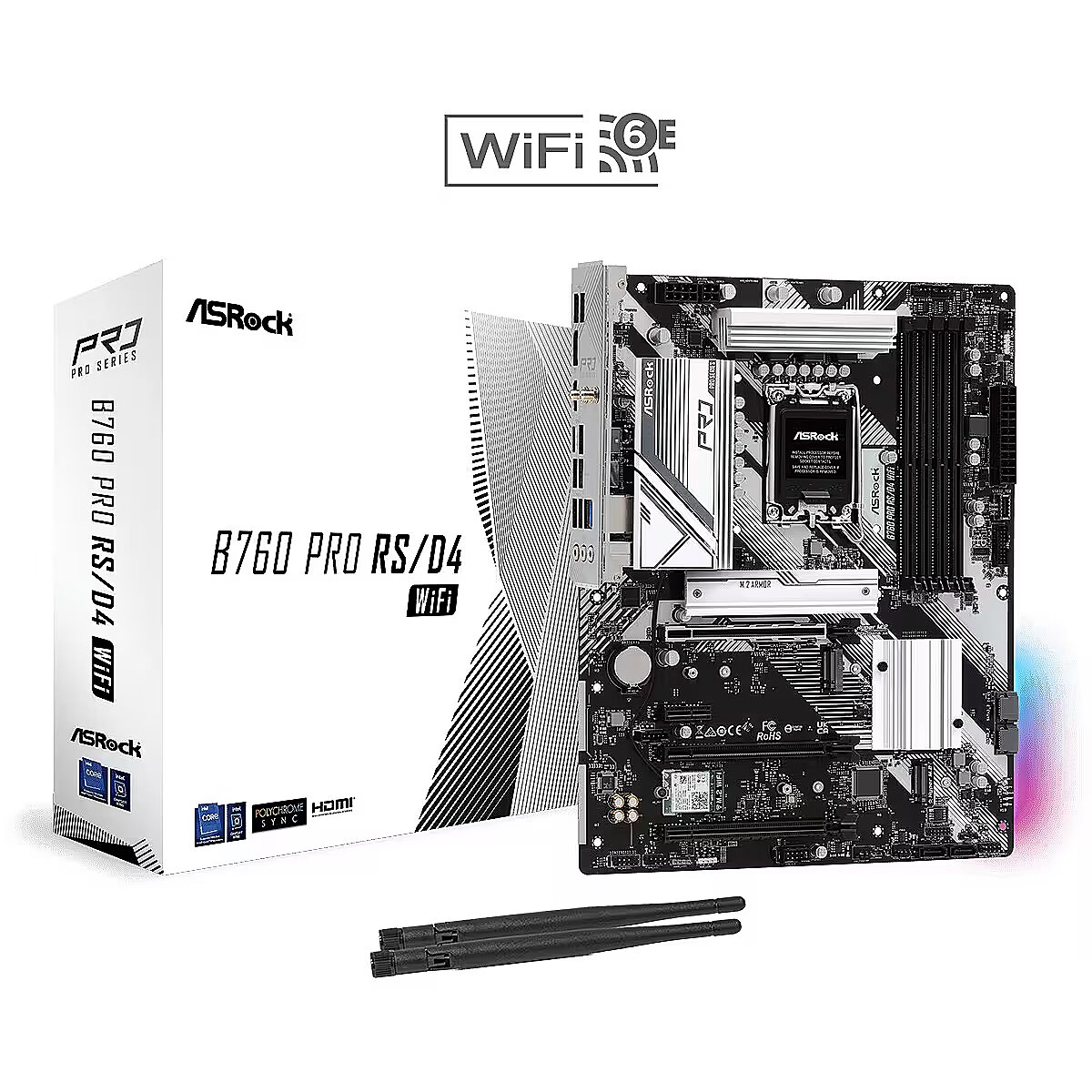

Included Accessories -
- 1 x User Manual
- 2 x SATA Data Cables
- 2 x ASRock WiFi 2.4/5/6 GHz Antennas
- 3 x Screws for M.2 Sockets
- 1 x Standoff for M.2 Socket
Integrated audio - Realtek ALC897
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.asrock.com/MB/Intel/B760%20Pro%20RSD4%20WiFi/index.us.asp
LPT connector / port - No
M.2 Expansion slots - 1
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 128 GB
Memory > Supported memory types - DDR4
Memory bus frequency - 3200 MHz
Memory bus frequency - 4000 MHz
Memory bus frequency - 4266 MHz
Memory bus frequency - 4400 MHz
Memory bus frequency - 5333 MHz
Memory slots - 4
Memory type - DDR4
Memory type - DDR4
Model - B760 Pro RS/D4 WiFi
Model - B760 PRO RS/D4 WIFI
Name - ASRock B760 Pro RS/D4 WiFi
Name - ASRock B760 PRO RS/D4 WIFI | Processor family Intel | Processor socket LGA1700 | DDR4 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
name - B760 Pro RS/D4 WIFI s1700 4DDR4 DP/HDMI ATX
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - 2.5 Gigabit LAN 10/100/1000/2500 Mbps Smok RTL8125BG Supports Dragon 2.5G LAN software Intelligent automatic bandwidth adjustment Visual, user-friendly user interface Visual network usage statistics Optimized defaults for game, browser and streaming modes User-customized priority control 802.11ax 6E Wi-Fi module Supports IEEE 802.11a/b/g/n/ac/ax Supports Dual-Band 2x2 with extended 6 GHz band support* 2 antennas supporting 2 (transmit) x 2 (receive) diversity technology. Supports Bluetooth 5.3 + High Speed Class II Supports MU-MIMO
Network interface - Bluetooth
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax
Number of DDR4 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 8
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 1
Onboard connectors - 1 x 4pin 12V power
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Thunderbolt header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 2.0/1.1 header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 1 x USB C
Onboard connectors - 5 x 4pin case fan liquid cooling
Other information - Certificates FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required)
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 70.00 mm
Package features > Gross height (mm) - 295.00 mm
Package features > Gross width (mm) - 360.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 116 pc(s)
Package features > Paper/Pasteboard - 400.00 g
Package features > Plastic (No PET) - 100.00 g
Package features > Tare weight (kg) - 0.50 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 3.0 16x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 2
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Processor family - Intel Core
producer - ASRock
Producer - ASRock
ProducerCode - B760 PRO RS/D4 WIFI
RAID - SATA 0, 1, 5, 10
RAID - Yes
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 39 cm
Shipping Box Height Shipping/Package Box Dimensions - 33 cm
Shipping box quantity - 5
Shipping Box Weight Shipping/Package Box Dimensions - 9.15 kg
Shipping Box Width Shipping/Package Box Dimensions - 37 cm
ShortDescription - Socket 1700 | Chipset Intel B760 | DDR4 |
Socket - LGA1700
Software - Software ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN software ASRock Polychrome SYNC* UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My favorites in UEFI ASRock automatic driver installer ASRock Instant Flash Easy ASRock RAID installer
Sound card - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Special functions -
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Gross weight - 2.30 kg
Technical details > Net weight - 1.80 kg
Technical details > Producer - ASRock
Technical details > Producer product name - B760 PRO RS/D4 WIFI
Unit Box Height - 0.075
Unit Box Length - 0.355
Unit Box Width - 0.3
Unit Brutto Volume - 0.009524 cubm
Unit Gross Weight - 1.83 kg
Unit Net Weight - 1.2 kg
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 5
USB 3.2 Interface - Yes
USB ports at back panel - 8
USB ports on motherboard - 5
Vendor Homepage - www.asrock.com/MB/Intel/B760%20Pro%20RSD4%20WIFI/index.asp
vendpn - B760 PRO RS/D4 WIFI
Warranty - 24
Warranty - 24 month(s)
Warranty - 36 months
WiFi Interface - Yes
