ID: 988638
Product code: H510M-HDV/M.2 SE
In stock 7 units
Warranty: 2 years

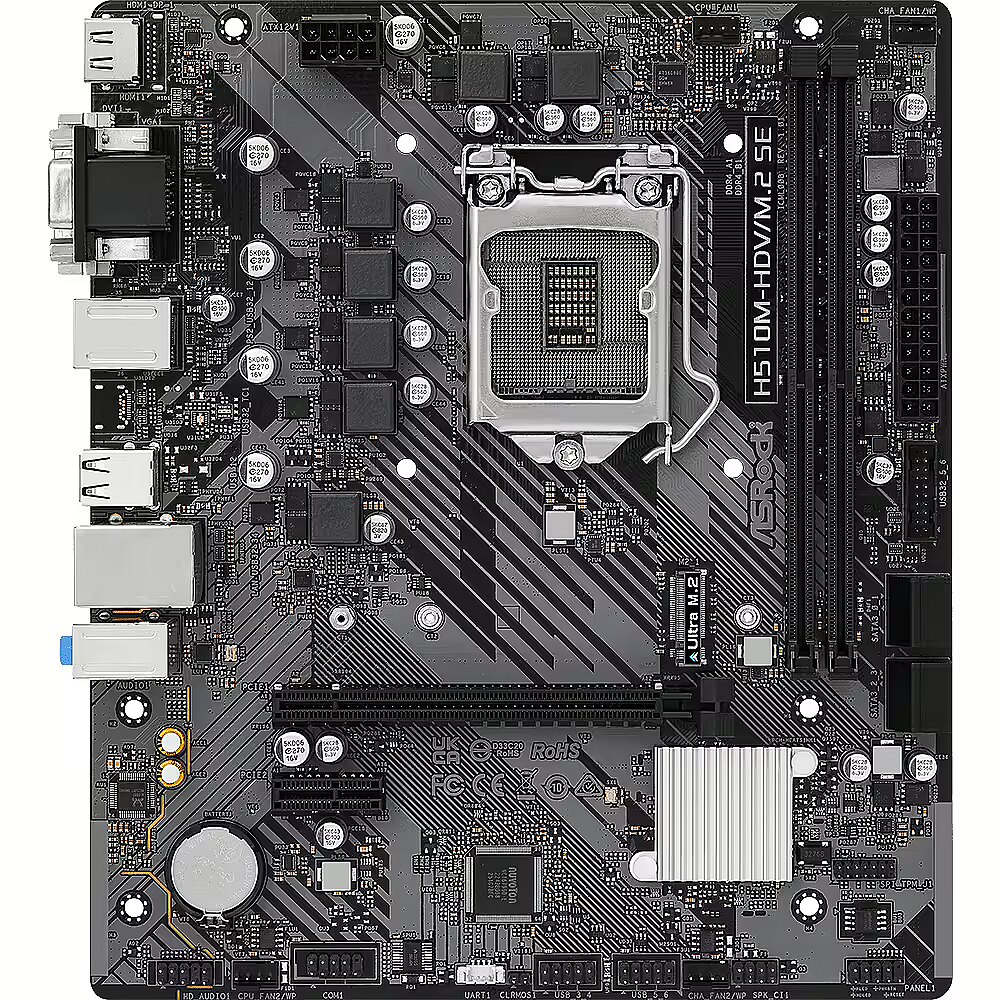

Asrock H510M-HDV/M.2 SE
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: 28.11.2024
Main product parameters All parameters
- Series: Nav
- CPU Socket: LGA 1200
- Chipset: Intel H510
- Form factor: Micro ATX
- Type: DDR4
- RAM Slots: 2
- Built-in Wi-Fi: Nav
Basic information
Series
: Nav
CPU Socket
LGA 1200
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel H510
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
Micro ATX
The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR4
RAM Slots
2
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR4 3200
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 0
DVI
: 0
HDMI
: 1
DisplayPort
: 0
Integrated sound card
: Realtek ALC897
Wireless connections
Built-in Bluetooth
: Nav
Built-in Wi-Fi
: Nav
External ports
External USB Type-C
: 0
External USB 2.0
: 2
External USB 3.0 (USB 3.2 Gen1)
: 4
External USB 3.1 (USB 3.2 Gen2)
: 0
Internal ports
Internal A-RGB 5V (3-pin)
: 0
Internal RGB 12V (4-pin)
: 0
Internal USB 2.0
: 2
Internal USB 3.0
: 1
Internal USB Type-C
: 0
M.2 Port
: 1
SATA3 ports
: 4
More detailed specification
15pin D-sub Input/Output connectors - 1
Accessories included - 1 x User Manual 1 x I/O Shield 2 x SATA data cables 1 x Screw for M.2 slot
Audio port Input/Output connectors - 3
BIOS -
BIOS - BIOS type - UEFI AMI
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Chipset - Intel H470 Express
Chipset manufacturer - Intel
Chipset type - Intel H470
CnCode CnCode - 84733020
Code - H510M-HDV/M.2 SE
COM connector / port - Yes
CPU socket - LGA1200
Description - - Supports 10th Gen & 11th Gen Intel® Core™ Processors (LGA1200) - 4+1+1 Power Phase Design - Supports DDR4 2933 MHz* - 1 PCIe 4.0 x16, 1 PCIe 3.0 x1 - Graphics Output Options: HDMI, DVI-D, D-Sub - Realtek ALC897 7.1 CH HD Audio Codec - 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3) - 6 USB 3.2 Gen1 (2 Front, 4 Rear) - Realtek Gigabit LAN - Supports ASRock Auto Driver Installer
Description - H510M-HDV/M.2 SE motherboard Supports 10th and 11th generation Intel Core processors (LGA1200) 5 Power phase design Supports DDR4 3200MHz 1 PCIe 4.0 x16, 1 PCIe 3.0 x1 Graphics output options: HDMI, DVI-D, D-Sub Realtek ALC897 7.1 CH HD audio codec 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 and SATA3) 6 USB 3.2 Gen1 ports (2 front, 4 rear) Realtek gigabit network card Supports ASRock Auto Driver Installer
Detailed data on disk/drive interfaces - Chipset: 1 x Ultra M.2 slot (M2_1, M key), supports 2260/2280 SATA3 6.0Gb/s and PCIe Gen3x4 (32Gb/s) modes 4 SATA3 6.0 Gb/s connectors
dimensionalWeight - 803
dimension depth - 60 mm
dimension height - 240 mm
Dimensions - 23.1 x 19.8 cm
dimension weight - 736 g
dimension width - 280 mm
DVI-D Input/Output connectors - 1
EAN - 4710483943126
ean - 4710483943126
Eans - 4710483943126
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1

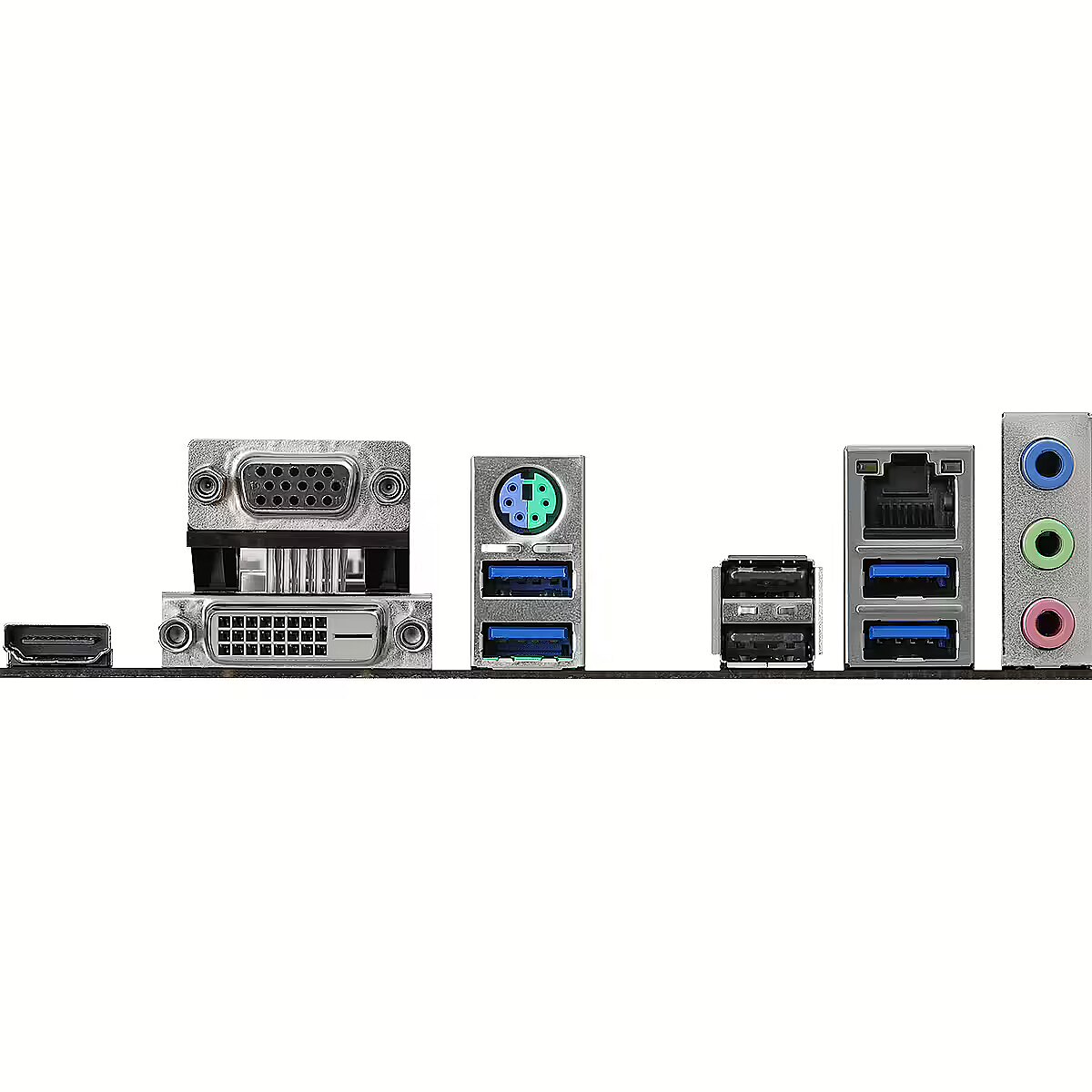

External connectors - 1 x D-Sub
External connectors - 1 x DVI-D
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x RJ-45
External connectors - 2 x USB 2.0
External connectors - 4 x USB 3.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - Intel H470
Features - Motherboard form factor - micro ATX
FireWire (IEEE 1394) - No
Form Factor - Micro-ATX
Form factor - micro ATX
Frequency speed - 2133/2400/2666/2800/2933 MHz
Full Description Line - Intel H470 Express|LGA1200|Micro-ATX|DDR4|2933/2800/2666/2400/2133 MHz|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub|1xDVI-D|1xHDMI|2xUSB 2.0|4xUSB 3.2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|LAN Gigabit|Audio Realtek ALC897|RAID SATA 0, 1, 5, 10|TPM Header
Graphics - 1xHDMI 11th Gen Intel processors support HDMI 2.0, HDCP 2.3 and max. resolution up to 4K 60 Hz 10th Gen Intel processors support HDMI 1.4, HDCP 2.3 and max. resolution up to 4K 30 Hz 1 x DVI-D, supports HDCP 2.3 and max. resolution up to Full HD (1920x1200) 60 Hz 1 x D-Sub, supports max. resolution up to Full HD (1920x1200) 60 Hz
Gross weight - 2.30 kg
guarantee - 24
guarantee_type - normal
HDMI Input/Output connectors - 1
Included Accessories - - 1 x User Manual
- 1 x I/O Shield
- 2 x SATA Data Cables
- 1 x Screw for M.2 Socket
Integrated audio - Realtek ALC897
Integrated CPU - No
Integrated LAN - Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.asrock.com/MB/Intel/H510M-HDVM.2%20SE/index.us.asp#Specification
LPT connector / port - No
M.2 Expansion slots - 1
Manufacturer - ASRock
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 64 GB
Memory - Maximum internal memory - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 2
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2666
Memory - Supported memory clock speeds - 2800
Memory - Supported memory clock speeds - 2933
Memory - Supported memory types - DDR4-SDRAM
Memory > Memory slots - 2
Memory > Supported memory types - DDR4 DIMM
Memory bus frequency - 2133 MHz
Memory bus frequency - 2400 MHz
Memory bus frequency - 2666 MHz
Memory bus frequency - 2800 MHz
Memory bus frequency - 2933 MHz
Memory bus frequency - 3200 MHz
Memory slots - 2
Memory type - DDR4
Memory type - DDR4
Model - H510M-HDV/M.2
Model - H510M-HDV/M.2 SE
MPN - 90-MXBM00-A0UAYZ
Name - 1200 ASROCK H510M-HDV/M.2 SE mATX D4
Name - ASRock H510M-HDV/M.2 SE
Name - ASRock | H510M-HDV/M.2 SE | Processor family Intel | Processor socket LGA1200 | DDR4 DIMM | Memory slots 2 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4 | Chipset H470 | Micro ATX
name - H510M-HDV/M.2 SE s1200 2DDR4 HDMI/DVI mATX
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek 8111H
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000 Mbit/s
Network interface - Gigabit LAN 10/100/1000 Mb/s Realtek 8111H
Number of DDR4 slots - 2
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 7
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 2 x USB 2.0/1.1 header
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 70.00 mm
Package features > Gross height (mm) - 295.00 mm
Package features > Gross width (mm) - 360.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 232 pc(s)
Package features > Paper/Pasteboard - 490.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.50 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
Performance > Chipset - H470
Performance > Motherboard form factor - Micro ATX
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1200
Processor > Compatible processor series - Supports 10th Gen & 11th Gen Intel Core Processors
Processor > Processor family - Intel
Processor > Processor socket - LGA1200
Processor family - Intel Core
producer - ASRock
Producer - ASRock
producerCode - H510M-HDV/M.2 SE
ProducerCode - H510M-HDV/M.2 SE
Producer product name - H510M-HDV/M.2 SE
productName - Asrock H510M-HDV/M.2 SE motherboard
productSize - Normal
RAID - No
RAID - SATA 0, 1, 5, 10
Rear panel I/O ports - DVI-D ports quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - PS/2 ports quantity - 2
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 28 cm
Shipping Box Height Shipping/Package Box Dimensions - 24 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1 kg
Shipping Box Width Shipping/Package Box Dimensions - 6 cm
ShortDescription - Socket 1200 | Chipset Intel H510 | DDR4 |
sizeX - 285
sizeY - 235
sizeZ - 60
Socket - LGA1200
Software -
Sound card - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Special functions -
Storage controllers - Number of HDDs supported - 4
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Net weight - 1.80 kg
Technical details > Producer - ASRock
TPM - Header
Unit Box Height - 0.24
Unit Box Length - 0.28
Unit Box Width - 0.06
Unit Brutto Volume - 0.004032 cubm
Unit Gross Weight - 1 kg
Unit Net Weight - 0.7 kg
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 4
USB 3.2 Interface - Yes
USB ports at back panel - 6
USB ports on motherboard - 6
Vendor Homepage - www.asrock.com/MB/Intel/H510M-HDVM.2%20SE/index.asp
vendpn - H510M-HDV/M.2 SE
Warranty - 24
Warranty - 24 month(s)
Warranty - 36 months
warrantyLength - 24
warrantyType - G
Weight - 0.72
weight - 750
Weight & dimensions - Depth - 198 mm
Weight & dimensions - Width - 231 mm
Accessories included - 1 x User Manual 1 x I/O Shield 2 x SATA data cables 1 x Screw for M.2 slot
Audio port Input/Output connectors - 3
BIOS -
BIOS - BIOS type - UEFI AMI
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Chipset - Intel H470 Express
Chipset manufacturer - Intel
Chipset type - Intel H470
CnCode CnCode - 84733020
Code - H510M-HDV/M.2 SE
COM connector / port - Yes
CPU socket - LGA1200
Description - - Supports 10th Gen & 11th Gen Intel® Core™ Processors (LGA1200) - 4+1+1 Power Phase Design - Supports DDR4 2933 MHz* - 1 PCIe 4.0 x16, 1 PCIe 3.0 x1 - Graphics Output Options: HDMI, DVI-D, D-Sub - Realtek ALC897 7.1 CH HD Audio Codec - 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3) - 6 USB 3.2 Gen1 (2 Front, 4 Rear) - Realtek Gigabit LAN - Supports ASRock Auto Driver Installer
Description - H510M-HDV/M.2 SE motherboard Supports 10th and 11th generation Intel Core processors (LGA1200) 5 Power phase design Supports DDR4 3200MHz 1 PCIe 4.0 x16, 1 PCIe 3.0 x1 Graphics output options: HDMI, DVI-D, D-Sub Realtek ALC897 7.1 CH HD audio codec 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 and SATA3) 6 USB 3.2 Gen1 ports (2 front, 4 rear) Realtek gigabit network card Supports ASRock Auto Driver Installer
Detailed data on disk/drive interfaces - Chipset: 1 x Ultra M.2 slot (M2_1, M key), supports 2260/2280 SATA3 6.0Gb/s and PCIe Gen3x4 (32Gb/s) modes 4 SATA3 6.0 Gb/s connectors
dimensionalWeight - 803
dimension depth - 60 mm
dimension height - 240 mm
Dimensions - 23.1 x 19.8 cm
dimension weight - 736 g
dimension width - 280 mm
DVI-D Input/Output connectors - 1
EAN - 4710483943126
ean - 4710483943126
Eans - 4710483943126
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
External connectors - 1 x D-Sub
External connectors - 1 x DVI-D
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x RJ-45
External connectors - 2 x USB 2.0
External connectors - 4 x USB 3.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - Intel H470
Features - Motherboard form factor - micro ATX
FireWire (IEEE 1394) - No
Form Factor - Micro-ATX
Form factor - micro ATX
Frequency speed - 2133/2400/2666/2800/2933 MHz
Full Description Line - Intel H470 Express|LGA1200|Micro-ATX|DDR4|2933/2800/2666/2400/2133 MHz|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub|1xDVI-D|1xHDMI|2xUSB 2.0|4xUSB 3.2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|LAN Gigabit|Audio Realtek ALC897|RAID SATA 0, 1, 5, 10|TPM Header
Graphics - 1xHDMI 11th Gen Intel processors support HDMI 2.0, HDCP 2.3 and max. resolution up to 4K 60 Hz 10th Gen Intel processors support HDMI 1.4, HDCP 2.3 and max. resolution up to 4K 30 Hz 1 x DVI-D, supports HDCP 2.3 and max. resolution up to Full HD (1920x1200) 60 Hz 1 x D-Sub, supports max. resolution up to Full HD (1920x1200) 60 Hz
Gross weight - 2.30 kg
guarantee - 24
guarantee_type - normal
HDMI Input/Output connectors - 1
Included Accessories - - 1 x User Manual
- 1 x I/O Shield
- 2 x SATA Data Cables
- 1 x Screw for M.2 Socket
Integrated audio - Realtek ALC897
Integrated CPU - No
Integrated LAN - Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.asrock.com/MB/Intel/H510M-HDVM.2%20SE/index.us.asp#Specification
LPT connector / port - No
M.2 Expansion slots - 1
Manufacturer - ASRock
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 64 GB
Memory - Maximum internal memory - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 2
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2666
Memory - Supported memory clock speeds - 2800
Memory - Supported memory clock speeds - 2933
Memory - Supported memory types - DDR4-SDRAM
Memory > Memory slots - 2
Memory > Supported memory types - DDR4 DIMM
Memory bus frequency - 2133 MHz
Memory bus frequency - 2400 MHz
Memory bus frequency - 2666 MHz
Memory bus frequency - 2800 MHz
Memory bus frequency - 2933 MHz
Memory bus frequency - 3200 MHz
Memory slots - 2
Memory type - DDR4
Memory type - DDR4
Model - H510M-HDV/M.2
Model - H510M-HDV/M.2 SE
MPN - 90-MXBM00-A0UAYZ
Name - 1200 ASROCK H510M-HDV/M.2 SE mATX D4
Name - ASRock H510M-HDV/M.2 SE
Name - ASRock | H510M-HDV/M.2 SE | Processor family Intel | Processor socket LGA1200 | DDR4 DIMM | Memory slots 2 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4 | Chipset H470 | Micro ATX
name - H510M-HDV/M.2 SE s1200 2DDR4 HDMI/DVI mATX
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek 8111H
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000 Mbit/s
Network interface - Gigabit LAN 10/100/1000 Mb/s Realtek 8111H
Number of DDR4 slots - 2
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 7
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 2 x USB 2.0/1.1 header
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 70.00 mm
Package features > Gross height (mm) - 295.00 mm
Package features > Gross width (mm) - 360.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 232 pc(s)
Package features > Paper/Pasteboard - 490.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.50 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
Performance > Chipset - H470
Performance > Motherboard form factor - Micro ATX
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1200
Processor > Compatible processor series - Supports 10th Gen & 11th Gen Intel Core Processors
Processor > Processor family - Intel
Processor > Processor socket - LGA1200
Processor family - Intel Core
producer - ASRock
Producer - ASRock
producerCode - H510M-HDV/M.2 SE
ProducerCode - H510M-HDV/M.2 SE
Producer product name - H510M-HDV/M.2 SE
productName - Asrock H510M-HDV/M.2 SE motherboard
productSize - Normal
RAID - No
RAID - SATA 0, 1, 5, 10
Rear panel I/O ports - DVI-D ports quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - PS/2 ports quantity - 2
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 28 cm
Shipping Box Height Shipping/Package Box Dimensions - 24 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1 kg
Shipping Box Width Shipping/Package Box Dimensions - 6 cm
ShortDescription - Socket 1200 | Chipset Intel H510 | DDR4 |
sizeX - 285
sizeY - 235
sizeZ - 60
Socket - LGA1200
Software -
Sound card - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Special functions -
Storage controllers - Number of HDDs supported - 4
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Net weight - 1.80 kg
Technical details > Producer - ASRock
TPM - Header
Unit Box Height - 0.24
Unit Box Length - 0.28
Unit Box Width - 0.06
Unit Brutto Volume - 0.004032 cubm
Unit Gross Weight - 1 kg
Unit Net Weight - 0.7 kg
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 4
USB 3.2 Interface - Yes
USB ports at back panel - 6
USB ports on motherboard - 6
Vendor Homepage - www.asrock.com/MB/Intel/H510M-HDVM.2%20SE/index.asp
vendpn - H510M-HDV/M.2 SE
Warranty - 24
Warranty - 24 month(s)
Warranty - 36 months
warrantyLength - 24
warrantyType - G
Weight - 0.72
weight - 750
Weight & dimensions - Depth - 198 mm
Weight & dimensions - Width - 231 mm
