ID: 975930
Product code: B760 PRO RS WIFI
In office 1 units
Warranty: 2 years

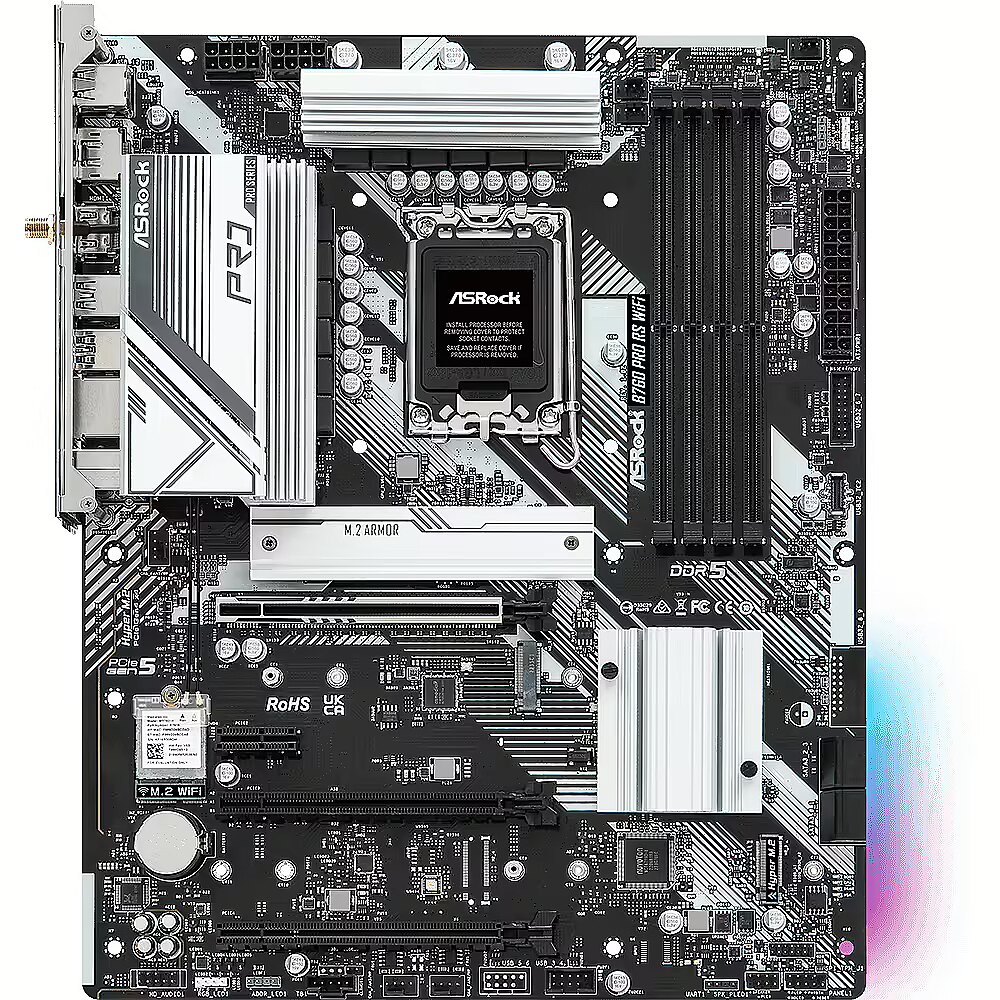

Asrock B760 Pro RS WiFi
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost 6.99 €: on Wednesday, 26.02.2025
- Courier delivery 11.99 €: on Wednesday, 26.02.2025
Main product parameters All parameters
- Series: ASRock Pro
- CPU Socket: LGA 1700
- Chipset: Intel B760
- Form factor: ATX
- Type: DDR5
- RAM Slots: 4
- Built-in Wi-Fi: Ir
Basic information
Series
: ASRock Pro
CPU Socket
LGA 1700
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel B760
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
ATX
The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR5
RAM Slots
4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR5 5600 (OC 7200)
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 0
DVI
: 0
HDMI
: 1
DisplayPort
: 1
Integrated sound card
: Realtek ALC897
Wireless connections
Built-in Bluetooth
: Ir
Built-in Wi-Fi
: Ir
External ports
External USB Type-C
: 1
External USB 2.0
: 2
External USB 3.0 (USB 3.2 Gen1)
: 4
External USB 3.1 (USB 3.2 Gen2)
: 1
Internal ports
Internal A-RGB 5V (3-pin)
: 2
Internal RGB 12V (4-pin)
: 2
Internal USB 2.0
: 1
Internal USB 3.0
: 1
Internal USB Type-C
: 1
M.2 Port
: 3
SATA3 ports
: 4
More detailed specification
Accessories included - 1 x Instrukcja Obsługi 2 x SATA Data Cables 2 x ASRock WiFi 2.4/5/6 GHz Antennas 3 x Screws for M.2 Sockets 1 x Standoff for M.2 Socket
Audio port Input/Output connectors - 3
BIOS - 128Mb AMI UEFI Legal BIOS with GUI support
Bluetooth Interface - Yes
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBI
category_en - Computers & Components > Computer components > Motherboards > Intel motherboards
category_lv - Datortehnika > Datoru komponentes > Pamatplates > Intel mātesplates
category_ru - Datortehnika > Datoru komponentes > Pamatplates > Intel mātesplates
Chipset - Intel B760 Express
Chipset manufacturer - Intel
Chipset type - Intel B760
Code - B760 PRO RS WIFI
COM connector / port - No
CPU socket - LGA1700
Description - - Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700) - 10+1+1 Power Phase, Dr.MOS for VCore+GT - Supports DDR5 7200MHz (OC) - 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1 - Graphics Output Options: HDMI, DisplayPort, eDP - Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio - 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4), - 1 M.2 (PCIe Gen4x2) - 2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front),1 USB 3.2 Gen2 Type-A (Rear),6 USB 3.2 Gen1 (4 Rear, 2 Front),4 USB 2.0 (2 Rear, 2 Front - Dragon 2.5G LAN,802.11ax Wi-Fi 6E + Bluetooth - Supports ASRock Auto Driver Installer
Description - Nowoczesna i futurystyczna, z atrakcyjnymi specyfikacjami i idealną równowagą, Race Sport (RS) Edition to ewolucja najpopularniejszej płyty głównej z serii PRO.
Jej unikalna ścieżka jest skierowana do przeciętnych majsterkowiczów, którzy zapewniają niezaprzeczalną wydajność i niezawodne wrażenia z obliczeń bez kosztownej aktualizacji.
RaceSport edition, Twoja wszechstronna płyta główna, która spełnia każde zadanie i granie przy niewielkim obciążeniu ze stylem i szybkością! Obsługa DDR5 XMP i EXPO
Wychodząc z koncepcji projektowej budowa dla stabilności i niezawodności, ASRock nie idzie na kompromisy w kwestii żadnych szczegółów. Ta płyta główna jest zbudowana z materiałów o niskiej stratności, dzięki czemu entuzjaści mogą cieszyć się zwiększoną wydajnością overclockingu pamięci DDR5j, włączając wstępnie przetestowane profile. Upewnij się, że moduły pamięci obsługują technologię Intel XMP/AMD EXPO, a overclocking może być niedrogi, satysfakcjonujący i absolutnie bezproblemowy. Pamięć DDR5 z obwodem ochronnym
Ze względu na unikalną architekturę elektryczną pamięci DDR5 DIMM istnieje duże ryzyko uszkodzenia modułu pamięci, jeśli zasilanie sieciowe nie zostanie prawidłowo odłączone podczas wyjmowania lub instalowania. Aby temu zapobiec, ASRock wdrożył bezproblemowy obwód ochronny na każdej płycie głównej DDR5, co zmniejsza ryzyko uszkodzenia modułu pamięci. PCIe 5.0 + Technologia Montażu Powierzchniowego
W porównaniu do konwencjonalnego gniazda PCIe typu DIP, gniazdo PCIe typu SMT poprawia przepływ sygnałów i maksymalizuje stabilność przy dużej prędkości, co jest kluczowym przełomem w zakresie pełnej obsługi maksymalnych osiągów najnowszego standardu PCIe 5.0.
Najnowszy port PCI Express 5.0 zapewnia zapierającą dech w piersiach przepustowość 128GB/s i jest gotowy do uwolnienia pełnego potencjału nadchodzących kart graficznych najwyższej klasy. POLICHROMICZNE RGB
Oprócz wbudowanego podświetlenia RGB, płyta posiada również zintegrowane, zwykłe oraz adresowalne headery RGB, które umożliwiają podłączenie kompatybilnych urządzeń LED takich jak paski LED-owe, wentylatory CPU, wiatraki, obudowy itd. Użytkownicy mogą zsynchronizować urządzenia RGB LED dzięki certyfikowanym akcesoriom Polychrome RGB Sync, aby stworzyć swój własny, unikalny styl podświetlenia. Szybkie Połączenia M.2(PCIe Gen4 x4)
Wsparcie dla dysków PCI Express 4.0 M.2 SSD, które mogą pracować nawet dwukrotnie szybciej w porównaniu do poprzedniej, 3-ciej generacji, zapewniając tym samym błyskawiczny transfer danych.
Sieć Dragon LAN 2.5 Gb/s
Inteligentna sieć LAN 2.5Gb/s zapewnia maksymalną prędkość połączenia dla zaspokojenia potrzeb nawet najbardziej wymagających użytkowników sieci domowej, twórców treści, graczy online oraz streamerów treści w wysokiej jakości. Przyspiesz swoje połączenie sieciowe 2.5-krotnie w stosunku do standardowego gigabitowego Ehernetu. Ciesz się niezrównaną szybkością podczas gamingu, transferu plików oraz wykonywania backupu. Wi-Fi 6E 802.11ax
Technologia WiFi 6E rozszerza się na częstotliwość 6GHz, dostarczając więcej możliwości łączności bezprzewodowej WiFi i szybszą łączność z internetem. W dodatku do wyższych przepustowości, WiFi 6E to również niższe opóźnienia oraz usługi ekwiwalentne do sieci 5G. Podwójne USB 3.2 Gen2 (Typ-A + Typ-C)
Ta płyta główna jest wyposażona w zintegrowane porty USB 3.2 Gen2 Typu-A oraz Typu-C na tylnym panelu WE/WY dla obsługi urządzeń USB 3.2 Gen2 nowej generacji z prędkością przesyłu danych aż do 10 Gbps. Przednie USB 3.2 Gen2 Typu-C
Przedni header USB 3.2 Gen2 Typu-C umożliwia transfer danych z prędkością aż do 10 Gbps, co więcej, odwracalny design USB nowej generacji dostępny jest na przednim panelu obudowy komputera.
description_en - The ASRock B760 Pro RS WiFi motherboard is designed to support modern Intel processors and offers a wide range of features for building high-performance systems.
Key Specifications: Processor Support: Supports 14th, 13th, and 12th Gen Intel® Core™ processors (LGA1700 socket). Power Delivery: 10+1+1-phase power design with Dr.MOS for VCore and integrated graphics, ensuring stable system operation. Memory: 4 DDR5 DIMM slots with dual-channel support and frequencies up to 7200+ MHz (OC). Expansion Slots: 1 x PCIe 5.0 x16
1 x PCIe 4.0 x16
1 x PCIe 3.0 x16
1 x PCIe 3.0 x1 Graphics Outputs: HDMI, DisplayPort, and eDP, supporting high-resolution displays. Audio: 7.1-channel HD Realtek ALC897 codec with Nahimic Audio technology for immersive sound quality. Storage: 4 x SATA3
2 x Hyper M.2 (PCIe Gen4x4)
1 x M.2 (PCIe Gen4x2) USB Ports: 2 x USB 3.2 Gen2 Type-C (1 rear, 1 front)
1 x USB 3.2 Gen2 Type-A (rear)
6 x USB 3.2 Gen1 (4 rear, 2 front)
4 x USB 2.0 (2 rear, 2 front) Networking: Dragon 2.5G LAN for wired connections
802.11ax Wi-Fi 6E module with Bluetooth support for wireless connectivity Additional Features: Pre-installed I/O shield for easier PC assembly
Auto Driver Installer from ASRock for automatic driver setup
AMD CrossFire™ support for multi-GPU configurations This motherboard combines modern technology with high performance, making it an excellent choice for building powerful and reliable PC systems.
description_lv - The ASRock B760 Pro RS WiFi motherboard is designed to support modern Intel processors and offers a wide range of features for building high-performance systems.
Key Specifications: Processor Support: Supports 14th, 13th, and 12th Gen Intel® Core™ processors (LGA1700 socket). Power Delivery: 10+1+1-phase power design with Dr.MOS for VCore and integrated graphics, ensuring stable system operation. Memory: 4 DDR5 DIMM slots with dual-channel support and frequencies up to 7200+ MHz (OC). Expansion Slots: 1 x PCIe 5.0 x16
1 x PCIe 4.0 x16
1 x PCIe 3.0 x16
1 x PCIe 3.0 x1 Graphics Outputs: HDMI, DisplayPort, and eDP, supporting high-resolution displays. Audio: 7.1-channel HD Realtek ALC897 codec with Nahimic Audio technology for immersive sound quality. Storage: 4 x SATA3
2 x Hyper M.2 (PCIe Gen4x4)
1 x M.2 (PCIe Gen4x2) USB Ports: 2 x USB 3.2 Gen2 Type-C (1 rear, 1 front)
1 x USB 3.2 Gen2 Type-A (rear)
6 x USB 3.2 Gen1 (4 rear, 2 front)
4 x USB 2.0 (2 rear, 2 front) Networking: Dragon 2.5G LAN for wired connections
802.11ax Wi-Fi 6E module with Bluetooth support for wireless connectivity Additional Features: Pre-installed I/O shield for easier PC assembly
Auto Driver Installer from ASRock for automatic driver setup
AMD CrossFire™ support for multi-GPU configurations This motherboard combines modern technology with high performance, making it an excellent choice for building powerful and reliable PC systems.
description_ru - The ASRock B760 Pro RS WiFi motherboard is designed to support modern Intel processors and offers a wide range of features for building high-performance systems.
Key Specifications: Processor Support: Supports 14th, 13th, and 12th Gen Intel® Core™ processors (LGA1700 socket). Power Delivery: 10+1+1-phase power design with Dr.MOS for VCore and integrated graphics, ensuring stable system operation. Memory: 4 DDR5 DIMM slots with dual-channel support and frequencies up to 7200+ MHz (OC). Expansion Slots: 1 x PCIe 5.0 x16
1 x PCIe 4.0 x16
1 x PCIe 3.0 x16
1 x PCIe 3.0 x1 Graphics Outputs: HDMI, DisplayPort, and eDP, supporting high-resolution displays. Audio: 7.1-channel HD Realtek ALC897 codec with Nahimic Audio technology for immersive sound quality. Storage: 4 x SATA3
2 x Hyper M.2 (PCIe Gen4x4)
1 x M.2 (PCIe Gen4x2) USB Ports: 2 x USB 3.2 Gen2 Type-C (1 rear, 1 front)
1 x USB 3.2 Gen2 Type-A (rear)
6 x USB 3.2 Gen1 (4 rear, 2 front)
4 x USB 2.0 (2 rear, 2 front) Networking: Dragon 2.5G LAN for wired connections
802.11ax Wi-Fi 6E module with Bluetooth support for wireless connectivity Additional Features: Pre-installed I/O shield for easier PC assembly
Auto Driver Installer from ASRock for automatic driver setup
AMD CrossFire™ support for multi-GPU configurations This motherboard combines modern technology with high performance, making it an excellent choice for building powerful and reliable PC systems.
Designation - CE+WEEE
Detailed data on disk/drive interfaces - CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors
*Obsługa Urządzenia do Zarządzania Woluminami Intel (VMD)
Obsługa bootowania z dysków NVMe SSD
RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA Dyski
dimension depth - 100 mm
dimension height - 290 mm
Dimensions - 30.5 cm x 24.4 cm
dimension weight - 1623 g
dimension width - 350 mm
DisplayPort Input/Output connectors - 1
EAN - 4710483942815
ean - 4710483942815
Eans - 4710483942815
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 3.0 x 16
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 1 x PCIe 5.0 x 16
External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.2 Gen 2 Type-A
External connectors - 1 x USB 3.2 Gen 2 Type-C
External connectors - 2 x SMA
External connectors - 2 x USB 2.0
External connectors - 4 x USB 3.2 Gen 1 Type-A
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 6000/5600/4800/7200 MHz
Full Description Line - Intel B760 Express|LGA1700|ATX|DDR5|7200/6000/5600/4800 MHz|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|3xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|5xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC897|RAID SATA 0, 1, 5, 10|TPM Header
Graphics - Intel Xe Architektura Graficzna (Gen 12) 1 x eDP 1.4, supports max. Rozdzielczośćup to Full HD 60Hz 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. Rozdzielczośćup to 4K 60Hz 1 x DisplayPort 1.4 z DSC (skompresowany), obsługa HDCP 2.3 o maks. rozdzielczości do 8K 60Hz / 5K 120Hz
gross_weight - 0.47 kg
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Included Accessories - - 1 x User Manual
- 2 x SATA Data Cables
- 2 x ASRock WiFi 2.4/5/6 GHz Antennas
- 3 x Screws for M.2 Sockets
- 1 x Standoff for M.2 Socket
Integrated audio - Realtek ALC897
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.asrock.com/mb/Intel/B760%20Pro%20RS%20WiFi/index.asp
LPT connector / port - No
M.2 Expansion slots - 3
Max. number of SATA devices - 4
Max memory size - 256 GB
Memory > Supported memory types - DDR5 DIMMs
Memory bus frequency - 3600 MHz
Memory bus frequency - 4000 MHz
Memory bus frequency - 4400 MHz
Memory bus frequency - 4800 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 7200 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - ASRock B760 PRO RS WIFI
Model - B760 Pro RS WiFi
Model - B760 PRO RS WIFI
Name - ASRock B760 Pro RS WiFi
Name - ASRock B760 PRO RS WIFI | Processor family Intel | Processor socket LGA1700 | DDR5 DIMMs | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
name - Motherboard B760 Pro RS WIFI s1700 4DDR5 DP/HDMI M.2 ATX
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - LAN 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control Wireless LAN 802.11ax Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ac/ax Obsługa Dual-Band 2x2 z rozszerzoną obsługą pasma 6GHz* 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Obsługa Bluetooth 5.3 + Wysoka prędkość klasy II Supports MU-MIMO
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 3
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x eDP
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Power led header
Onboard connectors - 1 x Thunderbolt header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 2.0/1.1 header
Onboard connectors - 1 x USB 3.2 Gen 1 Type-A
Onboard connectors - 1 x USB C
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x Addressable LED
Onboard connectors - 2 x RGB LED Strip
Onboard connectors - 5 x 4pin Chassis fan
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 70.00 mm
Package features > Gross height (mm) - 295.00 mm
Package features > Gross width (mm) - 360.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 116 pc(s)
Package features > Paper/Pasteboard - 400.00 g
Package features > Plastic (No PET) - 100.00 g
Package features > Tare weight (kg) - 0.50 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 3.0 16x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Processor family - Intel Core
producer - ASRock
Producer - ASRock
ProducerCode - B760 PRO RS WIFI
RAID - SATA 0, 1, 5, 10
RAID - Yes
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 36 cm
Shipping Box Height Shipping/Package Box Dimensions - 7.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.6 kg
Shipping Box Width Shipping/Package Box Dimensions - 30 cm
ShortDescription - Socket 1700 | Chipset Intel B760 | DDR5 |
Socket - LGA1700
Software - Software ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC* UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI Automatyczny Instalator Sterowników ASRock ASRock Funkcja Instant Flash ASRock Easy RAID Installer
Sound card - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Special functions -
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Gross weight - 2.30 kg
Technical details > Net weight - 1.80 kg
Technical details > Producer - ASRock
Technical details > Producer product name - B760 PRO RS WIFI
title_en - ASRock B760 PRO RS WIFI Motherboard ATX / Intel LGA1700
title_lv - ASRock B760 PRO RS WIFI Pamatplate ATX / Intel LGA1700
title_ru - ASRock B760 PRO RS WIFI Материнская плата ATX / Intel LGA1700
TPM - Header
Unit Box Height - 0.075
Unit Box Length - 0.36
Unit Box Width - 0.3
Unit Brutto Volume - 0.0081 cubm
Unit Gross Weight - 1.6 kg
Unit Net Weight - 1.2 kg
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 5
USB 3.2 Interface - Yes
USB ports at back panel - 8
USB ports on motherboard - 5
Vendor Homepage - www.asrock.com/MB/Intel/B760%20Pro%20RS%20WiFi/index.asp
vendpn - B760 PRO RS WIFI
Warranty - 24
Warranty - 24 month(s)
Warranty - 36 months
weight - 0.43 kg
WiFi Interface - Yes
Audio port Input/Output connectors - 3
BIOS - 128Mb AMI UEFI Legal BIOS with GUI support
Bluetooth Interface - Yes
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBI
category_en - Computers & Components > Computer components > Motherboards > Intel motherboards
category_lv - Datortehnika > Datoru komponentes > Pamatplates > Intel mātesplates
category_ru - Datortehnika > Datoru komponentes > Pamatplates > Intel mātesplates
Chipset - Intel B760 Express
Chipset manufacturer - Intel
Chipset type - Intel B760
Code - B760 PRO RS WIFI
COM connector / port - No
CPU socket - LGA1700
Description - - Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700) - 10+1+1 Power Phase, Dr.MOS for VCore+GT - Supports DDR5 7200MHz (OC) - 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1 - Graphics Output Options: HDMI, DisplayPort, eDP - Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio - 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4), - 1 M.2 (PCIe Gen4x2) - 2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front),1 USB 3.2 Gen2 Type-A (Rear),6 USB 3.2 Gen1 (4 Rear, 2 Front),4 USB 2.0 (2 Rear, 2 Front - Dragon 2.5G LAN,802.11ax Wi-Fi 6E + Bluetooth - Supports ASRock Auto Driver Installer
Description - Nowoczesna i futurystyczna, z atrakcyjnymi specyfikacjami i idealną równowagą, Race Sport (RS) Edition to ewolucja najpopularniejszej płyty głównej z serii PRO.
Jej unikalna ścieżka jest skierowana do przeciętnych majsterkowiczów, którzy zapewniają niezaprzeczalną wydajność i niezawodne wrażenia z obliczeń bez kosztownej aktualizacji.
RaceSport edition, Twoja wszechstronna płyta główna, która spełnia każde zadanie i granie przy niewielkim obciążeniu ze stylem i szybkością! Obsługa DDR5 XMP i EXPO
Wychodząc z koncepcji projektowej budowa dla stabilności i niezawodności, ASRock nie idzie na kompromisy w kwestii żadnych szczegółów. Ta płyta główna jest zbudowana z materiałów o niskiej stratności, dzięki czemu entuzjaści mogą cieszyć się zwiększoną wydajnością overclockingu pamięci DDR5j, włączając wstępnie przetestowane profile. Upewnij się, że moduły pamięci obsługują technologię Intel XMP/AMD EXPO, a overclocking może być niedrogi, satysfakcjonujący i absolutnie bezproblemowy. Pamięć DDR5 z obwodem ochronnym
Ze względu na unikalną architekturę elektryczną pamięci DDR5 DIMM istnieje duże ryzyko uszkodzenia modułu pamięci, jeśli zasilanie sieciowe nie zostanie prawidłowo odłączone podczas wyjmowania lub instalowania. Aby temu zapobiec, ASRock wdrożył bezproblemowy obwód ochronny na każdej płycie głównej DDR5, co zmniejsza ryzyko uszkodzenia modułu pamięci. PCIe 5.0 + Technologia Montażu Powierzchniowego
W porównaniu do konwencjonalnego gniazda PCIe typu DIP, gniazdo PCIe typu SMT poprawia przepływ sygnałów i maksymalizuje stabilność przy dużej prędkości, co jest kluczowym przełomem w zakresie pełnej obsługi maksymalnych osiągów najnowszego standardu PCIe 5.0.
Najnowszy port PCI Express 5.0 zapewnia zapierającą dech w piersiach przepustowość 128GB/s i jest gotowy do uwolnienia pełnego potencjału nadchodzących kart graficznych najwyższej klasy. POLICHROMICZNE RGB
Oprócz wbudowanego podświetlenia RGB, płyta posiada również zintegrowane, zwykłe oraz adresowalne headery RGB, które umożliwiają podłączenie kompatybilnych urządzeń LED takich jak paski LED-owe, wentylatory CPU, wiatraki, obudowy itd. Użytkownicy mogą zsynchronizować urządzenia RGB LED dzięki certyfikowanym akcesoriom Polychrome RGB Sync, aby stworzyć swój własny, unikalny styl podświetlenia. Szybkie Połączenia M.2(PCIe Gen4 x4)
Wsparcie dla dysków PCI Express 4.0 M.2 SSD, które mogą pracować nawet dwukrotnie szybciej w porównaniu do poprzedniej, 3-ciej generacji, zapewniając tym samym błyskawiczny transfer danych.
Sieć Dragon LAN 2.5 Gb/s
Inteligentna sieć LAN 2.5Gb/s zapewnia maksymalną prędkość połączenia dla zaspokojenia potrzeb nawet najbardziej wymagających użytkowników sieci domowej, twórców treści, graczy online oraz streamerów treści w wysokiej jakości. Przyspiesz swoje połączenie sieciowe 2.5-krotnie w stosunku do standardowego gigabitowego Ehernetu. Ciesz się niezrównaną szybkością podczas gamingu, transferu plików oraz wykonywania backupu. Wi-Fi 6E 802.11ax
Technologia WiFi 6E rozszerza się na częstotliwość 6GHz, dostarczając więcej możliwości łączności bezprzewodowej WiFi i szybszą łączność z internetem. W dodatku do wyższych przepustowości, WiFi 6E to również niższe opóźnienia oraz usługi ekwiwalentne do sieci 5G. Podwójne USB 3.2 Gen2 (Typ-A + Typ-C)
Ta płyta główna jest wyposażona w zintegrowane porty USB 3.2 Gen2 Typu-A oraz Typu-C na tylnym panelu WE/WY dla obsługi urządzeń USB 3.2 Gen2 nowej generacji z prędkością przesyłu danych aż do 10 Gbps. Przednie USB 3.2 Gen2 Typu-C
Przedni header USB 3.2 Gen2 Typu-C umożliwia transfer danych z prędkością aż do 10 Gbps, co więcej, odwracalny design USB nowej generacji dostępny jest na przednim panelu obudowy komputera.
description_en - The ASRock B760 Pro RS WiFi motherboard is designed to support modern Intel processors and offers a wide range of features for building high-performance systems.
Key Specifications: Processor Support: Supports 14th, 13th, and 12th Gen Intel® Core™ processors (LGA1700 socket). Power Delivery: 10+1+1-phase power design with Dr.MOS for VCore and integrated graphics, ensuring stable system operation. Memory: 4 DDR5 DIMM slots with dual-channel support and frequencies up to 7200+ MHz (OC). Expansion Slots: 1 x PCIe 5.0 x16
1 x PCIe 4.0 x16
1 x PCIe 3.0 x16
1 x PCIe 3.0 x1 Graphics Outputs: HDMI, DisplayPort, and eDP, supporting high-resolution displays. Audio: 7.1-channel HD Realtek ALC897 codec with Nahimic Audio technology for immersive sound quality. Storage: 4 x SATA3
2 x Hyper M.2 (PCIe Gen4x4)
1 x M.2 (PCIe Gen4x2) USB Ports: 2 x USB 3.2 Gen2 Type-C (1 rear, 1 front)
1 x USB 3.2 Gen2 Type-A (rear)
6 x USB 3.2 Gen1 (4 rear, 2 front)
4 x USB 2.0 (2 rear, 2 front) Networking: Dragon 2.5G LAN for wired connections
802.11ax Wi-Fi 6E module with Bluetooth support for wireless connectivity Additional Features: Pre-installed I/O shield for easier PC assembly
Auto Driver Installer from ASRock for automatic driver setup
AMD CrossFire™ support for multi-GPU configurations This motherboard combines modern technology with high performance, making it an excellent choice for building powerful and reliable PC systems.
description_lv - The ASRock B760 Pro RS WiFi motherboard is designed to support modern Intel processors and offers a wide range of features for building high-performance systems.
Key Specifications: Processor Support: Supports 14th, 13th, and 12th Gen Intel® Core™ processors (LGA1700 socket). Power Delivery: 10+1+1-phase power design with Dr.MOS for VCore and integrated graphics, ensuring stable system operation. Memory: 4 DDR5 DIMM slots with dual-channel support and frequencies up to 7200+ MHz (OC). Expansion Slots: 1 x PCIe 5.0 x16
1 x PCIe 4.0 x16
1 x PCIe 3.0 x16
1 x PCIe 3.0 x1 Graphics Outputs: HDMI, DisplayPort, and eDP, supporting high-resolution displays. Audio: 7.1-channel HD Realtek ALC897 codec with Nahimic Audio technology for immersive sound quality. Storage: 4 x SATA3
2 x Hyper M.2 (PCIe Gen4x4)
1 x M.2 (PCIe Gen4x2) USB Ports: 2 x USB 3.2 Gen2 Type-C (1 rear, 1 front)
1 x USB 3.2 Gen2 Type-A (rear)
6 x USB 3.2 Gen1 (4 rear, 2 front)
4 x USB 2.0 (2 rear, 2 front) Networking: Dragon 2.5G LAN for wired connections
802.11ax Wi-Fi 6E module with Bluetooth support for wireless connectivity Additional Features: Pre-installed I/O shield for easier PC assembly
Auto Driver Installer from ASRock for automatic driver setup
AMD CrossFire™ support for multi-GPU configurations This motherboard combines modern technology with high performance, making it an excellent choice for building powerful and reliable PC systems.
description_ru - The ASRock B760 Pro RS WiFi motherboard is designed to support modern Intel processors and offers a wide range of features for building high-performance systems.
Key Specifications: Processor Support: Supports 14th, 13th, and 12th Gen Intel® Core™ processors (LGA1700 socket). Power Delivery: 10+1+1-phase power design with Dr.MOS for VCore and integrated graphics, ensuring stable system operation. Memory: 4 DDR5 DIMM slots with dual-channel support and frequencies up to 7200+ MHz (OC). Expansion Slots: 1 x PCIe 5.0 x16
1 x PCIe 4.0 x16
1 x PCIe 3.0 x16
1 x PCIe 3.0 x1 Graphics Outputs: HDMI, DisplayPort, and eDP, supporting high-resolution displays. Audio: 7.1-channel HD Realtek ALC897 codec with Nahimic Audio technology for immersive sound quality. Storage: 4 x SATA3
2 x Hyper M.2 (PCIe Gen4x4)
1 x M.2 (PCIe Gen4x2) USB Ports: 2 x USB 3.2 Gen2 Type-C (1 rear, 1 front)
1 x USB 3.2 Gen2 Type-A (rear)
6 x USB 3.2 Gen1 (4 rear, 2 front)
4 x USB 2.0 (2 rear, 2 front) Networking: Dragon 2.5G LAN for wired connections
802.11ax Wi-Fi 6E module with Bluetooth support for wireless connectivity Additional Features: Pre-installed I/O shield for easier PC assembly
Auto Driver Installer from ASRock for automatic driver setup
AMD CrossFire™ support for multi-GPU configurations This motherboard combines modern technology with high performance, making it an excellent choice for building powerful and reliable PC systems.
Designation - CE+WEEE
Detailed data on disk/drive interfaces - CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors
*Obsługa Urządzenia do Zarządzania Woluminami Intel (VMD)
Obsługa bootowania z dysków NVMe SSD
RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA Dyski
dimension depth - 100 mm
dimension height - 290 mm
Dimensions - 30.5 cm x 24.4 cm
dimension weight - 1623 g
dimension width - 350 mm
DisplayPort Input/Output connectors - 1
EAN - 4710483942815
ean - 4710483942815
Eans - 4710483942815
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 3.0 x 16
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 1 x PCIe 5.0 x 16
External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.2 Gen 2 Type-A
External connectors - 1 x USB 3.2 Gen 2 Type-C
External connectors - 2 x SMA
External connectors - 2 x USB 2.0
External connectors - 4 x USB 3.2 Gen 1 Type-A
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 6000/5600/4800/7200 MHz
Full Description Line - Intel B760 Express|LGA1700|ATX|DDR5|7200/6000/5600/4800 MHz|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|3xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|5xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC897|RAID SATA 0, 1, 5, 10|TPM Header
Graphics - Intel Xe Architektura Graficzna (Gen 12) 1 x eDP 1.4, supports max. Rozdzielczośćup to Full HD 60Hz 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. Rozdzielczośćup to 4K 60Hz 1 x DisplayPort 1.4 z DSC (skompresowany), obsługa HDCP 2.3 o maks. rozdzielczości do 8K 60Hz / 5K 120Hz
gross_weight - 0.47 kg
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Included Accessories - - 1 x User Manual
- 2 x SATA Data Cables
- 2 x ASRock WiFi 2.4/5/6 GHz Antennas
- 3 x Screws for M.2 Sockets
- 1 x Standoff for M.2 Socket
Integrated audio - Realtek ALC897
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.asrock.com/mb/Intel/B760%20Pro%20RS%20WiFi/index.asp
LPT connector / port - No
M.2 Expansion slots - 3
Max. number of SATA devices - 4
Max memory size - 256 GB
Memory > Supported memory types - DDR5 DIMMs
Memory bus frequency - 3600 MHz
Memory bus frequency - 4000 MHz
Memory bus frequency - 4400 MHz
Memory bus frequency - 4800 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 7200 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - ASRock B760 PRO RS WIFI
Model - B760 Pro RS WiFi
Model - B760 PRO RS WIFI
Name - ASRock B760 Pro RS WiFi
Name - ASRock B760 PRO RS WIFI | Processor family Intel | Processor socket LGA1700 | DDR5 DIMMs | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
name - Motherboard B760 Pro RS WIFI s1700 4DDR5 DP/HDMI M.2 ATX
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - LAN 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control Wireless LAN 802.11ax Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ac/ax Obsługa Dual-Band 2x2 z rozszerzoną obsługą pasma 6GHz* 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Obsługa Bluetooth 5.3 + Wysoka prędkość klasy II Supports MU-MIMO
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 3
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x eDP
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Power led header
Onboard connectors - 1 x Thunderbolt header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 2.0/1.1 header
Onboard connectors - 1 x USB 3.2 Gen 1 Type-A
Onboard connectors - 1 x USB C
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x Addressable LED
Onboard connectors - 2 x RGB LED Strip
Onboard connectors - 5 x 4pin Chassis fan
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 70.00 mm
Package features > Gross height (mm) - 295.00 mm
Package features > Gross width (mm) - 360.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 116 pc(s)
Package features > Paper/Pasteboard - 400.00 g
Package features > Plastic (No PET) - 100.00 g
Package features > Tare weight (kg) - 0.50 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 3.0 16x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Processor family - Intel Core
producer - ASRock
Producer - ASRock
ProducerCode - B760 PRO RS WIFI
RAID - SATA 0, 1, 5, 10
RAID - Yes
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 36 cm
Shipping Box Height Shipping/Package Box Dimensions - 7.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.6 kg
Shipping Box Width Shipping/Package Box Dimensions - 30 cm
ShortDescription - Socket 1700 | Chipset Intel B760 | DDR5 |
Socket - LGA1700
Software - Software ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC* UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI Automatyczny Instalator Sterowników ASRock ASRock Funkcja Instant Flash ASRock Easy RAID Installer
Sound card - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Special functions -
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Gross weight - 2.30 kg
Technical details > Net weight - 1.80 kg
Technical details > Producer - ASRock
Technical details > Producer product name - B760 PRO RS WIFI
title_en - ASRock B760 PRO RS WIFI Motherboard ATX / Intel LGA1700
title_lv - ASRock B760 PRO RS WIFI Pamatplate ATX / Intel LGA1700
title_ru - ASRock B760 PRO RS WIFI Материнская плата ATX / Intel LGA1700
TPM - Header
Unit Box Height - 0.075
Unit Box Length - 0.36
Unit Box Width - 0.3
Unit Brutto Volume - 0.0081 cubm
Unit Gross Weight - 1.6 kg
Unit Net Weight - 1.2 kg
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 5
USB 3.2 Interface - Yes
USB ports at back panel - 8
USB ports on motherboard - 5
Vendor Homepage - www.asrock.com/MB/Intel/B760%20Pro%20RS%20WiFi/index.asp
vendpn - B760 PRO RS WIFI
Warranty - 24
Warranty - 24 month(s)
Warranty - 36 months
weight - 0.43 kg
WiFi Interface - Yes
