ID: 953236
Product code: H610M H V2 DDR4
Can be ordered 2 units Availability: 14 days after order approval
Warranty: 3 years

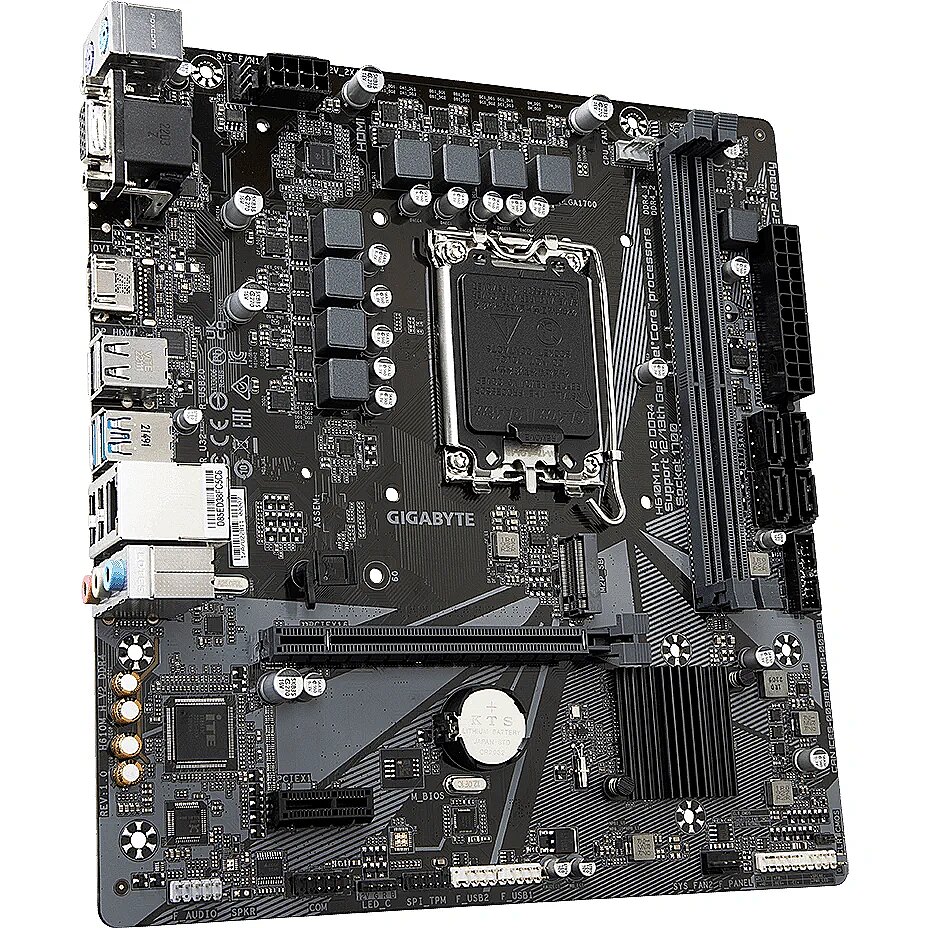

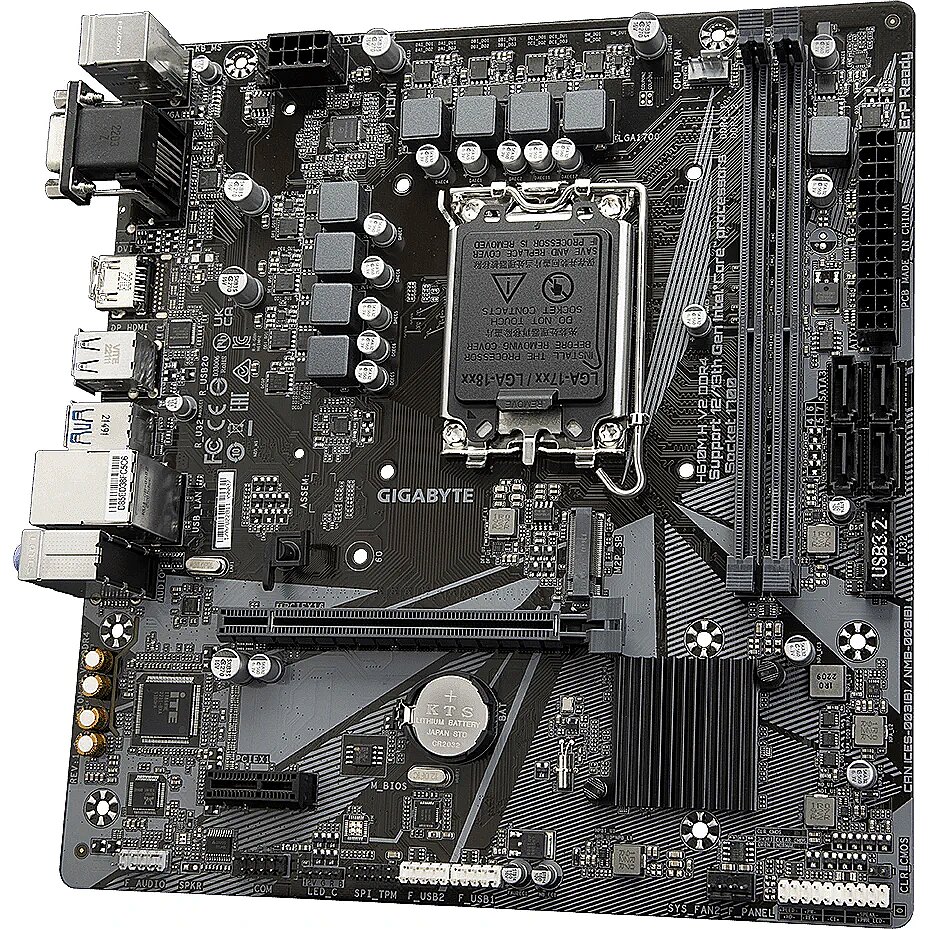

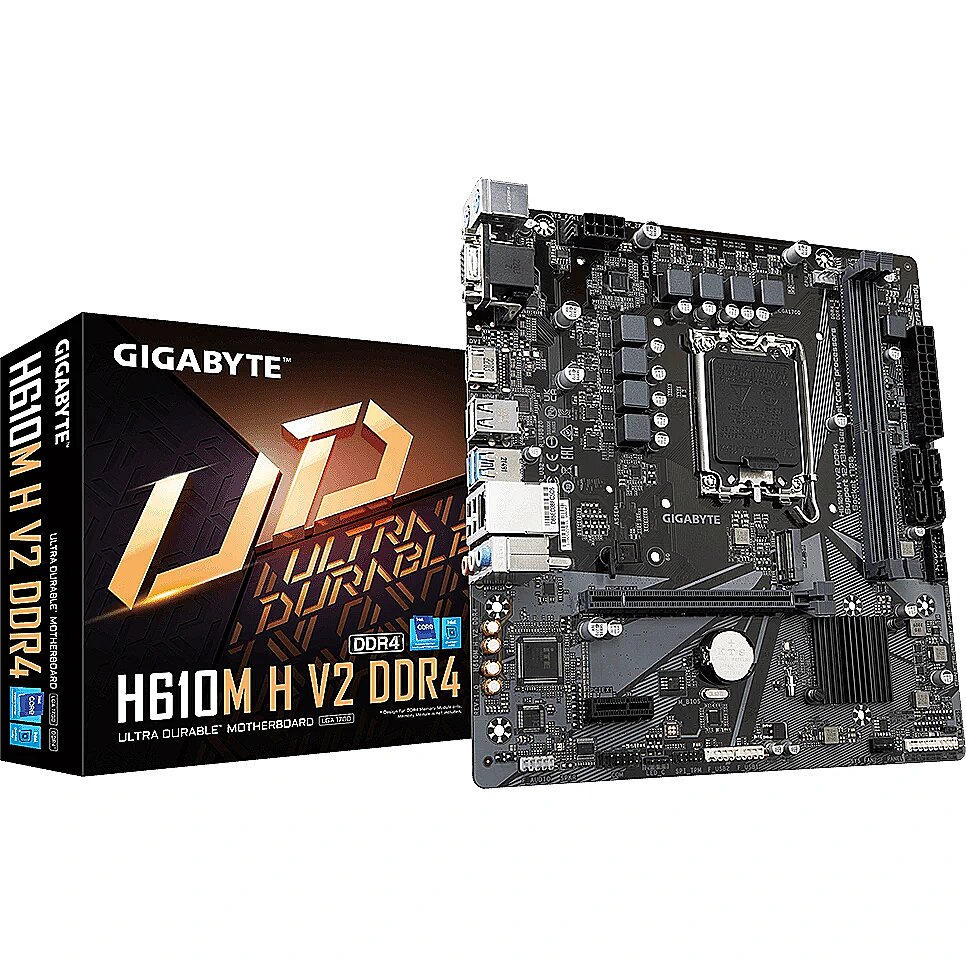

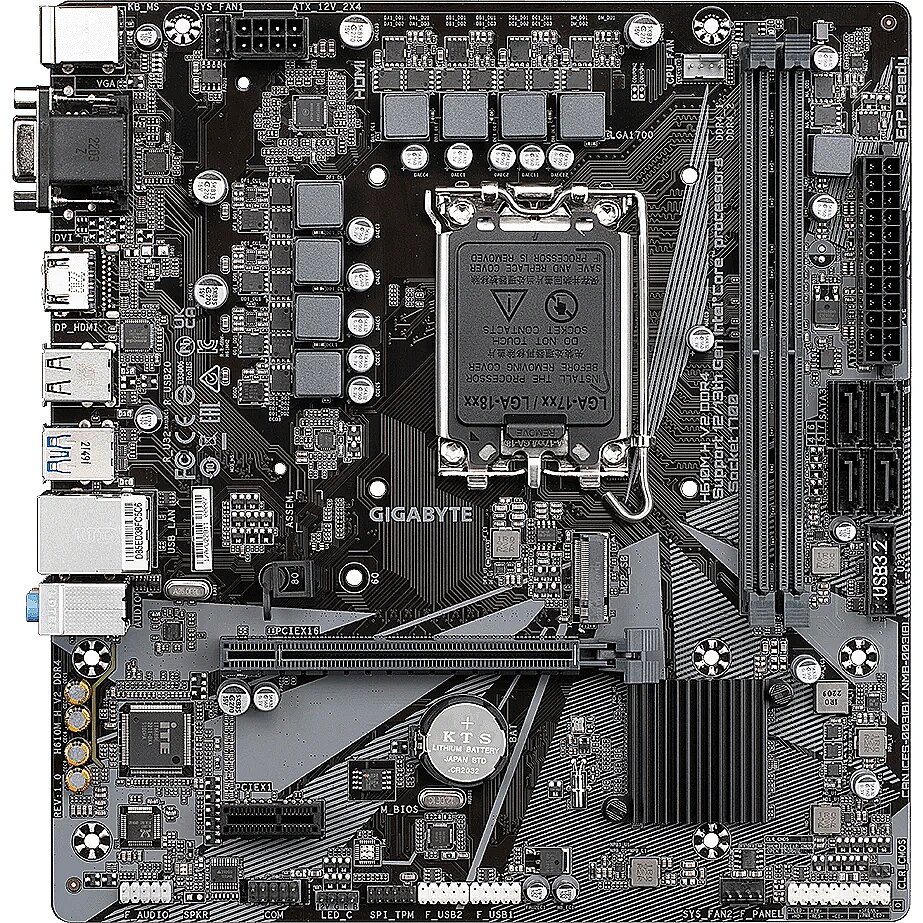

Gigabyte H610M H V2 DDR4
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Main product parameters All parameters
- Series: Gigabyte Ultra Durable
- CPU Socket: LGA 1700
- Chipset: Intel H610
- Form factor: Micro ATX
- Type: DDR4
- RAM Slots: 2
- Built-in Wi-Fi: Nav
Basic information
Series
: Gigabyte Ultra Durable
CPU Socket
LGA 1700
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel H610
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
Micro ATX
The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR4
RAM Slots
2
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR4 3200
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 1
DVI
: 0
HDMI
: 1
DisplayPort
: 0
Integrated sound card
: Realtek Audio CODEC
Wireless connections
Built-in Bluetooth
: Nav
Built-in Wi-Fi
: Nav
External ports
External USB Type-C
: 0
External USB 2.0
: 4
External USB 3.0 (USB 3.2 Gen1)
: 2
External USB 3.1 (USB 3.2 Gen2)
: 0
Internal ports
Internal A-RGB 5V (3-pin)
: 0
Internal RGB 12V (4-pin)
: 1
Internal USB 2.0
: 2
Internal USB 3.0
: 1
Internal USB Type-C
: 0
M.2 Port
: 1
SATA3 ports
: 4
More detailed specification
15pin D-sub Input/Output connectors - 1
Accessories included -
Audio port Input/Output connectors - 3
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - 1 x 128 Mbit flash Uses AMI UEFI BIOS license PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Brand - Gigabyte
BrandPartCode - H610M H V2 DDR4
category - Mainboards Intel Mainboards
Category - Motherboards
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel H610
Chipset manufacturer - Intel
Chipset type - Intel H610 Express Chipset
code - H610M H V2 DDR4
COM connector / port - Yes
CPU socket - LGA1700
Description -
Description - Intel® H610 Motherboard with 6+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2, Anti-Sulfur Resistor, Smart Fan 6 - Supports 13th/12th Gen Intel® Core™ Series Processors - Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs - 6+1+1 Hybrid Digital VRM Design - GbE LAN with Bandwidth Management - NVMe PCIe 3.0 x4 M.2 - High Quality Audio Capacitors and Audio Noise Guard - Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP - GIGABYTE APP Center, Simple and Easy Use - Anti-Sulfur Resistors Design
Detailed data on disk/drive interfaces - 1 x M.2 (Slot 3, M Key, PCIe 3.0 x4/x2 type 2280/2260 SSD support) 4 SATA 6Gb/s connectors
dimensionalWeight - 758
dimension depth - 270 mm
dimension height - 65 mm
Dimensions - 23 x 21.5 cm
dimension weight - 780 g
dimension width - 265 mm
ean - 4719331851743
EAN - 4719331851743
Eans - 4719331851743
EAN_code - 4719331851743
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express slots version - 4.0
Expansion slots - PCI Express x1 slots - 1
Expansion slots - PCI Express x16 slots - 1

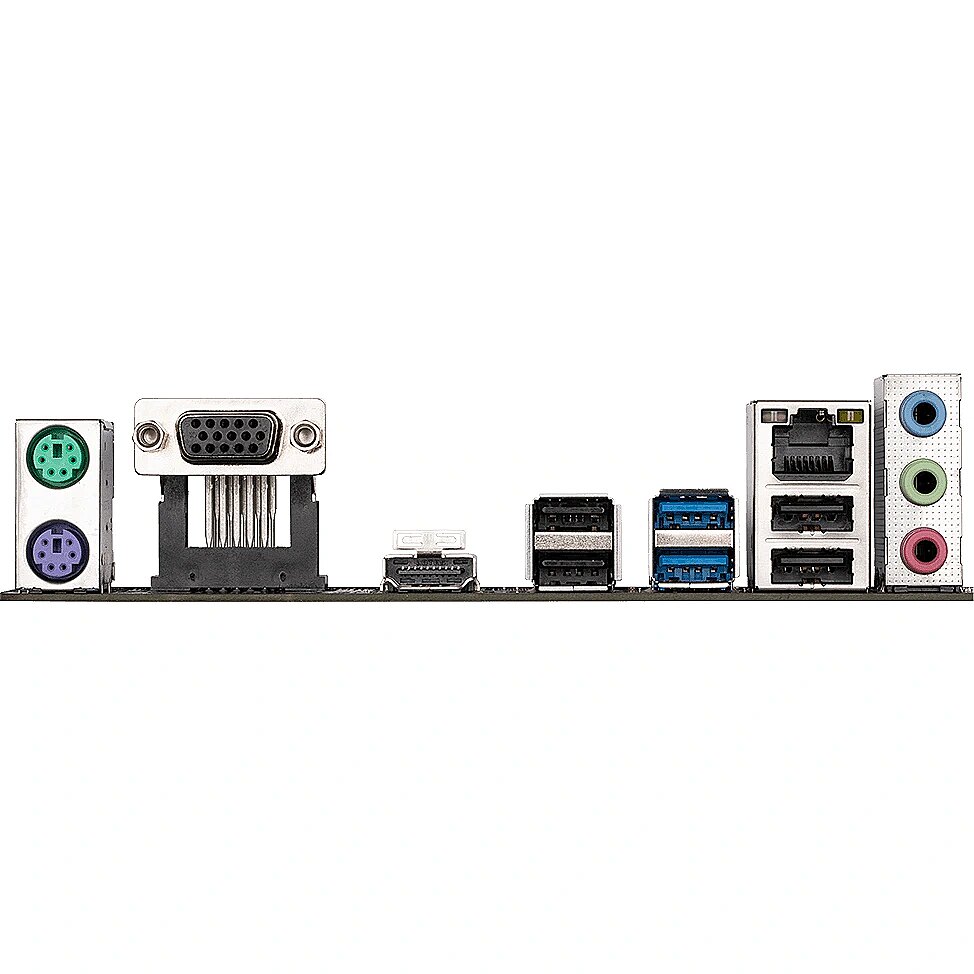

External connectors - 1 x D-Sub
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard
External connectors - 1 x PS/2 Mouse
External connectors - 1 x RJ-45
External connectors - 2 x USB 3.0
External connectors - 4 x USB 2.0
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel H610 Express
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - Product colour - Bronze
Features - Product colour - Brown
Features - Windows operating systems supported - Windows 10 Education x64
Features - Windows operating systems supported - Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64, Windows 11 Enterprise x64, Windows 11 x64
Features - Windows operating systems supported - Windows 10 Enterprise x64
Features - Windows operating systems supported - Windows 10 Home x64
Features - Windows operating systems supported - Windows 10 Pro x64
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 11 Enterprise x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - Micro-ATX
Form factor - micro ATX
Frequency speed - 2133/2400/2666/2933/3000/3200 MHz
Full Description Line - Intel H610|LGA1700|Micro-ATX|DDR4|3200/3000/2933/2666/2400/2133 MHz|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub|1xHDMI|4xUSB 2.0|2xUSB 3.2|2xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|LAN Gigabit|Audio|TPM Header
Graphics - Integrated Graphics Processor - Supports Intel HD Graphics D-Sub port supporting a maximum resolution of 1920x1200 at 60Hz HDMI port supporting a maximum resolution of 4096x2160 at 60 Hz * Support for HDMI 2.1 and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.)
Graphics - DirectX version - 12.0
Graphics - Graphics card - HD Graphics
Graphics - Graphics card family - Intel
Graphics - Maximum resolution - 4096 x 2160 pixels
Gross Weight Kg - 0,7
GTIN - 4719331851743
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Yes
Integrated CPU - No
Integrated LAN - Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - Serial port headers - 1
Internal I/O - Total number of SATA connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
LongProductName - Intel H610, 2 x DDR4, 1 x D-Sub, 1 x HDMI, 1 x GbE LAN, 4 x SATA, 1 x M.2, 4 x USB 3.2 Gen 1, 4 x USB 2.0, 128 Mbit flash
LongSummaryDescription - Gigabyte H610M H V2 DDR4 Motherboard - Supports Intel Core 14th CPUs, 6+1+1 Hybrid Digital VRM, up to 3200MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Graphics card family: Intel, Graphics card: HD Graphics, Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet
LPT connector / port - No
M.2 Expansion slots - 1
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer Code - H610M H V2 DDR4
Manufacturer Name - Gigabyte
Manufacturer_code - H610M H V2 DDR4
Max. number of SATA devices - 4
Max memory size - 64 GB
Memory - ECC - Yes
Memory - Maximum internal memory - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 2
Memory - Supported memory clock speed (max) - 3200 MHz
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2133,2400,2666,2933,3000,3200 MHz
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2666 MHz
Memory - Supported memory clock speeds - 2933 MHz
Memory - Supported memory clock speeds - 3000
Memory - Supported memory clock speeds - 3200 MHz
Memory - Supported memory module capacities - 1GB
Memory - Supported memory module capacities - 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Memory - Supported memory module capacities - 2GB
Memory - Supported memory module capacities - 4GB
Memory - Supported memory module capacities - 8GB
Memory - Supported memory module capacities - 12GB
Memory - Supported memory module capacities - 16GB
Memory - Supported memory module capacities - 32GB
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 2133 MHz
Memory bus frequency - 2400 MHz
Memory bus frequency - 2666 MHz
Memory bus frequency - 2933 MHz
Memory bus frequency - 3000 MHz
Memory bus frequency - 3200 MHz
Memory slots - 2
Memory type - DDR4
Memory type - DDR4
Model - H610M H V2 DDR4
MPN - H610M H V2 DDR4
Name - 1700 Gigabyte H610M H DDR4 V2
Name - Gigabyte H610M H V2 DDR4
Name - GIGABYTE H610M H V2 DDR4 - Socket 1700 - motherboard
name - GIGABYTE H610M H V2 DDR4, Intel H610 Mainboard, Sockel 1700, DDR4
name - Motherboard H610M H V2 DDR4 s1700 2DDR4 HDMI USB mATX
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000 Mbit/s
Network interface - Realtek GbE LAN chip (1 Gbps/100 Mbps)
Number of DDR4 slots - 2
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x M.2
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 2 x 4pin Chassis fan
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 4 x SATA III 6Gb/s
Onboard connectors - 4 x USB 2.0/1.1
Other information -
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton Internet Security
LAN bandwidth management software
Packaging data - Package depth - 265 mm
Packaging data - Package height - 54 mm
Packaging data - Package weight - 818 g
Packaging data - Package width - 265 mm
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Compatible processor series - Intel® Pentium® Gold
Processor - Maximum internal memory supported by processor - 64 GB
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor family - Intel Celeron
Processor family - Intel Core i3
Processor family - Intel Core i5
Processor family - Intel Core i7
Processor family - Intel Core i9
Processor family - Intel Pentium Gold
producer - Gigabyte
Producer - Gigabyte
producerCode - H610M H V2 DDR4
ProducerCode - H610M H V2 DDR4
productName - Gigabyte H610M H V2 DDR4 Motherboard - Supports Intel Core 14th CPUs, 6+1+1 Hybrid Digital VRM, up to 3200MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
ProductName - H610M H V2 DDR4 Motherboard - Supports Intel Core 14th CPUs, 6+1+1 Hybrid Digital VRM, up to 3200MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
productSize - Normal
PS/2 Input/Output connectors - 2
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 2
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 27 cm
Shipping Box Height Shipping/Package Box Dimensions - 5.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.773 kg
Shipping Box Width Shipping/Package Box Dimensions - 27 cm
Short description - GIGA H610M H V2 DDR4 S1700/DDR4/µATX
ShortDescription - Socket 1700| Chipset Intel H610 | DDR4 |
ShortSummaryDescription - Gigabyte H610M H V2 DDR4 Motherboard - Supports Intel Core 14th CPUs, 6+1+1 Hybrid Digital VRM, up to 3200MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, 64 GB, DDR4-SDRAM
sizeX - 54
sizeY - 265
sizeZ - 265
Socket - LGA1700
Software - Norton Internet Security (OEM version) LAN bandwidth management software
Sound card - Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel *Audio jack functionality can be changed via audio software. To set up 7.1-channel audio, go to your audio software for audio settings.
Special functions - Support for APP Center Support @ BIOS ambient LED EasyTune Smart Backup System Information Viewer Q Flash support Xpress Install support
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 5
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details - Warranty period - 3 year(s)
Title - Gigabyte H610M H V2 DDR4 Motherboard - Supports Intel Core 14th CPUs, 6+1+1 Hybrid Digital VRM, up to 3200MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
TPM - Header
Unit Box Height - 0.055
Unit Box Length - 0.27
Unit Box Width - 0.27
Unit Brutto Volume - 0.00401 cubm
Unit Gross Weight - 0.773 kg
Unit Net Weight - 0.6 kg
URL - https://www.gigabyte.com/Motherboard/H610M-H-V2-DDR4-rev-10#kf
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 2
USB 3.2 Interface - Yes
USB ports at back panel - 6
USB ports on motherboard - 6
Vendor Homepage - www.gigabyte.com/Motherboard/H610M-H-V2-DDR4-rev-10#kf
vendpn - H610M H V2 DDR4
Warranty - 36 months
WarrantyInfo - 3 years
warrantyLength - 36
warrantyType - G
Weight - 0,48
Weight - 0.78
weight - 770
Weight & dimensions - Depth - 215 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 230 mm
Accessories included -
Audio port Input/Output connectors - 3
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - 1 x 128 Mbit flash Uses AMI UEFI BIOS license PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Brand - Gigabyte
BrandPartCode - H610M H V2 DDR4
category - Mainboards Intel Mainboards
Category - Motherboards
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel H610
Chipset manufacturer - Intel
Chipset type - Intel H610 Express Chipset
code - H610M H V2 DDR4
COM connector / port - Yes
CPU socket - LGA1700
Description -
Description - Intel® H610 Motherboard with 6+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2, Anti-Sulfur Resistor, Smart Fan 6 - Supports 13th/12th Gen Intel® Core™ Series Processors - Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs - 6+1+1 Hybrid Digital VRM Design - GbE LAN with Bandwidth Management - NVMe PCIe 3.0 x4 M.2 - High Quality Audio Capacitors and Audio Noise Guard - Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP - GIGABYTE APP Center, Simple and Easy Use - Anti-Sulfur Resistors Design
Detailed data on disk/drive interfaces - 1 x M.2 (Slot 3, M Key, PCIe 3.0 x4/x2 type 2280/2260 SSD support) 4 SATA 6Gb/s connectors
dimensionalWeight - 758
dimension depth - 270 mm
dimension height - 65 mm
Dimensions - 23 x 21.5 cm
dimension weight - 780 g
dimension width - 265 mm
ean - 4719331851743
EAN - 4719331851743
Eans - 4719331851743
EAN_code - 4719331851743
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express slots version - 4.0
Expansion slots - PCI Express x1 slots - 1
Expansion slots - PCI Express x16 slots - 1
External connectors - 1 x D-Sub
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard
External connectors - 1 x PS/2 Mouse
External connectors - 1 x RJ-45
External connectors - 2 x USB 3.0
External connectors - 4 x USB 2.0
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel H610 Express
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - Product colour - Bronze
Features - Product colour - Brown
Features - Windows operating systems supported - Windows 10 Education x64
Features - Windows operating systems supported - Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64, Windows 11 Enterprise x64, Windows 11 x64
Features - Windows operating systems supported - Windows 10 Enterprise x64
Features - Windows operating systems supported - Windows 10 Home x64
Features - Windows operating systems supported - Windows 10 Pro x64
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 11 Enterprise x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - Micro-ATX
Form factor - micro ATX
Frequency speed - 2133/2400/2666/2933/3000/3200 MHz
Full Description Line - Intel H610|LGA1700|Micro-ATX|DDR4|3200/3000/2933/2666/2400/2133 MHz|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub|1xHDMI|4xUSB 2.0|2xUSB 3.2|2xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|LAN Gigabit|Audio|TPM Header
Graphics - Integrated Graphics Processor - Supports Intel HD Graphics D-Sub port supporting a maximum resolution of 1920x1200 at 60Hz HDMI port supporting a maximum resolution of 4096x2160 at 60 Hz * Support for HDMI 2.1 and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.)
Graphics - DirectX version - 12.0
Graphics - Graphics card - HD Graphics
Graphics - Graphics card family - Intel
Graphics - Maximum resolution - 4096 x 2160 pixels
Gross Weight Kg - 0,7
GTIN - 4719331851743
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Yes
Integrated CPU - No
Integrated LAN - Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - Serial port headers - 1
Internal I/O - Total number of SATA connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
LongProductName - Intel H610, 2 x DDR4, 1 x D-Sub, 1 x HDMI, 1 x GbE LAN, 4 x SATA, 1 x M.2, 4 x USB 3.2 Gen 1, 4 x USB 2.0, 128 Mbit flash
LongSummaryDescription - Gigabyte H610M H V2 DDR4 Motherboard - Supports Intel Core 14th CPUs, 6+1+1 Hybrid Digital VRM, up to 3200MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Graphics card family: Intel, Graphics card: HD Graphics, Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet
LPT connector / port - No
M.2 Expansion slots - 1
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer Code - H610M H V2 DDR4
Manufacturer Name - Gigabyte
Manufacturer_code - H610M H V2 DDR4
Max. number of SATA devices - 4
Max memory size - 64 GB
Memory - ECC - Yes
Memory - Maximum internal memory - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 2
Memory - Supported memory clock speed (max) - 3200 MHz
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2133,2400,2666,2933,3000,3200 MHz
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2666 MHz
Memory - Supported memory clock speeds - 2933 MHz
Memory - Supported memory clock speeds - 3000
Memory - Supported memory clock speeds - 3200 MHz
Memory - Supported memory module capacities - 1GB
Memory - Supported memory module capacities - 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Memory - Supported memory module capacities - 2GB
Memory - Supported memory module capacities - 4GB
Memory - Supported memory module capacities - 8GB
Memory - Supported memory module capacities - 12GB
Memory - Supported memory module capacities - 16GB
Memory - Supported memory module capacities - 32GB
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 2133 MHz
Memory bus frequency - 2400 MHz
Memory bus frequency - 2666 MHz
Memory bus frequency - 2933 MHz
Memory bus frequency - 3000 MHz
Memory bus frequency - 3200 MHz
Memory slots - 2
Memory type - DDR4
Memory type - DDR4
Model - H610M H V2 DDR4
MPN - H610M H V2 DDR4
Name - 1700 Gigabyte H610M H DDR4 V2
Name - Gigabyte H610M H V2 DDR4
Name - GIGABYTE H610M H V2 DDR4 - Socket 1700 - motherboard
name - GIGABYTE H610M H V2 DDR4, Intel H610 Mainboard, Sockel 1700, DDR4
name - Motherboard H610M H V2 DDR4 s1700 2DDR4 HDMI USB mATX
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000 Mbit/s
Network interface - Realtek GbE LAN chip (1 Gbps/100 Mbps)
Number of DDR4 slots - 2
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x M.2
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 2 x 4pin Chassis fan
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 4 x SATA III 6Gb/s
Onboard connectors - 4 x USB 2.0/1.1
Other information -
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton Internet Security
LAN bandwidth management software
Packaging data - Package depth - 265 mm
Packaging data - Package height - 54 mm
Packaging data - Package weight - 818 g
Packaging data - Package width - 265 mm
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Compatible processor series - Intel® Pentium® Gold
Processor - Maximum internal memory supported by processor - 64 GB
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor family - Intel Celeron
Processor family - Intel Core i3
Processor family - Intel Core i5
Processor family - Intel Core i7
Processor family - Intel Core i9
Processor family - Intel Pentium Gold
producer - Gigabyte
Producer - Gigabyte
producerCode - H610M H V2 DDR4
ProducerCode - H610M H V2 DDR4
productName - Gigabyte H610M H V2 DDR4 Motherboard - Supports Intel Core 14th CPUs, 6+1+1 Hybrid Digital VRM, up to 3200MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
ProductName - H610M H V2 DDR4 Motherboard - Supports Intel Core 14th CPUs, 6+1+1 Hybrid Digital VRM, up to 3200MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
productSize - Normal
PS/2 Input/Output connectors - 2
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 2
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 27 cm
Shipping Box Height Shipping/Package Box Dimensions - 5.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.773 kg
Shipping Box Width Shipping/Package Box Dimensions - 27 cm
Short description - GIGA H610M H V2 DDR4 S1700/DDR4/µATX
ShortDescription - Socket 1700| Chipset Intel H610 | DDR4 |
ShortSummaryDescription - Gigabyte H610M H V2 DDR4 Motherboard - Supports Intel Core 14th CPUs, 6+1+1 Hybrid Digital VRM, up to 3200MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, 64 GB, DDR4-SDRAM
sizeX - 54
sizeY - 265
sizeZ - 265
Socket - LGA1700
Software - Norton Internet Security (OEM version) LAN bandwidth management software
Sound card - Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel *Audio jack functionality can be changed via audio software. To set up 7.1-channel audio, go to your audio software for audio settings.
Special functions - Support for APP Center Support @ BIOS ambient LED EasyTune Smart Backup System Information Viewer Q Flash support Xpress Install support
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 5
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details - Warranty period - 3 year(s)
Title - Gigabyte H610M H V2 DDR4 Motherboard - Supports Intel Core 14th CPUs, 6+1+1 Hybrid Digital VRM, up to 3200MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
TPM - Header
Unit Box Height - 0.055
Unit Box Length - 0.27
Unit Box Width - 0.27
Unit Brutto Volume - 0.00401 cubm
Unit Gross Weight - 0.773 kg
Unit Net Weight - 0.6 kg
URL - https://www.gigabyte.com/Motherboard/H610M-H-V2-DDR4-rev-10#kf
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 2
USB 3.2 Interface - Yes
USB ports at back panel - 6
USB ports on motherboard - 6
Vendor Homepage - www.gigabyte.com/Motherboard/H610M-H-V2-DDR4-rev-10#kf
vendpn - H610M H V2 DDR4
Warranty - 36 months
WarrantyInfo - 3 years
warrantyLength - 36
warrantyType - G
Weight - 0,48
Weight - 0.78
weight - 770
Weight & dimensions - Depth - 215 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 230 mm
