ID: 951163
Product code: PRIME B760-PLUS
Can be ordered 111 units Availability: 14 days after order approval
Warranty: 3 years

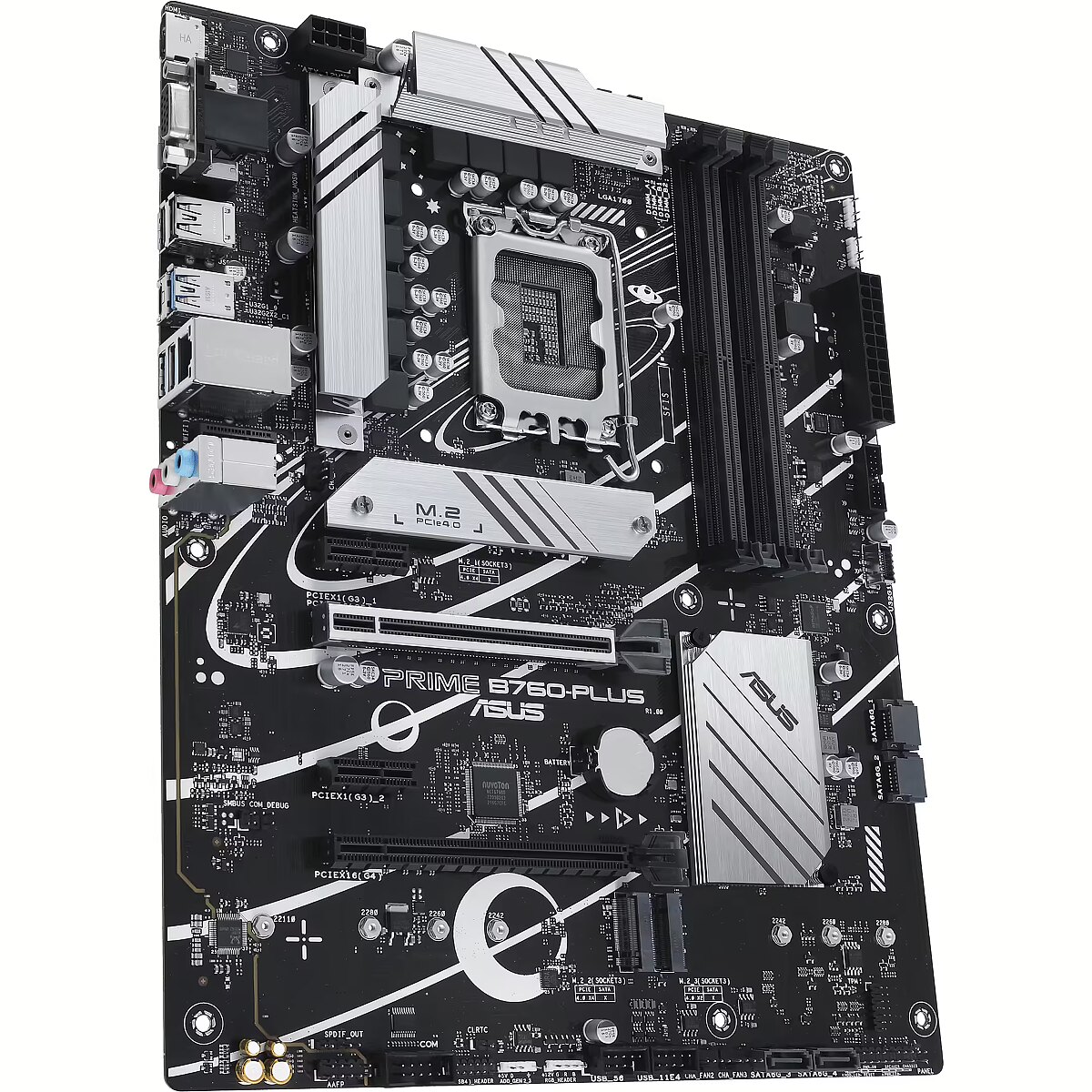

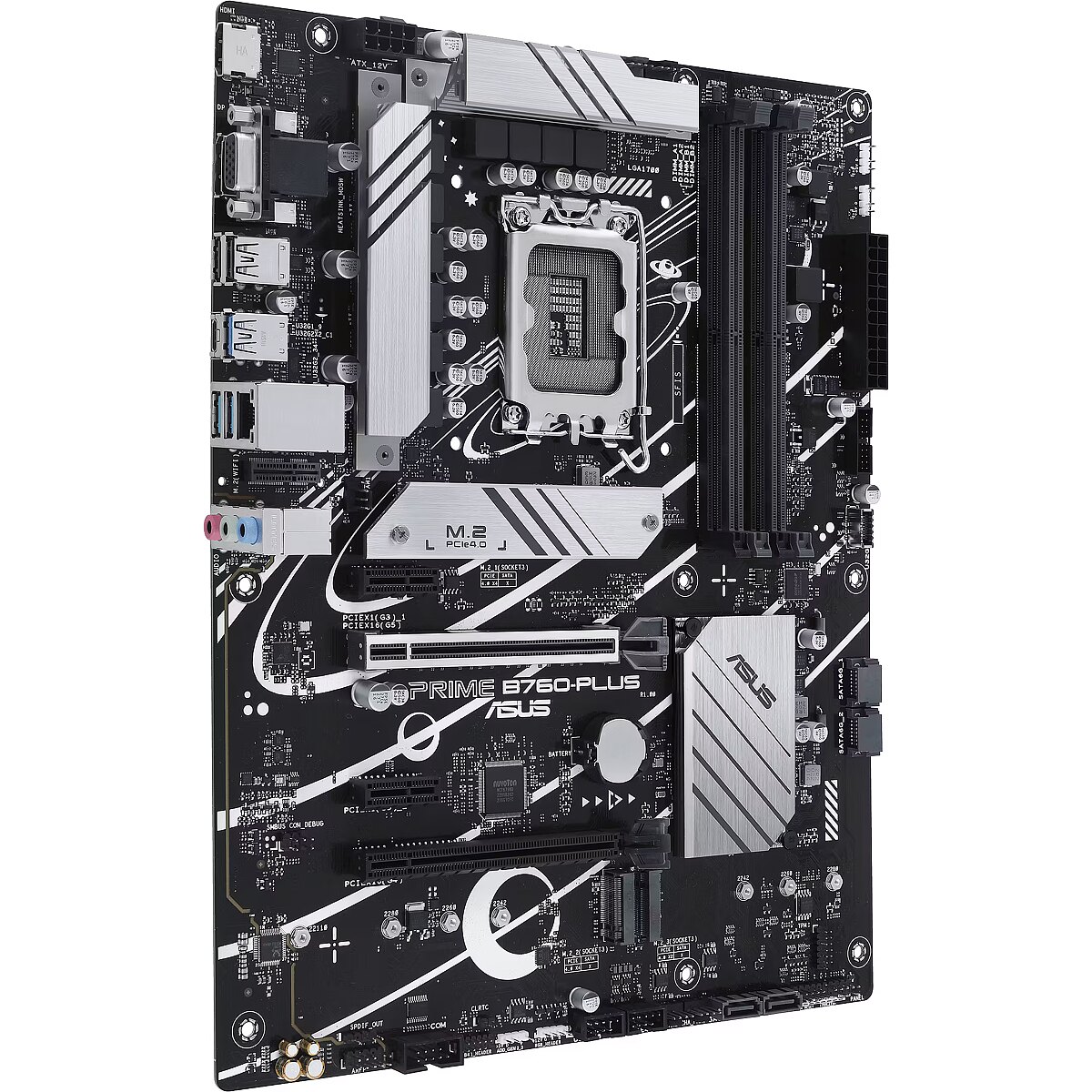

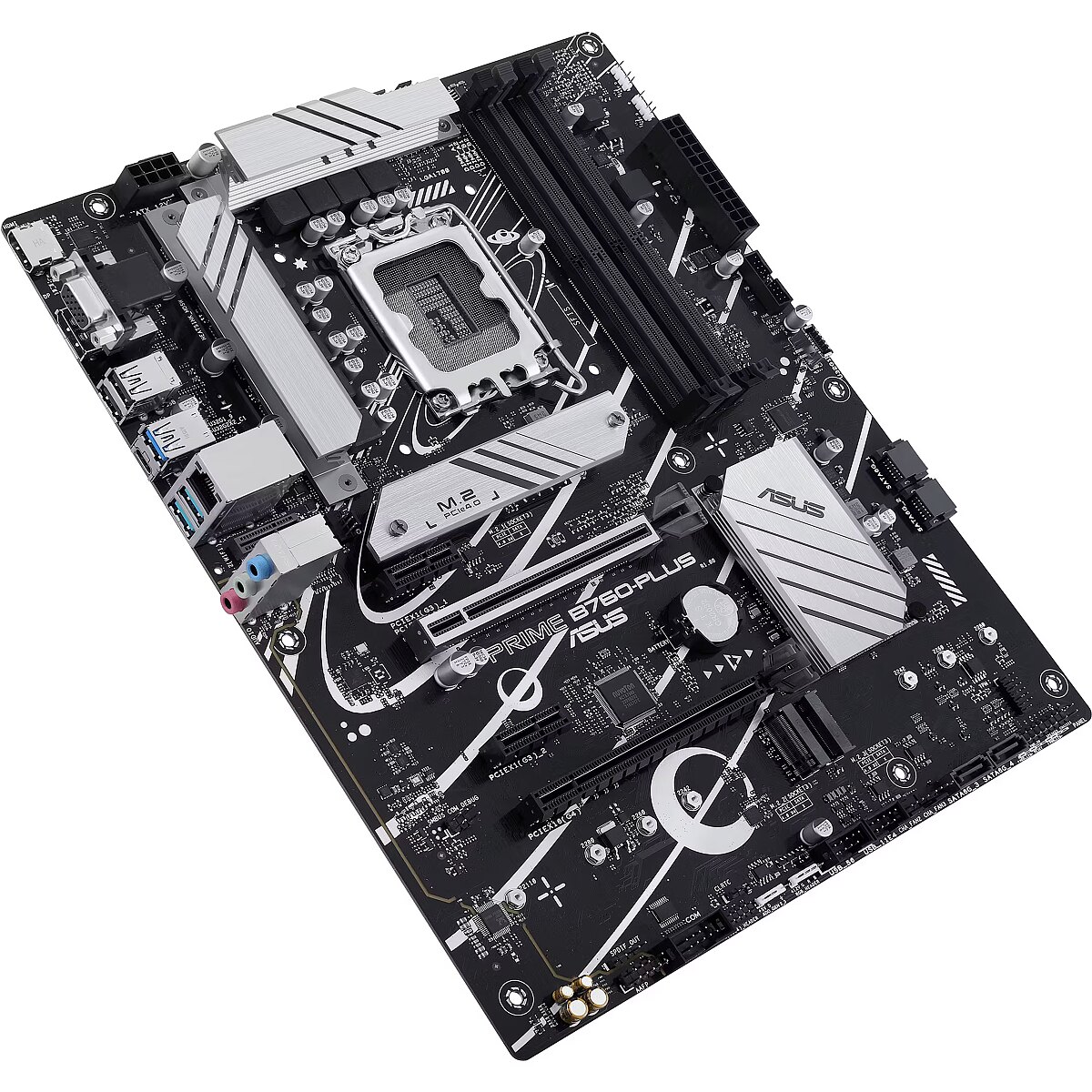

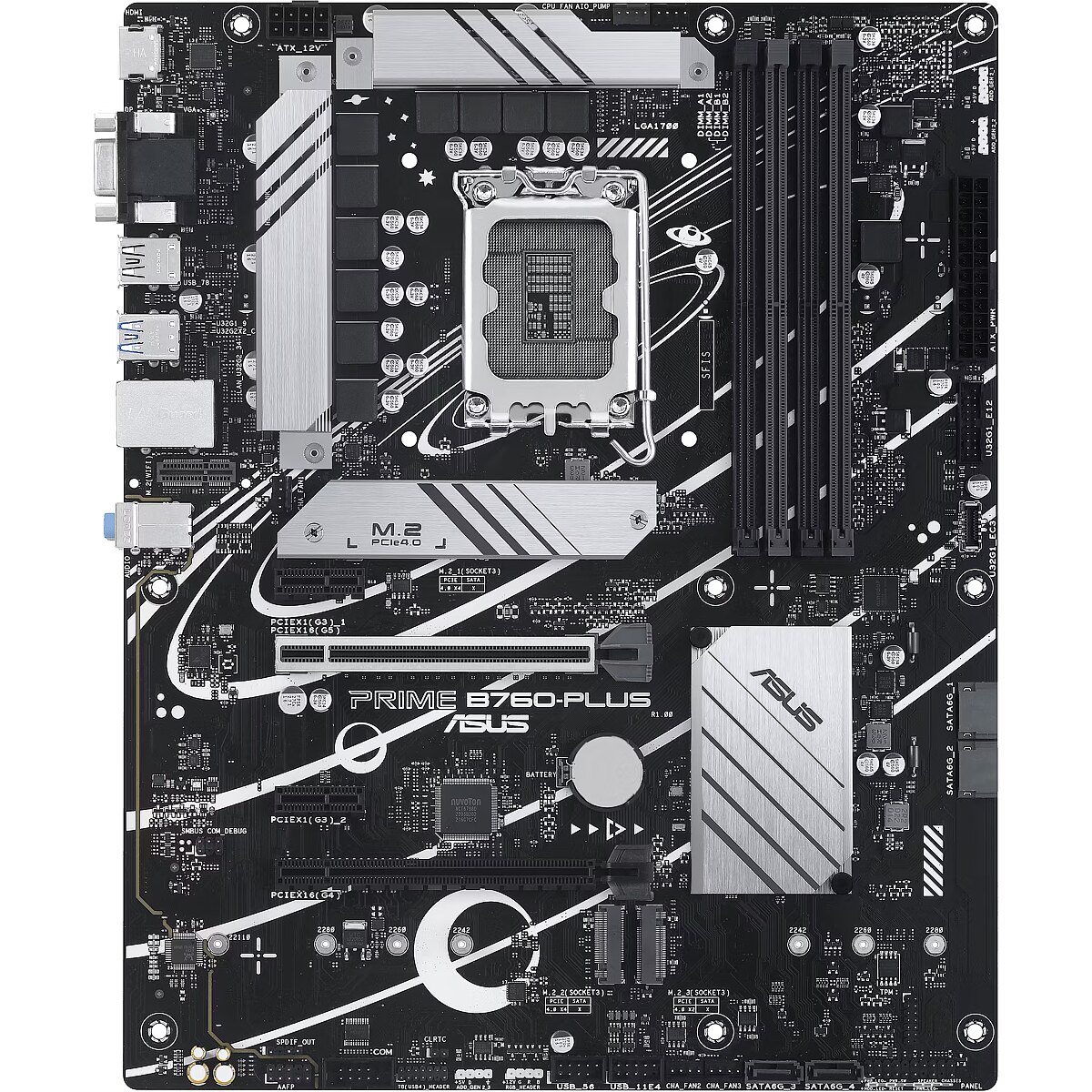

Asus PRIME B760-PLUS
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: 27.11.2024
Main product parameters All parameters
- Series: ASUS Prime
- CPU Socket: LGA 1700
- Chipset: Intel B760
- Form factor: ATX
- Type: DDR5
- RAM Slots: 4
- Built-in Wi-Fi: Nav
Basic information
Series
: ASUS Prime
CPU Socket
LGA 1700
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel B760
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
ATX
The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR5
RAM Slots
4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR5 5600 (OC 7200)
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 1
DVI
: 0
HDMI
: 1
DisplayPort
: 1
Integrated sound card
: Realtek 7.1 CODEC
Wireless connections
Built-in Bluetooth
: Nav
Built-in Wi-Fi
: Nav
External ports
External USB Type-C
: 1
External USB 2.0
: 2
External USB 3.0 (USB 3.2 Gen1)
: 1
External USB 3.1 (USB 3.2 Gen2)
: 2
Internal ports
Internal A-RGB 5V (3-pin)
: 3
Internal RGB 12V (4-pin)
: 1
Internal USB 2.0
: 2
Internal USB 3.0
: 1
Internal USB Type-C
: 1
M.2 Port
: 3
SATA3 ports
: 4
More detailed specification
15pin D-sub Input/Output connectors - 1
Accessories included - 2 x kable SATA 6Gb/s 1 x osłona I/O 1 x gumowe opakowanie M.2 2 x opakowania śrub do dysków SSD M.2 1 x instrukcja obsługi
Audio port Input/Output connectors - 3
BIOS - 128 Mb Flash ROM, UEFI AMI BIOS
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
Brand - ASUS
BrandPartCode - 90MB1EF0-M1EAY0
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
category_en - Computers & Components > Computer components > Motherboards > Intel motherboards
category_lv - Datortehnika > Datoru komponentes > Pamatplates > Intel mātesplates
category_ru - Datortehnika > Datoru komponentes > Pamatplates > Intel mātesplates
Chipset - Intel B760 Express
Chipset manufacturer - Intel
Chipset type - Intel B760 Chipset
CnCode CnCode - 84733020
code - 90MB1EF0-M1EAY0
Code - 90MB1EF0-M1EAY0
COM connector / port - Yes
CPU socket - LGA1700
Description - ASUS Prime B760-PLUS, an Intel® B760 LGA 1700 ATX motherboard with PCIe 5.0, three PCIe 4.0 M.2 slots, DDR5, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI™, SATA 6 Gbps, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C®, Thunderbolt™ (USB4®) support, Aura Sync - Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors - Ultrafast Connectivity: PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C® and Thunderbolt™ (USB4®) header support - Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+ - Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II - Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
Description - ASUS Prime B760-PLUS, płyta główna Intel B760 LGA 1700 ATX z PCIe 5.0, trzema gniazdami PCIe 4.0 M.2, DDR5, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI, SATA 6 Gbps, USB 3.2 Gen 2x2 Type-C, przednim USB 3.2 Gen 1 Type-C, obsługą Thunderbolt (USB4), Aura Sync Gotowy na zaawansowany komputer AI: Zaprojektowany z myślą o przyszłości obliczeń AI, z mocą i łącznością potrzebną do wymagających aplikacji AI Gniazdo Intel LGA 1700: Gotowy na procesory Intel 14., 13. i 12. generacji Ultraszybka łączność: PCIe 5.0, trzy gniazda PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C, przednim USB 3.2 Gen 1 Type-C i obsługa złącza Thunderbolt (USB4) Kompleksowe chłodzenie: radiatory VRM, radiator M.2, radiator PCH, hybrydowe złącza wentylatorów i Fan Xpert 2+ Ekskluzywna technologia pamięci: ASUS Enhanced Memory Profile II i ASUS OptiMem II Oświetlenie Aura Sync RGB: Wbudowane adresowalne złącza Gen 2 i złącze Aura RGB do taśm LED RGB, łatwo synchronizowane ze sprzętem obsługującym Aura Sync
description_en - Series : ASUS Prime
Socket LGA 1700
Chipset Intel B760
Board size ATX
Working memory
Memory type: DDR5
Memory slots 4
Memory bus DDR5 5600 (OC 7200)
Video card
Video card socket PCI-EXPRESS
Integrated video card Only with iGPU-ready CPU
Ports and equipment
PCI ports 0
D-Sub : 1
DVI : 0
HDMI : 1
DisplayPort : 1
Integrated sound card: Realtek 7.1 CODEC
Wireless connections
Built-in Bluetooth : None
Built-in Wi-Fi : None
External ports
External USB Type-C: 1
External USB 2.0 : 2
External USB 3.0 (USB 3.2 Gen1) : 1
External USB 3.1 (USB 3.2 Gen2) : 2
Internal ports
Internal A-RGB 5V (3-pin) : 3
Internal RGB 12V (4-pin) : 1
Internal USB 2.0 : 2
Internal USB 3.0 : 1
Internal USB Type-C: 1
M.2 Ports: 3
SATA 3 Ports: 4
description_lv - Sērija : ASUS Prime
Ligzda (socket) LGA 1700
Mikroshēmu kopne (chipset) Intel B760
Plates izmērs ATX
Operatīvā atmiņa
Atmiņas tips : DDR5
Atmiņas sloti 4
Atmiņas kopne DDR5 5600 (OC 7200)
Videokarte
Videokartes ligzda PCI-EXPRESS
Integrēta videokarte Only with iGPU-ready CPU
Pieslēgvietas un aprīkojums
PCI porti 0
D-Sub : 1
DVI : 0
HDMI : 1
DisplayPort : 1
Integrēta skaņas karte : Realtek 7.1 CODEC
Bezvadu savienojumi
Iebūvēts Bluetooth : Nav
Iebūvēts Wi-Fi : Nav
Ārējās pieslēgvietas
External USB Type-C : 1
External USB 2.0 : 2
External USB 3.0 (USB 3.2 Gen1) : 1
External USB 3.1 (USB 3.2 Gen2) : 2
Iekšējās pieslēgvietas
Internal A-RGB 5V (3-pin) : 3
Internal RGB 12V (4-pin) : 1
Internal USB 2.0 : 2
Internal USB 3.0 : 1
Internal USB Type-C : 1
M.2 Porti : 3
SATA 3 Porti : 4
description_ru - Серия : ASUS Prime
Разъем LGA 1700
Чипсет Intel B760
Размер платы ATX
Рабочая память
Тип памяти: DDR5
Слоты памяти 4
Шина памяти DDR5 5600 (OC 7200)
Видеокарта
Разъем для видеокарты PCI-EXPRESS
Встроенная видеокарта Только с процессором, готовым к использованию iGPU
Порты и оборудование
PCI-порты 0
D-Sub: 1
ДВИ: 0
HDMI: 1
ДисплейПорт: 1
Встроенная звуковая карта: кодек Realtek 7.1.
Беспроводные соединения
Встроенный Bluetooth: Нет
Встроенный Wi-Fi: Нет
Внешние порты
Внешний USB Type-C: 1
Внешний USB 2.0: 2
Внешний USB 3.0 (USB 3.2 Gen1): 1
Внешний USB 3.1 (USB 3.2 Gen 2): 2
Внутренние порты
Внутренний A-RGB 5 В (3-контактный): 3
Внутренний RGB 12 В (4-контактный): 1
Внутренний USB 2.0: 2
Внутренний USB 3.0: 1
Внутренний USB Type-C: 1
Порты M.2: 3
SATA 3 порта: 4
Detailed data on disk/drive interfaces - Łącznie obsługuje 3 gniazda M.2 i 4 porty SATA 6 Gb/s*
Procesory Intel Core (14., 13. i 12. generacji)
Gniazdo M.2_1 (klucz M), typ 2242/2260/2280 (obsługuje tryb PCIe 4.0 x4)
Chipset Intel B760
Gniazdo M.2_2 (klucz M), typ 2242/2260/2280/22110 (obsługuje tryb PCIe 4.0 x4)
Gniazdo M.2_3 (klucz M), typ 2242/2260/2280 (obsługuje tryb PCIe 4.0 x2)
4 porty SATA 6 Gb/s
* Technologia Intel Rapid Storage obsługuje SATA RAID 0/1/5/10.
dimensionalWeight - 1034
dimension depth - 55 mm
dimension height - 330 mm
Dimensions - 30.5 cm x 24.4 cm
dimension weight - 1185 g
dimension width - 265 mm
DisplayPort Input/Output connectors - 1
EAN - 4711387102985
ean - 4711387102985
Eans - 4711387102985
EAN_code - 4711387102985
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 2 x PCIe 3.0 x 1
Expansion slots - Number of M.2 (M) slots - 3
Expansion slots - PCI Express x1 (Gen 3.x) slots - 2
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
External connectors - 1 x D-Sub
External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.0
External connectors - 1 x USB 3.1 Type-C
External connectors - 2 x USB 2.0
External connectors - 2 x USB 3.1
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Cooling type - Passive
Features - Motherboard chipset - Intel B760
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Power source type - ATX
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11
Features - Windows operating systems supported - Windows 11
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200 MHz
Full Description Line - Intel B760 Express|LGA1700|ATX|DDR5|7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|3xM.2|1x15pin D-sub|1xHDMI|1xDisplayPort|2xUSB 2.0|3xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|LAN 2.5 Gigabit|Audio|RAID SATA 0, 1, 5, 10|TPM Header
Graphics - 1 x DisplayPort**
1 x port VGA
1 x port HDMI***
* Specyfikacje graficzne mogą się różnić w zależności od typu procesora. Aby uzyskać aktualizacje, zapoznaj się z witryną www.intel.com.
** Obsługuje maks. 4K@60Hz zgodnie ze specyfikacją DisplayPort 1.4.
*** Obsługuje 4K@60Hz zgodnie ze specyfikacją HDMI 2.1.
Graphics - Parallel processing technology support - Not supported
gross_weight - 2 kg
GTIN - 4711387102985
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Yes
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 3
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Peripheral (Molex) power connectors (4-pin) - 1
Internal I/O - RGB LED pin header - Yes
Internal I/O - S/PDIF out connector - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O > Number of SATA connectors - 4
Link - https://www.asus.com/motherboards-components/motherboards/prime/prime-b760-plus/
LongDesc - B760-PLUSASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760-PLUS provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.FLEXIBILITYComprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760-PLUS motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.Intelligent ControlASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.UEFI BIOSThe renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.Quick and Simple SetupEZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.All-Around Energy EfficiencyThe Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.Flexible Air- and Liquid-Cooling ControlsASUS Fan Xpert 2+ software provides comprehensive control over fans and all-in-one (AIO) coolers. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans and AIO coolers can also be controlled via the UEFI BIOS.Precise Digital Power ControlThe Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.Intuitive Graphical Fan ControlFine-tune individual fan settings simply by dragging a curve with the mouseAura On/Off Mode (Stealth)Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.
LongProductName - Prime B760-PLUS, an Intel B760 LGA 1700 ATX motherboard with PCIe 5.0, three PCIe 4.0 M.2 slots, DDR5, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI™, SATA 6 Gbps, USB 3.2 Gen 2x2 Type-C, front USB 3.2 Gen 1 Type-C, Thunderbolt (USB4) support, Aura Sync
LongSummaryDescription - ASUS PRIME B760-PLUS. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
LPT connector / port - No
M.2 Expansion slots - 3
Manufacturer - Asus
Manufacturer - ASUS
Manufacturer_code - 90MB1EF0-M1EAY0
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 192 GB
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz
Memory - Supported memory clock speeds - 5000
Memory - Supported memory clock speeds - 5200
Memory - Supported memory clock speeds - 5400
Memory - Supported memory clock speeds - 5600
Memory - Supported memory clock speeds - 5800
Memory - Supported memory clock speeds - 6000
Memory - Supported memory clock speeds - 6200
Memory - Supported memory clock speeds - 6400
Memory - Supported memory clock speeds - 6600
Memory - Supported memory clock speeds - 6800
Memory - Supported memory clock speeds - 7000
Memory - Supported memory clock speeds - 7200
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR5
Memory bus frequency - 4800 MHz
Memory bus frequency - 5000 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5400 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - PRIME B760-PLUS
Model - Prime B760-PLUS
MPN - 90MB1EF0-M0EAY0
Name - 1700 ASUS PRIME B760-PLUS
Name - ASUS PRIME B760-PLUS
name - ASUS Prime B760-Plus, Intel B760 Mainboard, Sockel 1700, DDR5
Name - ASUS PRIME B760-PLUS, motherboard - 1700
Name - Asus | PRIME B760 PLUS | Processor family Intel | Processor socket LGA1700 | DDR5 | Number of SATA connectors 4
name - Motherboard TUF GAMING B760-PLUS s1700 4DDR5 ATX
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet interface type - 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Network - Ethernet interface type - Fast Ethernet
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - 1 x Realtek 2.5Gb Ethernet
Tylko pionowe gniazdo M.2 (Key E, CNVi i PCIe)*
* Moduł Wi-Fi jest sprzedawany oddzielnie.
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 3
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Clear CMOS button
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x S/PDIF Out header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x Thunderbolt header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 3 x 4pin Chassis fan
Onboard connectors - 3 x Addressable LED
Onboard connectors - 3 x M.2
Onboard connectors - 4 x SATA III 6Gb/s
Other features - Weight - 760 g
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 340.00 mm
Package features > Gross height (mm) - 60.00 mm
Package features > Gross width (mm) - 270.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 157 pc(s)
Package features > Paper/Pasteboard - 250.00 g
Package features > Plastic (No PET) - 50.00 g
Package features > Tare weight (kg) - 0.30 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - SATA
Packaging data - Package depth - 266 mm
Packaging data - Package height - 53 mm
Packaging data - Package weight - 1.2 kg
Packaging data - Package width - 328 mm
PCI-Express 3.0 1x Expansion slots - 2
PCI-Express 4.0 16x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Compatible processor series - Intel® Pentium® Gold
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Processor family - Intel Celeron
Processor family - Intel Core
Processor family - Intel Pentium Gold
producer - Asus
Producer - ASUS
Producer - Asus
producerCode - 90MB1EF0-M1EAY0
ProducerCode - PRIME B760-PLUS
Producer product name - PRIME B760 PLUS
productName - ASUS PRIME B760-PLUS Intel B760 LGA 1700 ATX
ProductName - PRIME B760-PLUS
productSize - Normal
RAID - SATA 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 57 cm
Shipping Box Height Shipping/Package Box Dimensions - 30 cm
Shipping box quantity - 10
Shipping Box Weight Shipping/Package Box Dimensions - 13.2 kg
Shipping Box Width Shipping/Package Box Dimensions - 34 cm
ShortDescription - Socket 1700| Chipset Intel B760 | DDR5 |
ShortSummaryDescription - ASUS PRIME B760-PLUS, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, DDR5-SDRAM, 192 GB
sizeX - 355
sizeY - 55
sizeZ - 265
Socket - LGA1700
Software -
Sound card - Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Obsługuje: wykrywanie gniazda, przesyłanie strumieniowe, zmianę przeznaczenia gniazda na przednim panelu
- Obsługuje odtwarzanie do 24 bitów/192 kHz
Funkcje audio
- Ekranowanie audio
- Kondensatory audio klasy premium
- Dedykowane warstwy audio PCB
* Do obsługi wyjścia audio 7.1 Surround Sound wymagana jest obudowa z modułem audio HD na przednim panelu.
Special functions -
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 7
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Gross weight - 1.30 kg
Technical details > Net weight - 1.00 kg
Technical details > Producer - Asus
Title - ASUS PRIME B760-PLUS Intel B760 LGA 1700 ATX
title_en - Asus Prime B760-PLUS Intel B760 LGA 1700 ATX Motherboard
title_lv - Asus Prime B760-PLUS Intel B760 LGA 1700 ATX Mātesplate
title_ru - Asus Prime B760-PLUS Intel B760 LGA 1700 ATX Материнская Плата
TPM - Header
Unit Box Height - 0.27
Unit Box Length - 0.33
Unit Box Width - 0.055
Unit Brutto Volume - 0.005814 cubm
Unit Gross Weight - 1.32 kg
Unit Net Weight - 0.8 kg
URL - https://www.asus.com/motherboards-components/motherboards/prime/prime-b760-plus/
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 3
USB 3.2 Interface - Yes
USB ports at back panel - 6
USB ports on motherboard - 7
Vendor Homepage - www.asus.com/motherboards-components/motherboards/prime/prime-b760-plus/
vendpn - PRIME B760-PLUS
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 1,00
Weight - 1.2
weight - 1.185 kg
weight - 1220
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 36 mm
Weight & dimensions - Width - 305 mm
Accessories included - 2 x kable SATA 6Gb/s 1 x osłona I/O 1 x gumowe opakowanie M.2 2 x opakowania śrub do dysków SSD M.2 1 x instrukcja obsługi
Audio port Input/Output connectors - 3
BIOS - 128 Mb Flash ROM, UEFI AMI BIOS
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
Brand - ASUS
BrandPartCode - 90MB1EF0-M1EAY0
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
category_en - Computers & Components > Computer components > Motherboards > Intel motherboards
category_lv - Datortehnika > Datoru komponentes > Pamatplates > Intel mātesplates
category_ru - Datortehnika > Datoru komponentes > Pamatplates > Intel mātesplates
Chipset - Intel B760 Express
Chipset manufacturer - Intel
Chipset type - Intel B760 Chipset
CnCode CnCode - 84733020
code - 90MB1EF0-M1EAY0
Code - 90MB1EF0-M1EAY0
COM connector / port - Yes
CPU socket - LGA1700
Description - ASUS Prime B760-PLUS, an Intel® B760 LGA 1700 ATX motherboard with PCIe 5.0, three PCIe 4.0 M.2 slots, DDR5, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI™, SATA 6 Gbps, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C®, Thunderbolt™ (USB4®) support, Aura Sync - Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors - Ultrafast Connectivity: PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C® and Thunderbolt™ (USB4®) header support - Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+ - Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II - Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
Description - ASUS Prime B760-PLUS, płyta główna Intel B760 LGA 1700 ATX z PCIe 5.0, trzema gniazdami PCIe 4.0 M.2, DDR5, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI, SATA 6 Gbps, USB 3.2 Gen 2x2 Type-C, przednim USB 3.2 Gen 1 Type-C, obsługą Thunderbolt (USB4), Aura Sync Gotowy na zaawansowany komputer AI: Zaprojektowany z myślą o przyszłości obliczeń AI, z mocą i łącznością potrzebną do wymagających aplikacji AI Gniazdo Intel LGA 1700: Gotowy na procesory Intel 14., 13. i 12. generacji Ultraszybka łączność: PCIe 5.0, trzy gniazda PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C, przednim USB 3.2 Gen 1 Type-C i obsługa złącza Thunderbolt (USB4) Kompleksowe chłodzenie: radiatory VRM, radiator M.2, radiator PCH, hybrydowe złącza wentylatorów i Fan Xpert 2+ Ekskluzywna technologia pamięci: ASUS Enhanced Memory Profile II i ASUS OptiMem II Oświetlenie Aura Sync RGB: Wbudowane adresowalne złącza Gen 2 i złącze Aura RGB do taśm LED RGB, łatwo synchronizowane ze sprzętem obsługującym Aura Sync
description_en - Series : ASUS Prime
Socket LGA 1700
Chipset Intel B760
Board size ATX
Working memory
Memory type: DDR5
Memory slots 4
Memory bus DDR5 5600 (OC 7200)
Video card
Video card socket PCI-EXPRESS
Integrated video card Only with iGPU-ready CPU
Ports and equipment
PCI ports 0
D-Sub : 1
DVI : 0
HDMI : 1
DisplayPort : 1
Integrated sound card: Realtek 7.1 CODEC
Wireless connections
Built-in Bluetooth : None
Built-in Wi-Fi : None
External ports
External USB Type-C: 1
External USB 2.0 : 2
External USB 3.0 (USB 3.2 Gen1) : 1
External USB 3.1 (USB 3.2 Gen2) : 2
Internal ports
Internal A-RGB 5V (3-pin) : 3
Internal RGB 12V (4-pin) : 1
Internal USB 2.0 : 2
Internal USB 3.0 : 1
Internal USB Type-C: 1
M.2 Ports: 3
SATA 3 Ports: 4
description_lv - Sērija : ASUS Prime
Ligzda (socket) LGA 1700
Mikroshēmu kopne (chipset) Intel B760
Plates izmērs ATX
Operatīvā atmiņa
Atmiņas tips : DDR5
Atmiņas sloti 4
Atmiņas kopne DDR5 5600 (OC 7200)
Videokarte
Videokartes ligzda PCI-EXPRESS
Integrēta videokarte Only with iGPU-ready CPU
Pieslēgvietas un aprīkojums
PCI porti 0
D-Sub : 1
DVI : 0
HDMI : 1
DisplayPort : 1
Integrēta skaņas karte : Realtek 7.1 CODEC
Bezvadu savienojumi
Iebūvēts Bluetooth : Nav
Iebūvēts Wi-Fi : Nav
Ārējās pieslēgvietas
External USB Type-C : 1
External USB 2.0 : 2
External USB 3.0 (USB 3.2 Gen1) : 1
External USB 3.1 (USB 3.2 Gen2) : 2
Iekšējās pieslēgvietas
Internal A-RGB 5V (3-pin) : 3
Internal RGB 12V (4-pin) : 1
Internal USB 2.0 : 2
Internal USB 3.0 : 1
Internal USB Type-C : 1
M.2 Porti : 3
SATA 3 Porti : 4
description_ru - Серия : ASUS Prime
Разъем LGA 1700
Чипсет Intel B760
Размер платы ATX
Рабочая память
Тип памяти: DDR5
Слоты памяти 4
Шина памяти DDR5 5600 (OC 7200)
Видеокарта
Разъем для видеокарты PCI-EXPRESS
Встроенная видеокарта Только с процессором, готовым к использованию iGPU
Порты и оборудование
PCI-порты 0
D-Sub: 1
ДВИ: 0
HDMI: 1
ДисплейПорт: 1
Встроенная звуковая карта: кодек Realtek 7.1.
Беспроводные соединения
Встроенный Bluetooth: Нет
Встроенный Wi-Fi: Нет
Внешние порты
Внешний USB Type-C: 1
Внешний USB 2.0: 2
Внешний USB 3.0 (USB 3.2 Gen1): 1
Внешний USB 3.1 (USB 3.2 Gen 2): 2
Внутренние порты
Внутренний A-RGB 5 В (3-контактный): 3
Внутренний RGB 12 В (4-контактный): 1
Внутренний USB 2.0: 2
Внутренний USB 3.0: 1
Внутренний USB Type-C: 1
Порты M.2: 3
SATA 3 порта: 4
Detailed data on disk/drive interfaces - Łącznie obsługuje 3 gniazda M.2 i 4 porty SATA 6 Gb/s*
Procesory Intel Core (14., 13. i 12. generacji)
Gniazdo M.2_1 (klucz M), typ 2242/2260/2280 (obsługuje tryb PCIe 4.0 x4)
Chipset Intel B760
Gniazdo M.2_2 (klucz M), typ 2242/2260/2280/22110 (obsługuje tryb PCIe 4.0 x4)
Gniazdo M.2_3 (klucz M), typ 2242/2260/2280 (obsługuje tryb PCIe 4.0 x2)
4 porty SATA 6 Gb/s
* Technologia Intel Rapid Storage obsługuje SATA RAID 0/1/5/10.
dimensionalWeight - 1034
dimension depth - 55 mm
dimension height - 330 mm
Dimensions - 30.5 cm x 24.4 cm
dimension weight - 1185 g
dimension width - 265 mm
DisplayPort Input/Output connectors - 1
EAN - 4711387102985
ean - 4711387102985
Eans - 4711387102985
EAN_code - 4711387102985
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 2 x PCIe 3.0 x 1
Expansion slots - Number of M.2 (M) slots - 3
Expansion slots - PCI Express x1 (Gen 3.x) slots - 2
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
External connectors - 1 x D-Sub
External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.0
External connectors - 1 x USB 3.1 Type-C
External connectors - 2 x USB 2.0
External connectors - 2 x USB 3.1
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Cooling type - Passive
Features - Motherboard chipset - Intel B760
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Power source type - ATX
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11
Features - Windows operating systems supported - Windows 11
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200 MHz
Full Description Line - Intel B760 Express|LGA1700|ATX|DDR5|7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|3xM.2|1x15pin D-sub|1xHDMI|1xDisplayPort|2xUSB 2.0|3xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|LAN 2.5 Gigabit|Audio|RAID SATA 0, 1, 5, 10|TPM Header
Graphics - 1 x DisplayPort**
1 x port VGA
1 x port HDMI***
* Specyfikacje graficzne mogą się różnić w zależności od typu procesora. Aby uzyskać aktualizacje, zapoznaj się z witryną www.intel.com.
** Obsługuje maks. 4K@60Hz zgodnie ze specyfikacją DisplayPort 1.4.
*** Obsługuje 4K@60Hz zgodnie ze specyfikacją HDMI 2.1.
Graphics - Parallel processing technology support - Not supported
gross_weight - 2 kg
GTIN - 4711387102985
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Yes
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 3
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Peripheral (Molex) power connectors (4-pin) - 1
Internal I/O - RGB LED pin header - Yes
Internal I/O - S/PDIF out connector - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O > Number of SATA connectors - 4
Link - https://www.asus.com/motherboards-components/motherboards/prime/prime-b760-plus/
LongDesc - B760-PLUSASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760-PLUS provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.FLEXIBILITYComprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760-PLUS motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.Intelligent ControlASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.UEFI BIOSThe renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.Quick and Simple SetupEZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.All-Around Energy EfficiencyThe Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.Flexible Air- and Liquid-Cooling ControlsASUS Fan Xpert 2+ software provides comprehensive control over fans and all-in-one (AIO) coolers. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans and AIO coolers can also be controlled via the UEFI BIOS.Precise Digital Power ControlThe Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.Intuitive Graphical Fan ControlFine-tune individual fan settings simply by dragging a curve with the mouseAura On/Off Mode (Stealth)Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.
LongProductName - Prime B760-PLUS, an Intel B760 LGA 1700 ATX motherboard with PCIe 5.0, three PCIe 4.0 M.2 slots, DDR5, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI™, SATA 6 Gbps, USB 3.2 Gen 2x2 Type-C, front USB 3.2 Gen 1 Type-C, Thunderbolt (USB4) support, Aura Sync
LongSummaryDescription - ASUS PRIME B760-PLUS. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
LPT connector / port - No
M.2 Expansion slots - 3
Manufacturer - Asus
Manufacturer - ASUS
Manufacturer_code - 90MB1EF0-M1EAY0
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 192 GB
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz
Memory - Supported memory clock speeds - 5000
Memory - Supported memory clock speeds - 5200
Memory - Supported memory clock speeds - 5400
Memory - Supported memory clock speeds - 5600
Memory - Supported memory clock speeds - 5800
Memory - Supported memory clock speeds - 6000
Memory - Supported memory clock speeds - 6200
Memory - Supported memory clock speeds - 6400
Memory - Supported memory clock speeds - 6600
Memory - Supported memory clock speeds - 6800
Memory - Supported memory clock speeds - 7000
Memory - Supported memory clock speeds - 7200
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR5
Memory bus frequency - 4800 MHz
Memory bus frequency - 5000 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5400 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - PRIME B760-PLUS
Model - Prime B760-PLUS
MPN - 90MB1EF0-M0EAY0
Name - 1700 ASUS PRIME B760-PLUS
Name - ASUS PRIME B760-PLUS
name - ASUS Prime B760-Plus, Intel B760 Mainboard, Sockel 1700, DDR5
Name - ASUS PRIME B760-PLUS, motherboard - 1700
Name - Asus | PRIME B760 PLUS | Processor family Intel | Processor socket LGA1700 | DDR5 | Number of SATA connectors 4
name - Motherboard TUF GAMING B760-PLUS s1700 4DDR5 ATX
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet interface type - 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Network - Ethernet interface type - Fast Ethernet
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - 1 x Realtek 2.5Gb Ethernet
Tylko pionowe gniazdo M.2 (Key E, CNVi i PCIe)*
* Moduł Wi-Fi jest sprzedawany oddzielnie.
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 3
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Clear CMOS button
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x S/PDIF Out header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x Thunderbolt header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 3 x 4pin Chassis fan
Onboard connectors - 3 x Addressable LED
Onboard connectors - 3 x M.2
Onboard connectors - 4 x SATA III 6Gb/s
Other features - Weight - 760 g
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 340.00 mm
Package features > Gross height (mm) - 60.00 mm
Package features > Gross width (mm) - 270.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 157 pc(s)
Package features > Paper/Pasteboard - 250.00 g
Package features > Plastic (No PET) - 50.00 g
Package features > Tare weight (kg) - 0.30 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - SATA
Packaging data - Package depth - 266 mm
Packaging data - Package height - 53 mm
Packaging data - Package weight - 1.2 kg
Packaging data - Package width - 328 mm
PCI-Express 3.0 1x Expansion slots - 2
PCI-Express 4.0 16x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Compatible processor series - Intel® Pentium® Gold
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Processor family - Intel Celeron
Processor family - Intel Core
Processor family - Intel Pentium Gold
producer - Asus
Producer - ASUS
Producer - Asus
producerCode - 90MB1EF0-M1EAY0
ProducerCode - PRIME B760-PLUS
Producer product name - PRIME B760 PLUS
productName - ASUS PRIME B760-PLUS Intel B760 LGA 1700 ATX
ProductName - PRIME B760-PLUS
productSize - Normal
RAID - SATA 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 57 cm
Shipping Box Height Shipping/Package Box Dimensions - 30 cm
Shipping box quantity - 10
Shipping Box Weight Shipping/Package Box Dimensions - 13.2 kg
Shipping Box Width Shipping/Package Box Dimensions - 34 cm
ShortDescription - Socket 1700| Chipset Intel B760 | DDR5 |
ShortSummaryDescription - ASUS PRIME B760-PLUS, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, DDR5-SDRAM, 192 GB
sizeX - 355
sizeY - 55
sizeZ - 265
Socket - LGA1700
Software -
Sound card - Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Obsługuje: wykrywanie gniazda, przesyłanie strumieniowe, zmianę przeznaczenia gniazda na przednim panelu
- Obsługuje odtwarzanie do 24 bitów/192 kHz
Funkcje audio
- Ekranowanie audio
- Kondensatory audio klasy premium
- Dedykowane warstwy audio PCB
* Do obsługi wyjścia audio 7.1 Surround Sound wymagana jest obudowa z modułem audio HD na przednim panelu.
Special functions -
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 7
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Gross weight - 1.30 kg
Technical details > Net weight - 1.00 kg
Technical details > Producer - Asus
Title - ASUS PRIME B760-PLUS Intel B760 LGA 1700 ATX
title_en - Asus Prime B760-PLUS Intel B760 LGA 1700 ATX Motherboard
title_lv - Asus Prime B760-PLUS Intel B760 LGA 1700 ATX Mātesplate
title_ru - Asus Prime B760-PLUS Intel B760 LGA 1700 ATX Материнская Плата
TPM - Header
Unit Box Height - 0.27
Unit Box Length - 0.33
Unit Box Width - 0.055
Unit Brutto Volume - 0.005814 cubm
Unit Gross Weight - 1.32 kg
Unit Net Weight - 0.8 kg
URL - https://www.asus.com/motherboards-components/motherboards/prime/prime-b760-plus/
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 3
USB 3.2 Interface - Yes
USB ports at back panel - 6
USB ports on motherboard - 7
Vendor Homepage - www.asus.com/motherboards-components/motherboards/prime/prime-b760-plus/
vendpn - PRIME B760-PLUS
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 1,00
Weight - 1.2
weight - 1.185 kg
weight - 1220
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 36 mm
Weight & dimensions - Width - 305 mm
