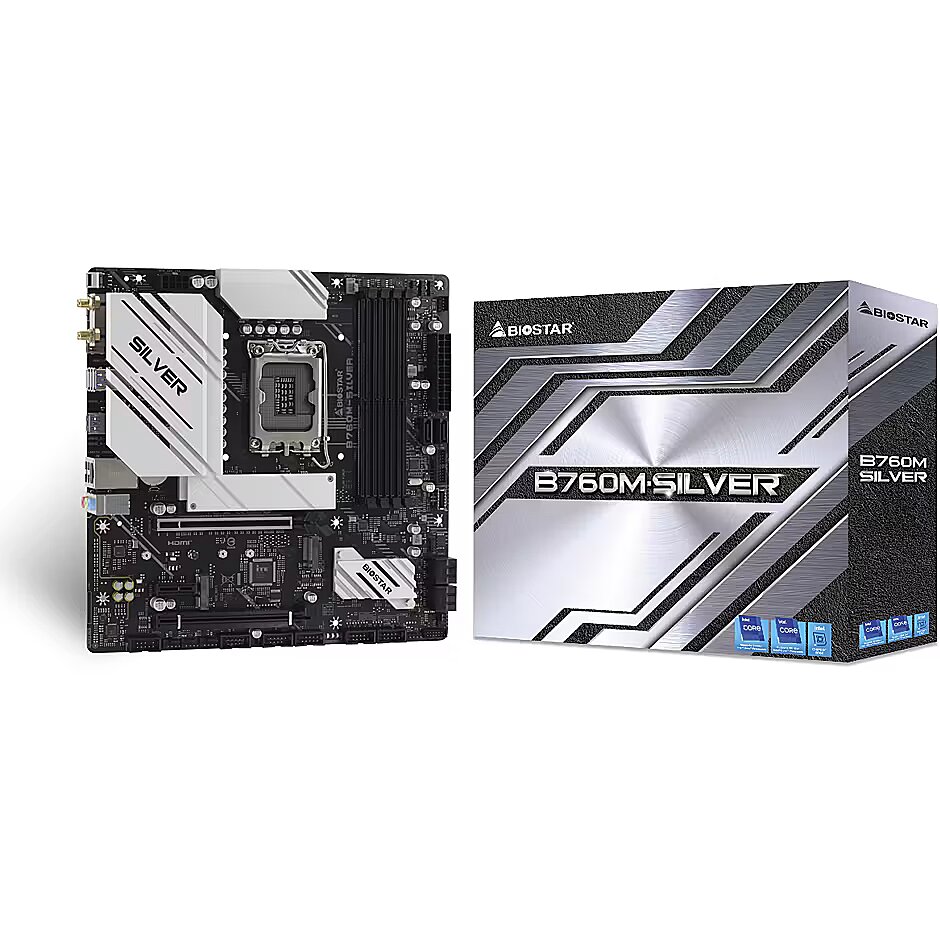

Biostar B760M-SILVER
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: 10.12.2024
- Series: Biostar Silver
- CPU Socket: LGA 1700
- Chipset: Intel B760
- Form factor: Micro ATX
- Type: DDR5
- RAM Slots: 4
- Built-in Wi-Fi: Nav
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Bluetooth Interface - Yes
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel B760 Express
Description - - Supports 12th/ 13th Generation Intel Core™ Processor - Intel B760 single chip architecture - Supports 4-DIMM DDR5 up to 128 GB Memory - Supports PCIe 5.0 - Supports PCIe M.2 4.0 (64Gb/s) - Supports HDMI 2.1 - Supports 2.5 GbE LAN - Supports USB 3.2 Gen2 Type C - Support WiFi 6 & 6E module (No WiFi card included)
DisplayPort Input/Output connectors - 1
EAN_code - 4712960686694
Form Factor - Micro-ATX
Frequency speed - 4800/5000/5200/5400/5600/5800/6000 MHz
Full Description Line - Intel B760 Express|LGA1700|Micro-ATX|DDR5|6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|2xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|5xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC1200|RAID SATA 0, 1, 5, 10
HDMI Input/Output connectors - 1
Included Accessories - 4 x SATA Cable;
1 x I/O Shield;
1 x DVD Driver;
1 x Quick Guide
Integrated audio - Realtek ALC1200
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
M.2 Expansion slots - 2
Manufacturer - Biostar
Manufacturer_code - B760M-SILVER
Memory slots - 4
Memory type - DDR5
Model - B760M-SILVER
Name - Biostar B760M-SILVER, dark gray - 1700
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
RAID - SATA 0, 1, 5, 10
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 28 cm
Shipping Box Height Shipping/Package Box Dimensions - 6.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.21 kg
Shipping Box Width Shipping/Package Box Dimensions - 26 cm
Socket - LGA1700
Unit Box Height - 0.065
Unit Box Length - 0.28
Unit Box Width - 0.26
Unit Brutto Volume - 0.004732 cubm
Unit Gross Weight - 1.21 kg
Unit Net Weight - 0.9 kg
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 5
USB 3.2 Interface - Yes
Vendor Homepage - www.biostar.com.tw/app/en/mb/introduction.php?S_ID=1095
Warranty - 36 months
Weight - 1,21
WiFi Interface - Yes
