ID: 928676
Product code: PRO B760-P WIFI DDR4
In stock 8 units
Warranty: 3 years

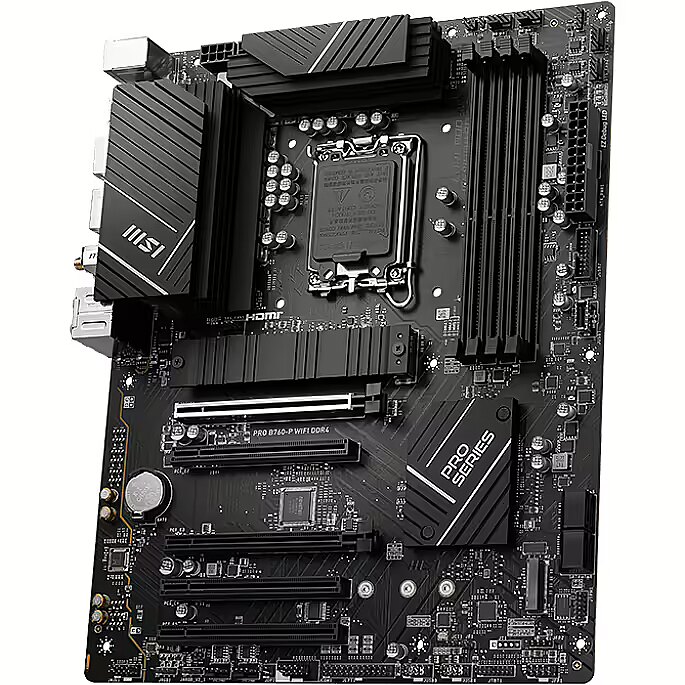

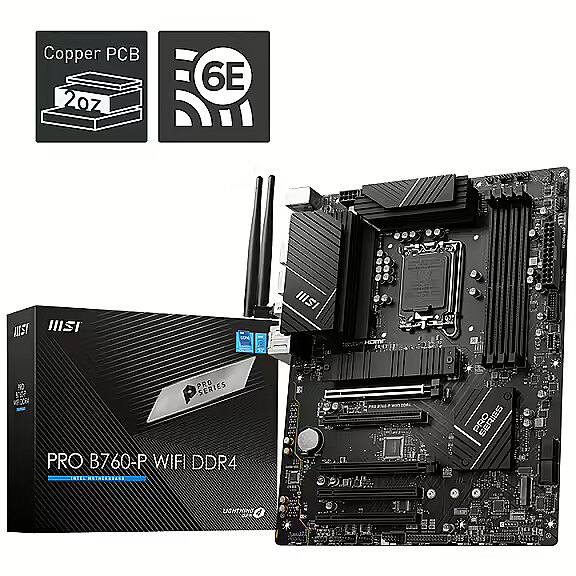

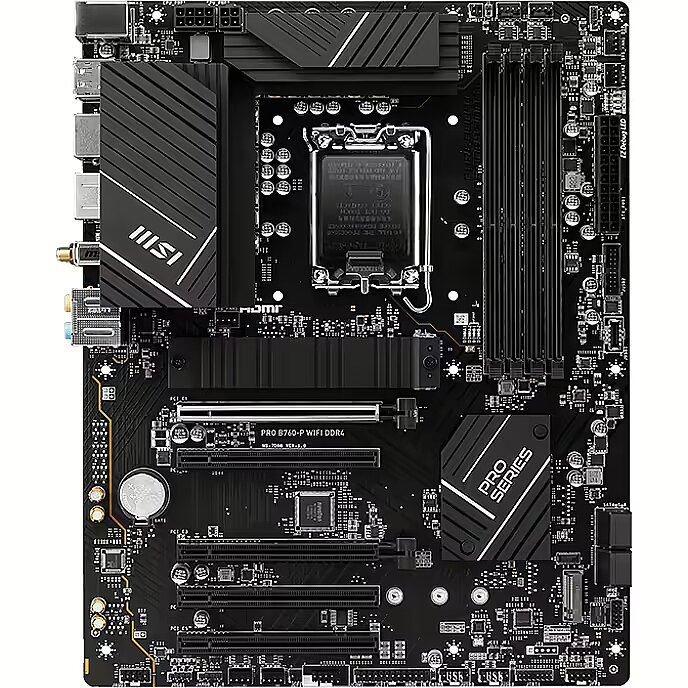

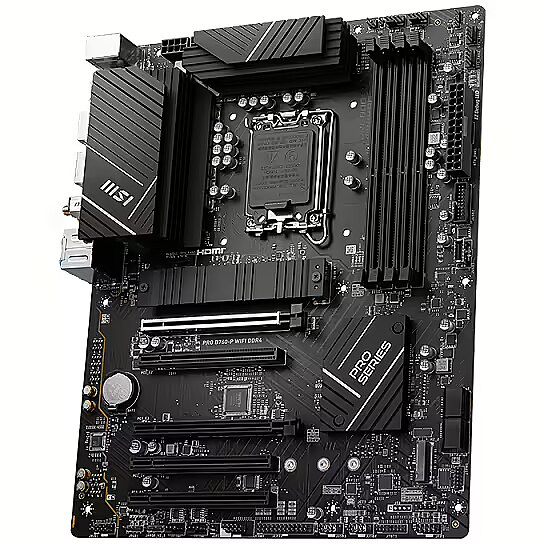

MSI PRO B760-P WIFI DDR4
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: 29.11.2024
Main product parameters All parameters
- Series: MSI PRO
- CPU Socket: LGA 1700
- Chipset: Intel B760
- Form factor: ATX
- Type: DDR4
- RAM Slots: 4
- Built-in Wi-Fi: Ir
Basic information
Series
: MSI PRO
CPU Socket
LGA 1700
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel B760
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
ATX
The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR4
RAM Slots
4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR4 3200 (OC 5333)
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 0
DVI
: 0
HDMI
: 1
DisplayPort
: 1
Integrated sound card
: Realtek ALC897
Wireless connections
Built-in Bluetooth
: Ir
Built-in Wi-Fi
: Ir
External ports
External USB Type-C
: 1
External USB 2.0
: 4
External USB 3.0 (USB 3.2 Gen1)
: 0
External USB 3.1 (USB 3.2 Gen2)
: 3
Internal ports
Internal A-RGB 5V (3-pin)
: 2
Internal RGB 12V (4-pin)
: 1
Internal USB 2.0
: 2
Internal USB 3.0
: 1
Internal USB Type-C
: 1
M.2 Port
: 2
SATA3 ports
: 4
More detailed specification
Accessories included -
ARTIKEL1 - PRO B760-P WIFI DDR4 ATX
ARTIKEL2 - INTEL MB SO 1700 5 PCI-E 16
Audio port Input/Output connectors - 5
BIOS -
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - System Management BIOS (SMBIOS) version - 3.5
Bluetooth Interface - Yes
Brand - MSI
BrandPartCode - PRO B760-P WIFI DDR4
Category - Datortehnika :: Datoru komponentes :: Pamatplates
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
category_en - Computers & Components > Computer components > Motherboards > Intel motherboards
category_lv - Datortehnika > Datoru komponentes > Pamatplates > Intel mātesplates
category_ru - Datortehnika > Datoru komponentes > Pamatplates > Intel mātesplates
Chipset - Intel B760 Express
Chipset manufacturer - Intel
Chipset type - INTEL B760
Code - 7D98-001R
code - 7D98-001R
Code - PRO B760-P WIFI DDR4
COM connector / port - Yes
CPU socket - LGA1700
Desc - Mikroshēmu tips | chipset: Intel B760, Plates formfaktors: ATX, Procesora ražotājs: Intel, Ligzda: LGA 1700, DDR tips: DDR4, Atmiņas sloti: 4, Max atmiņas apjoms: 128 GB, Integrēta audio karte: 7.1-Channel High Definition Audio, LAN: Realtek RTL8125BG 2.5Gbps LAN controller, WiFi: Ir, M.2 Pieslēgumi: 2, Garantija: 2 gadi
Description -
Description - PRO B760-P WIFI DDR4 PRO B760-P WIFI DDR4 is designed with tons of flexible tools and convenient Wi-Fi solution with DDR4 memory version.
description_en - Chip Type|Chipset: Intel B760
Board Form factor: ATX
Processor Manufacturer: Intel
Connector: LGA 1700
DDR Type: DDR4
Memory Slots: 4
Maximum memory capacity: 128 GB
Built-in sound card: 7.1-channel high definition audio
LAN: Realtek rtl8125bg 2.5 Gbps LAN controller
WiFi: Yes
M. 2 Connections: 2
description_lv - Mikroshēmu tips | chipset: Intel B760
Plates formfaktors: ATX
Procesora ražotājs: Intel
Ligzda: LGA 1700
DDR tips: DDR4
Atmiņas sloti: 4
Max atmiņas apjoms: 128 GB
Integrēta audio karte: 7.1-Channel High Definition Audio
LAN: Realtek RTL8125BG 2.5Gbps LAN controller
WiFi: Ir
M.2 Pieslēgumi: 2
description_ru - Тип чипа | чипсет: Intel B760
Форм-фактор платы: ATX
Производитель процессора: Intel
Разъем: LGA 1700
Тип DDR: DDR4
Слоты памяти: 4
Максимальный объем памяти: 128 ГБ
Встроенная звуковая карта: 7.1-канальный аудио высокой четкости
LAN: Realtek rtl8125bg 2.5 Gbps LAN controller
WiFi: да
M. 2 Подключения: 2
Detailed data on disk/drive interfaces - 2 x M.2: M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4 x SATA 6G
dimension depth - 57 mm
dimension height - 270 mm
Dimensions - 243.84 x 304.8 mm
dimension weight - 1498 g
dimension width - 350 mm
DisplayPort Input/Output connectors - 1
EAN - 4711377028363
ean - 4711377028363
EANCode - 4711377028363
Eans - 4711377028363
EAN_code - 4711377028363
Expansion slots - 2 x PCIe 4.0 x 16
Expansion slots - 3 x PCIe 3.0 x 1
Expansion slots - PCI Express x1 (Gen 3.x) slots - 2

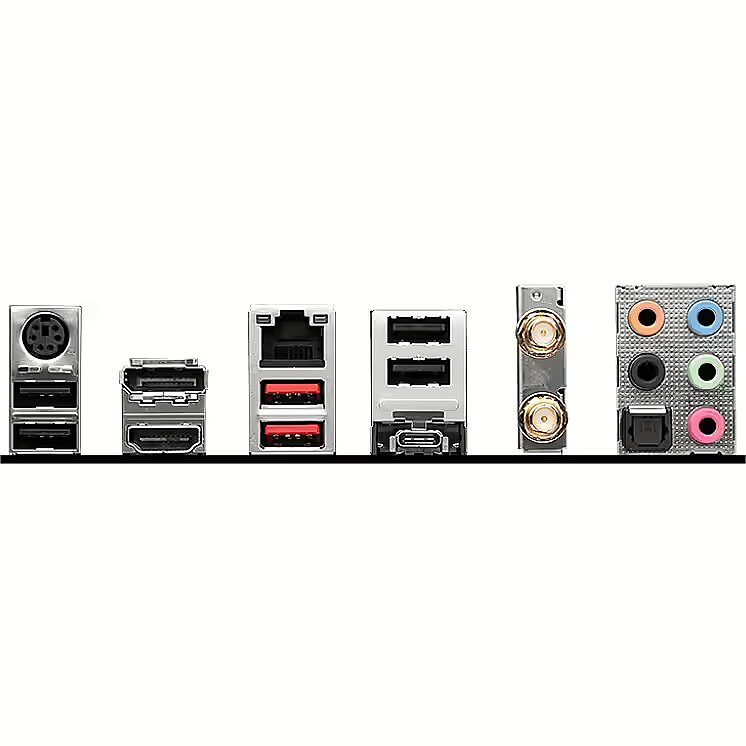

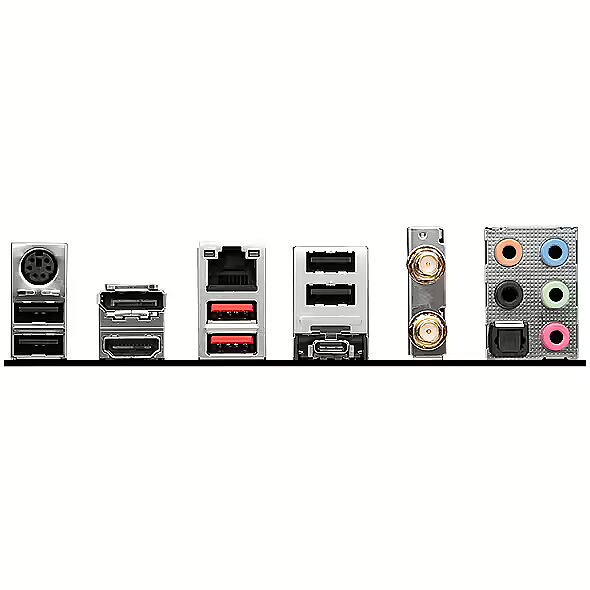

External connectors - 1 x Central Speaker / Subwoofer
External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x Rear Speaker
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 1 x USB 3.1 Type-C
External connectors - 2 x SMA
External connectors - 2 x USB 3.1
External connectors - 4 x USB 2.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Power source type - ATX
Features - Windows operating systems supported - Windows 10, Windows 11
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 2133/2400/2666/2933/3200/3333/3400/3466/3600/3733/3800/4000/4200/4266/4400/4600/4800/5000/5066/5200/5333 MHz
Full Description Line - Intel B760 Express|LGA1700|ATX|DDR4|5333/5200/5066/5000/4800/4600/4400/4266/4200/4000/3800/3733/3600/3466/3400/3333/3200/2933/2666/2400/2133 MHz|Memory slots 4|5xPCI-Express 5.0 16x|2xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|2xUSB 3.2|1xUSB-C|1xPS/2|1xOptical S/PDIF|1xRJ45|5xAudio port|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC897|RAID SATA 0, 1, 5, 10|TPM Header
Graphics - HDMI DisplayPort Support HDMI 2.1, maximum resolution 4K 60Hz Support DP 1.4, max resolution 4K 60Hz *Available only on processors with integrated graphics. Graphics specifications may vary depending on the installed processor.
Gross weight - 1.64 kg
gross_weight - 1.2 kg
GRUPPE1 - Memory & Processors
GRUPPE2 - Mainboard
GTIN - 4711377028363
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
HERSTELLER - MSI COMPUTER
HSTNUMMER - 7D98-001R
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_102257_1.jpg
Integrated audio - Realtek ALC897
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 4
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 4
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
LargeDescHTML -
Link - https://www.msi.com/Motherboard/PRO-B760-P-WIFI-DDR4
LongDesc - BUSINESS ELEGANCEThe PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.Extended HeatsinkExtended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.M.2 Shield FrozrStrengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.Heavy Plated VRM HeatsinkThe VRM heatsink covers the upper MOS and helps dissipate the heat.7W/mK Thermal Pad & Additional Choke PadHigh-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.Chipset HeatsinkThe chipset heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.LIGHTNING GEN 4 PCI-EDoubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.REINFORCED,HEAVY SOLDERED CONNECTIONSSecure to the motherboard with extra solder points and support the weight of heavy graphics cards.FAST AND FUTURE-READY STORAGEMSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2 10GUsing USB 3.2 devices has never been faster! MSI PRO series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 10Gb/s when connecting the Rear USB Type-C.
LongProductName - LGA 1700, Intel B760, 4x DDR4, 1x HDMI, 4x SATA, Wi-Fi 6E, ATX
LongSummaryDescription - MSI PRO B760-P WIFI DDR4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
M.2 Expansion slots - 2
Manufacturer - MSI
Manufacturer_code - 7D98-001R
Max. number of SATA devices - 4
Max memory size - 128 GB
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 5333 MHz
Memory - Supported memory clock speeds - 2133,2400,2666,2933,3200,3333,3400,3466,3600,3733,3800,4000,4200,4266,4400,4600,4800,5000,5066,5200,5333 MHz
Memory - Supported memory types - DDR4-SDRAM
Memory > Supported memory types - DDR4
Memory bus frequency - 2133 MHz
Memory bus frequency - 2400 MHz
Memory bus frequency - 2666 MHz
Memory bus frequency - 2933 MHz
Memory bus frequency - 3200 MHz
Memory bus frequency - 3333 MHz
Memory bus frequency - 3400 MHz
Memory bus frequency - 3466 MHz
Memory bus frequency - 3600 MHz
Memory bus frequency - 3733 MHz
Memory bus frequency - 3800 MHz
Memory bus frequency - 4000 MHz
Memory bus frequency - 4200 MHz
Memory bus frequency - 4266 MHz
Memory bus frequency - 4400 MHz
Memory bus frequency - 4600 MHz
Memory bus frequency - 4800 MHz
Memory bus frequency - 5000 MHz
Memory bus frequency - 5066 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5333 MHz
Memory slots - 4
Memory type - DDR4
Memory type - DDR4
Model - B760-P
Model - PRO B760-P WIFI DDR4
MPN - 7D98-001R
Name - 1700 MSI PRO B760-P WIFI DDR4
name - Motherboard PRO B760-P WIFI DDR4 s1700 4DDR4 DP/HDMI ATX
Name - MSI PRO B760-P WIFI DDR4
name - MSI Pro B760-P WiFi DDR4, Intel B760 Mainboard - Sockel 1700, DDR4
Name - MSI PRO B760-P WIFI DDR4, motherboard - 1700
Name - MSI | PRO B760-P WIFI DDR4 | Processor family Intel | Processor socket LGA1700 | DDR4 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
Name - Pamatplate MSI PRO B760-P WIFI
Network - Bluetooth - Yes
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - Yes
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - LAN: Realtek RTL8125BG 2.5G LAN Wireless communication: Intel WiFi 6E The wireless module is pre-installed in the M.2 (Key-E) slot. Supports MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/b/g/n/ac/ax Supports Bluetooth 5.3, FIPS, FISMA
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax
Number of DDR4 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 3
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 3
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Printer Port (JLPT)
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x Addressable LED
Onboard connectors - 2 x M.2
Onboard connectors - 2 x System panel header
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 4 x EZ Debug LED
Onboard connectors - 4 x SATA III 6Gb/s
Onboard connectors - 4 x USB 2.0/1.1
Onboard connectors - 5 x 4pin Chassis fan
Optical S/PDIF Input/Output connectors - 1
Other information -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 319.00 mm
Package features > Gross height (mm) - 352.00 mm
Package features > Gross width (mm) - 86.00 mm
Package features > Inner carton packing Qty - 1.00 pc(s)
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 179 pc(s)
Package features > Paper/Pasteboard - 600.00 g
Package features > Plastic (No PET) - 75.00 g
Package features > Tare weight (kg) - 0.68 kg
Package features > TI weight (kg) - 0.05 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
PCI-Express 5.0 16x Expansion slots - 5
Processor - Compatible processor series - Intel® Celeron®, Intel® Pentium® Gold
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Processor family - Intel Celeron
Processor family - Intel Core i3
Processor family - Intel Core i5
Processor family - Intel Core i7
Processor family - Intel Core i9
Processor family - Intel Pentium Gold
producer - MSI
Producer - MSI
ProducerCode - PRO B760-P WIFI DDR4
Producer product name - PRO B760-P WIFI DDR4
ProductName - PRO B760-P WIFI DDR4
PS/2 Input/Output connectors - 1
RAID - SATA 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 35 cm
Shipping Box Height Shipping/Package Box Dimensions - 7 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.49 kg
Shipping Box Width Shipping/Package Box Dimensions - 27 cm
ShortDescription - Socket 1700| Chipset Intel B760 | DDR4 |
ShortSummaryDescription - MSI PRO B760-P WIFI DDR4, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, LGA 1700, DDR4-SDRAM, 128 GB
Socket - LGA1700
Software -
Sound card - Realtek ALC897 Codec 7.1-Channel High Definition Audio
Special functions -
Stck_Kart - 10
Stck_Pal - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storno - N
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Net weight - 0.97 kg
Technical details > Producer - MSI
Title - MSI PRO B760-P WIFI DDR4 motherboard LGA 1700 ATX
title_en - MSI PRO B760-P WIFI Motherboard
title_lv - MSI PRO B760-P WIFI Pamatplate
title_ru - MSI PRO B760-P WIFI Материнская плата
TPM - Header
Unit Brutto Volume - 0.006615 cubm
Unit Gross Weight - 1.49 kg
Unit Net Weight - 1.2 kg
URL - https://www.msi.com/Motherboard/PRO-B760-P-WIFI-DDR4/Overview
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 2
USB 3.2 Interface - Yes
USB ports at back panel - 7
USB ports on motherboard - 7
Vendor Homepage - www.msi.com/Motherboard/PRO-B760-P-WIFI-DDR4
vendpn - PRO B760-P WIFI DDR4
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
weight - 1 kg
Weight - 1,50
Weight - 1.5
Weight & dimensions - Depth - 304.8 mm
Weight & dimensions - Width - 243.8 mm
WiFi Interface - Yes
ARTIKEL1 - PRO B760-P WIFI DDR4 ATX
ARTIKEL2 - INTEL MB SO 1700 5 PCI-E 16
Audio port Input/Output connectors - 5
BIOS -
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - System Management BIOS (SMBIOS) version - 3.5
Bluetooth Interface - Yes
Brand - MSI
BrandPartCode - PRO B760-P WIFI DDR4
Category - Datortehnika :: Datoru komponentes :: Pamatplates
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
category_en - Computers & Components > Computer components > Motherboards > Intel motherboards
category_lv - Datortehnika > Datoru komponentes > Pamatplates > Intel mātesplates
category_ru - Datortehnika > Datoru komponentes > Pamatplates > Intel mātesplates
Chipset - Intel B760 Express
Chipset manufacturer - Intel
Chipset type - INTEL B760
Code - 7D98-001R
code - 7D98-001R
Code - PRO B760-P WIFI DDR4
COM connector / port - Yes
CPU socket - LGA1700
Desc - Mikroshēmu tips | chipset: Intel B760, Plates formfaktors: ATX, Procesora ražotājs: Intel, Ligzda: LGA 1700, DDR tips: DDR4, Atmiņas sloti: 4, Max atmiņas apjoms: 128 GB, Integrēta audio karte: 7.1-Channel High Definition Audio, LAN: Realtek RTL8125BG 2.5Gbps LAN controller, WiFi: Ir, M.2 Pieslēgumi: 2, Garantija: 2 gadi
Description -
Description - PRO B760-P WIFI DDR4 PRO B760-P WIFI DDR4 is designed with tons of flexible tools and convenient Wi-Fi solution with DDR4 memory version.
description_en - Chip Type|Chipset: Intel B760
Board Form factor: ATX
Processor Manufacturer: Intel
Connector: LGA 1700
DDR Type: DDR4
Memory Slots: 4
Maximum memory capacity: 128 GB
Built-in sound card: 7.1-channel high definition audio
LAN: Realtek rtl8125bg 2.5 Gbps LAN controller
WiFi: Yes
M. 2 Connections: 2
description_lv - Mikroshēmu tips | chipset: Intel B760
Plates formfaktors: ATX
Procesora ražotājs: Intel
Ligzda: LGA 1700
DDR tips: DDR4
Atmiņas sloti: 4
Max atmiņas apjoms: 128 GB
Integrēta audio karte: 7.1-Channel High Definition Audio
LAN: Realtek RTL8125BG 2.5Gbps LAN controller
WiFi: Ir
M.2 Pieslēgumi: 2
description_ru - Тип чипа | чипсет: Intel B760
Форм-фактор платы: ATX
Производитель процессора: Intel
Разъем: LGA 1700
Тип DDR: DDR4
Слоты памяти: 4
Максимальный объем памяти: 128 ГБ
Встроенная звуковая карта: 7.1-канальный аудио высокой четкости
LAN: Realtek rtl8125bg 2.5 Gbps LAN controller
WiFi: да
M. 2 Подключения: 2
Detailed data on disk/drive interfaces - 2 x M.2: M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4 x SATA 6G
dimension depth - 57 mm
dimension height - 270 mm
Dimensions - 243.84 x 304.8 mm
dimension weight - 1498 g
dimension width - 350 mm
DisplayPort Input/Output connectors - 1
EAN - 4711377028363
ean - 4711377028363
EANCode - 4711377028363
Eans - 4711377028363
EAN_code - 4711377028363
Expansion slots - 2 x PCIe 4.0 x 16
Expansion slots - 3 x PCIe 3.0 x 1
Expansion slots - PCI Express x1 (Gen 3.x) slots - 2
External connectors - 1 x Central Speaker / Subwoofer
External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x Rear Speaker
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 1 x USB 3.1 Type-C
External connectors - 2 x SMA
External connectors - 2 x USB 3.1
External connectors - 4 x USB 2.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Power source type - ATX
Features - Windows operating systems supported - Windows 10, Windows 11
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 2133/2400/2666/2933/3200/3333/3400/3466/3600/3733/3800/4000/4200/4266/4400/4600/4800/5000/5066/5200/5333 MHz
Full Description Line - Intel B760 Express|LGA1700|ATX|DDR4|5333/5200/5066/5000/4800/4600/4400/4266/4200/4000/3800/3733/3600/3466/3400/3333/3200/2933/2666/2400/2133 MHz|Memory slots 4|5xPCI-Express 5.0 16x|2xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|2xUSB 3.2|1xUSB-C|1xPS/2|1xOptical S/PDIF|1xRJ45|5xAudio port|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC897|RAID SATA 0, 1, 5, 10|TPM Header
Graphics - HDMI DisplayPort Support HDMI 2.1, maximum resolution 4K 60Hz Support DP 1.4, max resolution 4K 60Hz *Available only on processors with integrated graphics. Graphics specifications may vary depending on the installed processor.
Gross weight - 1.64 kg
gross_weight - 1.2 kg
GRUPPE1 - Memory & Processors
GRUPPE2 - Mainboard
GTIN - 4711377028363
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
HERSTELLER - MSI COMPUTER
HSTNUMMER - 7D98-001R
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_102257_1.jpg
Integrated audio - Realtek ALC897
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 4
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 4
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
LargeDescHTML -
Link - https://www.msi.com/Motherboard/PRO-B760-P-WIFI-DDR4
LongDesc - BUSINESS ELEGANCEThe PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.Extended HeatsinkExtended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.M.2 Shield FrozrStrengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.Heavy Plated VRM HeatsinkThe VRM heatsink covers the upper MOS and helps dissipate the heat.7W/mK Thermal Pad & Additional Choke PadHigh-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.Chipset HeatsinkThe chipset heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.LIGHTNING GEN 4 PCI-EDoubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.REINFORCED,HEAVY SOLDERED CONNECTIONSSecure to the motherboard with extra solder points and support the weight of heavy graphics cards.FAST AND FUTURE-READY STORAGEMSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2 10GUsing USB 3.2 devices has never been faster! MSI PRO series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 10Gb/s when connecting the Rear USB Type-C.
LongProductName - LGA 1700, Intel B760, 4x DDR4, 1x HDMI, 4x SATA, Wi-Fi 6E, ATX
LongSummaryDescription - MSI PRO B760-P WIFI DDR4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
M.2 Expansion slots - 2
Manufacturer - MSI
Manufacturer_code - 7D98-001R
Max. number of SATA devices - 4
Max memory size - 128 GB
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 5333 MHz
Memory - Supported memory clock speeds - 2133,2400,2666,2933,3200,3333,3400,3466,3600,3733,3800,4000,4200,4266,4400,4600,4800,5000,5066,5200,5333 MHz
Memory - Supported memory types - DDR4-SDRAM
Memory > Supported memory types - DDR4
Memory bus frequency - 2133 MHz
Memory bus frequency - 2400 MHz
Memory bus frequency - 2666 MHz
Memory bus frequency - 2933 MHz
Memory bus frequency - 3200 MHz
Memory bus frequency - 3333 MHz
Memory bus frequency - 3400 MHz
Memory bus frequency - 3466 MHz
Memory bus frequency - 3600 MHz
Memory bus frequency - 3733 MHz
Memory bus frequency - 3800 MHz
Memory bus frequency - 4000 MHz
Memory bus frequency - 4200 MHz
Memory bus frequency - 4266 MHz
Memory bus frequency - 4400 MHz
Memory bus frequency - 4600 MHz
Memory bus frequency - 4800 MHz
Memory bus frequency - 5000 MHz
Memory bus frequency - 5066 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5333 MHz
Memory slots - 4
Memory type - DDR4
Memory type - DDR4
Model - B760-P
Model - PRO B760-P WIFI DDR4
MPN - 7D98-001R
Name - 1700 MSI PRO B760-P WIFI DDR4
name - Motherboard PRO B760-P WIFI DDR4 s1700 4DDR4 DP/HDMI ATX
Name - MSI PRO B760-P WIFI DDR4
name - MSI Pro B760-P WiFi DDR4, Intel B760 Mainboard - Sockel 1700, DDR4
Name - MSI PRO B760-P WIFI DDR4, motherboard - 1700
Name - MSI | PRO B760-P WIFI DDR4 | Processor family Intel | Processor socket LGA1700 | DDR4 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
Name - Pamatplate MSI PRO B760-P WIFI
Network - Bluetooth - Yes
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - Yes
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - LAN: Realtek RTL8125BG 2.5G LAN Wireless communication: Intel WiFi 6E The wireless module is pre-installed in the M.2 (Key-E) slot. Supports MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/b/g/n/ac/ax Supports Bluetooth 5.3, FIPS, FISMA
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax
Number of DDR4 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 3
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 3
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Printer Port (JLPT)
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x Addressable LED
Onboard connectors - 2 x M.2
Onboard connectors - 2 x System panel header
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 4 x EZ Debug LED
Onboard connectors - 4 x SATA III 6Gb/s
Onboard connectors - 4 x USB 2.0/1.1
Onboard connectors - 5 x 4pin Chassis fan
Optical S/PDIF Input/Output connectors - 1
Other information -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 319.00 mm
Package features > Gross height (mm) - 352.00 mm
Package features > Gross width (mm) - 86.00 mm
Package features > Inner carton packing Qty - 1.00 pc(s)
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 179 pc(s)
Package features > Paper/Pasteboard - 600.00 g
Package features > Plastic (No PET) - 75.00 g
Package features > Tare weight (kg) - 0.68 kg
Package features > TI weight (kg) - 0.05 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
PCI-Express 5.0 16x Expansion slots - 5
Processor - Compatible processor series - Intel® Celeron®, Intel® Pentium® Gold
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Processor family - Intel Celeron
Processor family - Intel Core i3
Processor family - Intel Core i5
Processor family - Intel Core i7
Processor family - Intel Core i9
Processor family - Intel Pentium Gold
producer - MSI
Producer - MSI
ProducerCode - PRO B760-P WIFI DDR4
Producer product name - PRO B760-P WIFI DDR4
ProductName - PRO B760-P WIFI DDR4
PS/2 Input/Output connectors - 1
RAID - SATA 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 35 cm
Shipping Box Height Shipping/Package Box Dimensions - 7 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.49 kg
Shipping Box Width Shipping/Package Box Dimensions - 27 cm
ShortDescription - Socket 1700| Chipset Intel B760 | DDR4 |
ShortSummaryDescription - MSI PRO B760-P WIFI DDR4, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, LGA 1700, DDR4-SDRAM, 128 GB
Socket - LGA1700
Software -
Sound card - Realtek ALC897 Codec 7.1-Channel High Definition Audio
Special functions -
Stck_Kart - 10
Stck_Pal - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storno - N
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Net weight - 0.97 kg
Technical details > Producer - MSI
Title - MSI PRO B760-P WIFI DDR4 motherboard LGA 1700 ATX
title_en - MSI PRO B760-P WIFI Motherboard
title_lv - MSI PRO B760-P WIFI Pamatplate
title_ru - MSI PRO B760-P WIFI Материнская плата
TPM - Header
Unit Brutto Volume - 0.006615 cubm
Unit Gross Weight - 1.49 kg
Unit Net Weight - 1.2 kg
URL - https://www.msi.com/Motherboard/PRO-B760-P-WIFI-DDR4/Overview
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 2
USB 3.2 Interface - Yes
USB ports at back panel - 7
USB ports on motherboard - 7
Vendor Homepage - www.msi.com/Motherboard/PRO-B760-P-WIFI-DDR4
vendpn - PRO B760-P WIFI DDR4
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
weight - 1 kg
Weight - 1,50
Weight - 1.5
Weight & dimensions - Depth - 304.8 mm
Weight & dimensions - Width - 243.8 mm
WiFi Interface - Yes
