ID: 927038
Product code: TUF GAMING B760M-PLUS WIFI D4
In stock 9 units
Warranty: 3 years

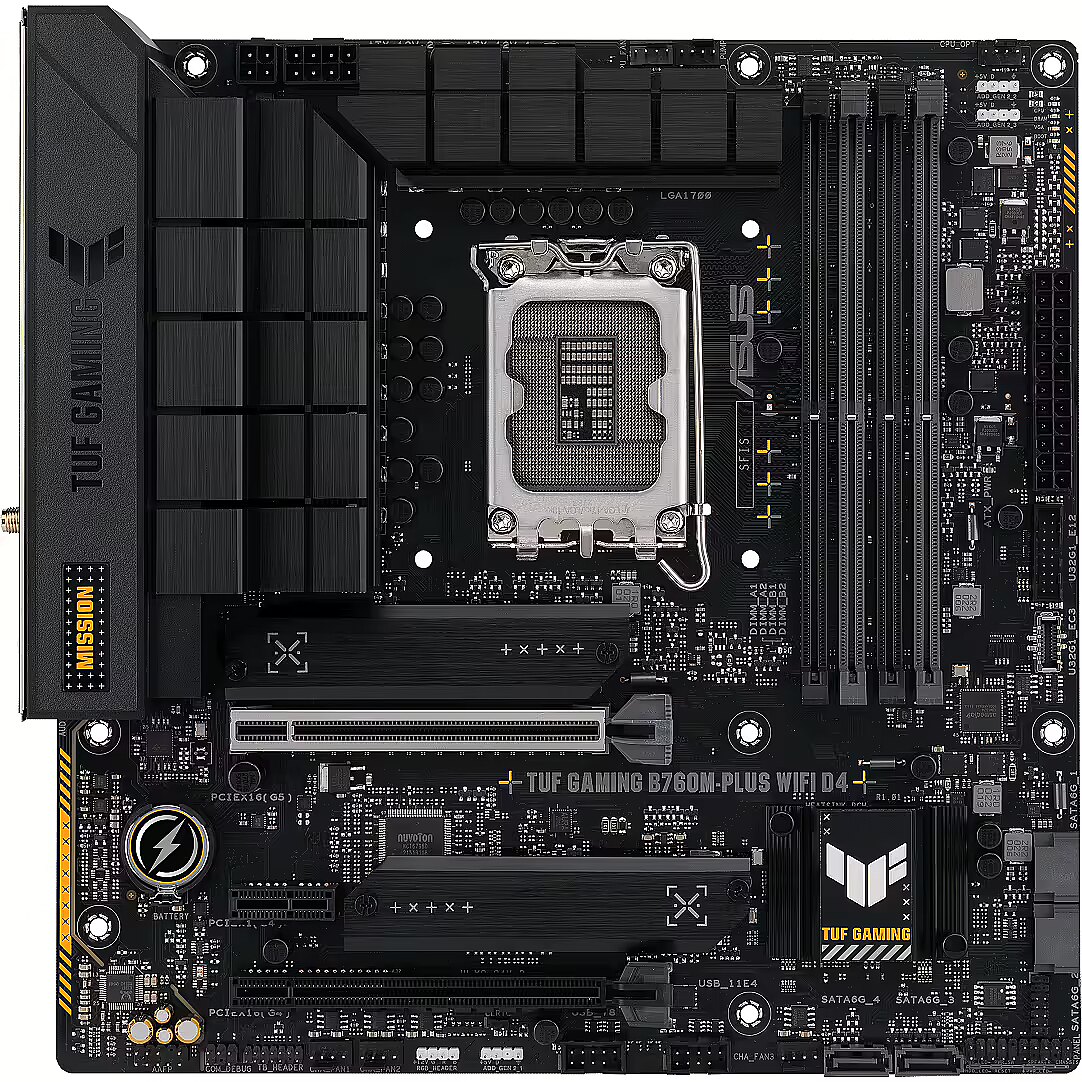

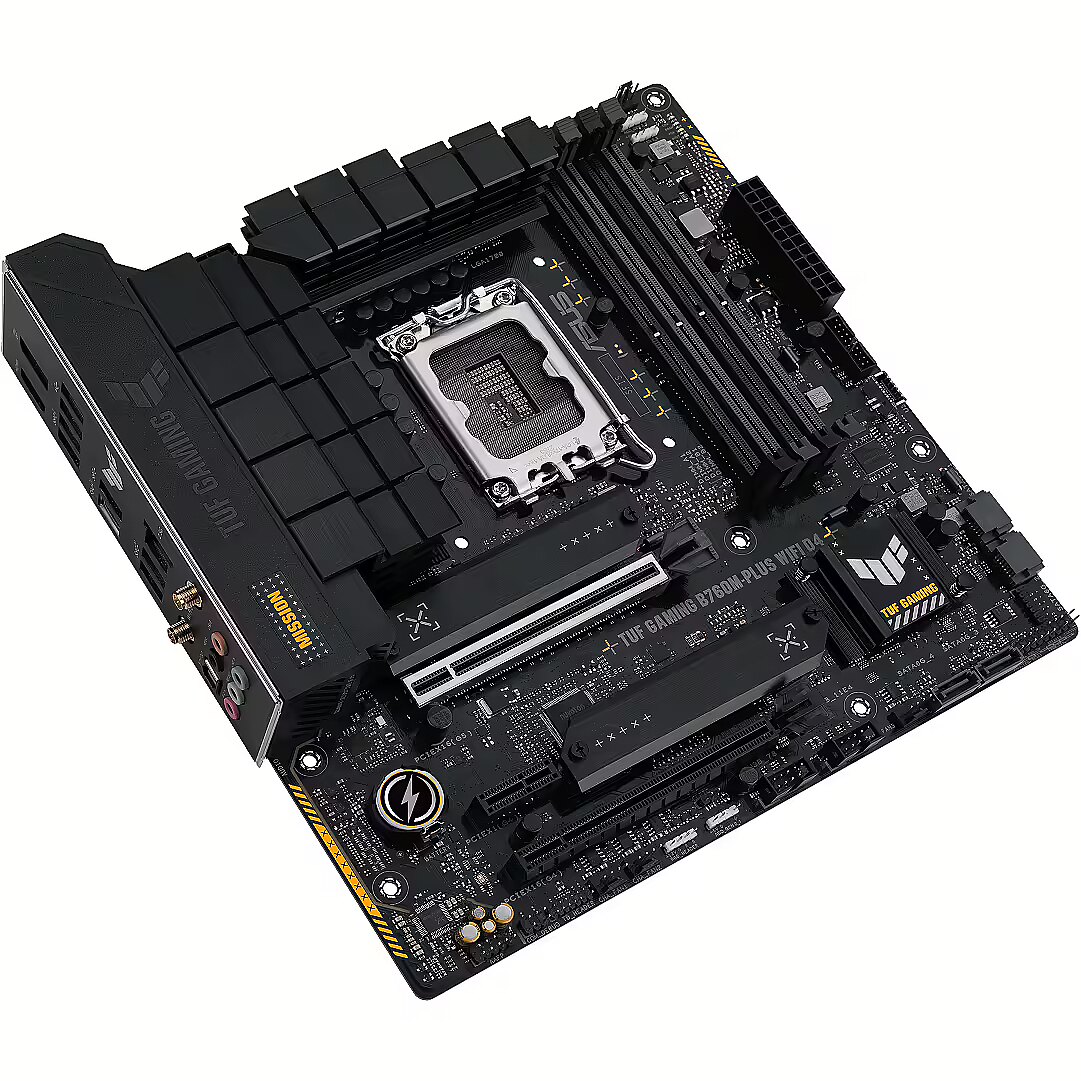

Asus TUF GAMING B760M-PLUS WIFI D4
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: on Wednesday, 27.11.2024
Main product parameters All parameters
- Series: ASUS TUF Gaming
- CPU Socket: LGA 1700
- Chipset: Intel B760
- Form factor: Micro ATX
- Type: DDR4
- RAM Slots: 4
- Built-in Wi-Fi: Ir
Basic information
Series
: ASUS TUF Gaming
CPU Socket
LGA 1700
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel B760
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
Micro ATX
The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR4
RAM Slots
4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR4 3200 (OC 5066)
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 0
DVI
: 0
HDMI
: 1
DisplayPort
: 1
Integrated sound card
: Realtek Audio CODEC
Wireless connections
Built-in Bluetooth
: Ir
Built-in Wi-Fi
: Ir

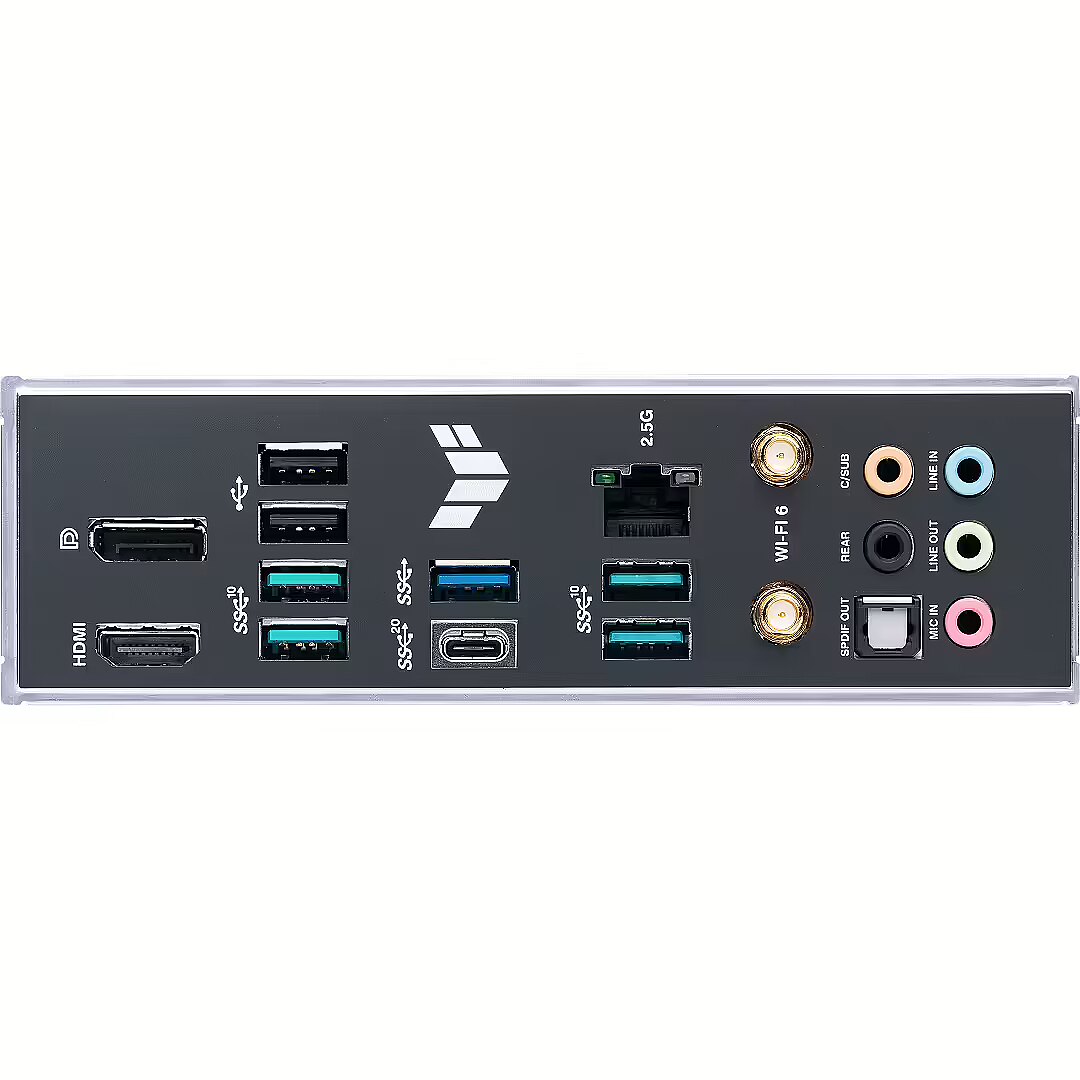

External ports
External USB Type-C
: 1
External USB 2.0
: 2
External USB 3.0 (USB 3.2 Gen1)
: 1
External USB 3.1 (USB 3.2 Gen2)
: 5
Internal ports
Internal A-RGB 5V (3-pin)
: 3
Internal RGB 12V (4-pin)
: 1
Internal USB 2.0
: 2
Internal USB 3.0
: 1
Internal USB Type-C
: 1
M.2 Port
: 2
SATA3 ports
: 4
More detailed specification
Audio port Input/Output connectors - 5
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
Bluetooth Interface - Yes
Brand - ASUS
BrandCode - ASUS
BrandPartCode - 90MB1DG0-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel B760 Express
Code - 90MB1DG0-M0EAY0
code - 90MB1DG0-M1EAY0
Data exchange - Bluetooth - Bluetooth 5.2
Data exchange - LAN (RJ45) - 10/100/1000/2500
Data exchange - WiFi - Wi-Fi 6 (ax)
Description - TUF GAMING B760M-PLUS WIFI D4 TUF GAMING B760M-PLUS WIFI D4 takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
Desktop - motherboard type - mATX
dimensionalWeight - 1078
Dimensions - depth - 24.4
Dimensions - width - 24.4
DisplayPort Input/Output connectors - 1
EAN - 4711387004456
ean - 4711387004456
Eans - 4711387004456
EAN_code - 4711387004456
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x1 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel B760
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11
Features - Windows operating systems supported - Windows 11
Form Factor - Micro-ATX
Frequency speed - 2133/2400/2666/2800/2933/3000/3200/3333/3400/3466/3600/3733/4000/4266/4400/4600/4800/5000/5066/5333 MHz
Full Description Line - Intel B760 Express|LGA1700|Micro-ATX|DDR4|5333/5066/5000/4800/4600/4400/4266/4000/3733/3600/3466/3400/3333/3200/3000/2933/2800/2666/2400/2133 MHz|Memory slots 4|1xPCI-Express 4.0 1x|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|2xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|5xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ45|5xAudio port|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|Audio|RAID SATA 0, 1, 5, 10
General parameters - manufacturer - Asus
Graphics - Parallel processing technology support - Not supported
Gross weight - 1.30 kg
GrossWeight - 1.5700
Group - IT > IT ACCESSORIES > PC COMPONENTS > MOTHERBOARDS
GTIN - 0197105004450
GTIN - 197105004450
GTIN - 4711387004456
GTIN - 4711387004463
HDMI Input/Output connectors - 1
Height - 0.0800
Integrated audio - Yes
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Interfaces - Bluetooth
Interfaces - DisplayPort
Interfaces - HDMI
Interfaces - headset connector
Interfaces - LAN (network, RJ45)
Interfaces - Wi-Fi
Interfaces - USB-A 2.0 - 4
Interfaces - USB-A 3.1 - 3
Interfaces - USB-A 3.2 - 3
Interfaces - USB-C 3.2 - 2
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 3
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Peripheral (Molex) power connectors (4-pin) - 1
Internal I/O - RGB LED pin header - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Length - 0.2800
Link - https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b760m-plus-wifi-d4/
LongDesc - TUF GAMING B760M-PLUS WIFI D4TUF GAMING B760M-PLUS WIFI D4 takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.INTELLIGENT CONTROLThe TUF GAMING B760M motherboards pack flexible tools to tune every aspect of your system, enabling performance tweaks to expertly match the way you play.All-Around Energy EfficiencyThe Power Saving function contains several settings that can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.ROCK-SOLID PERFORMANCEWith upgraded power delivery and comprehensive cooling options to fuel the latest Intel CPUs, plus support for DDR4 memory and PCIe 4.0 storage, the TUF GAMING B760M-PLUS WIFI D4 is the perfect foundation for your next Intel battle rig.DrMOS Power Stages12+1 power stages combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible Intel processors.EASY PC DIYThe TUF GAMING line offers easy setup for all builders. The TUF GAMING Alliance ecosystem grants compatibility, while Armoury Crate has Fan Xpert 2+, hardware info, Two-Way AI Noise Cancelation, RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs.Build With ConfidenceTUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger.IMMERSIVE GAMINGTUF GAMING B760M motherboards provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS Gaming, and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere.ASUS WebstorageTimeline BackupAuto Backup for Your Computer!ASUS user's special offer. Buy 1TB get 200GB free.
LongProductName - LGA 1700, Intel B760 Chipset, 4 x DDR4-SDRAM up to 128GB, LAN, WLAN, 1 x RJ-45, 4 x SATA III, 2 x M.2(M), UEFI AMI, Micro ATX
LongSummaryDescription - ASUS TUF GAMING B760M-PLUS WIFI D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
M.2 Expansion slots - 2
Manufacturer - Asus
Manufacturer_code - 90MB1DG0-M1EAY0
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 5333 MHz
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4266,4400,4600,4800,5000,5066,5333 MHz
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2666 MHz
Memory - Supported memory clock speeds - 2800
Memory - Supported memory clock speeds - 2933
Memory - Supported memory clock speeds - 3000
Memory - Supported memory clock speeds - 3200
Memory - Supported memory clock speeds - 3333
Memory - Supported memory clock speeds - 3400
Memory - Supported memory clock speeds - 3466
Memory - Supported memory clock speeds - 3600
Memory - Supported memory clock speeds - 3733
Memory - Supported memory clock speeds - 4000
Memory - Supported memory clock speeds - 4266
Memory - Supported memory clock speeds - 4400
Memory - Supported memory clock speeds - 4600
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 5000
Memory - Supported memory clock speeds - 5066
Memory - Supported memory clock speeds - 5333 MHz
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 4
Memory > Supported memory types - DDR4 DIMM
Memory slots - 4
Memory type - DDR4
Model - TUF GAMING B760M-PLUS WIFI D4
Name - ASUS TUF GAMING B760M-PLUS WIFI D4
Name - Asus TUF GAMING B760M-PLUS WIFI D4 - 1700
name - ASUS TUF Gaming B760M-Plus WiFi D4, Intel B760 Mainboard - Sockel 1700, DDR4
Name - Asus | TUF GAMING B760M-PLUS WIFI D4 | Processor family Intel | Processor socket LGA1700 | DDR4 DIMM | Memory slots 4 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4 | Chipset Intel B760 | mATX
Name EN - MB Asus, Intel B760, LGA1700, DDR4, mATX, WiFi+BT
Name ET - MB Asus, Intel B760, LGA1700, DDR4, mATX, WiFi+BT
NameInWeb EN - ASUS, Intel B760, LGA1700, DDR4, mATX, WiFi+BT - Motherboard
NameInWeb ET - ASUS, Intel B760, LGA1700, DDR4, mATX, WiFi+BT - Emaplaat
NameInWeb LV - ASUS, Intel B760, LGA1700, DDR4, mATX, WiFi+BT - Mātesplate
Name LV - MB Asus, Intel B760, LGA1700, DDR4, mATX, WiFi+BT
NetWeight - 1.2000
Network - Bluetooth - Yes
Network - Bluetooth version - 5.2
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 6 (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Optical S/PDIF Input/Output connectors - 1
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 340.00 mm
Package features > Gross height (mm) - 60.00 mm
Package features > Gross width (mm) - 270.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 314 pc(s)
Package features > Paper/Pasteboard - 250.00 g
Package features > Plastic (No PET) - 50.00 g
Package features > Tare weight (kg) - 0.30 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - SATA
Packaging data - Package depth - 275 mm
Packaging data - Package height - 67.5 mm
Packaging data - Package weight - 1.65 kg
Packaging data - Package width - 275 mm
PCI-Express 4.0 1x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Performance > Chipset - Intel B760
Performance > Motherboard form factor - mATX
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Compatible processor series - Intel® Pentium® Gold
Processor - processor -
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Compatible processor series - Supports 13th Gen Intel Core and 12th Gen Intel Core, Pentium Gold and Celeron Processors
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Producer - Asus
producerCode - 90MB1DG0-M0EAY0
ProducerCode - TUF GAMING B760M-PLUS WIFI D4
Producer product name - TUF GAMING B760M-PLUS WIFI D4
ProductCode - GAMINGB760M-PLUSWIFI
ProductionCountry - CN
productName - ASUS TUF GAMING B760M-PLUS WIFI D4 Intel B760 LGA 1700 micro ATX
ProductName - TUF GAMING B760M-PLUS WIFI D4
productSize - Normal
RAID - SATA 0, 1, 5, 10
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
Rear panel I/O ports - WiFi-AP antenna jack - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 27.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 7 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.57 kg
Shipping Box Width Shipping/Package Box Dimensions - 27.5 cm
ShortDescription - Socket 1700| Chipset Intel B760 | DDR4 |
ShortDescription EN - The ASUS Intel B760 motherboard is a compact mATX-form factor motherboard that supports the LGA1700 socket and DDR4 memory. This motherboard is equipped with built-in WiFi and Bluetooth functionality, providing fast and convenient wireless connectivity. It is an ideal choice for users building a performance-oriented and space-saving computer.
ShortDescription ET - ASUS Intel B760 emaplaat on kompaktne mATX-formaadis emaplaat, mis toetab LGA1700 pesa ja DDR4 mälu. See emaplaat on varustatud sisseehitatud WiFi ja Bluetoothi funktsioonidega, pakkudes kiiret ja mugavat juhtmevaba ühenduvust. See on ideaalne valik kasutajatele, kes ehitavad jõudlusele suunatud ja ruumisäästlikku arvutit.
ShortDescription LV - ASUS Intel B760 ir kompakta mATX formas faktora mātesplate, kas atbalsta LGA1700 ligzdu un DDR4 atmiņu. Šī mātesplate ir aprīkota ar iebūvētu WiFi un Bluetooth funkcionalitāti, nodrošinot ātru un ērtu bezvadu savienojumu. Tā ir ideāla izvēle lietotājiem, kuri būvē uz veiktspēju orientētu un vietu taupošu datoru.
ShortSummaryDescription - ASUS TUF GAMING B760M-PLUS WIFI D4, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, DDR4-SDRAM, 128 GB
sizeX - 280
sizeY - 275
sizeZ - 70
Socket - LGA1700
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 6
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
TariffNo - 84733020
Technical details > Net weight - 1.00 kg
Technical details > Producer - Asus
Title - ASUS TUF GAMING B760M-PLUS WIFI D4 Intel B760 LGA 1700 micro ATX
Unit Box Height - 0.07
Unit Box Length - 0.275
Unit Box Width - 0.275
Unit Brutto Volume - 0.005294 cubm
Unit Gross Weight - 1.57 kg
Unit Net Weight - 1.2 kg
UnitOfMeasureCode - tk
UnitsPerPackage - 1
URL - https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b760m-plus-wifi-d4/
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 5
USB 3.2 Interface - Yes
Vendor Homepage - www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b760m-plus-wifi-d4/techspec/
Volume - 0.00784000
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 2,00
weight - 1600
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 244 mm
Width - 0.3500
WiFi Interface - Yes
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
Bluetooth Interface - Yes
Brand - ASUS
BrandCode - ASUS
BrandPartCode - 90MB1DG0-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel B760 Express
Code - 90MB1DG0-M0EAY0
code - 90MB1DG0-M1EAY0
Data exchange - Bluetooth - Bluetooth 5.2
Data exchange - LAN (RJ45) - 10/100/1000/2500
Data exchange - WiFi - Wi-Fi 6 (ax)
Description - TUF GAMING B760M-PLUS WIFI D4 TUF GAMING B760M-PLUS WIFI D4 takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
Desktop - motherboard type - mATX
dimensionalWeight - 1078
Dimensions - depth - 24.4
Dimensions - width - 24.4
DisplayPort Input/Output connectors - 1
EAN - 4711387004456
ean - 4711387004456
Eans - 4711387004456
EAN_code - 4711387004456
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x1 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel B760
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11
Features - Windows operating systems supported - Windows 11
Form Factor - Micro-ATX
Frequency speed - 2133/2400/2666/2800/2933/3000/3200/3333/3400/3466/3600/3733/4000/4266/4400/4600/4800/5000/5066/5333 MHz
Full Description Line - Intel B760 Express|LGA1700|Micro-ATX|DDR4|5333/5066/5000/4800/4600/4400/4266/4000/3733/3600/3466/3400/3333/3200/3000/2933/2800/2666/2400/2133 MHz|Memory slots 4|1xPCI-Express 4.0 1x|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|2xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|5xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ45|5xAudio port|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|Audio|RAID SATA 0, 1, 5, 10
General parameters - manufacturer - Asus
Graphics - Parallel processing technology support - Not supported
Gross weight - 1.30 kg
GrossWeight - 1.5700
Group - IT > IT ACCESSORIES > PC COMPONENTS > MOTHERBOARDS
GTIN - 0197105004450
GTIN - 197105004450
GTIN - 4711387004456
GTIN - 4711387004463
HDMI Input/Output connectors - 1
Height - 0.0800
Integrated audio - Yes
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Interfaces - Bluetooth
Interfaces - DisplayPort
Interfaces - HDMI
Interfaces - headset connector
Interfaces - LAN (network, RJ45)
Interfaces - Wi-Fi
Interfaces - USB-A 2.0 - 4
Interfaces - USB-A 3.1 - 3
Interfaces - USB-A 3.2 - 3
Interfaces - USB-C 3.2 - 2
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 3
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Peripheral (Molex) power connectors (4-pin) - 1
Internal I/O - RGB LED pin header - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Length - 0.2800
Link - https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b760m-plus-wifi-d4/
LongDesc - TUF GAMING B760M-PLUS WIFI D4TUF GAMING B760M-PLUS WIFI D4 takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.INTELLIGENT CONTROLThe TUF GAMING B760M motherboards pack flexible tools to tune every aspect of your system, enabling performance tweaks to expertly match the way you play.All-Around Energy EfficiencyThe Power Saving function contains several settings that can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.ROCK-SOLID PERFORMANCEWith upgraded power delivery and comprehensive cooling options to fuel the latest Intel CPUs, plus support for DDR4 memory and PCIe 4.0 storage, the TUF GAMING B760M-PLUS WIFI D4 is the perfect foundation for your next Intel battle rig.DrMOS Power Stages12+1 power stages combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible Intel processors.EASY PC DIYThe TUF GAMING line offers easy setup for all builders. The TUF GAMING Alliance ecosystem grants compatibility, while Armoury Crate has Fan Xpert 2+, hardware info, Two-Way AI Noise Cancelation, RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs.Build With ConfidenceTUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger.IMMERSIVE GAMINGTUF GAMING B760M motherboards provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS Gaming, and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere.ASUS WebstorageTimeline BackupAuto Backup for Your Computer!ASUS user's special offer. Buy 1TB get 200GB free.
LongProductName - LGA 1700, Intel B760 Chipset, 4 x DDR4-SDRAM up to 128GB, LAN, WLAN, 1 x RJ-45, 4 x SATA III, 2 x M.2(M), UEFI AMI, Micro ATX
LongSummaryDescription - ASUS TUF GAMING B760M-PLUS WIFI D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
M.2 Expansion slots - 2
Manufacturer - Asus
Manufacturer_code - 90MB1DG0-M1EAY0
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 5333 MHz
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4266,4400,4600,4800,5000,5066,5333 MHz
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2666 MHz
Memory - Supported memory clock speeds - 2800
Memory - Supported memory clock speeds - 2933
Memory - Supported memory clock speeds - 3000
Memory - Supported memory clock speeds - 3200
Memory - Supported memory clock speeds - 3333
Memory - Supported memory clock speeds - 3400
Memory - Supported memory clock speeds - 3466
Memory - Supported memory clock speeds - 3600
Memory - Supported memory clock speeds - 3733
Memory - Supported memory clock speeds - 4000
Memory - Supported memory clock speeds - 4266
Memory - Supported memory clock speeds - 4400
Memory - Supported memory clock speeds - 4600
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 5000
Memory - Supported memory clock speeds - 5066
Memory - Supported memory clock speeds - 5333 MHz
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 4
Memory > Supported memory types - DDR4 DIMM
Memory slots - 4
Memory type - DDR4
Model - TUF GAMING B760M-PLUS WIFI D4
Name - ASUS TUF GAMING B760M-PLUS WIFI D4
Name - Asus TUF GAMING B760M-PLUS WIFI D4 - 1700
name - ASUS TUF Gaming B760M-Plus WiFi D4, Intel B760 Mainboard - Sockel 1700, DDR4
Name - Asus | TUF GAMING B760M-PLUS WIFI D4 | Processor family Intel | Processor socket LGA1700 | DDR4 DIMM | Memory slots 4 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4 | Chipset Intel B760 | mATX
Name EN - MB Asus, Intel B760, LGA1700, DDR4, mATX, WiFi+BT
Name ET - MB Asus, Intel B760, LGA1700, DDR4, mATX, WiFi+BT
NameInWeb EN - ASUS, Intel B760, LGA1700, DDR4, mATX, WiFi+BT - Motherboard
NameInWeb ET - ASUS, Intel B760, LGA1700, DDR4, mATX, WiFi+BT - Emaplaat
NameInWeb LV - ASUS, Intel B760, LGA1700, DDR4, mATX, WiFi+BT - Mātesplate
Name LV - MB Asus, Intel B760, LGA1700, DDR4, mATX, WiFi+BT
NetWeight - 1.2000
Network - Bluetooth - Yes
Network - Bluetooth version - 5.2
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 6 (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Optical S/PDIF Input/Output connectors - 1
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 340.00 mm
Package features > Gross height (mm) - 60.00 mm
Package features > Gross width (mm) - 270.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 314 pc(s)
Package features > Paper/Pasteboard - 250.00 g
Package features > Plastic (No PET) - 50.00 g
Package features > Tare weight (kg) - 0.30 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - SATA
Packaging data - Package depth - 275 mm
Packaging data - Package height - 67.5 mm
Packaging data - Package weight - 1.65 kg
Packaging data - Package width - 275 mm
PCI-Express 4.0 1x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Performance > Chipset - Intel B760
Performance > Motherboard form factor - mATX
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Compatible processor series - Intel® Pentium® Gold
Processor - processor -
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Compatible processor series - Supports 13th Gen Intel Core and 12th Gen Intel Core, Pentium Gold and Celeron Processors
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Producer - Asus
producerCode - 90MB1DG0-M0EAY0
ProducerCode - TUF GAMING B760M-PLUS WIFI D4
Producer product name - TUF GAMING B760M-PLUS WIFI D4
ProductCode - GAMINGB760M-PLUSWIFI
ProductionCountry - CN
productName - ASUS TUF GAMING B760M-PLUS WIFI D4 Intel B760 LGA 1700 micro ATX
ProductName - TUF GAMING B760M-PLUS WIFI D4
productSize - Normal
RAID - SATA 0, 1, 5, 10
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
Rear panel I/O ports - WiFi-AP antenna jack - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 27.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 7 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.57 kg
Shipping Box Width Shipping/Package Box Dimensions - 27.5 cm
ShortDescription - Socket 1700| Chipset Intel B760 | DDR4 |
ShortDescription EN - The ASUS Intel B760 motherboard is a compact mATX-form factor motherboard that supports the LGA1700 socket and DDR4 memory. This motherboard is equipped with built-in WiFi and Bluetooth functionality, providing fast and convenient wireless connectivity. It is an ideal choice for users building a performance-oriented and space-saving computer.
ShortDescription ET - ASUS Intel B760 emaplaat on kompaktne mATX-formaadis emaplaat, mis toetab LGA1700 pesa ja DDR4 mälu. See emaplaat on varustatud sisseehitatud WiFi ja Bluetoothi funktsioonidega, pakkudes kiiret ja mugavat juhtmevaba ühenduvust. See on ideaalne valik kasutajatele, kes ehitavad jõudlusele suunatud ja ruumisäästlikku arvutit.
ShortDescription LV - ASUS Intel B760 ir kompakta mATX formas faktora mātesplate, kas atbalsta LGA1700 ligzdu un DDR4 atmiņu. Šī mātesplate ir aprīkota ar iebūvētu WiFi un Bluetooth funkcionalitāti, nodrošinot ātru un ērtu bezvadu savienojumu. Tā ir ideāla izvēle lietotājiem, kuri būvē uz veiktspēju orientētu un vietu taupošu datoru.
ShortSummaryDescription - ASUS TUF GAMING B760M-PLUS WIFI D4, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, DDR4-SDRAM, 128 GB
sizeX - 280
sizeY - 275
sizeZ - 70
Socket - LGA1700
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 6
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
TariffNo - 84733020
Technical details > Net weight - 1.00 kg
Technical details > Producer - Asus
Title - ASUS TUF GAMING B760M-PLUS WIFI D4 Intel B760 LGA 1700 micro ATX
Unit Box Height - 0.07
Unit Box Length - 0.275
Unit Box Width - 0.275
Unit Brutto Volume - 0.005294 cubm
Unit Gross Weight - 1.57 kg
Unit Net Weight - 1.2 kg
UnitOfMeasureCode - tk
UnitsPerPackage - 1
URL - https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b760m-plus-wifi-d4/
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 5
USB 3.2 Interface - Yes
Vendor Homepage - www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b760m-plus-wifi-d4/techspec/
Volume - 0.00784000
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 2,00
weight - 1600
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 244 mm
Width - 0.3500
WiFi Interface - Yes
