ID: 916356
Product code: Z790 PG RIPTIDE
In stock 7 units
Warranty: 2 years

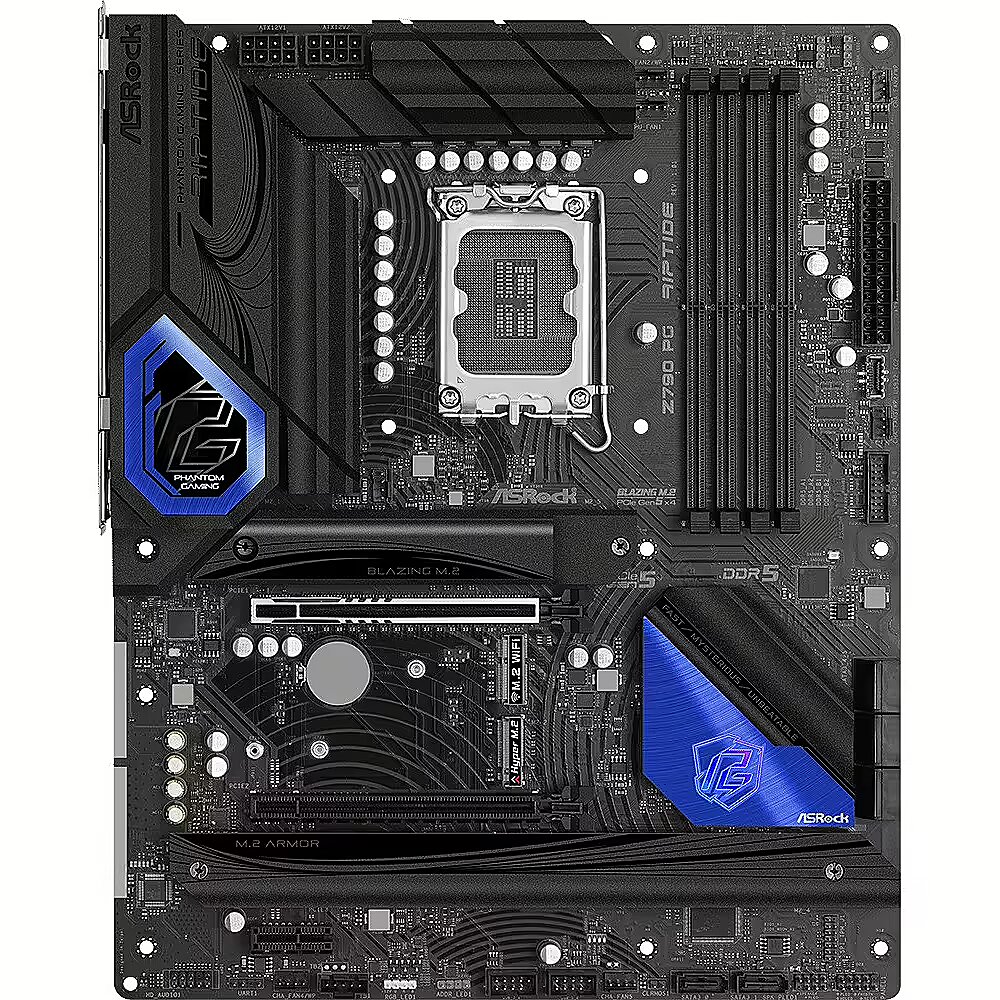

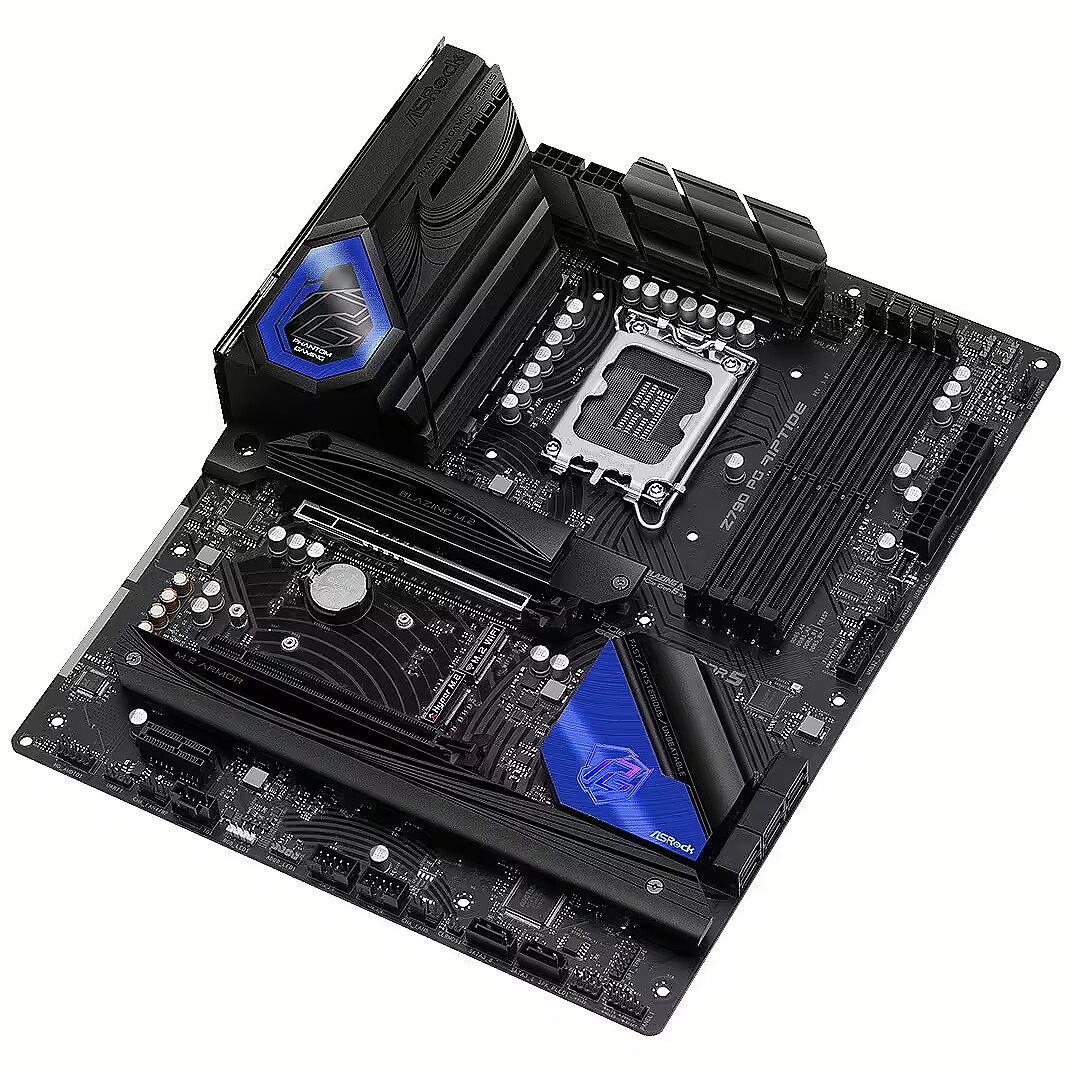

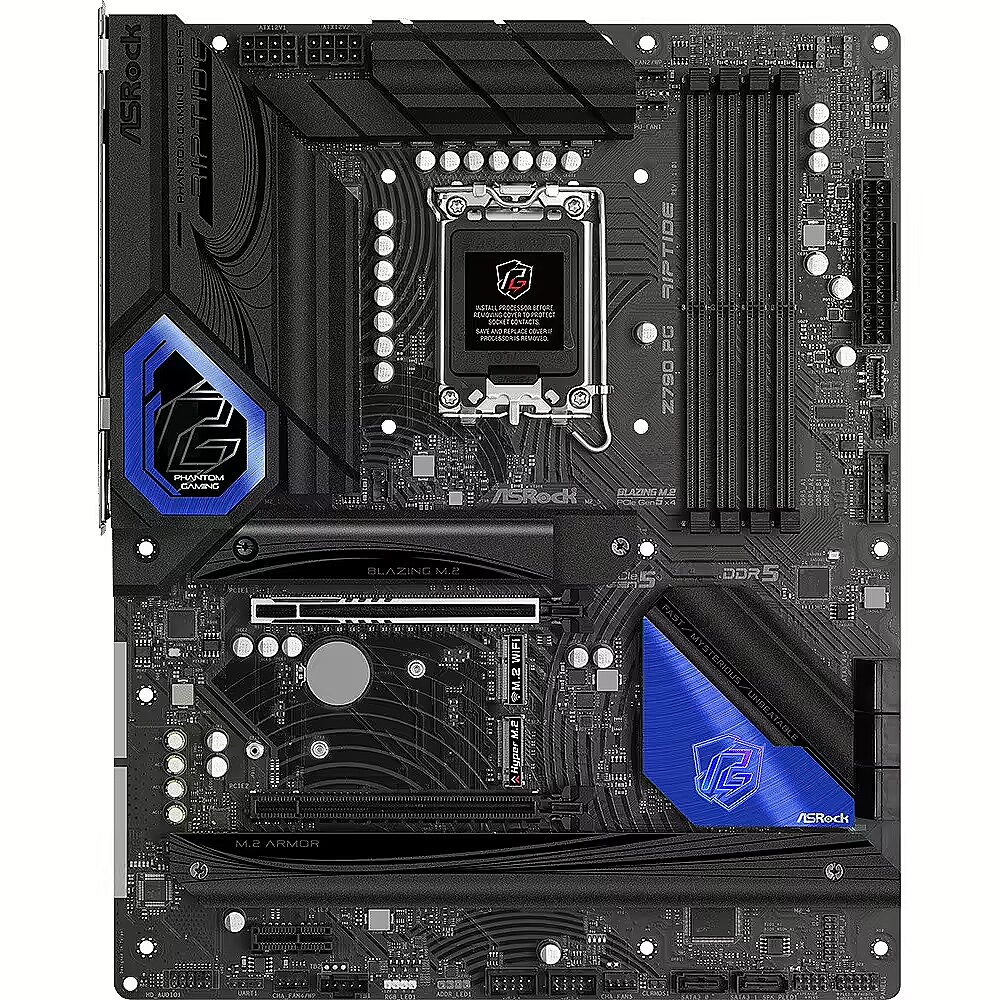

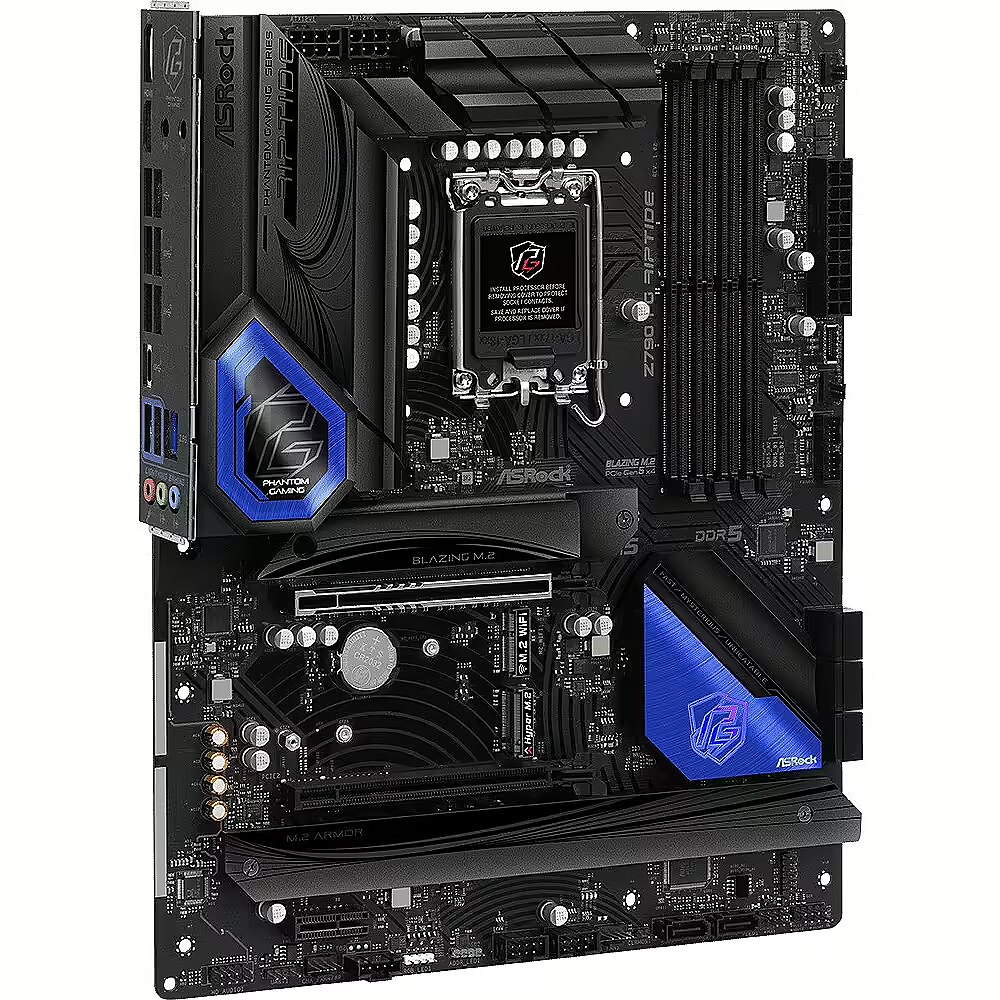

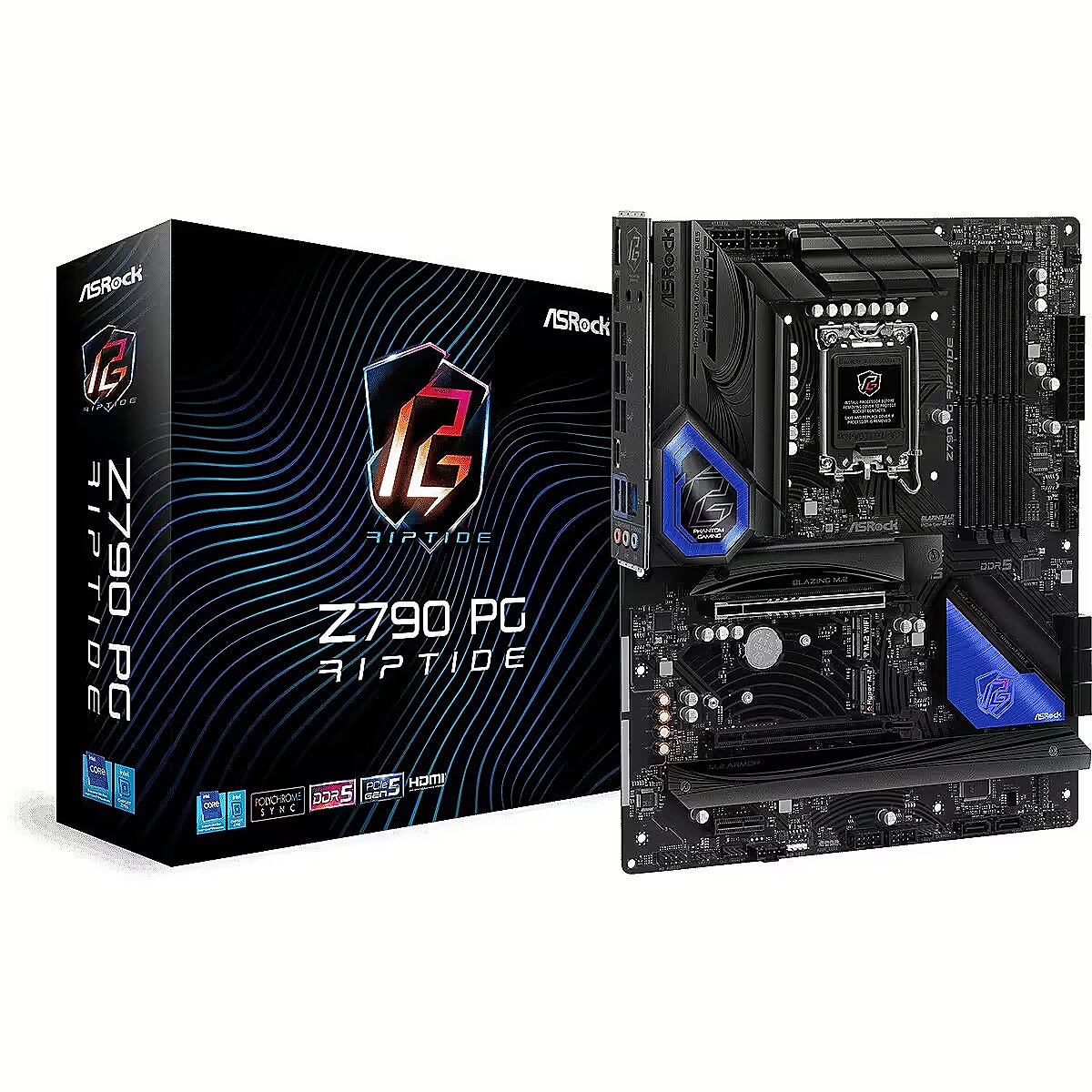

Asrock Z790 PG Riptide
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: 29.11.2024
Main product parameters All parameters
- Series: ASRock Phantom Gaming
- CPU Socket: LGA 1700
- Chipset: Intel Z790
- Form factor: ATX
- Type: DDR5
- RAM Slots: 4
- Built-in Wi-Fi: Nav
Basic information
Series
: ASRock Phantom Gaming
CPU Socket
LGA 1700
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel Z790
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
ATX
The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR5
RAM Slots
4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR5 4800 (OC 6800)
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 0
DVI
: 0
HDMI
: 1
DisplayPort
: 1
Integrated sound card
: Realtek ALC897
Wireless connections
Built-in Bluetooth
: Nav
Built-in Wi-Fi
: Nav
External ports
External USB Type-C
: 1
External USB 2.0
: 2
External USB 3.0 (USB 3.2 Gen1)
: 5
External USB 3.1 (USB 3.2 Gen2)
: 2
Internal ports
Internal A-RGB 5V (3-pin)
: 3
Internal RGB 12V (4-pin)
: 1
Internal USB 2.0
: 2
Internal USB 3.0
: 1
Internal USB Type-C
: 1
M.2 Port
: 5
SATA3 ports
: Eight Core
More detailed specification
Accessories included - 1 x user manual 2 x SATA data cables 5 x screws for M.2 sockets
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
BIOS - 128Mb AMI UEFI Legal BIOS with GUI support
BIOS - BIOS type - UEFI AMI
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel Z790
Chipset manufacturer - Intel
Chipset type - Intel Z790
code - 90-MXBJX0-A0UAYZ
Code - Z790 PG RIPTIDE
COM connector / port - No
CPU socket - LGA1700
Description - - Supports 13th Gen & 12th Gen Intel® Core™ Processors - 14+1+1 Phase Power Design, Dr.MOS for VCore+GT - 4 x DDR5 DIMMs, supports up to 6800+(OC) - 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key-E for WiFi - Graphics Output Options: 1 HDMI, 1 DisplayPort - 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio - 1 Blazing M.2 (PCIe Gen5x4), 4 Hyper M.2 (PCIe Gen4x4), 8 SATA3 - 1 USB 3.2 Gen2x2 Type-C (Front), 2 USB 3.2 Gen2 Type-A (Rear), 1 USB 3.2 Gen1 Type-C (Rear), 6 USB 3.2 Gen1 Type-A (4 Rear, 2 Front), 6 USB 2.0 (2 Rear, 4 Front) - Killer 2.5G LAN
Description - Z790 PG Riptide motherboard Supports 13th and 12th generation Intel Core processors 14+1+1 phase power design, Dr.MOS for VCore+GT 4 x DDR5 DIMM, supports up to 6800+(OC) 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key-E for Wi-Fi Graphics output options: 1 HDMI, 1 DisplayPort 7.1-channel HD audio (Realtek ALC897 audio codec), Nahimic Audio 1 Super M.2 (PCIe Gen5x4), 4 Hyper M.2 (PCIe Gen4x4), 8 SATA3 1 USB 3.2 Gen2 Gen2 Type-C (front), 2 USB 3.2 Gen2 Type-A (rear), 1 USB 3.2 Gen1 Type-C (rear), 6 USB 3.2 Gen1 Type-A (4 rear, 2 front), 6 USB 2.0 ports (2 rear, 4 front) Killer 2.5G LAN
Detailed data on disk/drive interfaces - CPU: 1 x gniazdo Hyper M.2 (M2_1, Key M), obsługuje tryb 2280 PCIe Gen4x4 (64 Gb/s)* 1 x gniazdo Blazing M.2 (M2_5, Key M), obsługuje tryb 2280 PCIe Gen5x4 (128 Gb/s)* Chipset: 1 x gniazdo Hyper M.2 (M2_2, Key M), obsługuje tryb 2260/2280 PCIe Gen4x4 (64 Gb/s)* 1 x gniazdo Hyper M.2 (M2_3, Key M), obsługuje tryb 2260/2280 PCIe Gen4x4 (64 Gb/s)* 1 x gniazdo Hyper M.2 (M2_4, Key M), obsługuje tryb 2260/2280 PCIe Gen4x4 (64 Gb/s)* 8 x złącza SATA3 6,0 Gb/s *Obsługuje urządzenie Intel Volume Management Device (VMD). Obsługuje NVMe SSD jako dyski rozruchowe
Jeśli M2_5 jest zajęty, PCIE1 obniży się do trybu x8. Można używać jednocześnie M2_1 lub M2_5.
dimensionalWeight - 2290
dimension depth - 96 mm
dimension height - 385 mm
Dimensions - 30.5 x 24.4 cm
dimension weight - 2075 g
dimension width - 320 mm
DisplayPort Input/Output connectors - 1
EAN - 4710483940989
ean - 4710483940989
Eans - 4710483940989
EAN_code - 4710483940989
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1

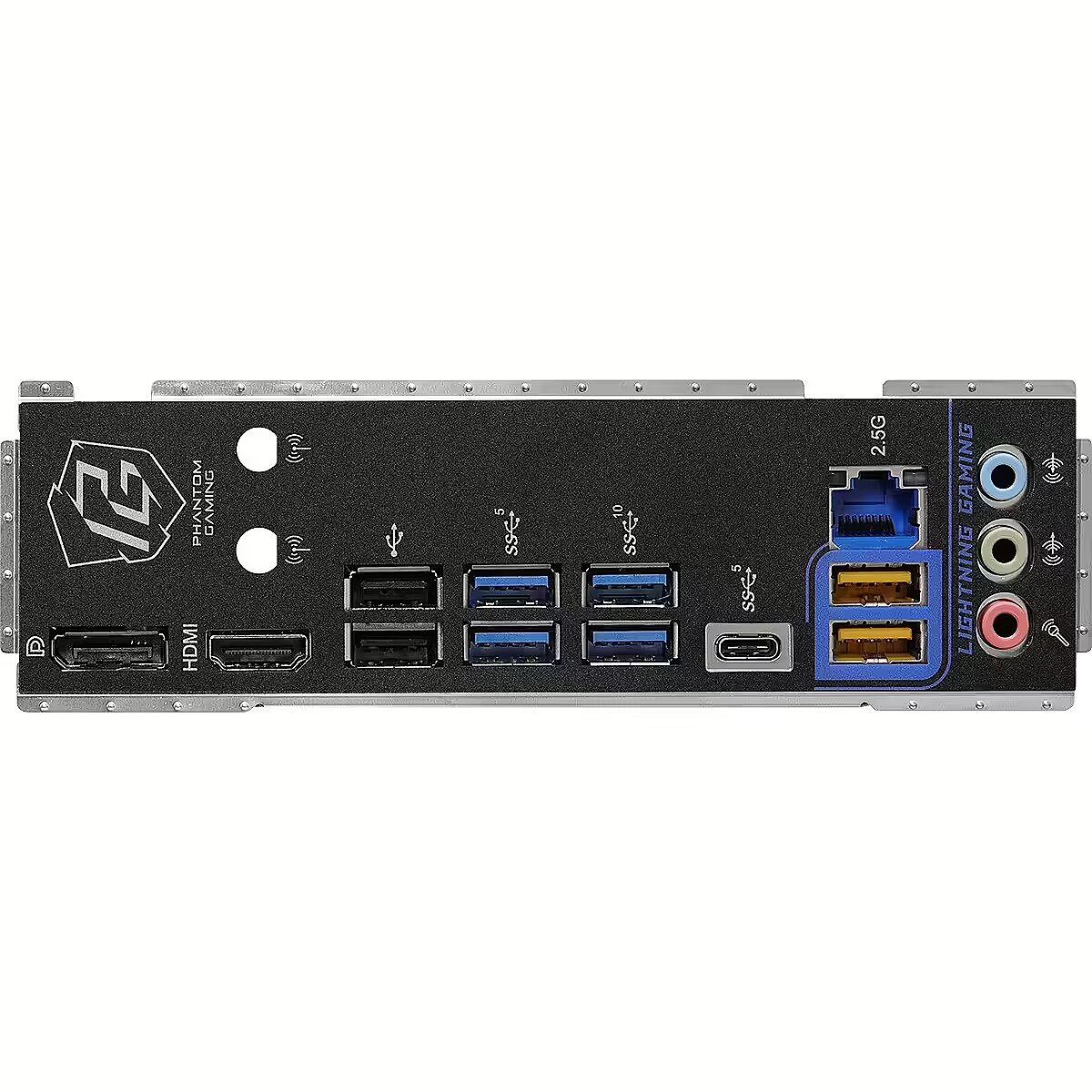

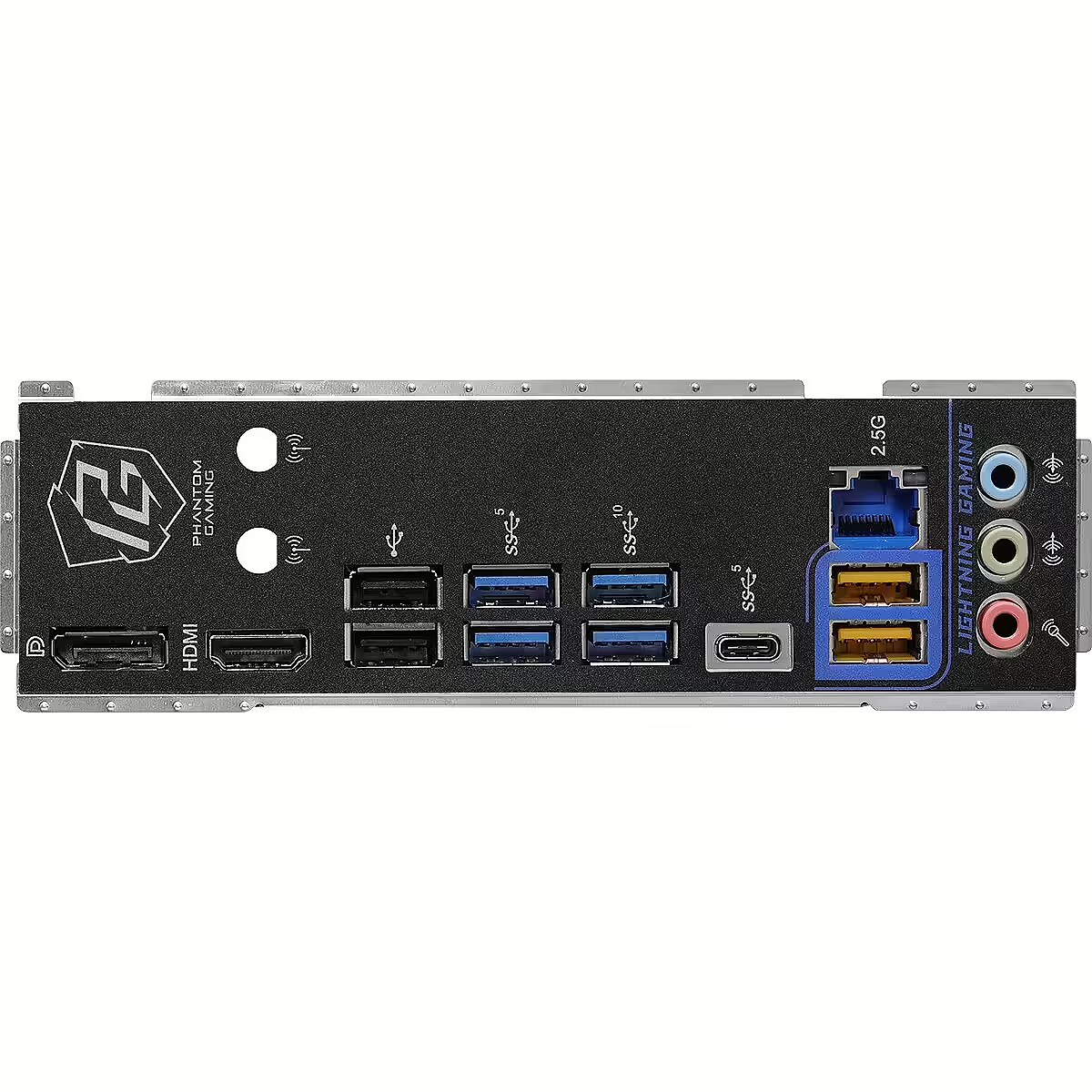

External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.1 Type-C
External connectors - 2 x USB 2.0
External connectors - 2 x USB 3.1
External connectors - 4 x USB 3.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - Intel Z790
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 6800 MHz
Full Description Line - Intel Z790|LGA1700|ATX|DDR5|6800 MHz|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|5xM.2|1xHDMI|1xDisplayPort|1xAudio-In|1xAudio-Out|1xMicrophone|2xUSB 2.0|6xUSB 3.2|1xUSB-C|1xRJ45|SATA|USB 2.0|USB 3.2|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC897|RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5|TPM Header
Graphics - Intel Xe (Gen 12) graphics architecture 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz *Intel UHD Graphics Built-in Visuals and VGA outputs can only be supported with GPU-integrated processors.
Gross weight - 2.30 kg
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Included Accessories - - 1 x User Manual
- 2 x SATA Data Cables
- 5 x Screws for M.2 Sockets
Integrated audio - Realtek ALC897
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of SATA III connectors - 8
Internal I/O - RGB LED pin header - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 8
Internal I/O > Supported hard disk drive interfaces - SATA3, M.2
Link - https://pg.asrock.com/mb/Intel/Z790%20PG%20Riptide/index.us.asp
LPT connector / port - No
M.2 Expansion slots - 5
Manufacturer - Asrock
Manufacturer_code - 90-MXBJX0-A0UAYZ
Max. number of ATA devices - 0
Max. number of SATA devices - 8
Max memory size - 128 GB
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 4
Memory > Supported memory types - DDR5 DIMM
Memory bus frequency - 6800 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Microphone Input/Output connectors - 1
Model - Z790 PG Riptide
Name - ASRock Z790 PG Riptide
name - ASRock Z790 PG Riptide, Intel Z790 Mainboard - Sockel 1700, DDR5
Name - ASRock Z790 PG RIPTIDE, motherboard - 1700
Name - ASRock | Z790 PG Riptide | Processor family Intel | Processor socket LGA1700 | DDR5 DIMM | Memory slots 4 | Supported hard disk drive interfaces SATA3, M.2 | Number of SATA connectors 8 | Chipset Z790 | ATX
name - Z790 PG RIPTIDE S1700 4DDR5 HDMI/DP ATX
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Killer E3100G
Network - Wi-Fi - No
Network interface -
Network interface - 1 x 10/100/1000/2500 Mbit/s
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 7
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 3
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Thunderbolt header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x USB 2.0/1.1 header
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 70.00 mm
Package features > Gross height (mm) - 295.00 mm
Package features > Gross width (mm) - 360.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 232 pc(s)
Package features > Paper/Pasteboard - 490.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.50 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Performance > Chipset - Z790
Performance > Motherboard form factor - ATX
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor > Compatible processor series - Supports 13th Gen & 12th Gen and Next Gen Intel Core Processors
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Processor family - Intel Core
producer - ASRock
Producer - ASRock
producerCode - Z790 PG Riptide
ProducerCode - Z790 PG Riptide
Producer product name - Z790 PG Riptide
productName - Asrock Z790 PG Riptide Intel Z790 LGA 1700 ATX
productSize - Normal
RAID - SATA 0, 1, 5, 10; NVMe 0, 1, 5
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 38.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 10 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 2.08 kg
Shipping Box Width Shipping/Package Box Dimensions - 32 cm
ShortDescription - Socket 1700 | Chipset Intel Z790 | DDR5 |
sizeX - 382
sizeY - 94
sizeZ - 319
Socket - LGA1700
Software - Software ASRock Motherboard Utility (Phantom Gaming Tuning) Killer Control Center ASRock Polychrome SYNC* UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash ASRock Easy RAID Installer
Sound card - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Special functions -
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Net weight - 1.80 kg
Technical details > Producer - ASRock
TPM - Header
Unit Box Height - 0.1
Unit Box Length - 0.385
Unit Box Width - 0.32
Unit Brutto Volume - 0.01232 cubm
Unit Gross Weight - 2.08 kg
Unit Net Weight - 1.1 kg
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 6
USB 3.2 Interface - Yes
USB ports at back panel - 9
USB ports on motherboard - 8
Vendor Homepage - www.asrock.com/mb/Intel/Z790%20PG%20Riptide/
vendpn - Z790 PG RIPTIDE
Warranty - 24
Warranty - 24 month(s)
Warranty - 36 months
warrantyLength - 36
warrantyType - G
Weight - 12,00
weight - 2115
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
BIOS - 128Mb AMI UEFI Legal BIOS with GUI support
BIOS - BIOS type - UEFI AMI
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel Z790
Chipset manufacturer - Intel
Chipset type - Intel Z790
code - 90-MXBJX0-A0UAYZ
Code - Z790 PG RIPTIDE
COM connector / port - No
CPU socket - LGA1700
Description - - Supports 13th Gen & 12th Gen Intel® Core™ Processors - 14+1+1 Phase Power Design, Dr.MOS for VCore+GT - 4 x DDR5 DIMMs, supports up to 6800+(OC) - 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key-E for WiFi - Graphics Output Options: 1 HDMI, 1 DisplayPort - 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio - 1 Blazing M.2 (PCIe Gen5x4), 4 Hyper M.2 (PCIe Gen4x4), 8 SATA3 - 1 USB 3.2 Gen2x2 Type-C (Front), 2 USB 3.2 Gen2 Type-A (Rear), 1 USB 3.2 Gen1 Type-C (Rear), 6 USB 3.2 Gen1 Type-A (4 Rear, 2 Front), 6 USB 2.0 (2 Rear, 4 Front) - Killer 2.5G LAN
Description - Z790 PG Riptide motherboard Supports 13th and 12th generation Intel Core processors 14+1+1 phase power design, Dr.MOS for VCore+GT 4 x DDR5 DIMM, supports up to 6800+(OC) 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key-E for Wi-Fi Graphics output options: 1 HDMI, 1 DisplayPort 7.1-channel HD audio (Realtek ALC897 audio codec), Nahimic Audio 1 Super M.2 (PCIe Gen5x4), 4 Hyper M.2 (PCIe Gen4x4), 8 SATA3 1 USB 3.2 Gen2 Gen2 Type-C (front), 2 USB 3.2 Gen2 Type-A (rear), 1 USB 3.2 Gen1 Type-C (rear), 6 USB 3.2 Gen1 Type-A (4 rear, 2 front), 6 USB 2.0 ports (2 rear, 4 front) Killer 2.5G LAN
Detailed data on disk/drive interfaces - CPU: 1 x gniazdo Hyper M.2 (M2_1, Key M), obsługuje tryb 2280 PCIe Gen4x4 (64 Gb/s)* 1 x gniazdo Blazing M.2 (M2_5, Key M), obsługuje tryb 2280 PCIe Gen5x4 (128 Gb/s)* Chipset: 1 x gniazdo Hyper M.2 (M2_2, Key M), obsługuje tryb 2260/2280 PCIe Gen4x4 (64 Gb/s)* 1 x gniazdo Hyper M.2 (M2_3, Key M), obsługuje tryb 2260/2280 PCIe Gen4x4 (64 Gb/s)* 1 x gniazdo Hyper M.2 (M2_4, Key M), obsługuje tryb 2260/2280 PCIe Gen4x4 (64 Gb/s)* 8 x złącza SATA3 6,0 Gb/s *Obsługuje urządzenie Intel Volume Management Device (VMD). Obsługuje NVMe SSD jako dyski rozruchowe
Jeśli M2_5 jest zajęty, PCIE1 obniży się do trybu x8. Można używać jednocześnie M2_1 lub M2_5.
dimensionalWeight - 2290
dimension depth - 96 mm
dimension height - 385 mm
Dimensions - 30.5 x 24.4 cm
dimension weight - 2075 g
dimension width - 320 mm
DisplayPort Input/Output connectors - 1
EAN - 4710483940989
ean - 4710483940989
Eans - 4710483940989
EAN_code - 4710483940989
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.1 Type-C
External connectors - 2 x USB 2.0
External connectors - 2 x USB 3.1
External connectors - 4 x USB 3.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - Intel Z790
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 6800 MHz
Full Description Line - Intel Z790|LGA1700|ATX|DDR5|6800 MHz|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|5xM.2|1xHDMI|1xDisplayPort|1xAudio-In|1xAudio-Out|1xMicrophone|2xUSB 2.0|6xUSB 3.2|1xUSB-C|1xRJ45|SATA|USB 2.0|USB 3.2|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC897|RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5|TPM Header
Graphics - Intel Xe (Gen 12) graphics architecture 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz *Intel UHD Graphics Built-in Visuals and VGA outputs can only be supported with GPU-integrated processors.
Gross weight - 2.30 kg
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Included Accessories - - 1 x User Manual
- 2 x SATA Data Cables
- 5 x Screws for M.2 Sockets
Integrated audio - Realtek ALC897
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of SATA III connectors - 8
Internal I/O - RGB LED pin header - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 8
Internal I/O > Supported hard disk drive interfaces - SATA3, M.2
Link - https://pg.asrock.com/mb/Intel/Z790%20PG%20Riptide/index.us.asp
LPT connector / port - No
M.2 Expansion slots - 5
Manufacturer - Asrock
Manufacturer_code - 90-MXBJX0-A0UAYZ
Max. number of ATA devices - 0
Max. number of SATA devices - 8
Max memory size - 128 GB
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 4
Memory > Supported memory types - DDR5 DIMM
Memory bus frequency - 6800 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Microphone Input/Output connectors - 1
Model - Z790 PG Riptide
Name - ASRock Z790 PG Riptide
name - ASRock Z790 PG Riptide, Intel Z790 Mainboard - Sockel 1700, DDR5
Name - ASRock Z790 PG RIPTIDE, motherboard - 1700
Name - ASRock | Z790 PG Riptide | Processor family Intel | Processor socket LGA1700 | DDR5 DIMM | Memory slots 4 | Supported hard disk drive interfaces SATA3, M.2 | Number of SATA connectors 8 | Chipset Z790 | ATX
name - Z790 PG RIPTIDE S1700 4DDR5 HDMI/DP ATX
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Killer E3100G
Network - Wi-Fi - No
Network interface -
Network interface - 1 x 10/100/1000/2500 Mbit/s
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 7
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 3
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Thunderbolt header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x USB 2.0/1.1 header
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 70.00 mm
Package features > Gross height (mm) - 295.00 mm
Package features > Gross width (mm) - 360.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 232 pc(s)
Package features > Paper/Pasteboard - 490.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.50 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Performance > Chipset - Z790
Performance > Motherboard form factor - ATX
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor > Compatible processor series - Supports 13th Gen & 12th Gen and Next Gen Intel Core Processors
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Processor family - Intel Core
producer - ASRock
Producer - ASRock
producerCode - Z790 PG Riptide
ProducerCode - Z790 PG Riptide
Producer product name - Z790 PG Riptide
productName - Asrock Z790 PG Riptide Intel Z790 LGA 1700 ATX
productSize - Normal
RAID - SATA 0, 1, 5, 10; NVMe 0, 1, 5
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 38.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 10 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 2.08 kg
Shipping Box Width Shipping/Package Box Dimensions - 32 cm
ShortDescription - Socket 1700 | Chipset Intel Z790 | DDR5 |
sizeX - 382
sizeY - 94
sizeZ - 319
Socket - LGA1700
Software - Software ASRock Motherboard Utility (Phantom Gaming Tuning) Killer Control Center ASRock Polychrome SYNC* UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash ASRock Easy RAID Installer
Sound card - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Special functions -
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Net weight - 1.80 kg
Technical details > Producer - ASRock
TPM - Header
Unit Box Height - 0.1
Unit Box Length - 0.385
Unit Box Width - 0.32
Unit Brutto Volume - 0.01232 cubm
Unit Gross Weight - 2.08 kg
Unit Net Weight - 1.1 kg
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 6
USB 3.2 Interface - Yes
USB ports at back panel - 9
USB ports on motherboard - 8
Vendor Homepage - www.asrock.com/mb/Intel/Z790%20PG%20Riptide/
vendpn - Z790 PG RIPTIDE
Warranty - 24
Warranty - 24 month(s)
Warranty - 36 months
warrantyLength - 36
warrantyType - G
Weight - 12,00
weight - 2115
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
