ID: 905090
Product code: H410M H V2
In stock 7 units
Warranty: 3 years

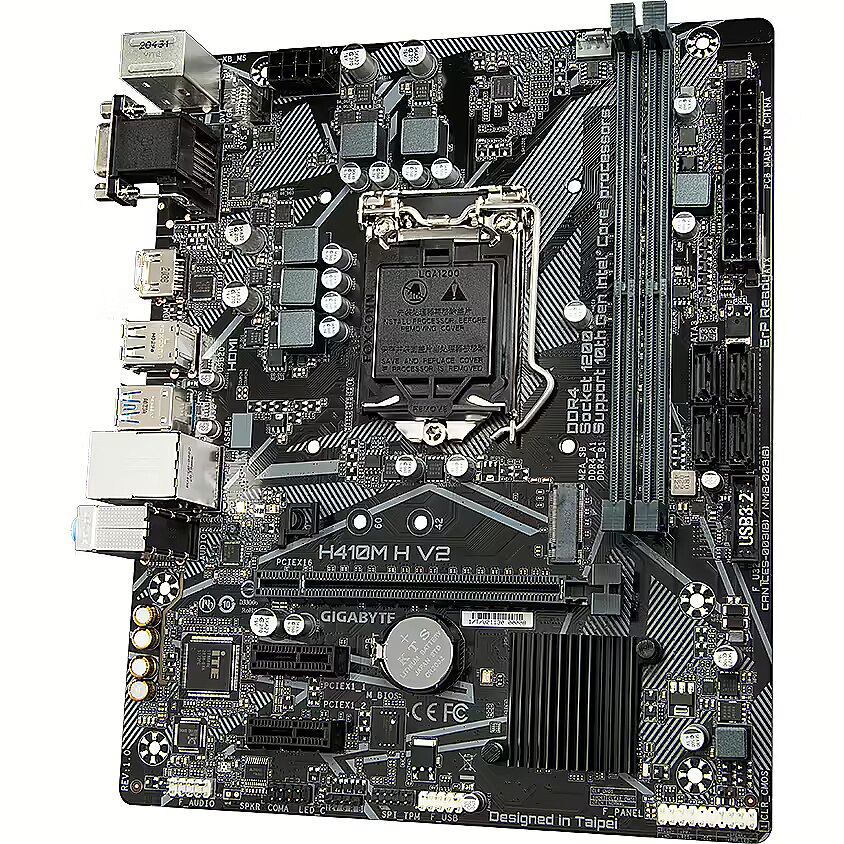

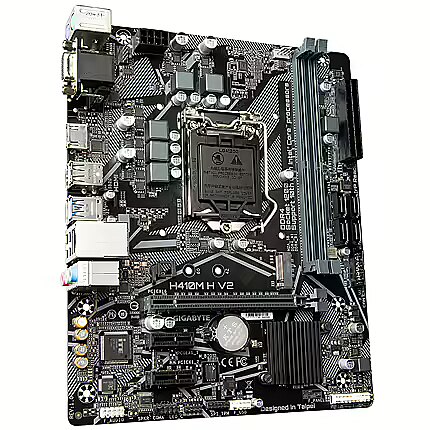

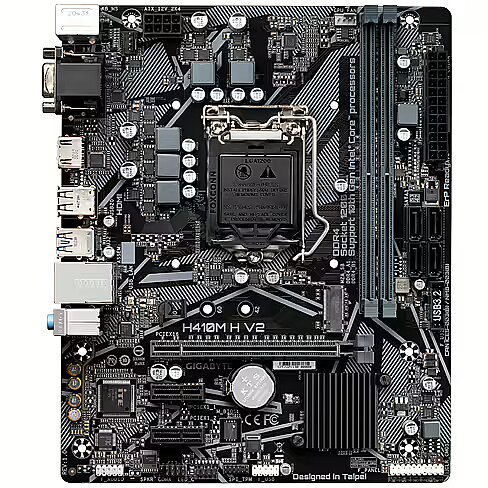

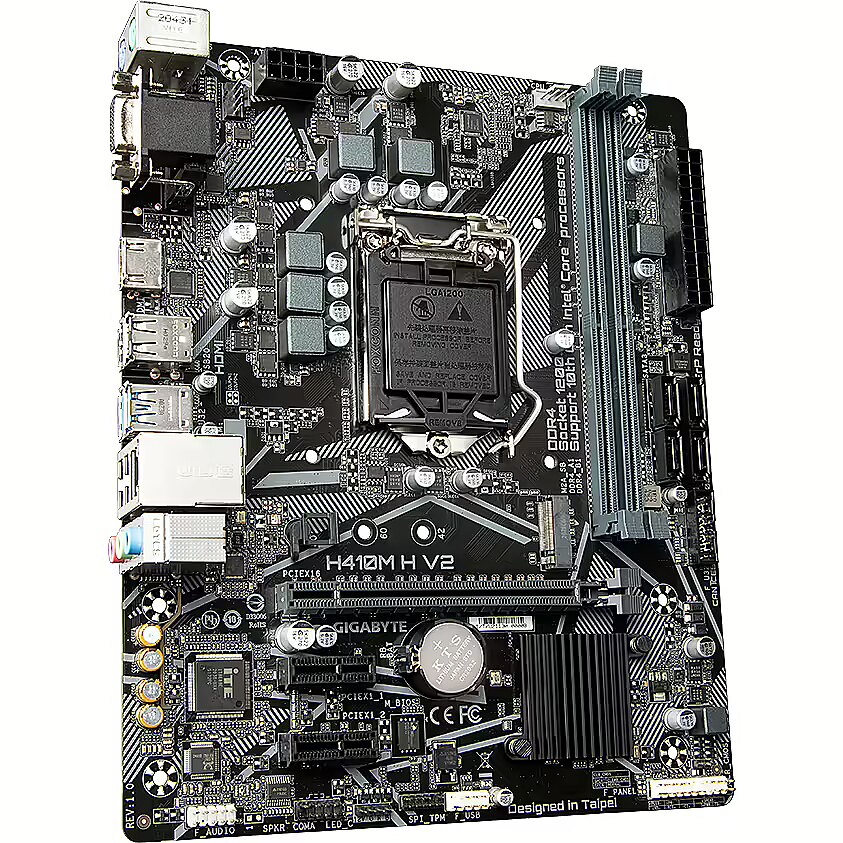

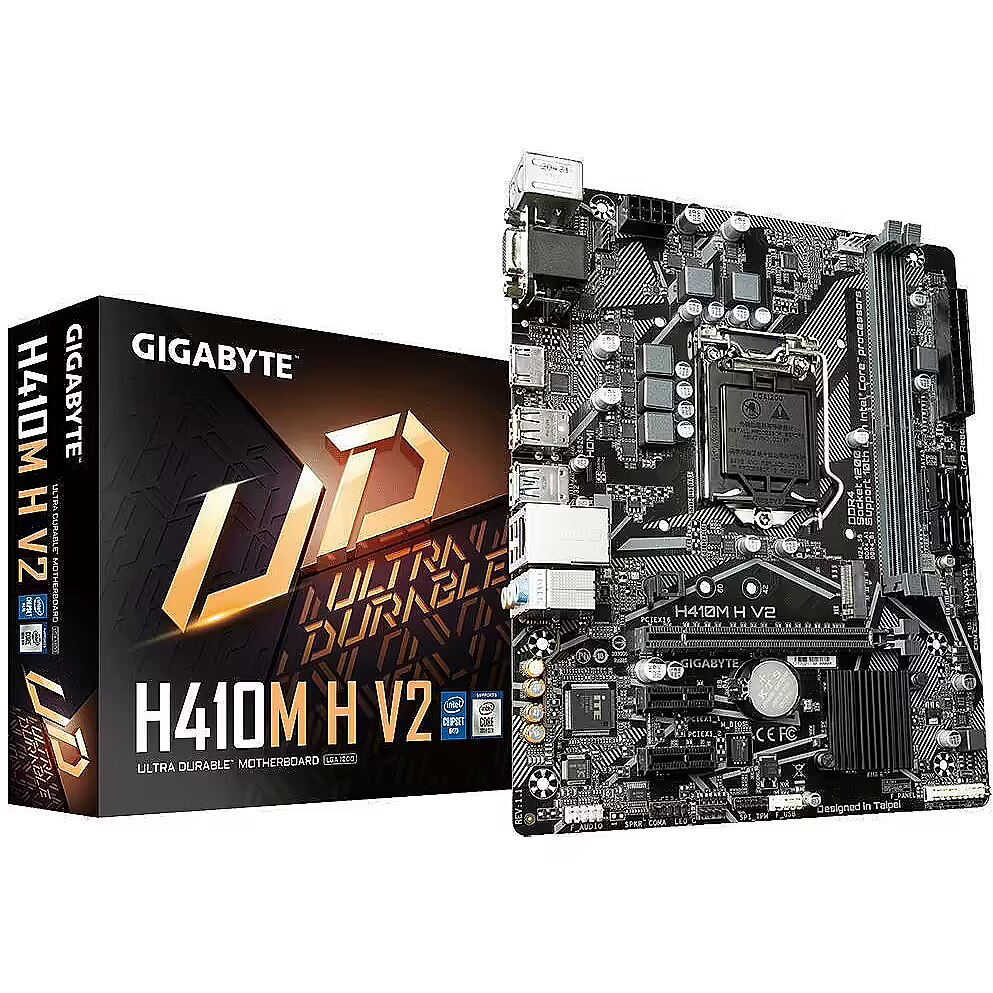

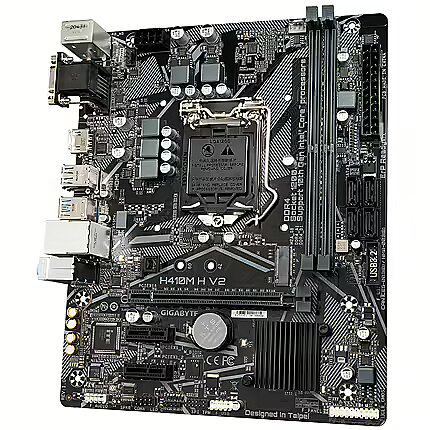

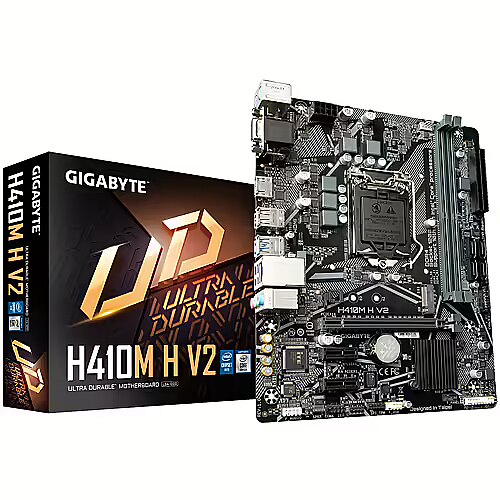

Gigabyte H410M H V2 (rev. 1.7)
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: on Monday, 09.12.2024
Main product parameters All parameters
- Series: Gigabyte Ultra Durable
- CPU Socket: LGA 1200
- Chipset: Intel H410
- Form factor: Micro ATX
- Type: DDR4
- RAM Slots: 2
- Built-in Wi-Fi: Nav
Basic information
Series
: Gigabyte Ultra Durable
CPU Socket
LGA 1200
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel H410
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
Micro ATX
The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR4
RAM Slots
2
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR4 2933
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 1
DVI
: 0
HDMI
: 1
DisplayPort
: 0
Integrated sound card
: Realtek Audio CODEC
Wireless connections
Built-in Bluetooth
: Nav
Built-in Wi-Fi
: Nav
External ports
External USB Type-C
: 0
External USB 2.0
: 4
External USB 3.0 (USB 3.2 Gen1)
: 2
External USB 3.1 (USB 3.2 Gen2)
: 0
Internal ports
Internal A-RGB 5V (3-pin)
: 0
Internal RGB 12V (4-pin)
: 1
Internal USB 2.0
: 1
Internal USB 3.0
: 1
Internal USB Type-C
: 0
M.2 Port
: 1
SATA3 ports
: 4
More detailed specification
15pin D-sub Input/Output connectors - 1
Accessories included -
Audio-In Input/Output connectors - 2
Audio-Out Input/Output connectors - 1
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - 1 x 256 Mbit flash Korzystanie z licencjonowanego AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI
BIOS - Clear CMOS button - Yes
Brand - GIGABYTE
BrandPartCode - H410M H V2
Category - Datortehnika :: Datoru komponentes :: Pamatplates
Category - Motherboards
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBI
Chipset - Intel H470 Express
Chipset manufacturer - Intel
Chipset type - Intel H470 Express
Code - H410M-H-V2
Code - H410M H V2
COM connector / port - Yes
CPU socket - LGA1200
Desc - Mikroshēmu tips | chipset: Intel H410, Plates formfaktors: Micro ATX, Procesora ražotājs: Intel, Ligzda: LGA 1200, DDR tips: DDR4, Atmiņas sloti: 2, Max atmiņas apjoms: 64 GB, Integrēta audio karte: Realtek ALC887, LAN: Intel GbE LAN chip (10/100/1000 Mbit), WiFi: Nav, M.2 Pieslēgumi: 1, Garantija: 2 gadi
Description - H410M H V2 (rev. 1.7) Intel® Ultra Durable Motherboard with GIGABYTE Gaming GbE LAN, Anti-Sulfur Resistor, Smart Fan 5 - Supports 10th Gen Intel®Core™ Processors - Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs - 8-Channel HD Audio with High Quality Audio Capacitors - NVMe PCIe Gen3 x4 2280 M.2 Connector - GIGABYTE Gaming GbE LAN with Bandwidth Management - Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP - GIGABYTE APP Center, Simple and Easy Use - Anti-Sulfur Resistors Design
Description - Obsługuje procesory Intel Core dziesiątej generacji Dwukanałowa niebuforowana pamięć DDR4 bez ECC, 2 moduły DIMM 8-kanałowy dźwięk HD z wysokiej jakości kondensatorami audio Złącze M.2 NVMe PCIe Gen3 x4 2280 Intel GbE LAN z oprogramowaniem cFosSpeed Internet Accelerator
Detailed data on disk/drive interfaces - 1 x złącze M.2 (Socket 3, klucz M, typ 2242/2260/2280 SATA i obsługa dysków SSD PCIe x4 / x2) 4 złącza SATA 6Gb/s Obsługa macierzy RAID 0, RAID 1, RAID 5 i RAID 10 Obsługa pamięci Intel Optane
dimensionalWeight - 657
dimension depth - 55 mm
dimension height - 235 mm
Dimensions - 22.6 x 18.5 cm
dimension weight - 683 g
dimension width - 270 mm
EAN - 4719331815387
ean - 4719331815387
Eans - 4719331815387
Expansion slots - 1 x PCIe 3.0 x 16
Expansion slots - 2 x PCIe 3.0 x 1
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 slots - 2
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1

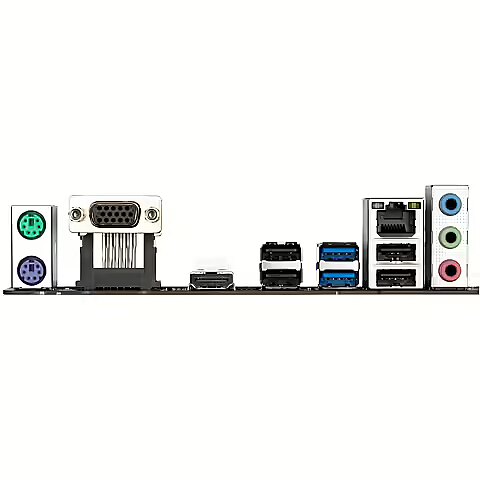

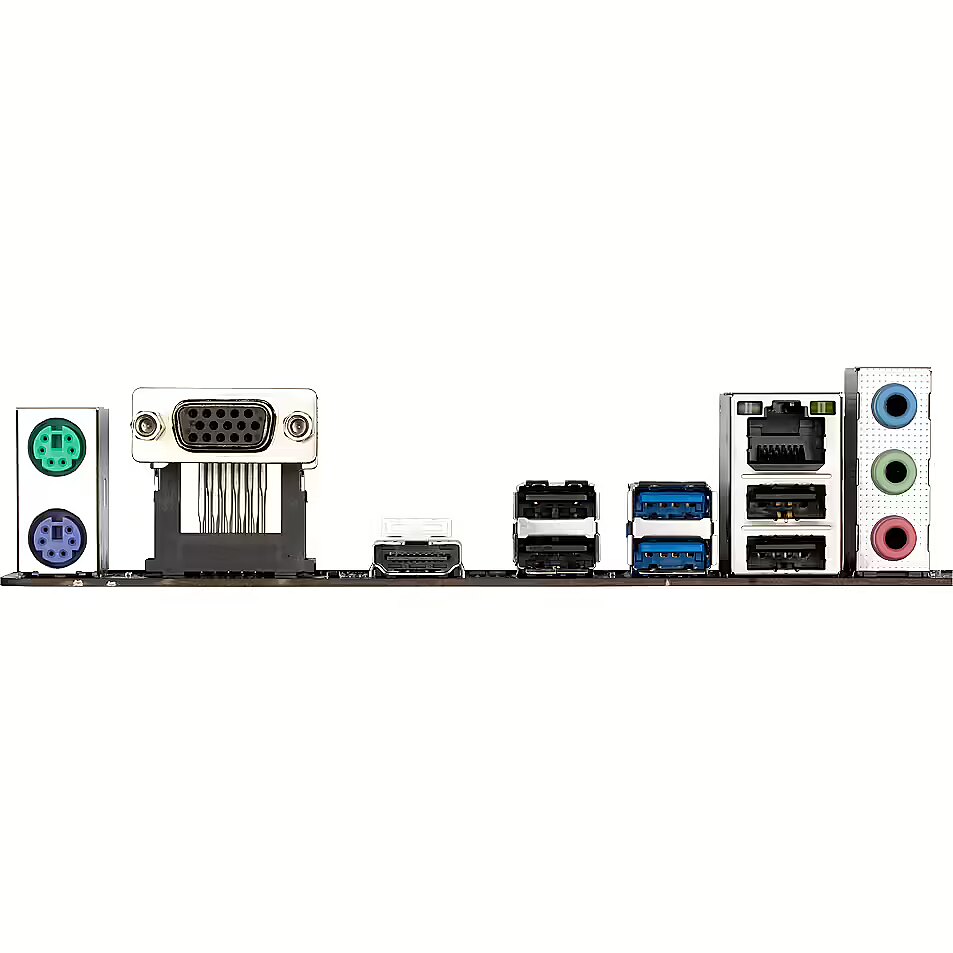

External connectors - 1 x D-Sub
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out (front)
External connectors - 1 x MIC (front)
External connectors - 1 x PS/2 Keyboard
External connectors - 1 x PS/2 Mouse
External connectors - 1 x RJ-45
External connectors - 2 x USB 3.0
External connectors - 4 x USB 2.0
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel H410
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - CPU
Features - PC health monitoring - CPU, Fan, Temperature, Voltage
Features - PC health monitoring - Fan
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Features - Power source type - ATX
Features - Product colour - Bronze
Features - Product colour - Brown
Features - Windows operating systems supported - Windows 10
Features - Windows operating systems supported - Windows 10, Windows 11 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - Micro-ATX
Form factor - micro ATX
Frequency speed - 2133/2400/2666/2933 MHz
Full Description Line - Intel H470 Express|LGA1200|Micro-ATX|DDR4|2933/2666/2400/2133 MHz|Memory slots 2|2xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xM.2|1x15pin D-sub|1xHDMI|2xAudio-In|1xAudio-Out|4xUSB 2.0|2xUSB 3.2|1xPS/2|1xRJ45|SATA|Video|LAN Gigabit|Audio|RAID SATA 0, 1, 5, 10|TPM Header
Graphics -
Graphics - DirectX version - 12.0
Gross weight - 0.96 kg
GTIN - 4719331815387
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_74305_1.png
Integrated audio - Yes
Integrated CPU - No
Integrated LAN - Gigabit
Integrated video - Yes
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Audio connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Power fan connector - Yes
Internal I/O - Total number of SATA connectors - 4
Internal I/O - USB 2.0 connectors - 1
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
LargeDescHTML -
Link - https://www.gigabyte.com/Motherboard/H410M-H-V2-rev-10#kf
Logistics data - Country of origin - China
Logistics data - Harmonized System (HS) code - 84733020
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
LongProductName - H470 Express Chipset, DDR4 2933/2666/2400/2133 MHz, HDMI, D-Sub, Intel GbE LAN chip, PCI Express 3.0, M.2, USB 3.2 Gen 1
LongSummaryDescription - GIGABYTE H410M H V2 Motherboard - Supports Intel Core 10th CPUs, up to 2933MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1200 (Socket H5), Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
LPT connector / port - No
M.2 Expansion slots - 1
Max. number of SATA devices - 4
Max memory size - 64 GB
Memory - ECC - Yes
Memory - Maximum internal memory - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 2
Memory - Supported memory clock speed (max) - 2933 MHz
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2133,2400,2666,2933 MHz
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2666
Memory - Supported memory clock speeds - 2933
Memory - Supported memory module capacities - 1GB
Memory - Supported memory module capacities - 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Memory - Supported memory module capacities - 2GB
Memory - Supported memory module capacities - 4GB
Memory - Supported memory module capacities - 8GB
Memory - Supported memory module capacities - 12GB
Memory - Supported memory module capacities - 16GB
Memory - Supported memory module capacities - 32GB
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 2
Memory > Supported memory types - DDR4 DIMM
Memory bus frequency - 2133 MHz
Memory bus frequency - 2400 MHz
Memory bus frequency - 2666 MHz
Memory bus frequency - 2933 MHz
Memory slots - 2
Memory type - DDR4
Memory type - DDR4
Model - H410M H V2 (rev. 1.7)
Model - H410M H V2
Name - Gigabyte H410M H V2
Name - Gigabyte | H410M H V2 1.0 M/B | Processor family Intel | Processor socket LGA1200 | DDR4 DIMM | Memory slots 2 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4 | Chipset Micro ATX | Intel H
name - H410M H V2 s1200 2DDR4 HDMI/D-SUB M.2 mATX
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000 Mbit/s
Network interface - Intel GbE LAN chip (1 Gbit/100 Mbit)
Number of DDR4 slots - 2
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 3
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Power led header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 2.0/1.1 header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 4 x SATA III 6Gb/s
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 270.00 mm
Package features > Gross height (mm) - 70.00 mm
Package features > Gross width (mm) - 240.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 381 pc(s)
Package features > Paper/Pasteboard - 200.00 g
Package features > Plastic (No PET) - 60.00 g
Package features > Tare weight (kg) - 0.26 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEEE tax - No
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton Internet Security (OEM version)
cFosSpeed
Packaging data - Package depth - 235 mm
Packaging data - Package height - 52 mm
Packaging data - Package weight - 728 g
Packaging data - Package width - 265 mm
PCI-Express 3.0 1x Expansion slots - 2
PCI-Express 3.0 16x Expansion slots - 1
Performance > Chipset - Micro ATX
Performance > Motherboard form factor - Intel H
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Compatible processor series - Intel® Pentium®
Processor - Maximum internal memory supported by processor - 64 GB
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1200 (Socket H5)
Processor - Supported processor sockets - LGA 1200 (Socket H5)
Processor > Compatible processor series - Supports 10th Gen Intel Core Processors
Processor > Processor family - Intel
Processor > Processor socket - LGA1200
Processor family - Intel Celeron
Processor family - Intel Core i3
Processor family - Intel Core i5
Processor family - Intel Core i7
Processor family - Intel Core i9
Processor family - Intel Pentium
producer - Gigabyte
Producer - Gigabyte
producerCode - H410M H V2
ProducerCode - H410M H V2
Producer product name - H410M H V2 1.0 M/B
productName - GIGABYTE H410M H V2 Motherboard - Supports Intel Core 10th CPUs, up to 2933MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
ProductName - H410M H V2 Motherboard - Supports Intel Core 10th CPUs, up to 2933MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
productSize - Normal
PS/2 Input/Output connectors - 1
RAID - SATA 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 27.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 24 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.663 kg
Shipping Box Width Shipping/Package Box Dimensions - 5.5 cm
ShortDescription - Socket 1200| Chipset Intel H410 | DDR4 |
ShortSummaryDescription - GIGABYTE H410M H V2 Motherboard - Supports Intel Core 10th CPUs, up to 2933MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1, Intel, LGA 1200 (Socket H5), Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, LGA 1200 (Socket H5), 64 GB, DDR4-SDRAM
sizeX - 55
sizeY - 230
sizeZ - 260
Socket - LGA1200
Software -
Sound card - Kodek audio Realtek Kanał 2/4 / 5.1 / 7.1
Special functions -
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 5
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, PCI Express 3.0, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Technical details - Warranty period - 3 year(s)
Technical details > Net weight - 0.70 kg
Technical details > Producer - Gigabyte
Title - GIGABYTE H410M H V2 Motherboard - Supports Intel Core 10th CPUs, up to 2933MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
TPM - Header
Unit Box Height - 0.24
Unit Box Length - 0.275
Unit Box Width - 0.055
Unit Brutto Volume - 0.00363 cubm
Unit Gross Weight - 0.663 kg
Unit Net Weight - 0.5 kg
URL - https://www.gigabyte.com/Motherboard/H410M-H-V2-rev-10#kf
USB 2.0 Input/Output connectors - 4
USB 3.2 Input/Output connectors - 2
USB ports at back panel - 6
USB ports on motherboard - 2
Vendor Homepage - www.gigabyte.com/lv/Motherboard/H410M-H-V2-rev-11#kf
vendpn - H410M H V2
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 years
warrantyLength - 36
warrantyType - G
weight - 600
Weight & dimensions - Depth - 185 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 226 mm
Accessories included -
Audio-In Input/Output connectors - 2
Audio-Out Input/Output connectors - 1
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - 1 x 256 Mbit flash Korzystanie z licencjonowanego AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI
BIOS - Clear CMOS button - Yes
Brand - GIGABYTE
BrandPartCode - H410M H V2
Category - Datortehnika :: Datoru komponentes :: Pamatplates
Category - Motherboards
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBI
Chipset - Intel H470 Express
Chipset manufacturer - Intel
Chipset type - Intel H470 Express
Code - H410M-H-V2
Code - H410M H V2
COM connector / port - Yes
CPU socket - LGA1200
Desc - Mikroshēmu tips | chipset: Intel H410, Plates formfaktors: Micro ATX, Procesora ražotājs: Intel, Ligzda: LGA 1200, DDR tips: DDR4, Atmiņas sloti: 2, Max atmiņas apjoms: 64 GB, Integrēta audio karte: Realtek ALC887, LAN: Intel GbE LAN chip (10/100/1000 Mbit), WiFi: Nav, M.2 Pieslēgumi: 1, Garantija: 2 gadi
Description - H410M H V2 (rev. 1.7) Intel® Ultra Durable Motherboard with GIGABYTE Gaming GbE LAN, Anti-Sulfur Resistor, Smart Fan 5 - Supports 10th Gen Intel®Core™ Processors - Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs - 8-Channel HD Audio with High Quality Audio Capacitors - NVMe PCIe Gen3 x4 2280 M.2 Connector - GIGABYTE Gaming GbE LAN with Bandwidth Management - Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP - GIGABYTE APP Center, Simple and Easy Use - Anti-Sulfur Resistors Design
Description - Obsługuje procesory Intel Core dziesiątej generacji Dwukanałowa niebuforowana pamięć DDR4 bez ECC, 2 moduły DIMM 8-kanałowy dźwięk HD z wysokiej jakości kondensatorami audio Złącze M.2 NVMe PCIe Gen3 x4 2280 Intel GbE LAN z oprogramowaniem cFosSpeed Internet Accelerator
Detailed data on disk/drive interfaces - 1 x złącze M.2 (Socket 3, klucz M, typ 2242/2260/2280 SATA i obsługa dysków SSD PCIe x4 / x2) 4 złącza SATA 6Gb/s Obsługa macierzy RAID 0, RAID 1, RAID 5 i RAID 10 Obsługa pamięci Intel Optane
dimensionalWeight - 657
dimension depth - 55 mm
dimension height - 235 mm
Dimensions - 22.6 x 18.5 cm
dimension weight - 683 g
dimension width - 270 mm
EAN - 4719331815387
ean - 4719331815387
Eans - 4719331815387
Expansion slots - 1 x PCIe 3.0 x 16
Expansion slots - 2 x PCIe 3.0 x 1
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 slots - 2
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
External connectors - 1 x D-Sub
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out (front)
External connectors - 1 x MIC (front)
External connectors - 1 x PS/2 Keyboard
External connectors - 1 x PS/2 Mouse
External connectors - 1 x RJ-45
External connectors - 2 x USB 3.0
External connectors - 4 x USB 2.0
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel H410
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - CPU
Features - PC health monitoring - CPU, Fan, Temperature, Voltage
Features - PC health monitoring - Fan
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Features - Power source type - ATX
Features - Product colour - Bronze
Features - Product colour - Brown
Features - Windows operating systems supported - Windows 10
Features - Windows operating systems supported - Windows 10, Windows 11 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - Micro-ATX
Form factor - micro ATX
Frequency speed - 2133/2400/2666/2933 MHz
Full Description Line - Intel H470 Express|LGA1200|Micro-ATX|DDR4|2933/2666/2400/2133 MHz|Memory slots 2|2xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xM.2|1x15pin D-sub|1xHDMI|2xAudio-In|1xAudio-Out|4xUSB 2.0|2xUSB 3.2|1xPS/2|1xRJ45|SATA|Video|LAN Gigabit|Audio|RAID SATA 0, 1, 5, 10|TPM Header
Graphics -
Graphics - DirectX version - 12.0
Gross weight - 0.96 kg
GTIN - 4719331815387
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_74305_1.png
Integrated audio - Yes
Integrated CPU - No
Integrated LAN - Gigabit
Integrated video - Yes
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Audio connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Power fan connector - Yes
Internal I/O - Total number of SATA connectors - 4
Internal I/O - USB 2.0 connectors - 1
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
LargeDescHTML -
Link - https://www.gigabyte.com/Motherboard/H410M-H-V2-rev-10#kf
Logistics data - Country of origin - China
Logistics data - Harmonized System (HS) code - 84733020
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
LongProductName - H470 Express Chipset, DDR4 2933/2666/2400/2133 MHz, HDMI, D-Sub, Intel GbE LAN chip, PCI Express 3.0, M.2, USB 3.2 Gen 1
LongSummaryDescription - GIGABYTE H410M H V2 Motherboard - Supports Intel Core 10th CPUs, up to 2933MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1200 (Socket H5), Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
LPT connector / port - No
M.2 Expansion slots - 1
Max. number of SATA devices - 4
Max memory size - 64 GB
Memory - ECC - Yes
Memory - Maximum internal memory - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 2
Memory - Supported memory clock speed (max) - 2933 MHz
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2133,2400,2666,2933 MHz
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2666
Memory - Supported memory clock speeds - 2933
Memory - Supported memory module capacities - 1GB
Memory - Supported memory module capacities - 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Memory - Supported memory module capacities - 2GB
Memory - Supported memory module capacities - 4GB
Memory - Supported memory module capacities - 8GB
Memory - Supported memory module capacities - 12GB
Memory - Supported memory module capacities - 16GB
Memory - Supported memory module capacities - 32GB
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 2
Memory > Supported memory types - DDR4 DIMM
Memory bus frequency - 2133 MHz
Memory bus frequency - 2400 MHz
Memory bus frequency - 2666 MHz
Memory bus frequency - 2933 MHz
Memory slots - 2
Memory type - DDR4
Memory type - DDR4
Model - H410M H V2 (rev. 1.7)
Model - H410M H V2
Name - Gigabyte H410M H V2
Name - Gigabyte | H410M H V2 1.0 M/B | Processor family Intel | Processor socket LGA1200 | DDR4 DIMM | Memory slots 2 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4 | Chipset Micro ATX | Intel H
name - H410M H V2 s1200 2DDR4 HDMI/D-SUB M.2 mATX
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000 Mbit/s
Network interface - Intel GbE LAN chip (1 Gbit/100 Mbit)
Number of DDR4 slots - 2
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 3
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Power led header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 2.0/1.1 header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 4 x SATA III 6Gb/s
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 270.00 mm
Package features > Gross height (mm) - 70.00 mm
Package features > Gross width (mm) - 240.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 381 pc(s)
Package features > Paper/Pasteboard - 200.00 g
Package features > Plastic (No PET) - 60.00 g
Package features > Tare weight (kg) - 0.26 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEEE tax - No
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton Internet Security (OEM version)
cFosSpeed
Packaging data - Package depth - 235 mm
Packaging data - Package height - 52 mm
Packaging data - Package weight - 728 g
Packaging data - Package width - 265 mm
PCI-Express 3.0 1x Expansion slots - 2
PCI-Express 3.0 16x Expansion slots - 1
Performance > Chipset - Micro ATX
Performance > Motherboard form factor - Intel H
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Compatible processor series - Intel® Pentium®
Processor - Maximum internal memory supported by processor - 64 GB
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1200 (Socket H5)
Processor - Supported processor sockets - LGA 1200 (Socket H5)
Processor > Compatible processor series - Supports 10th Gen Intel Core Processors
Processor > Processor family - Intel
Processor > Processor socket - LGA1200
Processor family - Intel Celeron
Processor family - Intel Core i3
Processor family - Intel Core i5
Processor family - Intel Core i7
Processor family - Intel Core i9
Processor family - Intel Pentium
producer - Gigabyte
Producer - Gigabyte
producerCode - H410M H V2
ProducerCode - H410M H V2
Producer product name - H410M H V2 1.0 M/B
productName - GIGABYTE H410M H V2 Motherboard - Supports Intel Core 10th CPUs, up to 2933MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
ProductName - H410M H V2 Motherboard - Supports Intel Core 10th CPUs, up to 2933MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
productSize - Normal
PS/2 Input/Output connectors - 1
RAID - SATA 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 27.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 24 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.663 kg
Shipping Box Width Shipping/Package Box Dimensions - 5.5 cm
ShortDescription - Socket 1200| Chipset Intel H410 | DDR4 |
ShortSummaryDescription - GIGABYTE H410M H V2 Motherboard - Supports Intel Core 10th CPUs, up to 2933MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1, Intel, LGA 1200 (Socket H5), Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, LGA 1200 (Socket H5), 64 GB, DDR4-SDRAM
sizeX - 55
sizeY - 230
sizeZ - 260
Socket - LGA1200
Software -
Sound card - Kodek audio Realtek Kanał 2/4 / 5.1 / 7.1
Special functions -
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 5
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, PCI Express 3.0, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Technical details - Warranty period - 3 year(s)
Technical details > Net weight - 0.70 kg
Technical details > Producer - Gigabyte
Title - GIGABYTE H410M H V2 Motherboard - Supports Intel Core 10th CPUs, up to 2933MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
TPM - Header
Unit Box Height - 0.24
Unit Box Length - 0.275
Unit Box Width - 0.055
Unit Brutto Volume - 0.00363 cubm
Unit Gross Weight - 0.663 kg
Unit Net Weight - 0.5 kg
URL - https://www.gigabyte.com/Motherboard/H410M-H-V2-rev-10#kf
USB 2.0 Input/Output connectors - 4
USB 3.2 Input/Output connectors - 2
USB ports at back panel - 6
USB ports on motherboard - 2
Vendor Homepage - www.gigabyte.com/lv/Motherboard/H410M-H-V2-rev-11#kf
vendpn - H410M H V2
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 years
warrantyLength - 36
warrantyType - G
weight - 600
Weight & dimensions - Depth - 185 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 226 mm
