ID: 1181038
Product code: B860 STEEL LEGEND WIFI
In stock 5 units
Warranty: 3 years

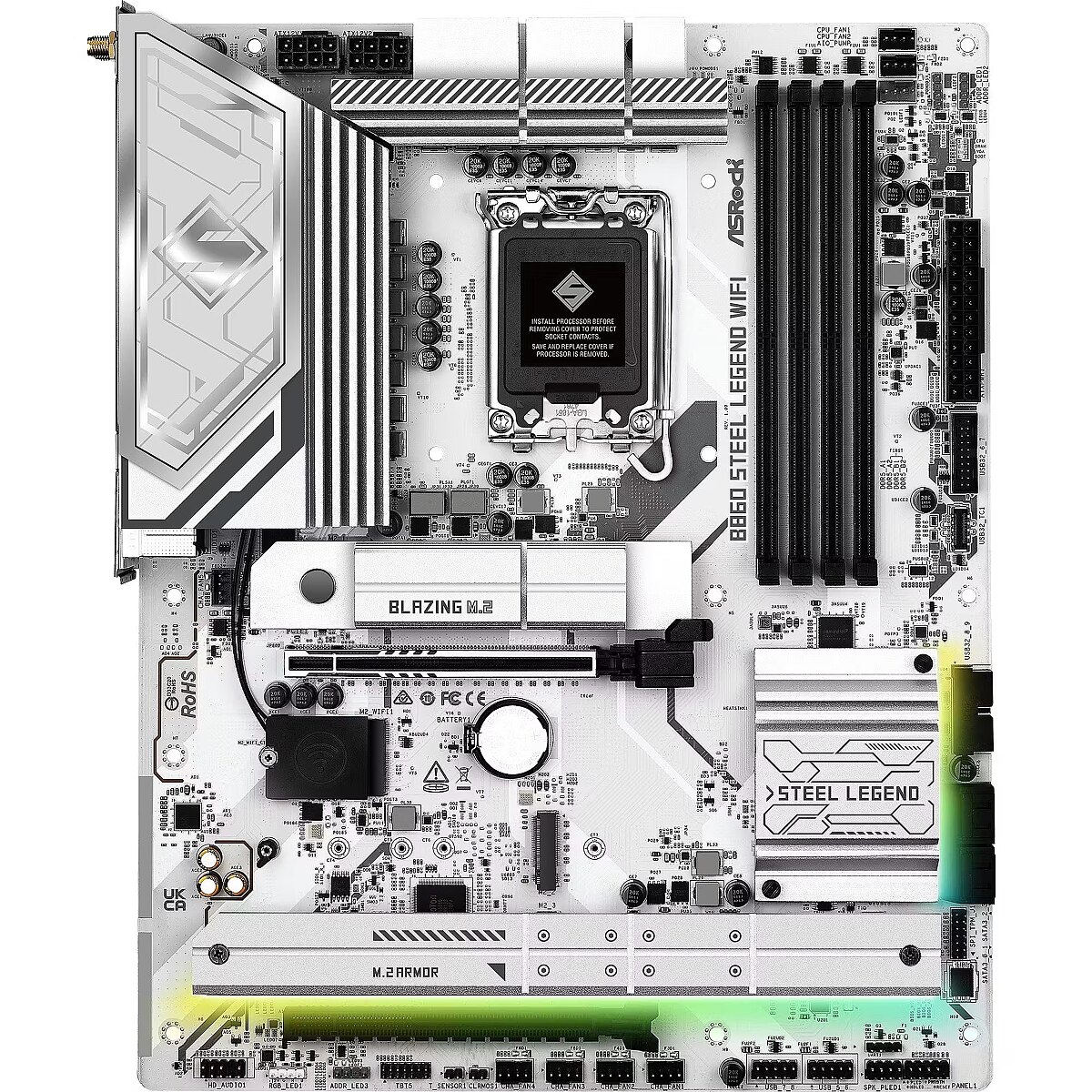

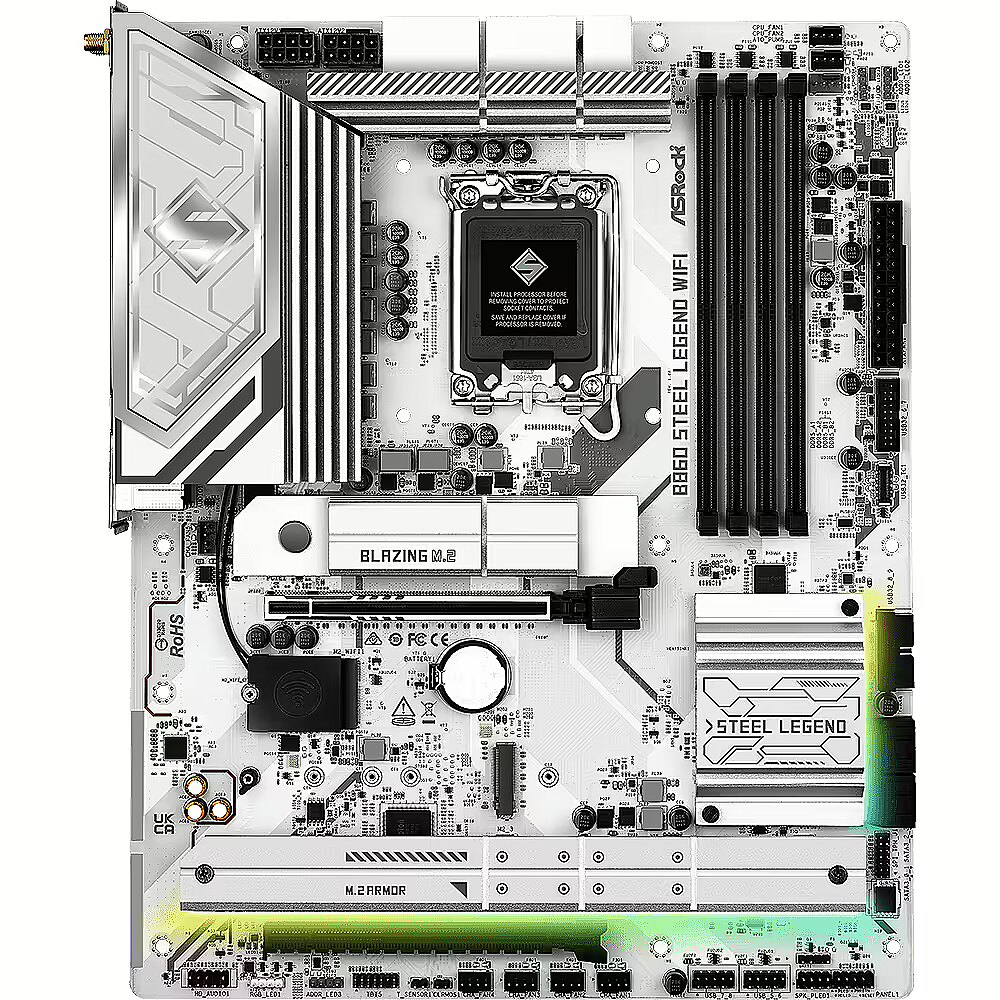

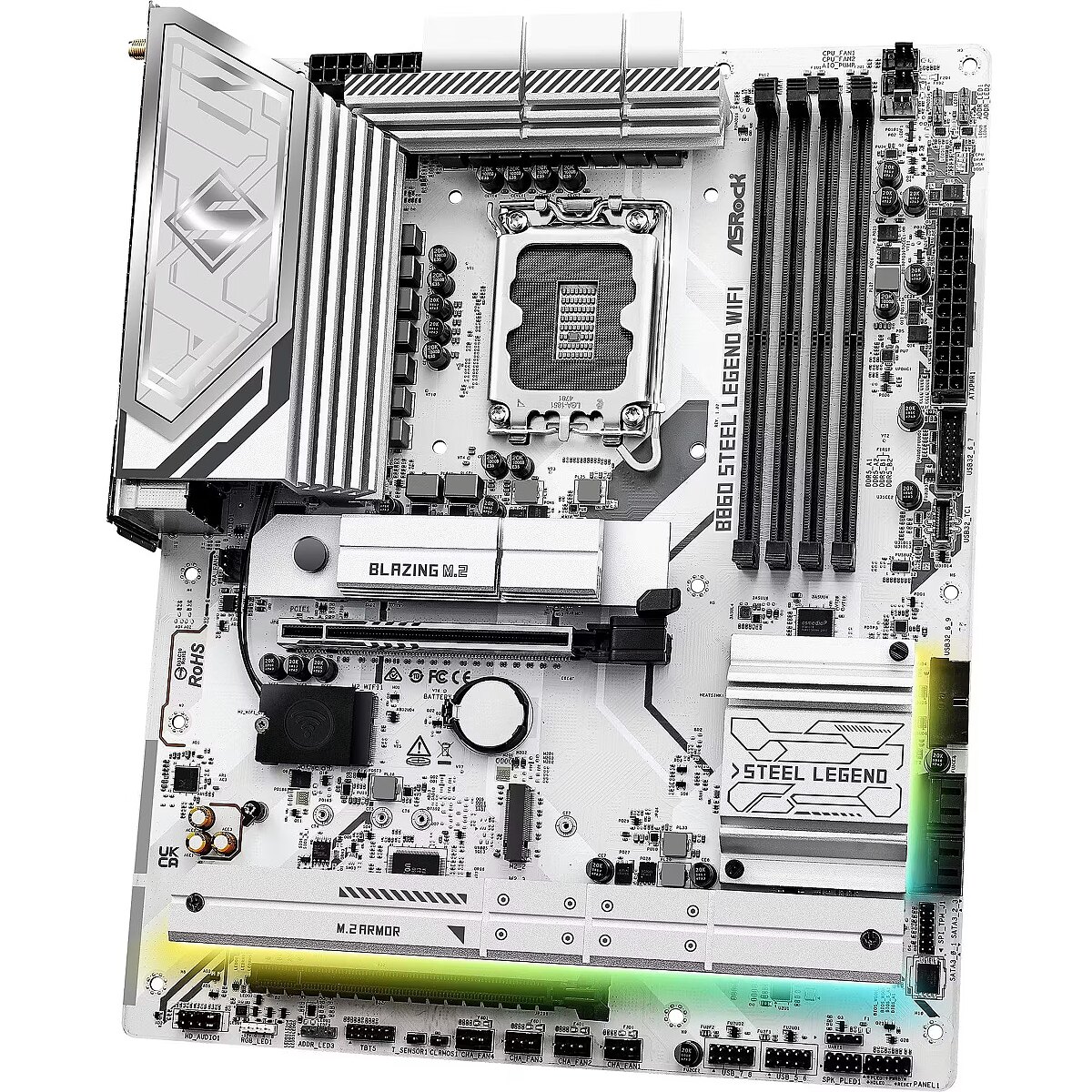

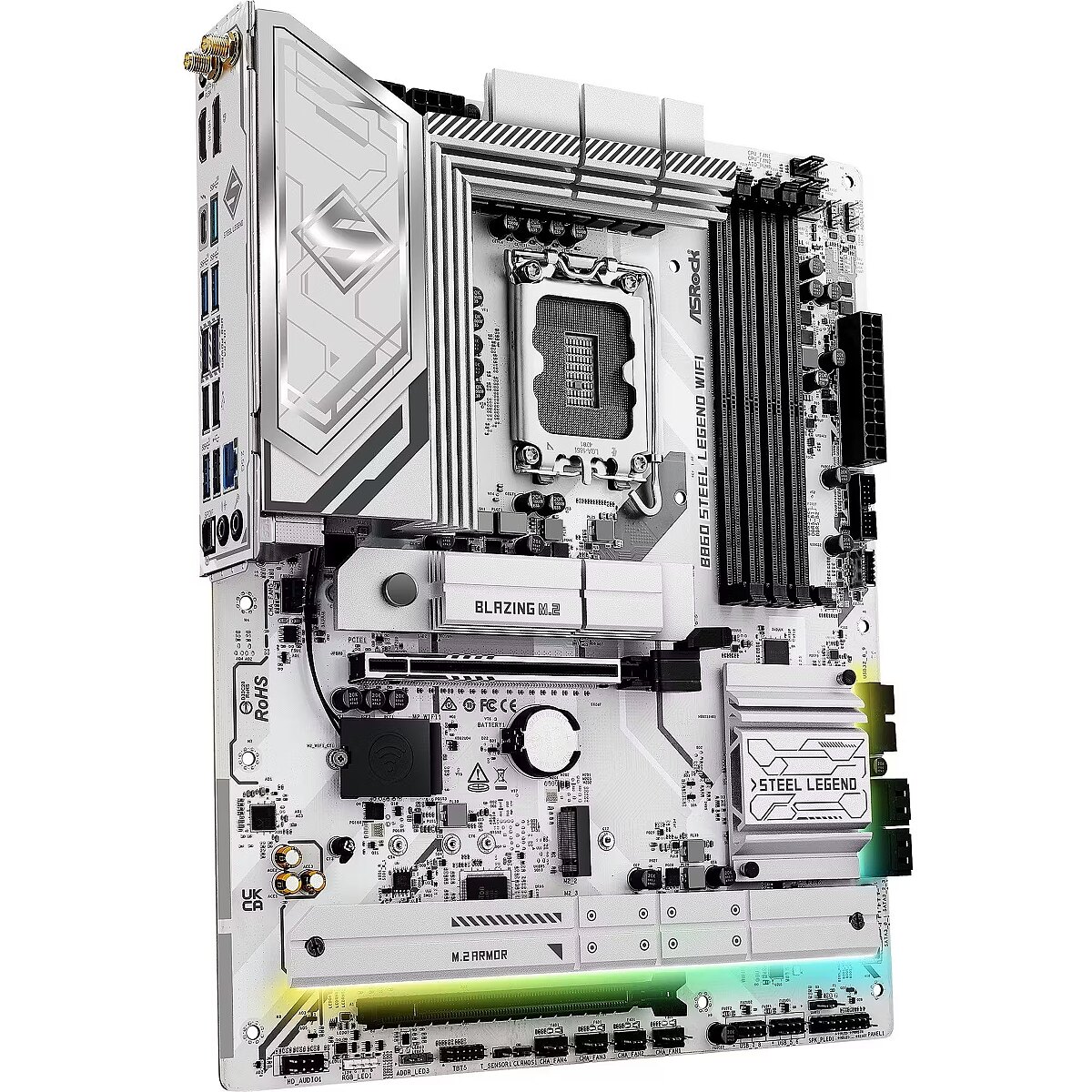

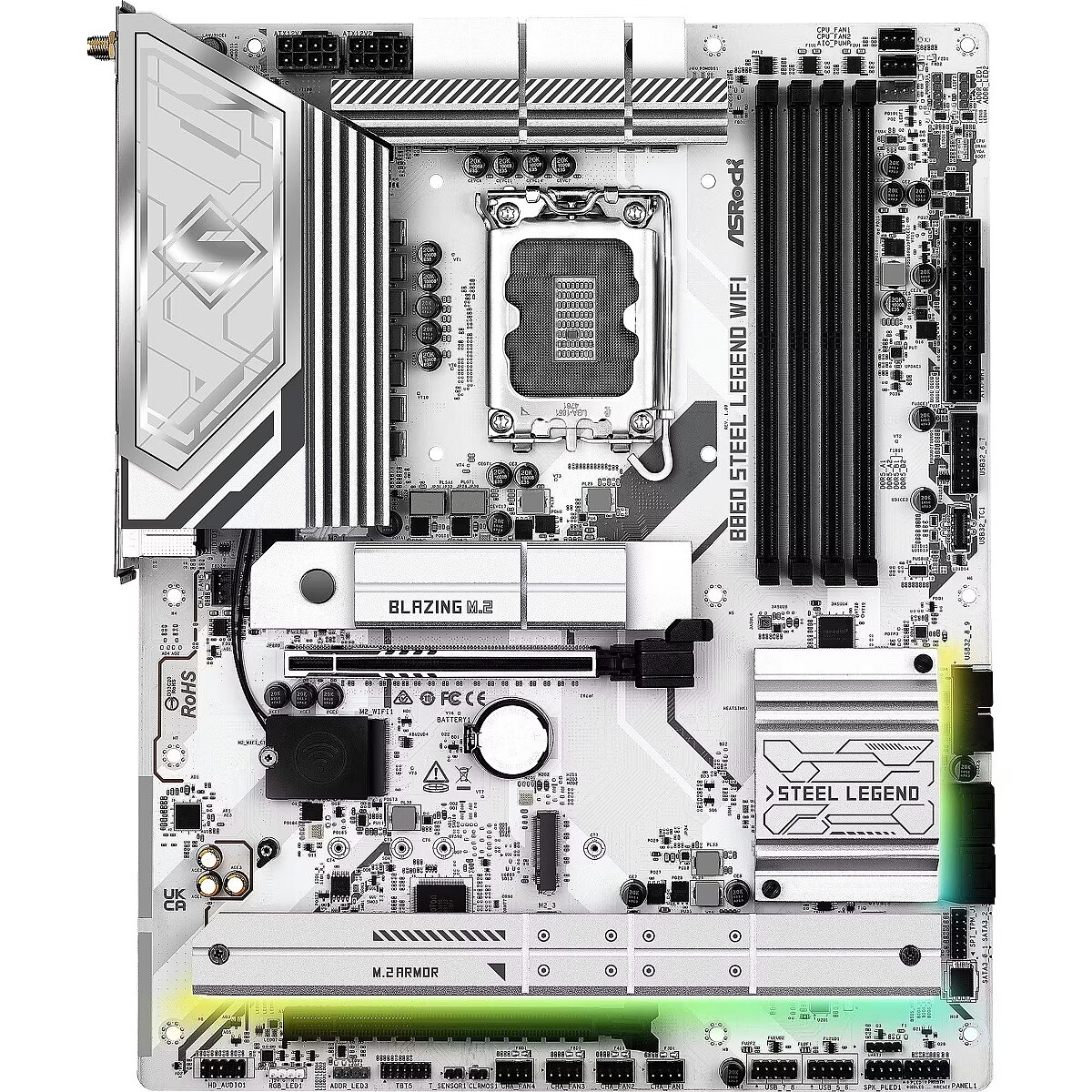

Asrock B860 STEEL LEGEND WIFI
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost 6.99 €: on Wednesday, 05.02.2025
- Courier delivery 11.99 €: on Wednesday, 05.02.2025
Main product parameters All parameters
- Series: ASRock Steel Legend
- CPU Socket: LGA 1851
- Chipset: Intel B860
- Form factor: ATX
- Type: DDR5
- RAM Slots: 4
- Built-in Wi-Fi: Ir
Basic information
Series
: ASRock Steel Legend
CPU Socket
LGA 1851
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel B860
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
ATX
The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR5
RAM Slots
4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR5 6400 (OC 8600)
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 0
DVI
: 0
HDMI
: 1
DisplayPort
: 1
Integrated sound card
: Realtek ALC1220
Wireless connections
Built-in Bluetooth
: Ir
Built-in Wi-Fi
: Ir
External ports
External USB Type-C
: 1
External USB 2.0
: 3
External USB 3.0 (USB 3.2 Gen1)
: 4
External USB 3.1 (USB 3.2 Gen2)
: 2
Internal ports
Internal A-RGB 5V (3-pin)
: 3
Internal RGB 12V (4-pin)
: 1
Internal USB 2.0
: 2
Internal USB 3.0
: 2
Internal USB Type-C
: 1
M.2 Port
: 4
SATA3 ports
: 4
More detailed specification

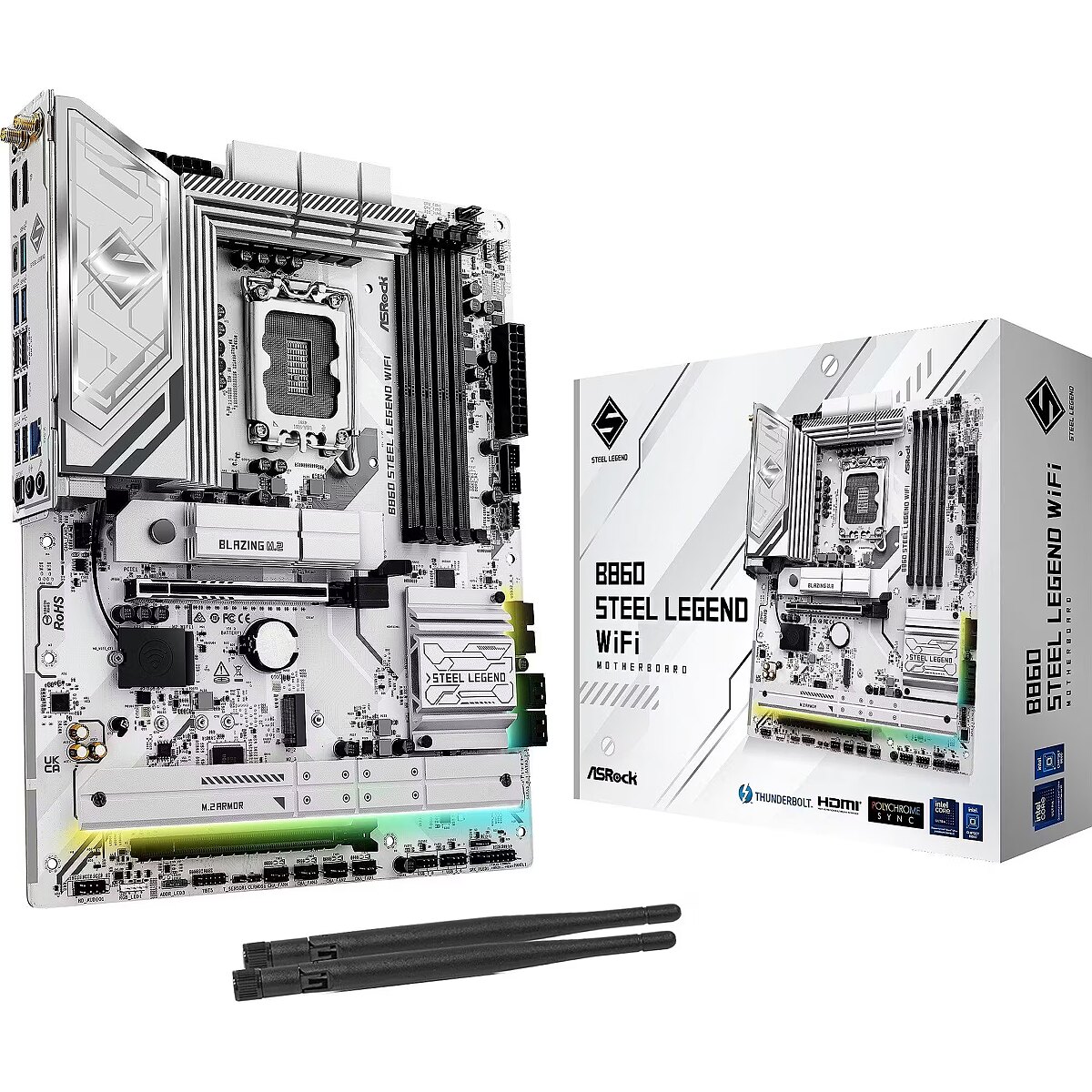

Accessories included - 2 x Kabel danych SATA 2 x Antena ASRock WiFi 2,4/5/6 GHz Kabel termistora
Audio-Out Input/Output connectors - 1
BIOS - 256Mb AMI UEFI Legal BIOS with GUI support
Bluetooth Interface - Yes
Category Code - MBI
Chipset - Intel B860 Express
Chipset manufacturer - Intel
Chipset type - Intel B860
COM connector / port - No
CPU socket - LGA1851
Description - B860 Steel Legend WiFi
Steel Legend reprezentuje filozoficzny stan solidnej jak skała trwałości i nieodpartej estetyki. Zbudowana wokół najbardziej wymagających specyfikacji i funkcji, seria Steel Legend jest skierowana do codziennych użytkowników i entuzjastów głównego nurtu! Zapewniając solidny zestaw materiałów/komponentów, aby zapewnić stabilną i niezawodną wydajność. Ekskluzywny kondensator 20K o pojemności 1000uF
Ulepszony czarny kondensator 20K nie tylko wydłuża żywotność do 20 000 godzin, ale także zwiększa wartość pojemności z 560uF do 1000uF, co przynosi kilka korzyści: Większa pojemność: Większe magazynowanie ładunku dla lepszego wsparcia przy dużych obciążeniach. Niższe tętnienie: Zmniejszone wahania mocy wyjściowej, poprawa jakości. Bardziej stabilny prąd wyjściowy: Stabilne zasilanie, minimalizujące wpływ napięcia. Lepsza wydajność i stabilność systemu: Zwiększona niezawodność i stała wydajność. 14+1+1 Power Phase Design
Zestaw solidnych komponentów i całkowicie płynne dostarczanie mocy do procesora. Ponadto oferuje niezrównane możliwości podkręcania i zwiększoną wydajność przy najniższej temperaturze, co jest również przydatne dla zaawansowanych graczy. Dr. MOS
Dr.MOS to zintegrowane rozwiązanie stopnia mocy, które jest zoptymalizowane pod kątem synchronicznych zastosowań obniżających napięcie buck-set! W porównaniu do tradycyjnych dyskretnych tranzystorów MOSFET inteligentnie dostarcza wyższy prąd dla każdej fazy, zapewniając tym samym lepszy wynik termiczny i lepszą wydajność. Złącze zasilania Hi-Density
Podkręcanie procesora wymaga wyższego prądu. Złącza zasilania ASRock Hi-Density są zaprojektowane tak, aby wytrzymywać wyższe prądy w porównaniu do tradycyjnych złączy zasilania procesora i ATX, zapewniając bardziej stabilny system i zmniejszając ryzyko pożaru podczas intensywnego podkręcania.
Description - Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance. Supports Intel® Core™ Ultra Processors (Series 2) 14+1+1+1+1 Phase Power Design, 80A Dr.MOS for VCore+GT+SA 4 x DDR5 DIMMs Supports Dual Channel, up to 8666+ (OC) 1 PCIe 5.0 x16, 1 PCIe 4.0 x16 Graphics Output Options: 1 HDMI, 1 DisplayPort, 1 Thunderbolt™ 4 Type-C Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio 1 Blazing M.2 (PCIe Gen5x4) 2 Hyper M.2 (PCIe Gen4x4) 1 M.2 (PCIe Gen4x2) 4 SATA3 1 Thunderbolt™ 4 Type-C (Rear) 1 USB 3.2 Gen2x2 Type-C (Front) 2 USB 3.2 Gen2 (Rear) 8 USB 3.2 Gen1 (4 Rear, 4 Front) 7 USB 2.0 (3 Rear, 4 Front) Realtek 2.5G LAN 802.11axe Wi-Fi 6E + Bluetooth Supports Lite Release Design, Toolless Multi-Layer M.2 Heatsink
Designation - CE+WEEE
Detailed data on disk/drive interfaces - CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x2 (32 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors
dimensionalWeight - 1638
dimension depth - 75 mm
dimension height - 280 mm
Dimensions - 30.5 cm x 24.4 cm
dimension weight - 1935 g
dimension width - 350 mm
DisplayPort Input/Output connectors - 1
ean - 4711581490123
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 1 x PCIe 5.0 x 16
External connectors - 1 x DisplayPort
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 1 x Thunderbolt 4
External connectors - 2 x SMA
External connectors - 2 x USB 3.2 Gen 2 Type-A
External connectors - 3 x USB 2.0
External connectors - 4 x USB 3.2 Gen 1 Type-A
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 8666 MHz
Full Description Line - Intel B860 Express|LGA1851|ATX|DDR5|8666 MHz|Memory slots 4|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|1xM.2|1xHDMI|1xDisplayPort|1xAudio-Out|1xMicrophone|3xUSB 2.0|6xUSB 3.2|1xUSB-C w/Thunderbolt|1xOptical S/PDIF|1xRJ45|SATA|USB-C|USB 2.0|USB 3.2|Thunderbolt|Bluetooth|WiFi|SATA 3.0|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC1220|RAID SATA 0, 1, 5, 10|TPM Header
Graphics - Intel Xe LPG Graphics Architecture 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz 1 x Intel Thunderbolt 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC1220
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
LPT connector / port - No
M.2 Expansion slots - 1
Max. number of SATA devices - 4
Max memory size - 256 GB
Memory bus frequency - 8666 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Microphone Input/Output connectors - 1
Model - B860 Steel Legend WiFi
Model - B860 STEEL LEGEND WIFI
name - Motherboard B860 Steel Legend WiFi s1851 4DDR5 TB ATX
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - LAN 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control Wireless LAN 802.11axe Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ac/ax/axe Supports Dual-Band 2x2 with extended 6GHz band* support 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.3 Supports MU-MIMO
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 8
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 4
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Power LED and Speaker Header
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x SPI
Onboard connectors - 1 x Thermistor Cable Header
Onboard connectors - 1 x USB 3.2 Gen 2 Type-C
Onboard connectors - 2 x 4pin wentylator CPU
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 2 x USB 3.2 Gen 1 Type-A
Onboard connectors - 3 x Addressable LED
Onboard connectors - 5 x 4pin Chassis fan
Optical S/PDIF Input/Output connectors - 1
Other information -
PCI-Express 4.0 16x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Processor family - Intel Core Ultra
producer - ASRock
producerCode - B860 STEEL LEGEND WIFI
productName - Płyta główna Asrock B860 STEEL LEGEND WIFI
productSize - Normal
RAID - SATA 0, 1, 5, 10
RAID - Yes
RJ45 Input/Output connectors - 1
SATA 3.0 Interface - Yes
SATA Interface - Yes
sizeX - 390
sizeY - 300
sizeZ - 70
Socket - LGA1851
Software - Software ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC* UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash
Sound card - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) Impedance Sensing on Rear Out port Individual PCB Layers for R/L Audio Channel Nahimic Audio
Special functions -
Supported operating systems - Windows 11
Thunderbolt Interface - Yes
TPM - Header
Unit Brutto Volume - 0.009524 cubm
Unit Gross Weight - 1.83 kg
Unit Net Weight - 1.4 kg
USB-C Interface - Yes
USB-C w/Thunderbolt Input/Output connectors - 1
USB 2.0 Input/Output connectors - 3
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 6
USB 3.2 Interface - Yes
USB ports at back panel - 10
USB ports on motherboard - 9
Vendor Homepage - www.asrock.com/MB/Intel/B860%20Steel%20Legend%20WiFi/index.asp
vendpn - B860 Steel Legend WiFi
Warranty - 36 months
warrantyLength - 36
warrantyType - G
weight - 1400
WiFi Interface - Yes
Audio-Out Input/Output connectors - 1
BIOS - 256Mb AMI UEFI Legal BIOS with GUI support
Bluetooth Interface - Yes
Category Code - MBI
Chipset - Intel B860 Express
Chipset manufacturer - Intel
Chipset type - Intel B860
COM connector / port - No
CPU socket - LGA1851
Description - B860 Steel Legend WiFi
Steel Legend reprezentuje filozoficzny stan solidnej jak skała trwałości i nieodpartej estetyki. Zbudowana wokół najbardziej wymagających specyfikacji i funkcji, seria Steel Legend jest skierowana do codziennych użytkowników i entuzjastów głównego nurtu! Zapewniając solidny zestaw materiałów/komponentów, aby zapewnić stabilną i niezawodną wydajność. Ekskluzywny kondensator 20K o pojemności 1000uF
Ulepszony czarny kondensator 20K nie tylko wydłuża żywotność do 20 000 godzin, ale także zwiększa wartość pojemności z 560uF do 1000uF, co przynosi kilka korzyści: Większa pojemność: Większe magazynowanie ładunku dla lepszego wsparcia przy dużych obciążeniach. Niższe tętnienie: Zmniejszone wahania mocy wyjściowej, poprawa jakości. Bardziej stabilny prąd wyjściowy: Stabilne zasilanie, minimalizujące wpływ napięcia. Lepsza wydajność i stabilność systemu: Zwiększona niezawodność i stała wydajność. 14+1+1 Power Phase Design
Zestaw solidnych komponentów i całkowicie płynne dostarczanie mocy do procesora. Ponadto oferuje niezrównane możliwości podkręcania i zwiększoną wydajność przy najniższej temperaturze, co jest również przydatne dla zaawansowanych graczy. Dr. MOS
Dr.MOS to zintegrowane rozwiązanie stopnia mocy, które jest zoptymalizowane pod kątem synchronicznych zastosowań obniżających napięcie buck-set! W porównaniu do tradycyjnych dyskretnych tranzystorów MOSFET inteligentnie dostarcza wyższy prąd dla każdej fazy, zapewniając tym samym lepszy wynik termiczny i lepszą wydajność. Złącze zasilania Hi-Density
Podkręcanie procesora wymaga wyższego prądu. Złącza zasilania ASRock Hi-Density są zaprojektowane tak, aby wytrzymywać wyższe prądy w porównaniu do tradycyjnych złączy zasilania procesora i ATX, zapewniając bardziej stabilny system i zmniejszając ryzyko pożaru podczas intensywnego podkręcania.
Description - Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance. Supports Intel® Core™ Ultra Processors (Series 2) 14+1+1+1+1 Phase Power Design, 80A Dr.MOS for VCore+GT+SA 4 x DDR5 DIMMs Supports Dual Channel, up to 8666+ (OC) 1 PCIe 5.0 x16, 1 PCIe 4.0 x16 Graphics Output Options: 1 HDMI, 1 DisplayPort, 1 Thunderbolt™ 4 Type-C Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio 1 Blazing M.2 (PCIe Gen5x4) 2 Hyper M.2 (PCIe Gen4x4) 1 M.2 (PCIe Gen4x2) 4 SATA3 1 Thunderbolt™ 4 Type-C (Rear) 1 USB 3.2 Gen2x2 Type-C (Front) 2 USB 3.2 Gen2 (Rear) 8 USB 3.2 Gen1 (4 Rear, 4 Front) 7 USB 2.0 (3 Rear, 4 Front) Realtek 2.5G LAN 802.11axe Wi-Fi 6E + Bluetooth Supports Lite Release Design, Toolless Multi-Layer M.2 Heatsink
Designation - CE+WEEE
Detailed data on disk/drive interfaces - CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x2 (32 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors
dimensionalWeight - 1638
dimension depth - 75 mm
dimension height - 280 mm
Dimensions - 30.5 cm x 24.4 cm
dimension weight - 1935 g
dimension width - 350 mm
DisplayPort Input/Output connectors - 1
ean - 4711581490123
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 1 x PCIe 5.0 x 16
External connectors - 1 x DisplayPort
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 1 x Thunderbolt 4
External connectors - 2 x SMA
External connectors - 2 x USB 3.2 Gen 2 Type-A
External connectors - 3 x USB 2.0
External connectors - 4 x USB 3.2 Gen 1 Type-A
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 8666 MHz
Full Description Line - Intel B860 Express|LGA1851|ATX|DDR5|8666 MHz|Memory slots 4|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|1xM.2|1xHDMI|1xDisplayPort|1xAudio-Out|1xMicrophone|3xUSB 2.0|6xUSB 3.2|1xUSB-C w/Thunderbolt|1xOptical S/PDIF|1xRJ45|SATA|USB-C|USB 2.0|USB 3.2|Thunderbolt|Bluetooth|WiFi|SATA 3.0|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC1220|RAID SATA 0, 1, 5, 10|TPM Header
Graphics - Intel Xe LPG Graphics Architecture 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz 1 x Intel Thunderbolt 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC1220
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
LPT connector / port - No
M.2 Expansion slots - 1
Max. number of SATA devices - 4
Max memory size - 256 GB
Memory bus frequency - 8666 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Microphone Input/Output connectors - 1
Model - B860 Steel Legend WiFi
Model - B860 STEEL LEGEND WIFI
name - Motherboard B860 Steel Legend WiFi s1851 4DDR5 TB ATX
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - LAN 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control Wireless LAN 802.11axe Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ac/ax/axe Supports Dual-Band 2x2 with extended 6GHz band* support 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.3 Supports MU-MIMO
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 8
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 4
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Power LED and Speaker Header
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x SPI
Onboard connectors - 1 x Thermistor Cable Header
Onboard connectors - 1 x USB 3.2 Gen 2 Type-C
Onboard connectors - 2 x 4pin wentylator CPU
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 2 x USB 3.2 Gen 1 Type-A
Onboard connectors - 3 x Addressable LED
Onboard connectors - 5 x 4pin Chassis fan
Optical S/PDIF Input/Output connectors - 1
Other information -
PCI-Express 4.0 16x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Processor family - Intel Core Ultra
producer - ASRock
producerCode - B860 STEEL LEGEND WIFI
productName - Płyta główna Asrock B860 STEEL LEGEND WIFI
productSize - Normal
RAID - SATA 0, 1, 5, 10
RAID - Yes
RJ45 Input/Output connectors - 1
SATA 3.0 Interface - Yes
SATA Interface - Yes
sizeX - 390
sizeY - 300
sizeZ - 70
Socket - LGA1851
Software - Software ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC* UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash
Sound card - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) Impedance Sensing on Rear Out port Individual PCB Layers for R/L Audio Channel Nahimic Audio
Special functions -
Supported operating systems - Windows 11
Thunderbolt Interface - Yes
TPM - Header
Unit Brutto Volume - 0.009524 cubm
Unit Gross Weight - 1.83 kg
Unit Net Weight - 1.4 kg
USB-C Interface - Yes
USB-C w/Thunderbolt Input/Output connectors - 1
USB 2.0 Input/Output connectors - 3
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 6
USB 3.2 Interface - Yes
USB ports at back panel - 10
USB ports on motherboard - 9
Vendor Homepage - www.asrock.com/MB/Intel/B860%20Steel%20Legend%20WiFi/index.asp
vendpn - B860 Steel Legend WiFi
Warranty - 36 months
warrantyLength - 36
warrantyType - G
weight - 1400
WiFi Interface - Yes
