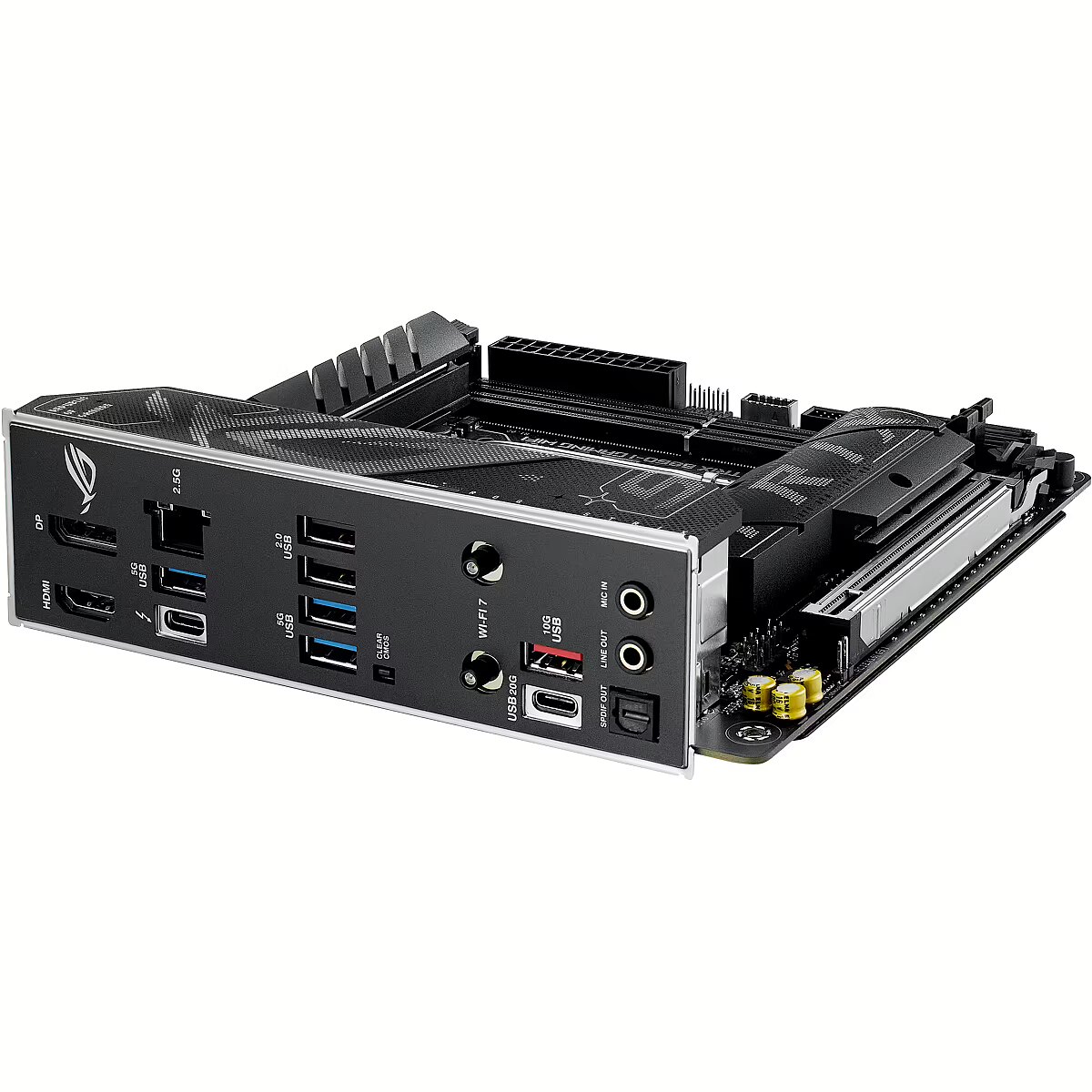

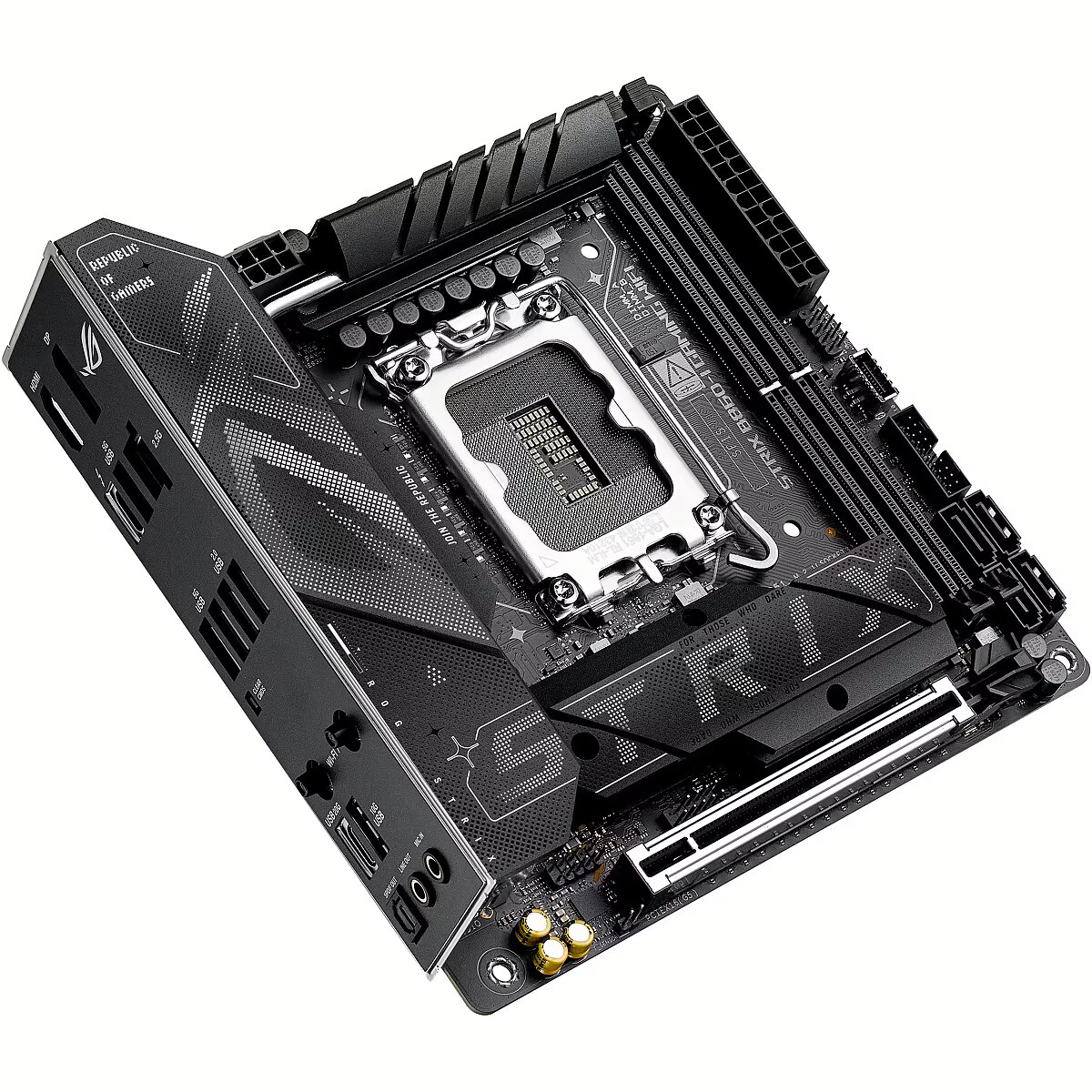

Asus ROG STRIX B860-I GAMING WIFI

+
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
+ Gift game Monster Hunter Wilds
ID: 1180998 Product code: ROG STRIX B860-I GAMING WIFI
Can be ordered 4 units Availability: 14 days after order approval
Warranty: 3 years
272.66 €
Delivery options
  • Delivery to Smartpost 6.99 €: 12.03.2025
  • Courier delivery 11.99 €: 12.03.2025
Main product parameters All parameters
  • Series: ASUS ROG Strix
  • CPU Socket: LGA 1851
  • Chipset: Intel B860
  • Form factor: Mini-ITX
  • Type: DDR5
  • RAM Slots: 2
  • Built-in Wi-Fi: Ir
Basic information
Series : ASUS ROG Strix
CPU Socket LGA 1851
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset Intel B860

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor Mini-ITX

The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Random-access memory (RAM)
Type : DDR5
RAM Slots 2
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support DDR5 5600 (OC 9066)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card
Video card port PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics Only with iGPU-ready CPU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment
PCI ports 0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub : 0
DVI : 0
HDMI : 1
DisplayPort : 1
Integrated sound card : Realtek ALC1220P
Wireless connections
Built-in Bluetooth : Ir
Built-in Wi-Fi : Ir
External ports
External USB Type-C : 2
External USB 2.0 : 2
External USB 3.0 (USB 3.2 Gen1) : 3
External USB 3.1 (USB 3.2 Gen2) : 1
Internal ports
Internal A-RGB 5V (3-pin) : 2
Internal RGB 12V (4-pin) : 0
Internal USB 2.0 : 1
Internal USB 3.0 : 1
Internal USB Type-C : 1
M.2 Port : 2
SATA3 ports : 4
Gift game Monster Hunter Wilds
More detailed specification
Additional information in manufacturers website Asus ROG STRIX B860-I GAMING WIFI
Accessories included - 2 x SATA 6Gb/s cables ROG USB2.0 splitter cable Panel cable ASUS WiFi Q-Antenna Cable ties package M.2 Q-Latch package Screw package for M.2 SSD M.2 Bracket ROG key chain ROG Strix stickers Quick start guide
BIOS - 256Mb Flash ROM, UEFI AMI BIOS
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
Brand - ASUS
BrandPartCode - 90MB1JB0-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Chipset manufacturer - Intel
Chipset type - Intel B860 Chipset
code - 90MB1JB0-M0EAY0
COM connector / port - No
CPU socket - LGA1851
Description - ROG STRIX B860-I gaming WiFi The ROG Strix B860-I Gaming WiFi is designed to dominate with Intel Core Ultra Processors(Series 2). Its advanced power design and AI solutions drive top-tier performance, while Thunderbolt 4, WiFi 7 and high-speed DDR5 slots offer cutting-edge connectivity. This motherboard delivers the power and speed needed for elite gaming and demanding AI applications. ASUS AI ADVISOR
Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way. AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7. NPU BOOST
The integrated NPU in Intel Core Ultra Processors (Series 2) efficiently accelerates AI workflows - and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%. Asynchronous Clock
For next-level frequency flexibility, the ROG Strix B860-I features a built-in clock generator that isolates CPU base clock from memory, NPU, D2D and NGU. Drive memory, NPU and others performance to their absolute brink while maintaining the stability of CPU clock domains. Separate CPU BCLK from other domains for unfettered overclocking. DDR5 DOMINATION
Enhanced signal routing can push enthusiast-grade kits well beyond the 9 GT/s threshold on the Strix B860-I. AEMP III
ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. DIMM FIT
DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. UNDENIABLY ROG STRIX
The ROG Strix B860-I features a sleek, minimalist design that blends effortlessly with various system components. Its deep black PCB and metallic heatsinks give it a bold, intense look, while the L-shaped backplate adds both style and practical protection against sharp edges.
Designation - CE+WEEE
Detailed data on disk/drive interfaces - Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel Core Ultra Processors (Series 2) M.2_1 slot (Key M), type 2260/2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
dimensionalWeight - 830
dimension depth - 95 mm
dimension height - 230 mm
Dimensions - 17 x 17 cm
dimension weight - 1330 g
dimension width - 190 mm
ean - 4711387815991
EAN - 4711387815991
Eans - 4711387815991
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x Przycisk Clear CMOS
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 1 x Thunderbolt 4
External connectors - 1 x USB 3.2 Gen 2 Type-A
External connectors - 1 x USB 3.2 Gen 2x2 Type-C
External connectors - 1 x Wi-Fi Module
External connectors - 2 x USB 2.0
External connectors - 3 x USB 3.2 Gen 1 Type-A
Features - Audio chip - Realtek ALC1220P
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel B860
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - mini ITX
Features - Product colour - Multicolour
Features - Windows operating systems supported - Windows 11
FireWire (IEEE 1394) - No
Form factor - mini ITX
Graphics - 1 x DisplayPort 1 x HDMI 1 x Intel Thunderbolt 4
Graphics - On-board graphics card - No
Graphics - Parallel processing technology support - Not supported
GTIN - 0197105815995
GTIN - 197105815995
GTIN - 4711387815991
guarantee - 36
guarantee_type - normal
Integrated CPU - No
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 1
Internal I/O - Number of CPU fan connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - USB 2.0 connectors - 1
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
LongDesc - ROG STRIX B860-I gaming wifiThe ROG Strix B860-I Gaming WiFi is designed to dominate with Intel® Core™ Ultra Processors(Series 2). Its advanced power design and AI solutions drive top-tier performance, while Thunderbolt™ 4, WiFi 7 and high-speed DDR5 slots offer cutting-edge connectivity. This motherboard delivers the power and speed needed for elite gaming and demanding AI applications.
LongProductName - Intel B860, 2 x DIMM slots, max. 128GB, DDR5, M.2/SATA III, 2.5Gb Ethernet, Wi-Fi 7 (802.11be), 256Mb Flash ROM, UEFI AMI BIOS, Mini-ITX
LongSummaryDescription - ASUS ROG STRIX B860-I GAMING WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: mini ITX, Motherboard chipset family: Intel
LPT connector / port - No
Manufacturer - ASUS
Max. number of SATA devices - 4
Max memory size - 128 GB
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 2
Memory - Supported memory clock speed (max) - 9066 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 9066 MHz
Memory type - DDR5
Model - ROG STRIX B860-I GAMING WIFI
MPN - 90MB1JB0-M0EAY0
Name - ASUS ROG STRIX B860-I GAMING WIFI
name - ASUS ROG Strix B860-I Gaming WiFi Mainboard, LGA 1851, Intel B860, ITX, DDR5
Name - LGA1851 ASUS ROG STRIX B860-I GAMING WIFI
name - Motherboard ROG STRIX B860-I GAMING WIFI s1851 4DDR5 TB ITX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - Ethernet: 1 x Intel 2.5Gb Ethernet ASUS LANGuard   Wireless & Bluetooth: 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of DDR5 slots - 2
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 2
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin Chassis fan
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x Thermal sensor connector
Onboard connectors - 1 x USB 3.2 Gen 2 Type-C
Onboard connectors - 2 x Addressable LED
Onboard connectors - 2 x M.2
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 2 x USB 3.2 Gen 1 Type-A
Onboard connectors - 4 x SATA III 6Gb/s
Other features - Weight - 812.6 g
Other information -
Packaging data - Package depth - 187 mm
Packaging data - Package height - 96 mm
Packaging data - Package weight - 1.47 kg
Packaging data - Package width - 228 mm
Processor - Compatible processor series - Intel Core Ultra (Series 2)
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1851 (Socket V1)
Processor family - Intel Core Ultra
producer - Asus
Producer - Asus
producerCode - 90MB1JB0-M0EAY0
ProducerCode - ROG STRIX B860-I GAMING WIFI
productName - ASUS ROG STRIX B860-I GAMING WIFI Intel B860 LGA 1851 (Socket V1) mini ITX
ProductName - ROG STRIX B860-I GAMING WIFI
productSize - Normal
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - Thunderbolt ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
ShortDescription - Socket 1851| Chipset Intel B860| DDR5 |
ShortSummaryDescription - ASUS ROG STRIX B860-I GAMING WIFI, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), DDR5-SDRAM, 128 GB, DIMM
sizeX - 230
sizeY - 95
sizeZ - 190
Software - WOL by PME, UEFI PXE
Sound card - Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* Impedance sense for front and rear headphone outputs Internal audio Amplifier to enhance the highest quality sound for headphone and speakers Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) Supports up to 32-Bit/192 kHz playback* Audio Features  SupremeFX Shielding Technology Savitech SV3H712 AMP   Rear optical S/PDIF out port Premium audio capacitors Dedicated audio PCB layers * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Special functions - Extreme Engine Digi+ 5K Black metallic capacitors  ASUS Q-Design  PCIe Slot Q-Release Slim (with PCIe SafeSlot) M.2 Q-Latch Q-Antenna Q-Dashboard Q-DIMM Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) Q-Slot ASUS Thermal Solution M.2 heatsink backplate M.2 heatsink VRM heatsink design ASUS EZ DIY Clear CMOS button CPU Socket lever protector ProCool Pre-mounted I/O shield SafeSlot SafeDIMM Aura Sync Addressable Gen2 headers
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 6
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 11
Title - ASUS ROG STRIX B860-I GAMING WIFI Intel B860 LGA 1851 (Socket V1) mini ITX
URL - https://rog.asus.com/motherboards/rog-strix/rog-strix-b860-i-gaming-wifi/
USB ports at back panel - 8
USB ports on motherboard - 5
vendpn - ROG STRIX B860-I GAMING WIFI
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 1.34
weight - 1335
Weight & dimensions - Depth - 170 mm
Weight & dimensions - Width - 170 mm
