ID: 1064269
Product code: 7E14-001R
In stock 15 units
Warranty: 3 years

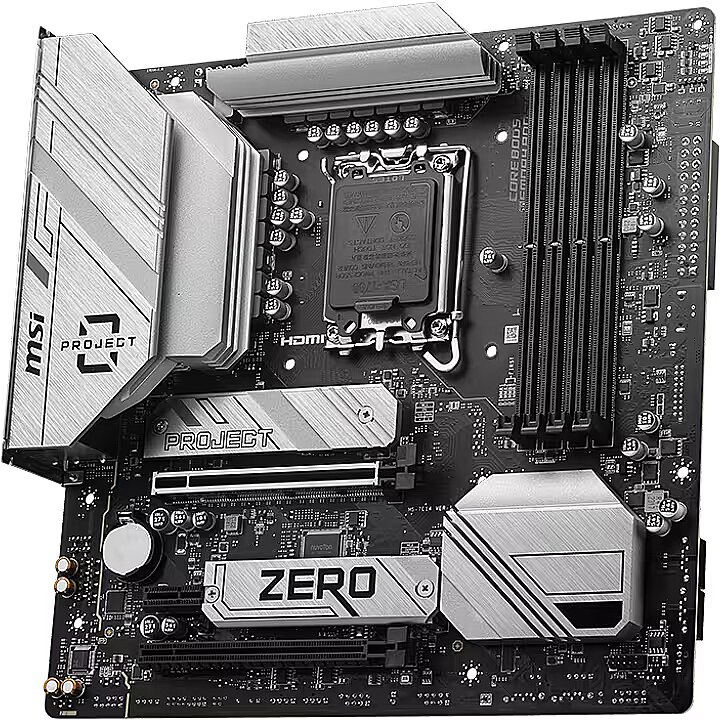

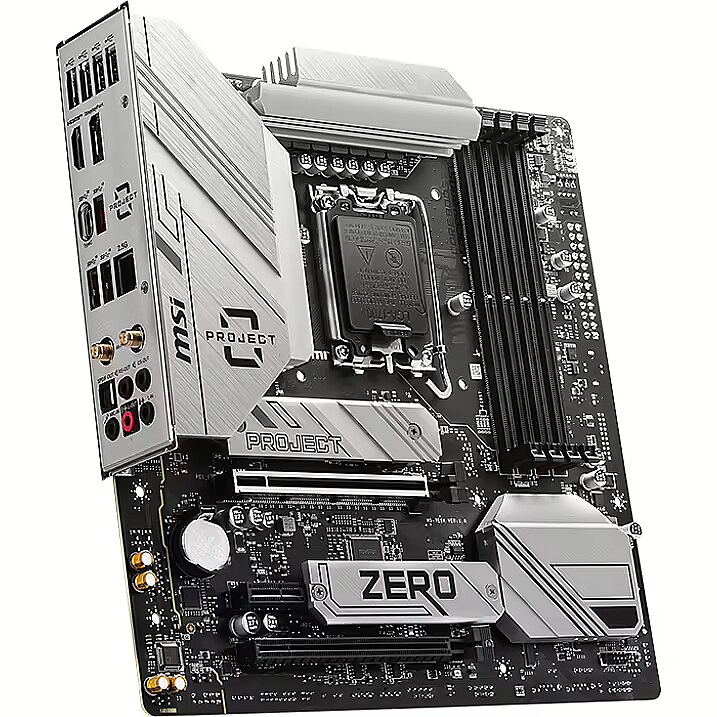

MSI MPG B760M PROJECT ZERO
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: 02.12.2024
Main product parameters All parameters
- Series: MSI Project ZERO
- CPU Socket: LGA 1700
- Chipset: Intel B760
- Form factor: Micro ATX
- Type: DDR5
- RAM Slots: 4
- Built-in Wi-Fi: Ir
Basic information
Series
: MSI Project ZERO
CPU Socket
LGA 1700
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel B760
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
Micro ATX
The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR5
RAM Slots
4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR5 5600 (OC 7800)
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 0
DVI
: 0
HDMI
: 1
DisplayPort
: 1
Integrated sound card
: Realtek ALC897
Wireless connections
Built-in Bluetooth
: Ir
Built-in Wi-Fi
: Ir
External ports
External USB Type-C
: 1
External USB 2.0
: 4
External USB 3.0 (USB 3.2 Gen1)
: 0
External USB 3.1 (USB 3.2 Gen2)
: 3
Internal ports
Internal A-RGB 5V (3-pin)
: 2
Internal RGB 12V (4-pin)
: 2
Internal USB 2.0
: 2
Internal USB 3.0
: 1
Internal USB Type-C
: 1
M.2 Port
: 2
SATA3 ports
: 4
More detailed specification
BIOS - ACPI version - 6.4
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
BIOS - System Management BIOS (SMBIOS) version - 3.5
Brand - MSI
BrandPartCode - 7E14-001R
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
code - 7E14-001R
Code - B760M PROJECT ZERO
EAN - 4711377143660
ean - 4711377143660
EAN_code - 4711377143660
Expansion slots - Number of M.2 (M) slots - 2
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel B760
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - Power source type - ATX
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
GTIN - 4711377143660
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Parallel connector - Yes
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 4
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.msi.com/Motherboard/B760M-PROJECT-ZERO/Gallery
LongDesc - ABSOLUTE SIMPLICITYB760M PROJECT ZERO moves the power connectors, fan connectors, and other pin headers to the back of the motherboard. This provides a cleaner and neater front view, allowing the motherboard, liquid cooler, and graphics card's aesthetic design to be fully displayed.Extended HeatsinkExtended Heatsink enlarges the surface of heat dissipation, ensuring even high- end processors to run in full speed.M.2 Shield FrozrKeeps M.2 SSDs safe while preventing throttling, making them run faster.Heavy Plated VRM HeatsinkThe VRM heatsink covers the upper MOS and helps dissipate the heat.7W/mK Thermal Pad & AdditionalChoke PadHigh quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.LIGHTNING GEN 5 PCI-EDoubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
LongProductName - PCI-E 5, Wi-Fi 6E, 2.5G, 20G
LongSummaryDescription - MSI B760M Ptoject Zero. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, ECC сompatibility: Non-ECC. Supported storage drive interfaces: SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Manufacturer - MSI
Manufacturer_code - 7E14-001R
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 256 GB
Memory - Number of memory slots - 4
Memory - Supported memory clock speeds - 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR5
Name - MSI B760M PROJECT ZERO - Socket 1700 - motherboard
Name - MSI B760M PROJECT ZERO | Processor family Intel | Processor socket LGA1700 | DDR5 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
name - MSI Pro B760M Project Zero, Intel B760 Mainboard - Sockel 1700, DDR5, Back-Connect-Design
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8111H
Network - Wi-Fi - No
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 100.00 mm
Package features > Gross height (mm) - 310.00 mm
Package features > Gross width (mm) - 300.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 93 pc(s)
Package features > Paper/Pasteboard - 450.00 g
Package features > Plastic (No PET) - 150.00 g
Package features > Tare weight (kg) - 0.60 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - SATA
Processor - Compatible processor series - Intel® Celeron®, Intel® Pentium® Gold
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
ProductName - B760M Ptoject Zero

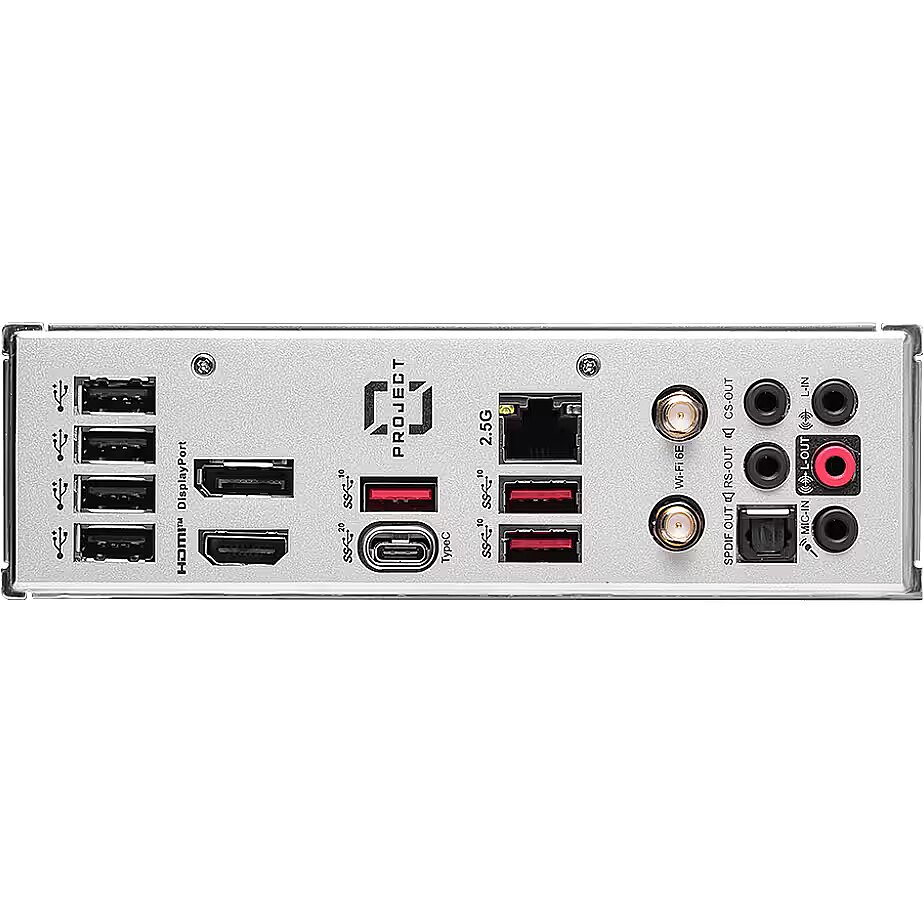

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 1.4
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 2
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
ShortSummaryDescription - MSI B760M Ptoject Zero, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, LGA 1700, DDR5-SDRAM, 256 GB
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 6
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical details > Gross weight - 2.10 kg
Technical details > Net weight - 1.50 kg
Technical details > Producer - MSI
Technical details > Producer product name - B760M PROJECT ZERO
Technical_details - The MSI B760M PROJECT ZERO motherboard is based on the Intel® B760 chipset and supports Intel® processors for Socket 1700 of the 12th, 13th and 14th generations. It has four DDR5 DIMM slots in dual-channel operation for up to 192 GB of RAM. The B760M PROJECT ZERO's additional features include a PCIe 5.0 x16 slot and a PCIe 4.0 x16 slot. The MSI B760M PROJECT ZERO also has 8-channel sound, a 2.5 Gigabit LAN interface, Wi-Fi6E, Bluetooth, four SATA3 ports, two M.2 ports and a range of USB interfaces.Art .-No.: 100031423 Mainboard type EAN 4711377143660 Manufacturer no. 7E14-001R Base 1700 Max. supported CPUs 1 Operating system support Windows 10 ready, Windows 11 ready Processor Supported models Core i3 12xxx (Alder Lake), Core i3 12xxxT (Alder Lake), Core i3 12xxxF (Alder Lake), Core i3 13xxx (Raptor Lake), Core i3 13xxxF (Raptor Lake), Core i3 13xxxT (Raptor Lake) , Core i5 12xxx (Alder Lake), Core i5 12xxxK (Alder Lake), Core i5 12xxxKF (Alder Lake), Core i5 12xxxT (Alder Lake), Core i5 12xxxF (Alder Lake), Core i5 13xxx (Raptor Lake), Core i5 13xxxF (Raptor Lake), Core i5 13xxxT (Raptor Lake), Core i5 13xxxK (Raptor Lake), Core i5 13xxxKF (Raptor Lake), Core i5 14xxx (Raptor Lake-S), Core i5 14xxxF (Raptor Lake-S) , Core i5 14xxxK (Raptor Lake-S), Core i5 14xxxKF (Raptor Lake-S), Core i5 14xxxT (Raptor Lake-S), Core i7 12xxx (Alder Lake), Core i7 12xxxK (Alder Lake), Core i7 12xxxKF (Alder Lake), Core i7 12xxxT (Alder Lake), Core i7 12xxxF (Alder Lake), Core i7 13xxx (Raptor Lake), Core i7 13xxxF (Raptor Lake), Core i7 13xxxT (Raptor Lake), Core i7 13xxxK (Raptor Lake), Core i7 13xxxKF (Raptor Lake), Core i7 14xxx (Raptor Lake-S), Core i7 14xxxF (Raptor Lake-S), Core i7 14xxxK (Raptor Lake-S), Core i7 14xxxKF (Raptor Lake-S) , Core i7 14xxxT (Raptor Lake-S), Core i9 12xxx (Alder Lake), Core i9 12xxxK (Alder Lake), Core i9 12xxxKF (Alder Lake), Core i9 12xxxT (Alder Lake), Core i9 12xxxF (Alder Lake) , Core i9 12xxxKS (Alder Lake), Core i9 13xxx (Raptor Lake), Core i9 13xxxF (Raptor Lake), Core i9 13xxxT (Raptor Lake), Core i9 13xxxK (Raptor Lake), Core i9 13xxxK (Raptor Lake), Core i9 13xxxKF (Raptor Lake), Core i9 13xxxKS (Raptor Lake), Core i9 14xxx (Raptor Lake-S), Core i9 14xxxF (Raptor Lake-S), Core i9 14xxxK (Raptor Lake-S), Core i9 14xxxKF (Raptor Lake-S), Core i9 14xxxKS (Raptor Lake-S), Core i9 14xxxT (Raptor Lake-S), Pentium Gold Gxxxx (Alder Lake), Celeron Gxxxx (Alder Lake) Chipset Intel® B760 Slots PCIe x16 2x (of which: 1x PCIe x16, 1x PCIe x4) Intel® Wi-Fi 6E, Bluetooth 5.3 Form factor µATX Use PC Memory maximum 192 GB Ports (external) USB-C 3.2 Gen 2x2 (20 Gbit/s) 1 Connectors (internal) SATA 4 Ports (optional) USB 3.2 Gen 1 (5 Gbit/s) 2 SATA controller Intel® B760 Directly usable RAID levels 0, 1, 10, 5 USB controller Intel® B760 Onboard graphics The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip. Sound Realtek ALC897 Codec LAN Realtek 2.5Gbps LAN Further information 2 M.2 slots: 1x with support for PCIe 4.0 x4, 1x with support for SATA and PCIe 4.0 x4 | the PCIe 4.0 x16 slot is connected with 4 lanes Accessories available: SATA cable, M.2 mounting material, cable sticker, WLAN antenna, instructions Dimensions Width: 243.84mm x Height: 243.84mm
Title - MSI B760M Ptoject Zero Intel B760 LGA 1700 micro ATX
URL - https://www.msi.com/Motherboard/B760M-PROJECT-ZERO/Overview
Warranty - 36
Warranty - 36 month(s)
WarrantyInfo -
Weight - 1,84
Weight & dimensions - Depth - 243.8 mm
Weight & dimensions - Width - 243.8 mm
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
BIOS - System Management BIOS (SMBIOS) version - 3.5
Brand - MSI
BrandPartCode - 7E14-001R
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
code - 7E14-001R
Code - B760M PROJECT ZERO
EAN - 4711377143660
ean - 4711377143660
EAN_code - 4711377143660
Expansion slots - Number of M.2 (M) slots - 2
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel B760
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - Power source type - ATX
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
GTIN - 4711377143660
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Parallel connector - Yes
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 4
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.msi.com/Motherboard/B760M-PROJECT-ZERO/Gallery
LongDesc - ABSOLUTE SIMPLICITYB760M PROJECT ZERO moves the power connectors, fan connectors, and other pin headers to the back of the motherboard. This provides a cleaner and neater front view, allowing the motherboard, liquid cooler, and graphics card's aesthetic design to be fully displayed.Extended HeatsinkExtended Heatsink enlarges the surface of heat dissipation, ensuring even high- end processors to run in full speed.M.2 Shield FrozrKeeps M.2 SSDs safe while preventing throttling, making them run faster.Heavy Plated VRM HeatsinkThe VRM heatsink covers the upper MOS and helps dissipate the heat.7W/mK Thermal Pad & AdditionalChoke PadHigh quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.LIGHTNING GEN 5 PCI-EDoubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
LongProductName - PCI-E 5, Wi-Fi 6E, 2.5G, 20G
LongSummaryDescription - MSI B760M Ptoject Zero. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, ECC сompatibility: Non-ECC. Supported storage drive interfaces: SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Manufacturer - MSI
Manufacturer_code - 7E14-001R
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 256 GB
Memory - Number of memory slots - 4
Memory - Supported memory clock speeds - 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR5
Name - MSI B760M PROJECT ZERO - Socket 1700 - motherboard
Name - MSI B760M PROJECT ZERO | Processor family Intel | Processor socket LGA1700 | DDR5 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
name - MSI Pro B760M Project Zero, Intel B760 Mainboard - Sockel 1700, DDR5, Back-Connect-Design
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8111H
Network - Wi-Fi - No
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 100.00 mm
Package features > Gross height (mm) - 310.00 mm
Package features > Gross width (mm) - 300.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 93 pc(s)
Package features > Paper/Pasteboard - 450.00 g
Package features > Plastic (No PET) - 150.00 g
Package features > Tare weight (kg) - 0.60 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - SATA
Processor - Compatible processor series - Intel® Celeron®, Intel® Pentium® Gold
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
ProductName - B760M Ptoject Zero
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 1.4
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 2
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
ShortSummaryDescription - MSI B760M Ptoject Zero, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, LGA 1700, DDR5-SDRAM, 256 GB
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 6
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical details > Gross weight - 2.10 kg
Technical details > Net weight - 1.50 kg
Technical details > Producer - MSI
Technical details > Producer product name - B760M PROJECT ZERO
Technical_details - The MSI B760M PROJECT ZERO motherboard is based on the Intel® B760 chipset and supports Intel® processors for Socket 1700 of the 12th, 13th and 14th generations. It has four DDR5 DIMM slots in dual-channel operation for up to 192 GB of RAM. The B760M PROJECT ZERO's additional features include a PCIe 5.0 x16 slot and a PCIe 4.0 x16 slot. The MSI B760M PROJECT ZERO also has 8-channel sound, a 2.5 Gigabit LAN interface, Wi-Fi6E, Bluetooth, four SATA3 ports, two M.2 ports and a range of USB interfaces.Art .-No.: 100031423 Mainboard type EAN 4711377143660 Manufacturer no. 7E14-001R Base 1700 Max. supported CPUs 1 Operating system support Windows 10 ready, Windows 11 ready Processor Supported models Core i3 12xxx (Alder Lake), Core i3 12xxxT (Alder Lake), Core i3 12xxxF (Alder Lake), Core i3 13xxx (Raptor Lake), Core i3 13xxxF (Raptor Lake), Core i3 13xxxT (Raptor Lake) , Core i5 12xxx (Alder Lake), Core i5 12xxxK (Alder Lake), Core i5 12xxxKF (Alder Lake), Core i5 12xxxT (Alder Lake), Core i5 12xxxF (Alder Lake), Core i5 13xxx (Raptor Lake), Core i5 13xxxF (Raptor Lake), Core i5 13xxxT (Raptor Lake), Core i5 13xxxK (Raptor Lake), Core i5 13xxxKF (Raptor Lake), Core i5 14xxx (Raptor Lake-S), Core i5 14xxxF (Raptor Lake-S) , Core i5 14xxxK (Raptor Lake-S), Core i5 14xxxKF (Raptor Lake-S), Core i5 14xxxT (Raptor Lake-S), Core i7 12xxx (Alder Lake), Core i7 12xxxK (Alder Lake), Core i7 12xxxKF (Alder Lake), Core i7 12xxxT (Alder Lake), Core i7 12xxxF (Alder Lake), Core i7 13xxx (Raptor Lake), Core i7 13xxxF (Raptor Lake), Core i7 13xxxT (Raptor Lake), Core i7 13xxxK (Raptor Lake), Core i7 13xxxKF (Raptor Lake), Core i7 14xxx (Raptor Lake-S), Core i7 14xxxF (Raptor Lake-S), Core i7 14xxxK (Raptor Lake-S), Core i7 14xxxKF (Raptor Lake-S) , Core i7 14xxxT (Raptor Lake-S), Core i9 12xxx (Alder Lake), Core i9 12xxxK (Alder Lake), Core i9 12xxxKF (Alder Lake), Core i9 12xxxT (Alder Lake), Core i9 12xxxF (Alder Lake) , Core i9 12xxxKS (Alder Lake), Core i9 13xxx (Raptor Lake), Core i9 13xxxF (Raptor Lake), Core i9 13xxxT (Raptor Lake), Core i9 13xxxK (Raptor Lake), Core i9 13xxxK (Raptor Lake), Core i9 13xxxKF (Raptor Lake), Core i9 13xxxKS (Raptor Lake), Core i9 14xxx (Raptor Lake-S), Core i9 14xxxF (Raptor Lake-S), Core i9 14xxxK (Raptor Lake-S), Core i9 14xxxKF (Raptor Lake-S), Core i9 14xxxKS (Raptor Lake-S), Core i9 14xxxT (Raptor Lake-S), Pentium Gold Gxxxx (Alder Lake), Celeron Gxxxx (Alder Lake) Chipset Intel® B760 Slots PCIe x16 2x (of which: 1x PCIe x16, 1x PCIe x4) Intel® Wi-Fi 6E, Bluetooth 5.3 Form factor µATX Use PC Memory maximum 192 GB Ports (external) USB-C 3.2 Gen 2x2 (20 Gbit/s) 1 Connectors (internal) SATA 4 Ports (optional) USB 3.2 Gen 1 (5 Gbit/s) 2 SATA controller Intel® B760 Directly usable RAID levels 0, 1, 10, 5 USB controller Intel® B760 Onboard graphics The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip. Sound Realtek ALC897 Codec LAN Realtek 2.5Gbps LAN Further information 2 M.2 slots: 1x with support for PCIe 4.0 x4, 1x with support for SATA and PCIe 4.0 x4 | the PCIe 4.0 x16 slot is connected with 4 lanes Accessories available: SATA cable, M.2 mounting material, cable sticker, WLAN antenna, instructions Dimensions Width: 243.84mm x Height: 243.84mm
Title - MSI B760M Ptoject Zero Intel B760 LGA 1700 micro ATX
URL - https://www.msi.com/Motherboard/B760M-PROJECT-ZERO/Overview
Warranty - 36
Warranty - 36 month(s)
WarrantyInfo -
Weight - 1,84
Weight & dimensions - Depth - 243.8 mm
Weight & dimensions - Width - 243.8 mm
