ID: 1036277
Product code: B760MPGLIGHTNINGWIFI
In stock 6 units
Warranty: 2 years

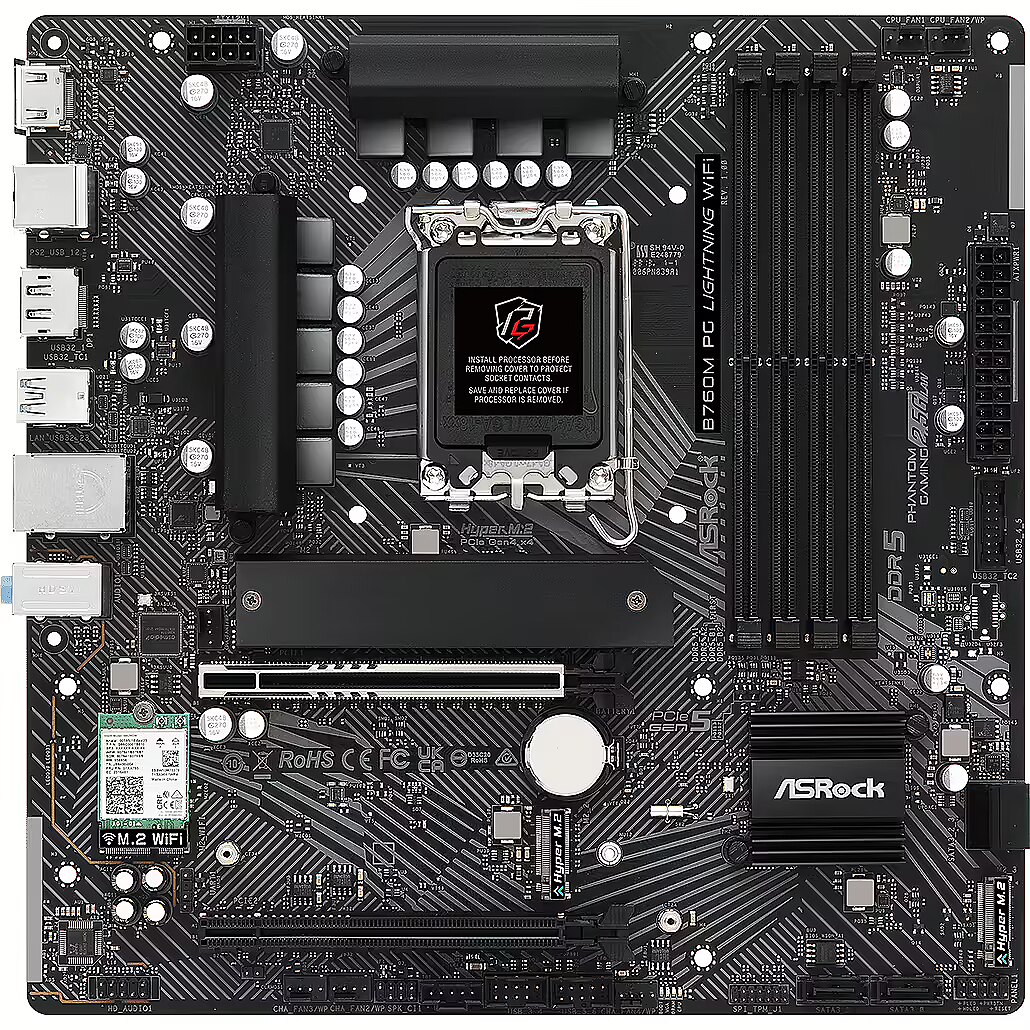

Asrock B760M PG Lightning WiFi
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: on Thursday, 14.11.2024
Main product parameters All parameters
- Series: ASRock Phantom Gaming
- CPU Socket: LGA 1700
- Chipset: Intel B760
- Form factor: Micro ATX
- Type: DDR5
- RAM Slots: 4
- Built-in Wi-Fi: Ir
Basic information
Series
: ASRock Phantom Gaming
CPU Socket
LGA 1700
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel B760
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
Micro ATX
The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR5
RAM Slots
4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR5 4800 (OC 7200)
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 0
DVI
: 0
HDMI
: 1
DisplayPort
: 1
Integrated sound card
: Realtek ALC897
Wireless connections
Built-in Bluetooth
: Ir
Built-in Wi-Fi
: Ir
External ports
External USB Type-C
: 1
External USB 2.0
: 2
External USB 3.0 (USB 3.2 Gen1)
: 4
External USB 3.1 (USB 3.2 Gen2)
: 0
Internal ports
Internal A-RGB 5V (3-pin)
: 0
Internal RGB 12V (4-pin)
: 0
Internal USB 2.0
: 2
Internal USB 3.0
: 1
Internal USB Type-C
: 0
M.2 Port
: 3
SATA3 ports
: 4
More detailed specification
Audio port Input/Output connectors - 3
BIOS - BIOS type - UEFI AMI
Bluetooth Interface - Yes
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel B760 Express
CnCode CnCode - 84733020
code - 90-MXBMT0-A0UAYZ
Code - B760M PG LIGHTNING WIFI
Description - - Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) - 7+1+1 Power Phase, Dr.MOS for VCore+GT - Supports DDR5 7200MHz (OC) - 1 PCIe 5.0 x16, 1 PCIe 3.0 x16 - Graphics Output Options: HDMI, DisplayPort - Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio - 4 SATA3, 3 Hyper M.2 (PCIe Gen4x4) - 1 USB 3.2 Gen1 Type-C (Rear), 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front), 6 USB 2.0 (2 Rear, 4 Front) - Dragon 2.5G LAN, 802.11ax WiFi 6E + Bluetooth 5.3 - Supports ASRock Auto Driver Installer
dimensionalWeight - 989
DisplayPort Input/Output connectors - 1
EAN - 4710483943522
ean - 4710483943522
Eans - 4710483943379
Eans - 4710483943522
EAN_code - 4710483943522
Expansion slots - Mini PCI Express slots - 1
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Cooling type - Passive
Features - Motherboard chipset - Intel B760
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Form Factor - Micro-ATX
Frequency speed - 7200 MHz
Full Description Line - Intel B760 Express|LGA1700|Micro-ATX|DDR5|7200 MHz|Memory slots 4|1xPCI-Express 3.0 16x|1xPCI-Express 5.0 16x|3xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|3xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC897|RAID SATA 0, 1, 5, 10|TPM Header
Gross weight - 2.30 kg
HDMI Input/Output connectors - 1
Included Accessories - - 1 x User Manual
- 1 x I/O Shield
- 2 x SATA Data Cables
- 2 x SMA WiFi Antenna Cables
- 2 x ASRock WiFi 2.4/5/6 GHz Antennas
- 1 x Plastic Cover for Wi-Fi Module
- 3 x Screws for M.2 Sockets
- 1 x Standoff for M.2 Socket
Integrated audio - Realtek ALC897
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Audio connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of EATX power connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Thunderbolt headers - 1
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
M.2 Expansion slots - 3
Manufacturer - Asrock
Manufacturer_code - 90-MXBMT0-A0UAYZ
Memory - Maximum internal memory - 192 GB
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speeds - 3600 MHz
Memory - Supported memory clock speeds - 4000
Memory - Supported memory clock speeds - 4400
Memory - Supported memory clock speeds - 4800
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR5 DIMM
Memory slots - 4
Memory type - DDR5
Model - B760M PG Lightning WiFi
Name - ASRock B760M PG Lightning
Name - ASRock B760M PG Lightning WiFi
name - ASRock B760M PG Lightning WiFi, Intel B760 Mainboard - Sockel 1700, DDR5
Name - ASRock B760M PG LIGHTNING WIFI - Socket 1700 - motherboard
Name - ASRock | B760M PG LIGHTNING WIFI | Processor family Intel | Processor socket LGA1700 | DDR5 DIMM | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
Network - Antenna type - 2x2
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8125-BG
Network - MU-MIMO - Yes
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - 802.11n
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 70.00 mm
Package features > Gross height (mm) - 295.00 mm
Package features > Gross width (mm) - 360.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 116 pc(s)
Package features > Paper/Pasteboard - 450.00 g
Package features > Plastic (No PET) - 50.00 g
Package features > Tare weight (kg) - 0.50 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
PCI-Express 3.0 16x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Producer - ASRock
ProducerCode - B760M PG LIGHTNING
producerCode - B760M PG Lightning WiFi
ProducerCode - B760M PG LIGHTNING WIFI
Producer product name - B760M PG LIGHTNING WIFI
productName - ASRock B760M PG Lightning WIFI Intel B760 LGA 1700 micro ATX
productSize - Normal
PS/2 Input/Output connectors - 1
RAID - SATA 0, 1, 5, 10

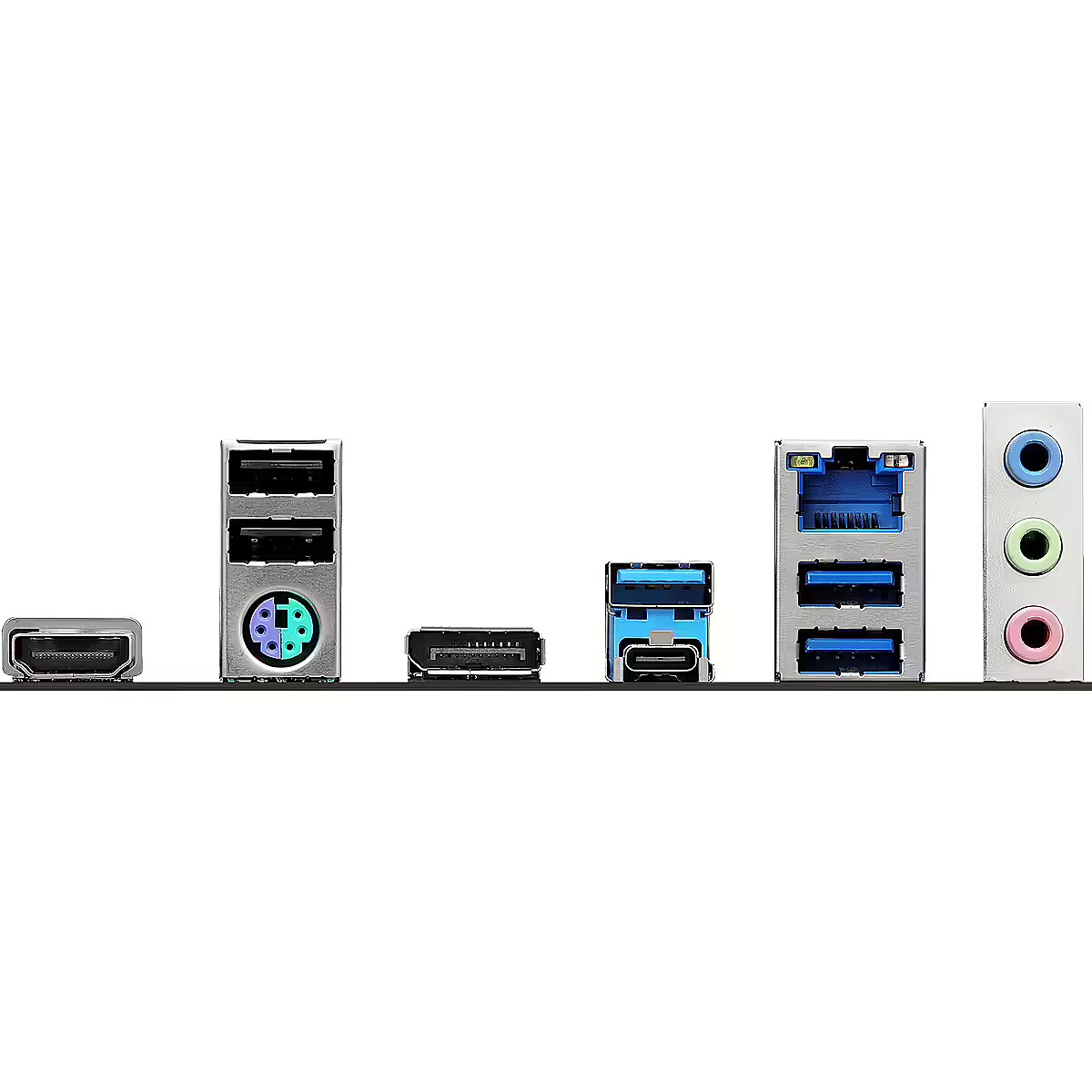

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 57.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 29.2 cm
Shipping box quantity - 10
Shipping Box Weight Shipping/Package Box Dimensions - 12.1 kg
Shipping Box Width Shipping/Package Box Dimensions - 32.5 cm
ShortDescription - Socket 1700 | Chipset Intel B760 | DDR5 |
sizeX - 57
sizeY - 310
sizeZ - 280
Socket - LGA1700
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical details > Net weight - 1.80 kg
Technical details > Producer - ASRock
TPM - Header
Unit Box Height - 0.062
Unit Box Length - 0.28
Unit Box Width - 0.262
Unit Brutto Volume - 0.005457 cubm
Unit Gross Weight - 1.21 kg
Unit Net Weight - 1 kg
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 3
USB 3.2 Interface - Yes
Vendor Homepage - pg.asrock.com/mb/Intel/B760M%20PG%20Lightning%20WiFi/index.asp
Warranty - 24
Warranty - 24 month(s)
Warranty - 36 months
warrantyLength - 36
warrantyType - G
Weight - 1,08
weight - 1150
WiFi Interface - Yes
BIOS - BIOS type - UEFI AMI
Bluetooth Interface - Yes
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel B760 Express
CnCode CnCode - 84733020
code - 90-MXBMT0-A0UAYZ
Code - B760M PG LIGHTNING WIFI
Description - - Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) - 7+1+1 Power Phase, Dr.MOS for VCore+GT - Supports DDR5 7200MHz (OC) - 1 PCIe 5.0 x16, 1 PCIe 3.0 x16 - Graphics Output Options: HDMI, DisplayPort - Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio - 4 SATA3, 3 Hyper M.2 (PCIe Gen4x4) - 1 USB 3.2 Gen1 Type-C (Rear), 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front), 6 USB 2.0 (2 Rear, 4 Front) - Dragon 2.5G LAN, 802.11ax WiFi 6E + Bluetooth 5.3 - Supports ASRock Auto Driver Installer
dimensionalWeight - 989
DisplayPort Input/Output connectors - 1
EAN - 4710483943522
ean - 4710483943522
Eans - 4710483943379
Eans - 4710483943522
EAN_code - 4710483943522
Expansion slots - Mini PCI Express slots - 1
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Cooling type - Passive
Features - Motherboard chipset - Intel B760
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Form Factor - Micro-ATX
Frequency speed - 7200 MHz
Full Description Line - Intel B760 Express|LGA1700|Micro-ATX|DDR5|7200 MHz|Memory slots 4|1xPCI-Express 3.0 16x|1xPCI-Express 5.0 16x|3xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|3xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC897|RAID SATA 0, 1, 5, 10|TPM Header
Gross weight - 2.30 kg
HDMI Input/Output connectors - 1
Included Accessories - - 1 x User Manual
- 1 x I/O Shield
- 2 x SATA Data Cables
- 2 x SMA WiFi Antenna Cables
- 2 x ASRock WiFi 2.4/5/6 GHz Antennas
- 1 x Plastic Cover for Wi-Fi Module
- 3 x Screws for M.2 Sockets
- 1 x Standoff for M.2 Socket
Integrated audio - Realtek ALC897
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Audio connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of EATX power connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Thunderbolt headers - 1
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
M.2 Expansion slots - 3
Manufacturer - Asrock
Manufacturer_code - 90-MXBMT0-A0UAYZ
Memory - Maximum internal memory - 192 GB
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speeds - 3600 MHz
Memory - Supported memory clock speeds - 4000
Memory - Supported memory clock speeds - 4400
Memory - Supported memory clock speeds - 4800
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR5 DIMM
Memory slots - 4
Memory type - DDR5
Model - B760M PG Lightning WiFi
Name - ASRock B760M PG Lightning
Name - ASRock B760M PG Lightning WiFi
name - ASRock B760M PG Lightning WiFi, Intel B760 Mainboard - Sockel 1700, DDR5
Name - ASRock B760M PG LIGHTNING WIFI - Socket 1700 - motherboard
Name - ASRock | B760M PG LIGHTNING WIFI | Processor family Intel | Processor socket LGA1700 | DDR5 DIMM | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
Network - Antenna type - 2x2
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8125-BG
Network - MU-MIMO - Yes
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - 802.11n
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 70.00 mm
Package features > Gross height (mm) - 295.00 mm
Package features > Gross width (mm) - 360.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 116 pc(s)
Package features > Paper/Pasteboard - 450.00 g
Package features > Plastic (No PET) - 50.00 g
Package features > Tare weight (kg) - 0.50 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
PCI-Express 3.0 16x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Producer - ASRock
ProducerCode - B760M PG LIGHTNING
producerCode - B760M PG Lightning WiFi
ProducerCode - B760M PG LIGHTNING WIFI
Producer product name - B760M PG LIGHTNING WIFI
productName - ASRock B760M PG Lightning WIFI Intel B760 LGA 1700 micro ATX
productSize - Normal
PS/2 Input/Output connectors - 1
RAID - SATA 0, 1, 5, 10
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 57.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 29.2 cm
Shipping box quantity - 10
Shipping Box Weight Shipping/Package Box Dimensions - 12.1 kg
Shipping Box Width Shipping/Package Box Dimensions - 32.5 cm
ShortDescription - Socket 1700 | Chipset Intel B760 | DDR5 |
sizeX - 57
sizeY - 310
sizeZ - 280
Socket - LGA1700
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical details > Net weight - 1.80 kg
Technical details > Producer - ASRock
TPM - Header
Unit Box Height - 0.062
Unit Box Length - 0.28
Unit Box Width - 0.262
Unit Brutto Volume - 0.005457 cubm
Unit Gross Weight - 1.21 kg
Unit Net Weight - 1 kg
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 3
USB 3.2 Interface - Yes
Vendor Homepage - pg.asrock.com/mb/Intel/B760M%20PG%20Lightning%20WiFi/index.asp
Warranty - 24
Warranty - 24 month(s)
Warranty - 36 months
warrantyLength - 36
warrantyType - G
Weight - 1,08
weight - 1150
WiFi Interface - Yes
