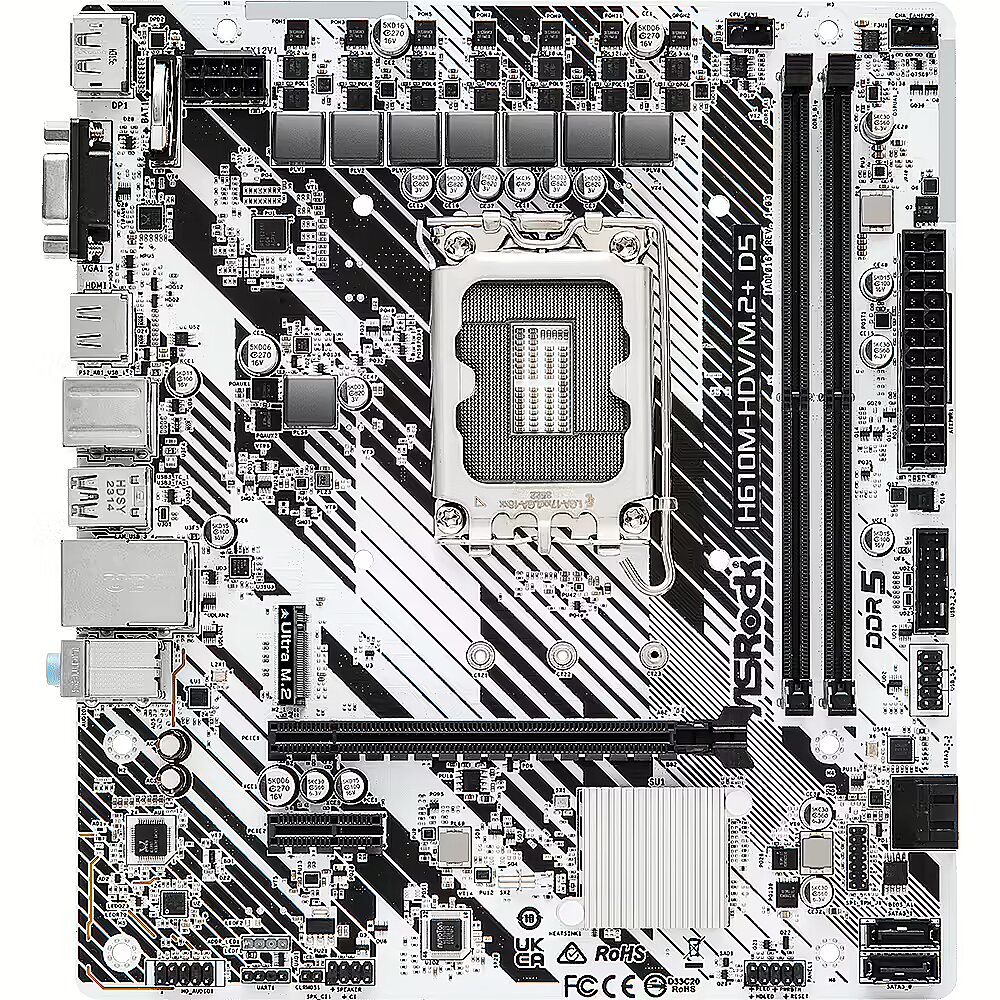

Asrock H610M-HDV/M.2+ D5

Name: Asrock H610M-HDV/M.2+ D5
Brand: Asrock
SKU: 1026826
Price: 82.12 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 1026826 Product code: H610M-HDV/M.2+ D5

In stock 17 units

Warranty: 2 years

Compare

Delivery options

Delivery to Smartpost 6.99 €: on Wednesday, 05.02.2025
Courier delivery 11.99 €: on Wednesday, 05.02.2025

Main product parameters All parameters

Series: Nav
CPU Socket: LGA 1700
Chipset: Intel H610
Form factor: Micro ATX
Type: DDR5
RAM Slots: 2
Built-in Wi-Fi: Nav

Basic information

Series : Nav

CPU Socket LGA 1700

The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.

Chipset Intel H610

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.

Form factor Micro ATX

The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Random-access memory (RAM)

Type : DDR5

RAM Slots 2

The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.

Memory support DDR5 5600

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card

Video card port PCI-EXPRESS

VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.

Integrated graphics Only with iGPU-ready CPU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment

PCI ports 0

PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.

D-Sub : 1

DVI : 0

HDMI : 1

DisplayPort : 1

Integrated sound card : Realtek ALC897

Wireless connections

Built-in Bluetooth : Nav

Built-in Wi-Fi : Nav

External ports

External USB Type-C : 1

External USB 2.0 : 4

External USB 3.0 (USB 3.2 Gen1) : 2

External USB 3.1 (USB 3.2 Gen2) : 0

Internal ports

Internal A-RGB 5V (3-pin) : 1

Internal RGB 12V (4-pin) : 0

Internal USB 2.0 : 1

Internal USB 3.0 : 1

Internal USB Type-C : 0

M.2 Port : 1

SATA3 ports : 4

More detailed specification

Additional information in manufacturers website Asrock H610M-HDV/M.2+ D5

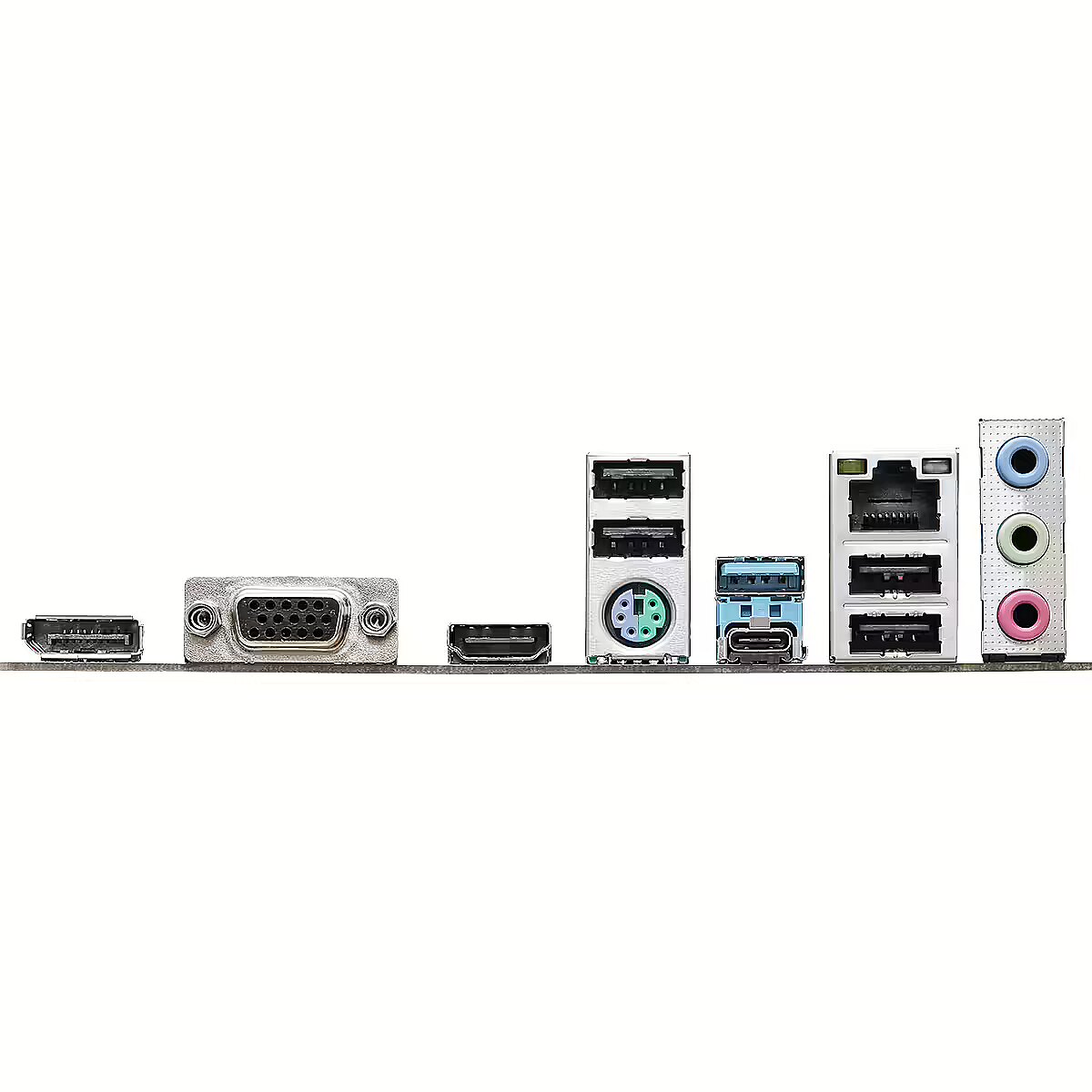

15pin D-sub Input/Output connectors - 1
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBI
Chipset - Intel H610
Code - H610M-HDV/M.2+ D5
Description - Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) 6+1+1 Power Phase 2 x DDR5 DIMMs Supports Dual Channel, up to 5600* 1 PCIe 4.0 x16, 1 PCIe 3.0 x1 Graphics Output Options: HDMI, DisplayPort, D-Sub Realtek ALC897 7.1 CH HD Audio Codec 4 SATA3, 1 Ultra M.2 (PCIe Gen3x4) 1 USB 3.2 Gen1 Type-C (Rear), 3 USB 3.2 Gen1 Type-A (1 Rear, 2 Front), 6 USB 2.0 (4 Rear, 2 Front) Realtek Gigabit LAN
DisplayPort Input/Output connectors - 1
EAN - 4710483943478
Eans - 4710483943478
Form Factor - Micro-ATX
Frequency speed - 5100/5000/5500/5600/5133/5400/4866/4933/5066/5333/5200/5300/4800 MHz
Full Description Line - Intel H610|LGA1700|Micro-ATX|DDR5|5600/5500/5400/5333/5300/5200/5133/5100/5066/5000/4933/4866/4800 MHz|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub|1xHDMI|1xDisplayPort|1xAudio-In|1xAudio-Out|1xMicrophone|4xUSB 2.0|1xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|SATA|USB 2.0|USB 3.2|SATA 3.0|Video Depending on CPU|LAN Gigabit|Audio Realtek ALC897|TPM Header
Gross weight - 2.30 kg
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC897
Integrated LAN - Gigabit
Integrated video - Depending on CPU
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA3, M.2
Link - https://www.asrock.com/mb/Intel/H610M-HDVM.2+%20D5/index.asp
M.2 Expansion slots - 1
Memory > Supported memory types - DDR5 DIMM
Memory slots - 2
Memory type - DDR5
Microphone Input/Output connectors - 1
Model - H610M-HDV/M.2+ D5
Name - ASRock H610M-HDV/M.2+ D5
Name - ASRock | H610M-HDV/M.2+ D5 | Processor family Intel | Processor socket LGA1700 | DDR5 DIMM | Supported hard disk drive interfaces SATA3, M.2 | Number of SATA connectors 4
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 70.00 mm
Package features > Gross height (mm) - 295.00 mm
Package features > Gross width (mm) - 360.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 116 pc(s)
Package features > Paper/Pasteboard - 450.00 g
Package features > Plastic (No PET) - 50.00 g
Package features > Tare weight (kg) - 0.50 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Producer - ASRock
ProducerCode - H610M-HDV/M.2+D5
Producer product name - H610M-HDV/M.2+ D5
PS/2 Input/Output connectors - 1
RJ45 Input/Output connectors - 1
SATA 3.0 Interface - Yes
SATA Interface - Yes
ShortDescription - Socket 1700 | Chipset Intel H610 | DDR5 |
Socket - LGA1700
Technical details > Net weight - 1.80 kg
Technical details > Producer - ASRock
TPM - Header
Unit Brutto Volume - 0.004511 cubm
Unit Gross Weight - 0.758 kg
Unit Net Weight - 0.6 kg
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 1
USB 3.2 Interface - Yes
Vendor Homepage - www.asrock.com/mb/Intel/H610M-HDVM.2+%20D5/index.asp
Warranty - 24
Warranty - 24 month(s)
Warranty - 36 months
