ID: 1012524
Product code: 90MB1G00-M0EAY0
In stock 1 units
Warranty: 3 years
Asus Prime H610M-A WIFI
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Main product parameters All parameters
- Series: ASUS Prime
- CPU Socket: LGA 1700
- Chipset: Intel H610
- Form factor: Micro ATX
- Type: DDR5
- RAM Slots: 2
- Built-in Wi-Fi: Nav
Basic information
Series
: ASUS Prime
CPU Socket
LGA 1700
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel H610
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
Micro ATX
The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR5
RAM Slots
2
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR5 5600
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 1
DVI
: 0
HDMI
: 1
DisplayPort
: 1
Integrated sound card
: Realtek Audio CODEC
Wireless connections
Built-in Bluetooth
: Ir
Built-in Wi-Fi
: Nav
External ports
External USB Type-C
: 0
External USB 2.0
: 4
External USB 3.0 (USB 3.2 Gen1)
: 0
External USB 3.1 (USB 3.2 Gen2)
: 1
Internal ports
Internal A-RGB 5V (3-pin)
: 3
Internal RGB 12V (4-pin)
: 2
Internal USB 2.0
: 2
Internal USB 3.0
: 1
Internal USB Type-C
: 1
M.2 Port
: 2
SATA3 ports
: 4
More detailed specification
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
Brand - ASUS
BrandPartCode - 90MB1G00-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
code - 90MB1G00-M0EAY0
Code - 90MB1G00-M0EAY0
EAN - 4711387301777
ean - 4711387301777
EAN_code - 4711387301777
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel H610
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Graphics - Parallel processing technology support - Not supported
GTIN - 4711387301777
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Audio connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - S/PDIF out connector - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA-600, 1 x M.2
LongDesc - ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th & 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.FLEXIBILITYComprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.All-Around Energy EfficiencyThe Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.Flexible cooling controlsPrime 600 Series motherboards offer comprehensive control over system fans, via the included Fan Xpert 2+ software. Auto-Tuning mode intelligently configures all parameters with a single click.Precise Digital Power ControlThe Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.* Specifications vary by models.UEFI BIOSThe renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.Advanced Tuning for Serious TweakersAn intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.Quick and Simple SetupEZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.Intuitive Graphical Fan ControlFine-tune individual fan settings simply by dragging a curve with the mouse.EZ XMPImprove DRAM performance with one click.Aura On/Off Mode (Stealth)Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.COOLINGPrime H610 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.HeatsinksVRM Heatsink and Thermal PadVRM heatsink and thermal pad improve heat transfer from the MOSFETs and chokes for better cooling performance.Cooler by DesignPrime H610 series feature comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.PERFORMANCEPrime H610 series are built to handle the additional cores and increased bandwidth of 12th Generation Intel® processors. ASUS H610 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.StorageDual M.2 slots (up to 32 Gbps)Prime H610M-A WIFI D4 offers two M.2 slots that support data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives.* Actual transmission speeds will be lower than the theoretical maximum speed.ConnectivityPCIe® 4.0Prime H610 motherboards are designed specifically for 12th Generation Intel® Core™ CPUs and offer PCIe® 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.USB 3.2 Gen 2 portsNumerous USB ports support high-end rigs loaded with peripherals, including rear-panel USB Type-A ports with fast USB 3.2 Gen 2 for transmission speeds of up to 10 Gbps.Wi-Fi 5PRIME H610M-A WIFI D4 has 802.11ac Wi-Fi with 1x1 2.4/5GHz antennas for up to 433.3Mbps* transfer speeds to ensure that every connected user experiences the best wireless and online speeds!*Actual speed varies, and depends on networking conditions.Intel® 1 Gb EthernetIntel® Ethernet Connection I219-V reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfer.PersonalizationAura SyncOutshine the CompetitionA well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware.Addressable Gen 2 HeadersThree addressable Gen 2 headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.Armoury CrateArmoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate allows you to easily customize RGB lighting and effects for every compatible device in your arsenal. The software also provides control of settings for an ever-growing number of ASUS products, including keyboard and mouse preferences. Armoury Crate even features dedicated product registration and news to help you stay in touch with the ASUS community.DIY FriendlyQ-LED CoreThe Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.Fortified PCIe slot prevents damageSafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, SafeSlot Core provides 1.6x stronger retention and 1.3x greater shearing resistance than standard expansion slots.Overvoltage ProtectionWorld-class circuit-protecting power designAn exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies.DRAM Overcurrent ProtectionShort-circuit damage preventionOnboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.Stainless-Steel Back I/O3X corrosion-resistance for greater durabilityCorrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.LANGuardPumped-up throughput 2.5X higher surge toleranceASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology and premium anti-EMI surface-mounted capacitors to improve throughput and ensure a more reliable connection.
LongProductName - Intel H610 (LGA 1700) mATX motherboard with DDR5,PCIe 4.0, dual M.2 slots, Intel 1Gb Ethernet, WIFI 5, DisplayPort, HDMI, VGA, USB 3.2 Gen 2 ports, Addressable Gen 2 headers, and Aura Sync
LongSummaryDescription - ASUS PRIME H610M-A WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Ethernet interface type: Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Manufacturer - Asus
Manufacturer_code - 90MB1G00-M0EAY0
Memory - Maximum internal memory - 96 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 2
Memory - Supported memory clock speed (max) - 5600 MHz
Memory - Supported memory clock speeds - 4800,5000,5200,5400,5600 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - 2 DIMM slots - DDR5, non-ECC, unbuffered
name - ASUS Prime H610M-A WIFI, Intel H610 Mainboard - Sockel 1700, DDR5
Name - ASUS PRIME H610M-A WIFI - Socket 1700 - motherboard
Name - ASUS PRIME H610M-A WIFI | Asus | Processor family Intel H610 | Processor socket 1 x LGA1700 Socket | 2 DIMM slots - DDR5, non-ECC, unbuffered | Supported hard disk drive interfaces SATA-600, 1 x M.2 | Number of SATA connectors 4
Network - Bluetooth - Yes
Network - Bluetooth version - 5.0
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 5 (802.11ac)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 305.00 mm
Package features > Gross height (mm) - 100.00 mm
Package features > Gross width (mm) - 234.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 121 pc(s)
Package features > Paper/Pasteboard - 80.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.10 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - SATA
Packaging data - Package depth - 263 mm
Packaging data - Package height - 51.5 mm
Packaging data - Package weight - 1.07 kg
Packaging data - Package width - 270 mm
Processor - Compatible processor series - Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Processor family - Intel H610
Processor > Processor socket - 1 x LGA1700 Socket
ProductName - PRIME H610M-A WIFI

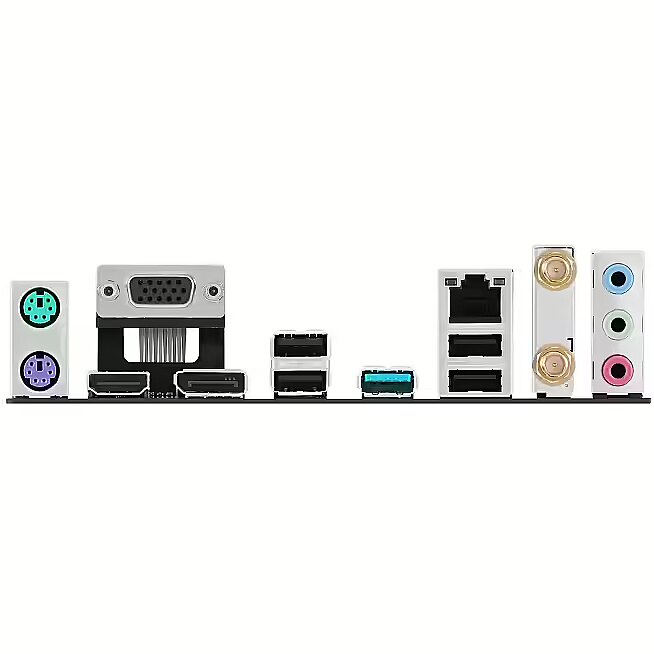

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 2
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 1
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
Rear panel I/O ports - WiFi-AP antenna jack - 1
ShortSummaryDescription - ASUS PRIME H610M-A WIFI, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™..., LGA 1700, DDR5-SDRAM, 96 GB
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 6
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical details > Gross weight - 0.88 kg
Technical details > Net weight - 0.78 kg
Technical details > Producer - Asus
Title - ASUS PRIME H610M-A WIFI Intel H610 LGA 1700 micro ATX
URL - https://www.asus.com/motherboards-components/motherboards/prime/prime-h610m-a-wifi/
Warranty - 36
Warranty - 36 month(s)
WarrantyInfo -
Weight - 0,99
Weight & dimensions - Depth - 216 mm
Weight & dimensions - Width - 244 mm
