ID: 1004778
Product code: 7E06-026R
In stock 7 units
Warranty: 3 years

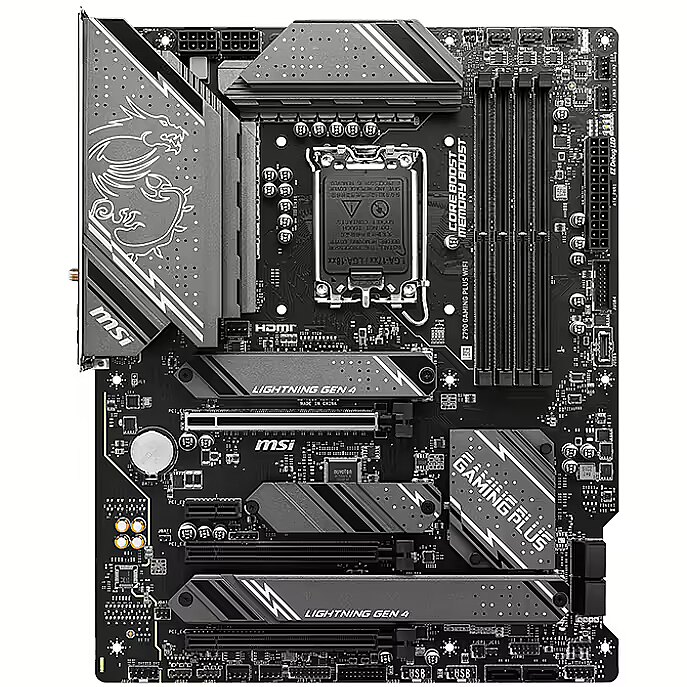

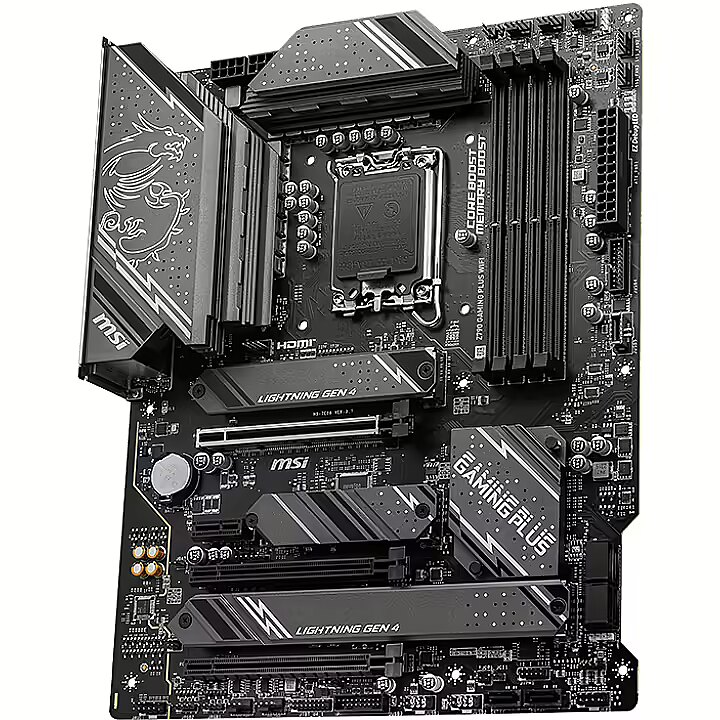

MSI Z790 GAMING PLUS WIFI
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: 29.11.2024
Main product parameters All parameters
- Series: MSI Gaming
- CPU Socket: LGA 1700
- Chipset: Intel Z790
- Form factor: ATX
- Type: DDR5
- RAM Slots: 4
- Built-in Wi-Fi: Ir
Basic information
Series
: MSI Gaming
CPU Socket
LGA 1700
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel Z790
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
ATX
The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR5
RAM Slots
4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR5 5600 (OC 7200)
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 0
DVI
: 0
HDMI
: 1
DisplayPort
: 1
Integrated sound card
: Realtek ALC897
Wireless connections
Built-in Bluetooth
: Ir
Built-in Wi-Fi
: Ir
External ports
External USB Type-C
: 1
External USB 2.0
: 4
External USB 3.0 (USB 3.2 Gen1)
: 2
External USB 3.1 (USB 3.2 Gen2)
: 1
Internal ports
Internal A-RGB 5V (3-pin)
: 2
Internal RGB 12V (4-pin)
: 2
Internal USB 2.0
: 2
Internal USB 3.0
: 2
Internal USB Type-C
: 1
M.2 Port
: 4
SATA3 ports
: 6
More detailed specification
Accessories included -
Audio port Input/Output connectors - 6
BIOS -
Bluetooth Interface - Yes
Brand - MSI
BrandPartCode - Z790 GAMING PLUS WIFI
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel Z790
Chipset manufacturer - Intel
Chipset type - INTEL Z790
code - 7E06-026R
Code - Z790 GAMING PLUS WIFI
COM connector / port - No
CPU socket - LGA1700
Description - - Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket - Supports DDR5 Memory, up to 7200+(OC) MHz - Enhanced Power Design: 14+1+1 Duet Rail Power System with DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost - Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience - Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2x2 20G - High Quality PCB: 6-layer PCB made by 2oz thickened copper - Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Description - Z790 GAMING PLUS WIFI Supports Intel Core 14./13./12. generation, Intel Pentium Gold and Celeron processors for LGA 1700 socket Supports DDR5 memory, up to 7200+(OC) MHz Improved power supply: Duet Rail 14+1+1 power system with DrMOS, two 8-pin CPU power connectors, core boost, memory boost Premium thermal solution: extended heatsink, 7 W/mK MOSFET thermal pads, additional choke thermal pads ensure high system performance and uninterrupted gaming experience Instant gaming experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2 connector with M.2 Shield Frozr, USB 3.2 Gen 2x2 20G High-quality PCB: 6-layer PCB made from 2 ounce thick thick thickened copper Audio enhancement: Reward your ears with studio-quality sound for the most immersive gaming experience
Detailed data on disk/drive interfaces - 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
dimensionalWeight - 1323
dimension depth - 70 mm
dimension height - 270 mm
Dimensions - 243.84 x 304.8 mm
dimension weight - 1800 g
dimension width - 340 mm
DisplayPort Input/Output connectors - 1
EAN - 4711377134712
ean - 4711377134712
Eans - 4711377134712
EAN_code - 4711377134712
Expansion slots - 1 x PCIe 4.0 x 4
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 1 x PCIe x 1
Expansion slots - 2 x M.2
Expansion slots - 2 x PCIe 3.0 x 1
Expansion slots - 3 x PCIe x 16
Expansion slots - Number of M.2 (M) slots - 4
Expansion slots - PCI slots - 4

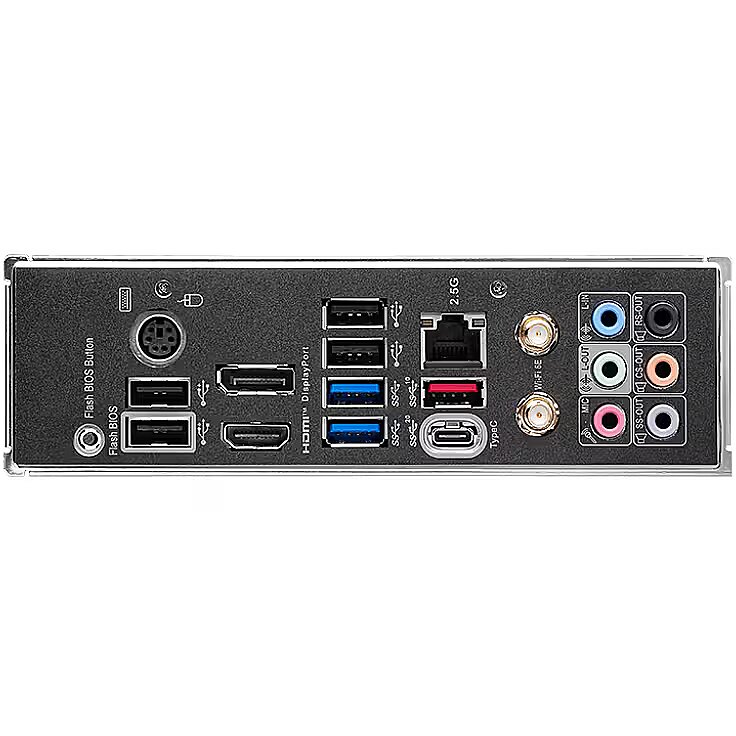

External connectors - 1 x Central Speaker / Subwoofer
External connectors - 1 x DisplayPort
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x Rear Speaker
External connectors - 1 x RJ-45
External connectors - 1 x Side Speaker
External connectors - 1 x USB 3.1
External connectors - 1 x USB 3.1 Type-C
External connectors - 2 x SMA
External connectors - 2 x USB 3.0
External connectors - 4 x USB 2.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel Z790
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Product colour - Black
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200 MHz
Full Description Line - Intel Z790|LGA1700|ATX|DDR5|7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|1xPCI-Express 1x|3xPCI-Express 16x|4xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|3xUSB 3.2|1xUSB-C|1xPS/2|6xAudio port|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC897|RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10|TPM Header
Graphics - 1x HDMI HDMI 2.1 HDR support, maximum resolution 4K 60 Hz* 1x DisplayPort DP 1.4 support, maximum resolution 4K 60 Hz* *Only available on processors with integrated graphics. Graphics specifications may vary depending on the installed processor.
Graphics - On-board graphics card - No
Graphics - Parallel processing technology support - Not supported
Gross weight - 1.64 kg
GTIN - 4711377134712
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC897
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 6
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 4
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 4
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 6
Link - https://www.msi.com/Motherboard/Z790-GAMING-PLUS-WIFI
LongDesc - Z790 GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want all.Extended HeatsinkExtended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.M.2 Shield FrozrStrengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance.Heavy Plated VRM HeatsinkThe VRM heatsink covers the upper MOS and helps dissipate the heat.7W/mK Thermal Pad & Additional Choke PadHigh-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.Chipset HeatsinkThe chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.LIGHTNING GEN 5 PCI-EDoubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.SMT PCIE 5.0 SLOTThe advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.REINFORCED,HEAVY SOLDERED CONNECTIONSSecure to the motherboard with extra solder points and support the weight of heavy graphics cards.
LongProductName - LGA 1700, Intel Z790,4x DDR5, 192GB, 6x SATA 6G, 1x HDMI, 4x M.2, Wi-Fi 6E, Bluetooth 5.3
LongSummaryDescription - MSI Z790 GAMING PLUS WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, ECC сompatibility: Non-ECC. Supported storage drive interfaces: M.2, PCI Express, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
LPT connector / port - No
M.2 Expansion slots - 4
Manufacturer - MSI
Manufacturer_code - 7E06-026R
Max. number of SATA devices - 6
Max memory size - 192 GB
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 192 GB
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 7200 MHz
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 5000
Memory - Supported memory clock speeds - 5200
Memory - Supported memory clock speeds - 5400
Memory - Supported memory clock speeds - 5600
Memory - Supported memory clock speeds - 5800
Memory - Supported memory clock speeds - 6000
Memory - Supported memory clock speeds - 6200
Memory - Supported memory clock speeds - 6400
Memory - Supported memory clock speeds - 6600
Memory - Supported memory clock speeds - 6800
Memory - Supported memory clock speeds - 7000
Memory - Supported memory clock speeds - 7200
Memory - Supported memory clock speeds - 7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory > Supported memory types - DDR5
Memory bus frequency - 4800 MHz
Memory bus frequency - 5000 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5400 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - Z790 GAMING PLUS WIFI
Model - Z790 GAMING PLUS WIFI
MPN - 7E06-026R
Name - 1700 MSI Z790 GAMING PLUS ATX
Name - MSI Z790 GAMING PLUS WIFI
name - MSI Z790 Gaming Plus WiFi, Intel Z790 Mainboard - Sockel 1700, DDR5
Name - MSI Z790 GAMING PLUS WIFI - Socket 1700 - motherboard
Name - MSI | Z790 GAMING PLUS WIFI | Processor family Intel | Processor socket LGA1700 | DDR5 | Number of SATA connectors 6
name - Z790 GAMING PLUS WIFI s1700 4DDR5 HDMI ATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 6 (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax)
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - Intel 2.5Gbps LAN Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every countrys regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 3
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin Chassis fan
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.1
Onboard connectors - 2 x Addressable LED
Onboard connectors - 2 x RGB LED Strip
Onboard connectors - 2 x System panel header
Onboard connectors - 4 x USB 2.0/1.1
Onboard connectors - 4 x USB 3.0
Onboard connectors - 6 x 4pin wentylator obudowy
Other information -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 269.00 mm
Package features > Gross height (mm) - 346.00 mm
Package features > Gross width (mm) - 65.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 300 pc(s)
Package features > Paper/Pasteboard - 600.00 g
Package features > Plastic (No PET) - 75.00 g
Package features > Tare weight (kg) - 0.68 kg
Package features > TI weight (kg) - 0.05 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
Packaging content - Cables included - SATA
PCI-Express 1x Expansion slots - 1
PCI-Express 16x Expansion slots - 3
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Pentium® Gold
Processor - Compatible processor series - Intel® Pentium® Gold
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Processor family - Intel Celeron
Processor family - Intel Core
Processor family - Intel Pentium Gold
producer - MSI
Producer - MSI
producerCode - 7E06-026R
ProducerCode - Z790 GAMING PLUS WIFI
Producer product name - Z790 GAMING PLUS WIFI
productName - MSI Z790 GAMING PLUS WIFI motherboard Intel Z790 LGA 1700 ATX
ProductName - Z790 GAMING PLUS WIFI
productSize - Normal
PS/2 Input/Output connectors - 1
RAID - SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 34.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 7 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.78 kg
Shipping Box Width Shipping/Package Box Dimensions - 27 cm
ShortDescription - Socket 1700| Chipset Intel Z790 | DDR5 |
ShortSummaryDescription - MSI Z790 GAMING PLUS WIFI, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, LGA 1700, DDR5-SDRAM, 192 GB
sizeX - 270
sizeY - 350
sizeZ - 70
Socket - LGA1700
Software -
Sound card - Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Special functions -
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, PCI Express
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Net weight - 0.97 kg
Technical details > Producer - MSI
Title - MSI Z790 GAMING PLUS WIFI motherboard Intel Z790 LGA 1700 ATX
TPM - Header
Unit Box Height - 0.07
Unit Box Length - 0.345
Unit Box Width - 0.27
Unit Brutto Volume - 0.006521 cubm
Unit Gross Weight - 1.78 kg
Unit Net Weight - 1.6 kg
URL - https://www.msi.com/Motherboard/Z790-GAMING-PLUS-WIFI
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 3
USB 3.2 Interface - Yes
USB ports at back panel - 8
USB ports on motherboard - 9
Vendor Homepage - www.msi.com/Motherboard/Z790-GAMING-PLUS-WIFI
vendpn - Z790 GAMING PLUS WIFI
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 1,78
Weight - 1.772
weight - 1700
Weight & dimensions - Depth - 304.8 mm
Weight & dimensions - Width - 243.8 mm
WiFi Interface - Yes
Audio port Input/Output connectors - 6
BIOS -
Bluetooth Interface - Yes
Brand - MSI
BrandPartCode - Z790 GAMING PLUS WIFI
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel Z790
Chipset manufacturer - Intel
Chipset type - INTEL Z790
code - 7E06-026R
Code - Z790 GAMING PLUS WIFI
COM connector / port - No
CPU socket - LGA1700
Description - - Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket - Supports DDR5 Memory, up to 7200+(OC) MHz - Enhanced Power Design: 14+1+1 Duet Rail Power System with DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost - Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience - Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2x2 20G - High Quality PCB: 6-layer PCB made by 2oz thickened copper - Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Description - Z790 GAMING PLUS WIFI Supports Intel Core 14./13./12. generation, Intel Pentium Gold and Celeron processors for LGA 1700 socket Supports DDR5 memory, up to 7200+(OC) MHz Improved power supply: Duet Rail 14+1+1 power system with DrMOS, two 8-pin CPU power connectors, core boost, memory boost Premium thermal solution: extended heatsink, 7 W/mK MOSFET thermal pads, additional choke thermal pads ensure high system performance and uninterrupted gaming experience Instant gaming experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2 connector with M.2 Shield Frozr, USB 3.2 Gen 2x2 20G High-quality PCB: 6-layer PCB made from 2 ounce thick thick thickened copper Audio enhancement: Reward your ears with studio-quality sound for the most immersive gaming experience
Detailed data on disk/drive interfaces - 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
dimensionalWeight - 1323
dimension depth - 70 mm
dimension height - 270 mm
Dimensions - 243.84 x 304.8 mm
dimension weight - 1800 g
dimension width - 340 mm
DisplayPort Input/Output connectors - 1
EAN - 4711377134712
ean - 4711377134712
Eans - 4711377134712
EAN_code - 4711377134712
Expansion slots - 1 x PCIe 4.0 x 4
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 1 x PCIe x 1
Expansion slots - 2 x M.2
Expansion slots - 2 x PCIe 3.0 x 1
Expansion slots - 3 x PCIe x 16
Expansion slots - Number of M.2 (M) slots - 4
Expansion slots - PCI slots - 4
External connectors - 1 x Central Speaker / Subwoofer
External connectors - 1 x DisplayPort
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x Rear Speaker
External connectors - 1 x RJ-45
External connectors - 1 x Side Speaker
External connectors - 1 x USB 3.1
External connectors - 1 x USB 3.1 Type-C
External connectors - 2 x SMA
External connectors - 2 x USB 3.0
External connectors - 4 x USB 2.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel Z790
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Product colour - Black
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200 MHz
Full Description Line - Intel Z790|LGA1700|ATX|DDR5|7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|1xPCI-Express 1x|3xPCI-Express 16x|4xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|3xUSB 3.2|1xUSB-C|1xPS/2|6xAudio port|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC897|RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10|TPM Header
Graphics - 1x HDMI HDMI 2.1 HDR support, maximum resolution 4K 60 Hz* 1x DisplayPort DP 1.4 support, maximum resolution 4K 60 Hz* *Only available on processors with integrated graphics. Graphics specifications may vary depending on the installed processor.
Graphics - On-board graphics card - No
Graphics - Parallel processing technology support - Not supported
Gross weight - 1.64 kg
GTIN - 4711377134712
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC897
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 6
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 4
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 4
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 6
Link - https://www.msi.com/Motherboard/Z790-GAMING-PLUS-WIFI
LongDesc - Z790 GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want all.Extended HeatsinkExtended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.M.2 Shield FrozrStrengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance.Heavy Plated VRM HeatsinkThe VRM heatsink covers the upper MOS and helps dissipate the heat.7W/mK Thermal Pad & Additional Choke PadHigh-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.Chipset HeatsinkThe chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.LIGHTNING GEN 5 PCI-EDoubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.SMT PCIE 5.0 SLOTThe advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.REINFORCED,HEAVY SOLDERED CONNECTIONSSecure to the motherboard with extra solder points and support the weight of heavy graphics cards.
LongProductName - LGA 1700, Intel Z790,4x DDR5, 192GB, 6x SATA 6G, 1x HDMI, 4x M.2, Wi-Fi 6E, Bluetooth 5.3
LongSummaryDescription - MSI Z790 GAMING PLUS WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, ECC сompatibility: Non-ECC. Supported storage drive interfaces: M.2, PCI Express, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
LPT connector / port - No
M.2 Expansion slots - 4
Manufacturer - MSI
Manufacturer_code - 7E06-026R
Max. number of SATA devices - 6
Max memory size - 192 GB
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 192 GB
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 7200 MHz
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 5000
Memory - Supported memory clock speeds - 5200
Memory - Supported memory clock speeds - 5400
Memory - Supported memory clock speeds - 5600
Memory - Supported memory clock speeds - 5800
Memory - Supported memory clock speeds - 6000
Memory - Supported memory clock speeds - 6200
Memory - Supported memory clock speeds - 6400
Memory - Supported memory clock speeds - 6600
Memory - Supported memory clock speeds - 6800
Memory - Supported memory clock speeds - 7000
Memory - Supported memory clock speeds - 7200
Memory - Supported memory clock speeds - 7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory > Supported memory types - DDR5
Memory bus frequency - 4800 MHz
Memory bus frequency - 5000 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5400 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - Z790 GAMING PLUS WIFI
Model - Z790 GAMING PLUS WIFI
MPN - 7E06-026R
Name - 1700 MSI Z790 GAMING PLUS ATX
Name - MSI Z790 GAMING PLUS WIFI
name - MSI Z790 Gaming Plus WiFi, Intel Z790 Mainboard - Sockel 1700, DDR5
Name - MSI Z790 GAMING PLUS WIFI - Socket 1700 - motherboard
Name - MSI | Z790 GAMING PLUS WIFI | Processor family Intel | Processor socket LGA1700 | DDR5 | Number of SATA connectors 6
name - Z790 GAMING PLUS WIFI s1700 4DDR5 HDMI ATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 6 (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax)
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - Intel 2.5Gbps LAN Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every countrys regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 3
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin Chassis fan
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.1
Onboard connectors - 2 x Addressable LED
Onboard connectors - 2 x RGB LED Strip
Onboard connectors - 2 x System panel header
Onboard connectors - 4 x USB 2.0/1.1
Onboard connectors - 4 x USB 3.0
Onboard connectors - 6 x 4pin wentylator obudowy
Other information -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 269.00 mm
Package features > Gross height (mm) - 346.00 mm
Package features > Gross width (mm) - 65.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 300 pc(s)
Package features > Paper/Pasteboard - 600.00 g
Package features > Plastic (No PET) - 75.00 g
Package features > Tare weight (kg) - 0.68 kg
Package features > TI weight (kg) - 0.05 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
Packaging content - Cables included - SATA
PCI-Express 1x Expansion slots - 1
PCI-Express 16x Expansion slots - 3
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Pentium® Gold
Processor - Compatible processor series - Intel® Pentium® Gold
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Processor family - Intel Celeron
Processor family - Intel Core
Processor family - Intel Pentium Gold
producer - MSI
Producer - MSI
producerCode - 7E06-026R
ProducerCode - Z790 GAMING PLUS WIFI
Producer product name - Z790 GAMING PLUS WIFI
productName - MSI Z790 GAMING PLUS WIFI motherboard Intel Z790 LGA 1700 ATX
ProductName - Z790 GAMING PLUS WIFI
productSize - Normal
PS/2 Input/Output connectors - 1
RAID - SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 34.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 7 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.78 kg
Shipping Box Width Shipping/Package Box Dimensions - 27 cm
ShortDescription - Socket 1700| Chipset Intel Z790 | DDR5 |
ShortSummaryDescription - MSI Z790 GAMING PLUS WIFI, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, LGA 1700, DDR5-SDRAM, 192 GB
sizeX - 270
sizeY - 350
sizeZ - 70
Socket - LGA1700
Software -
Sound card - Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Special functions -
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, PCI Express
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Net weight - 0.97 kg
Technical details > Producer - MSI
Title - MSI Z790 GAMING PLUS WIFI motherboard Intel Z790 LGA 1700 ATX
TPM - Header
Unit Box Height - 0.07
Unit Box Length - 0.345
Unit Box Width - 0.27
Unit Brutto Volume - 0.006521 cubm
Unit Gross Weight - 1.78 kg
Unit Net Weight - 1.6 kg
URL - https://www.msi.com/Motherboard/Z790-GAMING-PLUS-WIFI
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 3
USB 3.2 Interface - Yes
USB ports at back panel - 8
USB ports on motherboard - 9
Vendor Homepage - www.msi.com/Motherboard/Z790-GAMING-PLUS-WIFI
vendpn - Z790 GAMING PLUS WIFI
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 1,78
Weight - 1.772
weight - 1700
Weight & dimensions - Depth - 304.8 mm
Weight & dimensions - Width - 243.8 mm
WiFi Interface - Yes
