ID: 993377
Product code: MPG B760I EDGE WIFI
In stock 4 units
Warranty: 3 years

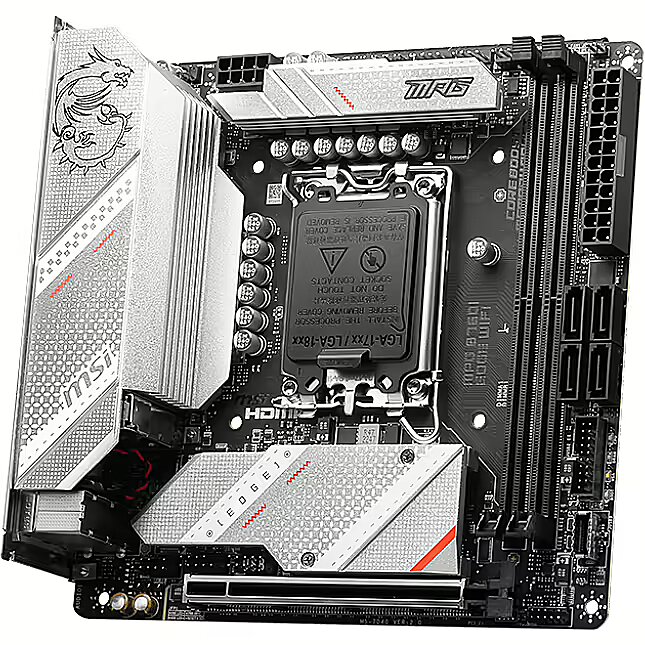

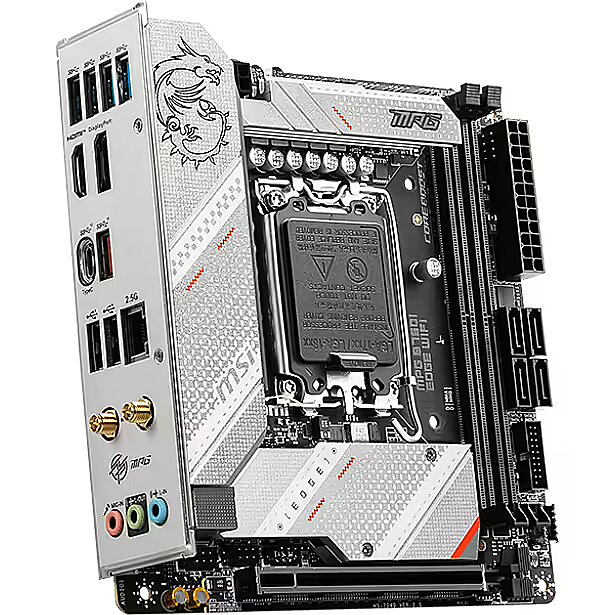

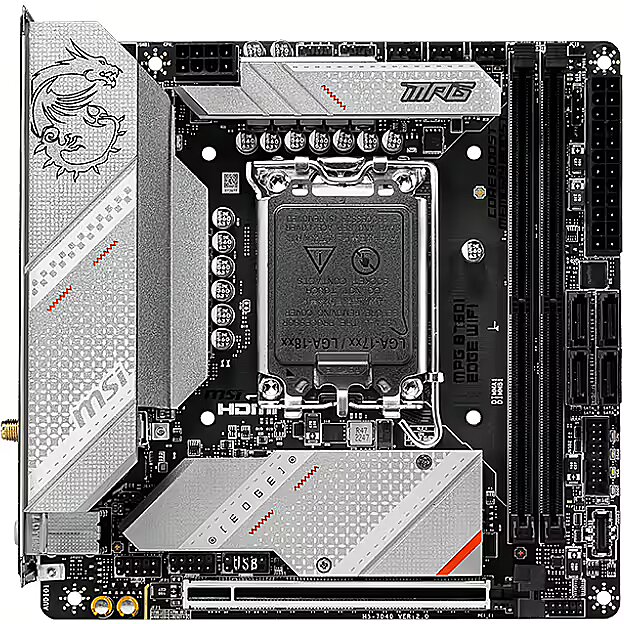

MSI MPG B760I EDGE WIFI
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: 19.11.2024
Main product parameters All parameters
- Series: MSI MPG
- CPU Socket: LGA 1700
- Chipset: Intel B760
- Form factor: Mini-ITX
- Type: DDR5
- RAM Slots: 2
- Built-in Wi-Fi: Ir
Basic information
Series
: MSI MPG
CPU Socket
LGA 1700
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel B760
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
Mini-ITX
The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR5
RAM Slots
2
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR5 5600 (OC 7200)
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 0
DVI
: 0
HDMI
: 2
DisplayPort
: 1
Integrated sound card
: Realtek ALC897
Wireless connections
Built-in Bluetooth
: Ir
Built-in Wi-Fi
: Ir
External ports
External USB Type-C
: 1
External USB 2.0
: 6
External USB 3.0 (USB 3.2 Gen1)
: 0
External USB 3.1 (USB 3.2 Gen2)
: 1
Internal ports
Internal A-RGB 5V (3-pin)
: 1
Internal RGB 12V (4-pin)
: 1
Internal USB 2.0
: 1
Internal USB 3.0
: 1
Internal USB Type-C
: 1
M.2 Port
: 2
SATA3 ports
: 4
More detailed specification
Audio port Input/Output connectors - 3
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - System Management BIOS (SMBIOS) version - 3.5
Bluetooth Interface - Yes
Brand - MSI
BrandPartCode - MPG B760I EDGE WIFI
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel B760 Express
code - 7D40-005R
Code - MPG B760I EDGE WIFI
Description - - Supports 13th /12th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1700 socket - Supports DDR5 Memory, up to 7200+(OC) MHz - Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2 - Enhanced Power Design: Direct 8+1+1 phases power, Core Boost, Memory Boost - Premium Thermal Solution: Enlarged heatsink, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience - 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection - AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience - High Quality PCB: 8-layer PCB made by server grade level material - Pre-installed I/O Shield: Better EMI protection and more convenience for installation
dimensionalWeight - 699
DisplayPort Input/Output connectors - 1
EAN - 4711377069632
ean - 4711377069632
Eans - 4711377069632
EAN_code - 4711377069632
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x1 (Gen 3.x) slots - 2
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel B760
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - mini ATX
Features - Power source type - ATX
Features - Product colour - Black
Features - Product colour - Black, Silver
Features - Product colour - Silver
Features - Windows operating systems supported - Windows 10
Features - Windows operating systems supported - Windows 10, Windows 11
Features - Windows operating systems supported - Windows 11
Form Factor - Mini-ITX
Frequency speed - 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200 MHz
Full Description Line - Intel B760 Express|LGA1700|Mini-ITX|DDR5|7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 2|1xPCI-Express 16x|2xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|5xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC897|RAID SATA 0, 1, 5, 10|TPM Header
Graphics - On-board graphics card - No
Gross weight - 1.64 kg
GTIN - 0824142315545
GTIN - 824142315545
GTIN - 4711377069632
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC897
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.msi.com/Motherboard/MPG-B760I-EDGE-WIFI/Overview
LongDesc - MPG B760I EDGE WIFI employs silver white color scheme to show off different personality and identity. Besides being stylish, it is also powerful.BE AHEAD, POP YOUR STYLEThe MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.Extended HeatsinkExtended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.Pump Fan SupportControl watercooling pump speeds for best flow and noise control.7W/mK Thermal PadHigh quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.M.2 Shield FrozrKeeps M.2 SSDs safe while preventing throttling, making them run faster.8-Layer Server Grade PCB8-layer PCB with 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.LIGHTNING GEN 5 PCI-EDoubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.SMT PCIE 5.0 SLOTThe advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.REINFORCED,HEAVY SOLDERED CONNECTIONSSecure to the motherboard with extra solder points and support the weight of heavy graphics cards.FAST AND FUTURE-READY STORAGEMSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
LongProductName - LGA 1700, Intel B760, 2x DDR4, Wi-Fi, Bluetooth, 1x HDMI, 1x DisplayPort, Mini-ITX
LongSummaryDescription - MSI MPG B760I EDGE WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: mini ATX, Motherboard chipset family: Intel
M.2 Expansion slots - 2
Manufacturer - MSI
Manufacturer_code - 7D40-005R
Memory - Maximum internal memory - 96 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 2
Memory - Supported memory clock speed (max) - 7200 MHz
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 5000
Memory - Supported memory clock speeds - 5200
Memory - Supported memory clock speeds - 5400
Memory - Supported memory clock speeds - 5600
Memory - Supported memory clock speeds - 5800
Memory - Supported memory clock speeds - 6000
Memory - Supported memory clock speeds - 6200
Memory - Supported memory clock speeds - 6400 MHz
Memory - Supported memory clock speeds - 6600
Memory - Supported memory clock speeds - 6800
Memory - Supported memory clock speeds - 7000
Memory - Supported memory clock speeds - 7200
Memory - Supported memory clock speeds - 7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400,5200, 5000, 4800 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory > Memory slots - 2
Memory > Supported memory types - DDR5 DIMM
Memory slots - 2
Memory type - DDR5
Model - MPG B760I EDGE WIFI
name - MSI B760I Edge WiFi, Intel B760 Mainboard - Sockel 1700, DDR5
Name - MSI MPG B760I EDGE WIFI
Name - MSI MPG B760I EDGE WIFI - Socket 1700 - motherboard
Name - MSI | MPG B760I EDGE WIFI | Processor family Intel | Processor socket LGA1700 | DDR5 DIMM | Memory slots 2 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4 | Chipset Intel B760 | Mini-ITX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 319.00 mm
Package features > Gross depth master carton - 590 mm
Package features > Gross height (mm) - 352.00 mm
Package features > Gross height master carton - 290 mm
Package features > Gross width (mm) - 86.00 mm
Package features > Gross width master carton - 545 mm
Package features > Net weight master carton - 14.54 kg
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 89 pc(s)
Package features > Paper/Pasteboard - 600.00 g
Package features > Plastic (No PET) - 70.00 g
Package features > Tare weight (kg) - 0.67 kg
Package features > Tare weight master carton - 1.585 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
PCI-Express 16x Expansion slots - 1
Performance > Chipset - Intel B760
Performance > Motherboard form factor - Mini-ITX
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Pentium® Gold
Processor - Compatible processor series - Intel® Pentium® Gold
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Compatible processor series - Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Producer - MSI
producerCode - 7D40-005R
ProducerCode - MPG B760I EDGE WIFI
Producer product name - MPG B760I EDGE WIFI
ProductName - MPG B760I EDGE WIFI
productName - MSI | MPG B760I EDGE WIFI | Processor family Intel | Processor socket LGA1700 | DDR5 DIMM | Memory slots 2 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4 | Chipset Intel B760 | Mini-ITX
productSize - Normal
RAID - SATA 0, 1, 5, 10

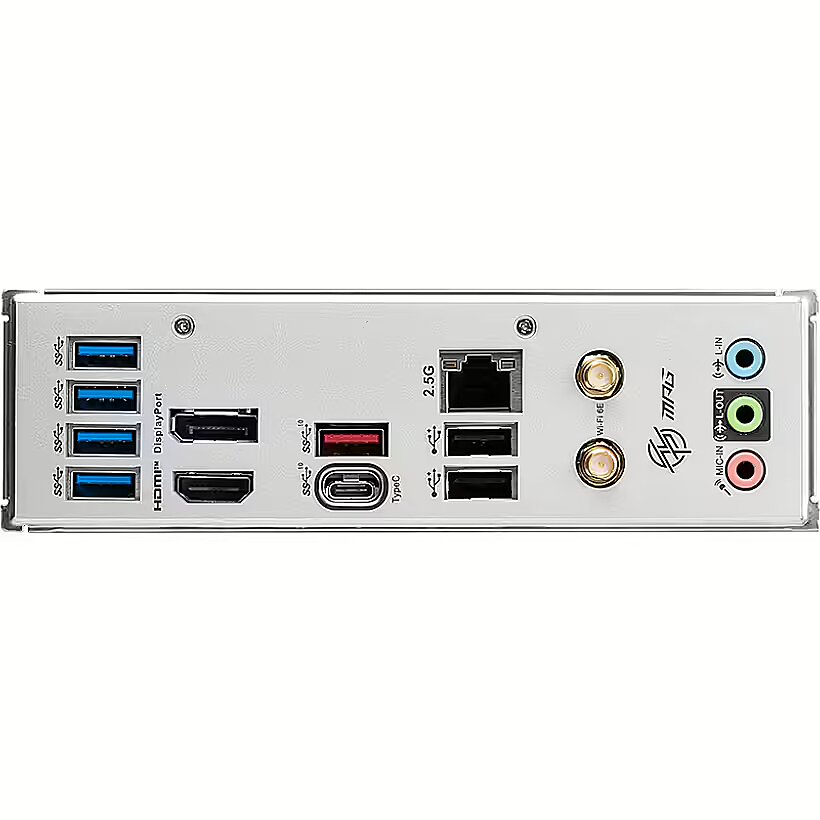

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 2
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 44 cm
Shipping Box Height Shipping/Package Box Dimensions - 40 cm
Shipping box quantity - 10
Shipping Box Weight Shipping/Package Box Dimensions - 10.85 kg
Shipping Box Width Shipping/Package Box Dimensions - 26 cm
ShortDescription - Socket 1700| Chipset Intel B760 | DDR5 |
ShortSummaryDescription - MSI MPG B760I EDGE WIFI, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, LGA 1700, DDR5-SDRAM, 96 GB
sizeX - 230
sizeY - 190
sizeZ - 80
Socket - LGA1700
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Technical details > Net weight - 0.97 kg
Technical details > Producer - MSI
Technical details > Warranty - 36 month(s)
Title - MSI MPG B760I EDGE WIFI motherboard Intel B760 LGA 1700 mini ATX
TPM - Header
Unit Box Height - 0.195
Unit Box Length - 0.23
Unit Box Width - 0.085
Unit Brutto Volume - 0.004576 cubm
Unit Gross Weight - 1.085 kg
Unit Net Weight - 0.8 kg
URL - https://www.msi.com/Motherboard/MPG-B760I-EDGE-WIFI/Overview
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 5
USB 3.2 Interface - Yes
Vendor Homepage - www.msi.com/Motherboard/MPG-B760I-EDGE-WIFI
Warranty - 36
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 1,00
weight - 1100
Weight & dimensions - Depth - 170 mm
Weight & dimensions - Width - 170 mm
WiFi Interface - Yes
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - System Management BIOS (SMBIOS) version - 3.5
Bluetooth Interface - Yes
Brand - MSI
BrandPartCode - MPG B760I EDGE WIFI
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel B760 Express
code - 7D40-005R
Code - MPG B760I EDGE WIFI
Description - - Supports 13th /12th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1700 socket - Supports DDR5 Memory, up to 7200+(OC) MHz - Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2 - Enhanced Power Design: Direct 8+1+1 phases power, Core Boost, Memory Boost - Premium Thermal Solution: Enlarged heatsink, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience - 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection - AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience - High Quality PCB: 8-layer PCB made by server grade level material - Pre-installed I/O Shield: Better EMI protection and more convenience for installation
dimensionalWeight - 699
DisplayPort Input/Output connectors - 1
EAN - 4711377069632
ean - 4711377069632
Eans - 4711377069632
EAN_code - 4711377069632
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x1 (Gen 3.x) slots - 2
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel B760
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - mini ATX
Features - Power source type - ATX
Features - Product colour - Black
Features - Product colour - Black, Silver
Features - Product colour - Silver
Features - Windows operating systems supported - Windows 10
Features - Windows operating systems supported - Windows 10, Windows 11
Features - Windows operating systems supported - Windows 11
Form Factor - Mini-ITX
Frequency speed - 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200 MHz
Full Description Line - Intel B760 Express|LGA1700|Mini-ITX|DDR5|7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 2|1xPCI-Express 16x|2xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|5xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC897|RAID SATA 0, 1, 5, 10|TPM Header
Graphics - On-board graphics card - No
Gross weight - 1.64 kg
GTIN - 0824142315545
GTIN - 824142315545
GTIN - 4711377069632
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC897
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.msi.com/Motherboard/MPG-B760I-EDGE-WIFI/Overview
LongDesc - MPG B760I EDGE WIFI employs silver white color scheme to show off different personality and identity. Besides being stylish, it is also powerful.BE AHEAD, POP YOUR STYLEThe MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.Extended HeatsinkExtended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.Pump Fan SupportControl watercooling pump speeds for best flow and noise control.7W/mK Thermal PadHigh quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.M.2 Shield FrozrKeeps M.2 SSDs safe while preventing throttling, making them run faster.8-Layer Server Grade PCB8-layer PCB with 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.LIGHTNING GEN 5 PCI-EDoubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.SMT PCIE 5.0 SLOTThe advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.REINFORCED,HEAVY SOLDERED CONNECTIONSSecure to the motherboard with extra solder points and support the weight of heavy graphics cards.FAST AND FUTURE-READY STORAGEMSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
LongProductName - LGA 1700, Intel B760, 2x DDR4, Wi-Fi, Bluetooth, 1x HDMI, 1x DisplayPort, Mini-ITX
LongSummaryDescription - MSI MPG B760I EDGE WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: mini ATX, Motherboard chipset family: Intel
M.2 Expansion slots - 2
Manufacturer - MSI
Manufacturer_code - 7D40-005R
Memory - Maximum internal memory - 96 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 2
Memory - Supported memory clock speed (max) - 7200 MHz
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 5000
Memory - Supported memory clock speeds - 5200
Memory - Supported memory clock speeds - 5400
Memory - Supported memory clock speeds - 5600
Memory - Supported memory clock speeds - 5800
Memory - Supported memory clock speeds - 6000
Memory - Supported memory clock speeds - 6200
Memory - Supported memory clock speeds - 6400 MHz
Memory - Supported memory clock speeds - 6600
Memory - Supported memory clock speeds - 6800
Memory - Supported memory clock speeds - 7000
Memory - Supported memory clock speeds - 7200
Memory - Supported memory clock speeds - 7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400,5200, 5000, 4800 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory > Memory slots - 2
Memory > Supported memory types - DDR5 DIMM
Memory slots - 2
Memory type - DDR5
Model - MPG B760I EDGE WIFI
name - MSI B760I Edge WiFi, Intel B760 Mainboard - Sockel 1700, DDR5
Name - MSI MPG B760I EDGE WIFI
Name - MSI MPG B760I EDGE WIFI - Socket 1700 - motherboard
Name - MSI | MPG B760I EDGE WIFI | Processor family Intel | Processor socket LGA1700 | DDR5 DIMM | Memory slots 2 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4 | Chipset Intel B760 | Mini-ITX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 319.00 mm
Package features > Gross depth master carton - 590 mm
Package features > Gross height (mm) - 352.00 mm
Package features > Gross height master carton - 290 mm
Package features > Gross width (mm) - 86.00 mm
Package features > Gross width master carton - 545 mm
Package features > Net weight master carton - 14.54 kg
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 89 pc(s)
Package features > Paper/Pasteboard - 600.00 g
Package features > Plastic (No PET) - 70.00 g
Package features > Tare weight (kg) - 0.67 kg
Package features > Tare weight master carton - 1.585 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
PCI-Express 16x Expansion slots - 1
Performance > Chipset - Intel B760
Performance > Motherboard form factor - Mini-ITX
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Pentium® Gold
Processor - Compatible processor series - Intel® Pentium® Gold
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Compatible processor series - Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Producer - MSI
producerCode - 7D40-005R
ProducerCode - MPG B760I EDGE WIFI
Producer product name - MPG B760I EDGE WIFI
ProductName - MPG B760I EDGE WIFI
productName - MSI | MPG B760I EDGE WIFI | Processor family Intel | Processor socket LGA1700 | DDR5 DIMM | Memory slots 2 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4 | Chipset Intel B760 | Mini-ITX
productSize - Normal
RAID - SATA 0, 1, 5, 10
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 2
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 44 cm
Shipping Box Height Shipping/Package Box Dimensions - 40 cm
Shipping box quantity - 10
Shipping Box Weight Shipping/Package Box Dimensions - 10.85 kg
Shipping Box Width Shipping/Package Box Dimensions - 26 cm
ShortDescription - Socket 1700| Chipset Intel B760 | DDR5 |
ShortSummaryDescription - MSI MPG B760I EDGE WIFI, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, LGA 1700, DDR5-SDRAM, 96 GB
sizeX - 230
sizeY - 190
sizeZ - 80
Socket - LGA1700
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Technical details > Net weight - 0.97 kg
Technical details > Producer - MSI
Technical details > Warranty - 36 month(s)
Title - MSI MPG B760I EDGE WIFI motherboard Intel B760 LGA 1700 mini ATX
TPM - Header
Unit Box Height - 0.195
Unit Box Length - 0.23
Unit Box Width - 0.085
Unit Brutto Volume - 0.004576 cubm
Unit Gross Weight - 1.085 kg
Unit Net Weight - 0.8 kg
URL - https://www.msi.com/Motherboard/MPG-B760I-EDGE-WIFI/Overview
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 5
USB 3.2 Interface - Yes
Vendor Homepage - www.msi.com/Motherboard/MPG-B760I-EDGE-WIFI
Warranty - 36
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 1,00
weight - 1100
Weight & dimensions - Depth - 170 mm
Weight & dimensions - Width - 170 mm
WiFi Interface - Yes
