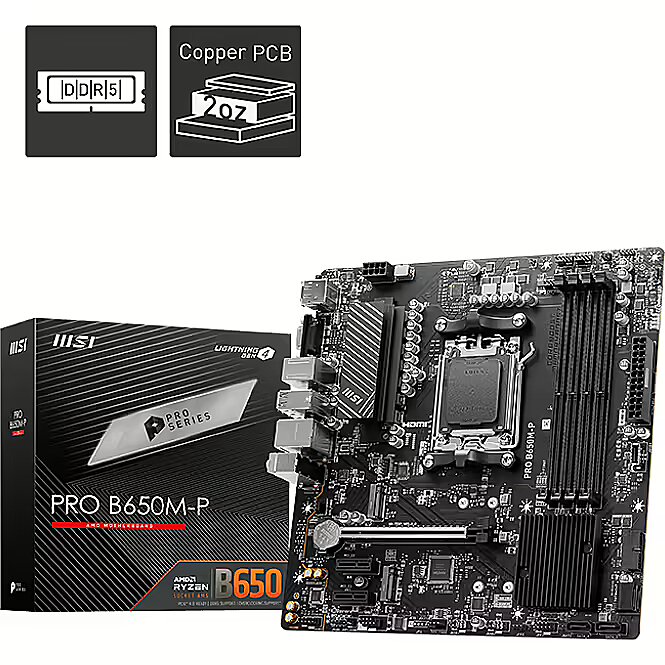

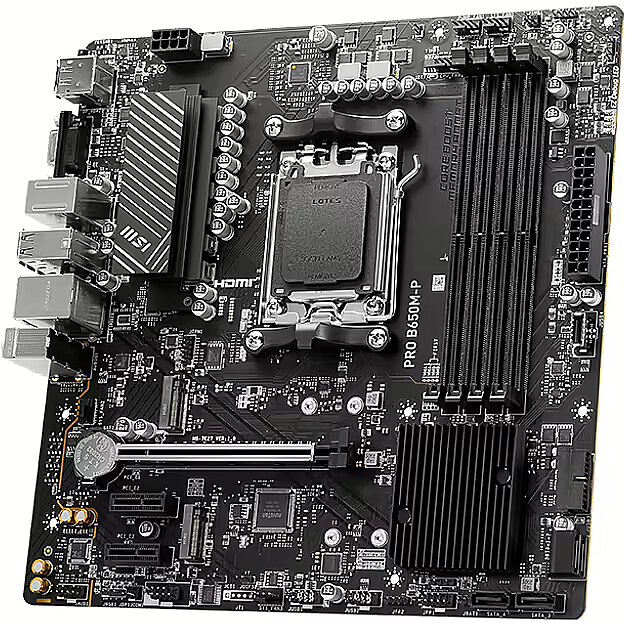

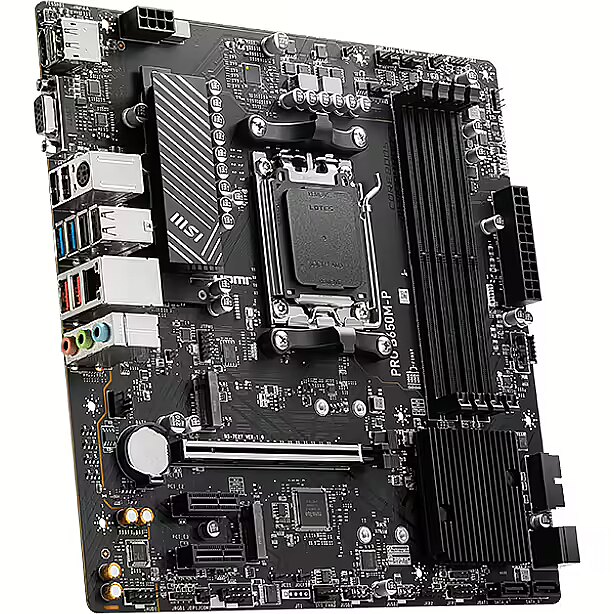

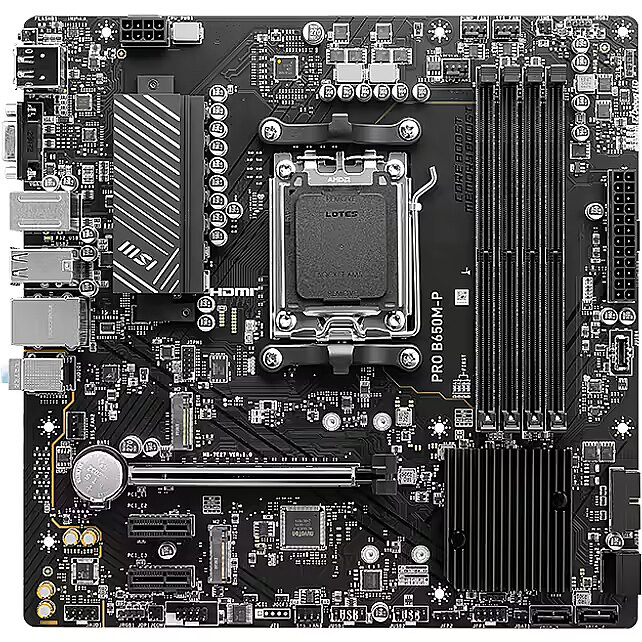

MSI PRO B650M-P

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 990061 Product code: PRO B650M-P
In stock 3 units
Warranty: 3 years
130.16 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: on Thursday, 14.11.2024
Main product parameters All parameters
  • Series: MSI PRO
  • Plate size: mATX
  • Chipset: AMD B650
  • Socket: AM5
  • Type: DDR5
  • RAM Slots: 4
  • Built-in Wi-Fi: Nav
  • M.2 ports: 2
Basic information
Series : MSI PRO
Plate size mATX

The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD B650

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Socket AM5
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Random-access memory (RAM)
Type : DDR5
RAM Slots 4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support DDR5 5200MHz (6000MHz OC)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card
VGA Port PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics Only with iGPU-ready APU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment
D-Sub : 1
DisplayPort : 1
DVI : 0
HDMI : 1
Integrated sound card : Realtek ALC897
PCI Ports 0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
Wireless connections
Built-in Bluetooth : Nav
Built-in Wi-Fi : Nav
External ports
External USB 2.0 : 4
External USB Type-C (USB 3.2 Gen2) : 0
External USB Type-C (USB 4.0) : 0
External USB 3.0 (USB 3.2 Gen1) : 2
External USB 3.1 (USB 3.2 Gen2) : 2
Internal ports
Internal A-RGB 5V (3-pin) : 2
Internal RGB 12V (4-pin) : 2
Internal USB 2.0 : 2
Internal USB 3.0 : 1
Internal USB Type-C : 1
M.2 ports : 2
SATA3 ports : 4
More detailed specification
Additional information in manufacturers website MSI PRO B650M-P
15pin D-sub Input/Output connectors - 1
Accessories included -
Audio port Input/Output connectors - 3
BIOS -
BIOS - ACPI version - 6.4
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - System Management BIOS (SMBIOS) version - 3.5
Brand - MSI
BrandPartCode - PRO B650M-P
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM5
Chipset - AMD B650
Chipset manufacturer - AMD
Chipset type - AMD B650
code - 7E27-001R
Code - PRO B650M-P
COM connector / port - Yes
CPU socket - Socket AM5
Description - - Supports AMD Ryzen™ 7000 Series Desktop Processors - Supports DDR5 Memory, Dual Channel DDR5 6000+MHz (OC) - Core Boost : With premium layout and digital power design to support more cores and provide better performance - Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility - High Quality PCB: 6-layer PCB made by 2oz thickened copper - Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 - 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection - AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience - Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
Description - PRO B650M-P motherboard Supports AMD Ryzen 7000 series desktop processors Supports DDR5 memory, dual-channel DDR5 6000+MHz (OC) Core Boost: With a premium chip and digital power design that supports more cores and delivers better performance Memory Boost: Advanced technology to deliver clean data signals for best performance, stability and compatibility High Quality PCB: 6-layer PCB made of 2oz thick thickened copper Lightning-fast gaming speed: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 connector 2.5G LAN: Enhanced networking solution for professional and multimedia use. Provides a safe, stable and fast network connection Sound Enhancement: Reward your ears with studio-quality sound for the most immersive gaming experience Steel Armor: Protects VGA cards from flexing and electromagnetic interference for better performance, stability and durability
Detailed data on disk/drive interfaces - 2x M.2 M.2_1 Source (from CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_2 Source (from chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices 4xSATA 6G
dimension depth - 60 mm
dimension height - 300 mm
Dimensions - 243.84 x 243.84 mm
dimension weight - 1050 g
dimension width - 275 mm
DisplayPort Input/Output connectors - 1
EAN - 4711377100953
ean - 4711377100953
Eans - 4711377100953
EAN_code - 4711377100953
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 2 x PCIe 3.0 x 1
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
External connectors - 1 x D-Sub
External connectors - 1 x DisplayPort
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x RJ-45
External connectors - 2 x USB 3.0
External connectors - 2 x USB 3.1
External connectors - 4 x USB 2.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD B650
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - Fan
Features - Product colour - Black
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - Micro-ATX
Form factor - micro ATX
Frequency speed - 5000/5200/5400/5600/5800/6000 MHz
Full Description Line - AMD B650|SAM5|Micro-ATX|DDR5|6000/5800/5600/5400/5200/5000 MHz|Memory slots 4|2xPCI-Express 1x|1xPCI-Express 16x|2xM.2|1x15pin D-sub|1xHDMI|1xDisplayPort|4xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|Audio Realtek ALC897|LAN 2.5 Gigabit|RAID SATA 0, 1, 10; NVMe 0, 1|TPM Header
Graphics - 1xHDMI
Obsługa HDMITM 2.1, maksymalna rozdzielczość 4K 60Hz
1x DisplayPort
Obsługuje DP 1.4, maksymalna rozdzielczość 4K 60Hz
1xVGA
Wsparcie VGA, maksymalna rozdzielczość 1920x1200 60Hz
Graphics - On-board graphics card - No
Gross weight - 1.64 kg
GTIN - 4711377100953
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC897
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - USB 2.0 connectors - 4
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.msi.com/Motherboard/PRO-B650M-P/Overview
LongDesc - The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.LIGHTNING GEN 4 PCI-EMSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.REINFORCED,HEAVY SOLDERED CONNECTIONSMSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
LongProductName - AMD B650, 4x DDR5, 1x HDMI, 1x DisplayPort, 1x VGA, 2x M.2, mATX
LongSummaryDescription - MSI PRO B650M-P. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Supported memory clock speeds: 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz. Supported storage drive interfaces: M.2, SATA, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125-BG. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
LPT connector / port - No
M.2 Expansion slots - 2
Manufacturer - MSI
Manufacturer_code - 7E27-001R
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 192 GB
Memory - Maximum internal memory - 192 GB
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speeds - 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory > Memory slots - 4
Memory > Supported memory types - DDR5
Memory bus frequency - 4800 MHz
Memory bus frequency - 5000 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5400 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6000 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - PRO B650M-P
MPN - 7E27-001R
Name - AM5 MSI B650M-P PRO mATX
Name - MSI B650M-P - Socket AM5 - motherboard
Name - MSI PRO B650M-P
name - MSI Pro B650M-P, AMD B650 Mainboard - Sockel AM5, DDR5
Name - MSI | PRO B650M-P | Processor family AMD | Processor socket AM5 | DDR5 | Memory slots 4 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4 | Chipset AMD B650 | mATX
name - PRO B650M-P AM5 4DDR5 HDMI/DP mATX
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8125-BG
Network - Wi-Fi - No
Network interface -
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 3
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x System panel header
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 4 x USB 2.0/1.1
Other information -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 335.00 mm
Package features > Gross height (mm) - 275.00 mm
Package features > Gross width (mm) - 80.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 117 pc(s)
Package features > Paper/Pasteboard - 600.00 g
Package features > Plastic (No PET) - 75.00 g
Package features > Tare weight (kg) - 0.68 kg
Package features > TI weight (kg) - 0.05 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - No
PCI-Express 1x Expansion slots - 2
PCI-Express 16x Expansion slots - 1
Performance > Chipset - AMD B650
Performance > Motherboard form factor - mATX
Processor - Compatible processor series - AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Processor > Compatible processor series - Supports AMD Ryzen 7000 Series Desktop Processors
Processor > Processor family - AMD
Processor > Processor socket - AM5
Processor family - AMD Ryzen
producer - MSI
Producer - MSI
ProducerCode - PRO B650M-P
Producer product name - PRO B650M-P
ProductName - PRO B650M-P
PS/2 Input/Output connectors - 1
RAID - SATA 0, 1, 10; NVMe 0, 1
RAID - Yes

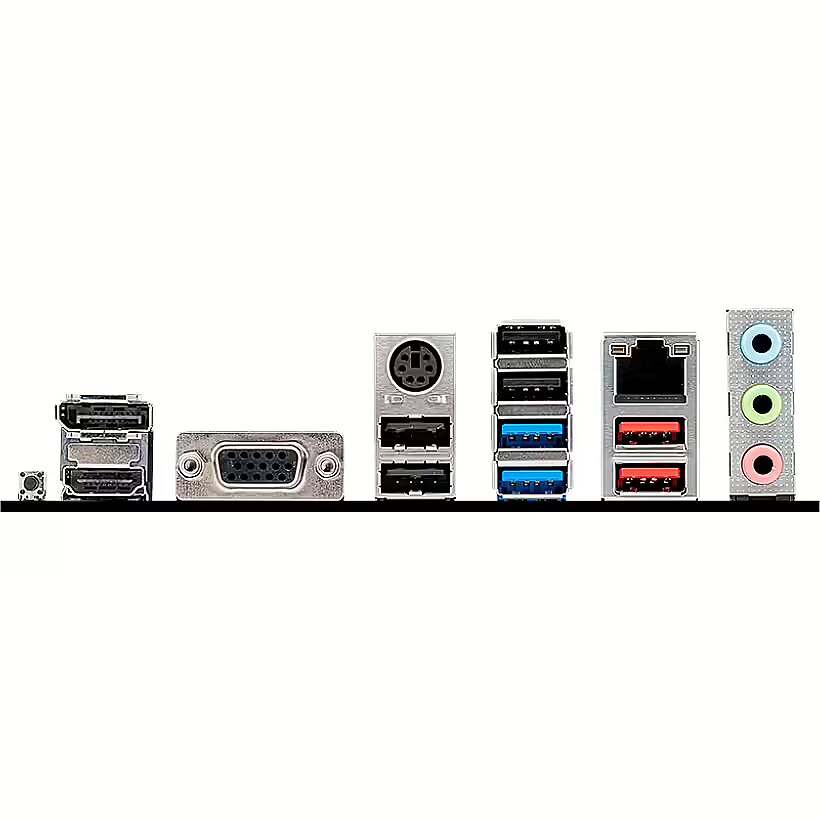

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 30 cm
Shipping Box Height Shipping/Package Box Dimensions - 5.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.05 kg
Shipping Box Width Shipping/Package Box Dimensions - 27.5 cm
ShortDescription - Socket AM5 | Chipset AMD B650 | DDR5
ShortSummaryDescription - MSI PRO B650M-P, AMD, Socket AM5, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen, Socket AM5, DDR5-SDRAM, 192 GB
Socket - SAM5
Software -
Sound card - Realtek ALC897 Codec 7.1-Channel High Definition Audio
Special functions -
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Net weight - 0.97 kg
Technical details > Producer - MSI
Title - MSI PRO B650M-P motherboard AMD B650 Socket AM5 micro ATX
TPM - Header
Unit Box Height - 0.055
Unit Box Length - 0.3
Unit Box Width - 0.275
Unit Brutto Volume - 0.004537 cubm
Unit Gross Weight - 1.05 kg
Unit Net Weight - 1 kg
URL - https://www.msi.com/Motherboard/PRO-B650M-P/Overview
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 4
USB 3.2 Interface - Yes
USB ports at back panel - 8
USB ports on motherboard - 14
Vendor Homepage - www.msi.com/Motherboard/PRO-B650M-P/Gallery#lg=1&slide=4
vendpn - PRO B650M-P
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
Weight - 1,05
Weight - 1.04
Weight & dimensions - Depth - 243.8 mm
Weight & dimensions - Width - 243.8 mm
130.16 €
MSI PRO B650M-P
Intel technology provider Platinum 2020
All categories
