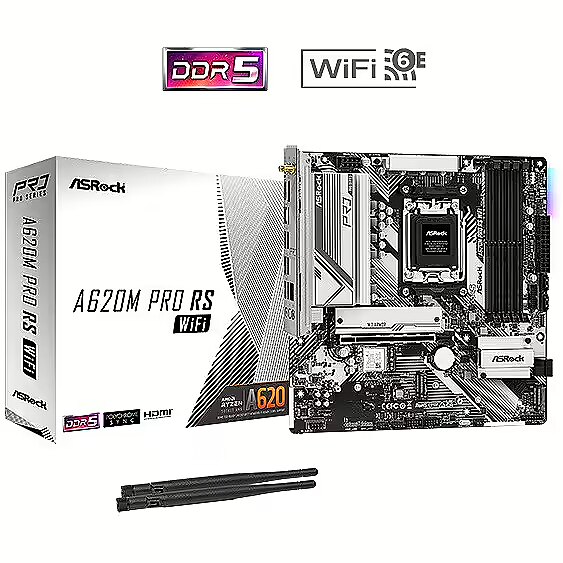

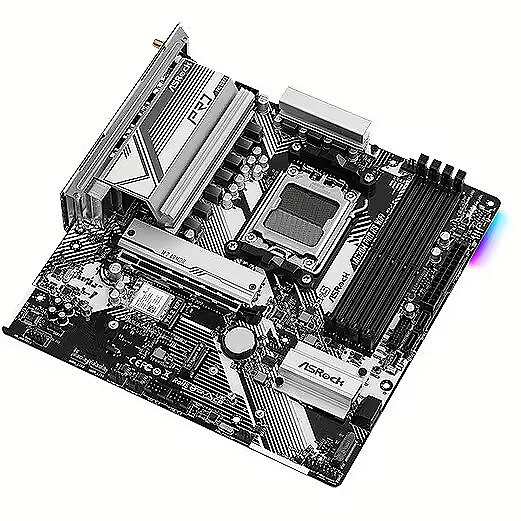

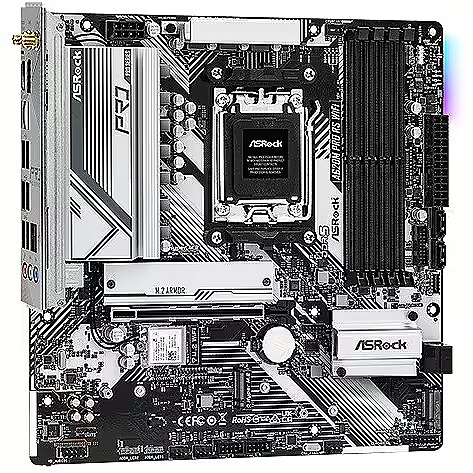

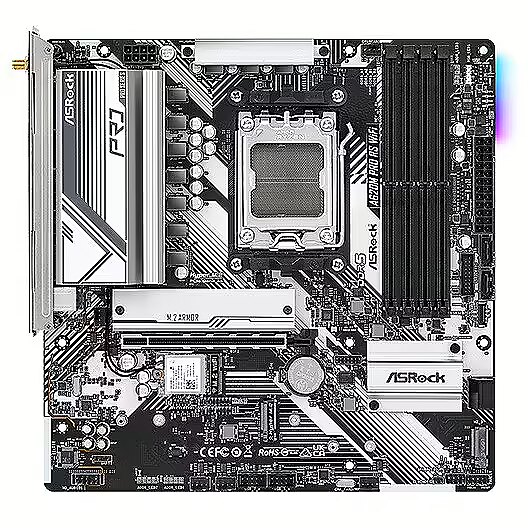

Asrock A620M Pro RS WiFi

Name: Asrock A620M Pro RS WiFi
Brand: Asrock
SKU: 960553
Price: 126.23 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 960553 Product code: A620M PRO RS WIFI

Can be ordered 41 units Availability: 14 days after order approval

Warranty: 2 years

Compare

Delivery options

Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
Courier delivery 11.99 €: 10.12.2024

Main product parameters All parameters

Series: ASRock PRO
Plate size: mATX
Chipset: AMD A620
Socket: AM5
Type: DDR5
RAM Slots: 4
Built-in Wi-Fi: Ir
M.2 ports: 3

Basic information

Series : ASRock PRO

Plate size mATX

The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD A620

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.

Socket AM5

The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.

Random-access memory (RAM)

Type : DDR5

RAM Slots 4

The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.

Memory support DDR5 5200MHz

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card

VGA Port PCI-EXPRESS

VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.

Integrated graphics Only with iGPU-ready APU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment

D-Sub : 0

DisplayPort : 1

DVI : 0

HDMI : 1

Integrated sound card : Realtek ALC897

PCI Ports 0

PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.

Wireless connections

Built-in Bluetooth : Ir

Built-in Wi-Fi : Ir

External ports

External USB 2.0 : 4

External USB Type-C (USB 3.2 Gen2) : 1

External USB Type-C (USB 4.0) : 0

External USB 3.0 (USB 3.2 Gen1) : 3

External USB 3.1 (USB 3.2 Gen2) : 0

Internal ports

Internal A-RGB 5V (3-pin) : 3

Internal RGB 12V (4-pin) : 1

Internal USB 2.0 : 2

Internal USB 3.0 : 1

Internal USB Type-C : 1

M.2 ports : 3

SATA3 ports : 4

More detailed specification

Additional information in manufacturers website Asrock A620M Pro RS WiFi

Accessories included - Instrukcja Obsługi 2 x Kabel danych SATA 2 x Antena ASRock Wi-Fi 2,4/5/6 GHz 3 x Śruby do gniazda M.2 Dystans do gniazda M.2
BIOS - 256Mb AMI UEFI Legal BIOS z obsługą GUI
BIOS - BIOS type - UEFI AMI
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category - Root/Electronics/PC parts/Motherboards
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM5
Chipset manufacturer - AMD
Chipset type - AMD A620
code - 90-MXBLX0-A0UAYZ
Code - A620M PRO RS WIFI
COM connector / port - No
CPU socket - Socket AM5
Description - A620M Pro RS WiFi Supports AMD Socket AM5 Ryzen 7000 series processors 6+2+1 Power Phase, Dr.MOS, 120W CPU Ready DDR5 6000+MHz (OC) 1 PCIe 4.0 x16 Graphics outputs: HDMI, DisplayPort Realtek ALC897 7.1 channel HD audio codec Nahimic Audio 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4) 1 M.2 (PCIe Gen3x2) 2 USB 3.2 Gen1 Type-C (1 rear, 1 front) 5 USB 3.2 Gen1 Type-A (3 rear, 2 front) Realtek Gigabit LAN Wi-Fi 802.11ax 6E + Bluetooth Supports ASRock Auto Driver Installer BIOS flashback Optimized VRM Design Durable components and smooth power transfer to the processor translate into increased performance for gamers. Reinforced Steel Slot [PCIe 4.0 Revision] Reinforced steel slot along with next generation PCI Express 4.0 standard. List of benefits: More soldering points Stronger latch It ensures the stability of signal transmission It guarantees stable support for even the heaviest graphics cards Nahimic Audio Whether you use headphones, handsfree, external or internal speakers via USB, Wi-Fi, analog or HDMI output, Nahimic Audio offers the best sound experience, vivid and full of details. Improved Communication Quality Powerful algorithms for the best noise-free conversation, ensure a constant voice level regardless of the distance from the microphone. The Nahimic audio engine dynamically cleans the sound, removes noise and reduces voice variability. The result is better understanding and less fatigue. Static Damping Echo elimination Side Sound Reduction Voice stabilization sound tracker The Sound Tracker is a visual indicator that indicates the directions from which dominant sounds are coming. Every sound is properly positioned on the 360° radar for complete gaming immersion. Works on all devices! Enjoy vivid and high-quality surround sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all your favorite audio tools and gives you the best sound with all of them. Nahimic measures and refines to optimize our technology and deliver the best experience. POLYCHROME RGB In addition to the built-in RGB lighting, the board also has integrated regular and addressable RGB headers that allow you to connect compatible LED devices such as LED strips, CPU fans, fans, cases, etc. Users can synchronize RGB LED devices with Polychrome RGB Sync certified accessories, to create your own unique lighting style. PCIe 4.0 High Speed M.2 solution This motherboard is ready to accept multiple M.2 devices, including support for PCI Express 4.0 M.2 SSDs, ready to run at twice the speed of the previous 3rd generation, delivering blazing fast data transfer. Wi-Fi 6E 802.11ax wireless network WiFi 6E technology extends to the 6GHz frequency, providing more WiFi connectivity and faster Internet connectivity. In addition to higher bandwidths, WiFi 6E also means lower latency and services equivalent to 5G networks. M.2 Key-E Module Cap The SMA cable can easily come loose, this is unacceptable for any user. We fixed this problem with a small Key-E module cap. Front USB 3.2 Gen1 Type-C The front USB 3.2 Gen1 Type-C header enables data transfer speeds up to 5 Gbps, moreover, the next-generation reversible USB design is available on the front panel of the computer case. EZ Settings Automatic Driver Installation You don't have to worry about missing drivers! The ASRock board comes with a pre-installed LAN driver, offering you a convenient option to install the rest of the drivers. Step 1: Install Auto Driver Installer Step 2: Update your drivers Step 3: Done! Flashback Update BIOS with a simple click. Users can easily flash the latest BIOS with a USB flash drive and power adapter. No CPU, RAM or other components are needed. Factory Installed I/O Port Shield ASRock strives to offer only cutting-edge technology with the most user-friendly design. The pre-installed I/O port cover ensures that the motherboard is precisely installed in the case, prevents any interference and speeds up the assembly process.
Detailed data on disk/drive interfaces - CPU: 1 x Hyper M.2 slot (M2_1, Key M), supports 2260/2280 mode PCIe Gen4x4 (64Gbps)* 1 x Hyper M.2 slot (M2_2, Key M), supports 2260/2280 mode PCIe Gen4x4 (64Gbps)* Chipset: 1 x M.2 slot (M2_3, Key M), supports 2260/2280 mode PCIe Gen3x2 (16Gbps)* 4 SATA3 6.0 Gbps connectors *NVMe SSD boot support
dimensionalWeight - 946
dimension depth - 60 mm
dimension height - 260 mm
Dimensions - 24.4 x 24.4 cm
dimension weight - 1165 g
dimension width - 280 mm
EAN - 4710483943065
ean - 4710483943065
Eans - 4710483943065
EAN_code - 4710483943065
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - Number of M.2 (M) slots - 3
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1

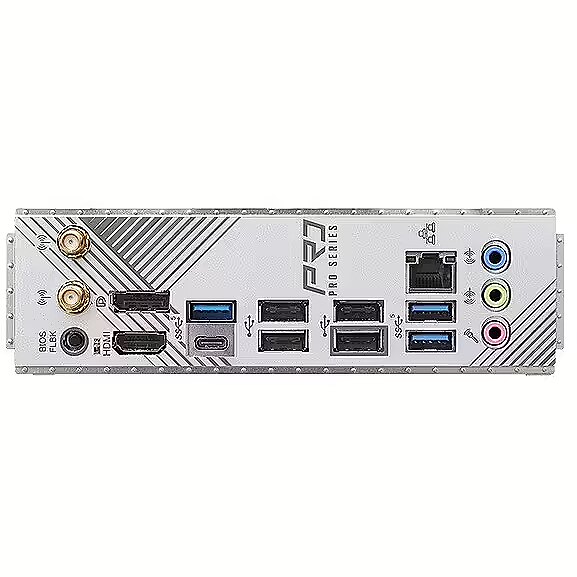

External connectors - 1 x DisplayPort
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.1 Type-C
External connectors - 2 x SMA
External connectors - 3 x USB 3.0
External connectors - 4 x USB 2.0
Features - Audio output channels - 7.1 channels
Features - Certification - FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
Features - Motherboard chipset - AMD A620
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - micro ATX
Features - Windows operating systems supported - Windows 10
Features - Windows operating systems supported - Windows 11
FireWire (IEEE 1394) - No
Form factor - micro ATX
Graphics - AMD RDNA 2 integrated graphics (Support may vary depending on CPU) HDMI 2.1 TMDS/FRL compatible Koy with 8G, supports HDR, HDCP 2.3 and up to 4K 120Hz macro resolution DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and up to 4K 120Hz resolution
Graphics - Graphics card - AMD RDNA 2
Graphics - Graphics card family - AMD
Graphics - On-board graphics card - Yes
Gross weight - 2.30 kg
guarantee - 36
guarantee_type - normal
Integrated CPU - No
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Power fan connector - Yes
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 4
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 3
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA3, M.2
Link - https://www.asrock.com/MB/AMD/A620M%20Pro%20RS%20WiFi/index.asp#Specification
LPT connector / port - No
Manufacturer - Asrock
Manufacturer_code - 90-MXBLX0-A0UAYZ
Max. number of SATA devices - 4
Max memory size - 128 GB
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory types - DDR5-SDRAM
Memory > Memory slots - 4
Memory > Supported memory types - DDR5 DIMM
Memory bus frequency - 6000 MHz
Memory type - DDR5
Model - A620M PRO RS WIFI
Name - ASRock A620M Pro RS - AM5
Name - ASRock A620M Pro RS WiFi
name - ASRock A620M Pro RS WiFi, AMD A620 Mainboard - Sockel AM5, DDR5
Name - ASRock | A620M Pro RS WiFi | Processor family AMD | Processor socket AM5 | DDR5 DIMM | Memory slots 4 | Supported hard disk drive interfaces SATA3, M.2 | Number of SATA connectors 4 | Chipset AMD A620 | Micro ATX
name - Motherboard A620M PRO RS WIFI AM5 4DDR5 HDMI/DP M.2 mATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.2
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek 8111H
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Network interface - 1 x 10/100/1000 Mbit/s
Network interface - LAN: Gigabit LAN 10/100/1000Mbps Realtek 8111H Wireless communication: 802.11ax Wi-Fi 6E module IEEE 802.11a/b/g/n/ac/ax Dual-Band 2x2 support with extended support for the 6GHz band 2 antennas supporting Diversity Technology 2 (transmit) x 2 (receive) Supports Bluetooth 5.2 + High speed class II Supports MU-MIMO
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 2
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Power LED and Speaker Header
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 3 x 4pin Chassis/Water Pump Fan Connectors
Onboard connectors - 3 x Addressable LED
Onboard connectors - 3 x M.2
Onboard connectors - 4 x SATA III 6Gb/s
Onboard connectors - 4 x USB 2.0/1.1
Other information -
Package features > Embeeded battery - No, No
Package features > Gross depth (mm) - 70.00, 70.00 mm
Package features > Gross height (mm) - 295.00, 295.00 mm
Package features > Gross width (mm) - 360.00, 360.00 mm
Package features > Packing quantity - 1.00, 1.00 pc(s)
Package features > Palette Qty - 232, 232 pc(s)
Package features > Paper/Pasteboard - 490.00, 490.00 g
Package features > Plastic (No PET) - 10.00, 10.00 g
Package features > Tare weight (kg) - 0.50, 0.50 kg
Package features > Volume (m3) - 0.01, 0.01 m³
Package features > WEEE tax - No, No
Packaging content - Bundled software - - ASRock Motherboard Utility (A-Tuning)
- ASRock Polychrome SYNC
- ASRock XFast LAN
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
Performance > Chipset - AMD A620
Performance > Motherboard form factor - Micro ATX
Processor - Compatible processor series - AMD Ryzen 7000 Series
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor > Compatible processor series - Supports AMD Socket AM5 Ryzen 7000 Series Processors
Processor > Processor family - AMD
Processor > Processor socket - AM5
Processor family - AMD Ryzen
producer - ASRock
Producer - ASRock
producerCode - A620M PRO RS WiFi
ProducerCode - A620M Pro RS WiFi
Producer product name - A620M Pro RS WiFi
productName - Asrock A620M Pro RS WiFi AMD A620 Socket AM5 micro ATX
productSize - Normal
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 3
Rear panel I/O ports - WiFi-AP antenna jack - 2
ShortDescription - Socket AM5 | Chipset AMD A620 | DDR5
sizeX - 280
sizeY - 260
sizeZ - 65
Software - Software: ASRock Motherboard Utility (A-Tuning) ASRock Polychrome SYNC ASRock XFast LAN UEFI: ASRock Full HD UEFI ASRock Automatic Driver Installer ASRock Instant Flash
Sound card - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Special functions - Incredible Productivity Dual Channel DDR5 Solid as a Rock 6+2+1 Power Phase, 50A Dr.MOS Pre-Installed I/O Port Cover Ultrafast Connectivity 802.11ax Wi-Fi 6EModule EZ Updates BIOS Flashback Button Automatic ASRock Driver Installer EZ Troubleshooter
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 3
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Net weight - 1.80 kg
Technical details > Producer - ASRock, ASRock
USB ports at back panel - 8
USB ports on motherboard - 7
vendpn - A620M PRO RS WIFI
Warranty - 24
Warranty - 24 month(s)
warrantyLength - 36
warrantyType - G
Weight - 1,18
weight - 1190
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 244 mm
