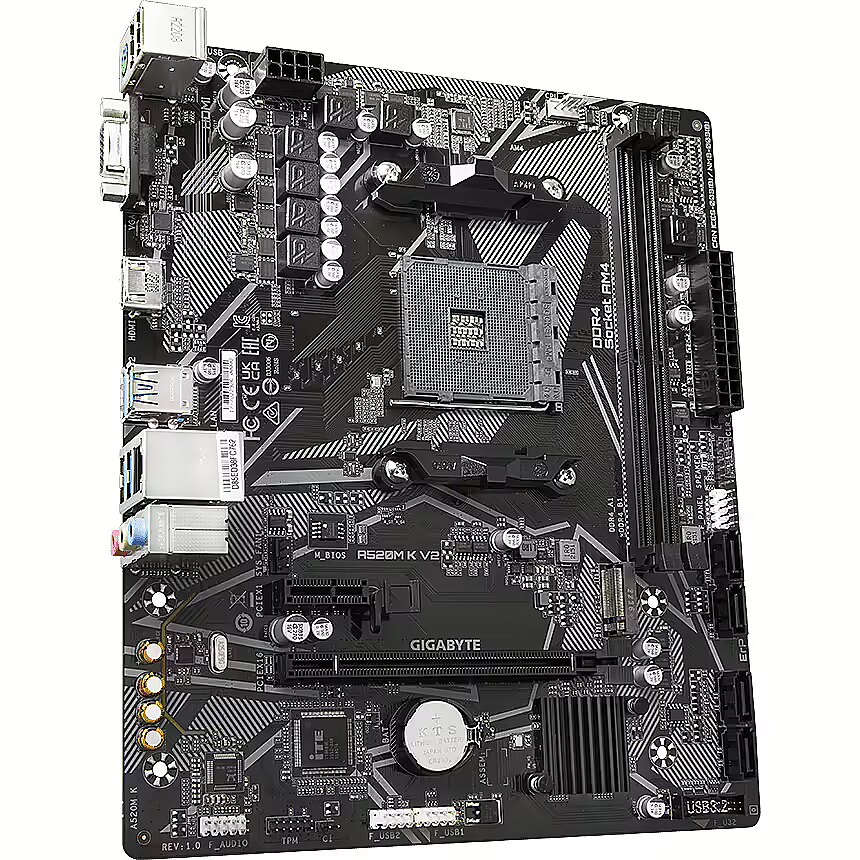

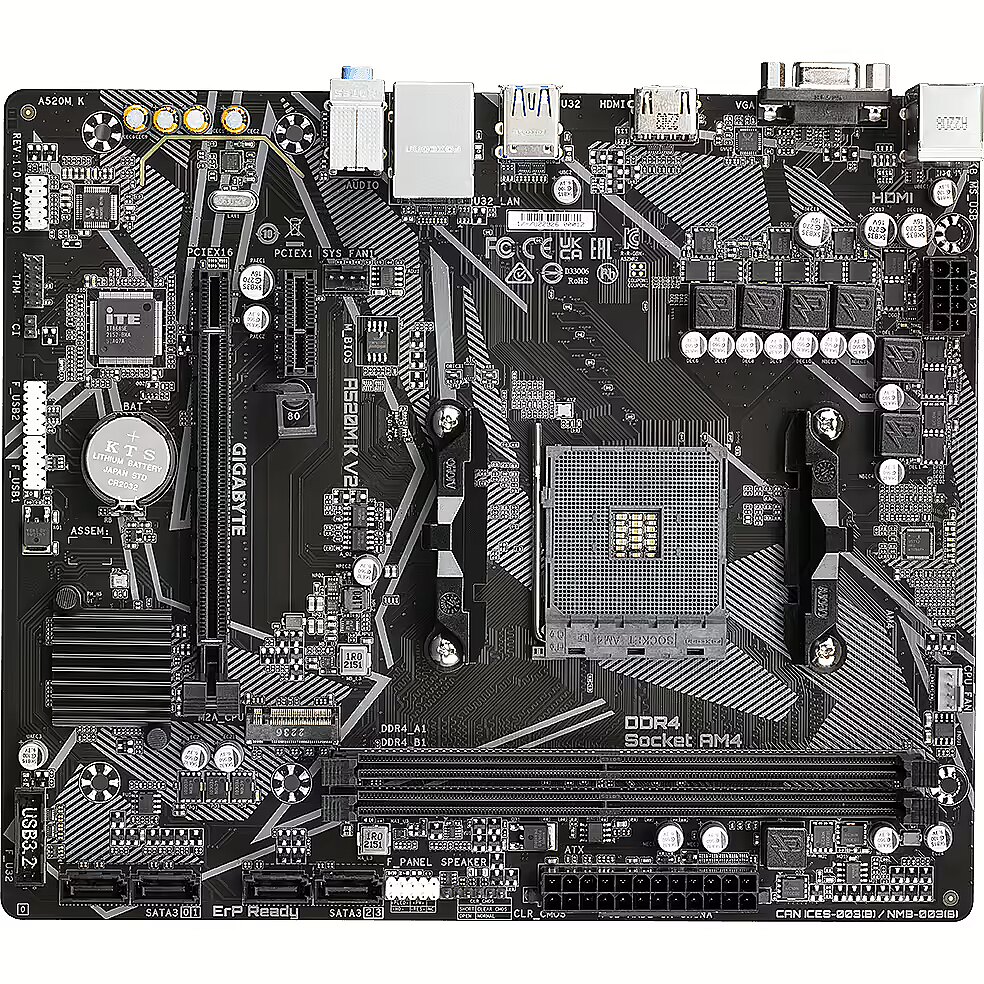

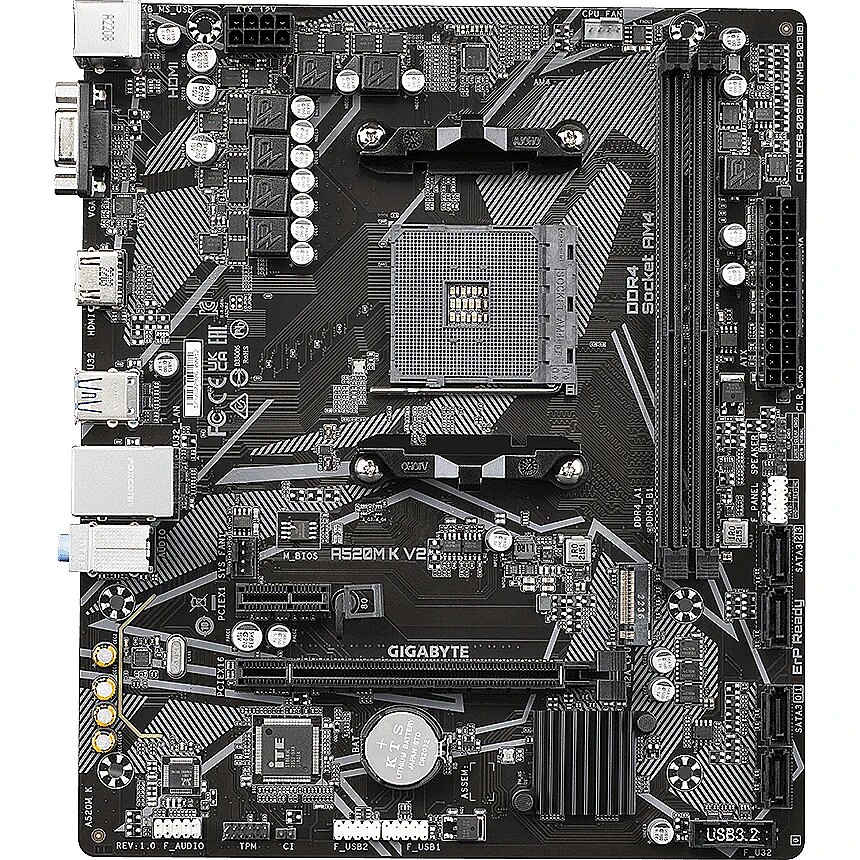

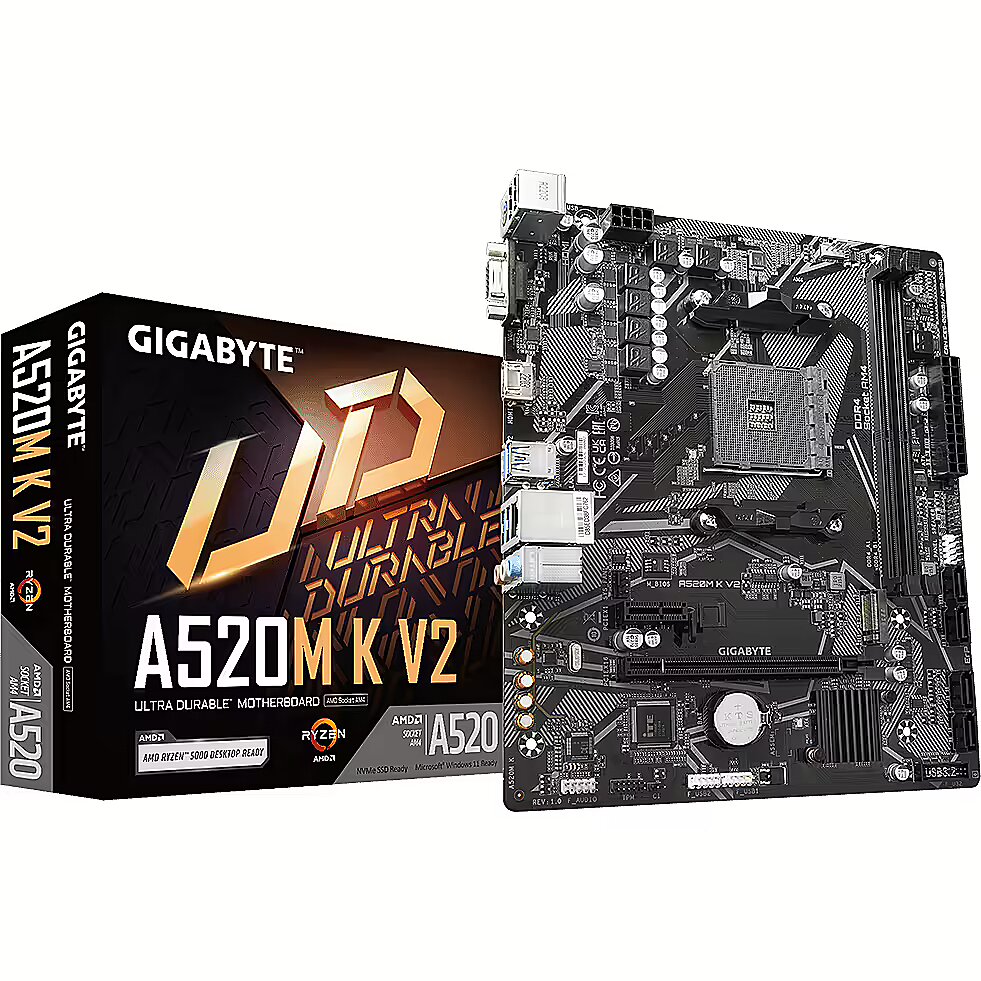

Gigabyte A520M K V2

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 947012 Product code: A520M K V2
Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.fi website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 2 years
Main product parameters All parameters
  • Series: Gigabyte Ultra Durable
  • Plate size: mATX
  • Chipset: AMD A520
  • Socket: AM4
  • Type: DDR4
  • RAM Slots: 2
  • Built-in Wi-Fi: Nav
  • M.2 ports: 1
Similar Products
This product Gigabyte A520M K V2
Recommended Gigabyte B550 GAMING X V2
Recommended Gigabyte X670 GAMING X AX V2
Recommended Gigabyte A520 AORUS ELITE
+
Gigabyte X870 EAGLE WIFI7
+ In collaboration with Gigabyte a Steam code is given as a gift
Show similar specs. Hide similar specs.
66.63 €
106.77 €
226.04 €
88.56 €
263.23 €
Basic information
Series Gigabyte Ultra Durable Gigabyte Gaming Gigabyte Gaming Gigabyte AORUS Gigabyte Eagle
Plate size mATX ATX ATX ATX ATX
Chipset AMD A520 AMD B550 AMD X670 AMD A520 AMD X870
Socket AM4 AM4 AM5 AM4 AM5
Random-access memory (RAM)
Type DDR4 DDR4 DDR5 DDR4 DDR5
RAM Slots 2 4 4 4 4
Memory support DDR4 3200MHz (5100MHz OC) DDR4 3200MHz (4400MHz OC) DDR5 5200MHz (6400MHz OC) DDR4 3200MHz (4733MHz OC) DDR5 5600MT/s (8000MT/s OC)
Graphics card
VGA Port PCI-EXPRESS PCI-EXPRESS PCI-EXPRESS PCI-EXPRESS PCI-EXPRESS
Integrated graphics Only with iGPU-ready APU Only with iGPU-ready APU Only with iGPU-ready APU Only with iGPU-ready APU Only with iGPU-ready APU
Ports and equipment
D-Sub 1 0 0 0 0
DisplayPort 0 0 0 0 0
DVI 0 1 0 1 0
HDMI 1 1 1 1 1
Integrated sound card Nav norādīts Nav norādīts Nav norādīts Realtek ALC1200 Realtek Audio CODEC
PCI Ports 0 0 0 0 0
Wireless connections
Built-in Bluetooth Nav Nav Ir Nav Ir
Built-in Wi-Fi Nav Nav Ir Nav Ir
External ports
External USB 2.0 2 2 4 4 4
External USB Type-C (USB 3.2 Gen2) 0 0 1 0 0
External USB Type-C (USB 4.0) 0 0 0 0 2
External USB 3.0 (USB 3.2 Gen1) 4 3 6 3 3
External USB 3.1 (USB 3.2 Gen2) 0 1 2 1 1
Internal ports
Internal A-RGB 5V (3-pin) 0 2 3 2 3
Internal RGB 12V (4-pin) 0 2 1 2 1
Internal USB 2.0 2 2 2 2 2
Internal USB 3.0 1 1 2 1 1
Internal USB Type-C 0 1 1 0 1
M.2 ports 1 2 4 1 3
SATA3 ports 4 4 4 4 4
Basic information
Series : Gigabyte Ultra Durable
Plate size mATX

The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD A520

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Socket AM4
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Random-access memory (RAM)
Type : DDR4
RAM Slots 2
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support DDR4 3200MHz (5100MHz OC)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card
VGA Port PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics Only with iGPU-ready APU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment
D-Sub : 1
DisplayPort : 0
DVI : 0
HDMI : 1
Integrated sound card : Nav norādīts
PCI Ports 0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
Wireless connections
Built-in Bluetooth : Nav
Built-in Wi-Fi : Nav

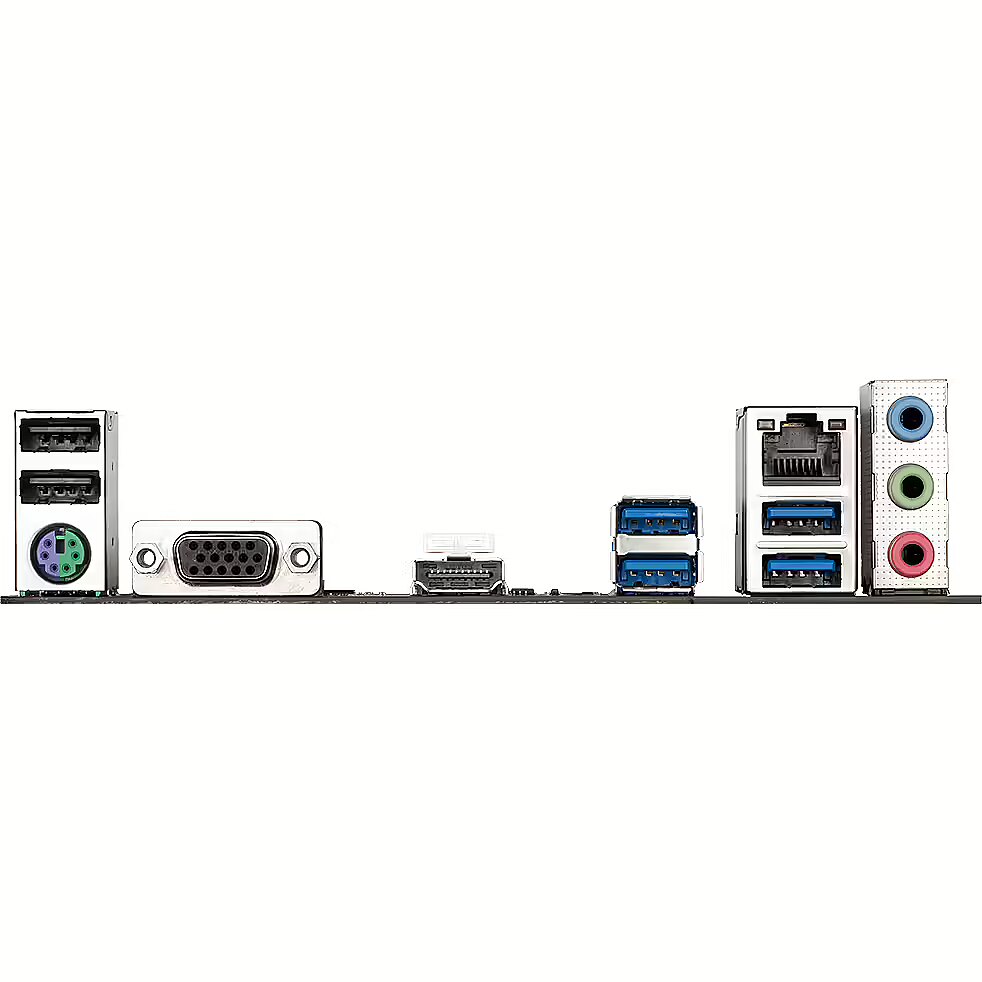

External ports
External USB 2.0 : 2
External USB Type-C (USB 3.2 Gen2) : 0
External USB Type-C (USB 4.0) : 0
External USB 3.0 (USB 3.2 Gen1) : 4
External USB 3.1 (USB 3.2 Gen2) : 0
Internal ports
Internal A-RGB 5V (3-pin) : 0
Internal RGB 12V (4-pin) : 0
Internal USB 2.0 : 2
Internal USB 3.0 : 1
Internal USB Type-C : 0
M.2 ports : 1
SATA3 ports : 4
More detailed specification
Additional information in manufacturers website Gigabyte A520M K V2
15pin D-sub Input/Output connectors - 1
Audio port Input/Output connectors - 3
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Brand - GIGABYTE
BrandPartCode - A520M K V2
Category - Datortehnika :: Datoru komponentes :: Pamatplates
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM4
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category Code - MBA
Chipset - AMD A520
Code - A520MKV2
code - A520M K V2
Code - A520M K V2
Desc - Mikroshēmu tips | chipset: AMD A520, Plates formfaktors: Micro ATX, Procesora ražotājs: AMD, Ligzda: AM4, DDR tips: DDR4, Atmiņas sloti: 2, Max atmiņas apjoms: 128 GB, Integrēta audio karte: High Definition Audio, LAN: Realtek GbE LAN chip 1 Gbps/100 Mbps, WiFi: Nav, M.2 Pieslēgumi: 1, Garantija: 2 gadi
Description - Motherboard with GbE LAN with Bandwidth Management, PCIe 3.0 x4 M.2, Smart Fan 5, Anti-Sulfur Resistors Design Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors​ Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs​ PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support​ GbE LAN with Bandwidth Management​ 8-Channel HD Audio with High Quality Audio Capacitors​ Rear HDMI and D-sub for Multi-display Support Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP​ GIGABYTE APP Center, Simple and Easy Use​​
dimensionalWeight - 712
EAN - 4719331852771
ean - 4719331852771
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 slots - 1
Expansion slots - PCI Express x16 slots - 1
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD A520
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - Fan
Features - PC health monitoring - Fan, Temperature, Voltage
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Features - Windows operating systems supported - Windows 11 x64
Form Factor - Micro-ATX
Frequency speed - 2133/2400/2666/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4800/5100 MHz
Full Description Line - AMD A520|SAM4|Micro-ATX|DDR4|5100/4800/4600/4400/4266/4133/4000/3866/3733/3600/3466/3400/3200/2933/2666/2400/2133 MHz|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xM.2|1x15pin D-sub|1xHDMI|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|Audio|LAN Gigabit|RAID SATA 0, 1, 10|TPM Header
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2160 pixels
Graphics - Parallel processing technology support - Not supported
Gross weight - 1.00 kg
GTIN - 4719331852771
HDMI Input/Output connectors - 1
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_102748_1.jpeg
Integrated audio - Yes
Integrated LAN - Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
LargeDescHTML -
Link - https://www.gigabyte.com/Motherboard/A520M-K-V2-rev-10#kf
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
LongProductName - A520M K V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 5100MHz DDR4 (OC), PCIe Gen3 x4 M.2, GbE LAN, USB 3.2 Gen 1
LongSummaryDescription - GIGABYTE A520M K V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 5100MHz DDR4 (OC), PCIe Gen3 x4 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9, AMD Ryzen 9 5th Gen. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. USB connector type: USB Type-A
M.2 Expansion slots - 1
Manufacturer - Gigabyte
Memory - ECC - Yes
Memory - Maximum internal memory - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 2
Memory - Supported memory clock speed (max) - 5100 MHz
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2133,2400,2667,2933,3200,3400,3466,3600,3733,3866,4000,4133,4266,4400,4600,4800,5100 MHz
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2667
Memory - Supported memory clock speeds - 2933
Memory - Supported memory clock speeds - 3200 MHz
Memory - Supported memory clock speeds - 3400
Memory - Supported memory clock speeds - 3466
Memory - Supported memory clock speeds - 3600
Memory - Supported memory clock speeds - 3733
Memory - Supported memory clock speeds - 3866
Memory - Supported memory clock speeds - 4000
Memory - Supported memory clock speeds - 4133
Memory - Supported memory clock speeds - 4266
Memory - Supported memory clock speeds - 4400 MHz
Memory - Supported memory clock speeds - 4600 MHz
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 5100 MHz
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 2
Memory > Supported memory types - DDR4 DIMM
Memory slots - 2
Memory type - DDR4
Model - A520M K V2 (rev. 1.1)
MPN - A520M K V2
Name - AM4 Gigabyte A520M K V2 mATX D4
name - GIGABYTE A520M K V2, AMD A520 Mainboard, Sockel AM4, DDR4
Name - Gigabyte | A520M K V2 1.0 M/B | Processor family AMD | Processor socket AM4 | DDR4 DIMM | Memory slots 2 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4 | Chipset AMD A520 | Micro ATX
Name - Pamatplate Gigabyte A520 MKV2
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 260.00 mm
Package features > Gross height (mm) - 70.00 mm
Package features > Gross width (mm) - 200.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 237 pc(s)
Package features > Paper/Pasteboard - 180.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - No
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton Internet Security
Packaging content - Cables included - SATA
Packaging data - Package depth - 235 mm
Packaging data - Package height - 52 mm
Packaging data - Package weight - 675 g
Packaging data - Package width - 265 mm
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 3.0 16x Expansion slots - 1
Performance > Chipset - AMD A520
Performance > Motherboard form factor - Micro ATX
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 9
Processor - Compatible processor series - AMD Ryzen 9 5th Gen
Processor - Compatible processor series - AMD Ryzen™ 3
Processor - Compatible processor series - AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9, AMD Ryzen 9 5th Gen
Processor - Compatible processor series - AMD Ryzen™ 5
Processor - Compatible processor series - AMD Ryzen™ 7
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM4
Processor - Supported processor sockets - Socket AM4
Processor > Compatible processor series - Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors​
Processor > Processor family - AMD
Processor > Processor socket - AM4
producerCode - A520M K V2
Producer product name - A520M K V2 1.0 M/B
ProductName - A520M K V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 5100MHz DDR4 (OC), PCIe Gen3 x4 M.2, GbE LAN, USB 3.2 Gen 1
productName - Gigabyte A520M K V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 5100MHz DDR4 (OC), PCIe Gen3 x4 M.2, GbE LAN, USB 3.2 Gen 1
productSize - Normal
PS/2 Input/Output connectors - 1
RAID - SATA 0, 1, 10
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 3
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB connector type - USB Type-A
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 56.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 26.5 cm
Shipping box quantity - 10
Shipping Box Weight Shipping/Package Box Dimensions - 7.5 kg
Shipping Box Width Shipping/Package Box Dimensions - 28.5 cm
ShortSummaryDescription - GIGABYTE A520M K V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 5100MHz DDR4 (OC), PCIe Gen3 x4 M.2, GbE LAN, USB 3.2 Gen 1, AMD, Socket AM4, AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9, AMD Ryzen 9 5th Gen, Socket AM4, DDR4-SDRAM, 64 GB
sizeX - 270
sizeY - 240
sizeZ - 55
Socket - SAM4
Storage controllers - Number of storage drives supported - 5
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical details - Warranty period - 3 year(s)
Technical details > Net weight - 0.80 kg
Technical details > Producer - Gigabyte
Title - GIGABYTE A520M K V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 5100MHz DDR4 (OC), PCIe Gen3 x4 M.2, GbE LAN, USB 3.2 Gen 1
TPM - Header
Unit Brutto Volume - 0.004267 cubm
Unit Gross Weight - 0.75 kg
Unit Net Weight - 0.5 kg
URL - https://www.gigabyte.com/Motherboard/A520M-K-V2-rev-10
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 4
USB 3.2 Interface - Yes
Vendor Homepage - www.gigabyte.com/Motherboard/A520M-K-V2-rev-11#kf
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 years
warrantyLength - 24
warrantyType - G
Weight - 0.662
weight - 665
Weight & dimensions - Depth - 198 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 233 mm
66.63 €
Gigabyte A520M K V2
Intel technology provider Platinum 2020
All categories
