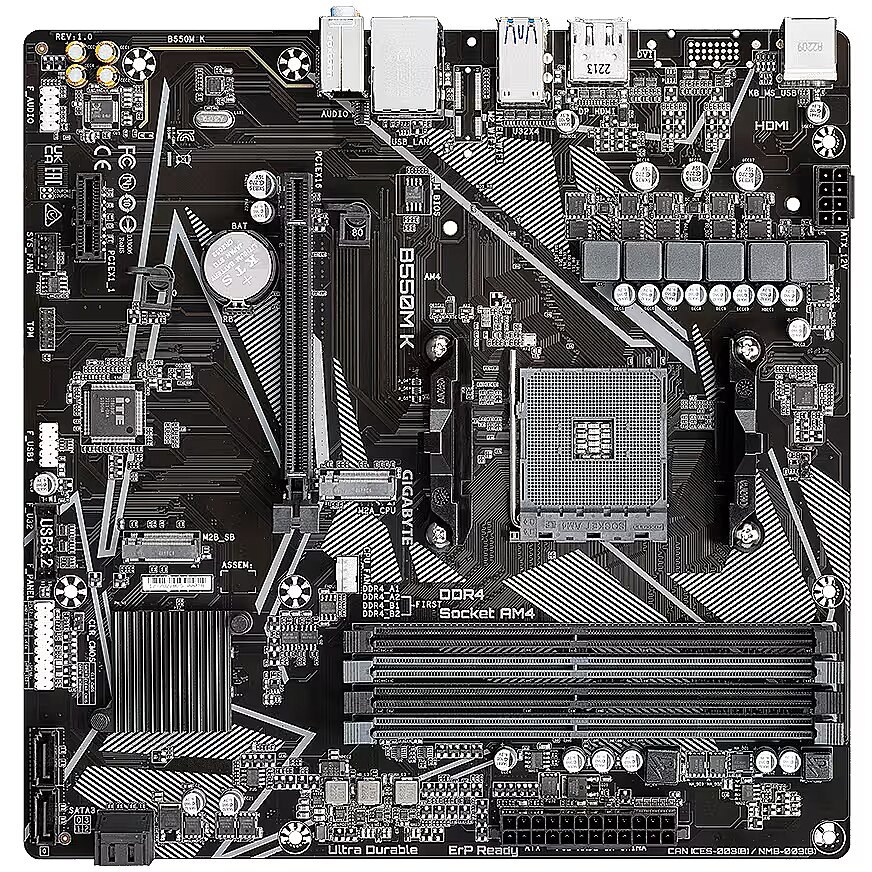

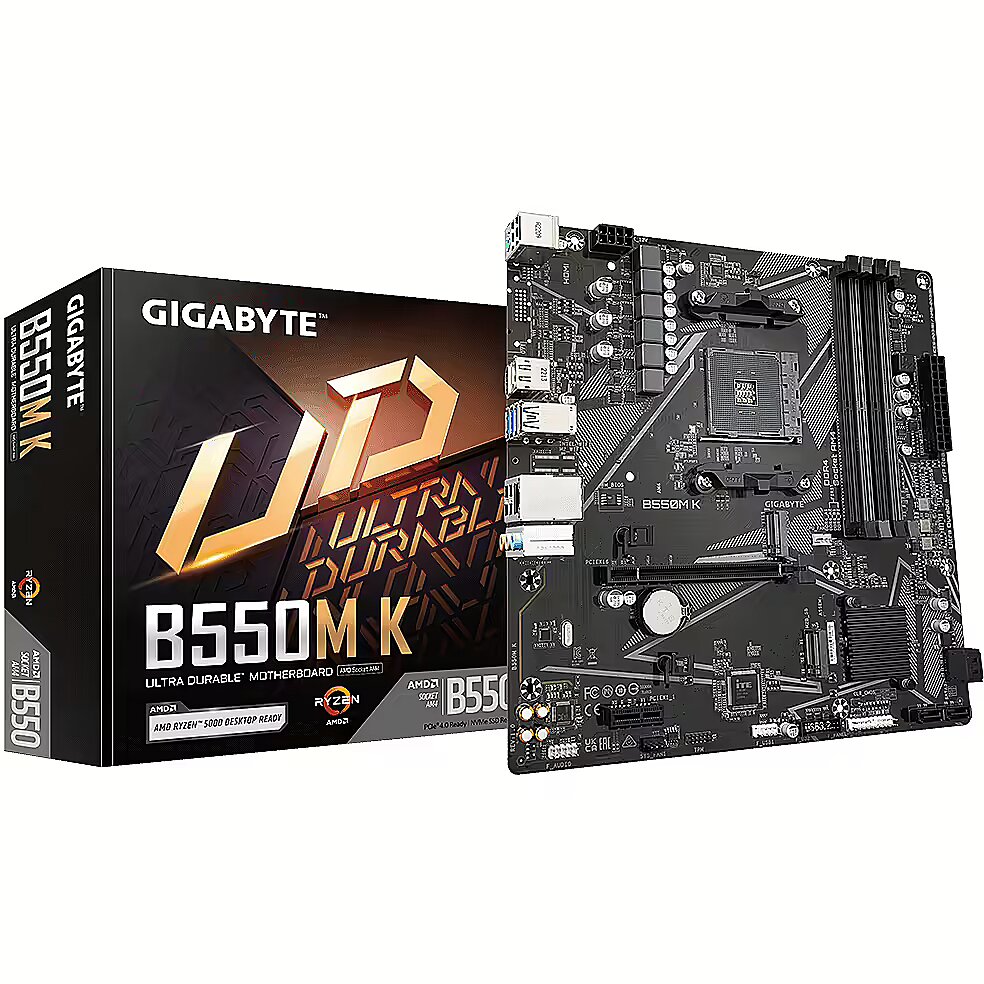

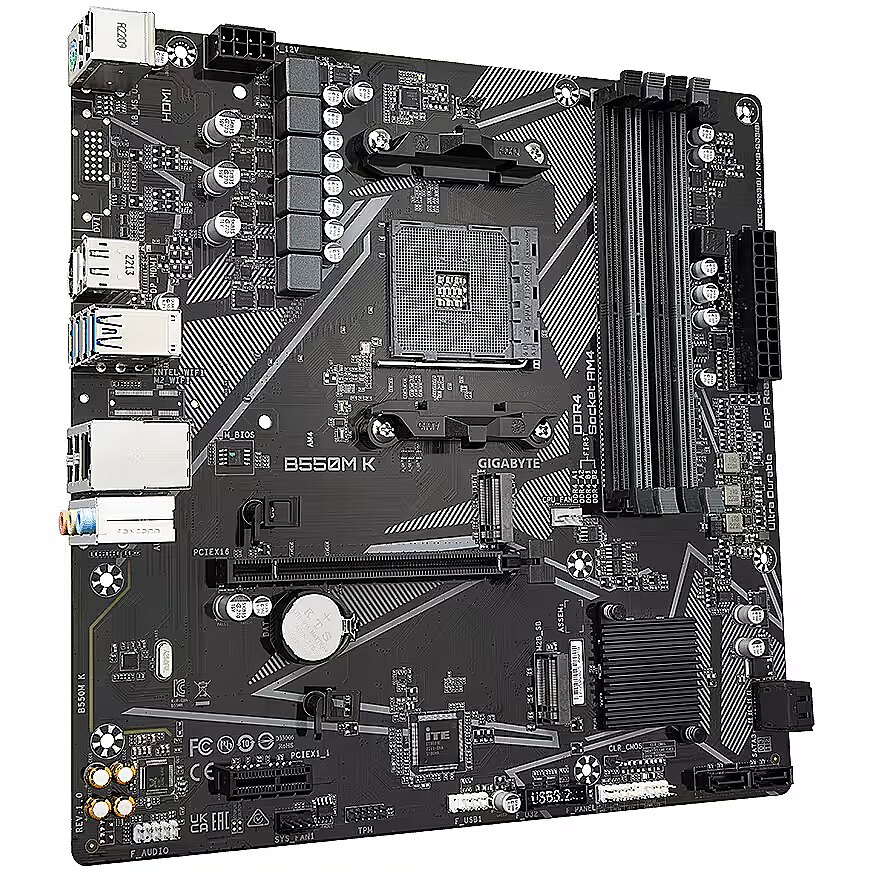

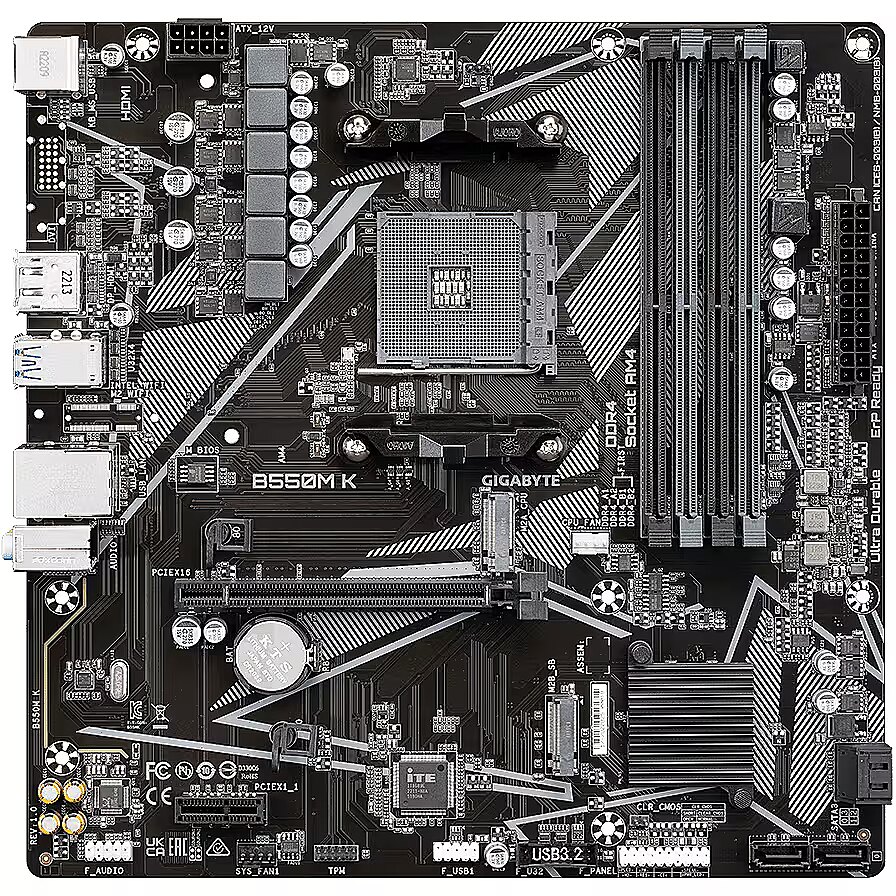

Gigabyte B550M K

Name: Gigabyte B550M K
Brand: Gigabyte
SKU: 942511
Price: 88.48 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 942511 Product code: B550M K

In stock 43 units

Warranty: 3 years

Compare

Delivery options

Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
Courier delivery 11.99 €: on Wednesday, 27.11.2024

Main product parameters All parameters

Series: Gigabyte Ultra Durable
Plate size: mATX
Chipset: AMD B550
Socket: AM4
Type: DDR4
RAM Slots: 4
Built-in Wi-Fi: Nav
M.2 ports: 2

Basic information

Series : Gigabyte Ultra Durable

Plate size mATX

The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD B550

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.

Socket AM4

The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.

Random-access memory (RAM)

Type : DDR4

RAM Slots 4

The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.

Memory support DDR4 3200MHz (4733MHz OC)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card

VGA Port PCI-EXPRESS

VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.

Integrated graphics Only with iGPU-ready APU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment

D-Sub : 0

DisplayPort : 1

DVI : 0

HDMI : 1

Integrated sound card : Nav norādīts

PCI Ports 0

PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.

Wireless connections

Built-in Bluetooth : Nav

Built-in Wi-Fi : Nav

External ports

External USB 2.0 : 4

External USB Type-C (USB 3.2 Gen2) : 0

External USB Type-C (USB 4.0) : 0

External USB 3.0 (USB 3.2 Gen1) : 4

External USB 3.1 (USB 3.2 Gen2) : 0

Internal ports

Internal A-RGB 5V (3-pin) : 0

Internal RGB 12V (4-pin) : 0

Internal USB 2.0 : 1

Internal USB 3.0 : 1

Internal USB Type-C : 0

M.2 ports : 2

SATA3 ports : 4

More detailed specification

Additional information in manufacturers website Gigabyte B550M K

Audio-In Input/Output connectors - 2
Audio-Out Input/Output connectors - 1
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Brand - GIGABYTE
BrandPartCode - B550M K
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM4
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM4
category_en - Computers & Components > Computer components > Motherboards > AMD motherboards
category_lv - Datortehnika > Datoru komponentes > Pamatplates > AMD mātesplates
category_ru - Datortehnika > Datoru komponentes > Pamatplates > AMD mātesplates
Chipset - AMD B550
code - B550M K
Code - B550M K
Description - AMD B550 Ultra Durable Motherboard with Digital VRM Solution, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 M.2 Connectors, GbE LAN, Smart Fan 5 with FAN STOP Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs Ultra Durable™ PCIe 4.0 Ready x16 Slot Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality GbE LAN with Bandwidth Management Rear DisplayPort and HDMI for Multi-display Support Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Anti-Sulfur Resistors Design
description_en - Gigabyte B550M K 1.0
Processor manufacturer: AMD
CPU socket: Socket AM4
Compatible processor series: AMD Ryzen™ 5. Supported memory types: DDR4-SDRAM
Maximum internal memory: 128 GB
Memory slot type: DIMM. Supported media interfaces: M.2
PCI Express 3.0
PCI Express 4.0
SATA
Supported drive types: Solid State Drive (SSD)
RAID levels: 0
1
10. Graphics adapter family: AMD
Maximum resolution: 5120 x 2880 pixels. Ethernet type
description_lv - Gigabyte B550M K 1.0
Procesora ražotājs: AMD
CPU ligzda: Socket AM4
Saderīgo procesoru sērija: AMD Ryzen™ 5. Atbalstītie atmiņas veidi: DDR4-SDRAM
Maksimālā iekšējā atmiņa: 128 GB
Atmiņas slota tips: DIMM. Atbalstītās multivides saskarnes: M.2
PCI Express 3.0
PCI Express 4.0
SATA
Atbalstītie disku veidi: cietvielu disks (SSD)
RAID līmeņi: 0
1
10. Grafikas adapteru saime: AMD
Maksimālā izšķirtspēja: 5120 x 2880 pikseļi. Ethernet tips
description_ru - Gigabyte B550M K 1.0
Производитель процессора: AMD
Сокет процессора: Разъем AM4
Совместимые серии процессоров: AMD Ryzen™ 5. Поддерживаемые типы памяти: DDR4-SDRAM
Максимальная внутренняя память: 128 GB
Тип слотов памяти: DIMM. Поддерживаемые интерфейсы носителя: M.2
PCI Express 3.0
PCI Express 4.0
SATA
Поддерживаемые типы накопителей: Твердотельный накопитель (SSD)
Уровни RAID: 0
1
10. Семейство графического адаптера: AMD
Максимальное разрешение: 5120 x 2880 пикселей. Тип Ethernet
DisplayPort Input/Output connectors - 1
EAN - 4719331852764
ean - 4719331852764
EAN_code - 4719331852764
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x1 slots - 1
Expansion slots - PCI Express x16 slots - 1
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Cooling type - Active
Features - Motherboard chipset - AMD B550
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - Fan, Temperature, Voltage
Features - Power source type - ATX
Features - Product colour - Brown
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Form Factor - Micro-ATX
Frequency speed - 2133/2400/2666/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733 MHz
Full Description Line - AMD B550|SAM4|Micro-ATX|DDR4|4733/4600/4400/4266/4133/4000/3866/3733/3600/3466/3400/3200/2933/2666/2400/2133 MHz|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|2xM.2|1xHDMI|1xDisplayPort|2xAudio-In|1xAudio-Out|4xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|SATA|Video|Audio|LAN Gigabit|RAID SATA 0, 1, 10|TPM Header
Graphics - DirectX version - 12.0
Graphics - Graphics card family - AMD
Graphics - HDCP - Yes
Graphics - Maximum resolution - 5120 x 2880 pixels
Graphics - On-board graphics card - Yes
Graphics - Parallel processing technology support - Not supported
Gross weight - 1.11 kg
gross_weight - 0.2 kg
GTIN - 0889523036006
GTIN - 889523036006
GTIN - 4719331852764
HDMI Input/Output connectors - 1
Integrated audio - Yes
Integrated LAN - Gigabit
Integrated video - Yes
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Audio connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Power fan connector - Yes
Internal I/O - Total number of SATA connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 1
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.gigabyte.com/Motherboard/B550M-K-rev-10#kf
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
LongProductName - AMD Socket AM4, 4 x DDR4 DIMM, AMD B550 Ultra Durable, Digital VRM Solution, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 M.2 Connectors, GbE LAN, Smart Fan 5 with FAN STOP
LongSummaryDescription - GIGABYTE B550M K Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 4733MHz DDR4 (OC), 2xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen™ 5. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, Supported storage drive types: SSD, RAID levels: 0, 1, 10. Graphics card family: AMD, Maximum resolution: 5120 x 2880 pixels. Ethernet interface type: Gigabit Ethernet
M.2 Expansion slots - 2
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer_code - B550MK
Memory - ECC - Yes
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dodeca-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 4733 MHz
Memory - Supported memory clock speeds - 2133,2400,2667,2933,3200,3400,3466,3600,3733,3866,4000,4133,4266,4400,4600,4733 MHz
Memory - Supported memory module capacities - 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 4
Memory > Supported memory types - DDR4 DIMM
Memory slots - 4
Memory type - DDR4
Model - B550M K
Model - B550M K (rev. 1.1)
MPN - B550M K
Name - AM4 Gigabyte B550M-K
Name - GIGABYTE B550M-K - Socket AM4 - motherboard
name - GIGABYTE B550M K, AMD B550 Mainboard - Sockel AM4, DDR4
Name - Gigabyte | B550M K 1.0 M/B | Processor family AMD | Processor socket AM4 | DDR4 DIMM | Memory slots 4 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4 | Chipset AMD B550 | Micro ATX
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 270.00 mm
Package features > Gross depth master carton - 286 mm
Package features > Gross height (mm) - 80.00 mm
Package features > Gross height master carton - 370 mm
Package features > Gross width (mm) - 270.00 mm
Package features > Gross width master carton - 380 mm
Package features > Net weight master carton - 9.665 kg
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 296 pc(s)
Package features > Paper/Pasteboard - 100.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.12 kg
Package features > Tare weight master carton - 0.684 kg
Package features > TI weight (kg) - 0.05 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - No
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton® Internet Security (OEM version)
LAN bandwidth management software
Packaging data - Package depth - 265 mm
Packaging data - Package height - 54 mm
Packaging data - Package weight - 837 g
Packaging data - Package width - 265 mm
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
Performance > Chipset - AMD B550
Performance > Motherboard form factor - Micro ATX
Processor - Compatible processor series - AMD Ryzen™ 5
Processor - Maximum internal memory supported by processor - 128 GB
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM4
Processor - Supported processor sockets - Socket AM4
Processor > Compatible processor series - Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors
Processor > Processor family - AMD
Processor > Processor socket - AM4
Producer - Gigabyte
Producer product name - B550M K 1.0 M/B
ProductName - B550M K Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 4733MHz DDR4 (OC), 2xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen1
PS/2 Input/Output connectors - 1
RAID - SATA 0, 1, 10

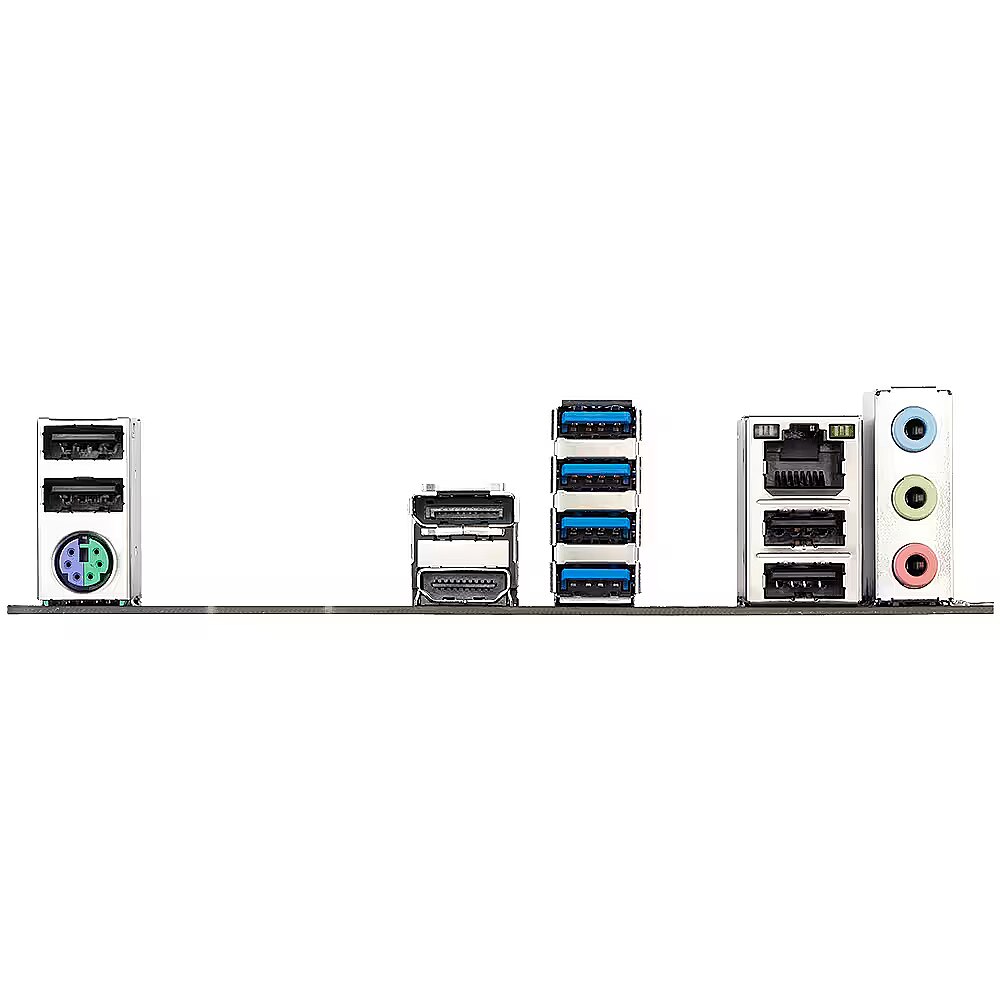

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 27 cm
Shipping Box Height Shipping/Package Box Dimensions - 5.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.777 kg
Shipping Box Width Shipping/Package Box Dimensions - 27 cm
ShortSummaryDescription - GIGABYTE B550M K Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 4733MHz DDR4 (OC), 2xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen1, AMD, Socket AM4, AMD Ryzen™ 5, Socket AM4, 128 GB, DDR4-SDRAM
Socket - SAM4
Storage controllers - Number of HDDs supported - 2
Storage controllers - Number of storage drives supported - 6
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA
Storage controllers - Supported storage drive types - SSD
Technical details - Warranty period - 3 year(s)
Technical details > Net weight - 0.99 kg
Technical details > Producer - Gigabyte
Title - GIGABYTE B550M K Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 4733MHz DDR4 (OC), 2xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen1
title_en - Gigabyte B550M K Motherboard
title_lv - Gigabyte B550M K Mātesplate
title_ru - Gigabyte B550M K Материнская Плата
TPM - Header
Unit Box Height - 0.055
Unit Box Length - 0.27
Unit Box Width - 0.27
Unit Brutto Volume - 0.00401 cubm
Unit Gross Weight - 0.777 kg
Unit Net Weight - 0.62 kg
URL - https://www.gigabyte.com/Motherboard/B550M-K-rev-10#kf
USB 2.0 Input/Output connectors - 4
USB 3.2 Input/Output connectors - 4
Vendor Homepage - www.gigabyte.com/Motherboard/B550M-K-rev-11#kf
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 years
Weight - 0,77
Weight - 0.8
weight - 0.15 kg
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 244 mm
