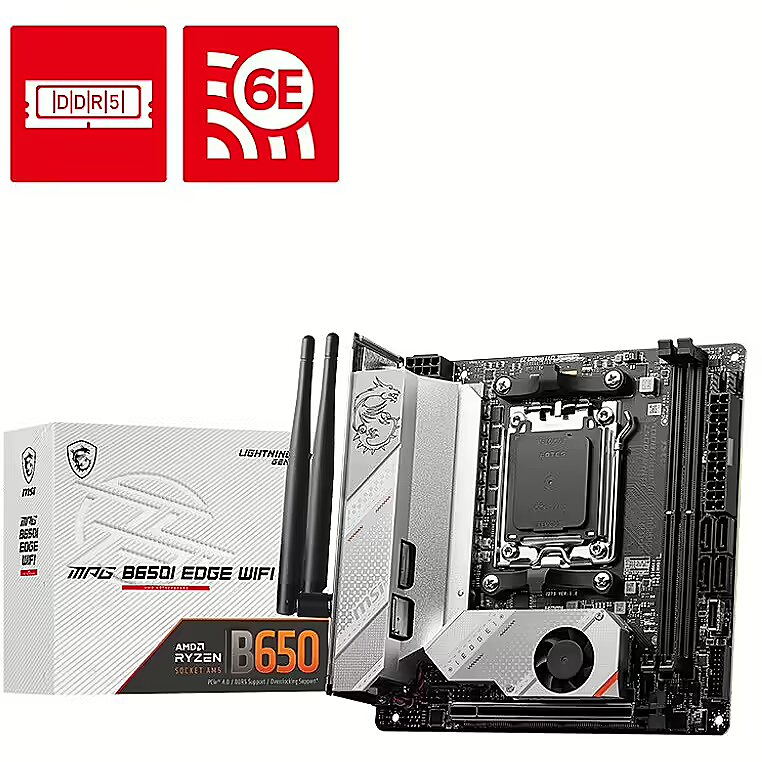

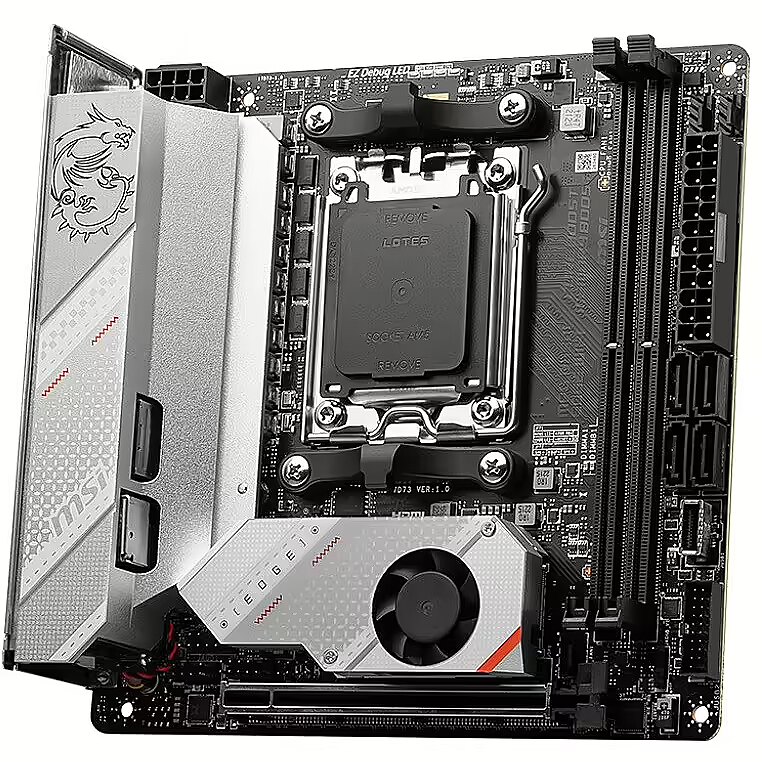

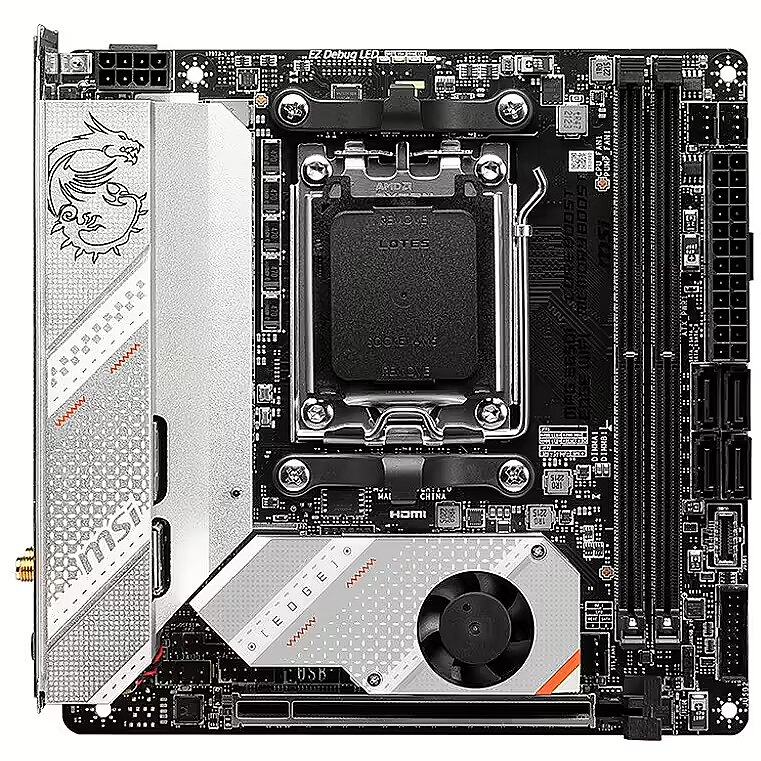

MSI MPG B650I EDGE WIFI

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 923494 Product code: MPG B650I EDGE WIFI
Can be ordered 22 units Availability: 14 days after order approval
Warranty: 2 years
261.72 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: 27.11.2024
Main product parameters All parameters
  • Series: MSI MPG
  • Plate size: mITX
  • Chipset: AMD B650
  • Socket: AM5
  • Type: DDR5
  • RAM Slots: 2
  • Built-in Wi-Fi: Ir
  • M.2 ports: 2
Basic information
Series : MSI MPG
Plate size mITX

The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD B650

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Socket AM5
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Random-access memory (RAM)
Type : DDR5
RAM Slots 2
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support DDR5 5200MHz (6600MHz OC)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card
VGA Port PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics Only with iGPU-ready APU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment
D-Sub : 0
DisplayPort : 0
DVI : 0
HDMI : 1
Integrated sound card : Realtek ALC4080
PCI Ports 0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
Wireless connections
Built-in Bluetooth : Ir
Built-in Wi-Fi : Ir
External ports
External USB 2.0 : Nav
External USB Type-C (USB 3.2 Gen2) : 1
External USB Type-C (USB 4.0) : 0
External USB 3.0 (USB 3.2 Gen1) : 2
External USB 3.1 (USB 3.2 Gen2) : 3
Internal ports
Internal A-RGB 5V (3-pin) : 1
Internal RGB 12V (4-pin) : 0
Internal USB 2.0 : 1
Internal USB 3.0 : 1
Internal USB Type-C : 1
M.2 ports : 2
SATA3 ports : 4
More detailed specification
Additional information in manufacturers website MSI MPG B650I EDGE WIFI
Audio port Input/Output connectors - 3
Bluetooth Interface - Yes
Brand - MSI
BrandPartCode - MPG B650I EDGE WIFI
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM3+
Chipset - AMD B650
code - 7D73-001R
Code - MPG B650I EDGE WIFI
Description - - Supports AMD Ryzen™ 7000 Series Desktop Processors - Supports DDR5 Memory, up to 6600+(OC) MHz - Enhanced Power Design: Direct 8+2+1 VRM power, Core Boost, Memory Boost - Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience - High Quality PCB: 10-layer PCB made by 2oz thickened copper and server grade level material - 2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection - Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2 - DIY Friendly Design: Flash BIOS Button, Pre-installed I/O Shield, Steel Armor - AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
EAN - 4711377010146
ean - 4711377010146
Eans - 4711377010146
EAN_code - 4711377010146
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
Features - Audio chip - Realtek ALC4080
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD B650
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - mini ATX
Features - PC health monitoring - Fan
Features - Product colour - Aluminium, Black
Features - Windows operating systems supported - Windows 10 x64
Form Factor - Mini-ITX
Frequency speed - 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600 MHz
Full Description Line - AMD B650|SAM5|Mini-ITX|DDR5|6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 2|1xPCI-Express 16x|2xM.2|1xHDMI|5xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|SATA|Bluetooth|WiFi|Video Depending on CPU|Audio Realtek ALC4080|LAN 2.5 Gigabit|RAID SATA 0, 1, 10; NVMe 0, 1|TPM Header
Graphics - On-board graphics card - No
Gross weight - 1.64 kg
GTIN - 4711377010146
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC4080
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.msi.com/Motherboard/MPG-B650I-EDGE-WIFI
LongDesc - BE AHEAD, POP YOUR STYLEThe MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.REINFORCED, HEAVY SOLDERED CONNECTIONSMSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.Extended HeatsinkExtended Heatsink enlarges the surface of heat dissipation, ensuring even high- end processors to run in full speed.M.2 Shield FrozrWith double ball bearings fan to keeps M.2 SSDs safe while preventing throttling, making them run faster.7W/mK Thermal PadHigh quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performance.10-Layer Server Grade PCB10-layer PCB with 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.
LongProductName - Mini-ITX, AMD B650 chipset, Socket AM5, 2xDDR5, 7.1ch audio, 2.5-Gigabit LAN, Wi-Fi, Bluetooth 5.2
LongSummaryDescription - MSI MPG B650I EDGE WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen. Supported memory types: DDR5-SDRAM, Maximum internal memory: 64 GB, Supported memory clock speeds: 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz. Supported storage drive interfaces: M.2, SATA, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125B, Top Wi-Fi standard: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: mini ATX, Motherboard chipset family: AMD
M.2 Expansion slots - 2
Manufacturer - MSI
Manufacturer_code - 7D73-001R
Memory - Maximum internal memory - 64 GB
Memory - Non-ECC - Yes
Memory - Number of memory slots - 2
Memory - Supported memory clock speeds - 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory > Memory slots - 2
Memory > Supported memory types - DDR5 DIMM
Memory slots - 2
Memory type - DDR5
Model - MPG B650I EDGE WIFI
Name - MSI MPG B650I EDGE WIFI
name - MSI MPG B650I Edge WiFi, AMD B650 Mainboard - Sockel AM5, DDR5
Name - MSI MPG B650I EDGE WIFI - AM5
Name - MSI | MPG B650I EDGE WIFI | Processor family AMD | Processor socket AM5 | DDR5 DIMM | Memory slots 2 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4 | Chipset AMD B650 | Mini-ITX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.2
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8125B
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 289 mm
Package features > Gross depth master carton - 286 mm
Package features > Gross height (mm) - 225 mm
Package features > Gross height master carton - 370 mm
Package features > Gross width (mm) - 82 mm
Package features > Gross width master carton - 380 mm
Package features > Net weight master carton - 9.665 kg
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 324 pc(s)
Package features > Paper/Pasteboard - 600.00 g
Package features > Plastic (No PET) - 75.00 g
Package features > Tare weight (kg) - 0.68 kg
Package features > Tare weight master carton - 0.684 kg
Package features > TI weight (kg) - 0.05 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.00533205 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - No
PCI-Express 16x Expansion slots - 1
PDF - https://www.blobs.lt/products/9/5/1/5/8/3/3c8c60ab35ed50b6bb81f000d5eae871/original.pdf
Performance > Chipset - AMD B650
Performance > Motherboard form factor - Mini-ITX
Processor - Compatible processor series - AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Processor > Compatible processor series - Supports AMD Ryzen 7000 Series Desktop Processors
Processor > Processor family - AMD
Processor > Processor socket - AM5
Producer - MSI
ProducerCode - MPG B650I EDGE WIFI
Producer product name - MPG B650I EDGE WIFI
ProductName - MPG B650I EDGE WIFI
RAID - SATA 0, 1, 10; NVMe 0, 1

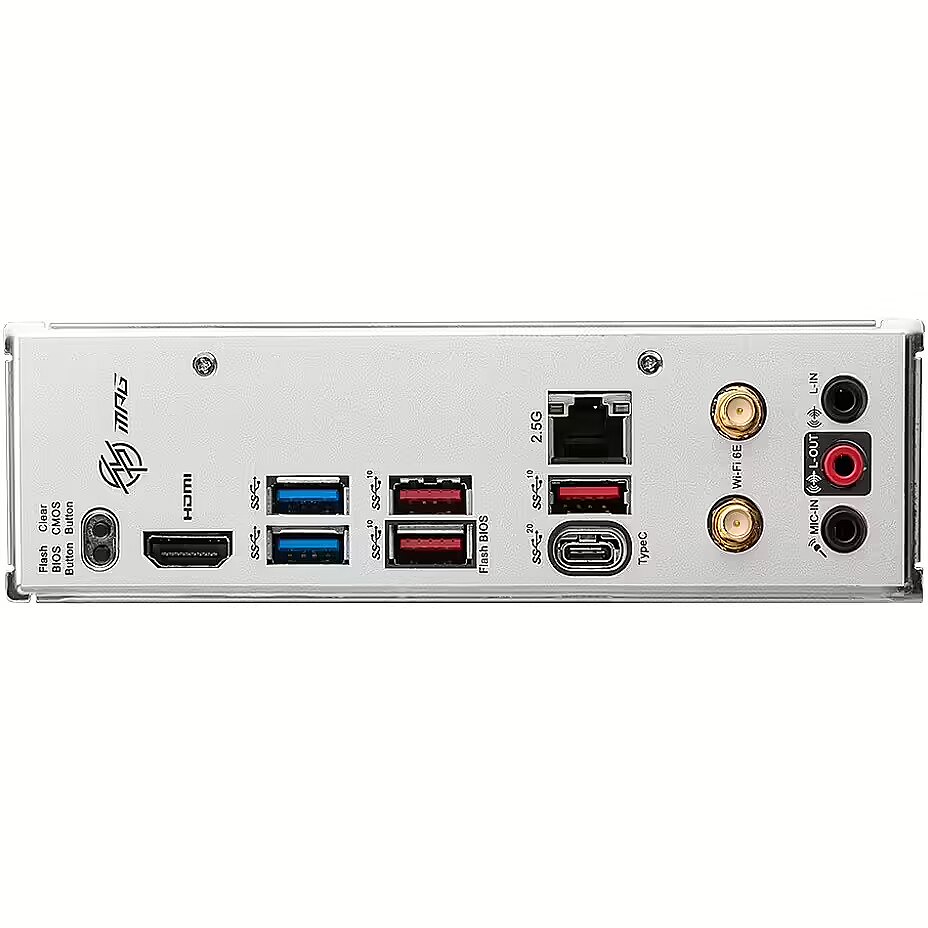

Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 43.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 41 cm
Shipping box quantity - 10
Shipping Box Weight Shipping/Package Box Dimensions - 11.8 kg
Shipping Box Width Shipping/Package Box Dimensions - 26.5 cm
ShortDescription - Socket AM5 | Chipset AMD B650 | DDR5
ShortSummaryDescription - MSI MPG B650I EDGE WIFI, AMD, Socket AM5, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen, Socket AM5, DDR5-SDRAM, 64 GB
Socket - SAM5
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA
Technical details > Net weight - 0.97 kg
Technical details > Producer - MSI
Technical details > Warranty - 24 month(s)
Title - MSI MPG B650I EDGE WIFI motherboard AMD B650 Socket AM5 mini ATX
TPM - Header
Unit Box Height - 0.195
Unit Box Length - 0.235
Unit Box Width - 0.085
Unit Brutto Volume - 0.004726 cubm
Unit Gross Weight - 1.18 kg
Unit Net Weight - 0.7 kg
URL - https://uk.msi.com/Motherboard/MPG-B650I-EDGE-WIFI/Overview
USB-C Input/Output connectors - 1
USB 3.2 Input/Output connectors - 5
Vendor Homepage - www.msi.com/Motherboard/MPG-B650I-EDGE-WIFI
Warranty - 24
Warranty - 36 months
WarrantyInfo -
Weight - 1,09
Weight & dimensions - Depth - 170 mm
Weight & dimensions - Width - 170 mm
WiFi Interface - Yes
