Accessories included -
Audio port Input/Output connectors - 5
BIOS -
BIOS - Clear CMOS jumper - Yes
Brand - MSI
BrandPartCode - MAG B550 TOMAHAWK MAX WiFi
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM4
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category Code - MBA
Chipset - AMD B550
Chipset manufacturer - AMD
Chipset type - AMD B550 Chipset
code - 7C94-043R
Code - MAG B550 TOMAHAWK MAX WIFI
COM connector / port - No
CPU socket - Socket AM4
Description - Conquer the battlefield The MAG series is the result of rigorous quality testing and has been designed as a symbol of robustness and durability. With a focus on providing the best user experience possible, the MAG Series features a simple setup process coupled with a user-friendly interface, making it the best choice for first-time players. Thermal solution for more cores and higher performance For processors with more cores, the thermal and power design is more important to ensure a lower temperature is maintained. MSI's extended PWM heatsink and refined circuit design ensure that even the most powerful CPUs will run at full speed on MSI motherboards. M.2 SHIELD FROZR The world's fastest SSDs can start degrading performance as they heat up. Part of the motherboard's heatsink design, M.2 Shield Frozr is a next-generation M.2 thermal solution that avoids this by offering the best thermal protection to ensure your SSD maintains peak performance. Full control in bios and software MSI motherboards provide speed and temperature management for all system and CPU fans. Total Fan Control allows you to check basic system parameters in a simplified graphical interface. You can also set up to 4 target temperatures for the CPU and motherboard, which will automatically adjust the fan speed. Optimized for water cooling Designed to support the most popular universal and custom water cooling solutions on the market. Dedicated water pump PIN header supports up to 3 amps, giving you full control over water pump speed. A clearly marked inaccessible zone allows for easy and safe installation and a perfect fit. 10 + 2 + 1 duo rail power system Unleash and maintain peak performance with an aggressive VRM design built with a total of 10 digital CPU power stages. Combining the exclusive Core Boost technology, the MAG series motherboard is ready to withstand heavy gaming loads. Core reinforcement Core Boost technology combines MSI's superior circuitry and digital power design to deliver faster and undistorted power to the CPU with the utmost precision. This creates ideal conditions for a multi-core processor when working with heavy loads. Load line calibration What you set is what you get. LLC ensures that CPU voltage remains 100% stable under any load. This greatly improves stability when more CPU performance is required. High voltage protection Prevents potential damage to the CPU and other critical components due to a short circuit. Digital power design The all-digital design of the power supply allows faster and uninterrupted power delivery to the processor with the highest precision. Creating ideal conditions for overclocking the processor. 1 second overclock! MSI Game Boost enables one-second overclocking, giving you the performance boost you need to get more FPS. Extreme stability and compatibility tests MSI conducts thorough memory tests with the most popular memory brands under extreme conditions to ensure your system will run stably no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more that optimize memory modules, configurations and even improve overclocking. A giant leap in DDR performance MSI OC LAB not only works hard on extreme overclocking. Compared with the A-XMP memory profile of the B450 motherboard, MSI has greatly improved the performance and efficiency of the B550 motherboards. Easy-to-enable A-XMP profile with automatic power settings for the best memory speed and stability. Easy overclocking with the A-XMP profile A-XMP in MSI BIOS are tested and certified by MSI OC LAB. It can be easily turned on with automatic power settings for the best memory speed and stability. High bandwidth, low latency network 2.5Gbps LAN provides incredible data transfer speeds, faster than regular Gigabit LAN. This is a premium solution for demanding users. Surface with true MU-MIMO technology The latest Wi-Fi 6E solution supports the 6GHz band, Bluetooth 5.2, two-way MU-MIMO and BSS color technologies, providing up to 4x faster network bandwidth and performance in a high signal density environment, providing speeds up to 2400 Mbps. Optimize your online gaming traffic to reduce latency! MSI LAN Manager automatically classifies and prioritizes latency-sensitive online gaming applications for the best low-latency online gaming experience. MSI LAN MANAGER Automatically prioritizes games over other apps Allows you to change the priority of application traffic It allows you to adjust the bandwidth for each application MAG B550 TOMAHAWK MAX WIFI Supports AMD Ryzen 5000 series, 5000 G series, 4000G series and 3000 series Supports DDR4 memory, up to 5100+(OC) MHz Lightning-fast gaming speed: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2 Ultimate thermal solution: Extended heatsink design with an additional 7W/mk choke thermal pad and 2oz thickened copper PCB are built for high system performance and uninterrupted gameplay. Improved Power Design: 10+2+1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 Boost. 2.5G LAN and AMD Wi-Fi 6E solution: Enhanced networking solution for professional and multimedia use. It provides a secure, stable and fast network connection. Pre-installed I/O shield: better EMI protection and installation convenience. Audio Enhancement: Reward your ears with studio-quality sound for the most immersive gaming experience. Multi-GPU: With Steel Armor PCI-E slots. Supports AMD Crossfire
Description - he MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.
Detailed data on disk/drive interfaces - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
dimensionalWeight - 1304
dimension depth - 70 mm
dimension height - 270 mm
Dimensions - 30.5 x 24.4 cm
dimension weight - 1777 g
dimension width - 345 mm
DisplayPort Input/Output connectors - 1
EAN - 4719072957957
ean - 4719072957957
Eans - 4719072957957
Expansion slots - 1 x PCIe 3.0 x 16
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 2 x PCIe 3.0 x 1
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x1 (Gen 3.x) slots - 2
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1

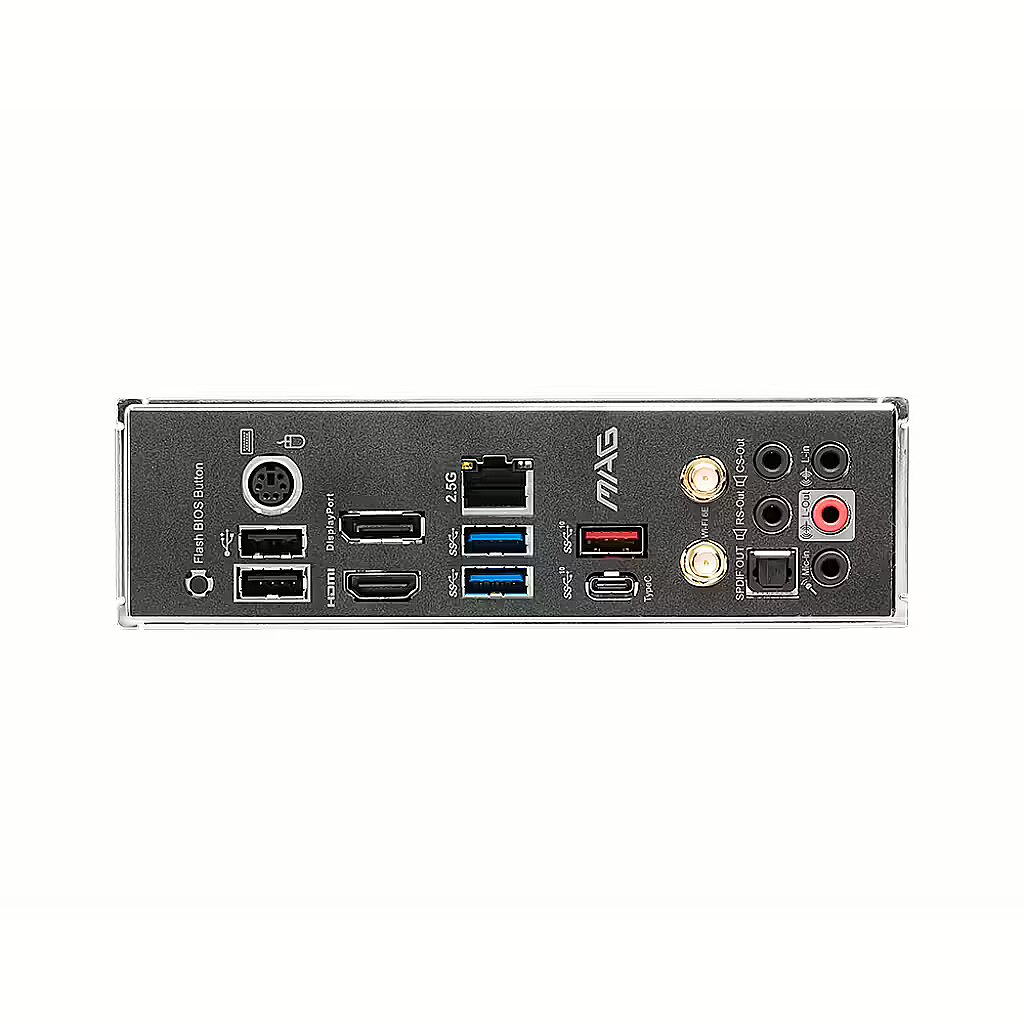

External connectors - 1 x DisplayPort
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x Rear Speaker
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 1 x Side Speaker
External connectors - 1 x USB 3.1
External connectors - 1 x USB 3.1 Type-C
External connectors - 2 x USB 2.0
External connectors - 2 x USB 3.0
Features - Audio chip - Realtek ALC1200
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD B550
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - Number of mounting holes - 9
Features - Windows operating systems supported - Windows 10 x64
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 1866/2133/2400/2666/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133/4266/4400/4533/4733/4800/4866/5000/5100 MHz
Full Description Line - AMD B550|SAM4|ATX|DDR4|5100/5000/4866/4800/4733/4533/4400/4266/4133/4000/3866/3733/3600/3466/3200/3066/3000/2933/2800/2666/2400/2133/1866 MHz|Memory slots 4|2xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xPCI-Express 4.0 16x|2xM.2|1xHDMI|1xDisplayPort|1xUSB 2.0|2xUSB 3.2|1xUSB-C|1xPS/2|1xOptical S/PDIF|1xRJ45|5xAudio port|SATA|USB 2.0|USB 3.2|WiFi|Video Depending on CPU|Audio Realtek ALC897|LAN 2.5 Gigabit|RAID SATA 0, 1, 10|TPM
Graphics - 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1 2 Support HDCP 1.4 & 2.3 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1 Maximum shared memory of 16GB
Graphics - Maximum graphics card memory - 16000 MB
Graphics - Maximum resolution - 4096 x 2160 pixels
Graphics - Parallel processing technology support - 2-Way CrossFireX
Gross weight - 1.63 kg
GTIN - 4719072957957
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC897
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 6
Internal I/O - Number of SATA III connectors - 6
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O > Number of SATA connectors - 6
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.msi.com/Motherboard/MAG-B550-TOMAHAWK-MAX-WIFI
LongDesc - Conquer the BattlefieldThe MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCEWith more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards.LIGHTNING GEN 4 M.2Utilizing 3rd Gen Ryzen processors, MSI B550 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.HIGH-BANDWIDTH AND LOW-LATENCY NETWORK2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
LongProductName - AMD B550, AM4, 4x DDR4, HDMI, DP, SATA III, M.2, USB 3.2, 1/2.5G LAN, WIFI, PS/2, S/PDIF, ATX, 305x244 mm
LongSummaryDescription - MSI MAG B550 TOMAHAWK MAX WIFI. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Parallel processing technology support: 2-Way CrossFireX, Maximum graphics card memory: 16000 MB, Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8111H, Realtek RTL8125B
LPT connector / port - No
M.2 Expansion slots - 2
Manufacturer - MSI
Max. number of SATA devices - 6
Max memory size - 128 GB
Memory - ECC - Yes
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speeds - 1866
Memory - Supported memory clock speeds - 1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400,4533,4600,4733,5100 MHz
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2667
Memory - Supported memory clock speeds - 2800
Memory - Supported memory clock speeds - 2933
Memory - Supported memory clock speeds - 3000
Memory - Supported memory clock speeds - 3066
Memory - Supported memory clock speeds - 3200
Memory - Supported memory clock speeds - 3466
Memory - Supported memory clock speeds - 3600
Memory - Supported memory clock speeds - 3733
Memory - Supported memory clock speeds - 3866
Memory - Supported memory clock speeds - 4000
Memory - Supported memory clock speeds - 4133
Memory - Supported memory clock speeds - 4266
Memory - Supported memory clock speeds - 4400
Memory - Supported memory clock speeds - 4533
Memory - Supported memory clock speeds - 4600
Memory - Supported memory clock speeds - 4733 MHz
Memory - Supported memory clock speeds - 5100 MHz
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 4
Memory > Supported memory types - DDR4 DIMM
Memory bus frequency - 1866 MHz
Memory bus frequency - 2133 MHz
Memory bus frequency - 2400 MHz
Memory bus frequency - 2667 MHz
Memory bus frequency - 2800 MHz
Memory bus frequency - 2933 MHz
Memory bus frequency - 3000 MHz
Memory bus frequency - 3066 MHz
Memory bus frequency - 3200 MHz
Memory slots - 4
Memory type - DDR4
Memory type - DDR4
Model - MAG B550 TOMAHAWK MAX WIFI
MPN - 7C94-043R
Name - AM4 MSI B550 TOMAHAWK MAX WIFI
name - Motherboard MAG B550 TOMAHAWK MAX WIFI AM4 4DDR4 HDMI/DP 2M.2 ATX
Name - MSI MAG B550 TOMAHAWK MAX WIFI
name - MSI MAG B550 Tomahawk Max WiFi, AMD B550 Mainboard - Sockel AM4
Name - MSI | MAG B550 TOMAHAWK MAX WIFI | Processor family AMD | Processor socket AM4 | DDR4 DIMM | Memory slots 4 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 6 | Chipset AMD B550 | ATX
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet interface type - 2.5 Gigabit Ethernet, Gigabit Ethernet
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8111H
Network - LAN controller - Realtek RTL8111H, Realtek RTL8125B
Network - LAN controller - Realtek RTL8125B
Network - Wi-Fi - No
Network interface - Bluetooth
Network interface - Realtek RTL8125B 2.5Gbps LAN controller
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax
Number of DDR4 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 2
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS button
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 2.0/1.1 header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x M.2
Onboard connectors - 2 x System panel header
Onboard connectors - 6 x 4pin wentylator obudowy
Onboard connectors - 6 x SATA III 6Gb/s
Optical S/PDIF Input/Output connectors - 1
Other information -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 268.00 mm
Package features > Gross depth master carton - 286 mm
Package features > Gross height (mm) - 342.00 mm
Package features > Gross height master carton - 370 mm
Package features > Gross width (mm) - 86.00 mm
Package features > Gross width master carton - 380 mm
Package features > Net weight master carton - 9.665 kg
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 219 pc(s)
Package features > Paper/Pasteboard - 600.00 g
Package features > Plastic (No PET) - 75.00 g
Package features > Tare weight (kg) - 0.68 kg
Package features > Tare weight master carton - 0.684 kg
Package features > TI weight (kg) - 0.05 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - No
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
PCI-Express 3.0 1x Expansion slots - 2
PCI-Express 3.0 16x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
Performance > Chipset - AMD B550
Performance > Motherboard form factor - ATX
Processor - Compatible processor series - 3rd Generation AMD Ryzen 5
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 3
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 7
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 9
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM4
Processor - Supported processor sockets - Socket AM4
Processor > Compatible processor series - Supports AMD Ryzen 5000 Series, 5000-G Series, 4000-G Series and 3000 Series desktop Processors
Processor > Processor family - AMD
Processor > Processor socket - AM4
Processor family - AMD Ryzen 3
Processor family - AMD Ryzen 5
Processor family - AMD Ryzen 7
Processor family - AMD Ryzen 9
producer - MSI
Producer - MSI
producerCode - 7C94-043R
ProducerCode - MAG B550 TOMAHAWK MAX WIFI
Producer product name - MAG B550 TOMAHAWK MAX WIFI
ProductName - MAG B550 TOMAHAWK MAX WIFI
productName - MSI MAG B550 TOMAHAWK MAX WIFI AMD B550 Socket AM4 ATX
productSize - Normal
PS/2 Input/Output connectors - 1
RAID - SATA 0, 1, 10
RAID - Yes
Rear panel I/O ports - Digital audio optical out - 1
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 2
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 34.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 7 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.751 kg
Shipping Box Width Shipping/Package Box Dimensions - 27 cm
ShortDescription - Socket AM4 | Chipset AMD B550
ShortSummaryDescription - MSI MAG B550 TOMAHAWK MAX WIFI, AMD, Socket AM4, 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd..., Socket AM4, DDR4-SDRAM, 128 GB
sizeX - 345
sizeY - 70
sizeZ - 270
Socket - SAM4
Software -
Sound card - Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Special functions -
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 10
Storage controllers - Supported storage drive interfaces - SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Net weight - 0.95 kg
Technical details > Producer - MSI
Title - MSI MAG B550 TOMAHAWK MAX WIFI AMD B550 Socket AM4 ATX
TPM - Yes
Unit Box Height - 0.07
Unit Box Length - 0.345
Unit Box Width - 0.27
Unit Brutto Volume - 0.006521 cubm
Unit Gross Weight - 1.75 kg
Unit Net Weight - 1.2 kg
URL - https://www.msi.com/Motherboard/MAG-B550-TOMAHAWK-MAX-WIFI/Overview
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 1
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 2
USB 3.2 Interface - Yes
USB ports at back panel - 6
USB ports on motherboard - 10
Vendor Homepage - www.msi.com/Motherboard/MAG-B550-TOMAHAWK-MAX-WIFI
vendpn - MAG B550 TOMAHAWK MAX WIFI
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 1.72
weight - 1750
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
WiFi Interface - Yes
