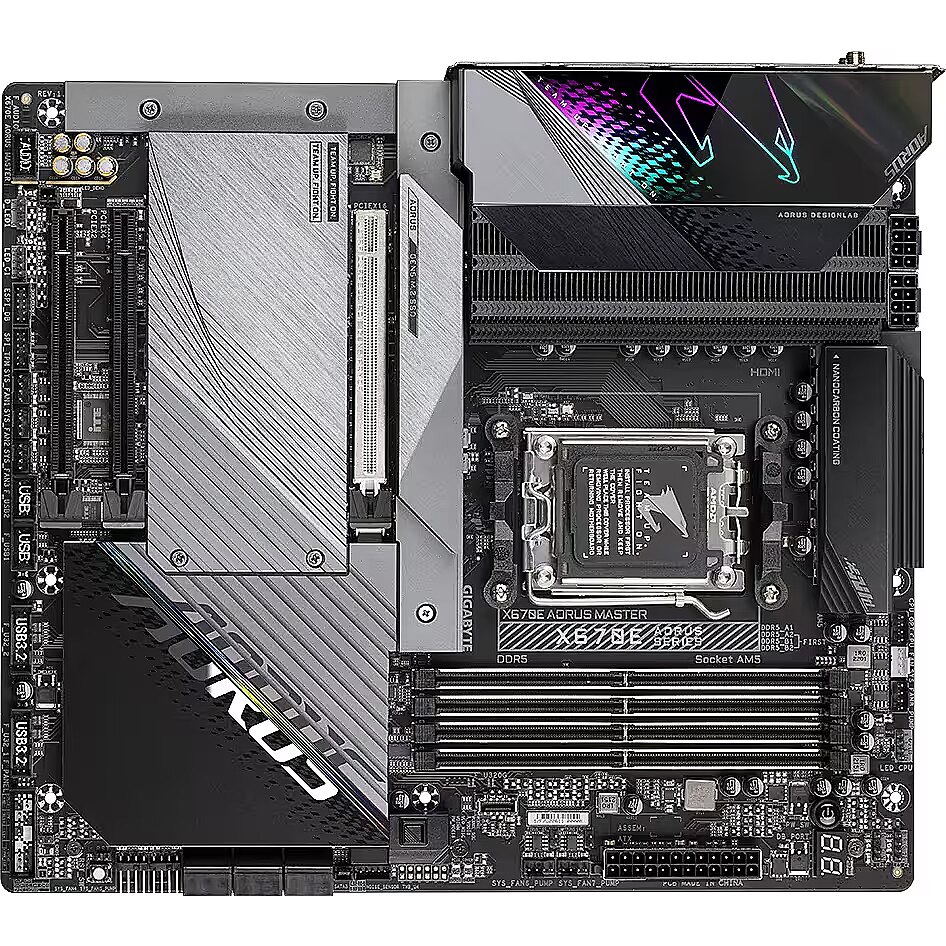

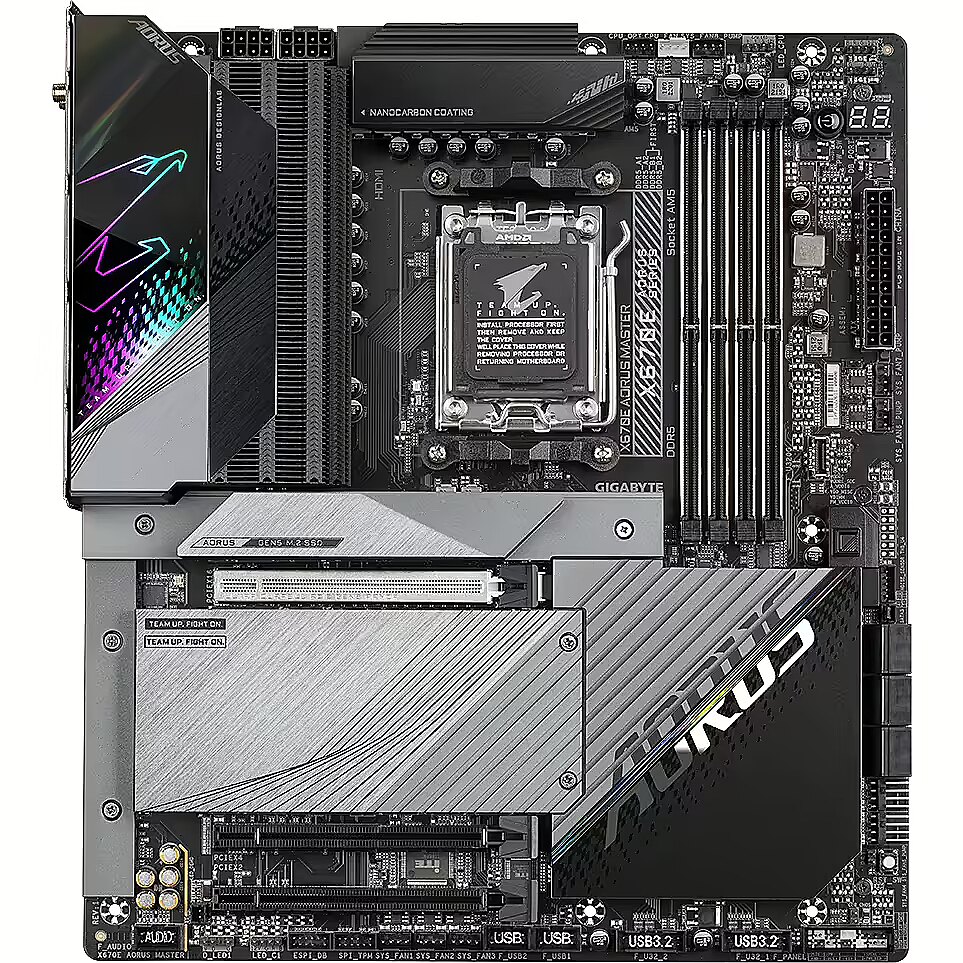

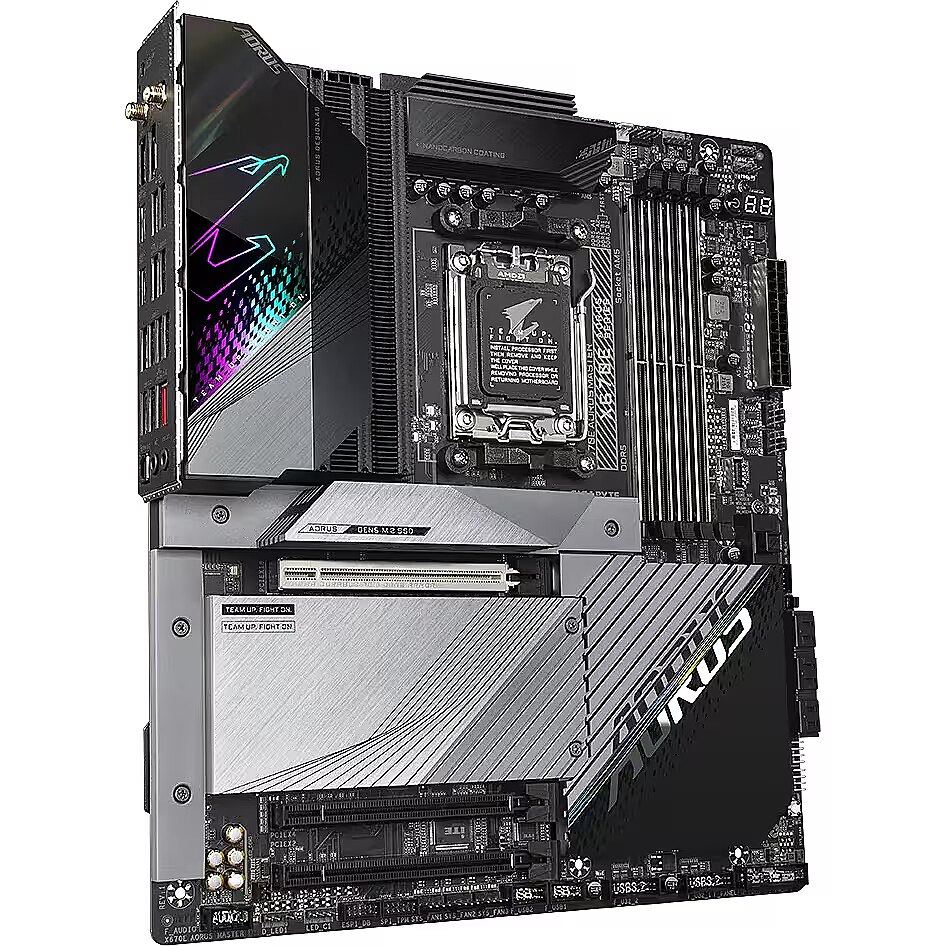

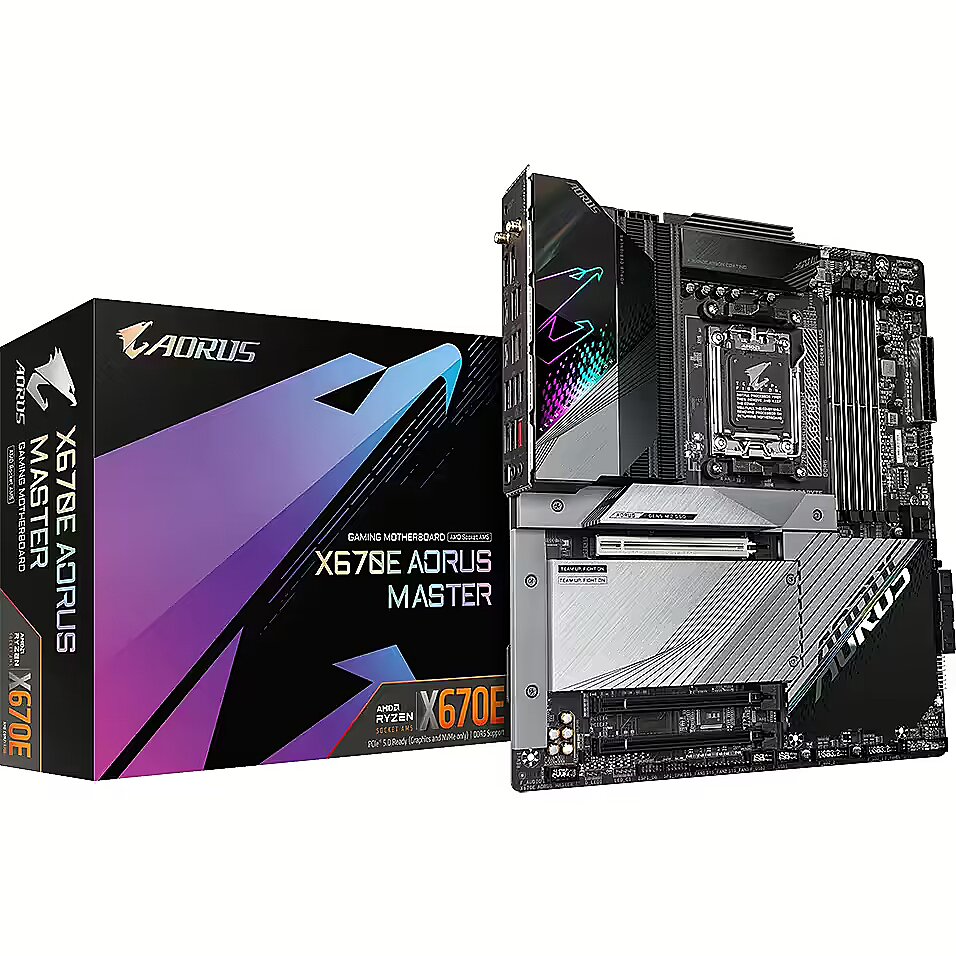

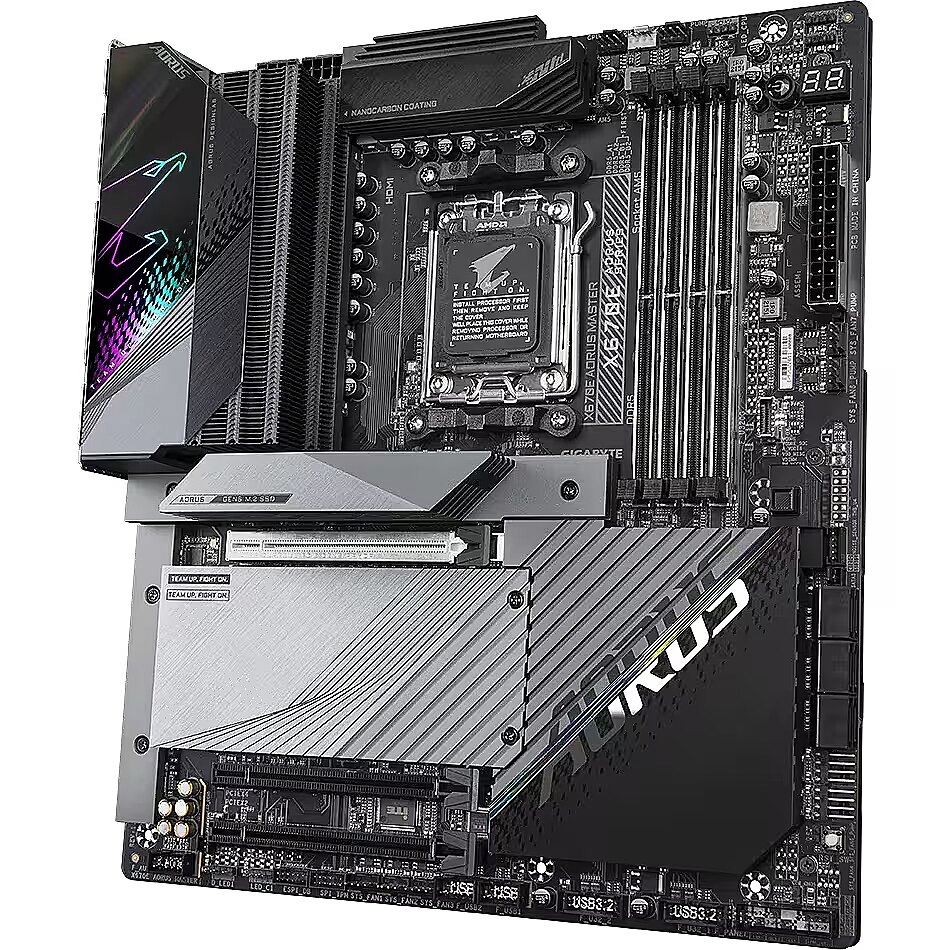

Gigabyte X670E AORUS MASTER

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 893756 Product code: X670E AORUS MASTER
Can be ordered 26 units Availability: 14 days after order approval
Warranty: 2 years
1,216.60 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: 11.12.2024
Main product parameters All parameters
  • Series: Gigabyte AORUS
  • Plate size: ATX
  • Chipset: AMD X670E
  • Socket: AM5
  • Type: DDR5
  • RAM Slots: 4
  • Built-in Wi-Fi: Ir
  • M.2 ports: 4
Basic information
Series : Gigabyte AORUS
Plate size ATX

The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD X670E

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Socket AM5
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Random-access memory (RAM)
Type : DDR5
RAM Slots 4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support DDR5 5200MHz

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card
VGA Port PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics Only with iGPU-ready APU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment
D-Sub : 0
DisplayPort : 1
DVI : 0
HDMI : 1
Integrated sound card : Realtek ALC1220
PCI Ports 0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
Wireless connections
Built-in Bluetooth : Ir
Built-in Wi-Fi : Ir

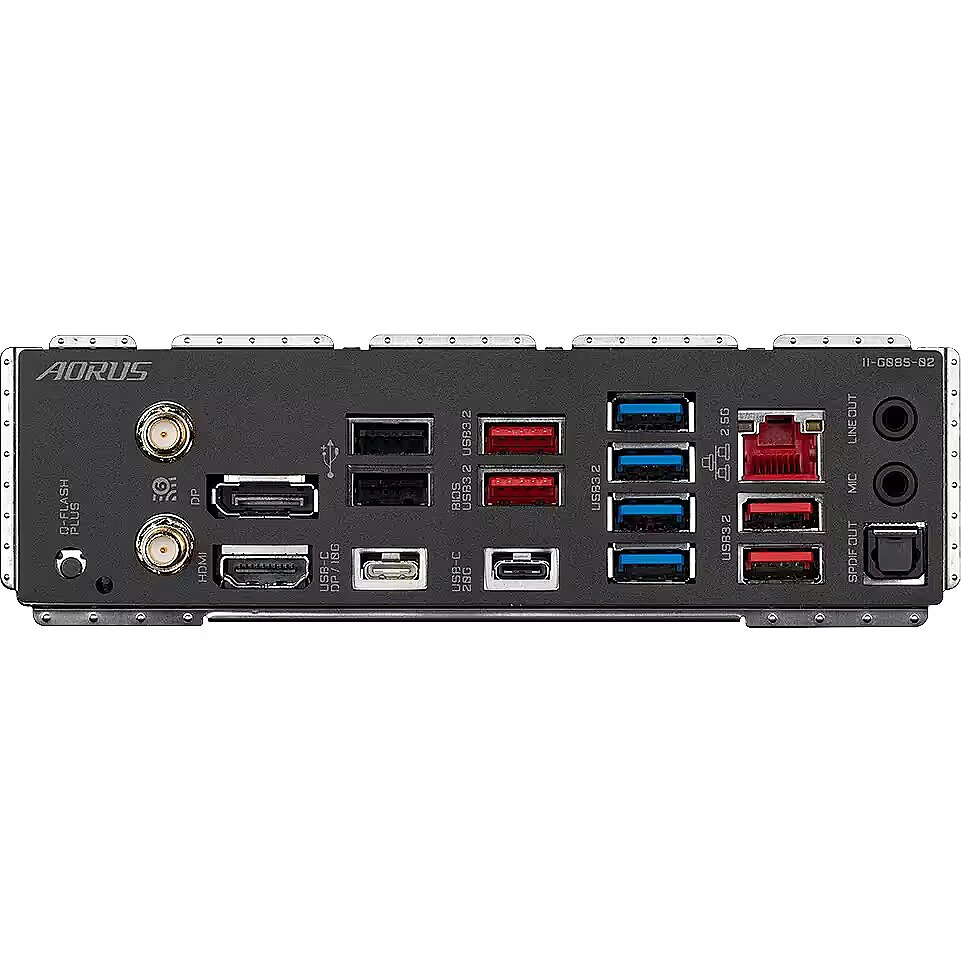

External ports
External USB 2.0 : 2
External USB Type-C (USB 3.2 Gen2) : 2
External USB Type-C (USB 4.0) : 0
External USB 3.0 (USB 3.2 Gen1) : 4
External USB 3.1 (USB 3.2 Gen2) : 4
Internal ports
Internal A-RGB 5V (3-pin) : 2
Internal RGB 12V (4-pin) : 2
Internal USB 2.0 : 2
Internal USB 3.0 : 2
Internal USB Type-C : 1
M.2 ports : 4
SATA3 ports : 6
Power supply units (PSU)
More detailed specification
Additional information in manufacturers website Gigabyte X670E AORUS MASTER
Accessories included -
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Brand - GIGABYTE
BrandPartCode - X670E AORUS MASTER
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM3+
Chipset - AMD X670
Chipset manufacturer - AMD
Chipset type - AMD X670
code - X670E AORUS MASTER
Code - X670E AORUS MASTER
CPU socket - Socket AM5
Description - Unparalleled performance TWIN Digital VRM design PCIe 5.0 design EXPO and XMP support Active OC Tuner With rapid changes in technology, GIGABYTE is always keeping up with the latest trends and providing customers with advanced features and the latest technology. GIGABYTE motherboards are equipped with an enhanced power solution, the latest storage standards and exceptional connectivity to ensure optimised gaming performance. Superb thermal design Thermal design Flipper III layout Thermal Guard III Intelligent fan 6 The unparalleled performance of GIGABYTE motherboards is guaranteed by an innovative and optimised thermal design to ensure the best CPU, chipset, SSD stability and low temperatures under full application load and gaming performance. Connectivity Wi-Fi 802.11ax 6E 2.5GbE LAN Rear and front USB-C 20Gb/s port USB-C 10 Gb/s with alternative DP mode Hi-Fi sound GIGABYTE motherboards include several useful and intuitive programs to help users control every aspect of the motherboard and provide customisable lighting effects with unique aesthetics to match your unique personality. Extremely robust DIY-friendly Q-Flash Plus GIGABYTE Ultra Durable design ensures product durability and a high quality manufacturing process. GIGABYTE motherboards use the finest components and reinforce each socket to make each one robust and durable.
Description - X670E AORUS MASTER (rev. 1.1) AMD Socket AM5 : Supports AMD Ryzen™ 7000 Series Processors Unparalleled Performance : Twin 16+2+2 Phases Digital VRM Solution Dual Channel DDR5 : 4*SMD DIMMs with EXPO & XMP Memory Module Support Next Generation Storage : 2*PCIe 5.0 x4 and 2*PCIe 4.0 x4 M.2 Connectors Fins-Array III & M.2 Thermal Guard III : To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance EZ-Latch Plus : SMD PCIe 5.0 x16 Slot & M.2 Connectors with Quick Release & Screwless Design Hi-Fi Audio with DTS : X® Ultra : ALC1220 CODEC Fast Networks : Intel 2.5GbE LAN & Intel® Wi-Fi 6E 802.11ax Extended Connectivity : DP, HDMI, USB-C with DP Alt Mode, Dual USB-C 20Gbps and Upcoming GIGABYTE USB4 AIC Support Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card * Actual support may vary by CPU.
Detailed data on disk/drive interfaces - RAID 0, RAID 1, RAID 10
dimension depth - 90 mm
dimension height - 300 mm
Dimensions -  30.5 x 26.9 cm
dimension weight - 2970 g
dimension width - 350 mm
DisplayPort Input/Output connectors - 1
EAN - 889523033272
ean - 4719331844363
EAN - 4719331844363
Eans - 4719331844363
EAN_code - 4719331844363
Expansion slots - 1 x PCIe 3.0 x 2
Expansion slots - 1 x PCIe 4.0 x 4
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - Number of M.2 (M) slots - 4
Expansion slots - PCI Express x1 (Gen 4.x) slots - 1
Expansion slots - PCI Express x4 (Gen 2.x) slots - 1
External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line Out (front)
External connectors - 1 x MIC (front)
External connectors - 1 x Q-Flash Plus button
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 2 x SMA
External connectors - 2 x USB 2.0
External connectors - 2 x USB 3.1 Type-C
External connectors - 4 x USB 3.0
External connectors - 4 x USB 3.1
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD X670
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - Product colour - Black
Features - Windows operating systems supported - Windows 10 Home x64, Windows 11 x64
Form factor - E-ATX
Form Factor - EATX
Frequency speed - 4400/4800/5200 MHz
Full Description Line - AMD X670|SAM5|EATX|DDR5|5200/4800/4400 MHz|Memory slots 4|1xPCI-Express 3.0 2x|1xPCI-Express 4.0 4x |1xPCI-Express 5.0 16x|4xM.2|1xHDMI|1xDisplayPort|1xAudio-In|1xAudio-Out|2xUSB 2.0|4xUSB 3.2|2xUSB-C|1xOptical S/PDIF|1xRJ45|2xRF-Out|SATA|Video|Audio|LAN 2.5 Gigabit|RAID SATA 0, 1, 10|TPM Header
Graphics - Integrated graphics processor: 1 x DisplayPort supporting a maximum resolution of 3840x2160@144 Hz DisplayPort 1.4 and HDR support. 1 x USB Type-C port, supporting USB 3.2 Gen 2 and DisplayPort video output and a maximum resolution of 3840x2160@144 Hz DisplayPort 1.4 and HDR support. 1 x HDMI port supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.0 and HDCP 2.3.
Graphics - DirectX version - 12.0
Graphics - HDCP - Yes
Graphics - Parallel processing technology support - Not supported
Gross Weight Kg - 3,33
GTIN - 4719331844363
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Yes
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Yes
Internal I/O - Audio connector - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 6
Internal I/O - RGB LED pin header - Yes
Internal I/O - Total number of SATA connectors - 6
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2x2 connectors - 1
Logistics data - Country of origin - Taiwan
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
LongProductName - Socket AM5, AMD X670, 4 x DDR5, Wi-Fi 6E, Bluetooth 5.3, 6 x SATA III, HDM, RJ-45, E-ATX
LongSummaryDescription - GIGABYTE X670E AORUS MASTER Motherboard - Supports AMD Ryzen 8000 Series AM5 CPUs, 16*+2+2 Phases Digital VRM, up to 8000MHz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen™ 7. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA II, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
M.2 Expansion slots - 4
Manufacturer - GigaByte
Manufacturer Code - X670E AORUS MASTER
Manufacturer Name - Gigabyte
Manufacturer_code - X670E AORUS MASTER
Max. number of SATA devices - 6
Max memory size - 128 GB
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8000 MHz
Memory - Supported memory clock speeds - 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory bus frequency - 4400 MHz
Memory bus frequency - 4800 MHz
Memory bus frequency - 5200 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - X670E AORUS MASTER (rev. 1.1)
Model - X670E AORUS MASTER
Name - Gigabyte X670E AORUS MASTER
name - GIGABYTE X670E AORUS Master, AMD X670E-Mainboard - Sockel AM5
Name - GigaByte X670E AORUS MASTER - AM5
Name - Gigabyte X670E AORUS MASTER motherboard
name - X670E AORUS MASTER AM5 4DDR5 HDMI/DP EATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Network - WLAN controller model - Intel Wi-Fi 6E AX210
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Intel Wi-Fi 6E AX210
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 4
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin Chassis fan
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Power button
Onboard connectors - 1 x Power led header
Onboard connectors - 1 x Reset button
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB C
Onboard connectors - 1 x Voltage measurement module
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x temperature sensor
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 4 x M.2
Onboard connectors - 6 x SATA III 6Gb/s
Optical S/PDIF Input/Output connectors - 1
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 344 mm
Package features > Gross height (mm) - 79 mm
Package features > Gross width (mm) - 293 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 339 pc(s)
Package features > Tare weight (kg) - 0.01 kg
Package features > Volume (m3) - 0.007962568 m³
Package features > WEEE tax - No
Packaging content - Batteries included - Yes
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
Packaging data - Package depth - 335 mm
Packaging data - Package height - 430 mm
Packaging data - Package weight - 3.33 kg
Packaging data - Package width - 400 mm
PCI-Express 3.0 2x Expansion slots - 1
PCI-Express 4.0 4x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - AMD Ryzen™ 7
Processor - Maximum internal memory supported by processor - 192 GB
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Processor family - AMD Ryzen
producer - Gigabyte
Producer - Gigabyte
ProducerCode - X670E AORUS MASTER (rev. 1.0)
ProductName - X670E AORUS MASTER Motherboard - Supports AMD Ryzen 8000 Series AM5 CPUs, 16*+2+2 Phases Digital VRM, up to 8000MHz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen2
RAID - SATA 0, 1, 10
RAID - Yes
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.0
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
RF-Out Input/Output connectors - 2
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 41 cm
Shipping Box Height Shipping/Package Box Dimensions - 36.5 cm
Shipping box quantity - 4
Shipping Box Weight Shipping/Package Box Dimensions - 13.3 kg
Shipping Box Width Shipping/Package Box Dimensions - 33.5 cm
Short description - GIGA X670E AORUS MASTER AM5/DDR5/ATX
ShortDescription - Socket AM5 | Chipset AMD X670E | DDR5
ShortSummaryDescription - GIGABYTE X670E AORUS MASTER Motherboard - Supports AMD Ryzen 8000 Series AM5 CPUs, 16*+2+2 Phases Digital VRM, up to 8000MHz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen2, AMD, Socket AM5, AMD Ryzen™ 7, Socket AM5, 192 GB, DDR5-SDRAM
Socket - SAM5
Software -
Sound card - Kodek Realtek ALC1220-VB
Wyjście liniowe na tylnym panelu obsługuje dźwięk DSD. Wsparcie dla DTS:X Ultra Dźwięk wysokiej jakości Wyjście 2/4/5,1/7.1-kanałowe
Możesz zmienić funkcjonalność gniazda audio za pomocą oprogramowania audio. Aby skonfigurować dźwięk 7.1-kanałowy, uzyskaj dostęp do oprogramowania audio, aby uzyskać ustawienia dźwięku. Obsługa wyjścia S/PDIF
Special functions - Support for GIGABYTE Control Center (GCC) The applications available in GCC may vary depending on the motherboard model. The supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for intelligent backup
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 10
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - Supported storage drive interfaces - M.2, SATA II
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details - Warranty period - 3 year(s)
Technical details > Gross weight - 2.01 kg
Technical details > Net weight - 2 kg
Technical details > Producer - Gigabyte
Title - GIGABYTE X670E AORUS MASTER Motherboard - Supports AMD Ryzen 8000 Series AM5 CPUs, 16*+2+2 Phases Digital VRM, up to 8000MHz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen2
TPM - Header
Unit Brutto Volume - 0.01253 cubm
Unit Gross Weight - 3.33 kg
Unit Net Weight - 1.8 kg
URL - https://www.gigabyte.com/Motherboard/X670E-AORUS-MASTER-rev-10#kf
USB-C Input/Output connectors - 2
USB 2.0 Input/Output connectors - 2
USB 3.2 Input/Output connectors - 4
USB ports at back panel - 12
USB ports on motherboard - 5
Vendor Homepage - www.gigabyte.com/Motherboard/X670E-AORUS-MASTER-rev-10#kf
vendpn - X670E AORUS MASTER
Warranty - 24
Warranty - 24 month(s)
Warranty - 36 months
WarrantyInfo - 3 years
Weight - 2,95
Weight & dimensions - Depth - 269 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 305 mm
1,216.60 €
Gigabyte X670E AORUS MASTER
Intel technology provider Platinum 2020
All categories
