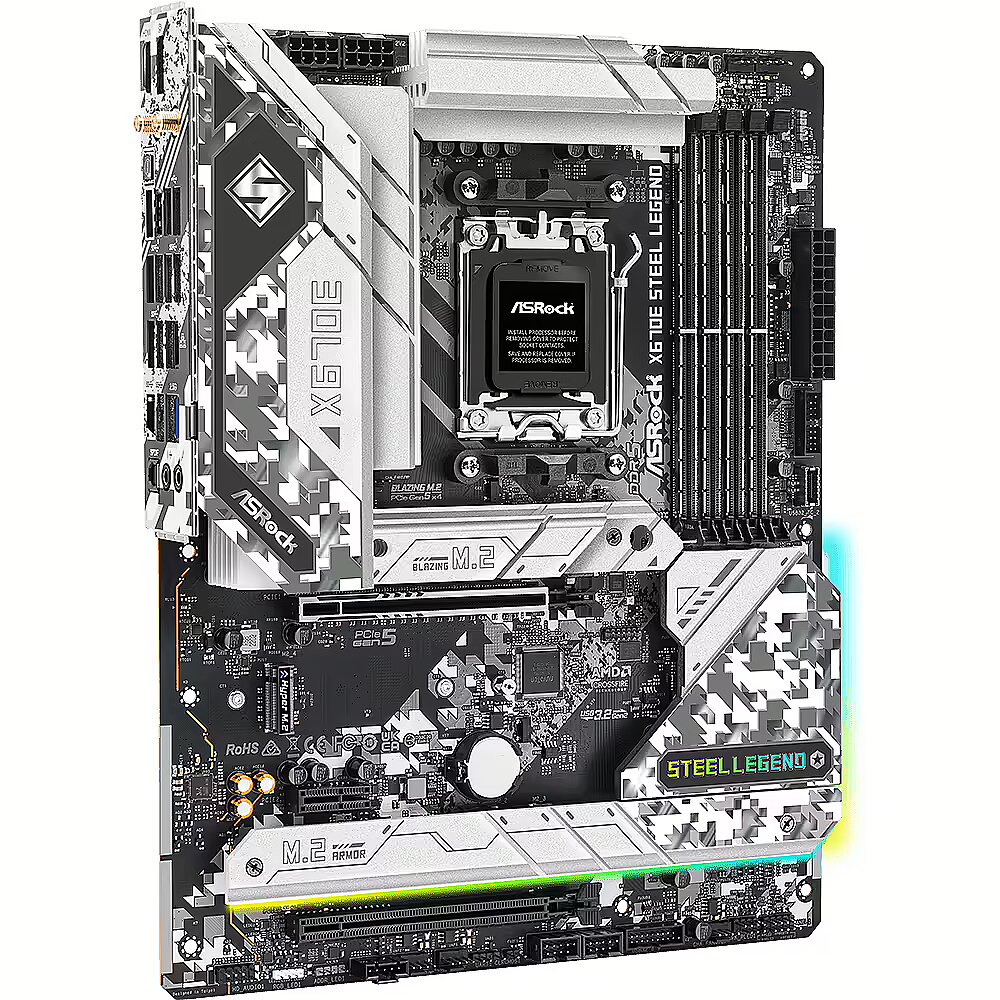

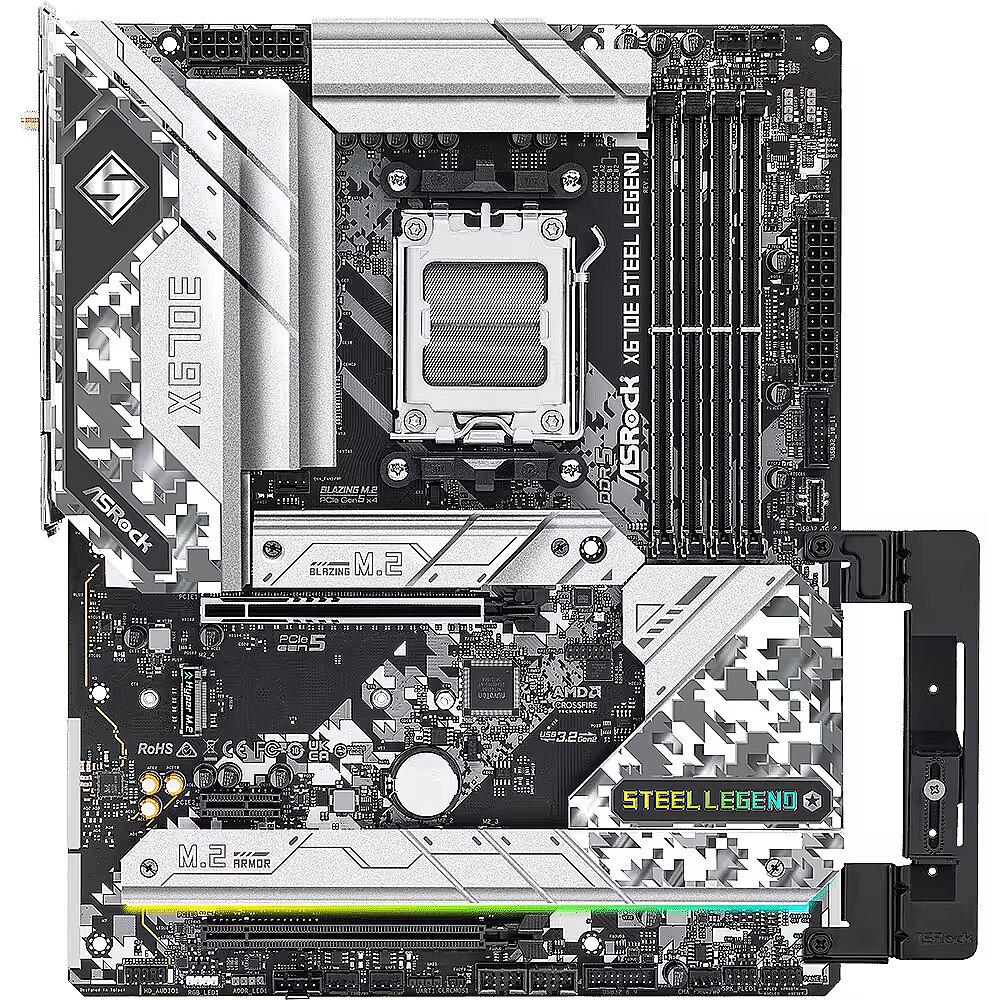

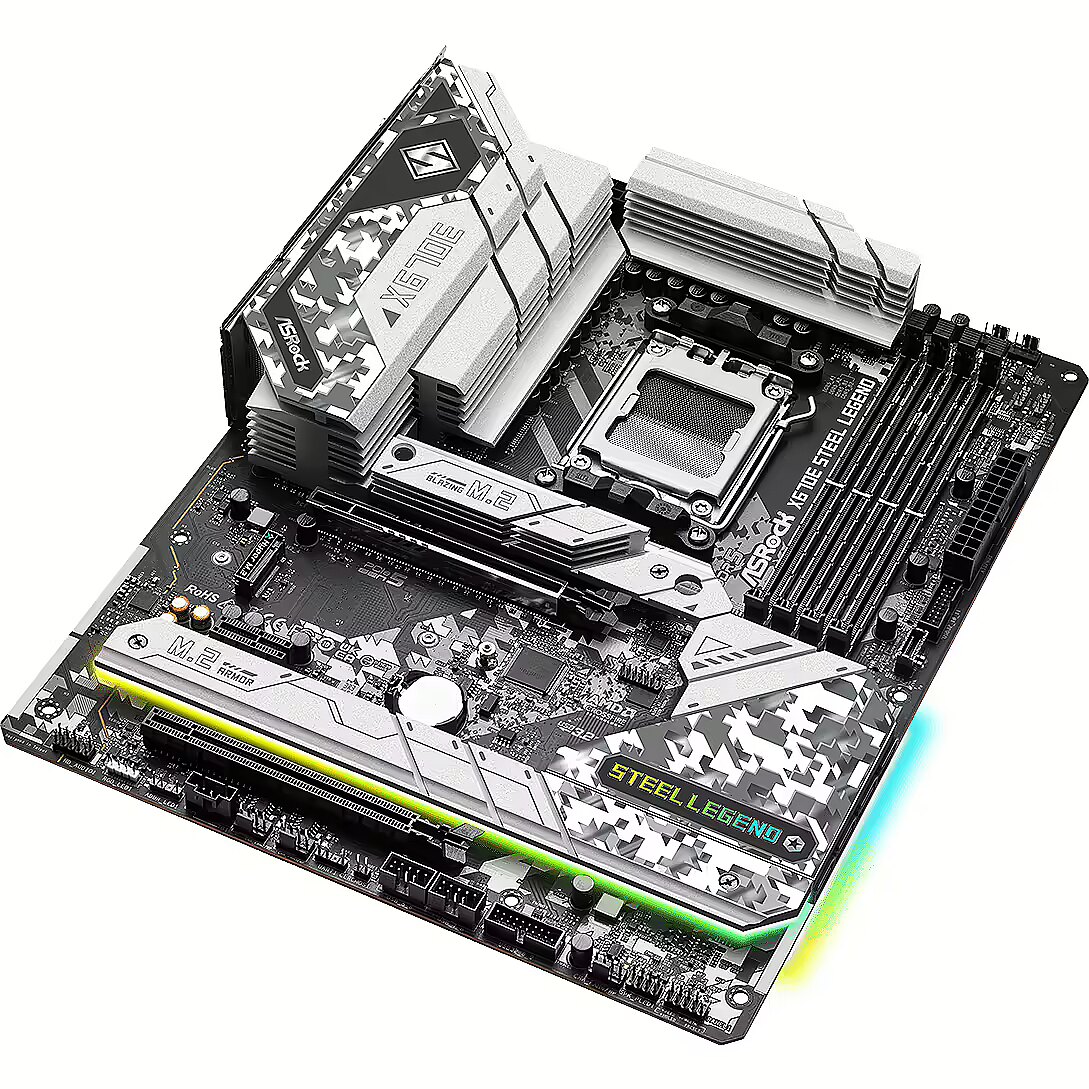

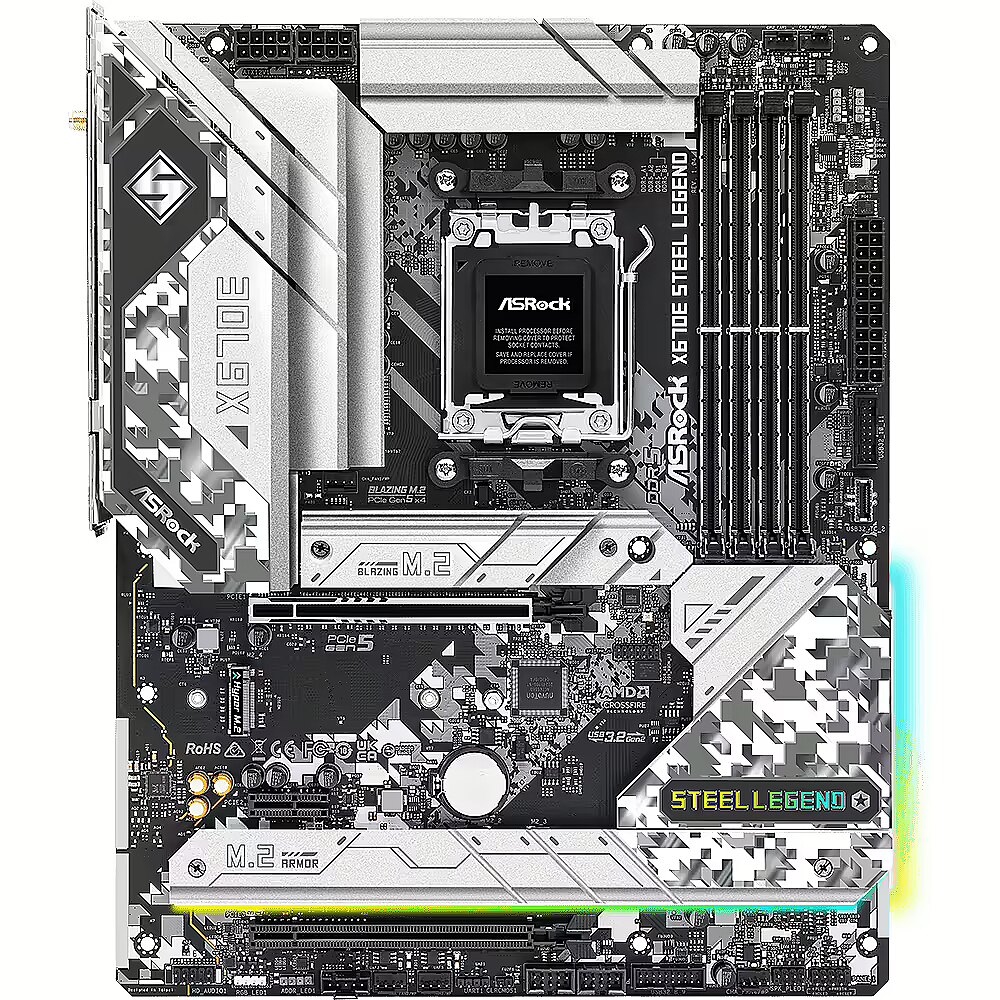

Asrock X670E Steel Legend

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 892125 Product code: X670E STEEL LEGEND
Can be ordered 35 units Availability: 14 days after order approval
Warranty: 3 years
299.17 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: 27.11.2024
Main product parameters All parameters
  • Series: ASRock Steel Legend
  • Plate size: ATX
  • Chipset: AMD X670E
  • Socket: AM5
  • Type: DDR5
  • RAM Slots: 4
  • Built-in Wi-Fi: Ir
  • M.2 ports: 4
Basic information
Series : ASRock Steel Legend
Plate size ATX

The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD X670E

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Socket AM5
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Random-access memory (RAM)
Type : DDR5
RAM Slots 4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support DDR5 5200MHz (6600MHz OC)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card
VGA Port PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics Only with iGPU-ready APU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment
D-Sub : 0
DisplayPort : 1
DVI : 0
HDMI : 1
Integrated sound card : Realtek ALC1220
PCI Ports 0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
Wireless connections
Built-in Bluetooth : Ir
Built-in Wi-Fi : Ir
External ports
External USB 2.0 : 4
External USB Type-C (USB 3.2 Gen2) : 1
External USB Type-C (USB 4.0) : 0
External USB 3.0 (USB 3.2 Gen1) : 6
External USB 3.1 (USB 3.2 Gen2) : 1
Internal ports
Internal A-RGB 5V (3-pin) : 3
Internal RGB 12V (4-pin) : 1
Internal USB 2.0 : 2
Internal USB 3.0 : 2
Internal USB Type-C : 1
M.2 ports : 4
SATA3 ports : 4
Power supply units (PSU)
More detailed specification
Additional information in manufacturers website Asrock X670E Steel Legend
Accessories included - 1 x user manual 2 x SATA data cables 1 x ASRock WiFi 2.4/5/6 GHz antenna 4 x M.2 slot screws 1 x bracket for M.2 socket 1 x graphics card holder
ARTIKEL1 - X670E STEEL LEGEND AMD AM5
ARTIKEL2 - X670E ATX 4 DDR5
Audio-Out Input/Output connectors - 1
BIOS - 256Mb AMI UEFI Legal BIOS z obsługą GUI
BIOS - BIOS type - UEFI AMI
Bluetooth Interface - Yes
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM3+
Chipset - AMD X670
Chipset manufacturer - AMD
Chipset type - AMD X670
code - 90-MXBJ40-A0UAYZ
COM connector / port - No
CPU socket - Socket AM5
Description - - Supports AMD Ryzen™ 7000 Series Processors - 16+2+1 Phase Power Design, SPS - 4 x DDR5 DIMMs, supports up to 6600+(OC) 1 PCIe 5.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1 - Graphics Output Options: 1 HDMI, 1 DisplayPort - Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio - 1 Blazing M.2(PCIe Gen5x4), 3 Hyper M.2 (PCIe Gen4x4), 4 SATA3 - 2 USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front), 1 USB 3.2 Gen2 Type-A (Rear), 10 USB 3.2 Gen1 (6 Rear, 4 Front) - Realtek 2.5G LAN, Realtek 1G LAN - 802.11ax Wi-Fi 6E + Bluetooth
Description - X670E Steel Legend motherboard Supports AMD Ryzen 7000 series processors 16+2+1 phase power design, SPS 4 x DDR5 DIMMs, supports up to 6600+(OC) 1 x PCIe 5.0 x16 1 x PCIe 3.0x16 1 x PCIe 3.0x1 Graphics output options: 1 HDMI, 1 DisplayPort Realtek ALC1220 7.1-channel HD Audio codec, Nahimic Audio 1 x Blazing M.2 (PCIe Gen5x4), 3 x Hyper M.2 (PCIe Gen4x4), 4 x SATA3 2 x USB 3.2 Gen2x2 Type-C ports (1 at rear, 1 at front), 1 x USB 3.2 Gen2 Type-A ports (rear), 10 x USB 3.2 Gen1 ports (6 on back, 4 on front) Realtek 2.5G LAN, Realtek 1G LAN 802.11ax Wi-Fi 6E + Bluetooth
Detailed data on disk/drive interfaces - CPU: 1 x Blazing M.2 slot (M2_1, Key M), supports 2260/2280 PCIe Gen5x4 (128 Gbps) mode*. Chipset 1 x Hyper M.2 slot (M2_2, Key M), supports 2242/2260/2280 PCIe Gen4x4 (64 Gbps)* type. 1 x Hyper M.2 slot (M2_3, Key M), supports 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*. 1 x Hyper M.2 slot (M2_4, Key M), supports 2260/2280 PCIe Gen4x4 (64 Gb/s)* mode 4 SATA3 6.0Gb/s connectors
dimensionalWeight - 2432
dimension depth - 100 mm
dimension height - 390 mm
Dimensions - 30.5 x 24.4 cm
dimension weight - 2300 g
dimension width - 320 mm
DisplayPort Input/Output connectors - 1
ean - 4710483940323
EANCode - 4710483940323
Eans - 4710483940323
EAN_code - 4710483940323
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 3.0 x 16
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - Number of M.2 (M) slots - 4
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
External connectors - 1 x DisplayPort
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x MIC (front)
External connectors - 1 x S/PDIF
External connectors - 1 x USB 3.1
External connectors - 1 x USB 3.1 Type-C
External connectors - 2 x RJ-45
External connectors - 2 x SMA
External connectors - 4 x USB 2.0
External connectors - 6 x USB 3.0
Features - Audio chip - Realtek ALC1220
Features - Audio output channels - 7.1 channels
Features - Cooling type - Passive
Features - Motherboard chipset - AMD X670
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 6600 MHz
Full Description Line - AMD X670|SAM5|ATX|DDR5|6600 MHz|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xPCI-Express 5.0 16x|4xM.2|1xHDMI|1xDisplayPort|1xAudio-Out|1xMicrophone|4xUSB 2.0|7xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ45|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|Audio Realtek ALC1200|LAN 2.5 Gigabit|RAID SATA 0, 1, 10; NVMe 0, 1, 10|TPM Header
Graphics - Zintegrowana karta graficzna AMD RDNATM 2 (rzeczywista obsługa może się różnić w zależności od procesora) 1 x Zgodny z HDMI 2.1 TMDS/FRL 8G, obsługuje HDR, HDCP 2.3 i max. rozdzielczość do 4K 120Hz 1 x DisplayPort 1.4 z DSC (skompresowany), obsługuje HDCP 2.3 i max. rozdzielczość do 4K 120Hz
Graphics - Parallel processing technology support - Crossfire
GRUPPE1 - Memory & Processors
GRUPPE2 - Mainboard
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
HERSTELLER - ASROCK
HSTNUMMER - 90-MXBJ40-A0UAYZ

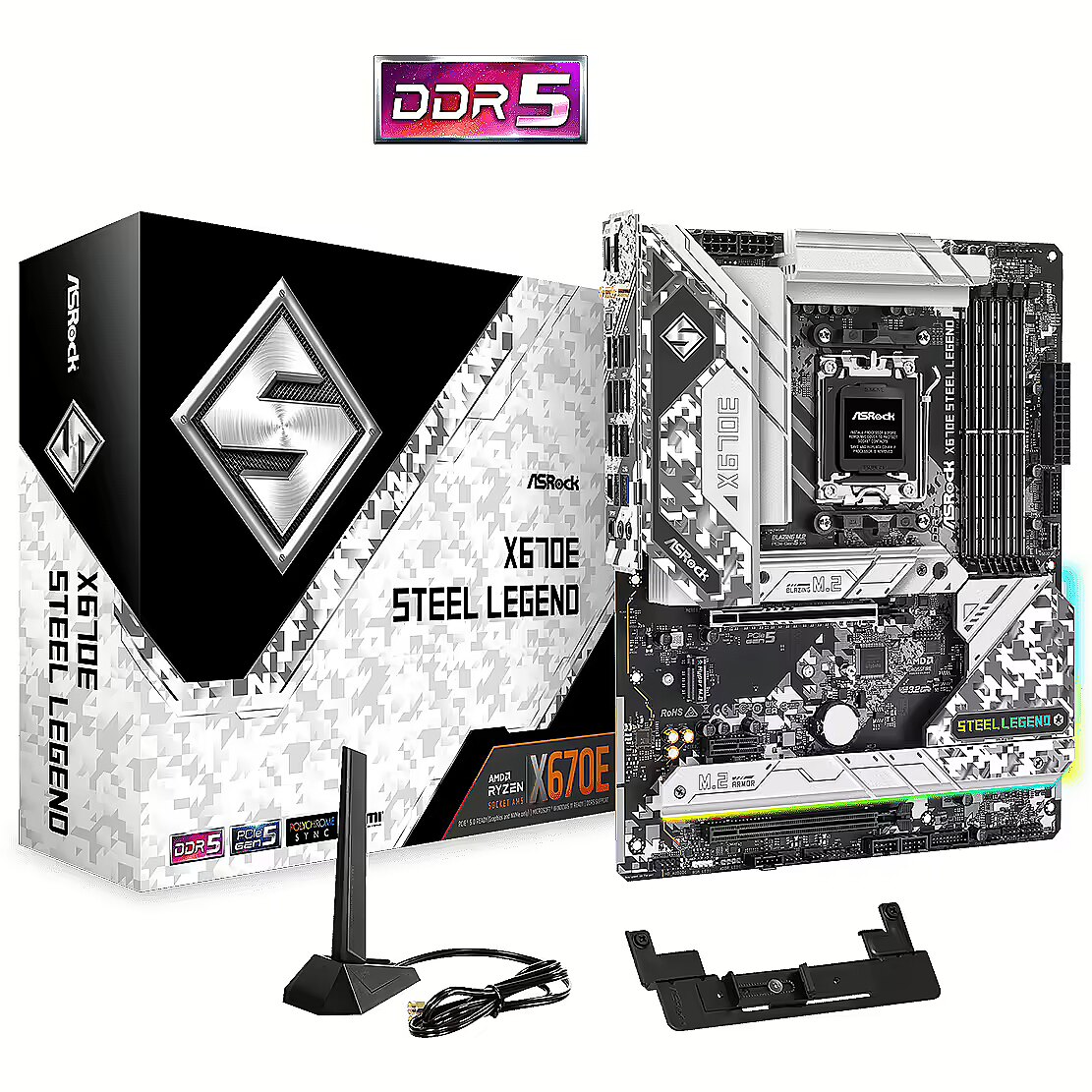

Included Accessories - - 1 x User Manual
- 2 x SATA Data Cables
- 1 x ASRock WiFi 2.4/5/6 GHz Antenna
- 4 x Screws for M.2 Sockets
- 1 x Standoff for M.2 Socket
- 1 x Graphics Card Holder
Integrated audio - Realtek ALC1200
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Audio connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - S/PDIF out connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
LPT connector / port - No
M.2 Expansion slots - 4
Manufacturer - Asrock
Manufacturer_code - 90-MXBJ40-A0UAYZ
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 128 GB
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speeds - 6600
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 6600 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Microphone Input/Output connectors - 1
Model - X670E Steel Legend
Name - ASRock X670E Steel Legend
name - ASRock X670E Steel Legend, AMD X670E Mainboard - Sockel AM5, DDR5
Name - ASRock X670E Steel Legend motherboard - AM5
name - Motherboard X670E STEEL LEGEND AM5 4DDR5 HDMI/DP M.2 ATX
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Dragon RTL8125BG
Network - LAN controller - Realtek RTL8111
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Network interface - 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mbps (Dragon RTL8125BG) Supports Dragon 2.5G LAN software Intelligent automatic bandwidth adjustment Visual user-friendly user interface Visual network usage statistics Optimised default settings for game, browser and streaming modes User customisable priority control 1 x Gigabit LAN 10/100/1000 Mbps (Realtek RTL8111)
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 2
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Thunderbolt header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 2 x USB 3.0 header
Optical S/PDIF Input/Output connectors - 1
Other information -
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 3.0 16x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - AMD Ryzen 7 7th Gen
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor family - AMD Ryzen
producer - ASRock
Producer - ASRock
producerCode - X670E STEEL LEGEND
ProducerCode - X670E Steel Legend
productName - Asrock X670E Steel Legend AMD X670 Socket AM5 ATX
productSize - Normal
RAID - SATA 0, 1, 10; NVMe 0, 1, 10
RAID - Yes

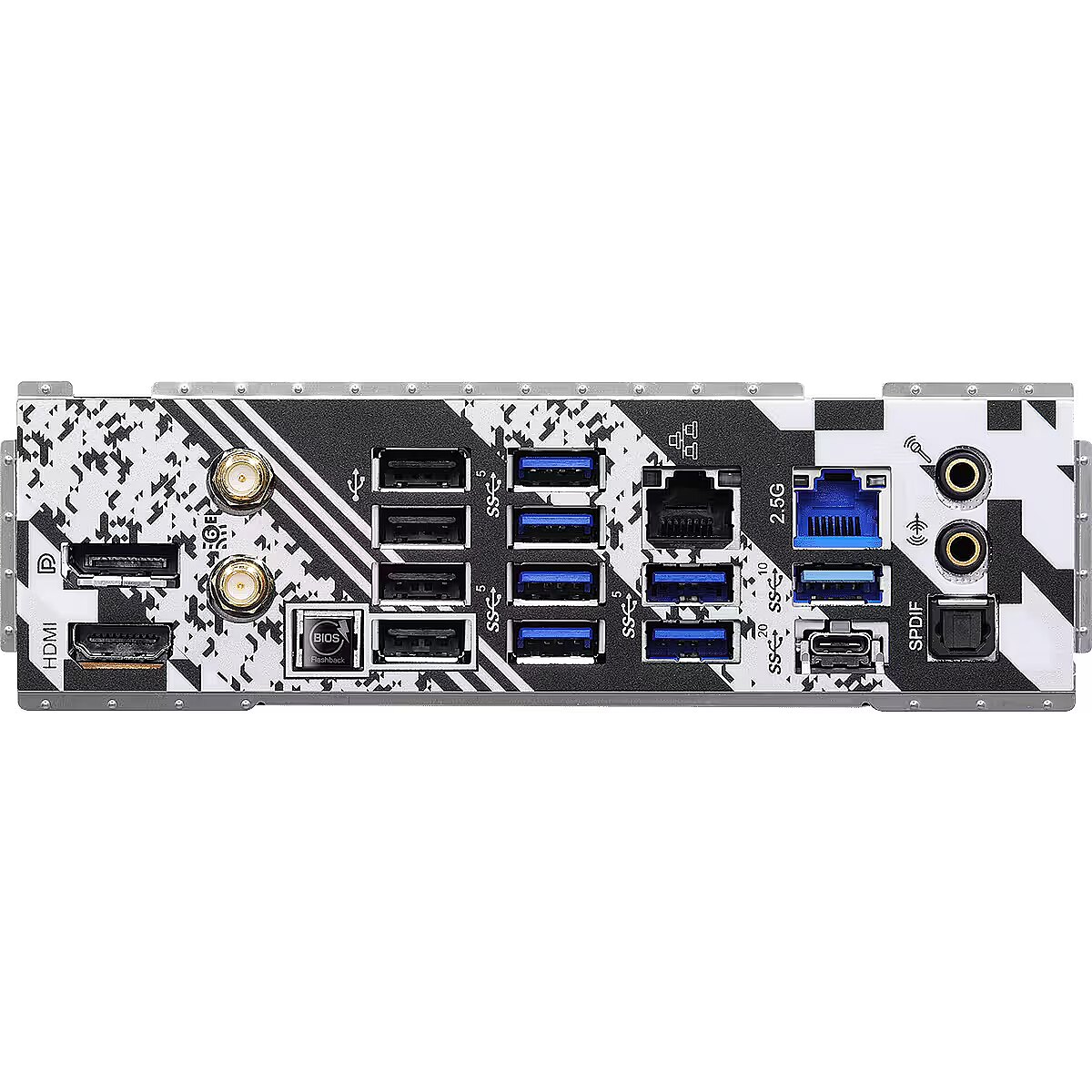

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 2
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 6
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB4 Gen 2x2 ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 38.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 10 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 2.52 kg
Shipping Box Width Shipping/Package Box Dimensions - 32.5 cm
ShortDescription - Socket AM5 | Chipset AMD X670E | DDR5
sizeX - 320
sizeY - 380
sizeZ - 100
Socket - SAM5
Software -
Sound card - 7.1-channel HD audio with content protection (Realtek ALC1220 audio codec) Impedance detection on rear output port Individual PCB layers for R/L audio channel Nahimic Audio
Special functions -
Stck_Kart - 5
Stck_Pal - 0
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Storno - N
Supported operating systems - Windows 10
Supported operating systems - Windows 11
TPM - Header
Unit Brutto Volume - 0.01251 cubm
Unit Gross Weight - 2.52 kg
Unit Net Weight - 1.7 kg
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 7
USB 3.2 Interface - Yes
USB ports at back panel - 12
USB ports on motherboard - 10
Vendor Homepage - www.asrock.com/mb/AMD/X670E%20Steel%20Legend/index.asp
vendpn - X670E STEEL LEGEND
Warranty - 36 months
warrantyLength - 36
warrantyType - G
Weight - 2,55
weight - 2530
Weight & dimensions - Depth - 305 mm
Weight & dimensions - Width - 244 mm
WiFi Interface - Yes
