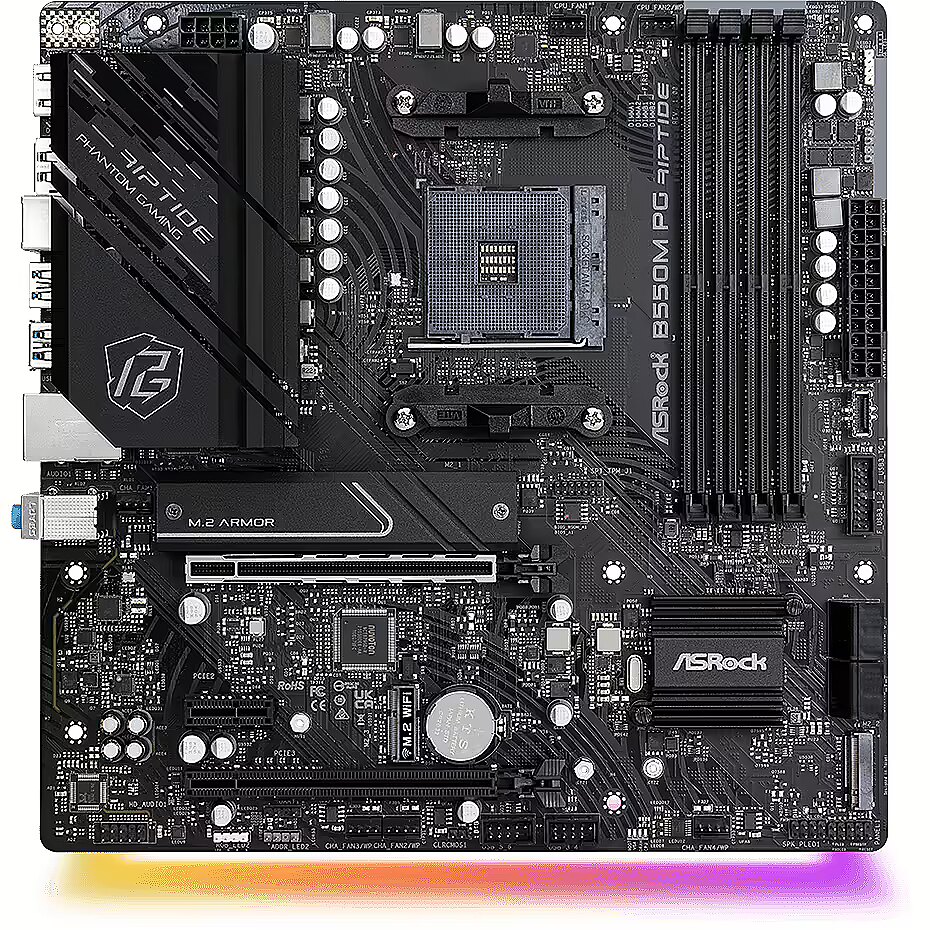

Asrock B550M PG Riptide

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 814711 Product code: B550M PG RIPTIDE
In stock 9 units
Warranty: 2 years
122.45 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: 29.11.2024
Main product parameters All parameters
  • Series: ASRock Phantom Gaming
  • Plate size: mATX
  • Chipset: AMD B550
  • Socket: AM4
  • Type: DDR4
  • RAM Slots: 4
  • Built-in Wi-Fi: Nav
  • M.2 ports: 2
Basic information
Series : ASRock Phantom Gaming
Plate size mATX

The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD B550

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Socket AM4
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Random-access memory (RAM)
Type : DDR4
RAM Slots 4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support DDR4 3200MHz (4600MHz OC)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card
VGA Port PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics Only with iGPU-ready APU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment
D-Sub : 0
DisplayPort : 1
DVI : 0
HDMI : 1
Integrated sound card : Realtek ALC897
PCI Ports 0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
Wireless connections
Built-in Bluetooth : Nav
Built-in Wi-Fi : Nav

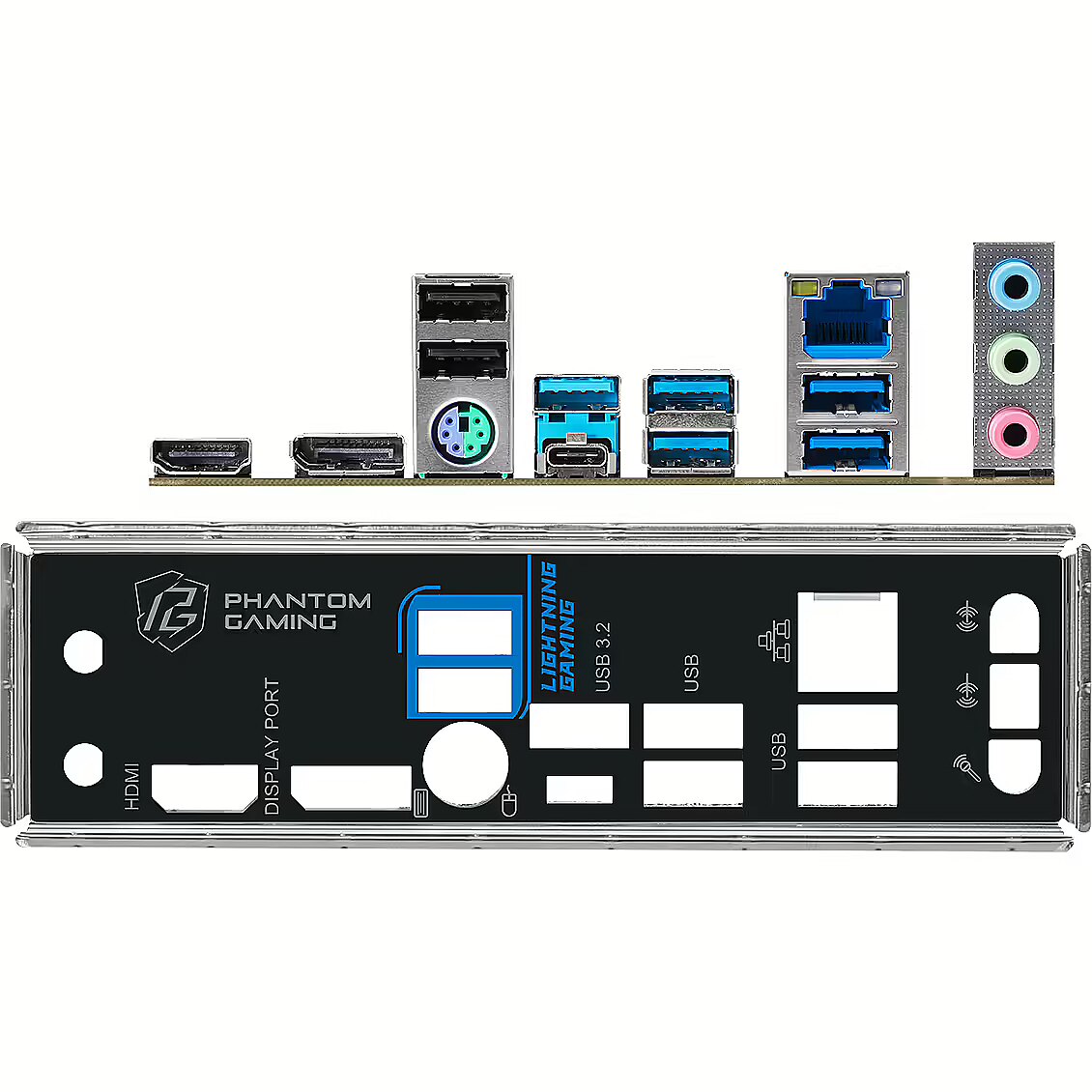

External ports
External USB 2.0 : 2
External USB Type-C (USB 3.2 Gen2) : 1
External USB Type-C (USB 4.0) : 0
External USB 3.0 (USB 3.2 Gen1) : 4
External USB 3.1 (USB 3.2 Gen2) : 1
Internal ports
Internal A-RGB 5V (3-pin) : 2
Internal RGB 12V (4-pin) : 2
Internal USB 2.0 : 2
Internal USB 3.0 : 1
Internal USB Type-C : 1
M.2 ports : 2
SATA3 ports : 4
More detailed specification
Additional information in manufacturers website Asrock B550M PG Riptide
Category - Root/Electronics/PC parts/Motherboards
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM4
Code - B550M PG RIPTIDE
EAN - 4710483936364
Eans - 4710483936364
EAN_code - 4710483936364
Gross weight - 2.30 kg
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA3, M.2
Link - https://pg.asrock.com/mb/AMD/B550M%20PG%20Riptide/index.asp#Specification
Manufacturer - Asrock
Manufacturer_code - 90-MXBI90-A0UAYZ
Memory > Memory slots - 4
Memory > Supported memory types - DDR4 DIMM
Name - ASRock B550M PG Riptide
Name - Asrock B550M PG RIPTIDE B550 - Socket AM4
Name - ASRock | B550M PG Riptide | Processor family AMD | Processor socket AM4 | DDR4 DIMM | Memory slots 4 | Supported hard disk drive interfaces SATA3, M.2 | Number of SATA connectors 4 | Chipset AMD B550 | Micro ATX
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 70.00 mm
Package features > Gross height (mm) - 295.00 mm
Package features > Gross width (mm) - 360.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 232 pc(s)
Package features > Paper/Pasteboard - 490.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.50 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
Performance > Chipset - AMD B550
Performance > Motherboard form factor - Micro ATX
Processor > Compatible processor series - Supports AMD AM4 Socket Ryzen 3000, 4000 G-Series and 5000 Series Desktop Processors
Processor > Processor family - AMD
Processor > Processor socket - AM4
Producer - ASRock
ProducerCode - B550M PG RIPTIDE
Producer product name - B550M PG Riptide
ShortDescription - Socket AM4 | Chipset AMD B550
Technical details > Net weight - 1.80 kg
Technical details > Producer - ASRock
Technical_details - B550M PG RIPTIDE, motherboard The ASRock B550M PG RIPTIDE is based on the AMD B550 chipset and supports AMD processors for socket AM4. It has four DDR4 slots for up to 128 GB of RAM. Additional features of the ASRock B550M PG RIPTIDE include a PCIe 4.0 x16 slot, a PCIe 3.0 x16 slot and a PCIe 3.0 x1 slot. In addition, the ASRock B550M PG RIPTIDE features 8-channel sound, a 2.5 Gigabit LAN interface, four SATA3 ports, two M.2 ports and a range of USB interfaces. Type: motherboard EAN code: 4710483936364 Manufacturer part number: 90-MXBI90-A0UAYZ Socket: AM4 Max CPUs supported: 1 OS: support | Windows 10 ready, Windows 11 ready Processor: Supported Models | Ryzen 3 3xxx (Matisse), Ryzen 3 PRO 4xxxG (Renoir), Ryzen 5 3xxx (Matisse), Ryzen 5 3xxxG (Picasso), Ryzen 5 3xxxX (Matisse), Ryzen 5 3xxxXT (Matisse), Ryzen 5 PRO 4xxxG (Renoir) , Ryzen 5 PRO 4xxxGE (Renoir), Ryzen 7 3xxxX (Matisse), Ryzen 7 3xxxXT (Matisse), Ryzen 7 PRO 4xxxG (Renoir), Ryzen 7 PRO 4xxxGE (Renoir), Ryzen 9 3xxxX (Matisse), Ryzen 9 3xxxXT ( Matisse), Ryzen 5 5xxxX (Vermeer), Ryzen 5 5xxxG (Cezanne), Ryzen 7 5xxx (Vermeer), Ryzen 7 5xxxX (Vermeer), Ryzen 7 5xxxG (Cezanne), Ryzen 9 5xxx (Vermeer), Ryzen 9 5xxxX (Vermeer ) Chipset: AMD B550 Slots: PCIe x16 | 2x Slots: PCIe x1 | 1 BIOS: 128Mb AMI UEFI Legal BIOS BIOS: EFI BIOS | Yes Form factor: µATX Use: personal computer Power supply: ATX12V (24-pin + 8-pin) Memory: maximum | 128GB Storage: Number of Sockets | 4x DDR4 Storage: supported storage type | SDRAM DDR4 Storage: supported standards | DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC). ) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 Storage: Channels | 2 Connections (external): mouse/keyboard combo (PS/2) | 1 Connections (external): USB-C 3.2 Gen 2 (10 Gbit/s) | 1 Connections (external): USB-A 3.2 Gen 2 (10 Gbit/s) | 1 Connections (external): USB-A 3.2 Gen 1 (5 Gbit/s) | 4 Connections (external): The designation USB 3.2 Gen 1 corresponds to the earlier designations USB 3.1 Gen 1 or USB 3.0. Connections (external): The designation USB 3.2 Gen 2 corresponds to the earlier designations USB 3.1 Gen 2 or USB 3.1. Connections (external): USB-A 2.0 | 2 Connections (external): HDMI | 1 Connections (external): DisplayPort-Out | 1 Connections (external): Microphone | 1 Connections (external): Line-In | 1 Connections (external): line out | 1 Connections (external): RJ-45 | 1 Connections (internal): SATA | 4 Connections (internal): M.2 | 2 Connections (internal): M.2 WLAN | 1 Connections (internal): RGB LED header | 2 Connections (internal): addressable RGB LED header | 2 Connections (internal): 4-pin PWM fan | 6 Connections (optional): USB 3.2 Gen 1 (5 GbIt/s) | 2 Connections (optional): USB-C 3.2 Gen 1 (5 Gbit/s | 1 Connections (optional): USB 2.0 | 4 Connections (optional): TPM | Yes RGB Default: RGB LED SATA Controller: AMD B550 directly usable RAID levels: 0, 1, 10 USB Controller: AMD B550 Onboard graphics: The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip. Sound: Realtek ALC897 LAN: Dragon RTL8125BG 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Features: CrossFireX, Quad GPU CrossFireX
Additional information: A BIOS update may be required to support the latest processor cores.
Accessories: available | 2x SATA cables, 3x M.2 screws, 1x spacer for M.2 socket
Warranty - 24
Warranty - 24 month(s)
Weight - 1,24
