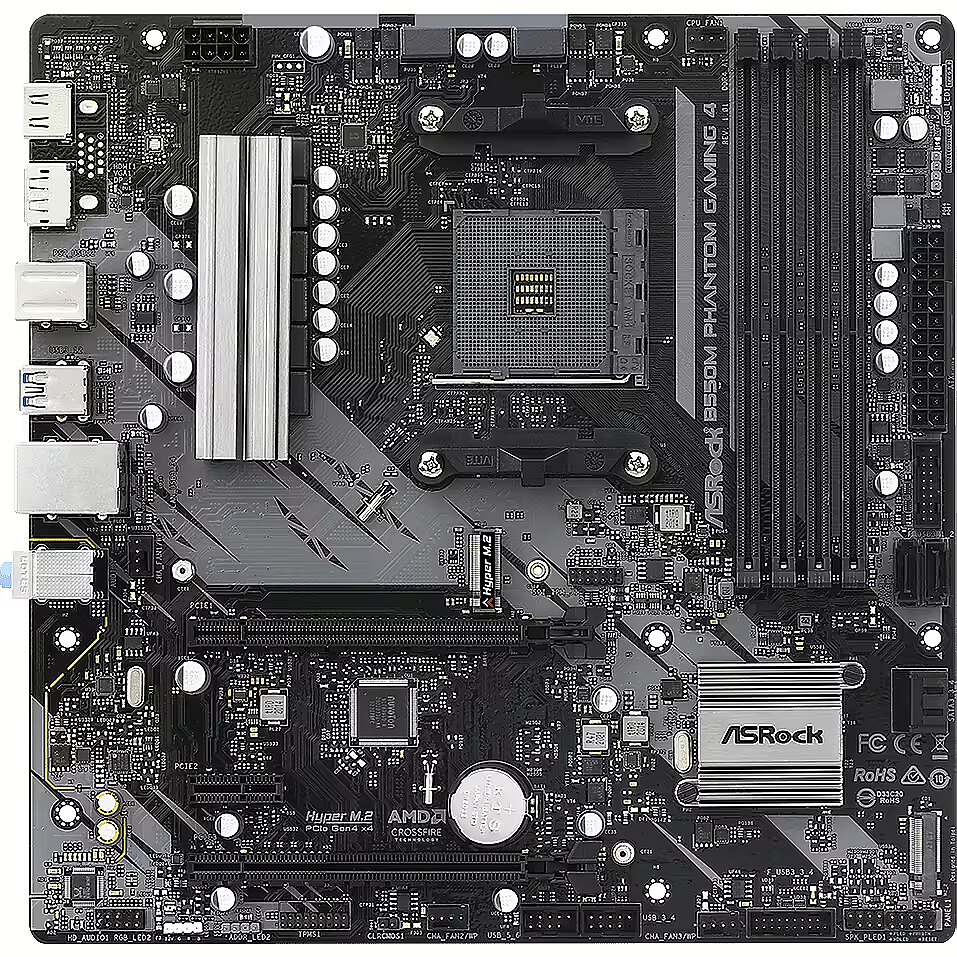

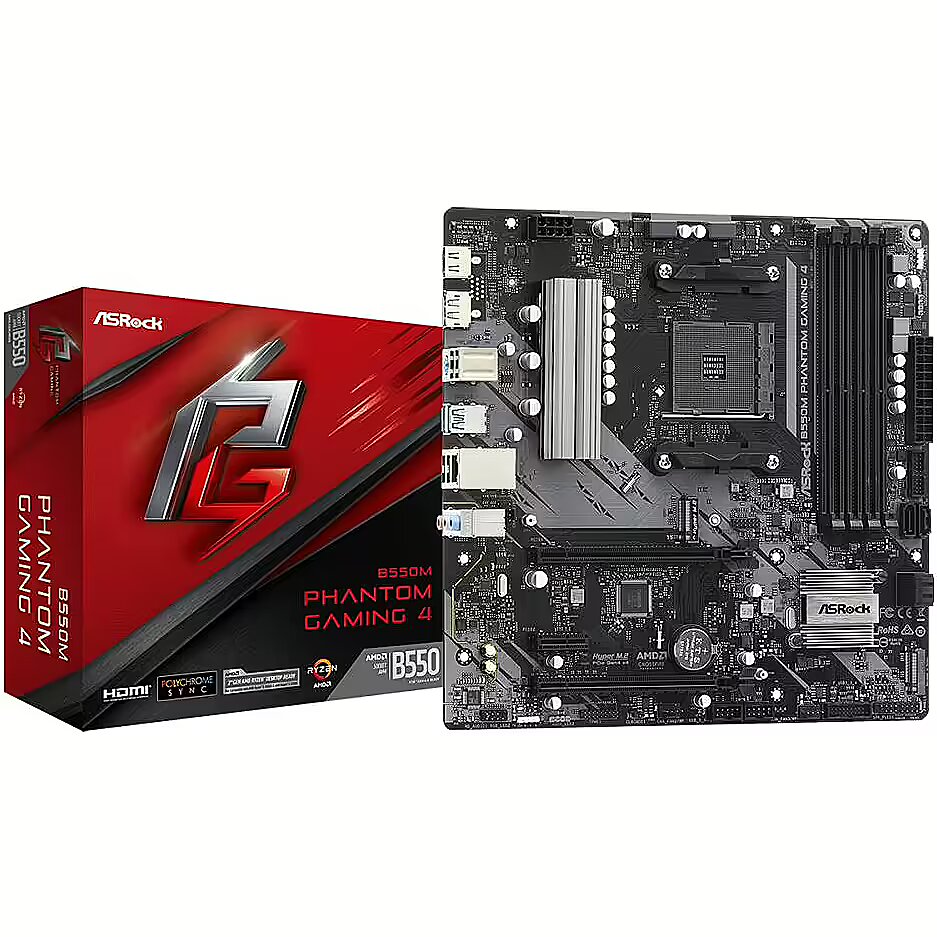

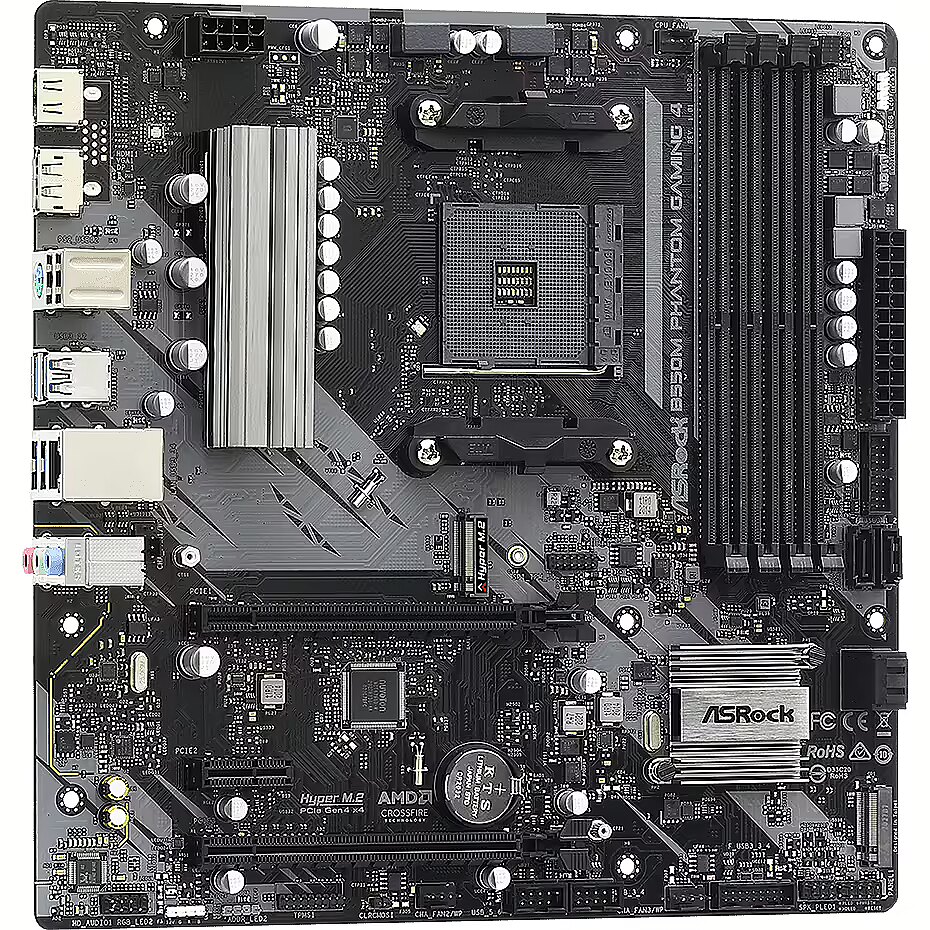

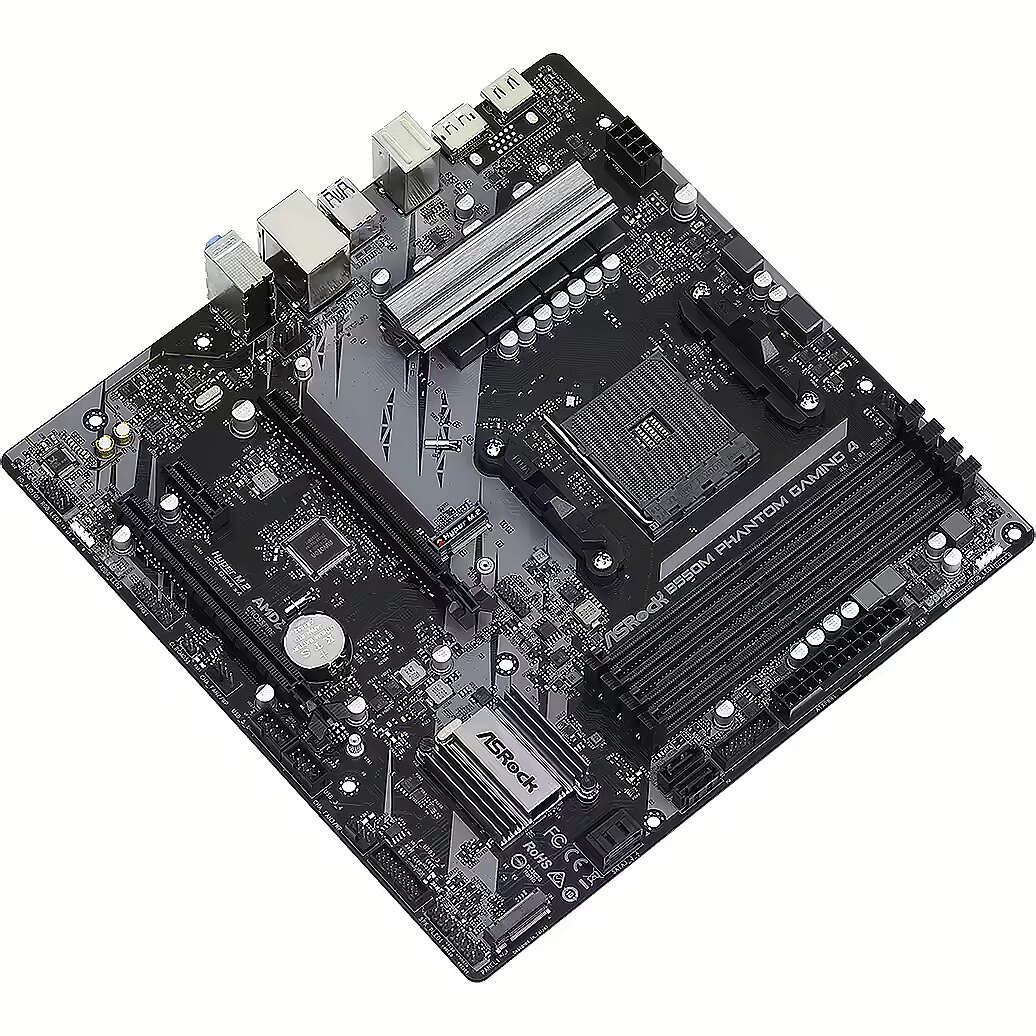

Asrock B550M Phantom Gaming 4

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 623089 Product code: B550M PHANTOM GAMING 4
In stock 16 units
Warranty: 2 years
97.02 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: 29.11.2024
Main product parameters All parameters
  • Series: ASRock Phantom Gaming
  • Plate size: mATX
  • Chipset: AMD B550
  • Socket: AM4
  • Type: DDR4
  • RAM Slots: 4
  • Built-in Wi-Fi: Nav
  • M.2 ports: 2
Basic information
Series : ASRock Phantom Gaming
Plate size mATX

The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD B550

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Socket AM4
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Random-access memory (RAM)
Type : DDR4
RAM Slots 4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support DDR4 3200MHz (4533MHz OC)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card
VGA Port PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics Only with iGPU-ready APU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment
D-Sub : 0
DisplayPort : 1
DVI : 0
HDMI : 1
Integrated sound card : Realtek ALC887
PCI Ports 0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
Wireless connections
Built-in Bluetooth : Nav
Built-in Wi-Fi : Nav
External ports
External USB 2.0 : 2
External USB Type-C (USB 3.2 Gen2) : 0
External USB Type-C (USB 4.0) : 0
External USB 3.0 (USB 3.2 Gen1) : 4
External USB 3.1 (USB 3.2 Gen2) : 0
Internal ports
Internal A-RGB 5V (3-pin) : 2
Internal RGB 12V (4-pin) : 2
Internal USB 2.0 : 2
Internal USB 3.0 : 2
Internal USB Type-C : 0
M.2 ports : 2
SATA3 ports : 4
More detailed specification
Additional information in manufacturers website Asrock B550M Phantom Gaming 4
ARTIKEL1 - B550M PHANTOM GAMING 4 AM4 MATX
ARTIKEL2 - SND+GLN+U3.2+M2 SATA 6GB/S DDR4
Audio-In Input/Output connectors - 2
Audio-Out Input/Output connectors - 1
BIOS - BIOS type - UEFI AMI
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM4
Chipset - AMD B550
Description - B550M Phantom Gaming 4 Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors (3000 and 4000 Series Processors) 8 Power Phase design Supports DDR4 4733+ (OC) 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1 Supports AMD CrossFireX™ Graphics Output Options: HDMI, DisplayPort 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec) 4 x SATA3, 1 x Hyper M.2(PCIe Gen4 x4), 1 x M.2(PCIe Gen3 x2 & SATA3) 8 x USB 3.2 Gen1 (4 Front, 4 Rear) 6 x USB 2.0 (4 Front, 2 Rear) Realtek Gigabit LAN
dimensionalWeight - 2288
DisplayPort Input/Output connectors - 1
EAN - 4710483932755
EANCode - 4710483932755
Eans - 4710483932755
EAN_code - 4710483932755
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 3.x) slots - 3
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - AMD B550
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - micro ATX
Features - Overclocking features - FCC, CE
ErP/EuP
Features - PC health monitoring - Fan
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Features - Windows operating systems supported - Windows 10 x64
Form Factor - Micro-ATX
Frequency speed - 2133/2400/2666/2933/3200/3466/3600/3733/3800/3866/4000/4133/4200/4266/4333/4400/4466/4533 MHz
Full Description Line - AMD B550|SAM4|Micro-ATX|DDR4|4533/4466/4400/4333/4266/4200/4133/4000/3866/3800/3733/3600/3466/3200/2933/2666/2400/2133 MHz|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 4x|1xPCI-Express 4.0 16x|2xM.2|1xHDMI|1xDisplayPort|2xAudio-In|1xAudio-Out|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|SATA|Video Depending on CPU|Audio Realtek ALC887|LAN Realtek (Gigabit)|RAID SATA 0, 1, 10|TPM Header
Graphics - DirectX version - 12.0
Graphics - HDCP - Yes
Graphics - Maximum resolution - 5120 x 2880 pixels
GRUPPE1 - Memory & Processors
GRUPPE2 - Mainboard
HDMI Input/Output connectors - 1
HERSTELLER - ASROCK
HSTNUMMER - 90-MXBE90-A0UAYZ
Integrated audio - Realtek ALC887
Integrated LAN - Realtek (Gigabit)
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 3
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
M.2 Expansion slots - 2
Manufacturer - Asrock
Manufacturer - ASRock
Manufacturer_code - 90-MXBE90-A0UAYZ
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2667
Memory - Supported memory clock speeds - 2933
Memory - Supported memory clock speeds - 3200
Memory - Supported memory clock speeds - 3466
Memory - Supported memory clock speeds - 3600
Memory - Supported memory clock speeds - 3733
Memory - Supported memory clock speeds - 3800
Memory - Supported memory clock speeds - 3866
Memory - Supported memory clock speeds - 4000
Memory - Supported memory clock speeds - 4133
Memory - Supported memory clock speeds - 4200
Memory - Supported memory clock speeds - 4266
Memory - Supported memory clock speeds - 4333
Memory - Supported memory clock speeds - 4400 MHz
Memory - Supported memory clock speeds - 4466
Memory - Supported memory clock speeds - 4533
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory slots - 4
Memory type - DDR4
MPN - 90-MXBE90-A0UAYZ
Name - AM4 ASRock B550M Phantom Gaming 4
Name - ASRock B550M Phantom Gaming 4
Name - ASRock B550M PHANTOM GAMING 4, motherboard
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8111H
Network - Wake-on-LAN ready - Yes
Network - Wi-Fi - No
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 3.0 4x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 9
Processor - Compatible processor series - AMD Ryzen™ 3
Processor - Compatible processor series - AMD Ryzen™ 5
Processor - Compatible processor series - AMD Ryzen™ 7
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM4
Producer - ASRock
producerCode - B550M PHANTOM GAMING 4
ProducerCode - B550M Phantom Gaming 4
productName - Asrock B550M Phantom Gaming 4 Socket AM4 micro ATX AMD B550
productSize - Normal
PS/2 Input/Output connectors - 1
RAID - SATA 0, 1, 10

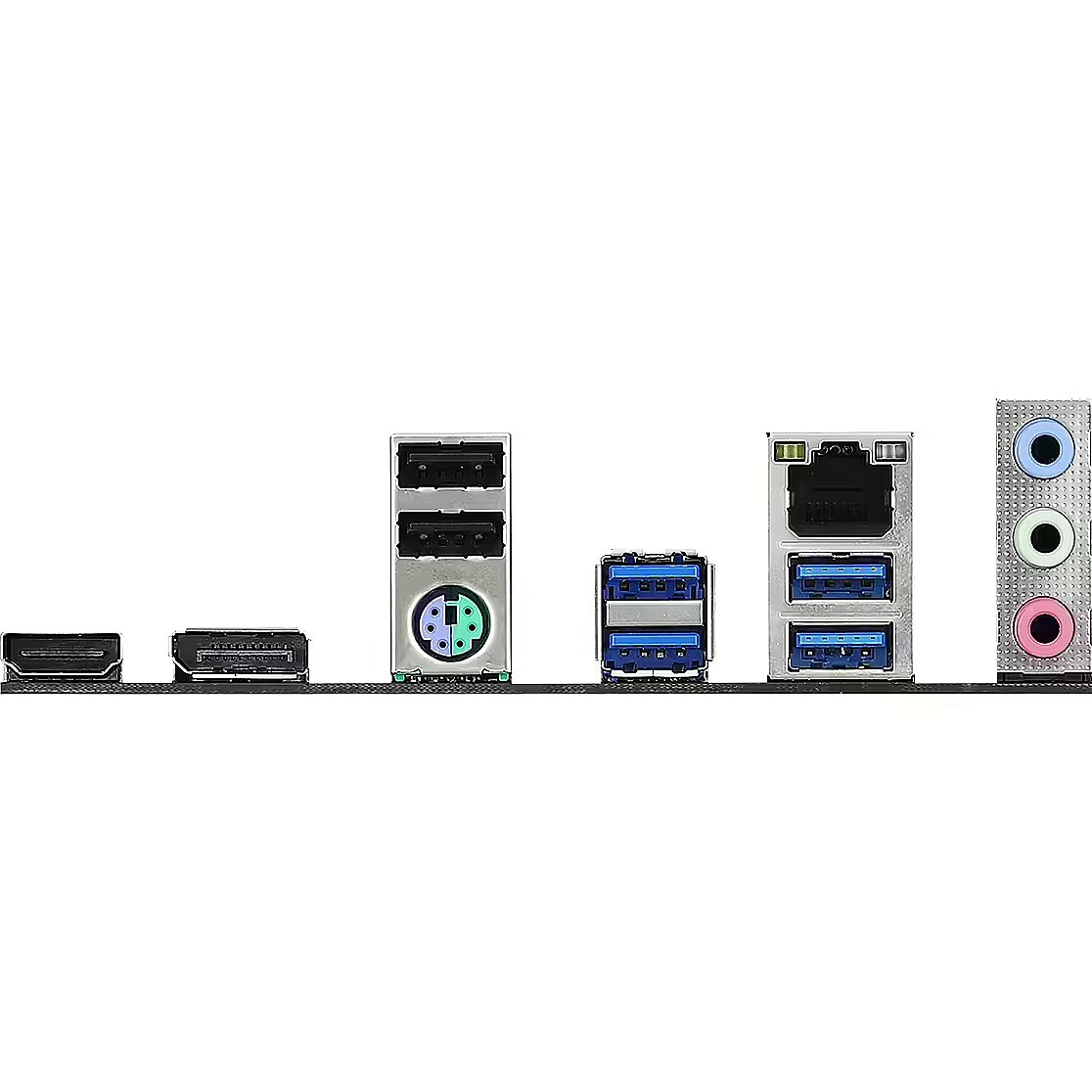

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 27.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 26 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.1 kg
Shipping Box Width Shipping/Package Box Dimensions - 6 cm
ShortDescription - Socket AM4 | Chipset AMD B550
sizeX - 275
sizeY - 160
sizeZ - 260
Socket - SAM4
Stck_Kart - 20
Stck_Pal - 0
Storage controllers - Supported storage drive interfaces - Serial ATA III
Storage controllers - Supported storage drive types - HDD & SSD
Storno - N
Technical_details - Type: motherboard EAN: 4710483932755 Manufacturer number: 90-MXBE90-A0UAYZ Socket: AM4 Max CPUs supported: 1 Operating system: Windows 10 ready Processor: AMD AM4 processors of the 4th (Zen 3) 3rd generation (Zen 2). NOT compatible with Ryzen 3 3200G and Ryzen 5 3400G. [Ryzen 3 3xxxX (Matisse), Ryzen 3 4xxx (Vermeer), Ryzen 3 PRO 4xxxG (Renoir), Ryzen 5 3xxx (Matisse), Ryzen 5 3xxxX (Matisse), Ryzen 5 3xxxXT (Matisse), Ryzen 5 4xxx (Renoir) , Ryzen 5 PRO 4xxxG (Renoir), Ryzen 5 PRO 4xxxGE (Renoir), Ryzen 7 3xxxX (Matisse), Ryzen 7 3xxxXT (Matisse), Ryzen 7 PRO 4xxxG (Renoir), Ryzen 7 PRO 4xxxGE (Renoir), Ryzen 9 3xxxX (Matisse), Ryzen 9 3xxxXT (Matisse), Ryzen 5 5xxx (Cezanne), Ryzen 5 5xxxG (Cezanne), Ryzen 7 5xxxG (Cezanne), Ryzen 9 5xxxX (Vermeer)] Chipset: AMD B550 Slots: 2x (of which: 1x PCIe x16, 1x PCIe x4) : 1 BIOS: 256Mb AMI UEFI Legal BIOS : Yes Form factor: µATX Use: personal computer Power supply: ATX12V (24-pin + 8-pin) Memory: 128GB : 4x DDR4 : SDRAM DDR4 : DR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800( OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 : 2 Connections (external): 1 : 4 The designation USB 3.2 Gen 1 corresponds to the former designations USB 3.1 Gen 1 or USB 3.0. : 2 : 1 : 1 : 1 : 1 : 1 : 1 Connections (internal): 4 : 2 : 2 : 2 : 4 Connections (optional): 4 : 4 : Yes SATA controller: AMD 550 directly usable RAID levels: 0, 1, 10 USB controller: AMD 550 Onboard graphics: The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip. Sound: Realtek ALC887/897 audio LAN: Realtek RTL8111H Additional information: A BIOS update may be required to support the latest processor cores. Dimensions: Width: 244mm x Height: 244mm
TPM - Header
Unit Box Height - 0.26
Unit Box Length - 0.275
Unit Box Width - 0.06
Unit Brutto Volume - 0.00429 cubm
Unit Gross Weight - 1.1 kg
Unit Net Weight - 0.7 kg
USB 2.0 Input/Output connectors - 2
USB 3.2 Input/Output connectors - 4
Vendor Homepage - www.asrock.com/MB/AMD/B550M%20Phantom%20Gaming%204/index.asp
Warranty - 36 months
warrantyLength - 24
warrantyType - G
Weight - 1,06
Weight - 1.11
weight - 1096
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 244 mm
