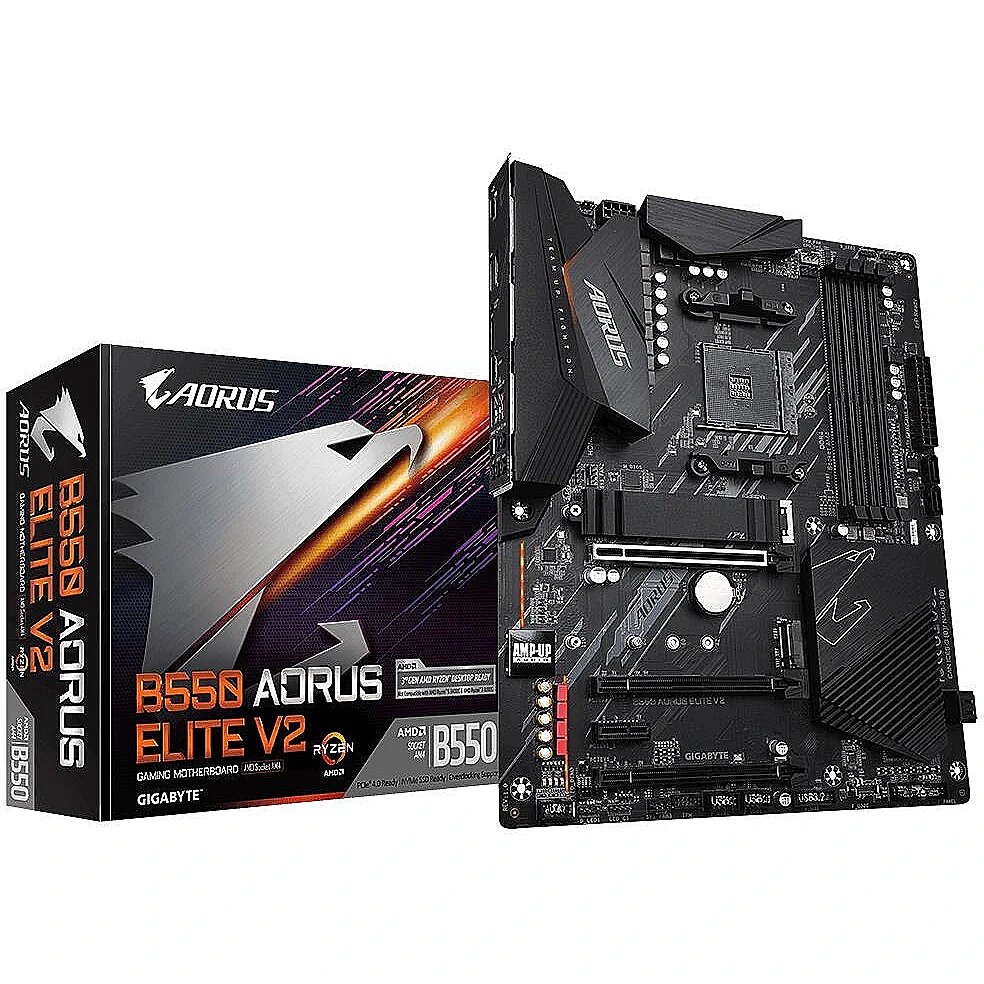

Gigabyte B550 AORUS ELITE V2

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 599262 Product code: B550 AORUS ELITE V2
In stock 11 units
Warranty: 3 years
128.24 €
Main product parameters All parameters
  • Series: Gigabyte AORUS
  • Plate size: ATX
  • Chipset: AMD B550
  • Socket: AM4
  • Type: DDR4
  • RAM Slots: 4
  • Built-in Wi-Fi: Nav
  • M.2 ports: 2
Basic information
Series : Gigabyte AORUS
Plate size ATX

The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD B550

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Socket AM4
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Random-access memory (RAM)
Type : DDR4
RAM Slots 4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support DDR4 3200MHz (4400MHz OC)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card
VGA Port PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics Only with iGPU-ready APU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment
D-Sub : 0
DisplayPort : 1
DVI : 0
HDMI : 1
Integrated sound card : Realtek ALC1200
PCI Ports 0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
Wireless connections
Built-in Bluetooth : Nav
Built-in Wi-Fi : Nav
External ports
External USB 2.0 : 2
External USB Type-C (USB 3.2 Gen2) : 0
External USB Type-C (USB 4.0) : 0
External USB 3.0 (USB 3.2 Gen1) : 3
External USB 3.1 (USB 3.2 Gen2) : 2
Internal ports
Internal A-RGB 5V (3-pin) : 2
Internal RGB 12V (4-pin) : 2
Internal USB 2.0 : 2
Internal USB 3.0 : 1
Internal USB Type-C : 1
M.2 ports : 2
SATA3 ports : 4
Power supply units (PSU)
More detailed specification
Additional information in manufacturers website Gigabyte B550 AORUS ELITE V2
Accessories included -
Audio port Input/Output connectors - 5
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - 1 x 256 Mbit flash Korzysta z licencjonowanego AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Brand - GIGABYTE
BrandPartCode - B550 AORUS ELITE V2
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM4
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM4
Chipset - AMD B550
Chipset manufacturer - AMD
Chipset type - AMD B550
code - B550 AORUS ELITE V2
Code - B550 AORUS ELITE V2
COM connector / port - No
CPU socket - Socket AM4
Description -
Description - B550 AORUS ELITE V2 1.5 Key Features Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs 12+2 Phases Digital Twin Power Design with 50A DrMOS Advanced Thermal Design with Enlarged Surface Heatsinks Ultra Durable™ PCIe 4.0 x16 Slot Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality Blazing Fast 2.5GbE LAN with Bandwidth Management Front USB 3.2 Gen1 Type-C™ and DisplayPort & HDMI for Multiple Display RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card Pre-installed IO Shield for Easy and Quick Installation
Detailed data on disk/drive interfaces - 1 x złącze M.2 (M2A_CPU), zintegrowane z procesorem, obsługujące gniazdo 3, klucz M, dyski SSD typu 2242/2260/2280/22110: Procesory AMD Ryzen trzeciej generacji obsługują dyski SSD SATA i PCIe 4.0 x4 / x2 AMD Ryzen trzeciej generacji z procesorami Radeon Graphics obsługuje dyski SSD SATA i PCIe 3.0 x4 / x2 1 x złącze M.2 (M2B_SB), zintegrowane z chipsetem, obsługujące gniazdo 3, klucz M, dyski SSD typu 2242/2260/2280/22110: Obsługa dysków SSD SATA i PCIe 3.0 x4 / x2 4 x złącza SATA 6 Gb/s zintegrowane z chipsetem: Obsługa macierzy RAID 0, RAID 1 i RAID 10
dimensionalWeight - 1523
dimension depth - 270 mm
dimension height - 80 mm
Dimensions - 30.5 x 24.4 cm
dimension weight - 1620 g
dimension width - 340 mm
DisplayPort Input/Output connectors - 1
EAN - 4719331809898
ean - 4719331809898
Eans - 4719331809898
EAN_code - 4719331809898
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 2 x PCIe 3.0 x 16
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x1 (Gen 2.x) slots - 1
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 slots - 2
External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x Q-Flash Plus button
External connectors - 1 x Rear Speaker
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 1 x Side Speaker
External connectors - 2 x USB 2.0
External connectors - 2 x USB 3.1
External connectors - 3 x USB 3.0
Features - Audio chip - Realtek ALC1200
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD B550
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - Product colour - Black
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 2133/2400/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733 MHz
Full Description Line - AMD B550|SAM4|ATX|DDR4|4733/4600/4400/4266/4133/4000/3866/3733/3600/3466/3400/3200/2933/2400/2133 MHz|Memory slots 4|1xPCI-Express 16x|2xPCI-Express 3.0 1x|1xPCI-Express 3.0 2x|2xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|5xUSB 3.2|1xOptical S/PDIF|1xRJ45|5xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|Audio Realtek ALC1220|LAN 2.5 Gigabit|RAID SATA 0, 1, 10|TPM Header
Graphics -
Graphics - DirectX version - 12.0
Graphics - Graphics card family - AMD
Graphics - Parallel processing technology support - Not supported
Gross weight - 1.64 kg
Gross Weight Kg - 1,24
GTIN - 0889523023945
GTIN - 889523023945
GTIN - 4719331809898
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC1220
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - Total number of SATA connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Link - https://www.gigabyte.com/Motherboard/B550-AORUS-ELITE-V2-rev-10/sp#sp
Logistics data - Country of origin - China
Logistics data - Harmonized System (HS) code - 84733020
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
LongProductName - Socket AM4, AMD B550 Chipset, 4 x DDR4-SDRAM up to 128GB, LAN, 1 x RJ-45, 4 x SATA III, 2 x M.2(M), UEFI AMI, ATX
LongSummaryDescription - GIGABYTE B550 AORUS ELITE V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 12+2 Phases Digital Twin Power Design, up to 4733MHz DDR4 (OC), 2xPCIe 3.0 M.2, 2.5GbE LAN, USB 3.2 Gen1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Graphics card family: AMD. Ethernet interface type: 2.5 Gigabit Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8125
LPT connector / port - No
M.2 Expansion slots - 2
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer Code - B550 AORUS ELITE V2
Manufacturer Name - Gigabyte
Manufacturer_code - B550 AORUS ELITE V2
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 128 GB
Memory - ECC - Yes
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 4733 MHz
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2133,2400,2667,2933,3200 MHz
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2667
Memory - Supported memory clock speeds - 2933
Memory - Supported memory clock speeds - 3200 MHz
Memory - Supported memory module capacities - 1GB
Memory - Supported memory module capacities - 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Memory - Supported memory module capacities - 2GB
Memory - Supported memory module capacities - 4GB
Memory - Supported memory module capacities - 8GB
Memory - Supported memory module capacities - 12GB
Memory - Supported memory module capacities - 16GB
Memory - Supported memory module capacities - 32GB
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 2
Memory > Supported memory types - DDR4 DIMM
Memory bus frequency - 2133 MHz
Memory bus frequency - 2400 MHz
Memory bus frequency - 2667 MHz
Memory bus frequency - 2933 MHz
Memory bus frequency - 3200 MHz
Memory bus frequency - 3333 MHz
Memory bus frequency - 3600 MHz
Memory bus frequency - 4000 MHz
Memory bus frequency - 4400 MHz
Memory slots - 4
Memory type - DDR4
Memory type - DDR4
Model - B550 AORUS ELITE V2
Model - B550 AORUS ELITE V2 1.5
MPN - B550 AORUS ELITE V2
Name - AM4 Gigabyte B550 Aorus Elite V2
name - B550 AORUS ELITE V2 AM4 4DDR4 HDMI/DP M.2 ATX
Name - Gigabyte B550 AORUS ELITE V2
Name - GigaByte B550 AORUS ELITE V2 B550 - Socket AM4 - Mainboard
name - GIGABYTE B550 AORUS Elite V2, AMD B550 Mainboard - Sockel AM4
Name - Gigabyte | B550 AORUS ELITE V2 1.0 | Processor family AMD | Processor socket AM4 | DDR4 DIMM | Memory slots 2 | Chipset AMD B | ATX
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet interface type - 2.5 Gigabit Ethernet, Gigabit Ethernet
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8125
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Number of DDR4 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
Onboard connectors - 1 x 3pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 2 x M.2
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 4 x SATA III 6Gb/s
Optical S/PDIF Input/Output connectors - 1
Other features - Weight - 1.12 kg
Other information - Z uwagi na różne warunki obsługi Linuxa, prosimy o pozyskanie sterowników ze strony internetowej producenta danego układu. Większość producentów chipsetów nie wspiera obsługi starszych systemów operacyjnych takich jak Win9X/ME/2000/XP. Jeśli producent udostępni taki BIOS, znajdzie się on w sekcji "Do pobrania" odpowiednio dla każdego produktu z oferty.
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 335 mm
Package features > Gross depth master carton - 565 mm
Package features > Gross height (mm) - 275 mm
Package features > Gross height master carton - 360 mm
Package features > Gross width (mm) - 80 mm
Package features > Gross width master carton - 365 mm
Package features > Net weight master carton - 13.12 kg
Package features > Packing quantity - 8 pc(s)
Package features > Palette Qty - 184 pc(s)
Package features > Paper/Pasteboard - 625 g
Package features > Plastic (No PET) - 50.00 g
Package features > Tare weight (kg) - 0.675 kg
Package features > Tare weight master carton - 1.262 kg
Package features > Volume (m3) - 0.00737 m³
Package features > WEEE tax - No
Packaging content - Batteries included - Yes
Packaging data - Package depth - 270 mm
Packaging data - Package height - 80 mm
Packaging data - Package weight - 1.8 kg
Packaging data - Package width - 335 mm
PCI-Express 3.0 1x Expansion slots - 2
PCI-Express 3.0 2x Expansion slots - 1
PCI-Express 16x Expansion slots - 1
Performance > Chipset - AMD B
Performance > Motherboard form factor - ATX
Processor - Compatible processor series - 3rd Generation AMD Ryzen 5
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 3
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 7
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 9
Processor - Maximum internal memory supported by processor - 128 GB
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM4
Processor - Supported processor sockets - Socket AM4
Processor > Compatible processor series - Compatible with 3rd generation AMD Ryzen processors
Processor > Processor family - AMD
Processor > Processor socket - AM4
Processor family - AMD Ryzen
producer - Gigabyte
Producer - Gigabyte
producerCode - B550 AORUS ELITE V2
ProducerCode - B550 AORUS ELITE V2
Producer product name - B550 AORUS ELITE V2 1.0
ProductName - B550 AORUS ELITE V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 12+2 Phases Digital Twin Power Design, up to 4733MHz DDR4 (OC), 2xPCIe 3.0 M.2, 2.5GbE LAN, USB 3.2 Gen1
productName - Gigabyte B550 AORUS ELITE V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 12+2 Phases Digital Twin Power Design, up to 4733MHz DDR4 (OC), 2xPCIe 3.0 M.2, 2.5GbE LAN, USB 3.2 Gen1
productSize - Normal
RAID - SATA 0, 1, 10
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 34 cm
Shipping Box Height Shipping/Package Box Dimensions - 8 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.57 kg
Shipping Box Width Shipping/Package Box Dimensions - 27.5 cm
Short description - GIGA B550 AORUS ELITE V2 AM4 B550/DDR4/ATX
ShortDescription - Socket AM4 | Chipset AMD B550
ShortSummaryDescription - GIGABYTE B550 AORUS ELITE V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 12+2 Phases Digital Twin Power Design, up to 4733MHz DDR4 (OC), 2xPCIe 3.0 M.2, 2.5GbE LAN, USB 3.2 Gen1, AMD, Socket AM4, 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd..., Socket AM4, 128 GB, DDR4-SDRAM
sizeX - 340
sizeY - 280
sizeZ - 80
Socket - SAM4
Software - Norton Internet Security (wersja OEM) Realtek 8125 Gaming LAN Bandwidth Control Utility
Sound card - Realtek ALC1200 codec Obsługa High Definition Audio Ilość kanałów audio 2/4/5.1/7.1 Wsparcie dla S/PDIF Out
Special functions - Wsparcie dla APP Center Dostępne aplikacje w APP Center mogą się różnić w zależności od modelu płyty głównej. Obsługiwane funkcje każdej aplikacji mogą się również różnić w zależności od specyfikacji płyty głównej. Obsługa @ BIOS EasyTune Fast Boot Game Boost Obsługa ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Obsługa Q-Flash wsparcie dla Xpress Install
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 6
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Technical details - Warranty period - 3 year(s)
Technical details > Net weight - 0.965 kg
Technical details > Producer - Gigabyte
Title - GIGABYTE B550 AORUS ELITE V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 12+2 Phases Digital Twin Power Design, up to 4733MHz DDR4 (OC), 2xPCIe 3.0 M.2, 2.5GbE LAN, USB 3.2 Gen1
TPM - Header
Unit Brutto Volume - 0.00748 cubm
Unit Gross Weight - 1.57 kg
Unit Net Weight - 1.2 kg
URL - https://www.gigabyte.com/Motherboard/B550-AORUS-ELITE-V2-rev-10#kf
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 5
USB 3.2 Interface - Yes
USB ports at back panel - 7
USB ports on motherboard - 8
Vendor Homepage - www.gigabyte.com/Motherboard/B550-AORUS-ELITE-V2-rev-15#kf
vendpn - B550 AORUS ELITE V2
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 years
warrantyLength - 36
warrantyType - G
Weight - 1,62
Weight - 1.56
weight - 1585
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 305 mm
128.24 €
Gigabyte B550 AORUS ELITE V2
Intel technology provider Platinum 2020
All categories
