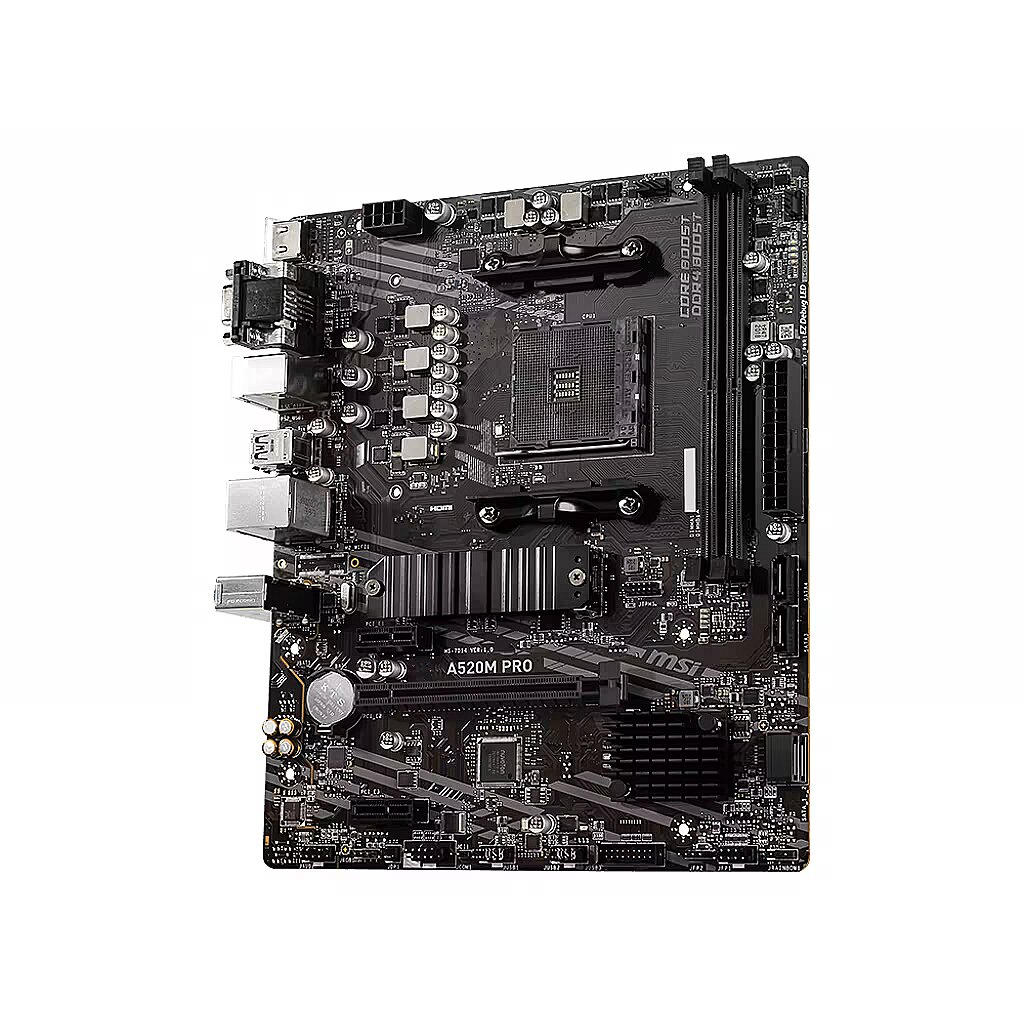

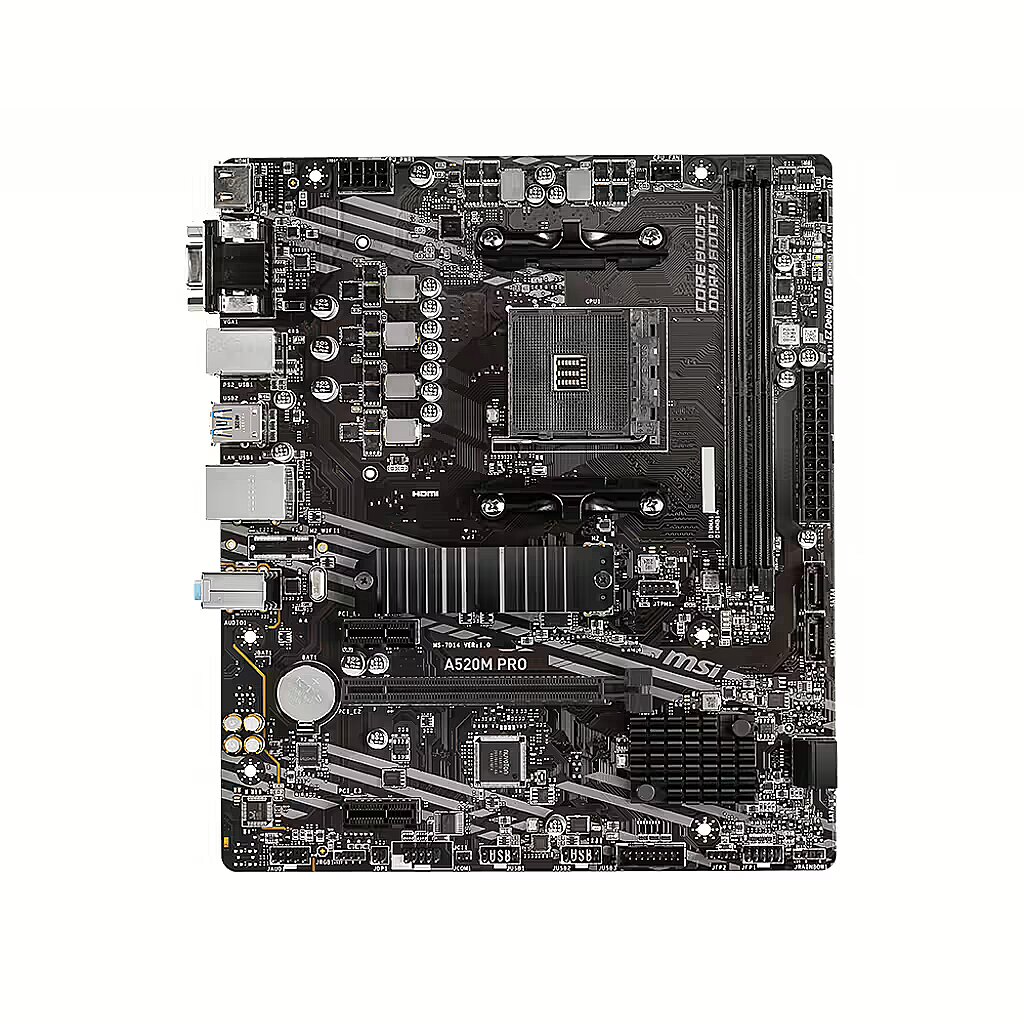

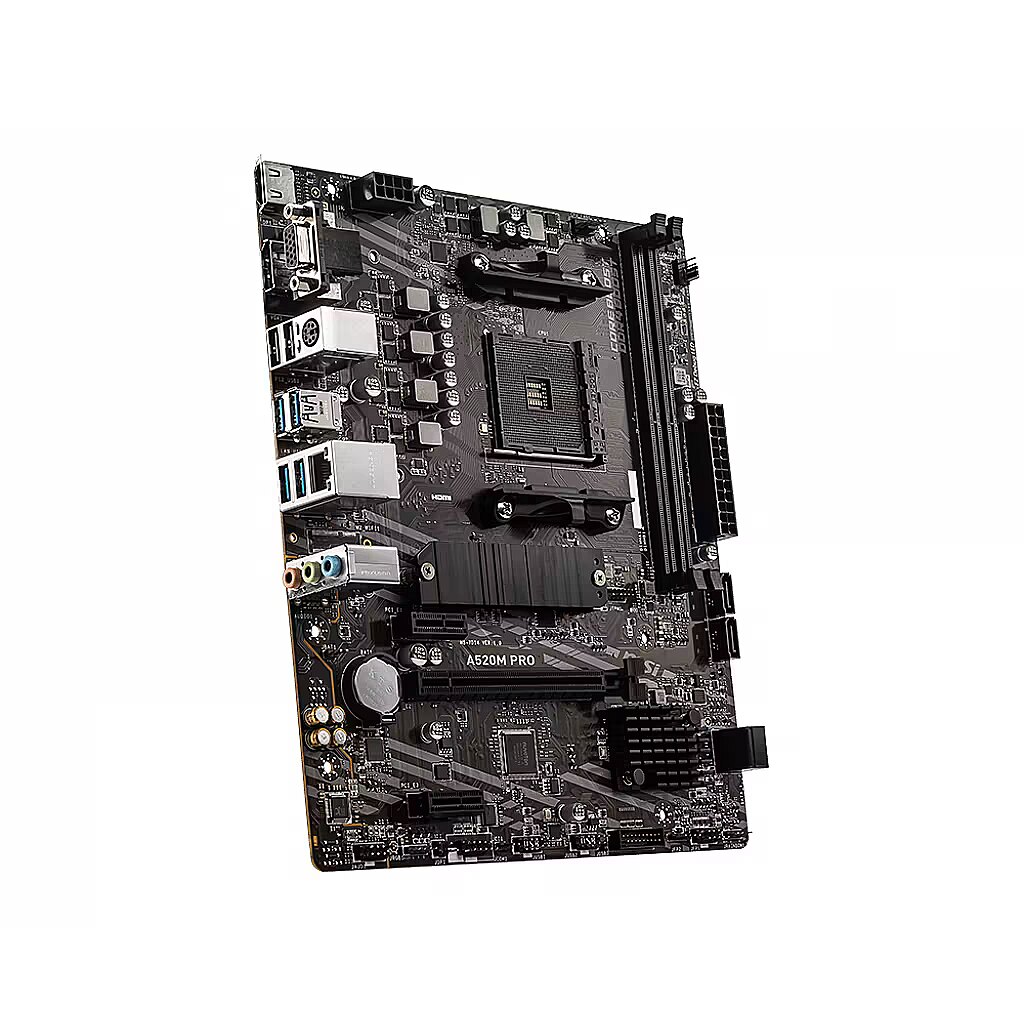

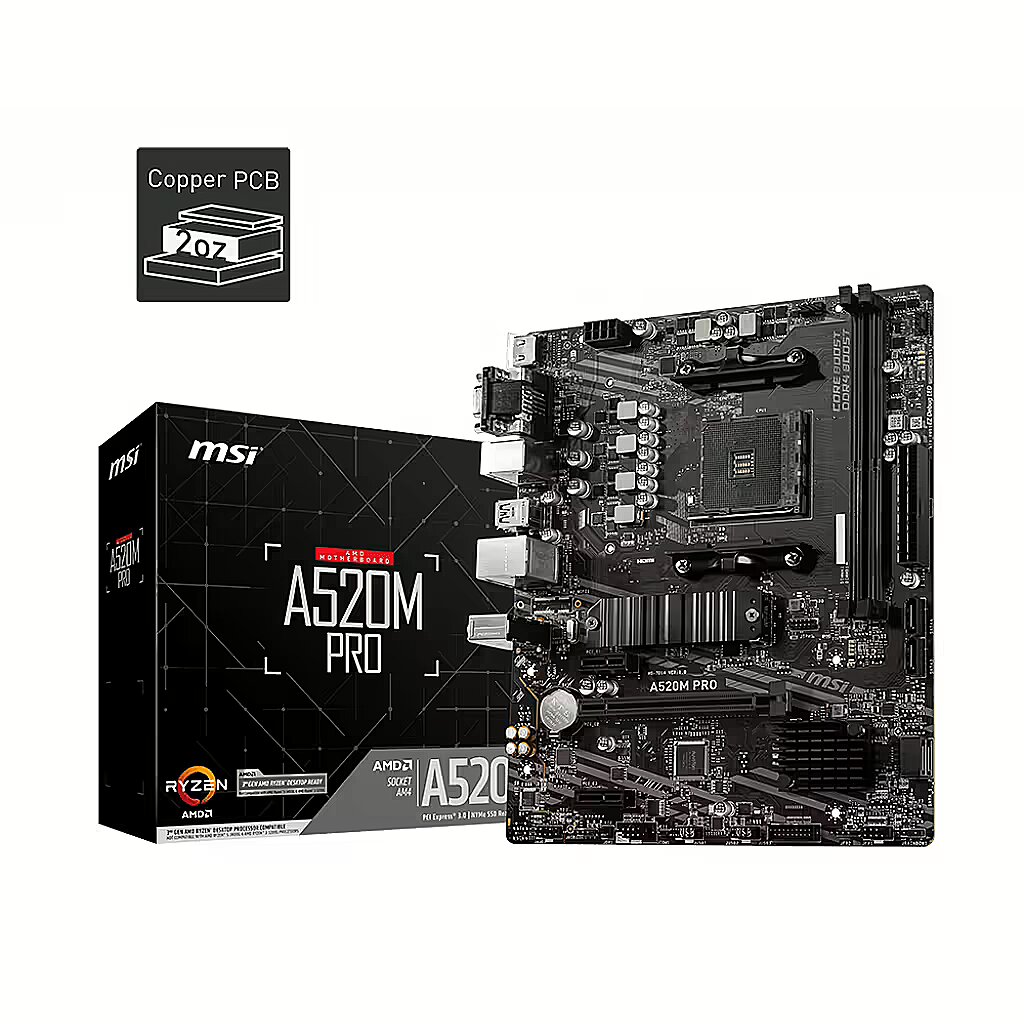

MSI A520M PRO

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 588725 Product code: A520M PRO
In stock 11 units
Warranty: 3 years
75.84 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: 28.11.2024
Main product parameters All parameters
  • Series: MSI PRO
  • Plate size: mATX
  • Chipset: AMD A520
  • Socket: AM4
  • Type: DDR4
  • RAM Slots: 2
  • Built-in Wi-Fi: Nav
  • M.2 ports: 1
Basic information
Series : MSI PRO
Plate size mATX

The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD A520

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Socket AM4
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Random-access memory (RAM)
Type : DDR4
RAM Slots 2
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support DDR4 3200MHz (4600MHz OC)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card
VGA Port PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics Only with iGPU-ready APU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment
D-Sub : 1
DisplayPort : 1
DVI : 0
HDMI : 1
Integrated sound card : Realtek ALC892
PCI Ports 0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
Wireless connections
Built-in Bluetooth : Nav
Built-in Wi-Fi : Nav
External ports
External USB 2.0 : 2
External USB Type-C (USB 3.2 Gen2) : 0
External USB Type-C (USB 4.0) : 0
External USB 3.0 (USB 3.2 Gen1) : 4
External USB 3.1 (USB 3.2 Gen2) : 0
Internal ports
Internal A-RGB 5V (3-pin) : 1
Internal RGB 12V (4-pin) : 1
Internal USB 2.0 : 2
Internal USB 3.0 : 1
Internal USB Type-C : 0
M.2 ports : 1
SATA3 ports : 4
More detailed specification
Additional information in manufacturers website MSI A520M PRO
Accessories included - 2 x kabel SATA Przewodnik szybkiej instalacji Karta rejestracji Sterowniki CD
BIOS -
Brand - MSI
BrandPartCode - A520M PRO
Category - Motherboards
Category - Root/Electronics/PC parts/Motherboards
Chipset manufacturer - AMD
Chipset type - AMD A520 Chipset
Code - A520M PRO
COM connector / port - Yes
CPU socket - Socket AM4
Description - Obsługa procesorów do komputerów stacjonarnych AMD Ryzen trzeciej generacji i procesorów do komputerów stacjonarnych AMD Ryzen 4000 G. Obsługuje pamięć DDR4 do 4600 (OC) MHz Turbo M.2: Praca z PCI-E Gen3 x4 maksymalizuje wydajność dysków SSD NVMe M.2 Shield Frozr: wzmocnione wbudowane rozwiązanie termiczne M.2. Zapewnia bezpieczeństwo dysków SSD M.2, jednocześnie zapobiegając dławieniu, dzięki czemu działają szybciej DDR4 Boost: Zaawansowana technologia dostarczania czystych sygnałów danych dla najlepszej wydajności i stabilności 2 uncje zagęszczonej miedzi PCB: ulepszona konstrukcja PCB poprawia odprowadzanie ciepła i niezawodność działania Wzmocnienie dźwięku: nagradzaj swoje uszy studyjną jakością dźwięku Dragon Center: zupełnie nowe oprogramowanie, które integruje wszystkie ekskluzywne narzędzia MSI z przyjaznym interfejsem użytkownika
Detailed data on disk/drive interfaces - AMD A520 Chipset: 4x SATA 6Gb/s ports 1x M.2 slot (Key M) (from AMD Processor) M2_1 slot (from AMD Processor) Obsługuje PCIe 3.0 x4 1 Obsługuje SATA 6Gb/s Obsługuje 2242/ 2260/ 2280 storage devices AMD A520 Chipset: 2x USB 3.2 Gen 1 5Gbps ports (2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor: 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
dimensionalWeight - 732
dimension depth - 50 mm
dimension height - 250 mm
Dimensions - 24.4 x 21 cm
dimension weight - 780 g
dimension width - 250 mm
EAN - 4719072755492
ean - 4719072755492
Eans - 4719072755492
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe x 16
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 (Gen 3.x) slots - 2
Expansion slots - PCI Express x16 slots - 1
External connectors - 1 x D-Sub
External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x RJ-45
External connectors - 2 x USB 2.0
External connectors - 4 x USB 3.0
Features - Audio chip - Realtek ALC892
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD A520
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - micro ATX
Features - Number of mounting holes - 6
Features - Power source type - ATX
FireWire (IEEE 1394) - No
Form factor - micro ATX
Graphics - 1x port VGA, obsługuje maksymalną rozdzielczość 2048x1536 przy 50Hz, 2048x1280 przy 60Hz, 1920x1200 przy 60Hz 1x HDMI 2.1, obsługuje maksymalną rozdzielczość 4096x2160 przy 60 Hz 1x HDMI 2.1, obsługuje maksymalną rozdzielczość 4096x2160 przy 60 Hz Maksymalna pamięć współdzielona 2048 MB
Graphics - Maximum resolution - 4096 x 2160 pixels
Gross weight - 0.794 kg
GTIN - 0824142226063
GTIN - 824142226063
GTIN - 4719072755492
guarantee - 36
guarantee_type - normal
Integrated CPU - No
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Total number of SATA connectors - 4
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Link - https://www.msi.com/Motherboard/A520M-PRO
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.M.2 SHIELD FROZRWorld’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.FULLY CONTROLLABLE IN BIOS AND SOFTWAREMSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.EZ DEBUG LEDRun into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get up and running again.ULTIMATE MOTHERBOARD PROTECTIONDouble ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.FAST AND FUTURE-READY STORAGEMSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.USB 3.2 GEN 1Transfer lots of data, music and movies over USB easier. USB 3.2 ports are ready in both front and rear IO, provides wide variety of options to connect your USB 3.2 devices.MYSTIC LIGHT SYNCEXTEND YOUR RGB EXPERIENCE WITH EASEAdd your color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.JRAINBOWConnects 3-pin 5V Addressable LED stripJRGBConnects 4-pin 12V RGB LED stripPCB WITH 2OZ THICKENED COPPERAn enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking.A HUGE STEP OF DDR PERFORMANCEMSI OC LAB does not merely work hard on extreme overclocking. Compared to A320 motherboard memory A-XMP profile, MSI does have great improvement on performance and efficiency for A520 motherboards. Easy to enable A-XMP profile with auto power settings to get the best memory speed and stability.CORE BOOSTCore Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
LongProductName - AMD A520, 2x DDDR4, VGA, DisplayPort, HDMI, SATA III, M.2, USB 3.2, LAN, Micro-ATX, 244x210 mm
LongSummaryDescription - MSI A520M PRO. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: PCI Express 3.0, SATA, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek 8111H
LPT connector / port - No
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 64 GB
Memory - ECC - Yes
Memory - Maximum internal memory - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 2
Memory - Supported memory clock speeds - 1866
Memory - Supported memory clock speeds - 1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400,4466 MHz
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2667
Memory - Supported memory clock speeds - 2800
Memory - Supported memory clock speeds - 2933
Memory - Supported memory clock speeds - 3000
Memory - Supported memory clock speeds - 3066
Memory - Supported memory clock speeds - 3200 MHz
Memory - Supported memory clock speeds - 3466
Memory - Supported memory clock speeds - 3600 MHz
Memory - Supported memory clock speeds - 3733
Memory - Supported memory clock speeds - 3866
Memory - Supported memory clock speeds - 4000
Memory - Supported memory clock speeds - 4133
Memory - Supported memory clock speeds - 4266
Memory - Supported memory clock speeds - 4400
Memory - Supported memory clock speeds - 4466
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - No
Memory > Memory slots - 2
Memory > Supported memory types - DDR4
Memory bus frequency - 1866 MHz
Memory bus frequency - 2133 MHz
Memory bus frequency - 2400 MHz
Memory bus frequency - 2666 MHz
Memory bus frequency - 2800 MHz
Memory bus frequency - 2933 MHz
Memory bus frequency - 3000 MHz
Memory bus frequency - 3066 MHz
Memory bus frequency - 3200 MHz
Memory bus frequency - 3466 MHz
Memory bus frequency - 3600 MHz
Memory bus frequency - 3733 MHz
Memory bus frequency - 3866 MHz
Memory bus frequency - 4000 MHz
Memory bus frequency - 4133 MHz
Memory bus frequency - 4266 MHz
Memory bus frequency - 4400 MHz
Memory bus frequency - 4600 MHz
Memory type - DDR4
Model - A520M PRO
name - A520M PRO AM4 2DDR4 DP/VGA/HDMI USB3.2 mATX
Name - MSI A520M PRO
Name - MSI | A520M PRO | Processor family AMD | Processor socket AM4 | DDR4 | Memory slots 2 | Chipset AMD A | Micro ATX
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek 8111H
Network - LAN controller - Realtek RTL8111H
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000 Mbit/s
Network interface - 1x Realtek RTL8111H LAN controller
Number of DDR4 slots - 2
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x M.2
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 2 x System panel header
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 4 x SATA III 6Gb/s
Other features - Weight - 698 g
Other information -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 260 mm
Package features > Gross depth master carton - 595 mm
Package features > Gross height (mm) - 60 mm
Package features > Gross height master carton - 295 mm
Package features > Gross width (mm) - 263 mm
Package features > Gross width master carton - 535 mm
Package features > Net weight master carton - 15.88 kg
Package features > Packing quantity - 20 pc(s)
Package features > Palette Qty - 100 pc(s)
Package features > Paper/Pasteboard - 83 g
Package features > PET - 2.00 g
Package features > Plastic (No PET) - 98 g
Package features > Tare weight (kg) - 0.183 kg
Package features > Tare weight master carton - 1.596 kg
Package features > TI weight (kg) - 0.00 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.0041028 m³
Package features > WEEE tax - No
Performance > Chipset - AMD A
Performance > Motherboard form factor - Micro ATX
Processor - Compatible processor series - 3rd Generation AMD Ryzen 5
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 3
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 7
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 9
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM4
Processor > Compatible processor series - 3rd Gen AMD Ryzen Desktop Processors and AMD Ryzen 4000 G-Series Desktop Processors
Processor > Processor family - AMD
Processor > Processor socket - AM4
Processor family - AMD Ryzen
producer - MSI
Producer - MSI
ProducerCode - A520M PRO
producerCode - A520M PRO AM4 2DDR4
Producer product name - A520M PRO
ProductName - A520M PRO
productName - MSI A520M PRO Socket AM4 micro ATX
productSize - Normal
RAID - Yes

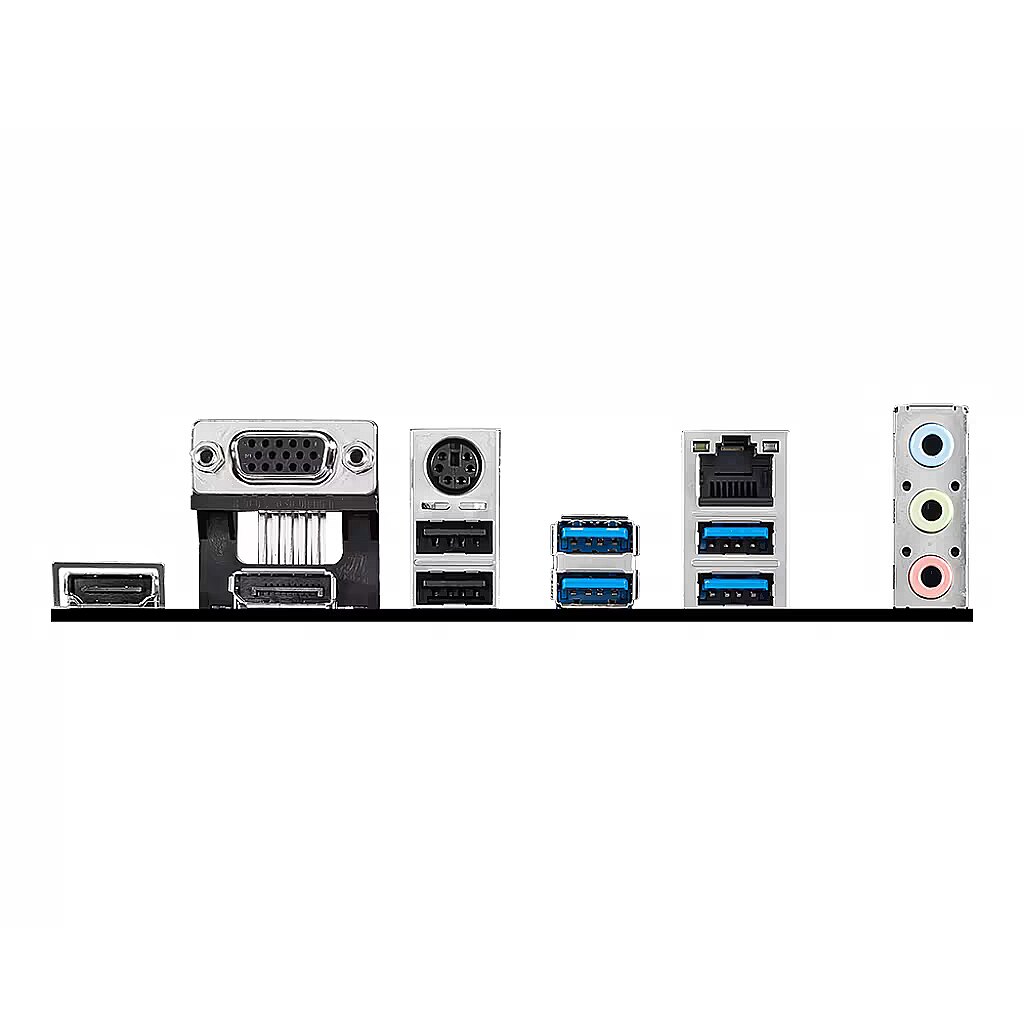

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
ShortDescription - Socket AM4 | Chipset AMD A520
ShortSummaryDescription - MSI A520M PRO, AMD, Socket AM4, 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd..., DDR4-SDRAM, 64 GB, DIMM
sizeX - 260
sizeY - 55
sizeZ - 256
Software -
Sound card - Realtek ALC892 Codec 7.1-Channel High Definition Audio
Special functions -
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 10
Storage controllers - Supported storage drive interfaces - PCI Express 3.0, SATA
Storage controllers - Supported storage drive interfaces - PCI Express 3.0, Serial ATA
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Technical details > Net weight - 0.611 kg
Technical details > Producer - MSI
Technical details > Warranty - 36 month(s)
Title - MSI A520M PRO motherboard AMD A520 Socket AM4 micro ATX
URL - https://es.msi.com/Motherboard/A520M-PRO/Overview
USB ports at back panel - 6
USB ports on motherboard - 6
vendpn - A520M PRO
Warranty - 36
WarrantyInfo -
warrantyLength - 36
warrantyType - G
weight - 800
Weight & dimensions - Depth - 210 mm
Weight & dimensions - Height - 65 mm
Weight & dimensions - Width - 244 mm
75.84 €
MSI A520M PRO
Intel technology provider Platinum 2020
All categories
