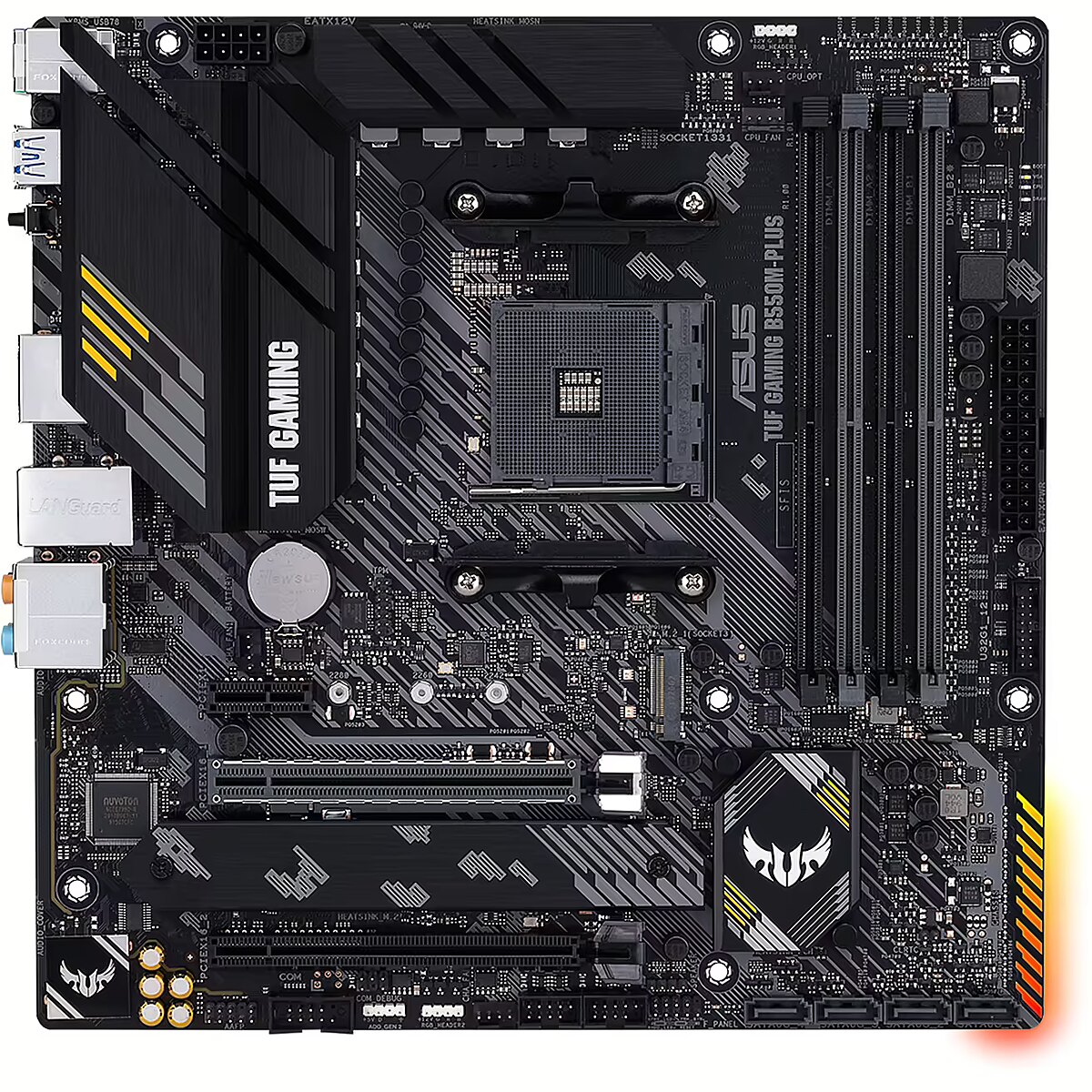

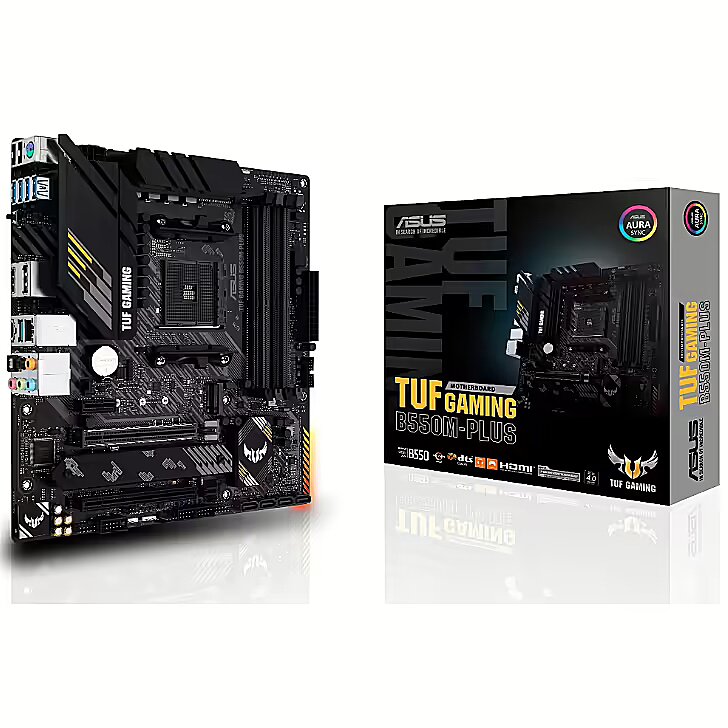

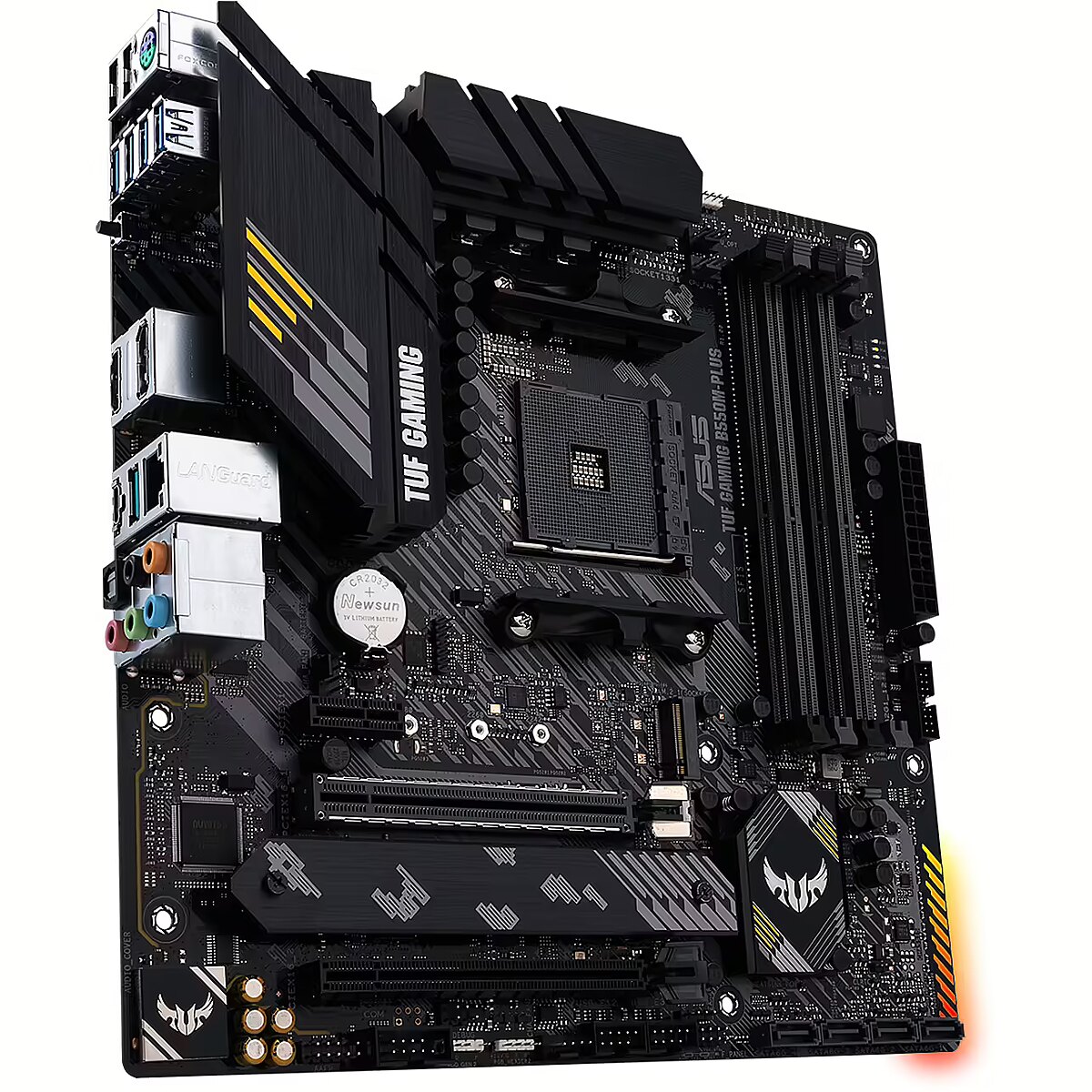

Asus TUF GAMING B550M-PLUS

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 566427 Product code: TUF GAMING B550M-PLUS
In stock 11 units
Warranty: 3 years
141.03 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: 29.11.2024
Main product parameters All parameters
  • Series: ASUS TUF Gaming
  • Plate size: mATX
  • Chipset: AMD B550
  • Socket: AM4
  • Type: DDR4
  • RAM Slots: 4
  • Built-in Wi-Fi: Nav
  • M.2 ports: 2
Basic information
Series : ASUS TUF Gaming
Plate size mATX

The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD B550

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Socket AM4
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Random-access memory (RAM)
Type : DDR4
RAM Slots 4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support DDR4 3200MHz (4600MHz OC)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card
VGA Port PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics Only with iGPU-ready APU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment
D-Sub : 0
DisplayPort : 1
DVI : 0
HDMI : 1
Integrated sound card : Realtek ALC1200
PCI Ports 0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
Wireless connections
Built-in Bluetooth : Nav
Built-in Wi-Fi : Nav

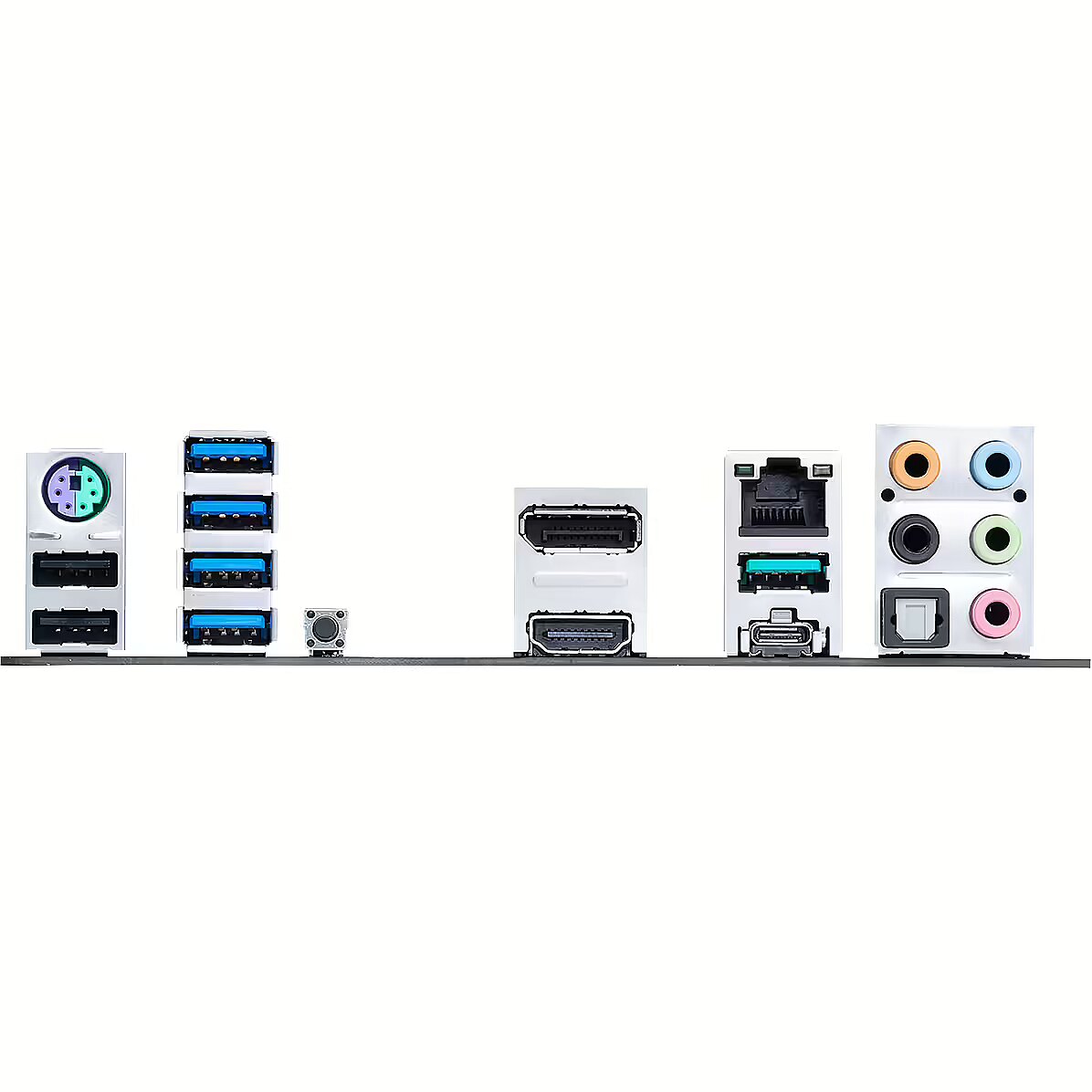

External ports
External USB 2.0 : 2
External USB Type-C (USB 3.2 Gen2) : 1
External USB Type-C (USB 4.0) : 0
External USB 3.0 (USB 3.2 Gen1) : 4
External USB 3.1 (USB 3.2 Gen2) : 1
Internal ports
Internal A-RGB 5V (3-pin) : 1
Internal RGB 12V (4-pin) : 2
Internal USB 2.0 : 2
Internal USB 3.0 : 1
Internal USB Type-C : 0
M.2 ports : 2
SATA3 ports : 4
More detailed specification
Additional information in manufacturers website Asus TUF GAMING B550M-PLUS
Audio port Input/Output connectors - 5
BIOS - BIOS type - UEFI
Brand - ASUS
BrandPartCode - 90MB14A0-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM4
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM4
category_en - Computers & Components > Computer components > Motherboards > AMD motherboards
category_lv - Datortehnika > Datoru komponentes > Pamatplates > AMD mātesplates
category_ru - Datortehnika > Datoru komponentes > Pamatplates > AMD mātesplates
Chipset - AMD B550
CnCode CnCode - 84733020
code - 90MB14A0-M0EAY0
Code - 90MB14A0-M0EAY0
Description - AMD B550 (Ryzen AM4) micro ATX gaming motherboard with PCIe 4.0, dual M.2, 10 DrMOS power stages, 2.5 Gb Ethernet, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C, and Aura Sync RGB lighting support - AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ Processors - Enhanced power solution: 8+2 DrMOS power stages, ProCool connector, military-grade TUF components, and Digi+ VRM for maximum durability - Comprehensive cooling: VRM heatsinks, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 2+ utility - Next-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C support - Made for online gaming: 2.5 Gb Ethernet, TUF LANGuard and TurboLAN technology - Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in - AI noise-canceling microphone: Provides crystal-clear in-game voice communication
description_en - Product type: Motherboard
Chipset: AMD® B550
Base: AMD AM4
Form factor: Micro-ATX
Processor/type: AMD Ryzen™ (unterstützt 1., 2., 3., 4., 5. Generation)
Interfaces:
USB-C®
USB 3.2 (Gen 2)
USB 3.2 (Gen 1)
USB 2.0
HDMI™
DisplayPort
PS/2
LAN (10/100/1000 Mbps)
Audio 7.1 (3.5 mm jack)
S/PDIF (TOSLINK)
No. of DDR4 slots: 4x
No. of Gigabit LANs: 1x
No. of PCIe 3.0 x16: 3x
No. of PCIe 3.0 x16: 1x
No. of PCIe x1: 1x
No. of USB 2.0 ports: 2x
No. of USB type A 3.0 ports: 4x
No. of USB 3.2 2nd Gen (USB 3.1): 1x
No. of USB 3.0 ports: 1x
No. of SATA III ports: 4x
Onboard audio: 7.1 HD
Optical S/PDIF
No. of PS/2 ports: 1x
Connectors: HDMI, Displayport
description_lv - Produkta veids: Mātesplate
Mikroshēma: AMD® B550
Bāze: AMD AM4
Formas faktors: Micro-ATX
Procesors/tips: AMD Ryzen™ (unterstützt 1., 2., 3., 4., 5. Generation)
Saskarnes:
USB-C®
USB 3.2 (2. paaudze)
USB 3.2 (1. paaudze)
USB 2.0
HDMI™
DisplayPort
PS/2
LAN (10/100/1000 Mb/s)
Audio 7.1 (3,5 mm ligzda)
S/PDIF (TOSLINK)
DDR4 slotu skaits: 4x
Gigabitu LAN skaits: 1x
PCIe 3.0 x16 skaits: 3 x
PCIe 3.0 x16 skaits: 1 x
PCIe x1 skaits: 1x
USB 2.0 portu skaits: 2x
USB tipa A 3.0 portu skaits: 4x
USB 3.2 2. paaudzes (USB 3.1) skaits: 1 reize
USB 3.0 portu skaits: 1x
SATA III portu skaits: 4x
Borta audio:
7.1 HD
Optiskais S/PDIF
PS/2 portu skaits: 1x
Savienotāji: HDMI, Displayport
description_ru - Тип продукта: Материнская плата
Чипсет: AMD® B550
Основание: AMD AM4
Форм-фактор: Micro-ATX
Процессор/тип: AMD Ryzen™ (поддержка 1., 2., 3., 4., 5. поколения)
Интерфейсы:
USB-C®
USB 3.2 (Gen 2)
USB 3.2 (Gen 1)
USB 2.0
HDMI™
DisplayPort
PS/2
LAN (10/100/1000 Мбит/с)
Аудио 7.1 (разъем 3,5 мм)
S/PDIF (TOSLINK)
Количество слотов DDR4: 4x
Количество гигабитных локальных сетей: 1x
Количество PCIe 3.0 x16: 3x
Количество PCIe 3.0 x16: 1x
Количество PCIe x1: 1x
Количество портов USB 2.0: 2x
Количество портов USB типа A 3.0: 4x
Количество USB 3.2 2-го поколения (USB 3.1): 1x
Количество портов USB 3.0: 1x
Количество портов SATA III: 4x
Встроенный звук:
7.1 HD
Оптический S/PDIF
Количество портов PS/2: 1x
Разъемы: HDMI, Displayport
DisplayPort Input/Output connectors - 1
EAN - 4718017623544
ean - 4718017623544
Eans - 4718017623544
EAN_code - 4718017623544
Features - Component for - PC
Features - Motherboard chipset - AMD B550
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - micro ATX
Form Factor - Micro-ATX
Frequency speed - 2133/2400/2666/2800/3000/3200/3333/3466/3600/3733/3866/4000/4133/4266/4400/4466/4600/4800 MHz
Full Description Line - AMD B550|SAM4|Micro-ATX|DDR4|4800/4600/4466/4400/4266/4133/4000/3866/3733/3600/3466/3333/3200/3000/2800/2666/2400/2133 MHz|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xPCI-Express 4.0 16x|2xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|5xUSB 3.2|1xUSB-C|1xPS/2|1xOptical S/PDIF|1xRJ45|5xAudio port|USB 2.0|USB 3.2|Serial|SATA 3.0|Video Depending on CPU|Audio|LAN Gigabit|RAID SATA 0, 1, 10
Graphics - Parallel processing technology support - 2-Way CrossFireX
Gross weight - 1.3 kg
gross_weight - 1.3 kg
GTIN - 0192876623541
GTIN - 192876623541
GTIN - 4718017623544
HDMI Input/Output connectors - 1
Integrated audio - Yes
Integrated LAN - Gigabit
Integrated video - Depending on CPU
Internal I/O - Number of SATA connectors - 4
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Link - https://www.asus.com/Motherboards/TUF-GAMING-B550M-PLUS/
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - DURABLE. STABLE. RELIABLE.TUF Gaming B550M-Plus distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability.When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case.ROCK-SOLID PERFORMANCEWith upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster memory and storage, TUF Gaming B550M-Plus is the perfect foundation for your next high-core-count battle rig.DrMOSThe onboard VRM of TUF Gaming B550M-Plus utilizes 8+2 DrMOS power stages that combine high-side and low-side MOSFETs and driver into a single package, delivering the power and efficiency that 3rd Gen AMD Ryzen™ Processors demand.EASY PC DIYTUF Gaming motherboards are designed to be easy to set up and configure just the way you want — even for first-time builders. The TUF Gaming Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.IMMERSIVE GAMINGTUF Gaming B550M-Plus provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.EXCLUSIVE 2.5 GIGABIT ETHERNET2.5G on-board Ethernet kicks your LAN connection up a notch with an up to 2.5X bandwidth improvement. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers.Turbo LANNETWORK-OPTIMIZATION SOFTWARE FOR CUSTOMIZABLE PACKET PRIORITIZATIONTurbo LAN is a network-optimization software for customizable packet prioritization. With cFosSpeed traffic-shaping technology, it allows you to configure application priority via an intuitive interface, and reduces network lag.
LongProductName - AMD B550 (Ryzen AM4) micro ATX gaming motherboard with PCIe 4.0, dual M.2, 10 DrMOS power stages, 2.5 Gb Ethernet, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C, and Aura Sync RGB lighting support
LongSummaryDescription - ASUS TUF GAMING B550M PLUS. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA. Parallel processing technology support: 2-Way CrossFireX. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
M.2 Expansion slots - 2
Manufacturer - Asus
Manufacturer_code - 90MB14A0-M0EAY0
Memory - Maximum internal memory - 128 GB
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speeds - 2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4266,4400,4600 MHz
Memory - Supported memory types - DDR4-SDRAM
Memory > Memory slots - 4
Memory > Supported memory types - DDR4
Memory slots - 4
Memory type - DDR4
Model - 90MB14A0-M0EAY0
Name - ASUS TUF GAMING B550M-PLUS
name - ASUS TUF Gaming B550M-Plus, AMD B550 Mainboard - Sockel AM4
Name - ASUS TUF GAMING B550M-PLUS - Socket AM4 - mainboard
Name - Asus | TUF Gaming B550M-Plus | Processor family AMD | Processor socket AM4 | DDR4 | Memory slots 4 | Chipset AMD B | Micro ATX
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Optical S/PDIF Input/Output connectors - 1
Other features - Weight - 845 g
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 275 mm
Package features > Gross depth master carton - 570 mm
Package features > Gross height (mm) - 265 mm
Package features > Gross height master carton - 290 mm
Package features > Gross width (mm) - 70 mm
Package features > Gross width master carton - 360 mm
Package features > Net weight master carton - 13 kg
Package features > Packing quantity - 10 pc(s)
Package features > Palette Qty - 290 pc(s)
Package features > Paper/Pasteboard - 400.00 g
Package features > Plastic (No PET) - 50.00 g
Package features > Tare weight (kg) - 0.45 kg
Package features > Tare weight master carton - 1.012 kg
Package features > Volume (m3) - 0.00510125 m³
Package features > WEEE tax - No
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 3.0 16x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
Performance > Chipset - AMD B
Performance > Motherboard form factor - Micro ATX
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM4
Processor > Compatible processor series - 3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors
Processor > Processor family - AMD
Processor > Processor socket - AM4
Producer - ASUS
Producer - Asus
ProducerCode - TUF GAMING B550M-PLUS
Producer product name - TUF Gaming B550M-Plus
ProductName - TUF GAMING B550M PLUS
PS/2 Input/Output connectors - 1
RAID - SATA 0, 1, 10
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 5
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 2
RJ45 Input/Output connectors - 1
SATA 3.0 Interface - Yes
Serial Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 56.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 29 cm
Shipping box quantity - 10
Shipping Box Weight Shipping/Package Box Dimensions - 14.2 kg
Shipping Box Width Shipping/Package Box Dimensions - 36 cm
ShortDescription - Socket AM4 | Chipset AMD B550
ShortSummaryDescription - ASUS TUF GAMING B550M PLUS, AMD, Socket AM4, 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd..., DDR4-SDRAM, 128 GB, DIMM
Socket - SAM4
Storage controllers - Supported storage drive interfaces - M.2, SATA
Technical details > Net weight - 0.85 kg
Technical details > Producer - Asus
Title - ASUS TUF GAMING B550M PLUS AMD B550 Socket AM4 micro ATX
title_en - Asus TUF GAMING B550M Plus Motherboard AMD B550 / AM4 mikro ATX
title_lv - Asus TUF GAMING B550M Plus Mātesplate AMD B550 / AM4 mikro ATX
title_ru - Asus TUF GAMING B550M Plus Материнская Плата AMD B550 / AM4 mikro ATX
Unit Box Height - 0.07
Unit Box Length - 0.28
Unit Box Width - 0.27
Unit Brutto Volume - 0.005899 cubm
Unit Gross Weight - 1.42 kg
Unit Net Weight - 1.1 kg
URL - https://www.asus.com/Motherboards/TUF-GAMING-B550M-PLUS/
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 5
USB 3.2 Interface - Yes
Vendor Homepage - www.asus.com/Motherboards/TUF-GAMING-B550M-PLUS/specifications/
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
weight - 1 kg
Weight - 1,32
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 67 mm
Weight & dimensions - Width - 244 mm
141.03 €
Asus TUF GAMING B550M-PLUS
Intel technology provider Platinum 2020
All categories
