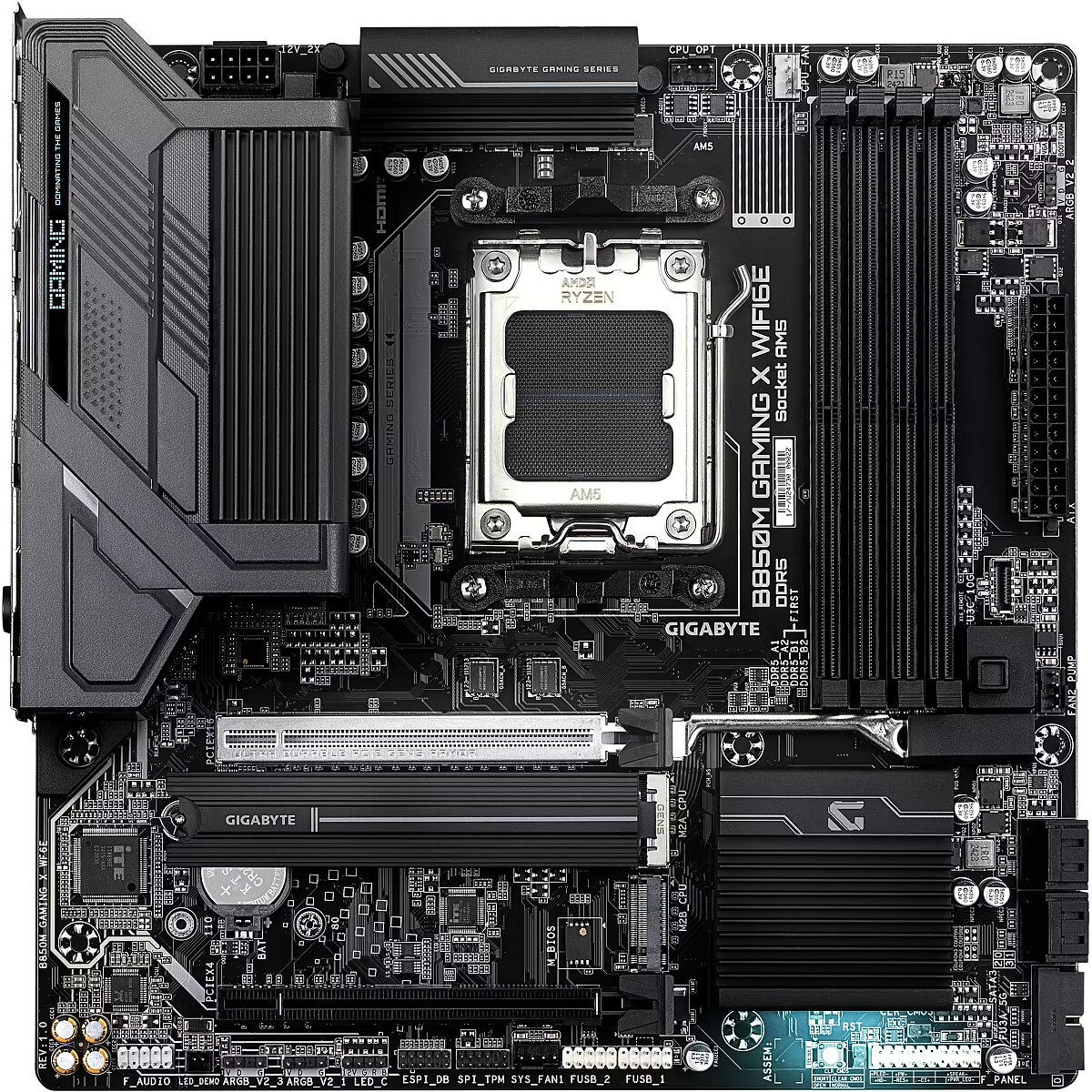

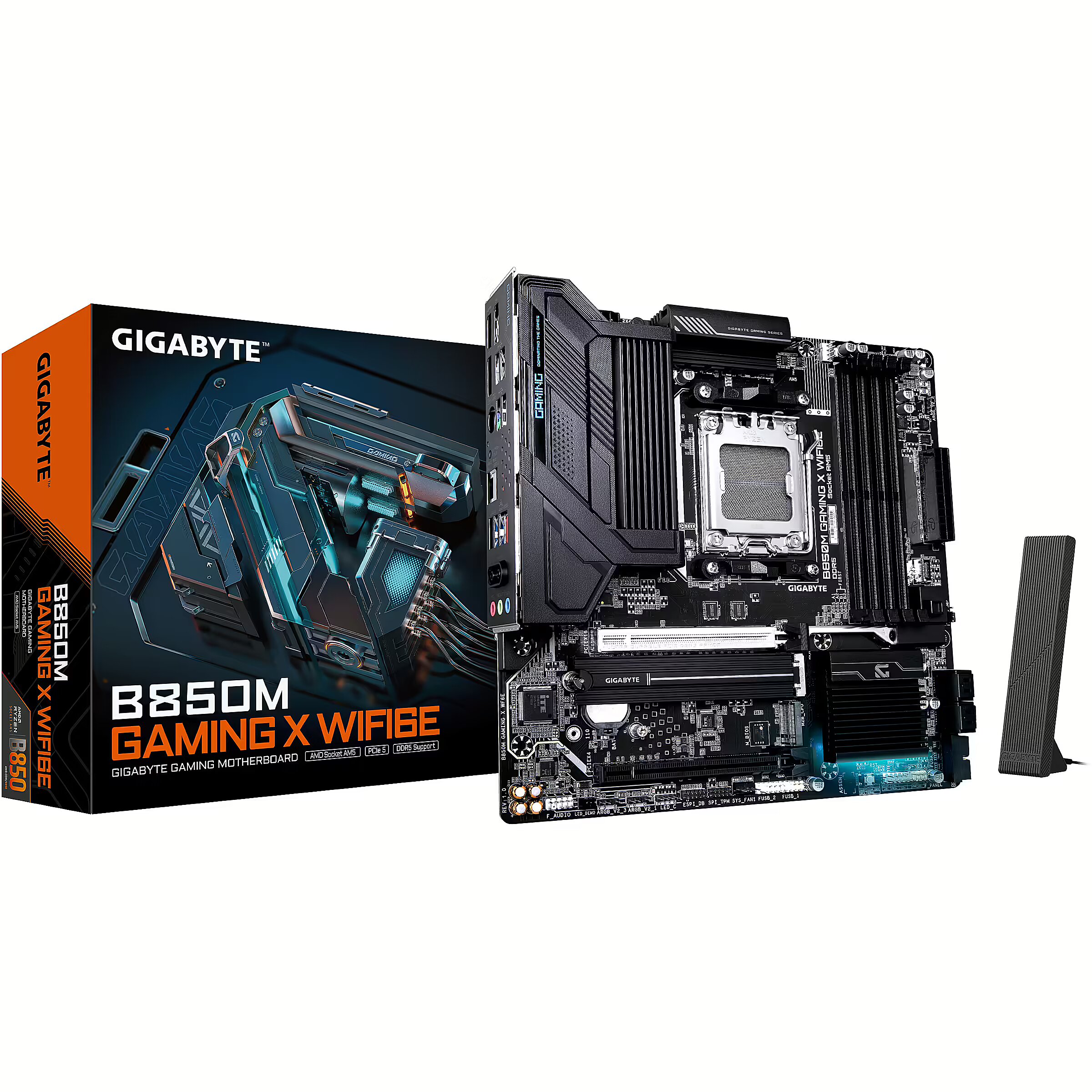

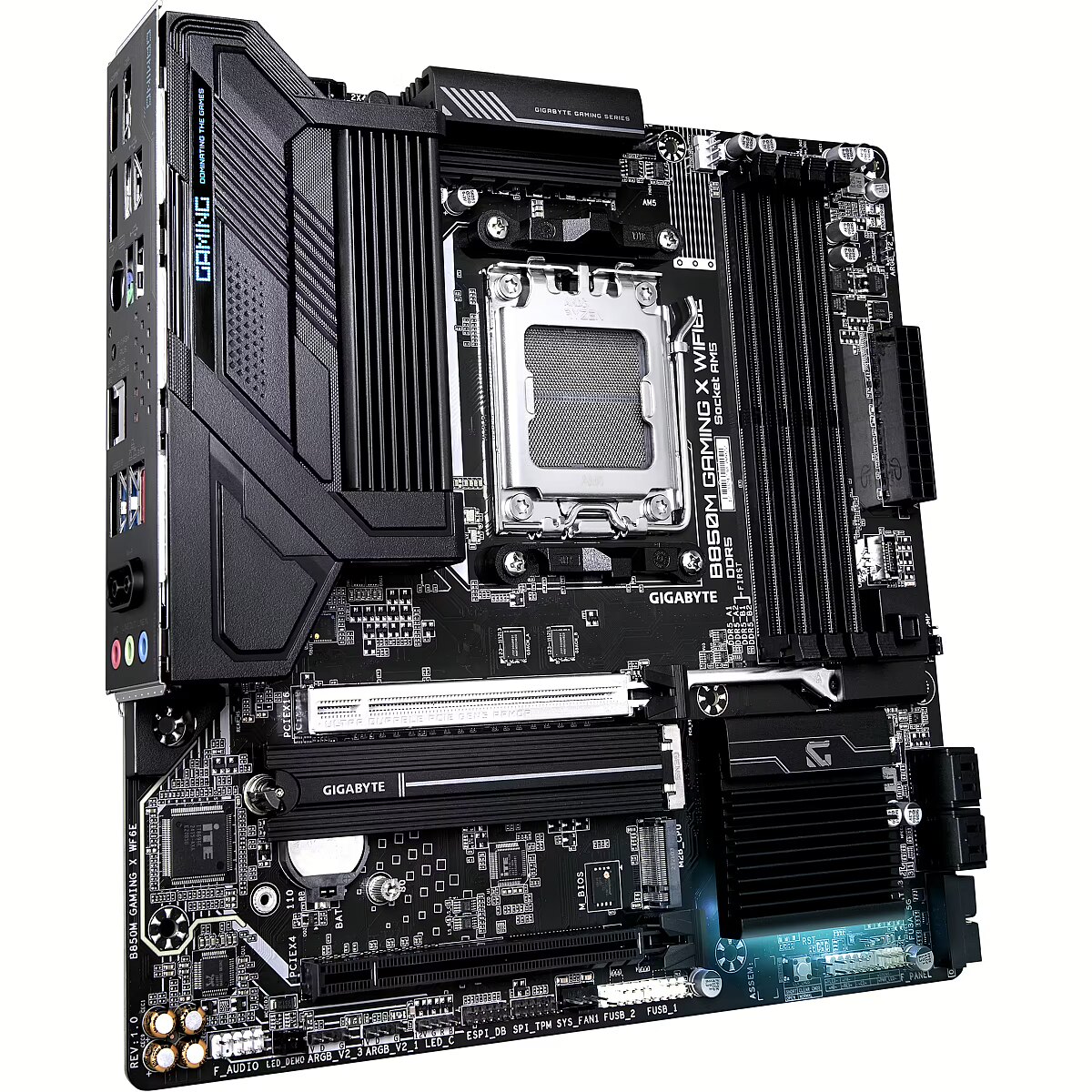

Gigabyte B850M GAMING X WIFI6E

Name: Gigabyte B850M GAMING X WIFI6E
Brand: Gigabyte
SKU: 1177656
Price: 191.26 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 1177656 Product code: B850M GAMING X WF6E

Can be ordered 65 units Availability: 14 days after order approval

Warranty: 3 years

Compare

Delivery options

Delivery to Smartpost 6.99 €: 14.05.2025
Courier delivery 11.99 €: 14.05.2025

Main product parameters All parameters

Series: Gigabyte Gaming
Plate size: mATX
Chipset: AMD B850
Socket: AM5
Type: DDR5
RAM Slots: 4
Built-in Wi-Fi: Ir
M.2 ports: 2

Basic information

Series : Gigabyte Gaming

Plate size mATX

The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD B850

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.

Socket AM5

The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.

Random-access memory (RAM)

Type : DDR5

RAM Slots 4

The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.

Memory support DDR5 5600MT/s (8200MT/s OC)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card

VGA Port PCI-EXPRESS

VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.

Integrated graphics Only with iGPU-ready APU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment

D-Sub : 0

DisplayPort : 2

DVI : 0

HDMI : 1

Integrated sound card : Realtek Audio CODEC

PCI Ports 0

PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.

Wireless connections

Built-in Bluetooth : Ir

Built-in Wi-Fi : Ir

External ports

External USB 2.0 : 4

External USB Type-C (USB 3.2 Gen2) : 1

External USB Type-C (USB 4.0) : 0

External USB 3.0 (USB 3.2 Gen1) : 2

External USB 3.1 (USB 3.2 Gen2) : 1

Internal ports

Internal A-RGB 5V (3-pin) : 3

Internal RGB 12V (4-pin) : 1

Internal USB 2.0 : 2

Internal USB 3.0 : 1

Internal USB Type-C : 1

M.2 ports : 2

SATA3 ports : 4

More detailed specification

Accessories included -
Audio port Input/Output connectors - 3
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Bluetooth Interface - Yes
Brand - GIGABYTE
BrandPartCode - B850M GAMING X WF6E
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBA
Chipset - AMD B850
Chipset manufacturer - AMD
Chipset type - AMD B850
code - B850M GAMING X WF6E
COM connector / port - No
CPU socket - Socket AM5
Description - GIGABYTE B850M GAMING X WIFI6E DDR5 OC up to 8200MT/s AMD Socket AM5 Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors Digital twin 10+2+2 phases VRM solution Dual Channel DDR5 4* DIMMs with AMD EXPO Memory Module Support WIFI EZ-Plug Quick and easy design for Wi-Fi antenna installation EZ-Latch Plus PCIe and M.2 slots with Quick Release & Screwless Design EZ-Latch Click M.2 heatsinks with screwless design Friendly UI Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW. Efficient Thermal VRM Thermal Armor Advanced & M.2 Thermal Guard Fast Networking 2.5GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna Extended Connectivity HDMI, Displayport
Description - Tryb X3D Turbo
Uwolnij wydajność gier nowej ery dzięki aktywacji jednym kliknięciem.
Unikalne parametry optymalizacji trybu X3D Turbo pozwalają nawet procesorom Ryzen 9000 X3D na zwiększenie wydajności gier i procesorom Ryzen 9000 bez X3D osiągnąć podobny poziom wydajności gier, jak ich odpowiedniki Ryzen X3D. Ciesz się płynniejszą rozgrywką, wyższą liczbą klatek na sekundę i mniejszym opóźnieniem dzięki innowacji BIOS-u GIGABYTE - trybowi X3D Turbo. DDR5 OC do 8200MT/s AMD Socket AM5: obsługuje procesory AMD Ryzen serii 9000 / 8000 / 7000 Rozwiązanie Digital Twin 10+2+2 faz VRM Dual Channel DDR5: 4*DIMM z obsługą modułu pamięci AMD EXPO WIFI EZ-Plug: szybka i łatwa konstrukcja do instalacji anteny Wi-Fi EZ-Latch Plus: gniazda PCIe i M.2 z szybkim zwalnianiem i konstrukcją bezśrubową EZ-Latch Click: radiatory M.2 z konstrukcją bezśrubową Przyjazny interfejs użytkownika: Multi-Theme, sterowanie wentylatorem AIO i automatyczne skanowanie Q-Flash w BIOS-ie i oprogramowaniu. Wydajne chłodzenie: VRM Thermal Armor Advanced i M.2 Thermal Guard Szybka sieć: 2,5 GbE LAN i Wi-Fi 6E z kierunkową anteną o bardzo wysokim wzmocnieniu Rozszerzona łączność: HDMI, Displayport
Designation - CE+WEEE
Detailed data on disk/drive interfaces - Gniazda rozszerzeń 1 x gniazdo PCI Express x16 (PCIEX16), zintegrowane z procesorem: Procesory AMD Ryzen serii 9000/7000 obsługują tryb PCIe 5.0 x16 Procesory AMD Ryzen serii 8000-Phoenix 1 obsługują tryb PCIe 4.0 x8 Procesory AMD Ryzen serii 8000-Phoenix 2 obsługują tryb PCIe 4.0 x4 * Gniazdo PCIEX16 może obsługiwać tylko kartę graficzną lub dysk SSD NVMe. Jeśli ma być zainstalowana tylko jedna karta graficzna, należy zainstalować ją w gnieździe PCIEX16. Chipset: - 1 x gniazdo PCI Express x16, obsługujące PCIe 3.0 i działające z prędkością x4 (PCIEX4) Interfejs pamięci masowej 1 x złącze M.2 (M2A_CPU), zintegrowane z procesorem, obsługujące gniazdo 3, klucz M, typ 25110/22110/2580/2280 Dyski SSD: Procesory AMD Ryzen serii 9000/7000 obsługują dyski SSD PCIe 5.0 x4/x2 Procesory AMD Ryzen serii 8000-Phoenix 1 obsługują dyski SSD PCIe 4.0 x4/x2 Procesory AMD Ryzen serii 8000-Phoenix 2 obsługują dyski SSD PCIe 4.0 x4/x2 1 x złącze M.2 (M2B_CPU), zintegrowane z procesorem, obsługujące gniazdo 3, klucz M, typ Dyski SSD 25110/22110/2580/2280: Procesory AMD Ryzen serii 9000/7000 obsługują dyski SSD PCIe 4.0 x4/x2 Procesory AMD Ryzen serii 8000-Phoenix 1 obsługują dyski SSD PCIe 4.0 x4/x2 Procesory AMD Ryzen serii 8000-Phoenix 2 obsługują dyski SSD PCIe 4.0 x2 4 złącza SATA 6 Gb/s Obsługa RAID 0, RAID 1, RAID 5 i RAID 10 dla urządzeń pamięci masowej SSD NVMe * RAID 5 jest dostępny tylko w procesorach AMD Ryzen serii 9000. Obsługa RAID 0, RAID 1 i RAID 10 dla urządzeń pamięci masowej SATA
dimensionalWeight - 1150
dimension depth - 80 mm
dimension height - 270 mm
Dimensions - 24.4 cm x 24.4 cm
dimension weight - 1550 g
dimension width - 270 mm
DisplayPort Input/Output connectors - 2
ean - 4719331866433
EAN - 4719331866433
Eans - 4719331866433
Expansion slots - 1 x PCIe 3.0 x 4
Expansion slots - 1 x PCIe 4.0 x 4
Expansion slots - 1 x PCIe 4.0 x 8
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 2 x M.2
Expansion slots - 1st M.2 highest PCI Express generation - 5.0
Expansion slots - 1st M.2 largest key size - 25110
Expansion slots - 2nd M.2 highest PCI Express generation - 4.0
Expansion slots - 2nd M.2 largest key size - 22110
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x Q-Flash Plus button
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.2 Gen 2 Type-A
External connectors - 1 x USB 3.2 Gen 2 Type-C
External connectors - 2 x DisplayPort
External connectors - 2 x SMA
External connectors - 2 x USB 3.2 Gen 1 Type-A
External connectors - 4 x USB 2.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD B850
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - Fan
Features - PC health monitoring - Fan, Temperature, Voltage, Water cooling
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Features - PC health monitoring - Water cooling
Features - Power source type - ATX
Features - Product colour - Bronze
Features - Product colour - Brown
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - Micro-ATX
Form factor - micro ATX
Frequency speed - 4400/4800/5200/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200 MHz
Full Description Line - AMD B850|SAM5|Micro-ATX|DDR5|8200/8000/7950/7900/7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5200/4800/4400 MHz|Memory slots 4|1xPCI-Express 3.0 4x|1xPCI-Express 5.0 16x|2xM.2|1xHDMI|2xDisplayPort|4xUSB 2.0|2xUSB 3.2 type B|1xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|SATA|USB-C|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|Audio|LAN 2.5 Gigabit|RAID SATA 0, 1, 10; NVMe 0, 1, 5, 10|TPM Header
Graphics - Zintegrowany procesor graficzny z obsługą grafiki AMD Radeon: 1 x port HDMI, obsługujący maksymalną rozdzielczość 4096x2160@60 Hz
* Obsługa wersji HDMI 2.1 i HDCP 2.3 oraz HDR.
** Obsługa natywnych portów zgodnych z HDMI 2.1 TMDS. 2 x DisplayPort, obsługujące maksymalną rozdzielczość 3840x2160@144 Hz
* Obsługa wersji DisplayPort 1.4.
(Specyfikacja grafiki może się różnić w zależności od obsługi procesora.) Obsługa do trzech wyświetlaczy jednocześnie
Graphics - DirectX version - 12.0
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2160 pixels
Graphics - On-board graphics card - No
Graphics - Parallel processing technology support - Not supported
GTIN - 4719331866433
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Yes
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of CPU fan connectors - 2
Internal I/O - Number of EPS power connectors (8-pin) - 1
Internal I/O - Number of RGB LED pin headers - 4
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Number of water pump connectors - 2
Internal I/O - Peripheral (Molex) power connectors (4-pin) - 1
Internal I/O - RGB LED pin header - Yes
Internal I/O - Serial port headers - 1
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
LongProductName - B850M GAMING X WIFI6E Motherboard - AMD Ryzen 9000 Series CPUs, 10+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5LAN, WIFI 6E, USB 3.2 Gen 2
LongSummaryDescription - GIGABYTE B850M GAMING X WIFI6E Motherboard - AMD Ryzen 9000 Series CPUs, 10+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5LAN, WIFI 6E, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E...
LPT connector / port - No
M.2 Expansion slots - 2
Manufacturer Code - B850M GAMING X WF6E
Manufacturer Name - Gigabyte
Max. number of SATA devices - 4
Max memory size - 256 GB
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 256 GB
Memory - Maximum internal memory per slot - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8200 MHz
Memory - Supported memory clock speeds - 4400
Memory - Supported memory clock speeds - 4400,4800,5200,5600,5800,6000,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200 MHz
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 5200
Memory - Supported memory clock speeds - 5600
Memory - Supported memory clock speeds - 5800
Memory - Supported memory clock speeds - 6000
Memory - Supported memory clock speeds - 6400 MHz
Memory - Supported memory clock speeds - 6600
Memory - Supported memory clock speeds - 6800
Memory - Supported memory clock speeds - 7000
Memory - Supported memory clock speeds - 7200
Memory - Supported memory clock speeds - 7400
Memory - Supported memory clock speeds - 7600 MHz
Memory - Supported memory clock speeds - 7800
Memory - Supported memory clock speeds - 7900
Memory - Supported memory clock speeds - 7950
Memory - Supported memory clock speeds - 8000
Memory - Supported memory clock speeds - 8200 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 4400 MHz
Memory bus frequency - 4800 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory bus frequency - 7400 MHz
Memory bus frequency - 7600 MHz
Memory bus frequency - 7800 MHz
Memory bus frequency - 7900 MHz
Memory bus frequency - 7950 MHz
Memory bus frequency - 8000 MHz
Memory bus frequency - 8200 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - B850M GAMING X WF6E
Model - B850M GAMING X WIFI6E
Name - Gigabyte B850M GAMING X WF6E
name - GIGABYTE B850M Gaming X WiFi6E, AMD B850 Mainboard - Sockel AM5, DDR5
name - Motherboard B850M GAMING X WIFI6E
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Network - WLAN controller model - Realtek RTL8852CE
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - LAN Realtek 2.5GbE LAN chip (2,5 Gbps/1 Gbps/100 Mbps) Moduł komunikacji bezprzewodowej Realtek Wi-Fi 6E RTL8852CE WIFI a, b, g, n, ac, ax, obsługujące pasma częstotliwości nośnej 2,4/5/6 GHz BLUETOOTH 5.3 Obsługa standardu bezprzewodowego 11ax 160MHz (Rzeczywista szybkość transmisji danych może się różnić w zależności od środowiska i sprzętu.)
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 3
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin Chassis fan
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Reset button
Onboard connectors - 1 x Reset jumper
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.2 Gen 1 Type-A
Onboard connectors - 1 x USB 3.2 Gen 2 Type-C
Onboard connectors - 2 x M.2
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 3 x Addressable LED
Onboard connectors - 4 x SATA III 6Gb/s
Other features - Weight - 1.54 kg
Other information -
Packaging content - Antenna included - Yes
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton Internet Security (OEM version)
LAN bandwidth management software
Packaging content - Screws included - Yes
Packaging data - Package depth - 268 mm
Packaging data - Package height - 68 mm
Packaging data - Package weight - 1.75 kg
Packaging data - Package width - 270 mm
PCI-Express 3.0 4x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - AMD Ryzen 7000 Series
Processor - Compatible processor series - AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor - Compatible processor series - AMD Ryzen 8000 Series
Processor - Compatible processor series - AMD Ryzen 9000 Series
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Processor family - AMD Ryzen 5
Processor family - AMD Ryzen 7
Processor family - AMD Ryzen 9
producer - Gigabyte
Producer - Gigabyte
producerCode - B850M GAMING X WF6E
ProducerCode - B850M GAMING X WF6E
ProductName - B850M GAMING X WIFI6E Motherboard - AMD Ryzen 9000 Series CPUs, 10+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5LAN, WIFI 6E, USB 3.2 Gen 2
productName - GIGABYTE B850M GAMING X WIFI6E Motherboard - AMD Ryzen 9000 Series CPUs, 10+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5LAN, WIFI 6E, USB 3.2 Gen 2
Product Net Weight - 0.7 kg
productSize - Normal
PS/2 Input/Output connectors - 1
RAID - SATA 0, 1, 10; NVMe 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 2.1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - WiFi-AP antenna jack - 2
RJ45 Input/Output connectors - 1
Safety warning - Warnings - Do not disassemble to avoid damage to internal components and loss of warranty.
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 57.7 cm
Shipping Box Height Shipping/Package Box Dimensions - 31.4 cm
Shipping Box Weight Shipping/Package Box Dimensions - 13.95 kg
Shipping Box Width Shipping/Package Box Dimensions - 32.4 cm
Short description - GIGA B850M GAMING X WF6E AM5/DDR5/µATX
ShortDescription - Socket AM5 | Chipset AMD B850 | DDR5
ShortSummaryDescription - GIGABYTE B850M GAMING X WIFI6E Motherboard - AMD Ryzen 9000 Series CPUs, 10+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5LAN, WIFI 6E, USB 3.2 Gen 2, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, Socket AM5, DDR5-SDRAM, 256 GB
sizeX - 276
sizeY - 278
sizeZ - 75
Socket - SAM5
Software - Norton Internet Security (OEM version) LAN bandwidth management software
Sound card - Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Special functions -
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 6
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details - Warranty period - 3 year(s)
Title - GIGABYTE B850M GAMING X WIFI6E Motherboard - AMD Ryzen 9000 Series CPUs, 10+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5LAN, WIFI 6E, USB 3.2 Gen 2
TPM - Header
Unit Box Height - 0.07
Unit Box Length - 0.27
Unit Box Width - 0.27
Unit Calculated Volume - 0.007338 cubm
Unit Calculated Weight - 1.74 kg
Units per Shipping Box - 8
URL - https://www.gigabyte.com/
USB-C Input/Output connectors - 1
USB-C Interface - Yes
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 1
USB 3.2 Interface - Yes
USB 3.2 type B Input/Output connectors - 2
USB ports at back panel - 8
USB ports on motherboard - 7
Vendor Homepage - www.gigabyte.com/Motherboard/B850M-GAMING-X-WIFI6E#kf
vendpn - B850M GAMING X WF6E
Warranty - 36 months
WarrantyInfo - 3 years
warrantyLength - 36
warrantyType - G
weight - 1544
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 244 mm
WiFi Interface - Yes
