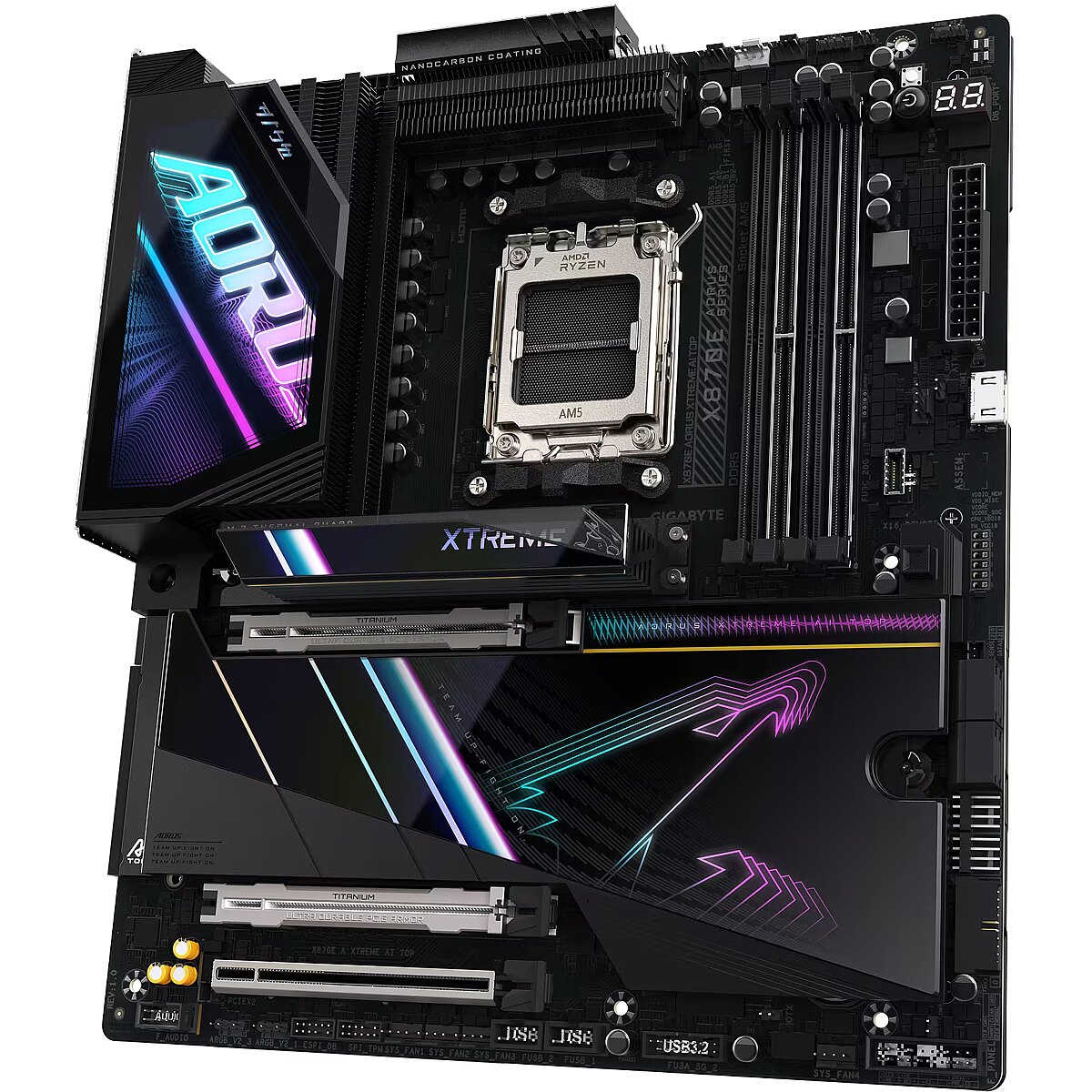

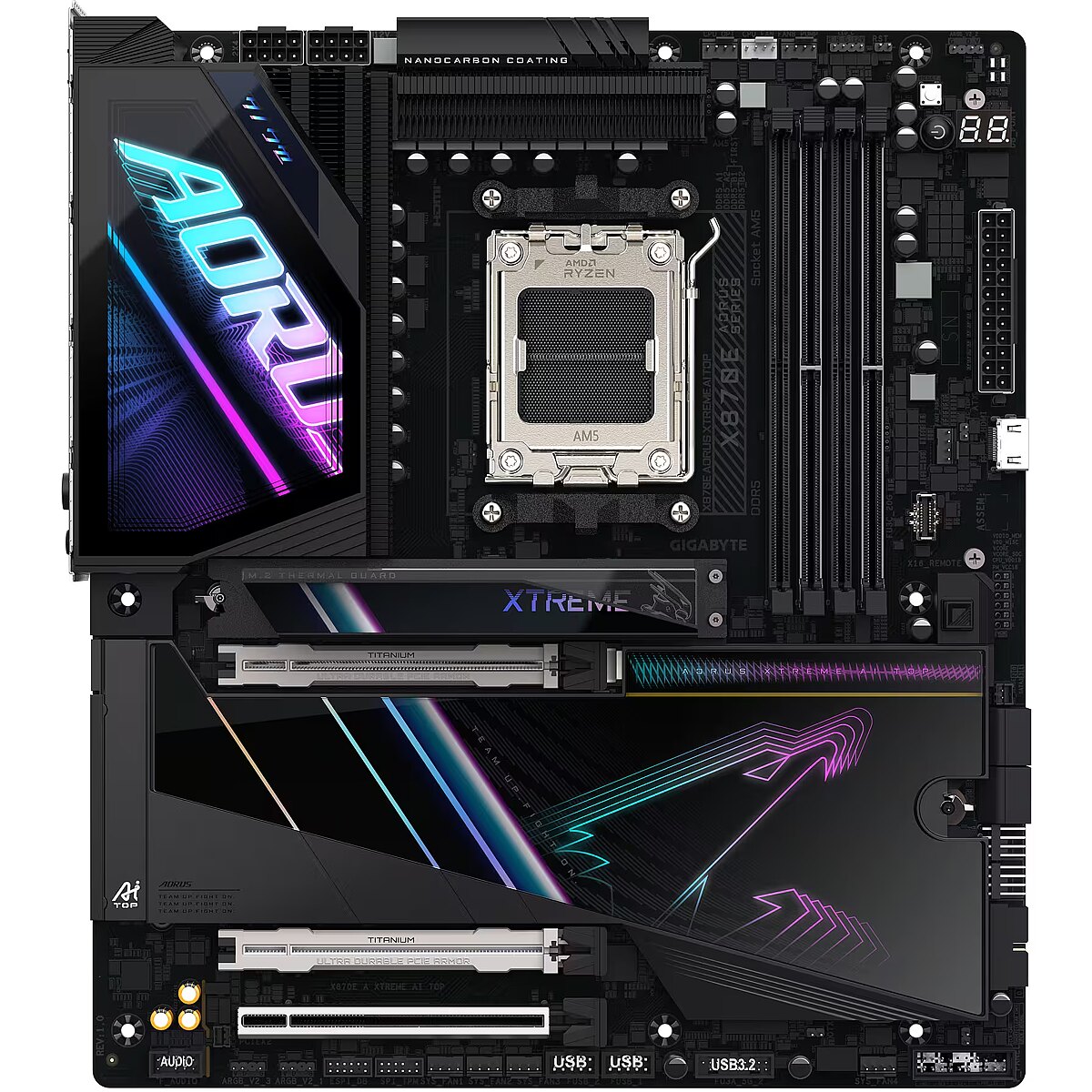

Gigabyte X870E AORUS XTREME AI TOP

Name: Gigabyte X870E AORUS XTREME AI TOP
Brand: Gigabyte
SKU: 1170999
Price: 936.09 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 1170999 Product code: X870E A XTREME AI TOP

In stock 4 units

Warranty: 3 years

Compare

Delivery options

Delivery to Smartpost 6.99 €: 07.02.2025
Courier delivery 11.99 €: 07.02.2025

Main product parameters All parameters

Series: Gigabyte AORUS
Plate size: E-ATX
Chipset: AMD X870E
Socket: AM5
Type: DDR5
RAM Slots: 4
Built-in Wi-Fi: Ir
M.2 ports: 4

Basic information

Series : Gigabyte AORUS

Plate size E-ATX

The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD X870E

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.

Socket AM5

The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.

Random-access memory (RAM)

Type : DDR5

RAM Slots 4

The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.

Memory support DDR5 5600MT/s (8800MT/s OC)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card

VGA Port PCI-EXPRESS

VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.

Integrated graphics Only with iGPU-ready APU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment

D-Sub : 0

DisplayPort : 0

DVI : 0

HDMI : 1

Integrated sound card : Realtek ALC1220

PCI Ports 0

PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.

Wireless connections

Built-in Bluetooth : Ir

Built-in Wi-Fi : Ir

External ports

External USB 2.0 : 2

External USB Type-C (USB 3.2 Gen2) : 0

External USB Type-C (USB 4.0) : 2

External USB 3.0 (USB 3.2 Gen1) : 0

External USB 3.1 (USB 3.2 Gen2) : 6

Internal ports

Internal A-RGB 5V (3-pin) : 3

Internal RGB 12V (4-pin) : 1

Internal USB 2.0 : 2

Internal USB 3.0 : 2

Internal USB Type-C : 1

M.2 ports : 4

SATA3 ports : 4

More detailed specification

Additional information in manufacturers website Gigabyte X870E AORUS XTREME AI TOP

Audio port Input/Output connectors - 2
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Bluetooth Interface - Yes
Brand - GIGABYTE
BrandPartCode - X870E A XTREME AI TOP
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category Code - MBA
Chipset - AMD X870E
code - X870E A XTREME AI TOP
Description - X870E AORUS XTREME AI TOP Key Features Training your own AI on your desk DDR5 OC up to 8800MT/s AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors Digital twin 18+2+2 phases VRM solution Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support DDR Wind Blade : Enhanced Active Cooling for Memory Modules M.2 EZ-Match : Magnetic alignment for easy installation of large heatsinks WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design EZ-Latch Click : M.2 heatsinks with screwless design Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW. New Power Monitor in HWinfo for real-time monitoring on CPU power phases Ultra-Fast Storage : 4*M.2 slots, including PCIe 5.0 / 4.0 Efficient Thermal : VRM Thermal Armor Advanced with I/O ZONE AORUS LIGHTING & M.2 Thermal Guard XL Blazing Fast Networks : Dual 10GbE LAN & Wi-Fi 7 & directional Ultra-high gain antenna with ARGB Extended Connectivity : Dual USB4 Type-C with DP-Alt, HDMI DTS : X® Ultra Audio : ALC1220 & Rear ESS SABRE Hi-Fi 9118 DAC Titanium PCIe UD Slot X : PCIe 5.0 x16 slot with titanium for ultimate protection of graphics cards
ean - 4719331866150
Expansion slots - 1st M.2 highest PCI Express generation - 5.0
Expansion slots - 1st M.2 largest key size - 25110
Expansion slots - 2nd M.2 highest PCI Express generation - 4.0
Expansion slots - 2nd M.2 largest key size - 22110
Expansion slots - 3rd M.2 highest PCI Express generation - 4.0
Expansion slots - 3rd M.2 largest key size - 22110
Expansion slots - 4th M.2 highest PCI Express generation - 4.0
Expansion slots - 4th M.2 largest key size - 22110
Expansion slots - Number of M.2 (M) slots - 4
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 2
Features - Audio chip - Realtek ALC1220
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD X870E
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - Extended ATX
Features - PC health monitoring - Fan, Temperature, Voltage, Water cooling
Features - Power source type - ATX
Features - Product colour - Black
Features - Windows operating systems supported - Windows 11 x64
Form Factor - EATX
Frequency speed - 5200/8000/4400/7800/8800/6600/6800/7400/8266/6400/5800/5600/7600/6000/8600/8200/4800/6200/7000/7200/7900/7950/8400 MHz
Full Description Line - AMD X870E|SAM5|EATX|DDR5|8800/8600/8400/8266/8200/8000/7950/7900/7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5200/4800/4400 MHz|Memory slots 4|1xPCI-Express 4.0 4x |1xPCI-Express 4.0 8x|1xPCI-Express 5.0 16x|4xM.2|1xHDMI|2xUSB 2.0|6xUSB 3.2|2xUSB-C|1xOptical S/PDIF|2xRJ45|2xAudio port|SATA|USB-C|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|Audio Realtek ALC1220|LAN 10 Gigabit|RAID SATA 0, 1, 10; NVMe 0, 1, 5, 10|TPM Header
Graphics - DirectX version - 12.0
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2160 pixels
Graphics - Parallel processing technology support - Not supported
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC1220
Integrated LAN - 10 Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 8
Internal I/O - Number of CPU fan connectors - 1
Internal I/O - Number of EPS power connectors (8-pin) - 2
Internal I/O - Number of RGB LED pin headers - 4
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Number of water pump connectors - 5
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2x2 connectors - 1
Logistics data - Country of origin - Taiwan
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
LongProductName - X870E AORUS XTREME AI TOP Motherboard - Supports AMD Ryzen 9000 Series CPUs, 18+2+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 M.2 + 3xPCIe 4.0 M.2, WI-FI 7, 10GbE LAN, USB 4
LongSummaryDescription - GIGABYTE X870E AORUS XTREME AI TOP Motherboard - Supports AMD Ryzen 9000 Series CPUs, 18+2+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 M.2 + 3xPCIe 4.0 M.2, WI-FI 7, 10GbE LAN, USB 4. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 10 Gigabit Ethernet, LAN controller: Marvell AQtion AQC113C, Top Wi-Fi standard: Wi-Fi 7 (802.11be)
M.2 Expansion slots - 4
Memory - ECC сompatibility - ECC & Non-ECC
Memory - Maximum internal memory - 256 GB
Memory - Maximum internal memory per slot - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8800 MHz
Memory - Supported memory clock speeds - 8800,8600,8400,8266,8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory slots - 4
Memory type - DDR5
Model - X870E AORUS XTREME AI TOP
name - Gigabyte X870E AORUS Xtreme AI Top, AMD X870E Mainboard - Sockel AM5, DDR5
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 10 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Marvell AQtion AQC113C
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Network - WLAN controller model - Qualcomm QCNCM865
Optical S/PDIF Input/Output connectors - 1
Other features - Weight - 3.76 kg

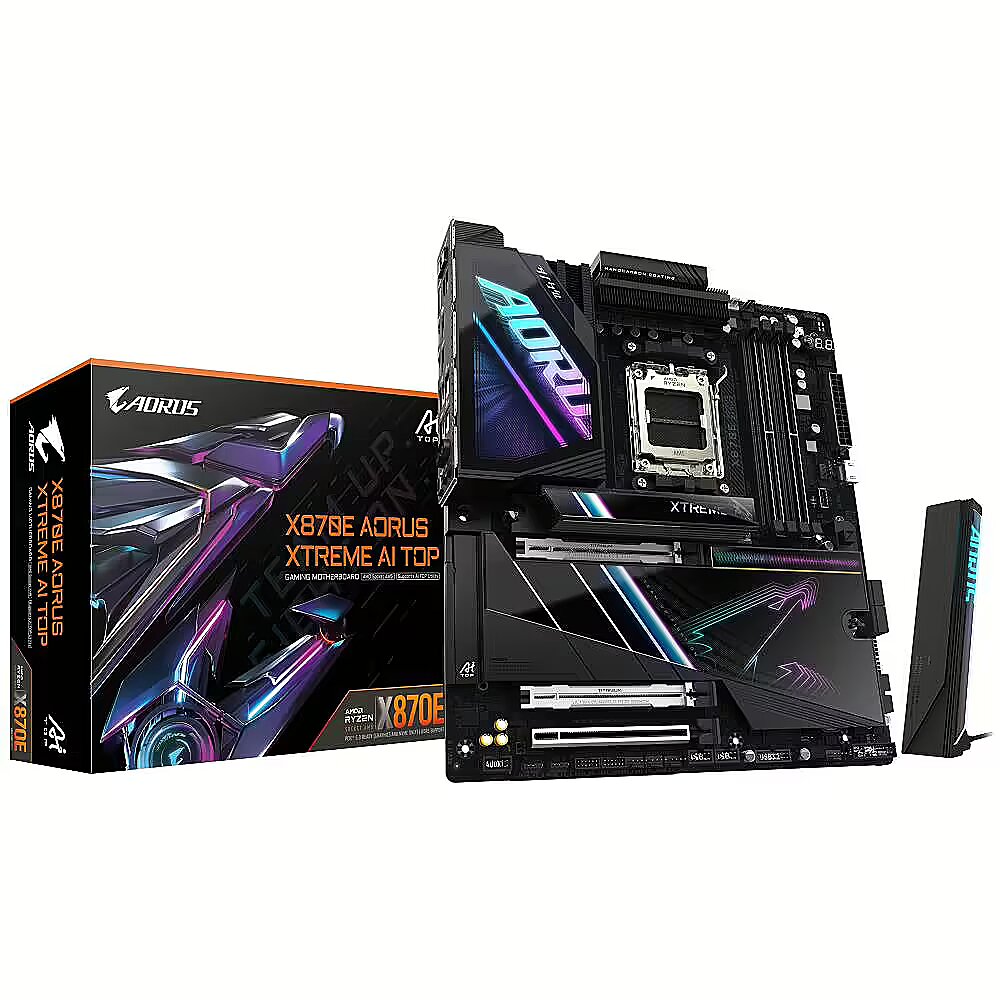

Packaging content - Antenna included - Yes
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton® Internet Security (OEM version)
LAN bandwidth management software
Packaging content - Screws included - Yes
Packaging data - Package depth - 311 mm
Packaging data - Package height - 107 mm
Packaging data - Package weight - 4.5 kg
Packaging data - Package width - 381 mm
PCI-Express 4.0 4x Expansion slots - 1
PCI-Express 4.0 8x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
ProductName - X870E AORUS XTREME AI TOP Motherboard - Supports AMD Ryzen 9000 Series CPUs, 18+2+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 M.2 + 3xPCIe 4.0 M.2, WI-FI 7, 10GbE LAN, USB 4
RAID - SATA 0, 1, 10; NVMe 0, 1, 5, 10

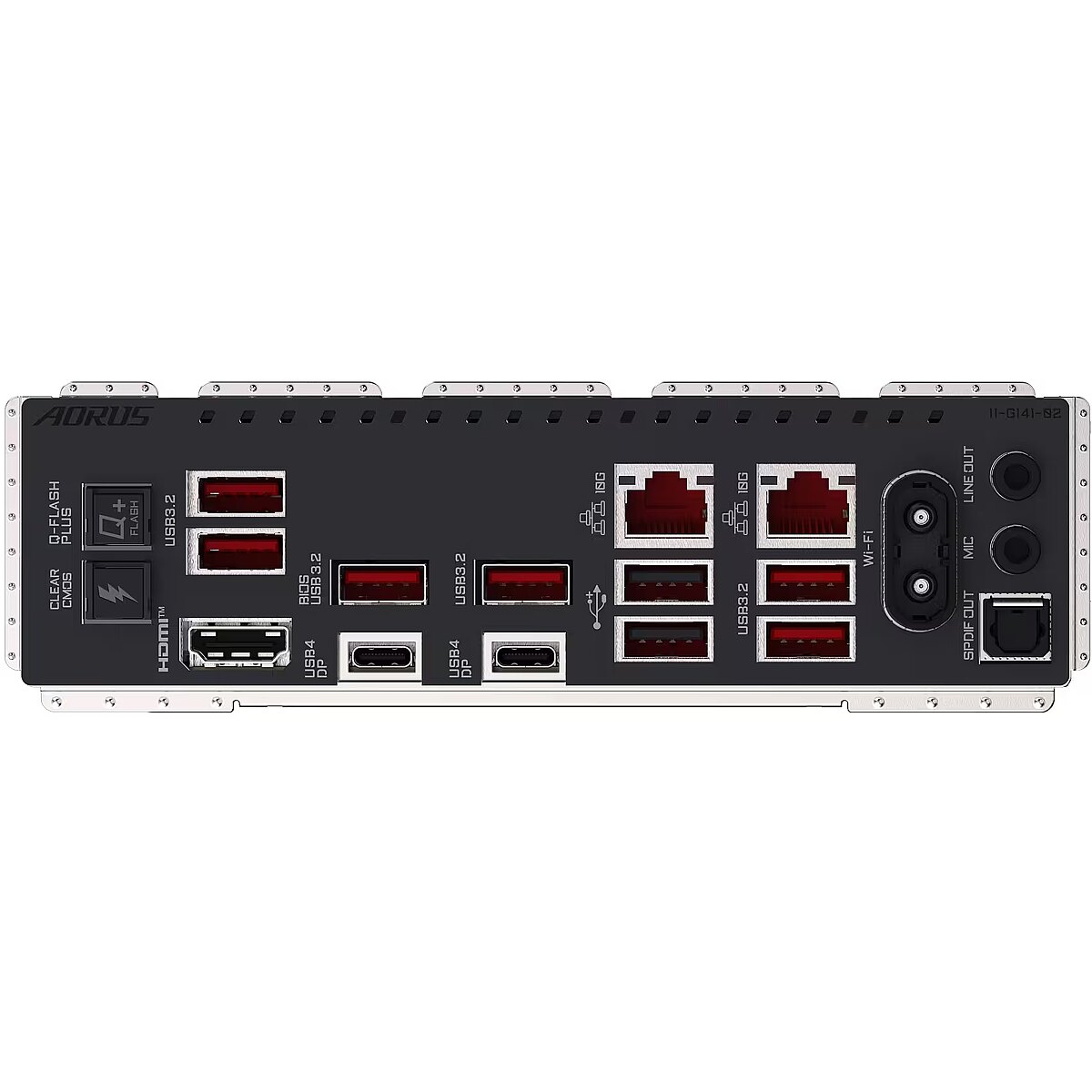

Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 2
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 6
Rear panel I/O ports - USB4 Gen 2x2 ports quantity - 2
Rear panel I/O ports - WiFi-AP antenna jack - 2
RJ45 Input/Output connectors - 2
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 35 cm
Shipping Box Height Shipping/Package Box Dimensions - 46 cm
Shipping box quantity - 2
Shipping Box Weight Shipping/Package Box Dimensions - 9.05 kg
Shipping Box Width Shipping/Package Box Dimensions - 26 cm
ShortSummaryDescription - GIGABYTE X870E AORUS XTREME AI TOP Motherboard - Supports AMD Ryzen 9000 Series CPUs, 18+2+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 M.2 + 3xPCIe 4.0 M.2, WI-FI 7, 10GbE LAN, USB 4, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, Socket AM5, DDR5-SDRAM, 256 GB
Socket - SAM5
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 8
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical details - Warranty period - 3 year(s)
Title - GIGABYTE X870E AORUS XTREME AI TOP Motherboard - Supports AMD Ryzen 9000 Series CPUs, 18+2+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 M.2 + 3xPCIe 4.0 M.2, WI-FI 7, 10GbE LAN, USB 4
TPM - Header
Unit Brutto Volume - 0.02093 cubm
Unit Gross Weight - 4.53 kg
Unit Net Weight - 3 kg
URL - https://www.gigabyte.com/
USB-C Input/Output connectors - 2
USB-C Interface - Yes
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 6
USB 3.2 Interface - Yes
Vendor Homepage - www.gigabyte.com/Motherboard/X870E-AORUS-XTREME-AI-TOP#kf
Warranty - 36 months
WarrantyInfo - 3 years
Weight & dimensions - Depth - 269 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 305 mm
WiFi Interface - Yes
