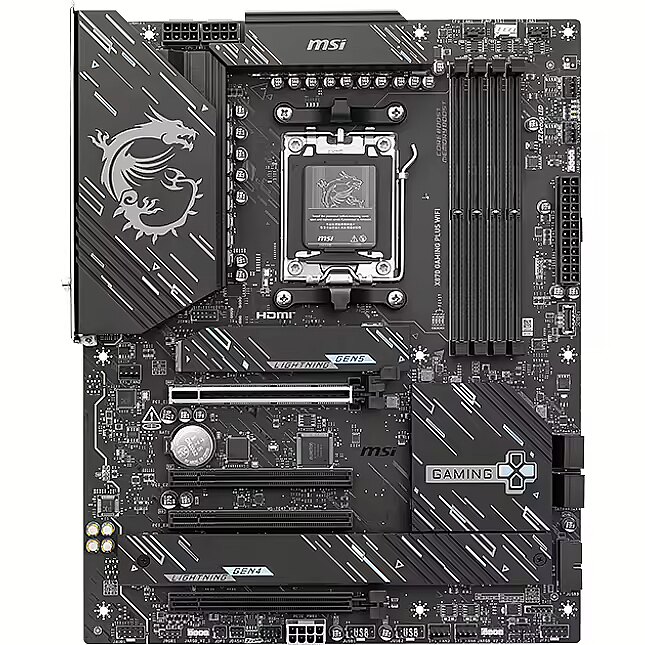

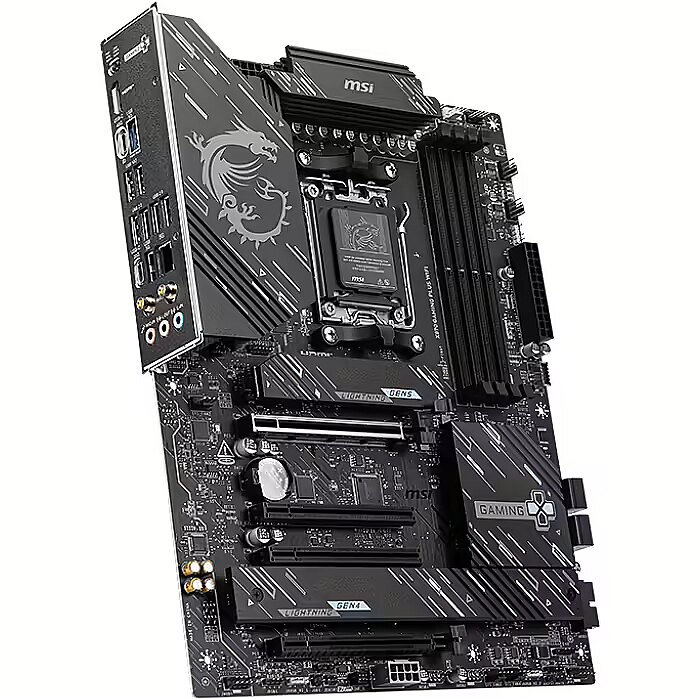

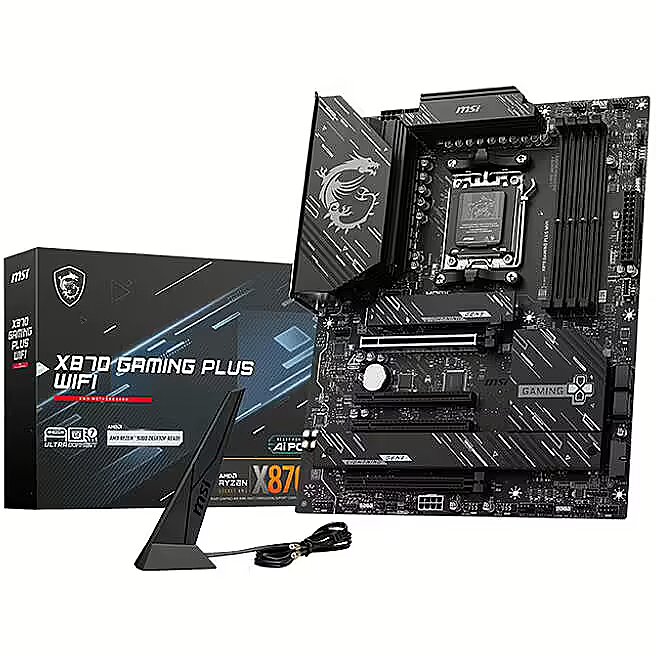

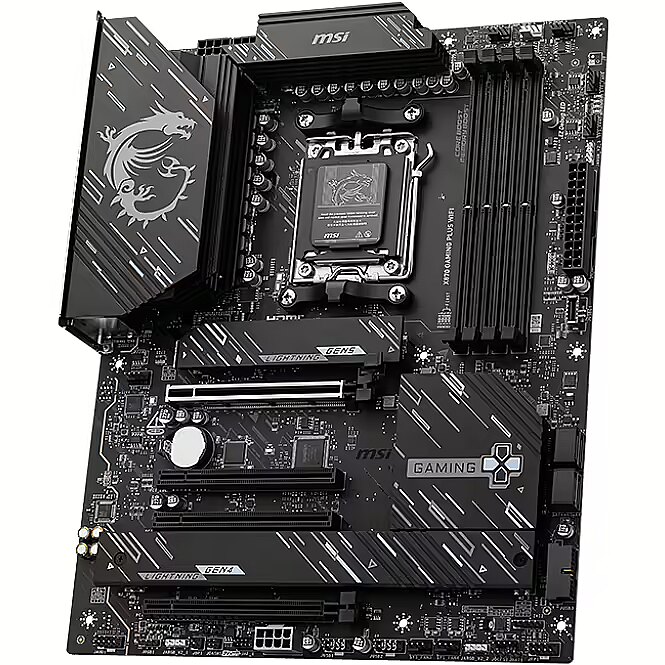

MSI X870 GAMING PLUS WIFI

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1164405 Product code: X870 GAMING PLUS WIFI
In stock >50 units
Warranty: 3 years
299.41 €
Delivery options
  • Delivery to Smartpost 6.99 €: 06.02.2025
  • Courier delivery 11.99 €: 06.02.2025
Main product parameters All parameters
  • Series: MSI Gaming
  • Plate size: ATX
  • Chipset: AMD X870
  • Socket: AM5
  • Type: DDR5
  • RAM Slots: 4
  • Built-in Wi-Fi: Ir
  • M.2 ports: 3
Basic information
Series : MSI Gaming
Plate size ATX

The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD X870

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Socket AM5
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Random-access memory (RAM)
Type : DDR5
RAM Slots 4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support DDR5 5600MT/s (8200MT/s OC)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card
VGA Port PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics Only with iGPU-ready APU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment
D-Sub : 0
DisplayPort : 0
DVI : 0
HDMI : 1
Integrated sound card : Realtek ALC897
PCI Ports 0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
Wireless connections
Built-in Bluetooth : Ir
Built-in Wi-Fi : Ir

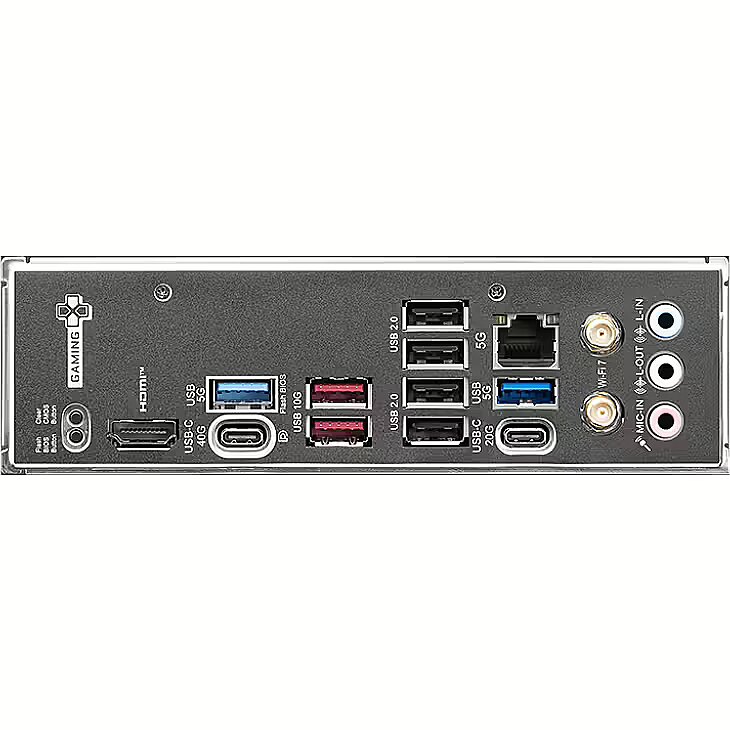

External ports
External USB 2.0 : 4
External USB Type-C (USB 3.2 Gen2) : 1
External USB Type-C (USB 4.0) : 1
External USB 3.0 (USB 3.2 Gen1) : 2
External USB 3.1 (USB 3.2 Gen2) : 2
Internal ports
Internal A-RGB 5V (3-pin) : 3
Internal RGB 12V (4-pin) : 1
Internal USB 2.0 : 2
Internal USB 3.0 : 1
Internal USB Type-C : 1
M.2 ports : 3
SATA3 ports : 4
Power supply units (PSU)
More detailed specification
Additional information in manufacturers website MSI X870 GAMING PLUS WIFI
Audio port Input/Output connectors - 3
Bluetooth Interface - Yes
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category Code - MBA
Chipset - AMD X870
CnCode CnCode - 84733020
code - 7E47-004R
Code - X870 GAMING PLUS WIFI
Description - X870 GAMING PLUS WIFI X870 GAMING PLUS WIFI is designed with durable components to provide great gaming experience. Designed with Wi-Fi 7 and 5G LAN, high-speed USB4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for 24/7 non-stop gaming of AMD Ryzen™ 9000 series processors. Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC) Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2 Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission Audio Boost : Reward your ears with studio-grade sound quality for the most immersive gaming experience
dimensionalWeight - 1323
EAN - 4711377281201
ean - 4711377281201
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - AMD X870
Features - Motherboard chipset family - AMD
Form Factor - ATX
Frequency speed - 5600/6400/8200/4800 MHz
Full Description Line - AMD X870|SAM5|ATX|DDR5|8200/6400/5600/4800 MHz|Memory slots 4|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 4x |1xPCI-Express 5.0 16x|3xM.2|1xHDMI|4xUSB 2.0|2xUSB 3.1|2xUSB 3.2|2xUSB-C|1xRJ45|3xAudio port|2xRF-Out|SATA|Bluetooth|WiFi|Video|Audio|LAN 5 Gigabit|RAID NVMe 0, 1|TPM Header
HDMI Input/Output connectors - 1
Integrated audio - Yes
Integrated LAN - 5 Gigabit
Integrated video - Yes
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.msi.com/Motherboard/X870-GAMING-PLUS-WIFI/Specification
M.2 Expansion slots - 3
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8200 MHz
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 5600
Memory - Supported memory clock speeds - 8200 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR5
Memory slots - 4
Memory type - DDR5
Model - X870 GAMING PLUS WIFI
name - MSI X870 Gaming Plus WiFi Mainboard, Sockel AM5, AMD X870, ATX, DDR5
Name - MSI X870 GAMING PLUS WIFI | Processor family AMD | Processor socket AM5 | DDR5 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 342.00 mm
Package features > Gross height (mm) - 70.00 mm
Package features > Gross width (mm) - 268.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 135 pc(s)
Package features > Paper/Pasteboard - 575.00 g
Package features > Plastic (No PET) - 100.00 g
Package features > Tare weight (kg) - 0.68 kg
Package features > TI weight (kg) - 0.05 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
PCI-Express 3.0 1x Expansion slots - 2
PCI-Express 4.0 4x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - AMD Ryzen 7000 Series
Processor - Compatible processor series - AMD Ryzen 8000 Series
Processor - Compatible processor series - AMD Ryzen 9000 Series
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor > Processor family - AMD
Processor > Processor socket - AM5
producerCode - 7E47-004R
productName - MSI X870 GAMING PLUS WIFI AMD X870 Socket AM5
productSize - Normal
RAID - NVMe 0, 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
RF-Out Input/Output connectors - 2
RJ45 Input/Output connectors - 1
Safety warning - Warnings - Do not disassemble to avoid damage to internal components and loss of warranty.
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 38 cm
Shipping Box Height Shipping/Package Box Dimensions - 37 cm
Shipping box quantity - 5
Shipping Box Weight Shipping/Package Box Dimensions - 10.6 kg
Shipping Box Width Shipping/Package Box Dimensions - 29 cm
sizeX - 350
sizeY - 70
sizeZ - 270
Socket - SAM5
Storage controllers - Number of storage drives supported - 4
Storage controllers - Supported storage drive interfaces - M.2, SATA
Storage controllers - Supported storage drive types - SSD
Technical details > Gross weight - 1.64 kg
Technical details > Net weight - 0.97 kg
Technical details > Producer - MSI
Technical details > Producer product name - X870 GAMING PLUS WIFI
TPM - Header
Unit Box Height - 0.27
Unit Box Length - 0.345
Unit Box Width - 0.07
Unit Brutto Volume - 0.008155 cubm
Unit Gross Weight - 2.12 kg
Unit Net Weight - 1.6 kg
USB-C Input/Output connectors - 2
USB 2.0 Input/Output connectors - 4
USB 3.1 Input/Output connectors - 2
USB 3.2 Input/Output connectors - 2
Vendor Homepage - www.msi.com/Motherboard/X870-GAMING-PLUS-WIFI
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
warrantyLength - 36
warrantyType - G
weight - 1950
WiFi Interface - Yes
