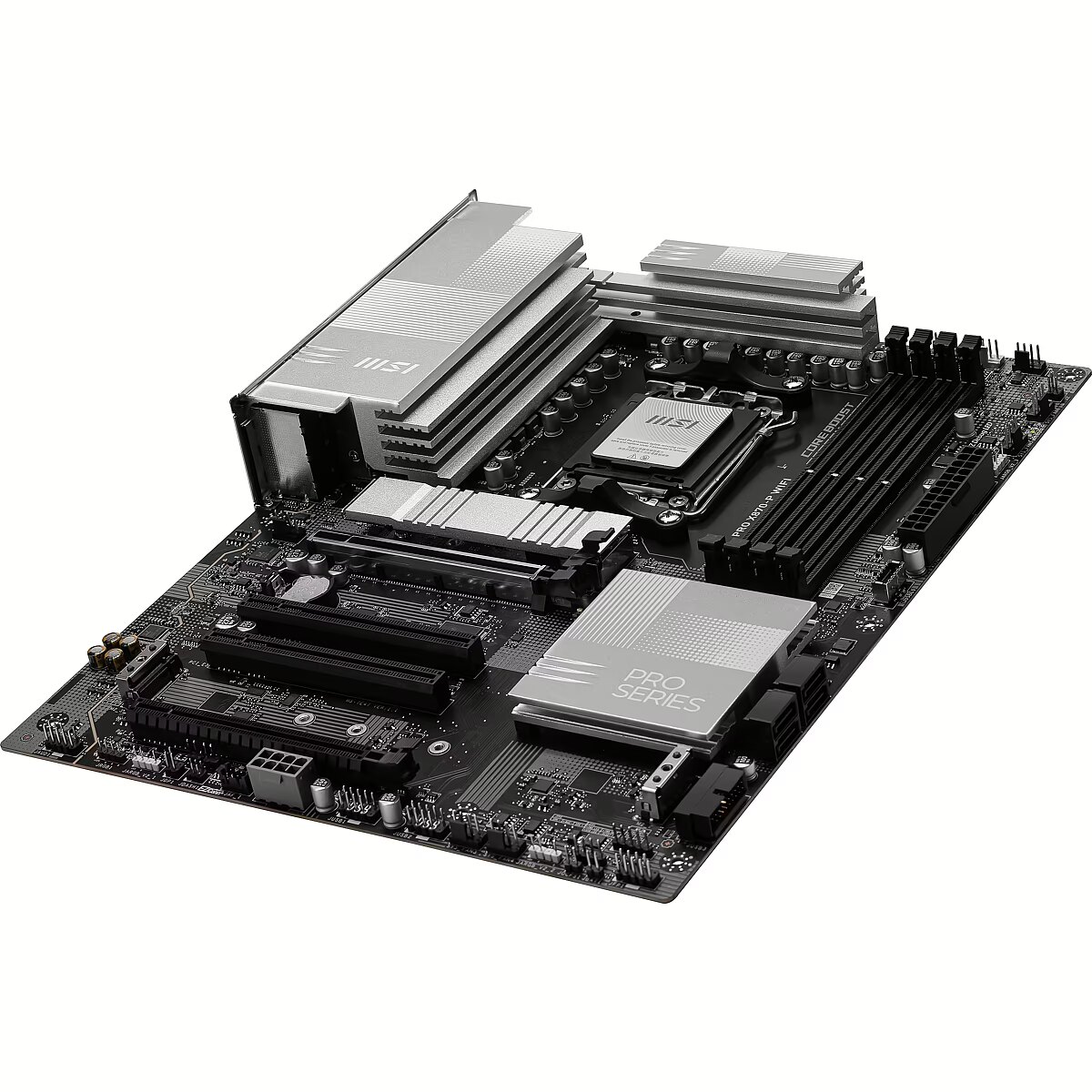

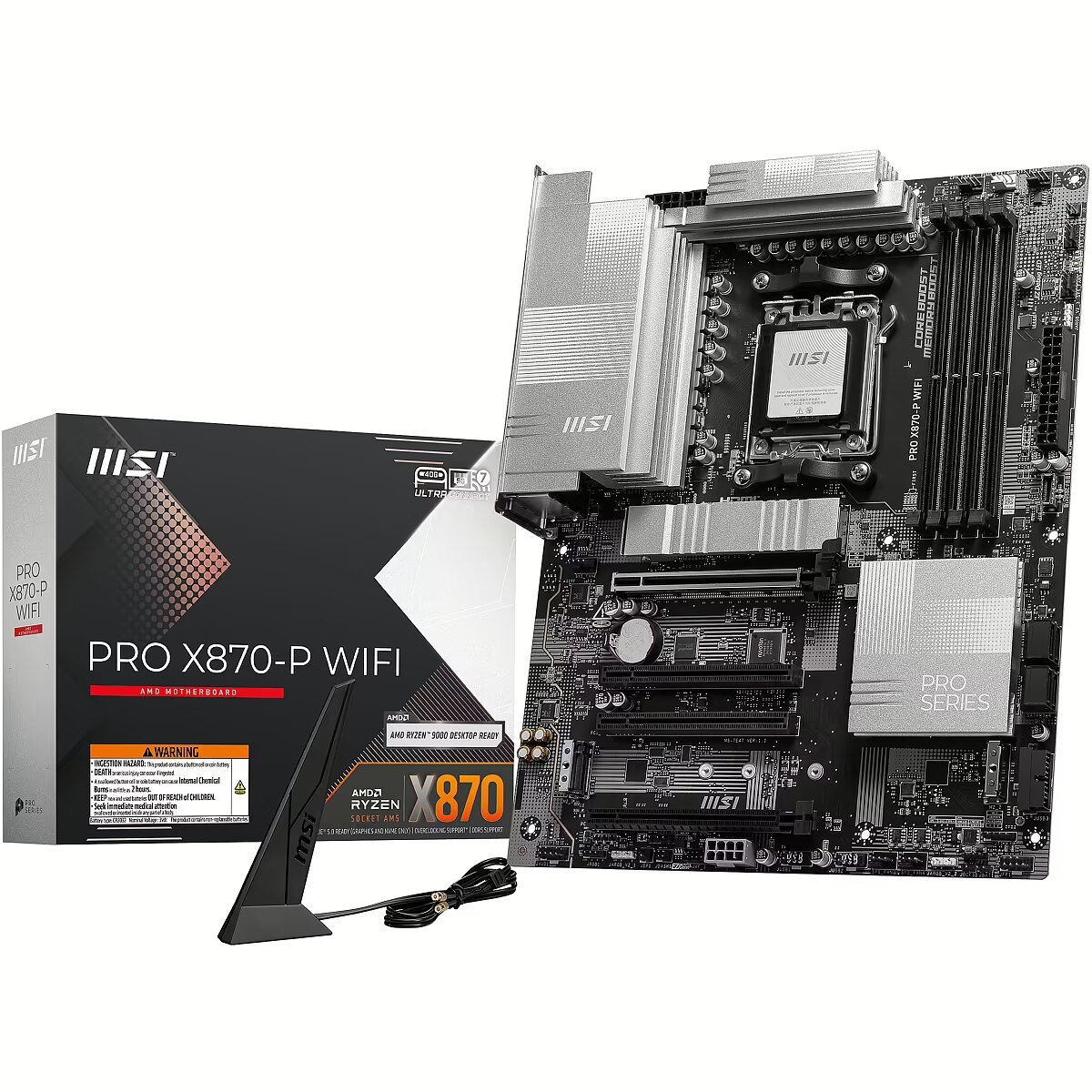

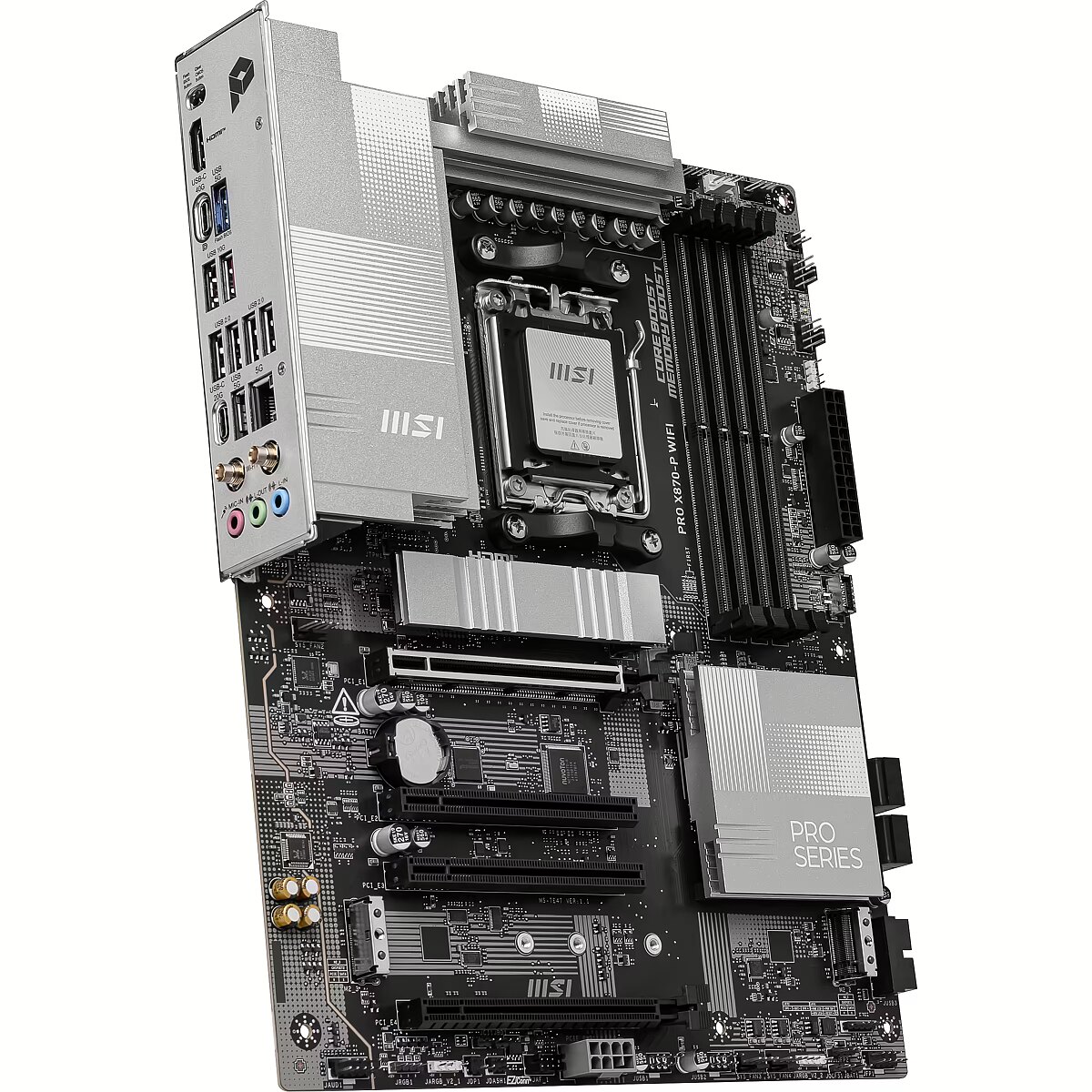

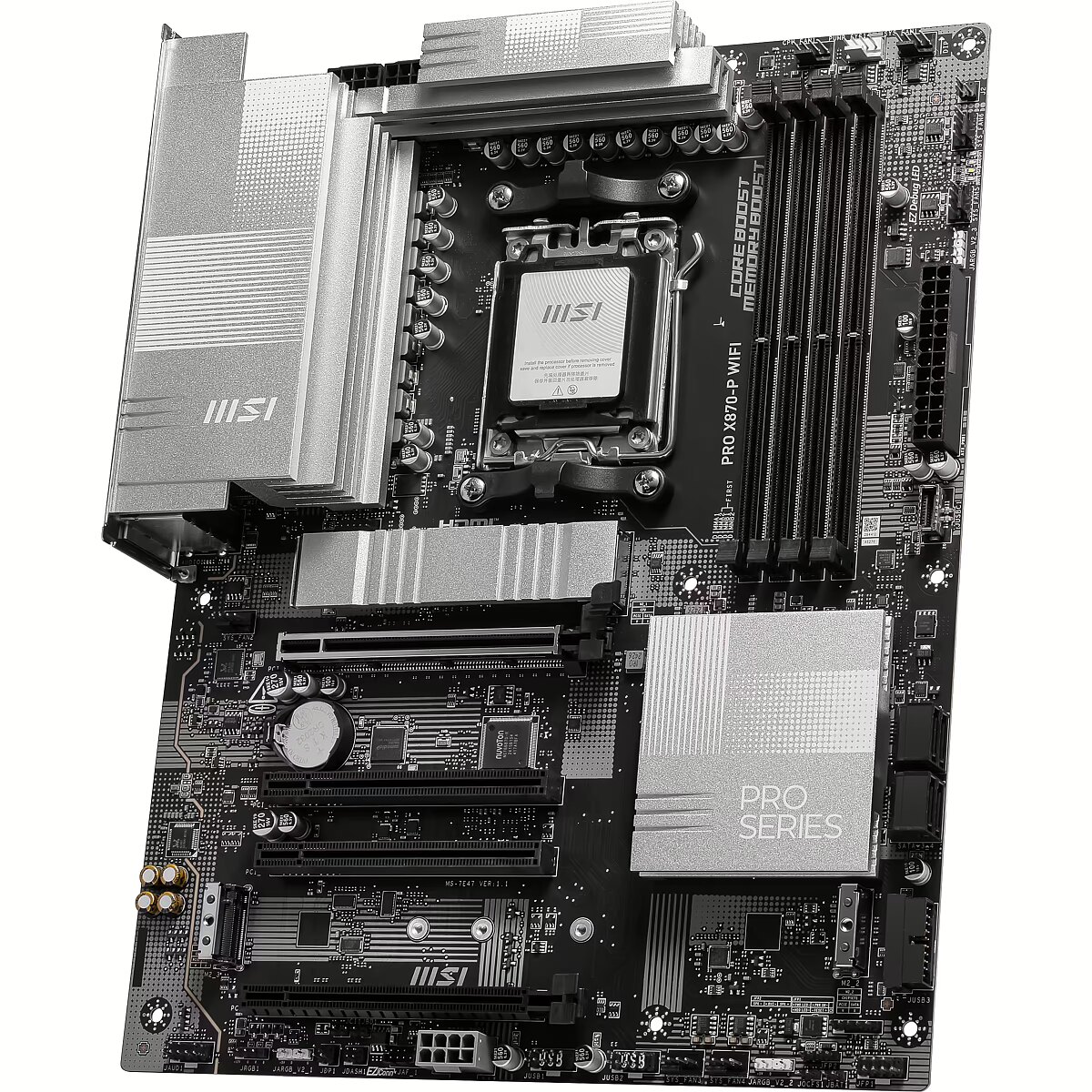

MSI PRO X870-P WIFI

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1147637 Product code: PRO X870-P WIFI
In stock >50 units / In office 1 units
Warranty: 3 years
295.13 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: on Thuesday, 26.11.2024
Main product parameters All parameters
  • Series: MSI PRO
  • Plate size: ATX
  • Chipset: AMD X870
  • Socket: AM5
  • Type: DDR5
  • RAM Slots: 4
  • Built-in Wi-Fi: Ir
  • M.2 ports: 3
Basic information
Series : MSI PRO
Plate size ATX

The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD X870

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Socket AM5
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Random-access memory (RAM)
Type : DDR5
RAM Slots 4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support DDR5 5600MT/s (8200MT/s OC)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card
VGA Port PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics Only with iGPU-ready APU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment
D-Sub : 0
DisplayPort : 0
DVI : 0
HDMI : 1
Integrated sound card : Realtek ALC897
PCI Ports 0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
Wireless connections
Built-in Bluetooth : Ir
Built-in Wi-Fi : Ir
External ports
External USB 2.0 : 4
External USB Type-C (USB 3.2 Gen2) : 1
External USB Type-C (USB 4.0) : 1
External USB 3.0 (USB 3.2 Gen1) : 2
External USB 3.1 (USB 3.2 Gen2) : 2
Internal ports
Internal A-RGB 5V (3-pin) : 3
Internal RGB 12V (4-pin) : 1
Internal USB 2.0 : 2
Internal USB 3.0 : 1
Internal USB Type-C : 1
M.2 ports : 3
SATA3 ports : 4
Power supply units (PSU)
More detailed specification
Additional information in manufacturers website MSI PRO X870-P WIFI
Accessories included -
Audio port Input/Output connectors - 3
BIOS -
Bluetooth Interface - Yes
Brand - MSI
BrandPartCode - PRO X870-P WIFI
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category Code - MBA
Chipset - AMD X870
Chipset manufacturer - AMD
Chipset type -  AMD X870
CnCode CnCode - 84733020
code - 7E47-001R
Code - PRO X870-P WIFI
COM connector / port - No
CPU socket - Socket AM5
Description - PRO X870-P WIFI - Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors - Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC) - Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material - Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr II are built for high performance system and non-stop experience - EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna - Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2 - Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission - Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Description - PRO X870-P WIFI oferuje prosty design z harmonijną srebrną kolorystyką, która idealnie pasuje zarówno do białych, jak i czarnych komputerów. Został zaprojektowany z wieloma ekskluzywnymi funkcjami MSI, prawdziwym Wi-Fi 7 z EZ Antenna, 5G LAN, PCIe 5.0 M.2 z EZ M.2 Shield Frozr II i dodatkowym zasilaniem PCIe, gotowy na procesory AMD Ryzen serii 9000. PRO X870-P WIFI Obsługuje procesory stacjonarne AMD Ryzen serii 9000 / 8000 / 7000 Obsługuje pamięć DDR5, dwukanałową DDR5 8200+ MT/s (OC) Ultra wydajność: 14+2+1 Duet Rail Power System, dwa 8-pinowe złącza zasilania procesora, Core Boost, Memory Boost, 8-warstwowa płytka PCB wykonana z 2-uncjowej pogrubionej miedzi i materiału klasy serwerowej Frozr Guard: rozszerzony radiator, podkładki termiczne MOSFET o wartości 7 W/mK, dodatkowe podkładki termiczne dławików i M.2 Shield Frozr są zbudowane dla wysokiej wydajności systemu i nieprzerwanego działania EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II i EZ Antenna Błyskawiczne wrażenia z gry: gniazdo PCIe 5.0, Lightning Gen 5 x4 M.2 Ultra Connect: USB4 i 5G LAN z Wi-Fi 7 Rozwiązanie najnowsze rozwiązanie do zastosowań profesjonalnych i multimedialnych, zapewniające bezpieczne, stabilne i szybkie sieciowanie oraz transmisję danych Wzmocnienie dźwięku: Nagradzaj swoje uszy jakością dźwięku klasy studyjnej, aby uzyskać najbardziej wciągające wrażenia z gry
Detailed data on disk/drive interfaces - 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor) 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices M2_1 slot Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen 8700/ 8600/ 8400 Series processors) Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
dimensionalWeight - 1449
dimension depth - 70 mm
dimension height - 270 mm
Dimensions - 243.84 mm x 304.8 mm
dimension weight - 1920 g
dimension width - 345 mm
EAN - 4711377256339
ean - 4711377256339
Expansion slots - 1 x PCIe 4.0 x 4
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 2 x PCIe 3.0 x 1
Expansion slots - 3 x M.2
Expansion slots - 4 x PCIe x 16
Expansion slots - Number of M.2 (M) slots - 3
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
Expansion slots - PCI Express x16 slots - 4

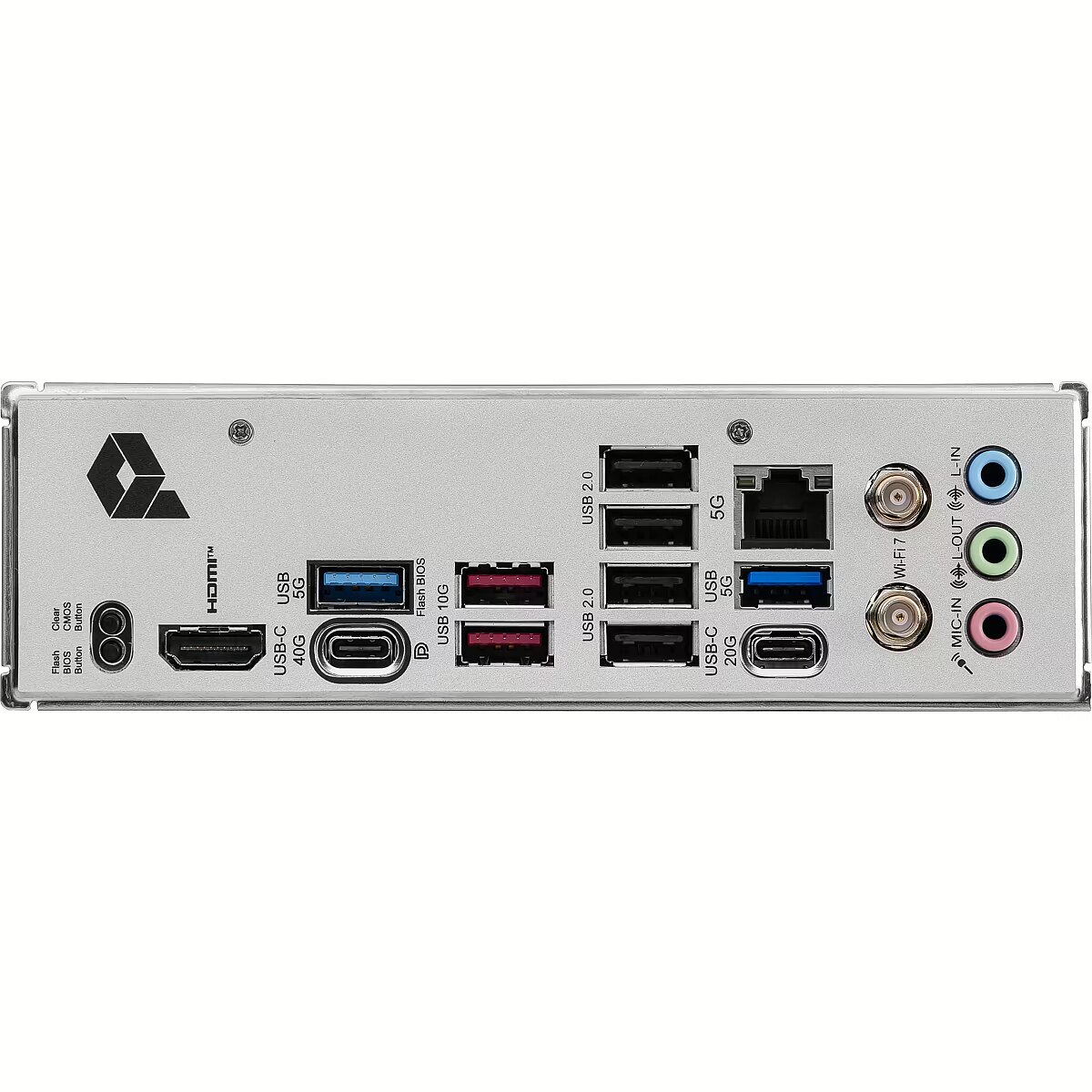

External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x Przycisk Clear CMOS
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.1 Type-C
External connectors - 1 x USB4 Type-C
External connectors - 2 x USB 3.0
External connectors - 2 x USB 3.1
External connectors - 4 x USB 2.0
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD X870E
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - PC health monitoring - CPU
Features - PC health monitoring - CPU, Fan, Temperature, Voltage
Features - PC health monitoring - Fan
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Features - Product colour - Black
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 4800/5000/5200/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/8000/8200 MHz
Full Description Line - AMD X870|SAM5|ATX|DDR5|8200/8000/7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5200/5000/4800 MHz|Memory slots 4|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 4x |1xPCI-Express 5.0 16x|3xM.2|1xHDMI|4xUSB 2.0|3xUSB 3.2|2xUSB-C|1xRJ45|3xAudio port|USB-C|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|Audio Realtek ALC897|LAN 5 Gigabit|RAID SATA 0, 1|TPM Header
Graphics - 1x HDMI Obsługa HDMITM 2.1, maksymalna rozdzielczość 4K 60Hz* 1x Type-C DisplayPort Port USB4, obsługa DisplayPort 1.4 z HBR3 przez USB Type-C, maksymalna rozdzielczość 4K 60Hz*
*Dostępne tylko w procesorach ze zintegrowaną grafiką. Specyfikacje graficzne mogą się różnić w zależności od zainstalowanego procesora.
Graphics - On-board graphics card - No
GTIN - 4711377256339
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC897
Integrated CPU - No
Integrated LAN - 5 Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Total number of SATA connectors - 4
Internal I/O - USB 2.0 connectors - 4
Link - https://www.msi.com/Motherboard/PRO-X870-P-WIFI/
LongDesc -
LongProductName - 4 X DDR5 , Socket AM5, Wi -Fi 7, 2,5GBE LAN, 3 X M.2
LongSummaryDescription - MSI PRO X870-P WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen™ 7. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
LPT connector / port - No
M.2 Expansion slots - 3
Manufacturer - MSI
Max memory size - 256 GB
Memory - Maximum internal memory - 256 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory types - DDR5-SDRAM
Memory > Supported memory types - DDR5
Memory bus frequency - 4800 MHz
Memory bus frequency - 5000 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5400 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory bus frequency - 7400 MHz
Memory bus frequency - 7600 MHz
Memory bus frequency - 7800 MHz
Memory bus frequency - 8000 MHz
Memory bus frequency - 8200 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - PRO X870-P WIFI
MPN - 7E47-001R
Name - AM5 MSI PRO X870-P WiFi ATX
name - Motherboard PRO X870-P WIFI AM5 4DDR5 ATX
Name - MSI Processor family AMD | Processor socket AM5 | DDR5
name - MSI Pro X870-P WiFi, AMD X870 Mainboard - Sockel AM5
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
Network interface - 1 x 10/100/1000/2500/5000 Mbit/s
Network interface - Bluetooth
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Network interface -  Realtek 8126VB 5G LAN Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 4
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x System panel header
Onboard connectors - 2 x Thunderbolt
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 3 x Addressable LED
Onboard connectors - 4 x USB 2.0/1.1
Onboard connectors - 6 x 4pin wentylator obudowy
Other information -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 342.00 mm
Package features > Gross height (mm) - 70.00 mm
Package features > Gross width (mm) - 268.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 135 pc(s)
Package features > Paper/Pasteboard - 500.00 g
Package features > Plastic (No PET) - 175.00 g
Package features > Tare weight (kg) - 0.68 kg
Package features > TI weight (kg) - 0.05 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
PCI-Express 3.0 1x Expansion slots - 2
PCI-Express 4.0 4x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - AMD Ryzen™ 7
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Processor > Processor family - AMD
Processor > Processor socket - AM5
Processor family - AMD Ryzen 3
Processor family - AMD Ryzen 5
Processor family - AMD Ryzen 7
Processor family - AMD Ryzen 9
producer - MSI
producerCode - PRO X870-P WIFI
productName - MSI PRO X870-P WIFI motherboard AMD X870E Socket AM5 ATX
ProductName - PRO X870-P WIFI
productSize - Normal
RAID - SATA 0, 1
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 2
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 6
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Rear panel I/O ports - USB4 Gen 2x2 ports quantity - 2
RJ45 Input/Output connectors - 1
Shipping Box Depth Shipping/Package Box Dimensions - 38 cm
Shipping Box Height Shipping/Package Box Dimensions - 37 cm
Shipping box quantity - 5
Shipping Box Weight Shipping/Package Box Dimensions - 10.35 kg
Shipping Box Width Shipping/Package Box Dimensions - 28.5 cm
ShortSummaryDescription - MSI PRO X870-P WIFI, AMD, Socket AM5, AMD Ryzen™ 7, Socket AM5, DDR5-SDRAM, 256 GB
sizeX - 274
sizeY - 348
sizeZ - 76
Socket - SAM5
Software -
Sound card - Realtek ALC897 7.1-Channel High Definition Audio
Special functions -
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 11
Technical details > Gross weight - 1.64 kg
Technical details > Net weight - 0.97 kg
Technical details > Producer - MSI
Title - MSI PRO X870-P WIFI motherboard AMD X870E Socket AM5 ATX
TPM - Header
Unit Box Height - 0.07
Unit Box Length - 0.345
Unit Box Width - 0.27
Unit Brutto Volume - 0.008014 cubm
Unit Gross Weight - 2.07 kg
Unit Net Weight - 1.5 kg
URL - https://www.msi.com/index.php
USB-C Input/Output connectors - 2
USB-C Interface - Yes
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 3
USB 3.2 Interface - Yes
USB ports at back panel - 10
USB ports on motherboard - 7
Vendor Homepage - www.msi.com/Motherboard/PRO-X870-P-WIFI
vendpn - PRO X870-P WIFI
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 1.922
weight - 1916
WiFi Interface - Yes
295.13 €
MSI PRO X870-P WIFI
Intel technology provider Platinum 2020
All categories
