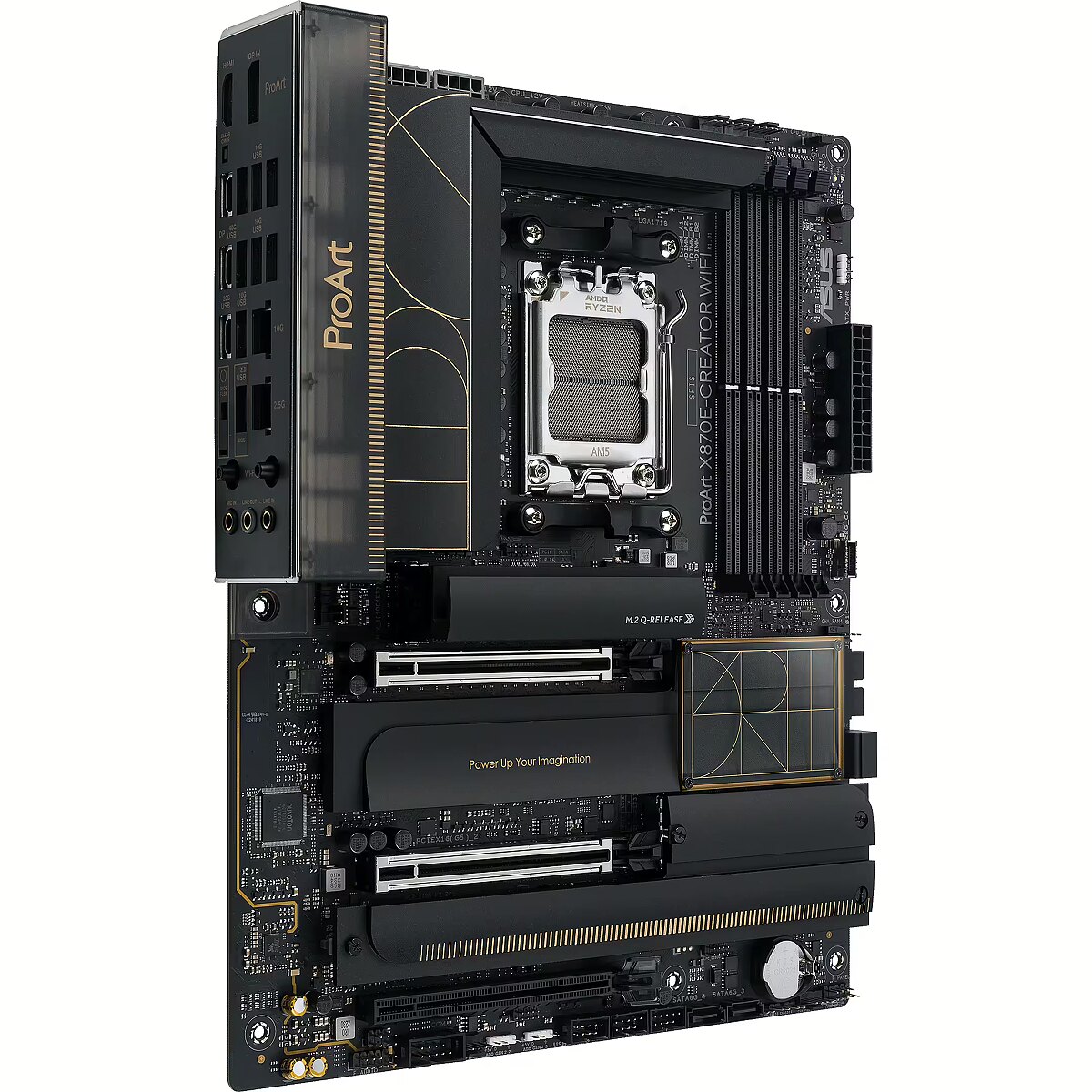

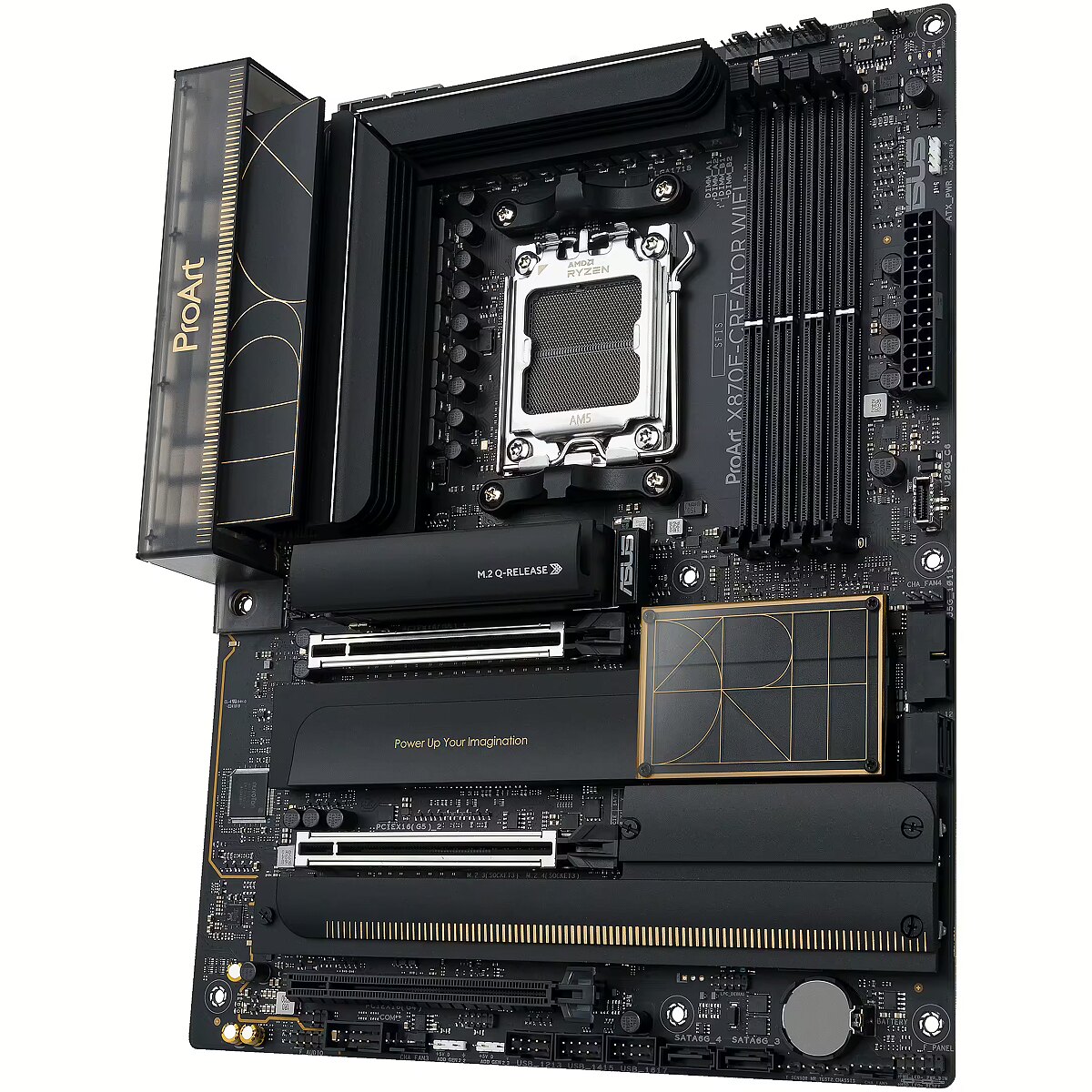

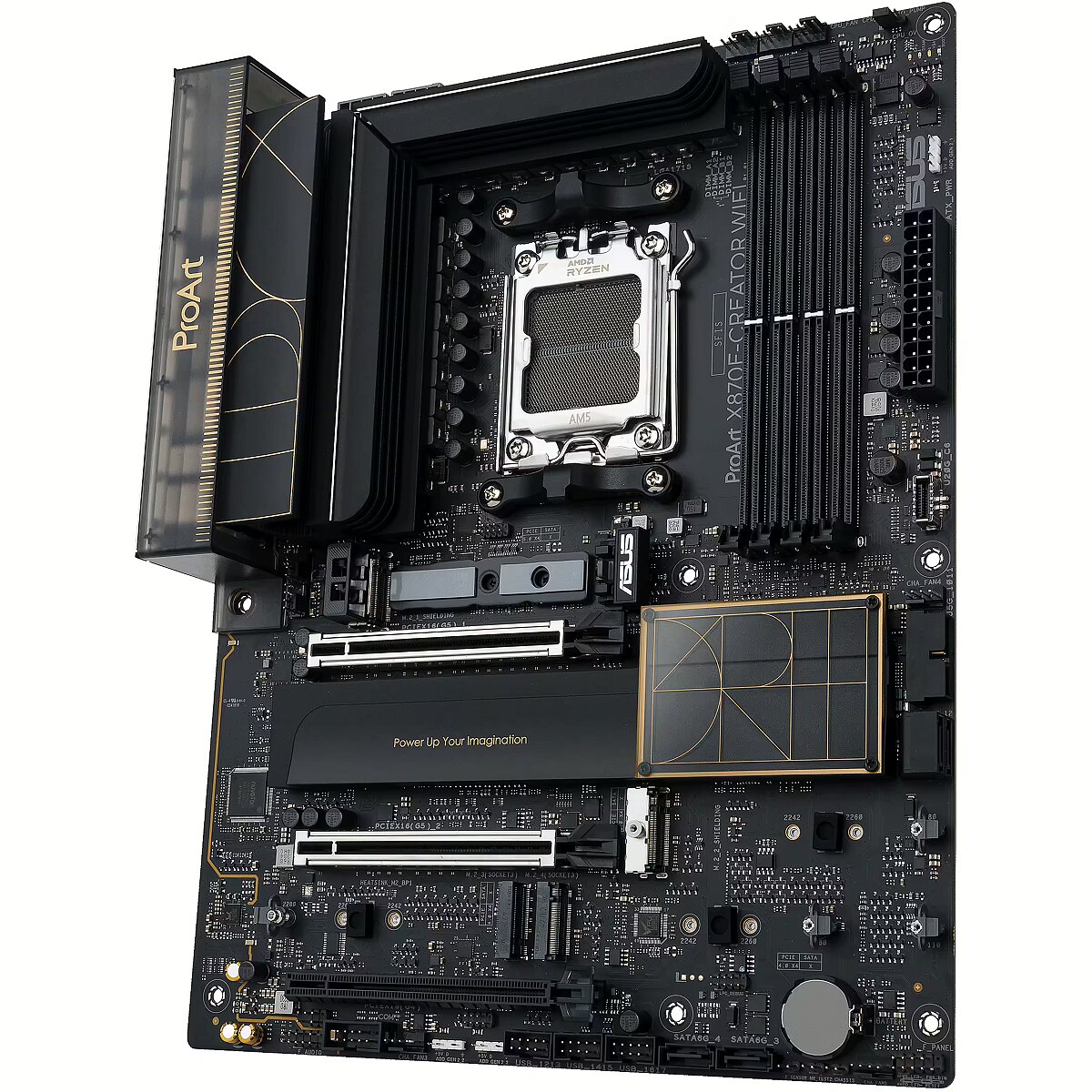

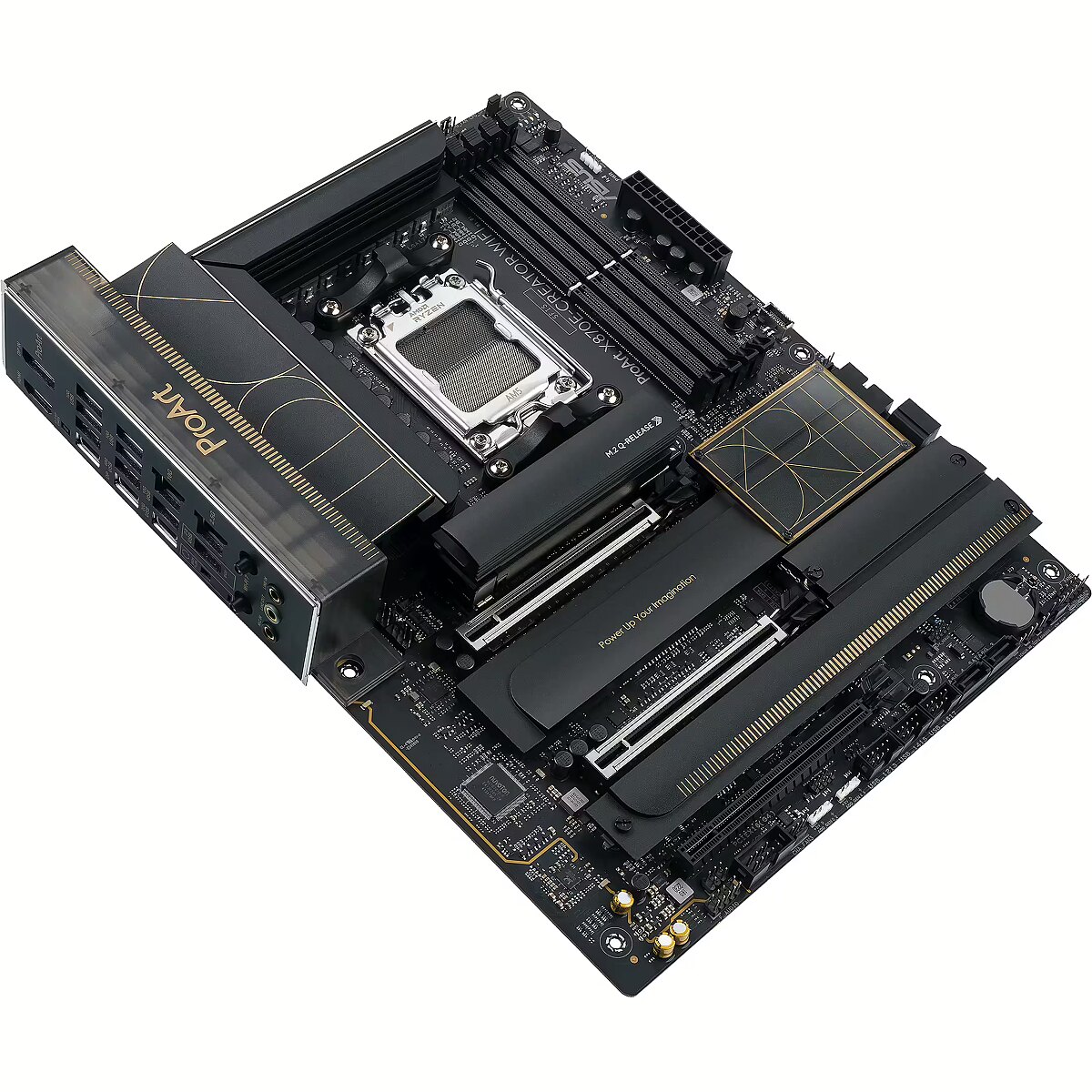

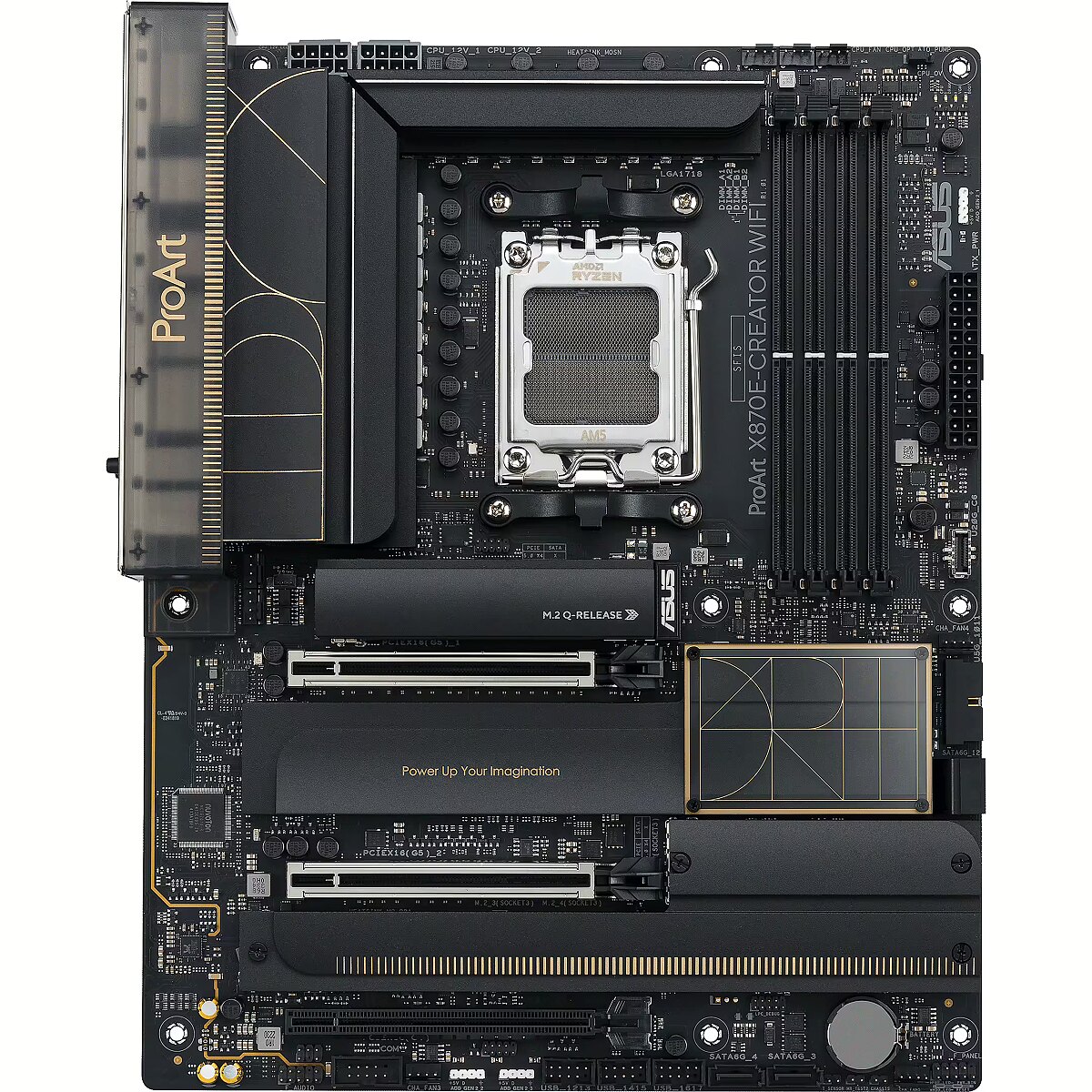

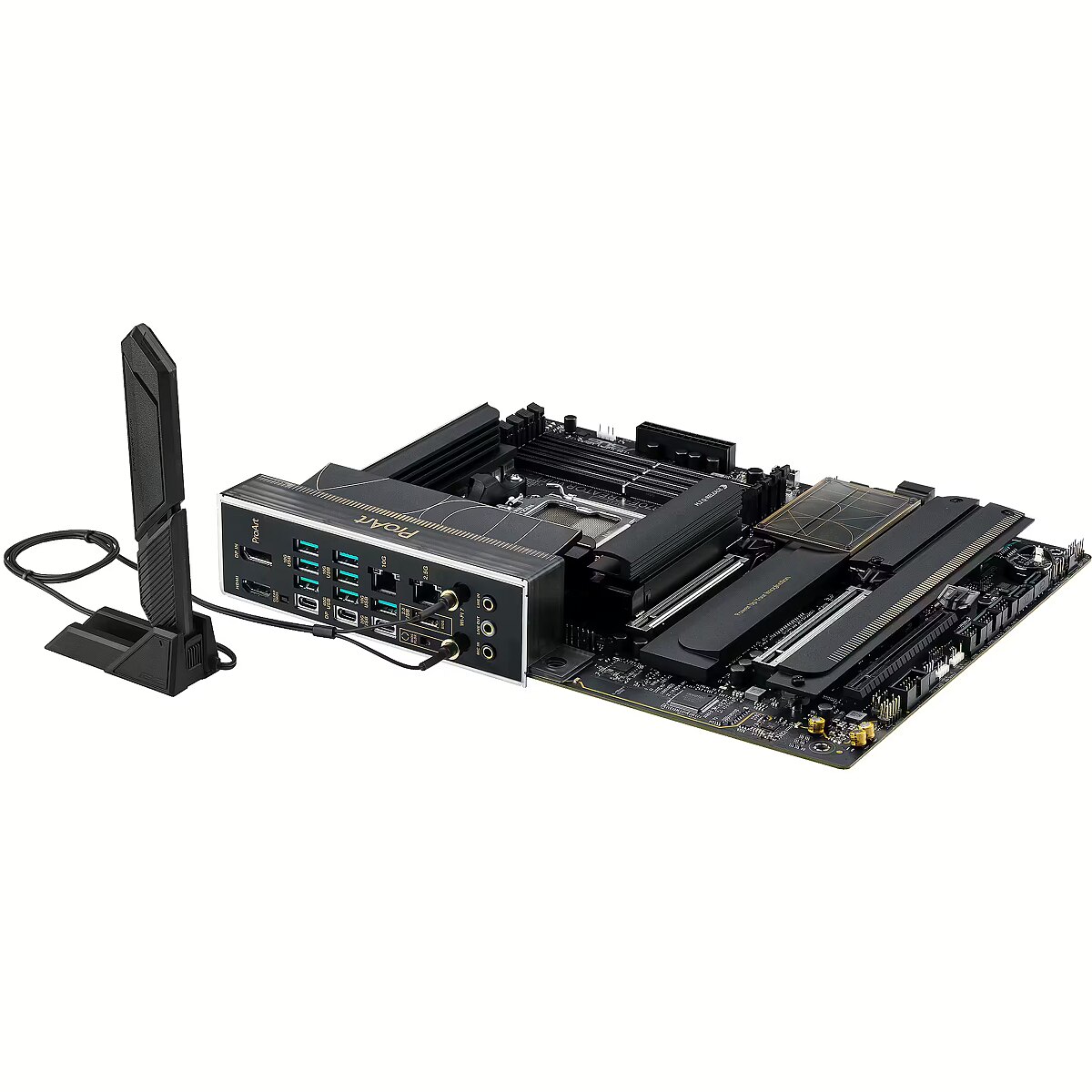

Asus PROART X870E-CREATOR WIFI

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1147008 Product code: 90MB1IG0-M0EAY0
In stock 5 units / In office 1 units
Warranty: 3 years
550.87 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: on Thuesday, 26.11.2024
Main product parameters All parameters
  • Series: ASUS ProArt
  • Plate size: ATX
  • Chipset: AMD X870E
  • Socket: AM5
  • Type: DDR5
  • RAM Slots: 4
  • Built-in Wi-Fi: Ir
  • M.2 ports: 4
Basic information
Series : ASUS ProArt
Plate size ATX

The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD X870E

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Socket AM5
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Random-access memory (RAM)
Type : DDR5
RAM Slots 4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support DDR5 5600MT/s (8000MT/s OC)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card
VGA Port PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics Only with iGPU-ready APU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment
D-Sub : 0
DisplayPort : 1
DVI : 0
HDMI : 1
Integrated sound card : Realtek ALC1220P
PCI Ports 0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
Wireless connections
Built-in Bluetooth : Ir
Built-in Wi-Fi : Ir
External ports
External USB 2.0 : 1
External USB Type-C (USB 3.2 Gen2) : 1
External USB Type-C (USB 4.0) : 2
External USB 3.0 (USB 3.2 Gen1) : 0
External USB 3.1 (USB 3.2 Gen2) : 7
Internal ports
Internal A-RGB 5V (3-pin) : 3
Internal RGB 12V (4-pin) : 0
Internal USB 2.0 : 3
Internal USB 3.0 : 1
Internal USB Type-C : 1
M.2 ports : 4
SATA3 ports : 4
Power supply units (PSU)
More detailed specification
Additional information in manufacturers website Asus PROART X870E-CREATOR WIFI
Accessories included - Kabel DisplayPort 4 kable SATA 6Gb/s Dodatkowy zestaw chłodzący Podkładka termiczna do M.2 22110 Antena Q-ASUS WiFi Złącze Q Pakiet Q-Latch M.2 Pakiet Q-Latch Q-Slide M.2 do tylnej płyty M.2 2 x gumowe pakiety do M.2 Linijka ProArt Szybki przewodnik Karta klucza aktywacyjnego ACC Express
Audio port Input/Output connectors - 3
BIOS - 256 Mb Flash ROM, UEFI AMI BIOS
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
Bluetooth Interface - Yes
Brand - ASUS
BrandPartCode - 90MB1IG0-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBA
Chipset - AMD X870E
Chipset manufacturer - AMD
Chipset type - AMD X870E
code - 90MB1IG0-M0EAY0
COM connector / port - Yes
CPU socket - Socket AM5
Description - ProArt logo X870E-CREATOR WIFI
Płyta główna ProArt X870E-Creator WiFi daje twórcom na każdym poziomie maksymalizację wydajności najnowszych procesorów AMD Ryzen serii 9000, 8000 i 7000 z 16+2+2 zespołami mocy, gniazdami DDR5, PCIe 5.0 i błyskawiczną łącznością, w tym podwójnym USB4, 10G i 2.5G Ethernet oraz WiFi 7.
Ta płyta główna ucieleśnia profesjonalną, elegancką i precyzyjną wizję dla twórców treści wszelkiego rodzaju, ze stylem podniesionym przez ton w ton warstwy czerni z metalicznymi złotymi akcentami. Przezroczysta osłona I/O zapewnia użytkownikom stylowy wgląd w najwyższej jakości złącza wewnątrz.
Description - PROART X870E-CREATOR WIFI The ProArt X870E-Creator WiFi empowers creators of all levels by maximizing the performance of the latest AMD Ryzen™ 9000, 8000 and 7000 Series processors with 16+2+2 team power stages, DDR5 slots, PCIe® 5.0 and lightning-fast connectivity including dual USB4®, 10G and 2.5G Ethernet, and WiFi 7.? This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A translucent I/O cover also gives users a stylish peek at the premium connectors within.?
Detailed data on disk/drive interfaces - Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
AMD X870E Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
*AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. RAID 5 Function is only supported by AMD Ryzen 9000series CPU.
** PCIEX16(G5)_2 slot shares bandwidth with M.2_2.
dimensionalWeight - 1951
dimension depth - 90 mm
dimension height - 280 mm
Dimensions - 30.5 cm x 24.4 cm
dimension weight - 2615 g
dimension width - 350 mm
DisplayPort Input/Output connectors - 1
ean - 4711387730775
Eans - 4711387730775
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 2 x PCIe 5.0 x16
Expansion slots - 4 x M.2
Expansion slots - Number of M.2 (M) slots - 4
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 2
External connectors - 1 x DisplayPort
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line Out (front)
External connectors - 1 x MIC (front)
External connectors - 1 x Przycisk Clear CMOS
External connectors - 1 x Rear Speaker
External connectors - 1 x Side Speaker
External connectors - 1 x USB 2.0
External connectors - 1 x USB 3.1 Type-C
External connectors - 2 x RJ-45
External connectors - 2 x USB4 Type-C
External connectors - 7 x USB 3.1
Features - Audio chip - Realtek S1220A
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD X870E
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - Windows operating systems supported - Windows 11
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 8000 MHz
Full Description Line - AMD X870E|SAM5|ATX|DDR5|8000 MHz|Memory slots 4|3xPCI-Express 4.0 16x|2xPCI-Express 5.0 16x|4xM.2|1xHDMI|1xDisplayPort|1xUSB 2.0|7xUSB 3.2|3xUSB-C|1xRJ45|3xAudio port|SATA|USB-C|USB 2.0|USB 3.2|Bluetooth|WiFi|Serial|Video Depending on CPU|Audio Realtek ALC1220P|LAN 2.5 Gigabit
Graphics - 1 x HDMITM port** 2 x USB4 (40Gbps) ports support USB Type-C display outputs*** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
**** Output at USB4_EC1 and USB4_EC2, each requires a USB-C to DisplayPort adapter cable. VGA resolution support depends on processors' or graphic cards' resolution.
Graphics - Parallel processing technology support - Not supported
Gross Weight Kg - 2,1
GTIN - 4711387730775
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC1220P
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 5
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - USB 2.0 connectors - 3
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2x2 connectors - 1
LongDesc - The ProArt X870E-Creator WiFi empowers creators of all levels by maximizing the performance of the latest AMD Ryzen™ 9000, 8000 and 7000 Series processors with 16+2+2 team power stages, DDR5 slots, PCIe® 5.0 and lightning-fast connectivity including dual USB4®, 10G and 2.5G Ethernet, and WiFi 7.​This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A translucent I/O cover also gives users a stylish peek at the premium connectors within.​All You Need for Maximum ProductivityDual USB4® ConnectivityGet immersed in your creations with two USB4 ports for connecting to all your content-creation gadgets, enjoying up to 40 Gbps bi-directional data transfers. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort™ In port on the rear I/O panel and direct the video output via the USB4 port.​
LongProductName - AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors, AMD X870E
LongSummaryDescription - ASUS ProArt X870E-CREATOR WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Supported processor sockets: Socket AM5. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10, 5. Ethernet interface type: 2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
LPT connector / port - No
M.2 Expansion slots - 4
Manufacturer Code - 90MB1IG0-M0EAY0
Manufacturer Name - Asustek
Max. number of SATA devices - 4
Max memory size - 192 GB
Memory - ECC - Yes
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 8000 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - PROART X870E-CREATOR WIFI
Name - ASUS PROART X870E-CREATOR WIFI
name - ASUS ProArt X870E-Creator WiFi Mainboard, AMD X870E, Sockel AM5, DDR5
name - Motherboard PROART X870E-CREATOR WI FI AM5 4DDR5 HDMI/USB-C
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet interface type - 2.5 Gigabit Ethernet, 10 Gigabit Ethernet
Network - Ethernet interface type - 10 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
Network interface - 1 x 10/100/1000 Mbit/s
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - Ethernet 1 x Marvell AQtion 10Gb Ethernet 1 x Intel 2.5Gb Ethernet ASUS LANGuard Bezprzewodowe i Bluetooth Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Obsługuje pasmo częstotliwości 2,4/5/6 GHz** Obsługuje pasmo Wi-Fi 7 320 MHz, do 6,5 Gb/s szybkości transferu. Bluetooth v5.4*** *Funkcje Wi-Fi mogą się różnić w zależności od systemu operacyjnego
W przypadku systemu Windows 11 Wi-Fi 7 będzie wymagać wersji 24H2 lub nowszej do pełnej funkcjonalności, Windows 11 21H2/22H2/23H2 obsługuje tylko Wi-Fi 6E.
W przypadku systemu Windows 10 należy pamiętać, że nie ma dostępnego sterownika, zapoznaj się ze stroną internetową dostawcy chipsetu Wi-Fi, aby uzyskać szczegółowe informacje.
** Pasmo częstotliwości Wi-Fi 6 GHz i przepisy dotyczące przepustowości mogą się różnić w zależności od kraju.
*** Wersja Bluetooth może się różnić. Aby uzyskać najnowsze specyfikacje, zapoznaj się ze stroną internetową producenta modułu Wi-Fi.
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 2
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 11
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 4pin wentylator OPT CPU
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x Thermal sensor connector
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 1 x USB C
Onboard connectors - 1x CPU/DRAM overvoltage jumper
Onboard connectors - 3 x Addressable LED
Onboard connectors - 3 x USB 2.0/1.1 header
Onboard connectors - 4 x M.2
Onboard connectors - 4 x SATA III 6Gb/s
Onboard connectors - 5 x 4pin Chassis fan
Other information -

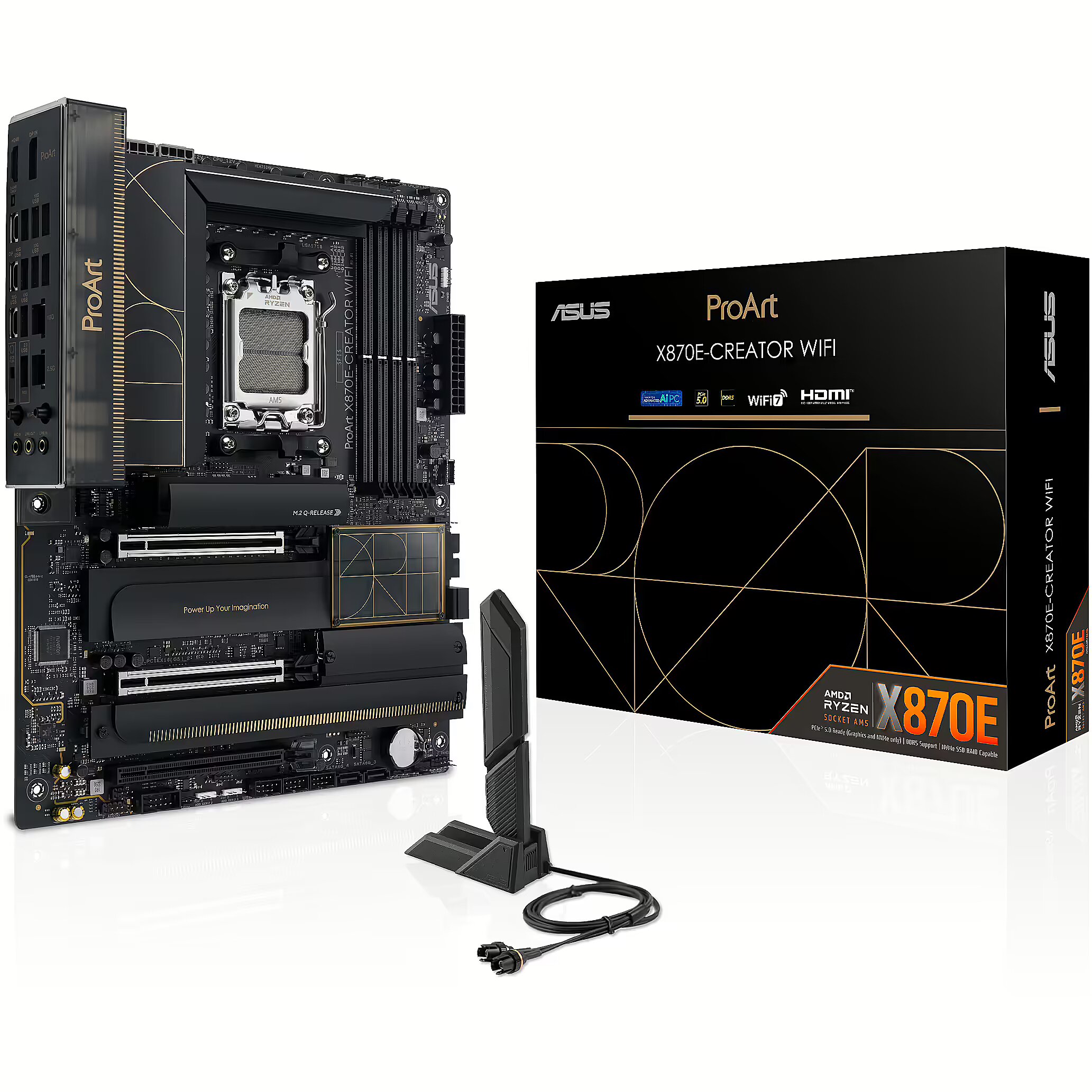

Packaging content - Cables included - DisplayPort, SATA
PCI-Express 4.0 16x Expansion slots - 3
PCI-Express 5.0 16x Expansion slots - 2
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Processor family - AMD Ryzen 3
Processor family - AMD Ryzen 5
Processor family - AMD Ryzen 7
Processor family - AMD Ryzen 9
producer - Asus
Producer - Asus
producerCode - 90MB1IG0-M0EAY0
ProducerCode - PROART X870E-CREATOR WIFI
productName - ASUS ProArt X870E-CREATOR WIFI AMD X870E Socket AM5 ATX
ProductName - ProArt X870E-CREATOR WIFI
productSize - Normal
RAID - Yes

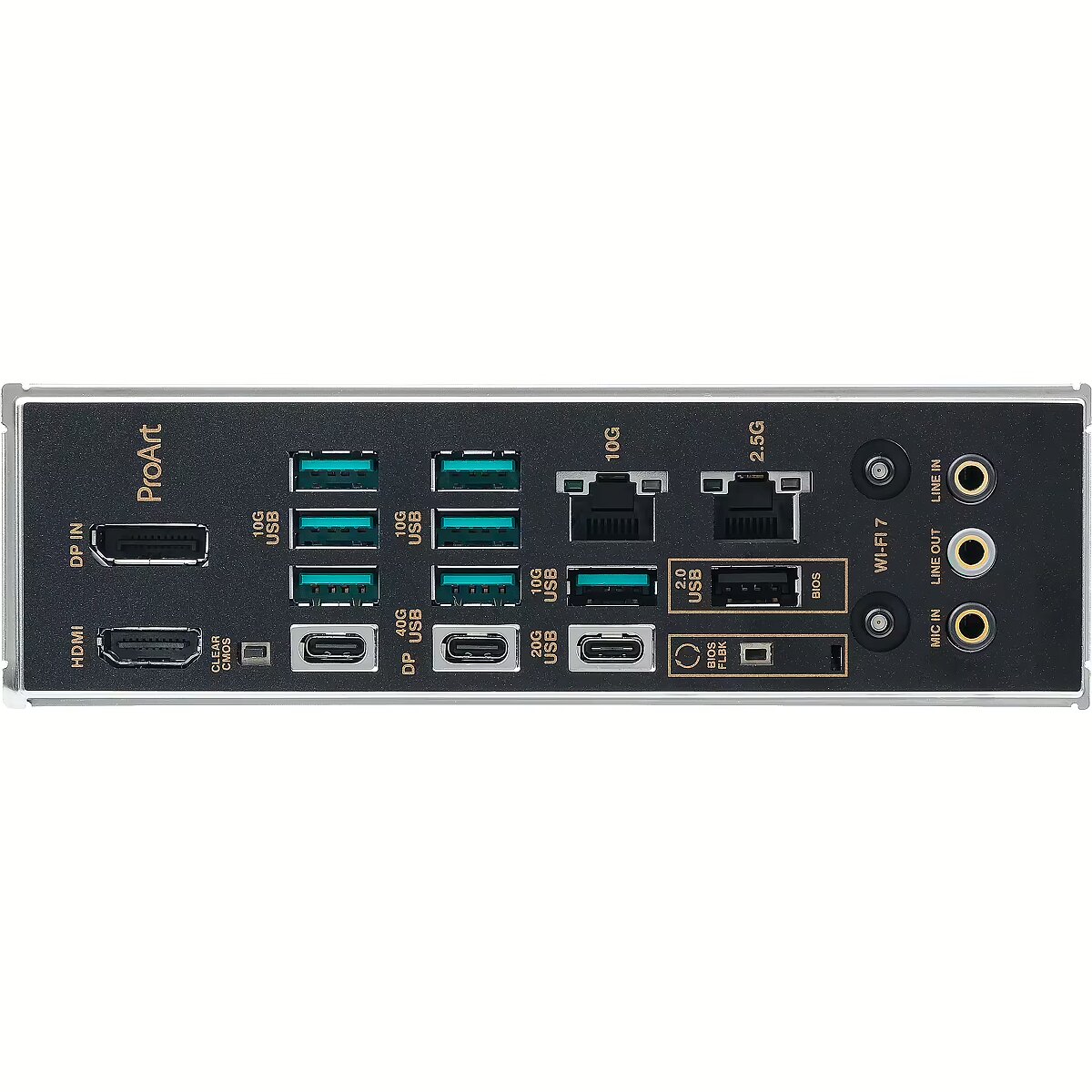

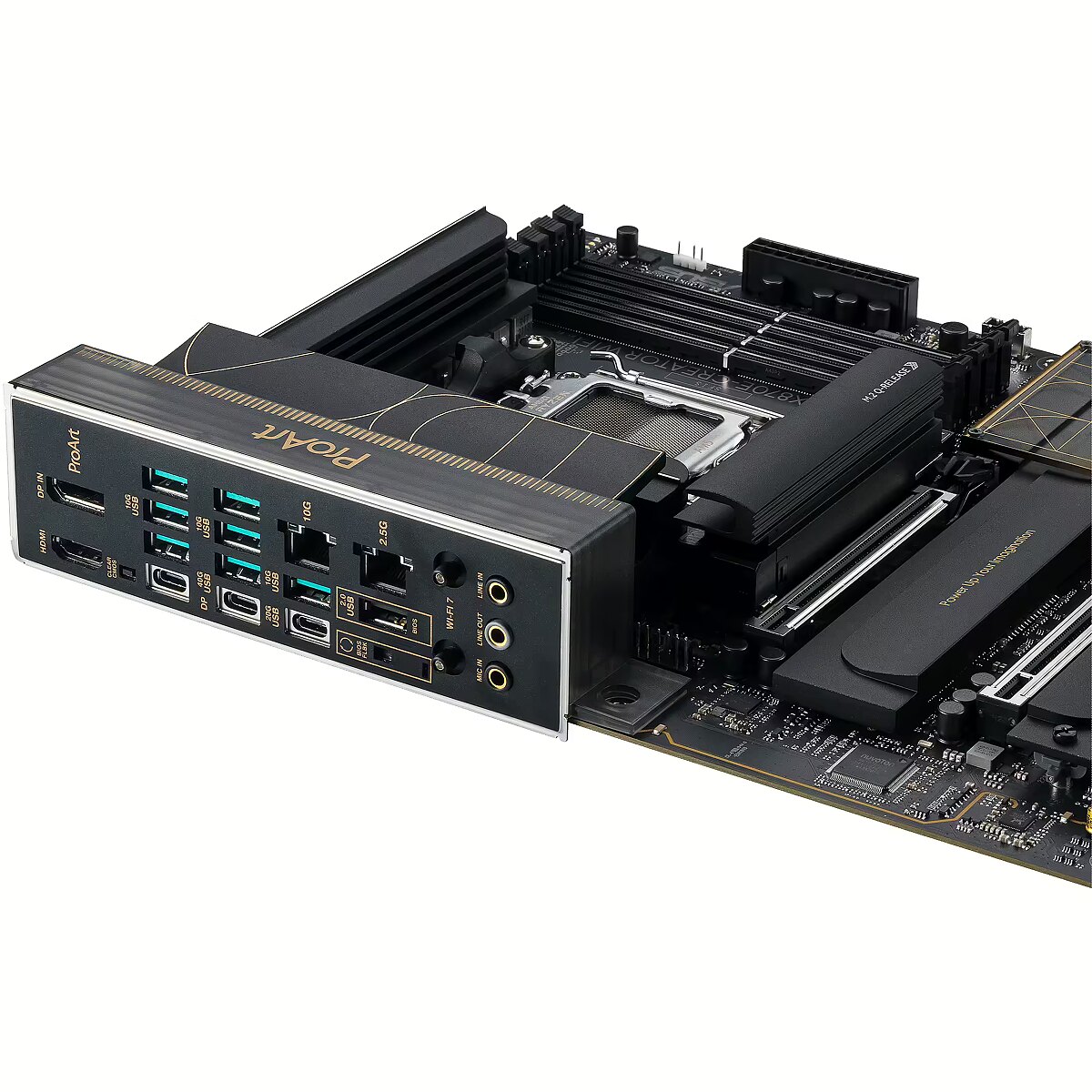

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 2
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 7
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
Rear panel I/O ports - USB4 Gen 2x2 ports quantity - 2
Rear panel I/O ports - WiFi-AP antenna jack - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Serial Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 47 cm
Shipping Box Height Shipping/Package Box Dimensions - 31 cm
Shipping box quantity - 5
Shipping Box Weight Shipping/Package Box Dimensions - 14.1 kg
Shipping Box Width Shipping/Package Box Dimensions - 37.5 cm
Short description - ASUS PROART X870E-CREATOR WIFI X870E/AM5/ATX
ShortDescription - Socket AM5 | Chipset AMD X870E | DDR5
ShortSummaryDescription - ASUS ProArt X870E-CREATOR WIFI, AMD, Socket AM5, Socket AM5, DDR5-SDRAM, 192 GB, DIMM
sizeX - 363
sizeY - 289
sizeZ - 93
Socket - SAM5
Software - ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 with AI Cooling II
- Power Saving
ASUS DriverHub
ASUS GlideX
USB Wattage Watcher
TurboV Core
ASUS CPU-Z
ProArt Creator Hub
CreationFirst
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey
Sound card - Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* Wykrywanie impedancji dla przednich i tylnych wyjść słuchawkowych Wewnętrzny wzmacniacz audio w celu zwiększenia najwyższej jakości dźwięku dla słuchawek i głośników Obsługuje: wykrywanie gniazda, przesyłanie strumieniowe, zmianę przeznaczenia gniazda na przednim panelu Wysokiej jakości wyjście odtwarzania stereo SNR 120 dB i wejście nagrywania SNR 113 dB (wejście liniowe) Obsługuje odtwarzanie do 32-bitów/192 kHz* Funkcje audio Ekranowanie audio Kondensatory audio klasy premium Dedykowane warstwy audio PCB Unikalny obwód de-pop * Ze względu na ograniczenia szerokości pasma HDA,
32-bity/192 kHz nie są obsługiwane dla dźwięku przestrzennego 7.1.
** Do obsługi wyjścia audio przestrzennego 7.1 wymagana jest obudowa z modułem audio HD na panelu przednim.
Special functions -
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 8
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 10, 5
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 11
Title - ASUS ProArt X870E-CREATOR WIFI AMD X870E Socket AM5 ATX
Unit Box Height - 0.09
Unit Box Length - 0.36
Unit Box Width - 0.285
Unit Brutto Volume - 0.01093 cubm
Unit Gross Weight - 2.82 kg
Unit Net Weight - 2 kg
URL - https://www.asus.com/motherboards-components/motherboards/proart/proart-x870e-creator-wifi/
USB-C Input/Output connectors - 3
USB-C Interface - Yes
USB 2.0 Input/Output connectors - 1
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 7
USB 3.2 Interface - Yes
USB ports at back panel - 11
USB ports on motherboard - 9
Vendor Homepage - www.asus.com/motherboards-components/motherboards/proart/proart-x870e-creator-wifi/
vendpn - ProArt X870E-CREATOR WIFI
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
weight - 2618
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
WiFi Interface - Yes
550.87 €
Asus PROART X870E-CREATOR WIFI
Intel technology provider Platinum 2020
All categories
