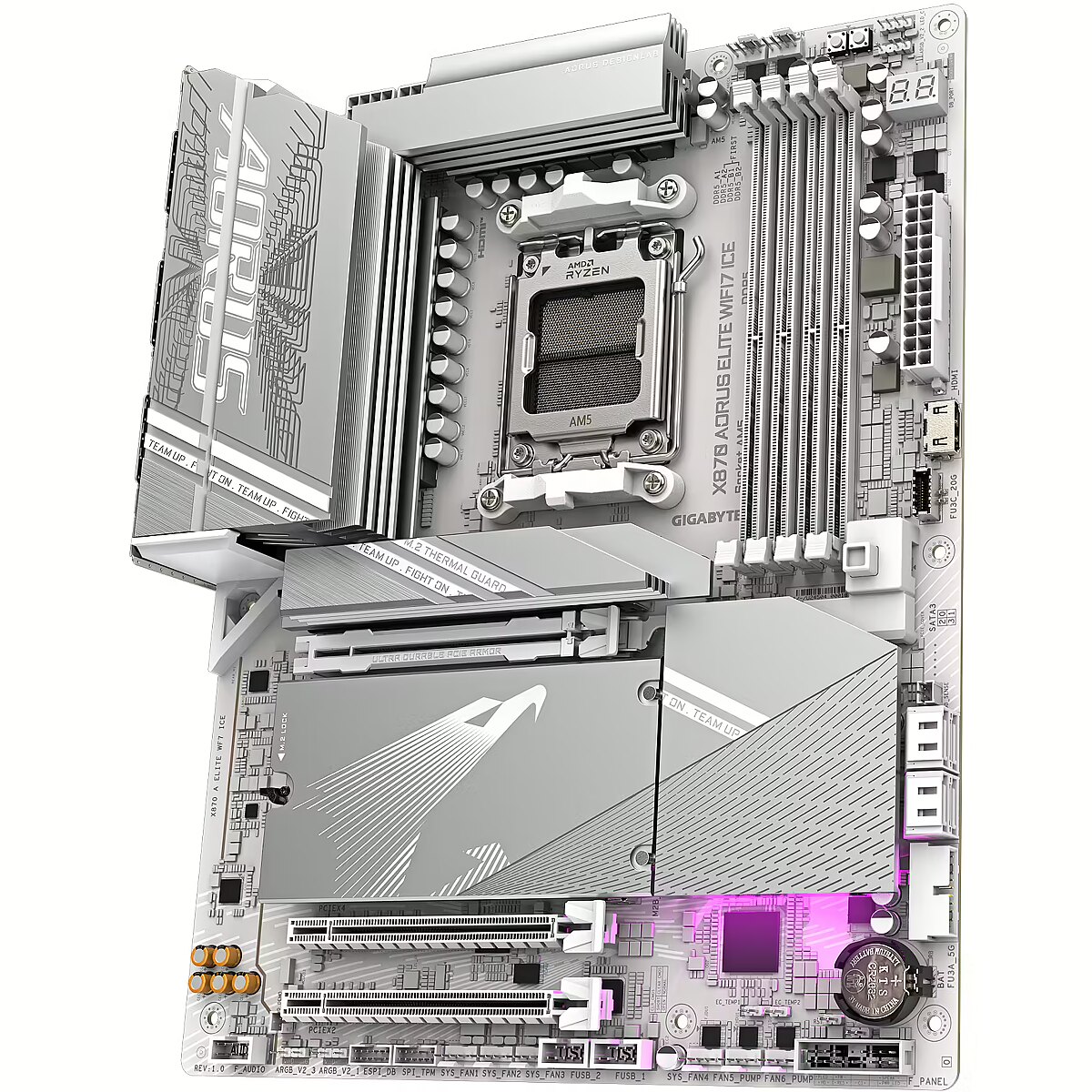

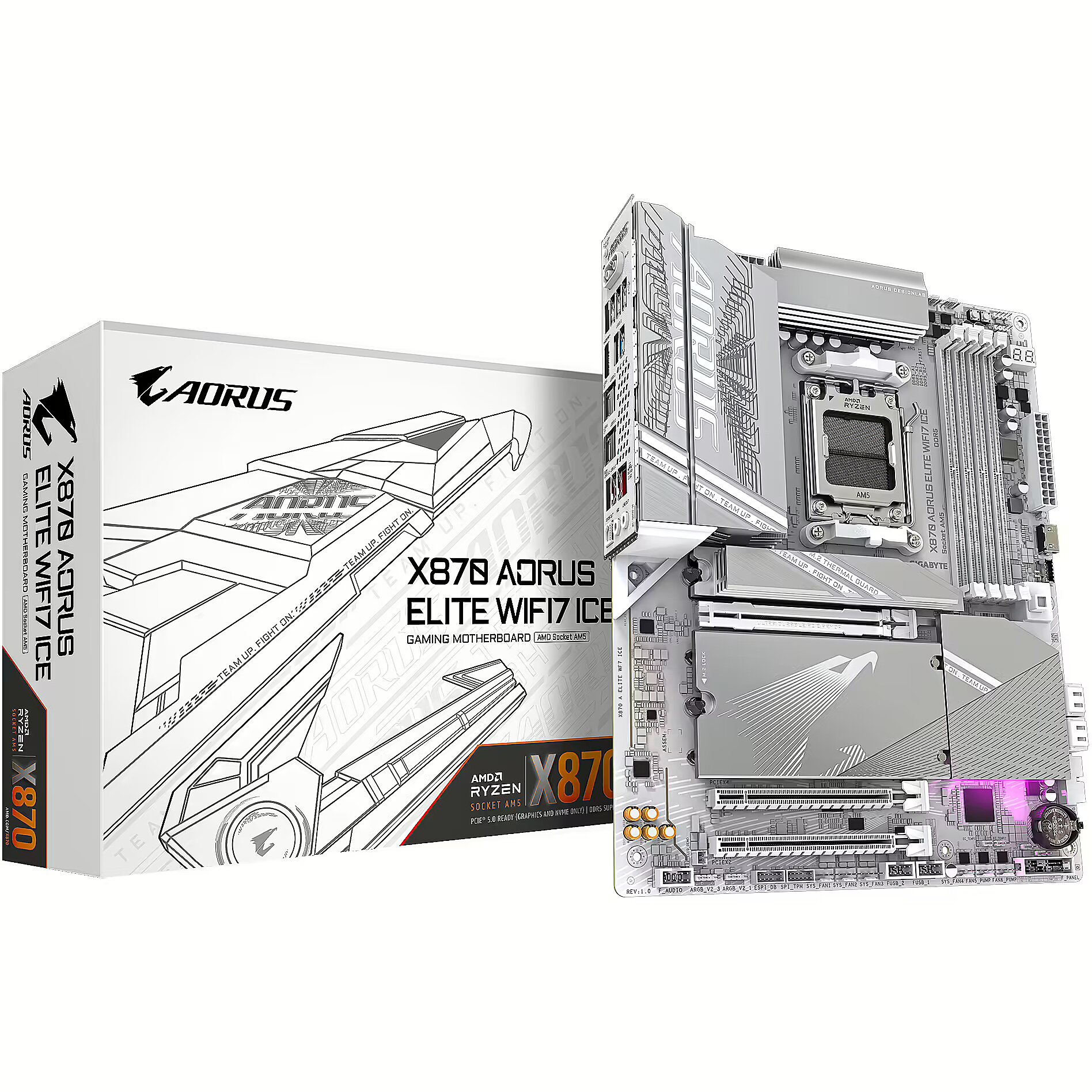

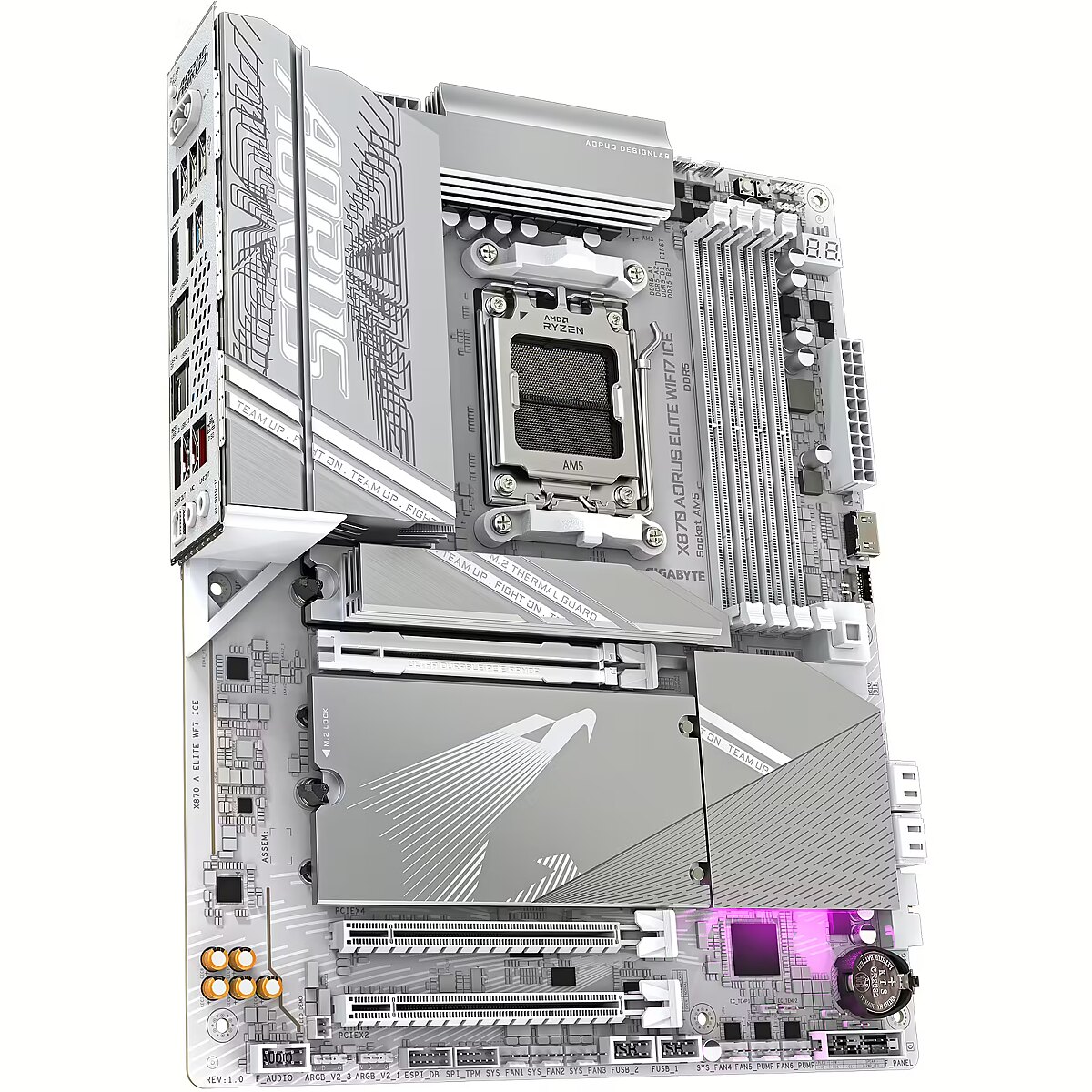

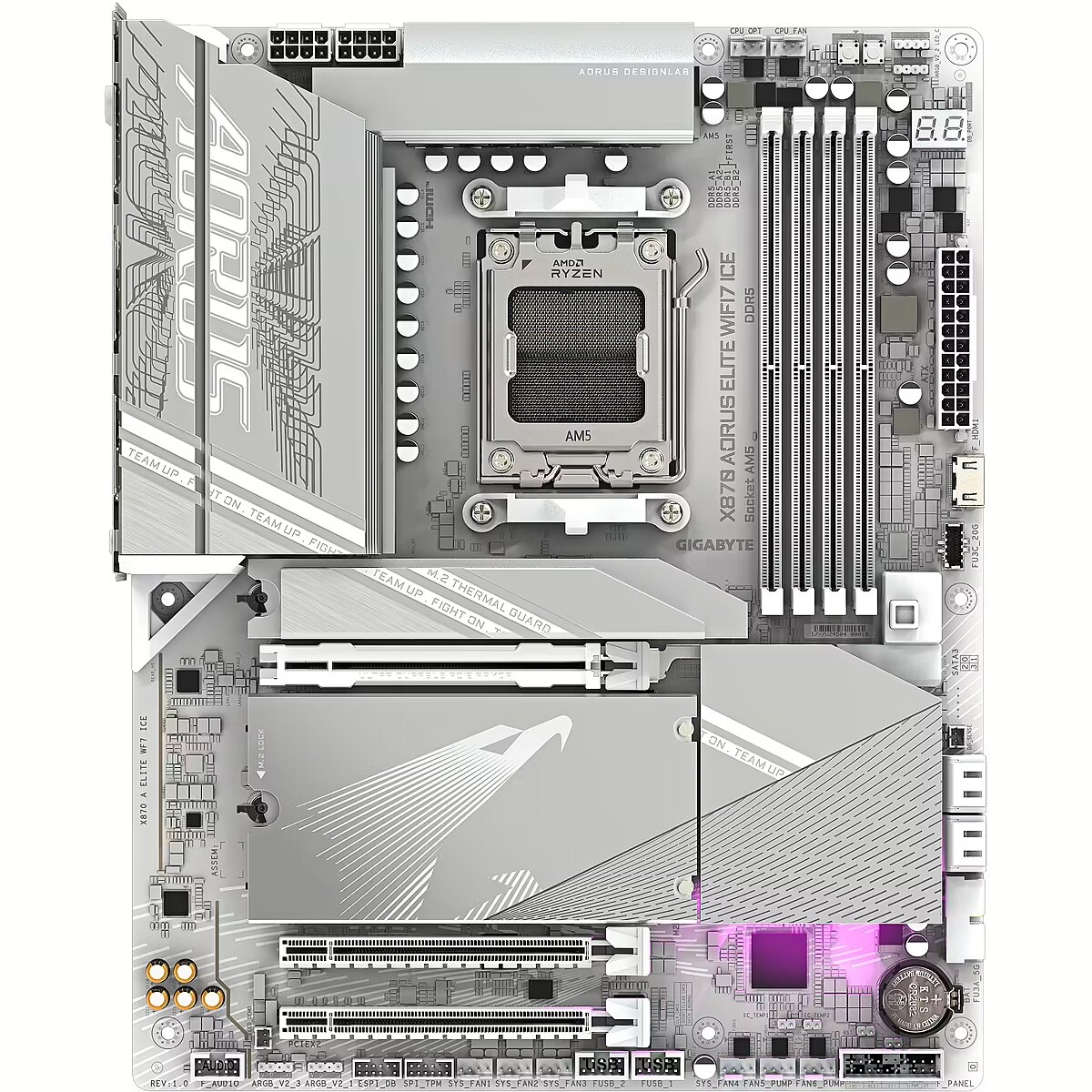

Gigabyte X870 AORUS ELITE WIFI7 ICE

+
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
+ In collaboration with Gigabyte a Steam code is given as a gift
ID: 1143506 Product code: X870 A ELITE WF7 ICE
In stock 18 units
Warranty: 3 years
336.30 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: on Thursday, 28.11.2024
Main product parameters All parameters
  • Series: Gigabyte AORUS
  • Plate size: ATX
  • Chipset: AMD X870
  • Socket: AM5
  • Type: DDR5
  • RAM Slots: 4
  • Built-in Wi-Fi: Ir
  • M.2 ports: 4
Basic information
Series : Gigabyte AORUS
Plate size ATX

The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD X870

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Socket AM5
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Random-access memory (RAM)
Type : DDR5
RAM Slots 4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support DDR5 5200MHz (8000MHz OC)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card
VGA Port PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics Only with iGPU-ready APU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment
D-Sub : 0
DisplayPort : 0
DVI : 0
HDMI : 1
Integrated sound card : Realtek ALC1220
PCI Ports 0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
Wireless connections
Built-in Bluetooth : Ir
Built-in Wi-Fi : Ir

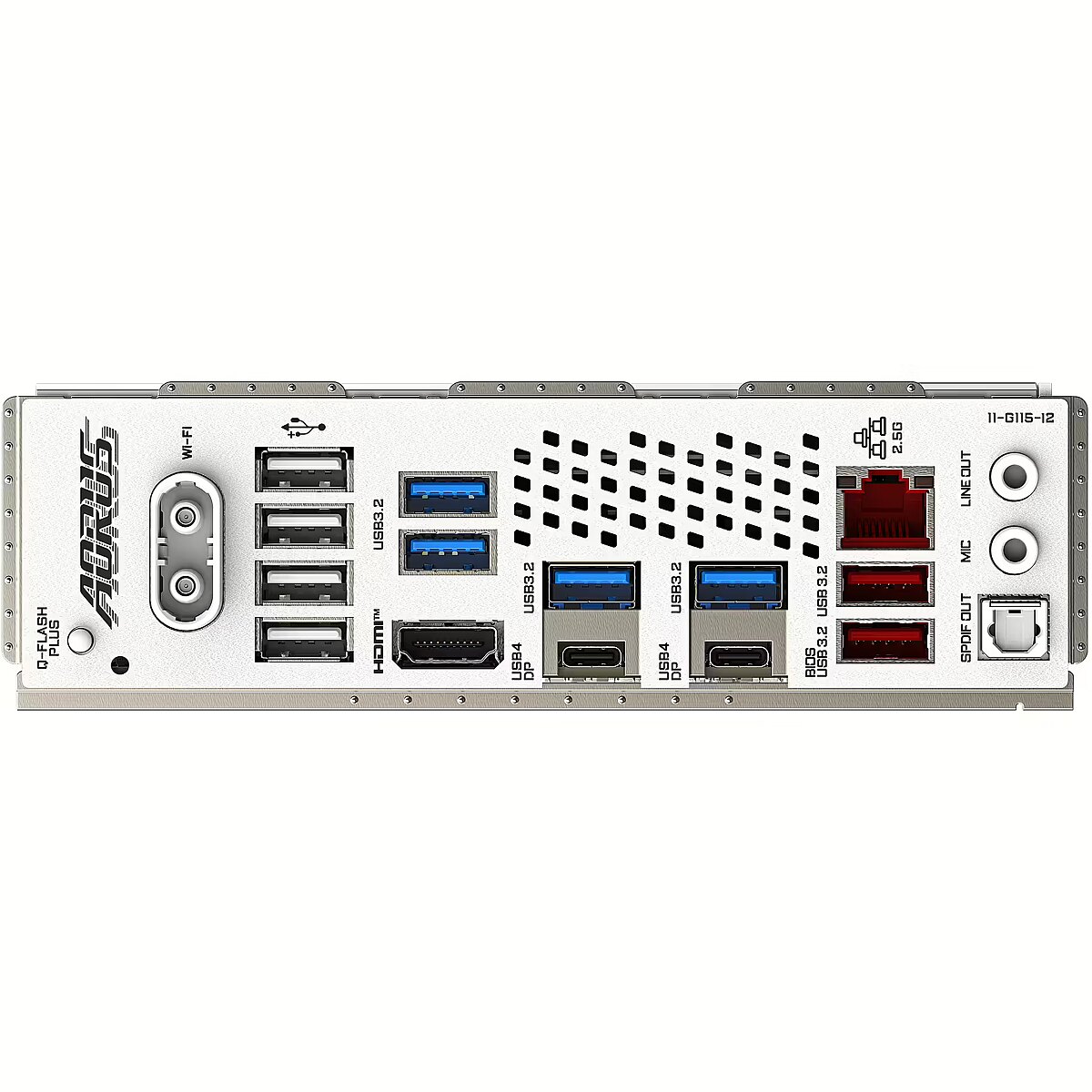

External ports
External USB 2.0 : 4
External USB Type-C (USB 3.2 Gen2) : 0
External USB Type-C (USB 4.0) : 2
External USB 3.0 (USB 3.2 Gen1) : 4
External USB 3.1 (USB 3.2 Gen2) : 2
Internal ports
Internal A-RGB 5V (3-pin) : 3
Internal RGB 12V (4-pin) : 1
Internal USB 2.0 : 2
Internal USB 3.0 : 1
Internal USB Type-C : 1
M.2 ports : 4
SATA3 ports : 4
In collaboration with Gigabyte a Steam code is given as a gift
Power supply units (PSU)
More detailed specification
Additional information in manufacturers website Gigabyte X870 AORUS ELITE WIFI7 ICE
Accessories included -
Audio port Input/Output connectors - 2
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Bluetooth Interface - Yes
Brand - GIGABYTE
BrandPartCode - X870 A ELITE WF7 ICE
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category 2 - Mainboards - Intel
Category Code - MBA
Chipset - AMD X870E
Chipset manufacturer - AMD
Chipset type - AMD X870
code - X870 A ELITE WF7 ICE
Code - X870 A ELITE WF7 ICE
COM connector / port - No
CPU socket - Socket AM5
Description - AMD Socket AM5Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors Digital twin 16+2+2 phases VRM solution Dual Channel DDR54*DIMMs with AMD EXPO Memory Module Support WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation EZ-Latch PlusPCIe and M.2 slots with Quick Release & Screwless Design EZ-Latch ClickM.2 heatsinks with screwless design Sensor Panel LinkOnboard video port for hassle-free in-chassis panel setup Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW Ultra-Fast Storage4*M.2 slots, including 3* PCIe 5.0 x4 Efficient ThermalVRM Thermal Armor Advanced & M.2 Thermal Guard L Fast Networking2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna Extended ConnectivityDual USB4 Type-C with DP-Alt, HDMI Reliable AudioRealtek ALC1220 HD Audio & Audiophile Grade Capacitors Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability PCIe UD Slot X PCIe 5.0 x16 slot with 10X strength for graphics card
Description - X870 AORUS ELITE WIFI7 ICE Key Features - AMD Socket AM5:Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors - Digital twin 16+2+2 phases VRM solution - Dual Channel DDR5:4*DIMMs with AMD EXPO™ Memory Module Support - WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation - EZ-Latch Plus:PCIe and M.2 slots with Quick Release & Screwless Design - EZ-Latch Click:M.2 heatsinks with screwless design - Sensor Panel Link:Onboard video port for hassle-free in-chassis panel setup - Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW - Ultra-Fast Storage:4*M.2 slots, including 3* PCIe 5.0 x4 - Efficient Thermal:VRM Thermal Armor Advanced & M.2 Thermal Guard L - Fast Networking:2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna - Extended Connectivity:Dual USB4 Type-C with DP-Alt, HDMI - Reliable Audio:Realtek ALC1220 HD Audio & Audiophile Grade Capacitors - Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability - PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card
Detailed data on disk/drive interfaces - Gniazda rozszerzeń
1 gniazdo PCI Express x16 (PCIEX16), zintegrowane z procesorem:
Procesory AMD Ryzen serii 9000/7000 obsługują tryb PCIe 5.0 x16
* Złącza M2B_CPU i M2C_CPU współdzielą przepustowość z gniazdem PCIEX16.
Gdy złącze M2B_CPU lub M2C_CPU jest zajęte, gniazdo PCIEX16 działa w trybie do x8.
Procesory AMD Ryzen 8000 Series-Phoenix 1 obsługują tryb PCIe 4.0 x8
Procesory AMD Ryzen 8000 Series-Phoenix 2 obsługują tryb PCIe 4.0 x4
(Gniazdo PCIEX16 obsługuje tylko kartę graficzną lub dysk SSD NVMe. Jeśli ma być zainstalowana tylko jedna karta graficzna, należy ją zainstalować w gnieździe PCIEX16.)
Chipset:
- 1 gniazdo PCI Express x16, obsługujące PCIe 4.0 i działające w trybie x4 (PCIEX4)
* Gniazdo PCIEX4 współdzieli pasmo ze złączem M2D_SB. Gniazdo PCIEX4 staje się niedostępne, gdy urządzenie zostanie zainstalowane w złączu M2D_SB.
- 1 x gniazdo PCI Express x16, obsługujące PCIe 3.0 i działające z szybkością x2 (PCIEX2)
Interfejs pamięci masowej
1 x złącze M.2 (M2A_CPU), zintegrowane z procesorem, obsługujące gniazdo 3, klucz M, typ 25110/22110/2580/2280 SSD:
Procesory AMD Ryzen serii 9000/7000 obsługują dyski SSD PCIe 5.0 x4/x2
Procesory AMD Ryzen serii 8000-Phoenix 1 obsługują dyski SSD PCIe 4.0 x4/x2
Procesory AMD Ryzen serii 8000-Phoenix 2 obsługują dyski SSD PCIe 4.0 x4/x2
2 x złącza M.2 (M2B_CPU, M2C_CPU), zintegrowane z procesorem, obsługujące gniazdo 3, klucz M, typ 22110/2280 Dyski SSD:
Procesory AMD Ryzen serii 9000/7000 obsługują dyski SSD PCIe 5.0 x4/x2
* Złącza M2B_CPU i M2C_CPU stają się niedostępne, gdy używany jest procesor AMD Ryzen serii 8000-Phoenix 1/Phoenix 2.
1 złącze M.2 (M2D_SB), zintegrowane z chipsetem, obsługujące gniazdo 3, klucz M, typ 22110/2280 PCIe 4.0 x4/x2 SSD
4 złącza SATA 6 Gb/s Obsługa RAID 0, RAID 1, RAID 5 i RAID 10 dla urządzeń pamięci masowej NVMe SSD
* RAID 5 jest dostępny tylko w procesorach AMD Ryzen serii 9000.
Obsługa RAID 0, RAID 1 i RAID 10 dla urządzeń pamięci masowej SATA
dimensionalWeight - 1589
dimension depth - 85 mm
dimension height - 335 mm
Dimensions - 30.5 cm x 24.4 cm
dimension weight - 2285 g
dimension width - 280 mm
EAN - 4719330000000
EAN - 4719331864682
ean - 4719331864682
Eans - 4719331864682
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 3.0 x 16
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 1 x PCIe x 16
Expansion slots - Number of M.2 (M) slots - 4
Expansion slots - PCI Express x4 slots - 2
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
External connectors - 1 x HDMI
External connectors - 1 x Q-Flash Plus button
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 2 x SMA
External connectors - 2 x USB 3.1
External connectors - 2 x USB4 Type-C
External connectors - 4 x USB 2.0
External connectors - 4 x USB 3.0
Features - Audio chip - Realtek ALC1220
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD X870
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - PC health monitoring - Fan
Features - PC health monitoring - Fan, Temperature, Voltage
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Features - Product colour - White
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000 MHz
Full Description Line - AMD X870E|SAM5|ATX|DDR5|8000/7800/7600/7200/7000/6800/6666/6600/6400/6200/6000/5600/5200/4800/4400 MHz|Memory slots 4|1xPCI-Express 3.0 2x|1xPCI-Express 4.0 4x |1xPCI-Express 5.0 16x|4xM.2|1xHDMI|4xUSB 2.0|6xUSB 3.2|2xUSB-C|1xOptical S/PDIF|1xRJ45|2xAudio port|SATA|USB-C|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|Audio Realtek ALC1220|LAN 2.5 Gigabit|RAID SATA 0, 1, 10; NVMe 0, 1, 5, 10|TPM Header
Graphics - Zintegrowany procesor graficzny ze wsparciem AMD Radeon Graphics + kontroler ASMedia USB4:
- 2 x porty USB4 USB Type-C, obsługujące wyjścia wideo USB4 i DisplayPort oraz maksymalną rozdzielczość 3840x2160@240 Hz
* Obsługa wersji DisplayPort 1.4 i HDR.
Zintegrowany procesor graficzny ze wsparciem AMD Radeon Graphics:
- 1 x port HDMI, obsługujący maksymalną rozdzielczość 4096x2160@60 Hz
* Obsługa wersji HDMI 2.1, HDCP 2.3 i HDR.
** Obsługa natywnych portów zgodnych z HDMI 2.1 TMDS.
- 1 x przedni port HDMI, obsługujący maksymalną rozdzielczość 1920x1080@30 Hz
* Obsługa wersji HDMI 1.4
(Specyfikacja grafiki może się różnić w zależności od obsługi procesora.) Obsługa do czterech wyświetlaczy jednocześnie.
Graphics - DirectX version - 12.0
Graphics - On-board graphics card - No
Gross Weight Kg - 2,4
GTIN - 0889523045176
GTIN - 889523045176
GTIN - 4719331864682
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC1220
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Total number of SATA connectors - 4
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2x2 connectors - 1
Internal I/O > Number of SATA connectors - 4
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
LongProductName - X870 AORUS ELITE WIFI7 ICE Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8000MHz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4
LongSummaryDescription - GIGABYTE X870 AORUS ELITE WIFI7 ICE Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8000MHz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen™ 7. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
LPT connector / port - No
M.2 Expansion slots - 4
Manufacturer - Gigabyte
Manufacturer Code - X870 A ELITE WF7 ICE
Manufacturer Name - Gigabyte
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 256 GB
Memory - Maximum internal memory - 256 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8000 MHz
Memory - Supported memory clock speeds - 4400
Memory - Supported memory clock speeds - 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000 MHz
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 5200
Memory - Supported memory clock speeds - 5600
Memory - Supported memory clock speeds - 6000
Memory - Supported memory clock speeds - 6200
Memory - Supported memory clock speeds - 6400
Memory - Supported memory clock speeds - 6600
Memory - Supported memory clock speeds - 6666
Memory - Supported memory clock speeds - 6800
Memory - Supported memory clock speeds - 7000
Memory - Supported memory clock speeds - 7200
Memory - Supported memory clock speeds - 7600
Memory - Supported memory clock speeds - 7800
Memory - Supported memory clock speeds - 8000 MHz
Memory - Supported memory module capacities - 1GB
Memory - Supported memory module capacities - 1GB, 2GB, 4GB, 8GB, 16GB, 24GB, 32GB
Memory - Supported memory module capacities - 2GB
Memory - Supported memory module capacities - 4GB
Memory - Supported memory module capacities - 8GB
Memory - Supported memory module capacities - 16GB
Memory - Supported memory module capacities - 24GB
Memory - Supported memory module capacities - 32GB
Memory - Supported memory types - DDR5-SDRAM
Memory > Supported memory types - DDR5 DIMM
Memory bus frequency - 4400 MHz
Memory bus frequency - 4800 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6666 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory bus frequency - 7600 MHz
Memory bus frequency - 7800 MHz
Memory bus frequency - 8000 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - X870 A ELITE WF7 ICE
Model - X870 AORUS ELITE WIFI7 ICE
MPN - X870 A ELITE WF7 ICE
MPN - X870 AORUS ELITE WF7 ICE
Name - AM5 Gigabyte X870 A ELITE WF7 ICE
Name - AM5 Gigabyte X870 AORUS ELITE WIFI7 ICE ATX
Name - Gigabyte Processor family AMD Ryzen | Processor socket AM5 | DDR5 DIMM | Number of SATA connectors 4
Name - Gigabyte X870 A ELITE WIFI7 ICE
name - Gigabyte X870 AORUS Elite WF7 ICE, AMD X870 Mainboard - Sockel AM5, DDR5
name - Motherboard X870 A ELITE WF7 ICE AM 5 4DDR5 HDMI/USB-C ATX
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
Network - WLAN controller model - MediaTek MT7925
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - LAN
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Support for 11be 160MHz wireless standard Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Support for 11be 160MHz wireless standard
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 3
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x HDMI
Onboard connectors - 1 x Noise detection header
Onboard connectors - 1 x Power button
Onboard connectors - 1 x Reset button
Onboard connectors - 1 x Reset jumper
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x 4pin case fan liquid cooling
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x temperature sensor
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 3 x Addressable LED
Onboard connectors - 4 x 4pin Chassis fan
Onboard connectors - 4 x M.2
Onboard connectors - 4 x SATA III 6Gb/s
Optical S/PDIF Input/Output connectors - 1
Other features - Weight - 2.4 kg
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 225.00 mm
Package features > Gross height (mm) - 65.00 mm
Package features > Gross width (mm) - 180.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 328 pc(s)
Package features > Paper/Pasteboard - 180.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEEE tax - No
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton® Internet Security (OEM version)
LAN bandwidth management software
Packaging data - Package depth - 270 mm
Packaging data - Package height - 80 mm
Packaging data - Package weight - 2.74 kg
Packaging data - Package width - 335 mm
PCI-Express 3.0 2x Expansion slots - 1
PCI-Express 4.0 4x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - AMD Ryzen™ 7
Processor - Maximum internal memory supported by processor - 256 GB
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Processor > Processor family - AMD Ryzen
Processor > Processor socket - AM5
Processor family - AMD Ryzen 3
Processor family - AMD Ryzen 5
Processor family - AMD Ryzen 7
Processor family - AMD Ryzen 9
producer - Gigabyte
Producer - Gigabyte
ProducerCode - 870 A ELITE WIFI7 ICE
producerCode - X870 AORUS ELITE WF7 ICE
productName - GIGABYTE X870 AORUS ELITE WIFI7 ICE Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8000MHz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4
ProductName - X870 AORUS ELITE WIFI7 ICE Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8000MHz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4
productSize - Normal
RAID - SATA 0, 1, 10; NVMe 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 2
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 3
Rear panel I/O ports - USB4 Gen 2x2 ports quantity - 2
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 44.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 37.5 cm
Shipping box quantity - 5
Shipping Box Weight Shipping/Package Box Dimensions - 12.93 kg
Shipping Box Width Shipping/Package Box Dimensions - 30.5 cm
Short description - GIGA X870 AORUS ELITE WF7 ICE AM5/DDR5/ATX
ShortDescription - Socket AM5 | Chipset AMD X870 | DDR5
ShortSummaryDescription - GIGABYTE X870 AORUS ELITE WIFI7 ICE Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8000MHz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4, AMD, Socket AM5, AMD Ryzen™ 7, Socket AM5, 256 GB, DDR5-SDRAM
sizeX - 340
sizeY - 275
sizeZ - 85
Socket - SAM5
Software - Norton Internet Security (OEM version) LAN bandwidth management software
Sound card - KODEKS Realtek ALC1220
* Gniazdo wyjścia liniowego na tylnym panelu obsługuje dźwięk DSD.
Dźwięk wysokiej rozdzielczości
2/4/5.1/7.1-kanałowy
* Funkcjonalność gniazda audio można zmienić za pomocą oprogramowania audio. Aby skonfigurować dźwięk 7.1-kanałowy, należy uzyskać dostęp do oprogramowania audio w celu uzyskania ustawień audio.
Obsługa wyjścia S/PDIF
Special functions - Wsparcie dla GIGABYTE Control Center (GCC) * Dostępne aplikacje w GCC mogą się różnić w zależności od modelu płyty głównej. Obsługiwane funkcje każdej aplikacji mogą się również różnić w zależności od specyfikacji płyty głównej. Wsparcie dla Q-Flash Wsparcie dla Q-Flash Plus Wsparcie Smart Backup
Storage controllers - Number of HDDs supported - 8
Storage controllers - Number of storage drives supported - 4
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 11
Technical details - Warranty period - 3 year(s)
Technical details > Gross weight - 0.64 kg
Technical details > Net weight - 0.44 kg
Technical details > Producer - Gigabyte
Title - GIGABYTE X870 AORUS ELITE WIFI7 ICE Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8000MHz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4
TPM - Header
Unit Box Height - 0.08
Unit Box Length - 0.335
Unit Box Width - 0.27
Unit Brutto Volume - 0.01018 cubm
Unit Gross Weight - 2.59 kg
Unit Net Weight - 2.2 kg
URL - https://www.gigabyte.com/
USB-C Input/Output connectors - 2
USB-C Interface - Yes
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 6
USB 3.2 Interface - Yes
USB ports at back panel - 12
USB ports on motherboard - 7
Vendor Homepage - www.gigabyte.com/Motherboard/X870-AORUS-ELITE-WIFI7-ICE#kf
vendpn - X870 A ELITE WF7 ICE
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 years
warrantyLength - 36
warrantyType - G
Weight - 2.3
weight - 2280
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 305 mm
WiFi Interface - Yes
336.30 €
Gigabyte X870 AORUS ELITE WIFI7 ICE
  • Gigabyte 30€ Steam Gift
Intel technology provider Platinum 2020
All categories
