Asrock B650 Steel Legend WiFi

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1081185 Product code: B650 STEEL LEGEND WIFI
Can be ordered 132 units Availability: 14 days after order approval
Warranty: 3 years
201.89 €
Delivery options
  • Delivery to Smartpost 6.99 €: 14.05.2025
  • Courier delivery 11.99 €: 14.05.2025
Main product parameters All parameters
  • Series: ASRock Steel Legend
  • Plate size: ATX
  • Chipset: AMD B650
  • Socket: AM5
  • Type: DDR5
  • RAM Slots: 4
  • Built-in Wi-Fi: Ir
  • M.2 ports: 3
Basic information
Series : ASRock Steel Legend
Plate size ATX

The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD B650

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Socket AM5
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Random-access memory (RAM)
Type : DDR5
RAM Slots 4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support DDR5 4800MHz (7200MHz OC)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card
VGA Port PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics Only with iGPU-ready APU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment
D-Sub : 0
DisplayPort : 1
DVI : 0
HDMI : 1
Integrated sound card : Realtek ALC4082
PCI Ports 0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
Wireless connections
Built-in Bluetooth : Ir
Built-in Wi-Fi : Ir

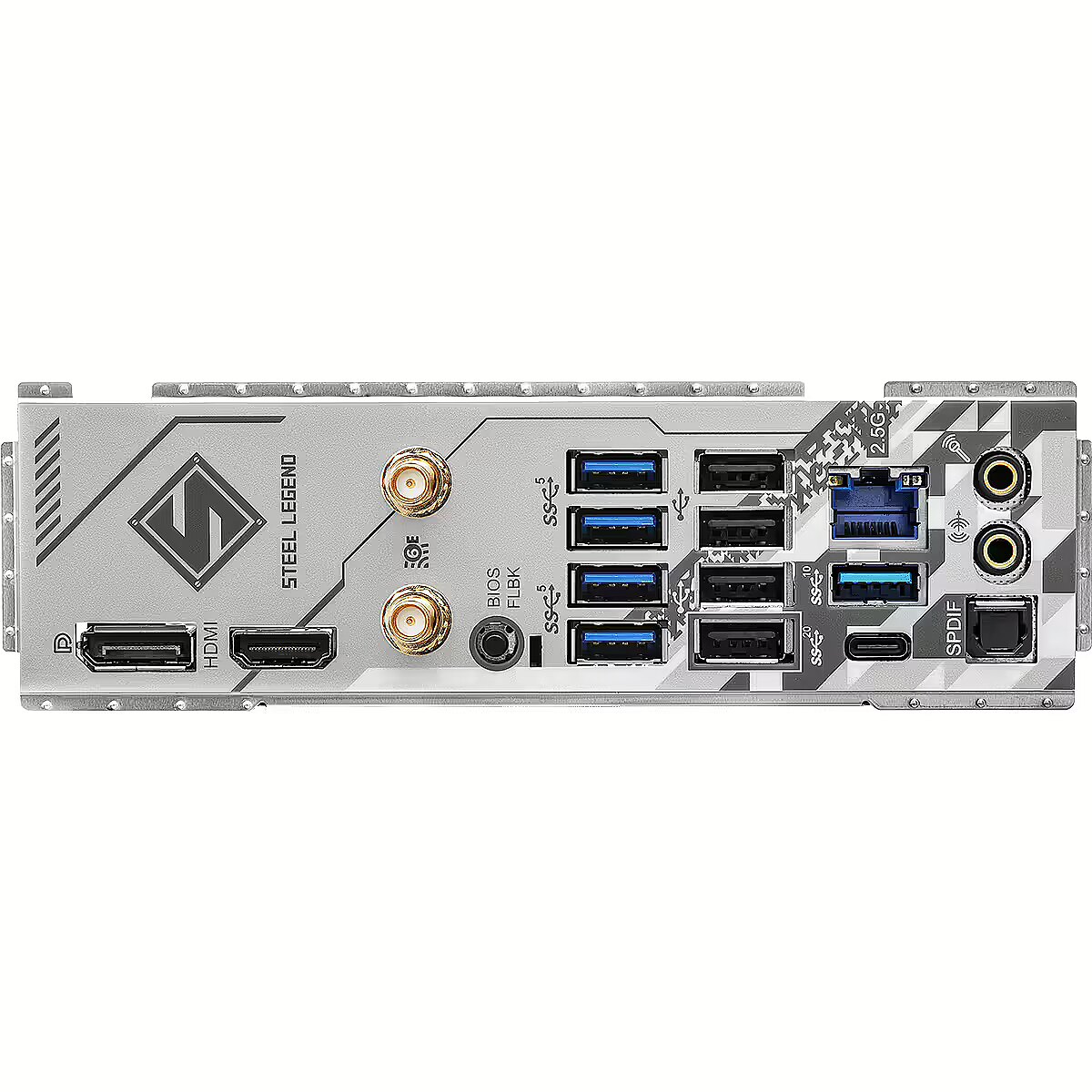

External ports
External USB 2.0 : 4
External USB Type-C (USB 3.2 Gen2) : 1
External USB Type-C (USB 4.0) : 0
External USB 3.0 (USB 3.2 Gen1) : 4
External USB 3.1 (USB 3.2 Gen2) : 1
Internal ports
Internal A-RGB 5V (3-pin) : 3
Internal RGB 12V (4-pin) : 1
Internal USB 2.0 : 2
Internal USB 3.0 : 2
Internal USB Type-C : 1
M.2 ports : 3
SATA3 ports : 4
Power supply units (PSU)
More detailed specification
Audio port Input/Output connectors - 2
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM5
Chipset - AMD B650
code - 90-MXBN90-A0UAYZ
Description - B650 Steel Legend WiFi - Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors - 14+2+1 Power Phase, 80A Dr.MOS for Vcore - 4 x DDR5 DIMMs - Supports Dual Channel, up to 7200+ (OC) - 1 PCIe 5.0 x16, 1 PCIe 3.0 x16, 1 PCIe 4.0 x1 - Graphics Output Options: 1 HDMI, 1 DisplayPort - Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio - 4 SATA3, 1 Blazing M.2 (PCIe Gen5x4), 2 Hyper M.2 (PCIe Gen4x4) - 1 USB 3.2 Gen2x2 Type-C (Rear) - 1 USB 3.2 Gen1 Type-C (Front) - 1 USB 3.2 Gen2 Type-A (Rear) - 8 USB 3.2 Gen1 Type-A (4 Rear, 4 Front) - 8 USB 2.0 (4 Rear, 4 Front) - Dragon 2.5G LAN - 802.11axe WiFi 6E + Bluetooth - Supports ASRock Auto Driver Installer, BIOS Flashback
DisplayPort Input/Output connectors - 1
ean - 4710483944598
EAN - 4710483944598
EAN_code - 4710483944598
Form Factor - ATX
Frequency speed - 7200 MHz
Full Description Line - AMD B650|SAM5|ATX|DDR5|7200 MHz|Memory slots 4|1xPCI-Express 3.0 16x|1xPCI-Express 4.0 1x|1xPCI-Express 5.0 16x|1xM.2|1xHDMI|1xDisplayPort|8xUSB 2.0|3xUSB 3.2|2xUSB-C|1xRJ45|2xAudio port|Audio Realtek ALC4082|LAN 2.5 Gigabit|RAID SATA 0, 1; NVMe 0, 1, 10|TPM Header
HDMI Input/Output connectors - 1
Included Accessories - - 1 x User Manual
- 2 x SATA Data Cables
- 2 x ASRock WiFi 2.4/5/6 GHz Antennas
- 3 x Screws for M.2 Sockets
- 1 x Standoff for M.2 Socket
Integrated audio - Realtek ALC4082
Integrated LAN - 2.5 Gigabit
M.2 Expansion slots - 1
Manufacturer - Asrock
Manufacturer - ASRock
Manufacturer_code - 90-MXBN90-A0UAYZ
Memory slots - 4
Memory type - DDR5
Model - B650 STEEL LEGEND WIFI
MPN - 90-MXBN90-A0UAYZ
Name - ASROCK B650 Steel Legend WIFI (AM5) (D)
name - ASRock B650 Steel Legend WiFi, AMD B650 Mainboard - Sockel AM5, DDR5
Name - ASRock B650 STEEL LEGEND WIFI - Socket AM5 - motherboard
PCI-Express 3.0 16x Expansion slots - 1
PCI-Express 4.0 1x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
RAID - SATA 0, 1; NVMe 0, 1, 10
RJ45 Input/Output connectors - 1
Shipping Box Depth Shipping/Package Box Dimensions - 38 cm
Shipping Box Height Shipping/Package Box Dimensions - 32 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 2.3 kg
Shipping Box Width Shipping/Package Box Dimensions - 9.5 cm
Socket - SAM5
Technical_details - The ASRock B650 STEEL LEGEND WIFI is based on the AMD B650 chipset and supports AMD processors for socket AM5. It has four DDR5 slots for up to 192 GB of memory. The ASRock B650 STEEL LEGEND WIFI's additional features include a PCIe 5.0 x16 slot, a PCIe 3.0 x16 slot (x4 lanes) and a PCIe 4.0 x1 slot. The ASRock B650 STEEL LEGEND WIFI also has 8-channel sound, a 2.5 Gigabit LAN interface, two SATA3 ports, three M.2 ports and a number of USB interfaces. Item no.: 100049032 Mainboard type EAN 4710483944598 Manufacturer no. 90-MXBN90-A0UAYZ Socket AM5 Max. supported CPUs 1 Operating system support Windows 10 ready, Windows 11 ready Processor Supported Models Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 8xxxG (Phoenix), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael ), Ryzen 7 8xxxG (Phoenix), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael) Chipset AMD B650 Slots PCIe x16 2x (of which: 1x PCIe x16, 1x PCIe x4) Wi-Fi 6E module BIOS 256Mb AMI UEFI Legal BIOS Form factor ATX Use PC Power supply ATX12V (24-pin + 2x 8-pin) Memory maximum 192 GB Ports (external) USB-C 3.2 Gen 2x2 (20 Gbit/s) 1 Connectors (internal) SATA 4 Ports (optional) USB 3.2 Gen 1 (5 Gbit/s) 2 RGB standard RGB LED SATA controller AMD B650 Directly usable RAID levels 0, 1, 10 USB controller AMD B650 Onboard graphics The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip. Sound Realtek ALC897 LAN Dragon RTL8125BG 2.5GbE LAN Features CrossFireX Further information In order to support the latest processor cores, a BIOS update may be required. Dimensions Width: 244mm x Height: 305mm
TPM - Header
Unit Box Height - 0.32
Unit Box Length - 0.38
Unit Box Width - 0.095
Unit Brutto Volume - 0.01155 cubm
Unit Gross Weight - 2.3 kg
Unit Net Weight - 2 kg
USB-C Input/Output connectors - 2
USB 2.0 Input/Output connectors - 8
USB 3.2 Input/Output connectors - 3
Vendor Homepage - www.asrock.com/MB/AMD/B650%20Steel%20Legend%20WiFi/index.asp
Warranty - 36 months
Weight - 2,26
