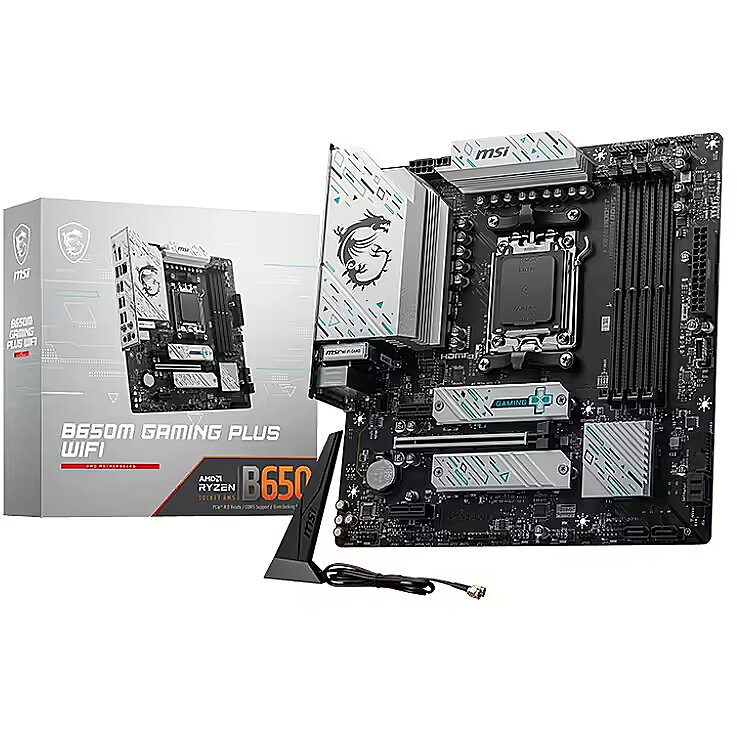

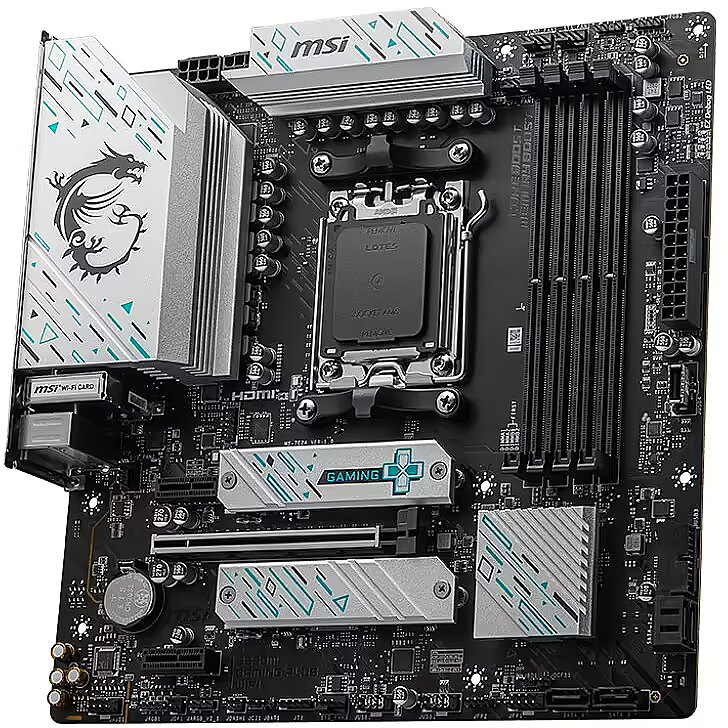

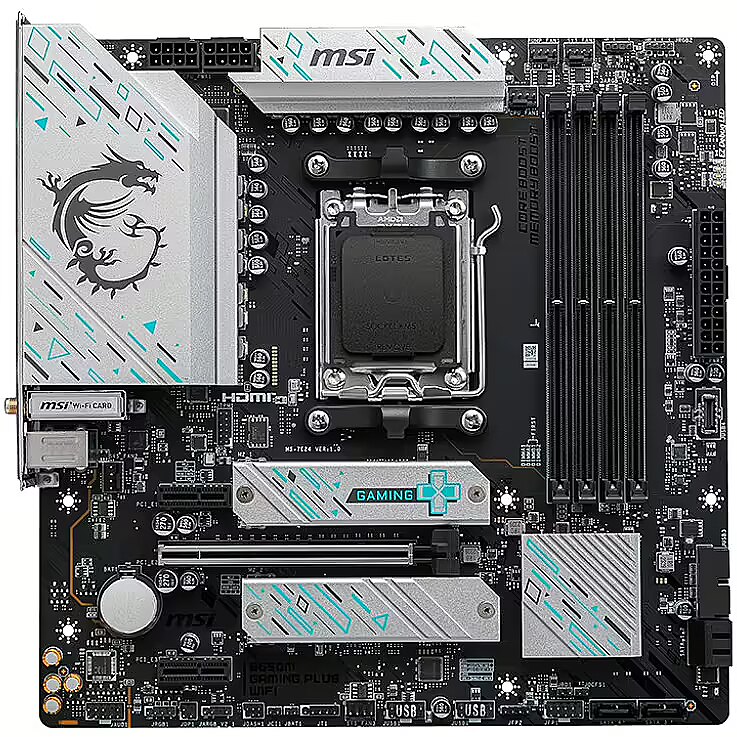

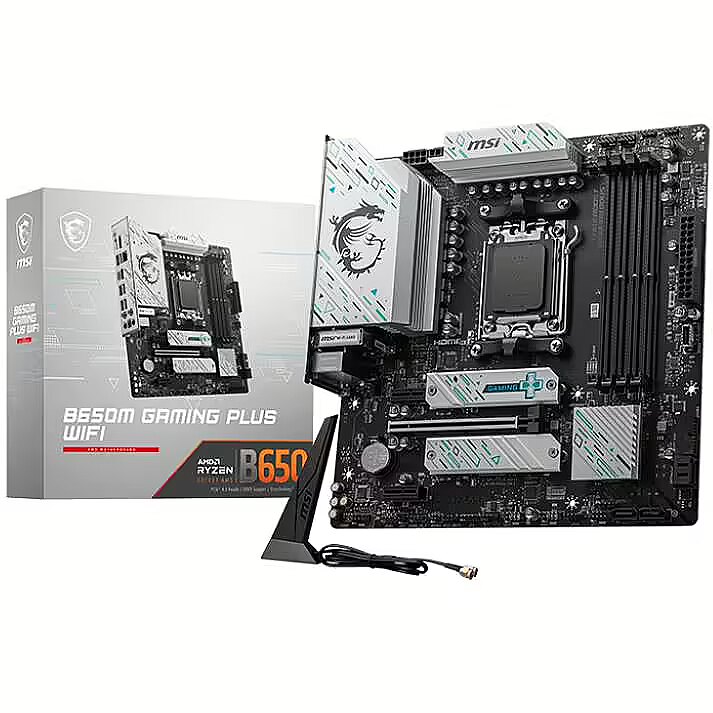

MSI B650M GAMING PLUS WIFI

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1072779 Product code: B650M GAMING PLUS WIFI
In stock 7 units
Warranty: 3 years
159.81 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: 19.11.2024
Main product parameters All parameters
  • Series: MSI Gaming
  • Plate size: mATX
  • Chipset: AMD B650
  • Socket: AM5
  • Type: DDR5
  • RAM Slots: 4
  • Built-in Wi-Fi: Ir
  • M.2 ports: 2
Basic information
Series : MSI Gaming
Plate size mATX

The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD B650

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Socket AM5
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Random-access memory (RAM)
Type : DDR5
RAM Slots 4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support DDR5 4800MHz (7200MHz OC)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card
VGA Port PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics Only with iGPU-ready APU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment
D-Sub : 0
DisplayPort : 1
DVI : 0
HDMI : 1
Integrated sound card : Realtek ALC897
PCI Ports 0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
Wireless connections
Built-in Bluetooth : Ir
Built-in Wi-Fi : Ir
External ports
External USB 2.0 : Nav
External USB Type-C (USB 3.2 Gen2) : 1
External USB Type-C (USB 4.0) : 0
External USB 3.0 (USB 3.2 Gen1) : 4
External USB 3.1 (USB 3.2 Gen2) : 3
Internal ports
Internal A-RGB 5V (3-pin) : 2
Internal RGB 12V (4-pin) : 2
Internal USB 2.0 : 2
Internal USB 3.0 : 1
Internal USB Type-C : 1
M.2 ports : 2
SATA3 ports : 4
More detailed specification
Additional information in manufacturers website MSI B650M GAMING PLUS WIFI
Accessories included -
BIOS -
BIOS - ACPI version - 6.4
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - System Management BIOS (SMBIOS) version - 3.5
Brand - MSI
BrandPartCode - B650M GAMING PLUS WIFI
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category - Root/Electronics/PC parts/Motherboards
Chipset manufacturer - AMD
Chipset type - AMD B650
code - 7E24-001R
Code - B650M GAMING PLUS WIFI
COM connector / port - No
CPU socket - Socket AM5
Description - B650M FOR GAMING WITH WI-FI Supports AMD Ryzen 8000/7000 series desktop processors Supports DDR5 memory, up to 7200+(OC) MHz Enhanced power design: 10+2+1 Duet Rail power system, dual 8-pin CPU power connectors, core boost, memory boost Instant gaming experience: PCIe 4.0 slot, Lightning Gen4 M.2, USB 3.2 Gen 2 Premium thermal solution: extended heatsink design and M.2 Shield Frozr are built for high system performance and uninterrupted operation AUDIO ENHANCEMENT: Reward your ears with studio-quality audio for the most immersive gaming experience High-quality PCB: 6-layer PCB made from 2 ounce thick thick thickened copper
Detailed data on disk/drive interfaces - 1x PCI-E x16 slot Supports x16 (For Ryzen 7000 Series processors) Supports x8 (For Ryzen 7 8700G and Ryzen 5 8600G processors) Supports x4 (For Ryzen 5 8500G processor) 2x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) Storage      2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_2 supports PCIe 4.0 x2 speed when Ryzen 5 8500G is installed RAID      Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 for M.2 NVMe storage devices
dimensionalWeight - 1058
dimension depth - 75 mm
dimension height - 275 mm
Dimensions - 243.84 x 243.84 mm
dimension weight - 1592 g
dimension width - 285 mm
EAN - 4711377180955
ean - 4711377180955
Eans - 4711377180955
Expansion slots - 1 x PCIe x 16
Expansion slots - 2 x M.2
Expansion slots - 2 x PCIe x 1
Expansion slots - Number of M.2 (M) slots - 2
External connectors - 1 x DisplayPort
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line Out (front)
External connectors - 1 x MIC (front)
External connectors - 1 x Rear Speaker
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.1 Type-C
External connectors - 3 x USB 3.1
External connectors - 4 x USB 3.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD B650
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - micro ATX
Features - Product colour - Black
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form factor - micro ATX
Graphics - 1x HDMI HDMI 2.1 support, maximum resolution 4K 60 Hz* 1x DisplayPort DP 1.4 support, maximum resolution 4K 60 Hz* *Only available on processors with integrated graphics. Graphics specifications may vary depending on the installed processor.
Graphics - Parallel processing technology support - Not supported
GTIN - 4711377180955
guarantee - 36
guarantee_type - normal
Integrated CPU - No
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 4
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 4
Link - https://www.msi.com/Motherboard/B650M-GAMING-PLUS-WIFI
LongDesc - MSI B650M Gaming Plus wifi TitleB650M GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want it all.LIGHTNING GEN 4 PCI-EMSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.REINFORCED,HEAVY SOLDERED CONNECTIONSMSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
LongProductName - AMD B650, 4x DDR5 7200MHz, 1x HDM, 1x DisplayPort, 2x M.2, Wi-Fi 6E, 2.5Gbps, Bluetooth 5.3, mATX
LongSummaryDescription - MSI B650M GAMING PLUS WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Supported processor sockets: Socket AM5. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory channels: Dual-channel. Supported storage drive interfaces: M.2, PCI Express, Supported storage drive types: HDD & SSD, RAID levels: 0, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
LPT connector / port - No
Max. number of SATA devices - 4
Max memory size - 192 GB
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 7200 MHz
Memory - Supported memory clock speeds - 4800 MHz
Memory - Supported memory clock speeds - 5000
Memory - Supported memory clock speeds - 5200
Memory - Supported memory clock speeds - 5400
Memory - Supported memory clock speeds - 5600
Memory - Supported memory clock speeds - 5800
Memory - Supported memory clock speeds - 6000 MHz
Memory - Supported memory clock speeds - 6200
Memory - Supported memory clock speeds - 6400
Memory - Supported memory clock speeds - 6600 MHz
Memory - Supported memory clock speeds - 6800
Memory - Supported memory clock speeds - 7000
Memory - Supported memory clock speeds - 7200
Memory - Supported memory clock speeds - 7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR5 UDIMM
Memory bus frequency - 4800 MHz
Memory bus frequency - 5000 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5400 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory type - DDR5
Model - B650M GAMING PLUS WIFI
name - B650M GAMING PLUS WIFI AM5 4DDR5 HDMI/DP mATX
Name - MSI B650M GAMING PLUS WIFI
name - MSI Pro B650M Gaming Plus WiFi, AMD B650 Mainboard - Sockel AM5, DDR5
Name - MSI | B650M GAMING PLUS WIFI | Processor family AMD | Processor socket B650 | DDR5 UDIMM | Number of SATA connectors 4
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - Realtek RTL8125BG 2.5Gbps LAN AMD Wi-Fi 6E The wireless module is pre-installed in the M.2 (Key-E) slot. Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz, 160MHz bandwidth on 2.4GHz/5GHz or 6GHz bands* Supports 802.11 a/b/g/n/ac/ax Supports Bluetooth 5.3** *Wi-Fi 6E 6GHz may depend on each country's regulations and will be ready in Windows 11. **Bluetooth 5.3 will be available on Windows 10 version 21H1 and Windows 11.
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 5
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x Addressable LED
Onboard connectors - 2 x System panel header
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 3 x 4pin Chassis fan
Onboard connectors - 4 x EZ Debug LED
Onboard connectors - 4 x USB 2.0/1.1
Other information -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 335.00 mm
Package features > Gross height (mm) - 275.00 mm
Package features > Gross width (mm) - 80.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 117 pc(s)
Package features > Paper/Pasteboard - 240.00 g
Package features > Plastic (No PET) - 60.00 g
Package features > Tare weight (kg) - 0.30 kg
Package features > TI weight (kg) - 0.05 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
Packaging content - Cables included - SATA
Processor - Maximum internal memory supported by processor - 192 GB
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Processor > Processor family - AMD
Processor > Processor socket - B650
Processor family - AMD Ryzen 3
Processor family - AMD Ryzen 5
Processor family - AMD Ryzen 7
producer - MSI
Producer - MSI
producerCode - 7E24-001R
ProducerCode - B650M GAMING PLUS WIFI
ProductName - B650M GAMING PLUS WIFI
productName - MSI B650M GAMING PLUS WIFI motherboard AMD B650 Socket AM5 micro ATX
productSize - Normal
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
ShortDescription - Socket AM5 | Chipset AMD B650 | DDR5
ShortSummaryDescription - MSI B650M GAMING PLUS WIFI, AMD, Socket AM5, Socket AM5, 192 GB, DDR5-SDRAM, 192 GB
sizeX - 270
sizeY - 70
sizeZ - 280
Software -
Sound card - Realtek ALC897 Codec 7.1-Channel High Definition Audio
Special functions -
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 5, 10
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, PCI Express
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Gross weight - 1.27 kg
Technical details > Net weight - 0.97 kg
Technical details > Producer - MSI
Technical details > Producer product name - B650M GAMING PLUS WIFI
Title - MSI B650M GAMING PLUS WIFI motherboard AMD B650 Socket AM5 micro ATX
URL - https://www.msi.com/Motherboard/B650M-GAMING-PLUS-WIFI
USB ports at back panel - 8
USB ports on motherboard - 7
vendpn - B650M GAMING PLUS WIFI
Warranty - 36
Warranty - 36 month(s)
WarrantyInfo -
warrantyLength - 36
warrantyType - G
weight - 1580
Weight & dimensions - Depth - 243.8 mm
Weight & dimensions - Width - 243.8 mm
159.81 €
MSI B650M GAMING PLUS WIFI
Intel technology provider Platinum 2020
All categories
