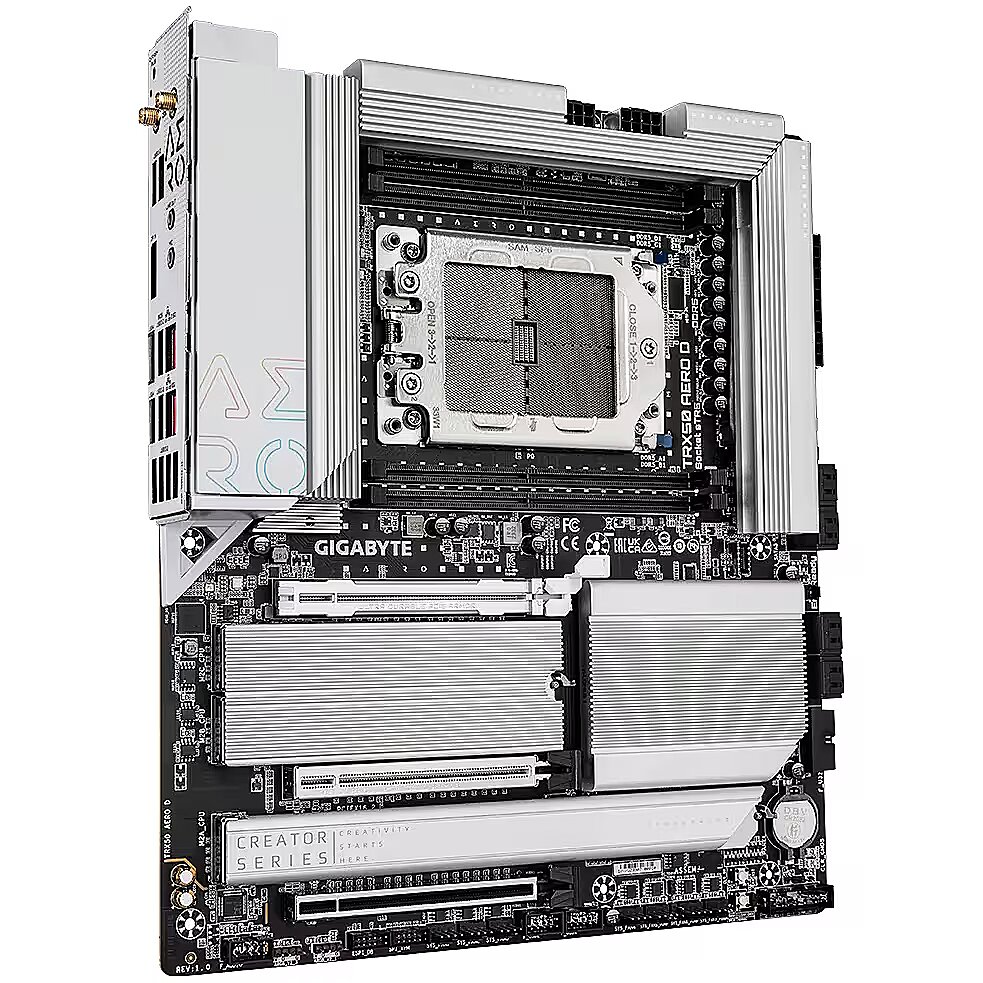

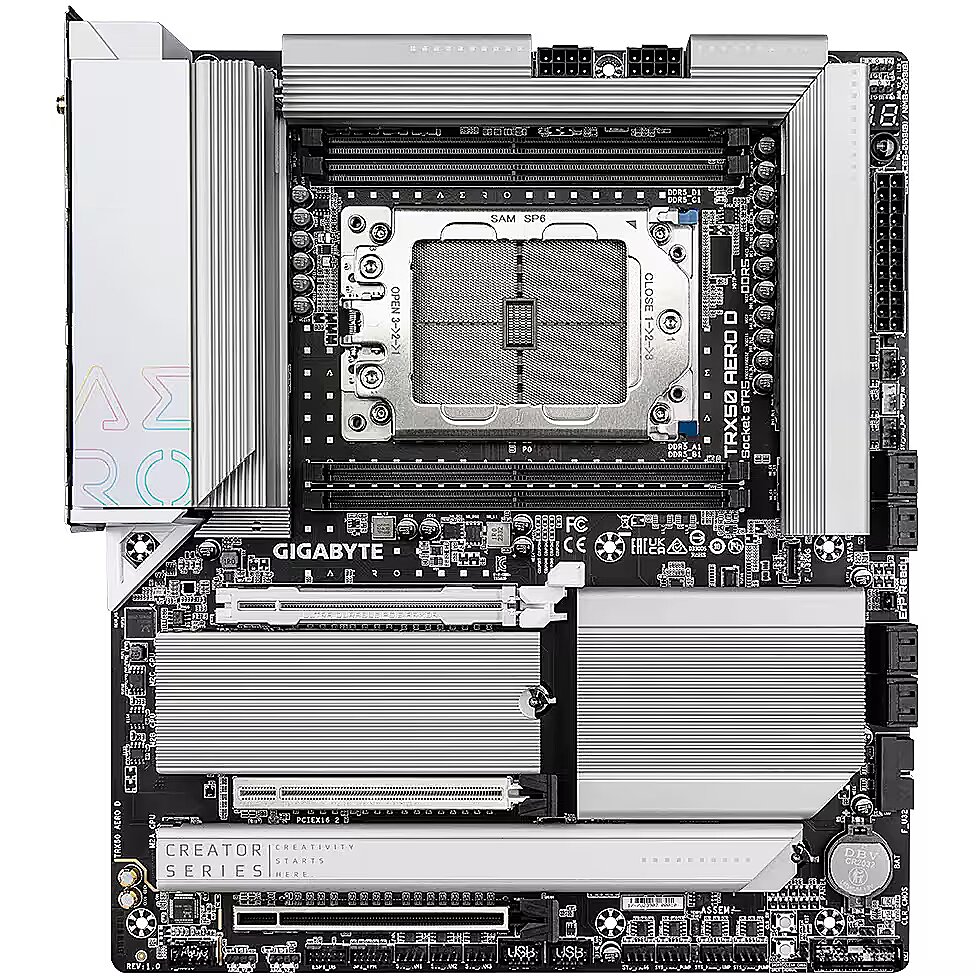

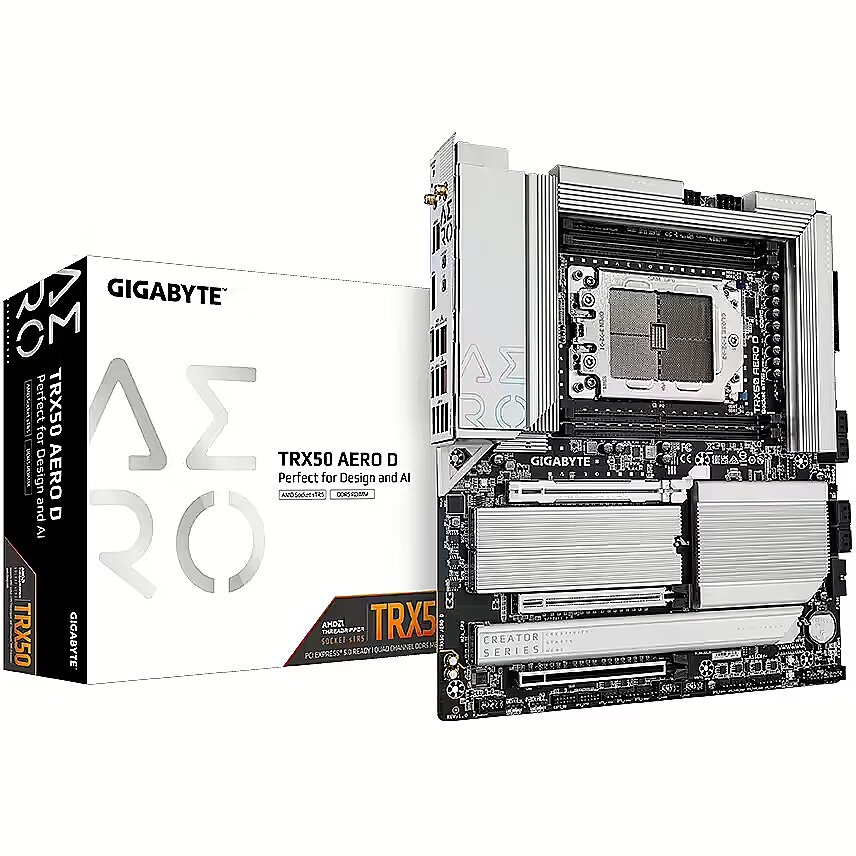

Gigabyte TRX50 Aero D

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1042217 Product code: TRX50 AERO D
Can be ordered 10 units Availability: 14 days after order approval
Warranty: 3 years
751.79 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: 10.12.2024
Main product parameters All parameters
  • Series: Gigabyte AERO
  • Plate size: E-ATX
  • Chipset: AMD TRX50
  • Socket: sTR5
  • Type: DDR5
  • RAM Slots: 4
  • Built-in Wi-Fi: Ir
  • M.2 ports: 4
Basic information
Series : Gigabyte AERO
Plate size E-ATX

The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD TRX50

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Socket sTR5
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Random-access memory (RAM)
Type : DDR5
RAM Slots 4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support DDR5 4800MHz (7800MHz OC)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card
VGA Port PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics Nav

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment
D-Sub : 0
DisplayPort : 0
DVI : 0
HDMI : 0
Integrated sound card : Realtek ALC4080
PCI Ports 0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
Wireless connections
Built-in Bluetooth : Ir
Built-in Wi-Fi : Ir
External ports
External USB 2.0 : Nav
External USB Type-C (USB 3.2 Gen2) : 2
External USB Type-C (USB 4.0) : 0
External USB 3.0 (USB 3.2 Gen1) : 4
External USB 3.1 (USB 3.2 Gen2) : 4
Internal ports
Internal A-RGB 5V (3-pin) : 3
Internal RGB 12V (4-pin) : 1
Internal USB 2.0 : 2
Internal USB 3.0 : 1
Internal USB Type-C : 1
M.2 ports : 4
SATA3 ports : Eight Core
More detailed specification
Additional information in manufacturers website Gigabyte TRX50 Aero D
Accessories included -
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - Flash memory 1 x 256 Mbit Using a licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Brand - GIGABYTE
BrandPartCode - TRX50 AERO D
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards
Category_1 - Motherboards
Category_2 - Motherboards - other
Chipset manufacturer - AMD
Chipset type - AMD TRX50
code - TRX50 AERO D
COM connector / port - No
CPU socket - Socket sTR5
Description - TRX50 Aero D motherboard   Supports AMD Ryzen Threadripper PRO 7000 series/Ryzen Threadripper 7000 series processors Breakthrough performance: 16+8+4 phase digital VRM solution Quad-channel DDR5 memory: 4xSMD R-DIMM with support for AMD EXPO and Intel XMP memory modules Enhanced overall thermal protection: VRM Advanced thermal armour and M.2 thermal shield Ultimate scalability: 3 x PCIe x16 slots for multiple GPUs and 4 x PCIe x4 M.2 slots Next-generation connectivity: two USB4 Type-C ports Incredibly fast networking: 10GbE + 2.5GbE, dual LAN and Wi-Fi 7 PCIe UD Slot X: 10x PCIe 5.0 x16 slot for graphics cards EZ-Latch Click: M.2 heat sinks with screwless design EZ-Latch Plus: M.2 slots with quick-release design Hi-Fi audio with DTS:X Ultra codec: ALC4080+ALC897 UC BIOS: Intuitive user-oriented interface with quick-release function
Detailed data on disk/drive interfaces - CPU:   1 x M.2 connector (Socket 3, M key, supports PCIe 5.0 x4/x2 type 25110/2280 SSDs) (M2C_CPU) 2 x M.2 connectors (Socket 3, M key, support for PCIe 5.0 x4/x2 SSDs type 22110/2280) (M2A_CPU/M2B_CPU) 1 x M.2 connector (Socket 3, M key, support for 2280 PCIe 4.0 x4/x2 SSDs) (M2D_CPU)   Processor + chipset:   8 SATA 6 Gb/s connectors   RAID 0, RAID 1 and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1 and RAID 10 support for SATA storage devices
dimension depth - 83 mm
dimension height - 300 mm
Dimensions - 30.5 x 26.4 cm
dimension weight - 3055 g
dimension width - 350 mm
ean - 4719331859480
EAN_code - 4719331859480
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 2 x PCIe 5.0 x16
Expansion slots - 3 x PCIe x 16
Expansion slots - Number of M.2 (M) slots - 4
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 2
Expansion slots - PCI Express x16 slots - 3

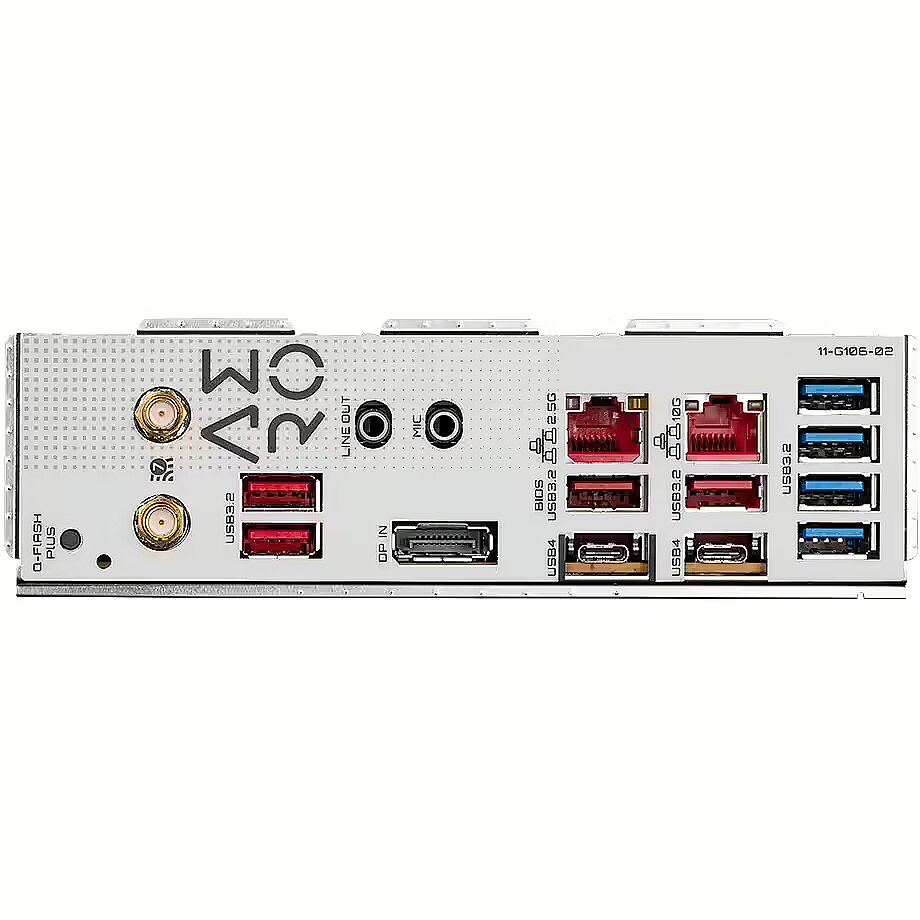

External connectors - 1 x DisplayPort
External connectors - 1 x Line In
External connectors - 1 x MIC
External connectors - 1 x Q-Flash Plus button
External connectors - 2 x RJ-45
External connectors - 2 x SMA
External connectors - 2 x USB4 Type-C
External connectors - 4 x USB 3.0
Features - Audio chip - Realtek ALC4080
Features - Audio output channels - 2.0 channels
Features - Component for - PC
Features - Motherboard chipset - AMD TRX50
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - Extended ATX
Features - PC health monitoring - Fan, Temperature, Voltage, Water cooling
Features - Product colour - Black
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form factor - E-ATX
Graphics -
Graphics - DirectX version - 12.0
GTIN - 0889523040560
GTIN - 889523040560
GTIN - 4719331859480
guarantee - 36
guarantee_type - normal
Integrated CPU - No
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Audio connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Number of chassis fan connectors - 10
Internal I/O - Number of SATA III connectors - 8
Internal I/O - RGB LED pin header - Yes
Internal I/O - Total number of SATA connectors - 8
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2x2 connectors - 1
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
LongProductName - AMD TRX50, sTR5, DDR5, 10GbE LAN, Wi-Fi 7, PCIe 5.0, M.2, 8 x SATA 6Gb/s, E-ATX, USB 3.2, 256 Mbit, AMI UEFI BIOS, 30.5 x 26.4 cm
LongSummaryDescription - GIGABYTE TRX50 AERO D Motherboard - Supports AMD Ryzen PRO 7000 CPUs, 16+8+4 Phases Digital VRM, up to 7800MHz DDR5 (OC), 4xPCIe 4.0 M.2, Wi-Fi 7, 2.5GbE LAN, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket sTR5, Compatible processor series: AMD Ryzen™ Threadripper™. Supported memory types: DDR5-SDRAM, Maximum internal memory: 1 TB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, Supported storage drive types: SSD, RAID levels: 0, 1, 10. Ethernet interface type: 10 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7.... Component for: PC, Motherboard form factor: Extended ATX, Motherboard chipset family: AMD
LPT connector / port - No
Manufacturer - GigaByte
Manufacturer_code - TRX50 AERO D
Max. number of ATA devices - 0
Max. number of SATA devices - 8
Max memory size - 1 TB
Memory - ECC - Yes
Memory - Maximum internal memory - 1 TB
Memory - Memory channels - Quad-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 7800 MHz
Memory - Supported memory clock speeds - 4400,4800,5200,5600,6000,6400,6800,7000,7200,7600,7800 MHz
Memory - Supported memory module capacities - 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB, 64GB, 128GB, 128MB, 256MB
Memory - Supported memory types - DDR5-SDRAM
Memory bus frequency - 4400 MHz
Memory bus frequency - 4800 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory bus frequency - 7600 MHz
Memory bus frequency - 7800 MHz
Memory type - DDR5
Model - TRX50 Aero D
name - GIGABYTE TRX50 Aero D, AMD TRX50 Mainboard, Sockel sTR5, DDR5
Name - GIGABYTE TRX50 AERO D - Socket sTR5 - motherboard
name - TRX50 AERO D sTR5 4DDR5 HDMI USB/4M.2 eATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 10 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be)
Network interface - Bluetooth
Network interface - Marvell AQtion AQC113C 10GbE LAN Chip (10Gb/s/5Gb/s/2.5Gb/s/1Gb/s/100Mb/s) (LAN1) Realtek 2.5GbE LAN (2.5 Gb/s/1 Gb/s/100 Mb/s) (LAN) Qualcomm Wi-Fi 7 QCNCM865 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands Bluetooth 5.3 Support for the 11be 320 MHz wireless standard
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 5
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Reset button
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x temperature sensor
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 4 x M.2
Onboard connectors - 8 x SATA III 6Gb/s
Other information -
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton Internet Security (OEM version),
LAN bandwidth management software
Packaging data - Package depth - 294 mm
Packaging data - Package height - 80 mm
Packaging data - Package weight - 3.04 kg
Packaging data - Package width - 345 mm
Processor - Compatible processor series - AMD Ryzen™ Threadripper™
Processor - Maximum internal memory supported by processor - 1 TB
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket sTR5
Processor family - AMD Ryzen
producer - Gigabyte
ProductName - TRX50 AERO D Motherboard - Supports AMD Ryzen PRO 7000 CPUs, 16+8+4 Phases Digital VRM, up to 7800MHz DDR5 (OC), 4xPCIe 4.0 M.2, Wi-Fi 7, 2.5GbE LAN, USB 3.2 Gen 2
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 2
Rear panel I/O ports - Headphone outputs - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 2
ShortSummaryDescription - GIGABYTE TRX50 AERO D Motherboard - Supports AMD Ryzen PRO 7000 CPUs, 16+8+4 Phases Digital VRM, up to 7800MHz DDR5 (OC), 4xPCIe 4.0 M.2, Wi-Fi 7, 2.5GbE LAN, USB 3.2 Gen 2, AMD, Socket sTR5, AMD Ryzen™ Threadripper™, 1 TB, DDR5-SDRAM, 1 TB
Software - Norton Internet Security (OEM version) LAN bandwidth management software
Sound card - Realtek ALC4080 codec (back panel audio) DTS:X Ultra support High quality sound 2-channel Realtek ALC897 codec (front panel audio)
Special functions -
Storage controllers - Number of HDDs supported - 8
Storage controllers - Number of storage drives supported - 12
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA
Storage controllers - Supported storage drive types - SSD
Supported operating systems - Windows 11
Technical details - Warranty period - 3 year(s)
Title - GIGABYTE TRX50 AERO D Motherboard - Supports AMD Ryzen PRO 7000 CPUs, 16+8+4 Phases Digital VRM, up to 7800MHz DDR5 (OC), 4xPCIe 4.0 M.2, Wi-Fi 7, 2.5GbE LAN, USB 3.2 Gen 2
URL - https://www.gigabyte.com/Motherboard/TRX50-AERO-D#kf
USB ports at back panel - 10
USB ports on motherboard - 4
vendpn - TRX50 AERO D
WarrantyInfo - 3 years
Weight - 3,04
Weight & dimensions - Depth - 264 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 305 mm
