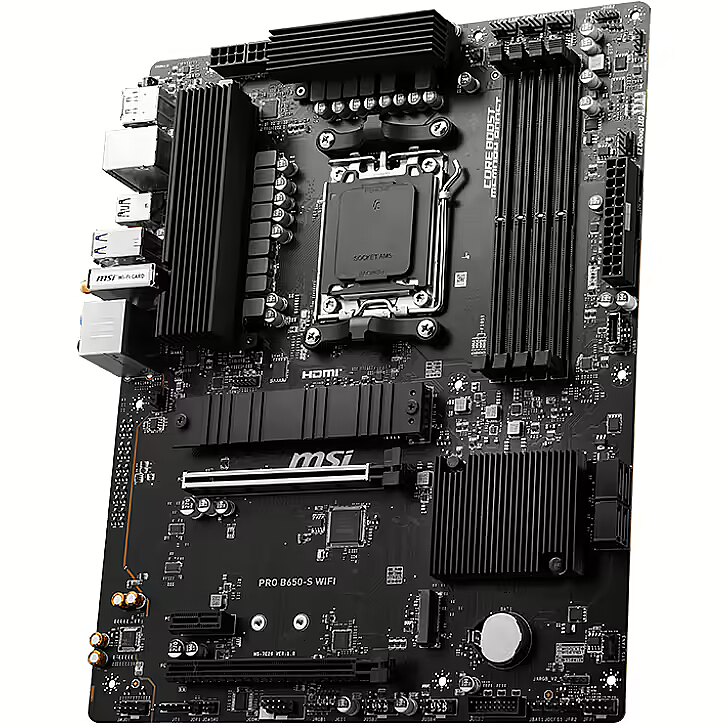

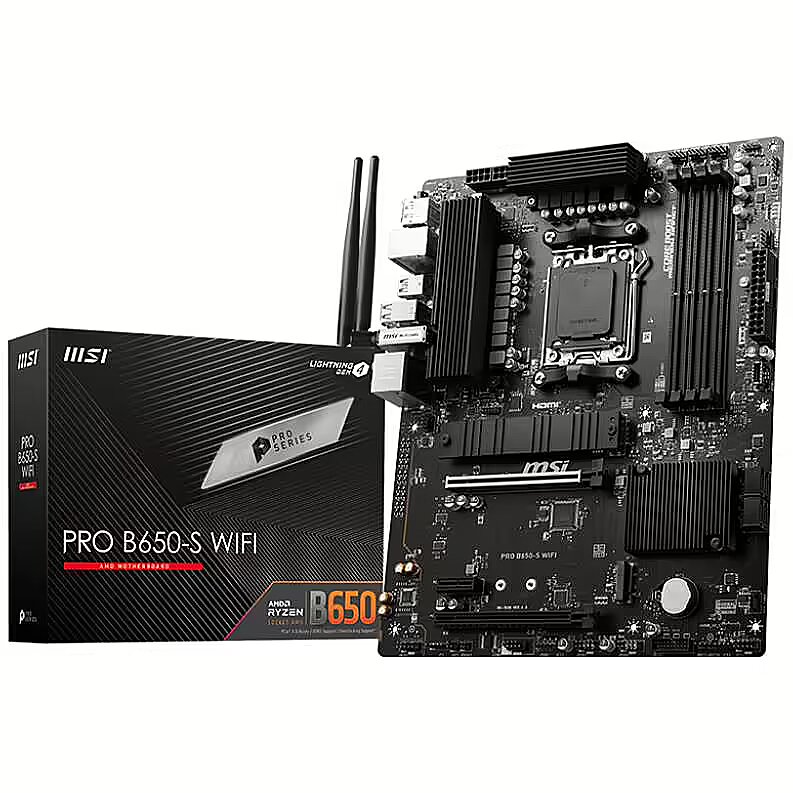

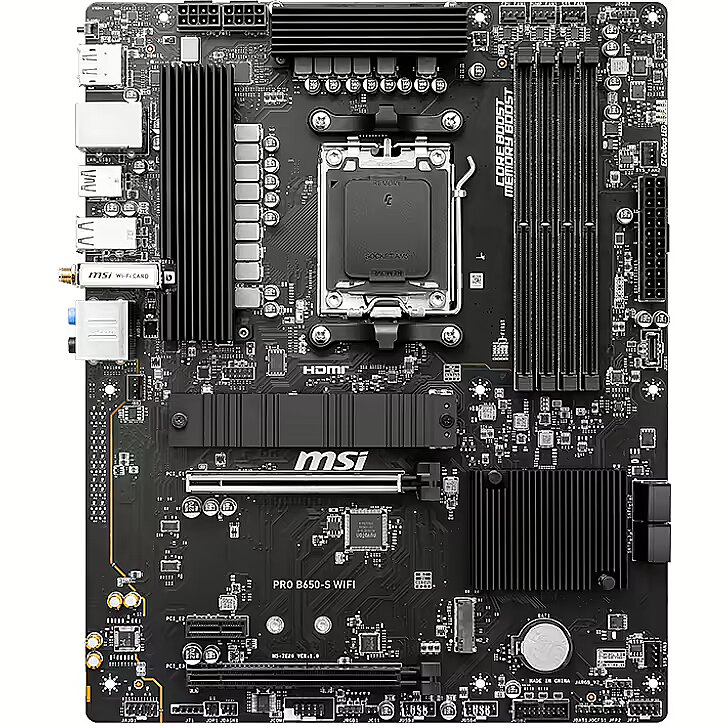

MSI PRO B650-S WIFI

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1004775 Product code: PRO B650-S WIFI
In stock 21 units
Warranty: 3 years
157.16 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: 29.11.2024
Main product parameters All parameters
  • Series: MSI PRO
  • Plate size: ATX
  • Chipset: AMD B650
  • Socket: AM5
  • Type: DDR5
  • RAM Slots: 4
  • Built-in Wi-Fi: Ir
  • M.2 ports: 2
Basic information
Series : MSI PRO
Plate size ATX

The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD B650

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Socket AM5
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Random-access memory (RAM)
Type : DDR5
RAM Slots 4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support DDR5 4800MHz (7200MHz OC)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card
VGA Port PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics Only with iGPU-ready APU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment
D-Sub : 0
DisplayPort : 1
DVI : 0
HDMI : 1
Integrated sound card : Realtek ALC897
PCI Ports 0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
Wireless connections
Built-in Bluetooth : Ir
Built-in Wi-Fi : Ir
External ports
External USB 2.0 : Nav
External USB Type-C (USB 3.2 Gen2) : 1
External USB Type-C (USB 4.0) : 0
External USB 3.0 (USB 3.2 Gen1) : 4
External USB 3.1 (USB 3.2 Gen2) : 3
Internal ports
Internal A-RGB 5V (3-pin) : 2
Internal RGB 12V (4-pin) : 2
Internal USB 2.0 : 2
Internal USB 3.0 : 1
Internal USB Type-C : 1
M.2 ports : 2
SATA3 ports : 4
Power supply units (PSU)
More detailed specification
Additional information in manufacturers website MSI PRO B650-S WIFI
Accessories included -
Audio port Input/Output connectors - 6
BIOS -
Bluetooth Interface - Yes
Brand - MSI
BrandPartCode - PRO B650-S WIFI
Category - Datortehnika :: Datoru komponentes :: Pamatplates
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM5
Chipset - AMD B650
Chipset manufacturer - AMD
Chipset type - AMD B650
code - 7E26-003R
Code - PROB650-SWIFI
Code - PRO B650-S WIFI
COM connector / port - Yes
CPU socket - Socket AM5
Desc - Mikroshēmu tips | chipset: AMD B650, Plates formfaktors: ATX, Procesora ražotājs: AMD, Ligzda: AM5, DDR tips: DDR5, Atmiņas sloti: 4, Max atmiņas apjoms: 192GB, Integrēta audio karte: 7.1-Channel High Definition Audio, LAN: Realtek RTL8125BG 2.5Gbps LAN controller, WiFi: Ir, M.2 Pieslēgumi: 2, Garantija: 2 gadi
Description - PRO B650-S WIFI - Supports AMD Ryzen™ 7000 Series Desktop Processors - Supports DDR5 Memory, Dual Channel DDR5 7200+MHz (OC) - Enhanced Power Design: 12+2 Duet Rail Power System with P-PAK, dual 8-pin CPU power connectors, Core Boost, Memory Boost - Premium Thermal Solution: MOSFET thermal pads rated for 7W/mK and M.2 Shield Frozr are built for high performance system and non-stop work - High Quality PCB: 6-layer PCB made by 2oz thickened copper - Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2x2 - 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection - AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Description - PRO B650-S WIFI Płyty główne z serii PRO B650-S WIFI zostały zaprojektowane z myślą o graczach, którzy oczekują wszystkiego co najlepsze - mnóstwa złączy, elastycznych narzędzi i wygodnej łączności Wi-Fi w połączeniu z pamięcią DDR5.
Obsługa desktopowych procesorów z serii AMD Ryzen 9000 / 8000 / 7000. Dwukanałowa obsługa pamięci DDR5 do 7200+ MHz (overclocking). Wzmocniony system zasilania: 12+2-fazowy, dwuszynowy system zasilania Duet Rail Power System z technologią P-PAK, dwa 8-pinowe złącza zasilania procesora, technologie Core Boost i Memory Boost. System chłodzenia klasy premium: podkładki termiczne 7W/mK na tranzystorach mocy MOSFET oraz system chłodzenia napędów M.2, M.2 Shield Frozr, zwiększają wydajność systemu i pozwalają na niezakłóconą wielogodzinną pracę. Najwyższej jakości płytka drukowana: 6-warstwowa płytka drukowana z dwoma uncjami rozmieszczonej warstwowo miedzi. Wyjątkowa szybkość: złącza PCIe 4.0 i Lightning Gen 4 x4 M.2 z systemem M.2 Shield Frozr, porty USB 3.2 Gen 2x2. Sieć 2.5G LAN i bezprzewodowy moduł Wi-Fi 6E: Ulepszone rozwiązanie sieciowe do profesjonalnego i multimedialnego. Oferuje bezpieczne, stabilne i szybkie połączenie sieciowe. System dźwiękowy Audio Boost: generowanie dźwięku o jakości studyjnej pozwalającej uzyskać efekt wyjątkowego zanurzenia w grze.
Detailed data on disk/drive interfaces - 2 x M.2: M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4 x SATA 6G
dimensionalWeight - 1228
dimension depth - 70 mm
dimension height - 270 mm
Dimensions - 243,84 x 304,8 mm
dimension weight - 1470 g
dimension width - 350 mm
DisplayPort Input/Output connectors - 1
EAN - 4711377132862
ean - 4711377132862
Eans - 4711377132862
EAN_code - 4711377132862
Expansion slots - 1 x PCIe 4.0 x 1
Expansion slots - 2 x PCIe 4.0 x 16
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1

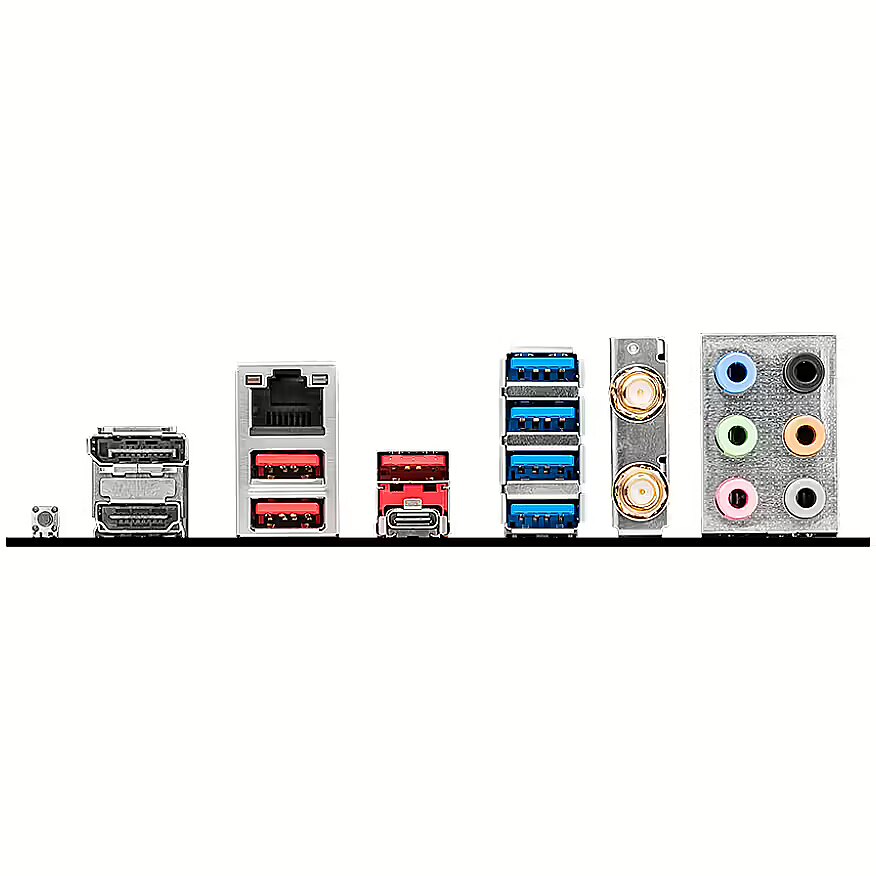

External connectors - 1 x Central Speaker / Subwoofer
External connectors - 1 x DisplayPort
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x Line Out (front)
External connectors - 1 x MIC
External connectors - 1 x Rear Speaker
External connectors - 1 x RJ-45
External connectors - 1 x USB4 Type-C
External connectors - 2 x Wi-Fi Module
External connectors - 3 x USB 3.2 Gen 2 Type-A
External connectors - 4 x USB 3.2 Gen 1 Type-A
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD B650
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - PC health monitoring - Fan
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200 MHz
Full Description Line - AMD B650|SAM5|ATX|DDR5|7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|1xPCI-Express 1x|2xPCI-Express 16x|2xM.2|1xHDMI|1xDisplayPort|7xUSB 3.2|1xUSB-C|1xRJ45|6xAudio port|SATA|Bluetooth|WiFi|Video Depending on CPU|Audio Realtek ALC897|LAN 2.5 Gigabit|RAID SATA 0, 1; NVMe 0, 1|TPM Header
Graphics - 1 x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz* 1 x DisplayPort Supports DP1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Gross weight - 1.64 kg
GTIN - 4711377132862
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_113346_1.png
Integrated audio - Realtek ALC897
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - USB 2.0 connectors - 4
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
LargeDescHTML -
Link - https://www.msi.com/Motherboard/PRO-B650-S-WIFI
LongDesc - The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
LongProductName - AMD Ryzen 9000 / 8000 / 7000 Series, Dual Channel DDR5 7200+MHz (OC), 2.5G LAN, Wi-Fi 6E, 6-layer PCB
LongSummaryDescription - MSI PRO B650-S WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, ECC сompatibility: Non-ECC. Supported storage drive interfaces: M.2, SATA, RAID levels: 0, 1. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125-BG, Top Wi-Fi standard: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
LPT connector / port - No
M.2 Expansion slots - 2
Manufacturer - MSI
Manufacturer_code - 7E26-003R
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 256 GB
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 192 GB
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 7200 MHz
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 5000
Memory - Supported memory clock speeds - 5200
Memory - Supported memory clock speeds - 5400
Memory - Supported memory clock speeds - 5600
Memory - Supported memory clock speeds - 5800
Memory - Supported memory clock speeds - 6000
Memory - Supported memory clock speeds - 6200
Memory - Supported memory clock speeds - 6400
Memory - Supported memory clock speeds - 6600
Memory - Supported memory clock speeds - 6800
Memory - Supported memory clock speeds - 7000
Memory - Supported memory clock speeds - 7200
Memory - Supported memory clock speeds - 7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory > Supported memory types - DDR5
Memory bus frequency - 4800 MHz
Memory bus frequency - 5000 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5400 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - PRO B650-S WIFI
MPN - 7E26-003R
Name - AM5 MSI B650-S Pro WIFI
name - Motherboard PRO B650-S WIFI AM5 4DDR5 HDMI/DP ATX
Name - MSI PRO B650-S WIFI
name - MSI Pro B650-S WiFi, AMD B650 Mainboard - Sockel AM5, DDR5
Name - MSI PRO B650-S WIFI B650 - Socket AM5 - motherboard
Name - MSI | PRO B650-S WIFI | Processor family AMD | Processor socket AM5 | DDR5 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
Name - Pamatplate MSI PRO B650-S WIFI
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8125-BG
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - Realtek 8125BG 2.5G LAN
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 5
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x USB 3.2 Gen 2 Type-A
Onboard connectors - 2 x 4pin wentylator CPU
Onboard connectors - 2 x Addressable LED
Onboard connectors - 2 x M.2
Onboard connectors - 2 x USB 3.2 Gen 1 Type-A
Onboard connectors - 4 x SATA III 6Gb/s
Onboard connectors - 4 x USB 2.0/1.1
Other information -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 30 mm
Package features > Gross height (mm) - 352.00 mm
Package features > Gross width (mm) - 86.00 mm
Package features > Inner carton packing Qty - 1.00 pc(s)
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 179 pc(s)
Package features > Paper/Pasteboard - 600.00 g
Package features > Plastic (No PET) - 75.00 g
Package features > Tare weight (kg) - 0.68 kg
Package features > TI weight (kg) - 0.05 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.00090816 m³
Package features > WEEE tax - No
PCI-Express 1x Expansion slots - 1
PCI-Express 16x Expansion slots - 2
Processor - Compatible processor series - AMD Ryzen 7000 Series
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Processor > Processor family - AMD
Processor > Processor socket - AM5
Processor family - AMD Ryzen
producer - MSI
Producer - MSI
producerCode - 7E26-003R
ProducerCode - PRO B650-S WIFI
Producer product name - PRO B650-S WIFI
productName - MSI PRO B650-S WIFI motherboard AMD B650 Socket AM5 ATX
ProductName - PRO B650-S WIFI
productSize - Normal
RAID - SATA 0, 1; NVMe 0, 1
RAID - Yes
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 56 cm
Shipping Box Height Shipping/Package Box Dimensions - 37 cm
Shipping box quantity - 10
Shipping Box Weight Shipping/Package Box Dimensions - 15.7 kg
Shipping Box Width Shipping/Package Box Dimensions - 35 cm
ShortDescription - Socket AM5 | Chipset AMD B650 | DDR5
ShortSummaryDescription - MSI PRO B650-S WIFI, AMD, Socket AM5, AMD Ryzen 7000 Series, Socket AM5, DDR5-SDRAM, 192 GB
sizeX - 65
sizeY - 350
sizeZ - 270
Socket - SAM5
Software -
Sound card - Realtek ALC897 Codec 7.1-Channel High Definition Audio
Special functions -
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1
Storage controllers - RAID levels - 1
Storage controllers - Supported storage drive interfaces - M.2, SATA
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Net weight - 0.97 kg
Technical details > Producer - MSI
Title - MSI PRO B650-S WIFI motherboard AMD B650 Socket AM5 ATX
TPM - Header
Unit Box Height - 0.065
Unit Box Length - 0.35
Unit Box Width - 0.27
Unit Brutto Volume - 0.007252 cubm
Unit Gross Weight - 1.57 kg
Unit Net Weight - 0.9 kg
URL - https://www.msi.com/Motherboard/PRO-B650-S-WIFI
USB-C Input/Output connectors - 1
USB 3.2 Input/Output connectors - 7
USB ports at back panel - 8
USB ports on motherboard - 15
Vendor Homepage - www.msi.com/Motherboard/PRO-B650-S-WIFI
vendpn - PRO B650-S WIFI
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 1,46
Weight - 1.48
weight - 1465
Weight & dimensions - Depth - 304.8 mm
Weight & dimensions - Width - 243.8 mm
WiFi Interface - Yes
157.16 €
MSI PRO B650-S WIFI
Intel technology provider Platinum 2020
All categories
