Deepcool AK620

category - Aircooling|Coolers|CPU Coolers|Intel|Socket 2011/2066
Category - Datortehnika :: Datoru komponentes :: CPU Dzesētāji
Category - Root/Electronics/PC parts/Cooling/Processor fans
Category_1 - Power
Category_2 - Computer Power Supplies
Code - R-AK620-BKNNMT-G
code - R-AK620-BKNNMT-G
Desc - Dzesētāja tips: CPU, Ligzda (socket): 2066/2011-v3/2011/1700/1200/1151/1150/1155 AMD AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1, Ventilatora diametrs: 120 mm, Ventilatora ātrums (apgr.min.): 1850 apgr. min., Garantija: 2 gadi
Design - Fan connector - 4-pin
Design - Number of fans - 2 fan(s)
Design - Number of heat pipes - 6
Design - Product colour - Black
dimensionalWeight - 1418
EAN - 6933412727316
ean - 6933412727316
Eans - 6933412727316
EAN_code - 6933412727316
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_92196_1.jpg
LargeDescHTML -
Link - https://global.deepcool.com/products/Cooling/cpuaircoolers/AK620-High-Performance-CPU-Cooler/2021/13067.shtml
Logistics data - Harmonized System (HS) code - 84733080
Manufacturer - Deepcool
Manufacturer_code - R-AK620-BKNNMT-G
Name - Deepcool AK620
Name - DeepCool AK620 black
Name - DeepCool AK620 chłodzenie CPU - 120mm
name - DeepCool AK620 CPU-Kühler - 120mm
Name - Deepcool | AK620 | Intel, AMD | CPU Air Cooler
Other features > Bearing technology - Fluid Dynamic Bearing
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 220 mm
Package features > Gross depth master carton - 470 mm
Package features > Gross height (mm) - 195 mm
Package features > Gross height master carton - 425 mm
Package features > Gross width (mm) - 160 mm
Package features > Gross width master carton - 335 mm
Package features > Net weight master carton - 13.24 kg
Package features > Packing quantity - 8 pc(s)
Package features > Palette Qty - 96 pc(s)
Package features > Paper/Pasteboard - 250.00 g
Package features > Plastic (No PET) - 50.00 g
Package features > Tare weight (kg) - 0.30 kg
Package features > Tare weight master carton - 1.138 kg
Package features > Volume (m3) - 0.006864 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes

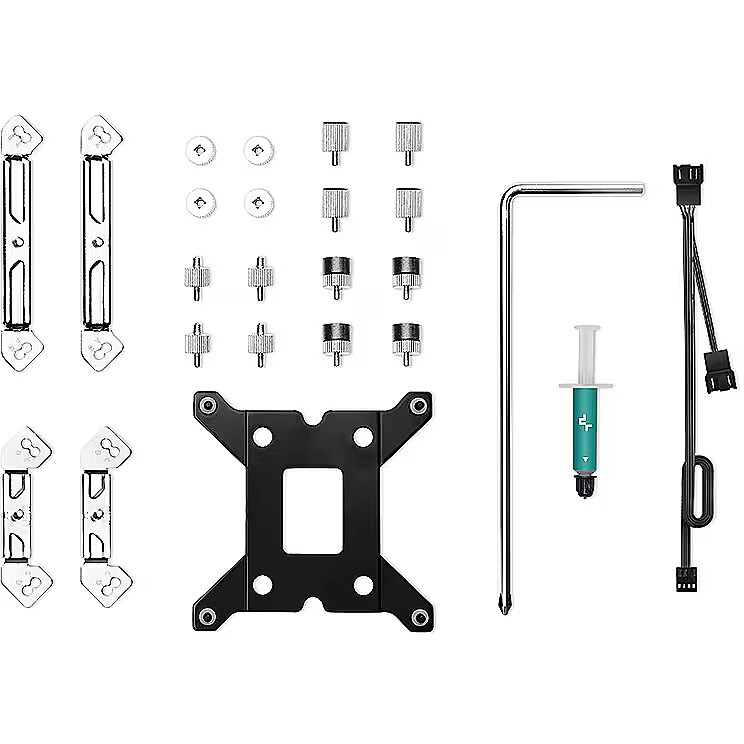

Packaging content - Cables included - Fan
Packaging content - CPU bracket(s) - Yes
Packaging content - Installation instruction - Yes
Packaging content - Mounting kit - Yes
Packaging content - Package type - Box
Packaging content - Screws included - Yes
Packaging content - Thermal pad included - Yes
Performance - Fan bearing technology - Fluid Dynamic Bearing (FDB)
Performance - Fan diameter - 12 cm
Performance - Fan speed (max) - 1850 RPM
Performance - Fan speed (min) - 500 RPM
Performance - Maximum airflow - 68.99 cfm
Performance - Maximum air pressure - 2.19 mmH2O
Performance - Noise level (high speed) - 28 dB
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Quantity per pack - 1 pc(s)
Performance - Rotational speed (max) - 1850 RPM
Performance - Rotational speed (min) - 500 RPM
Performance - Suitable location - Processor
Performance - Supported processor sockets - LGA 1150 (Socket H3)
Performance - Supported processor sockets - LGA 1151 (Socket H4)
Performance - Supported processor sockets - LGA 1155 (Socket H2)
Performance - Supported processor sockets - LGA 1200 (Socket H5)
Performance - Supported processor sockets - LGA 1700
Performance - Supported processor sockets - LGA 2011 (Socket R)
Performance - Supported processor sockets - LGA 2011-v3 (Socket R)
Performance - Supported processor sockets - LGA 2066
Performance - Supported processor sockets - Socket AM4
Performance - Supported processor sockets - Socket AM5
Performance - Type - Air cooler
Performance > Minimum airflow - 68.99 cfm
Performance > Supported processor sockets - Intel LGA2066/2011-v3/2011/1700/1200/1151/1150/1155; AMD AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
Performance > Type - CPU Air Cooler
Power - Fan current - 0.12 A
Power - Fan power consumption - 1.44 W
Power - Fan voltage - 12 V
Power - Thermal Design Power (TDP) - 260 W
Producer - Deepcool
producerCode - R-AK620-BKNNMT-G
ProducerCode - R-AK620-BKNNMT-G
productName - DeepCool AK620 Processor Air cooler 12 cm Black 1 pc(s)
productSize - Normal
ShortDescription -
sizeX - 160
sizeY - 197
sizeZ - 225
Technical details > Fan speed (max) - 1850 RPM
Technical details > Fan speed (min) - 500 RPM
Technical details > Gross weight - 1.655 kg
Technical details > Net weight - 1.355 kg
Technical details > Noise level (max) - ≤28 dB
Technical details > Processor brand name - Intel, AMD
Technical details > Producer - Deepcool
Technical details > Producer product name - AK620
Technical details > Warranty - 24 month(s)

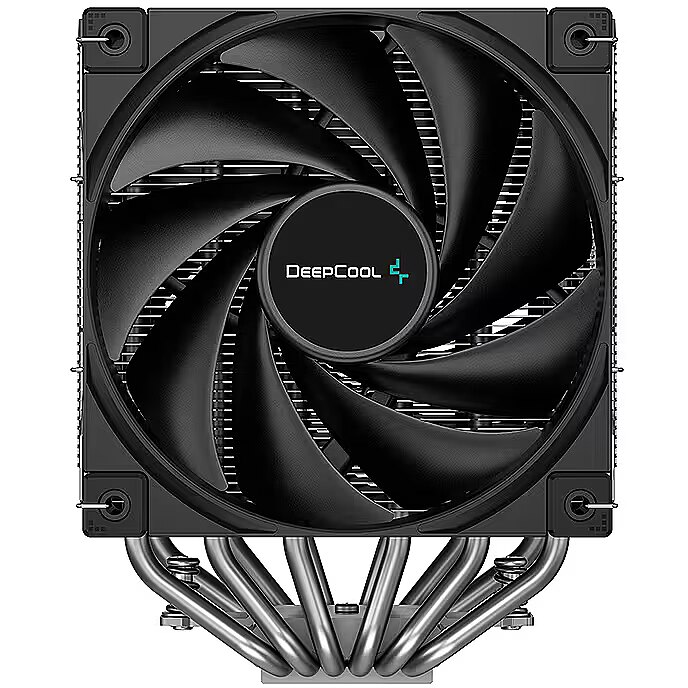

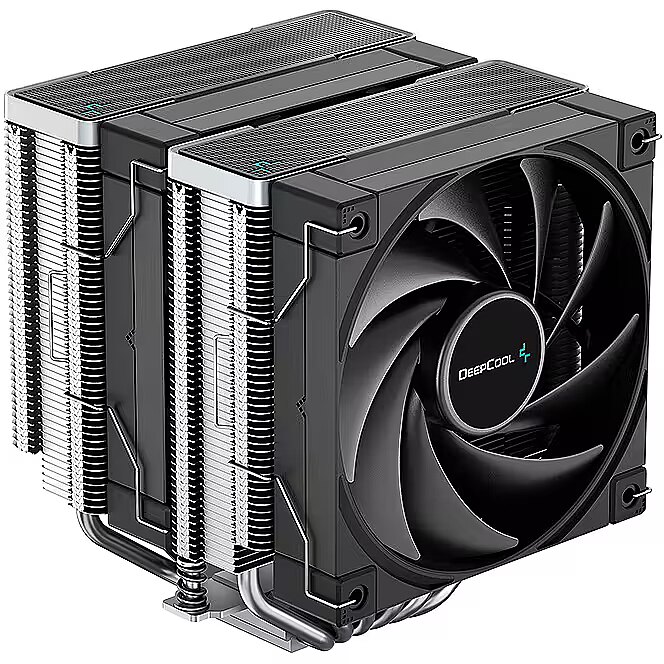

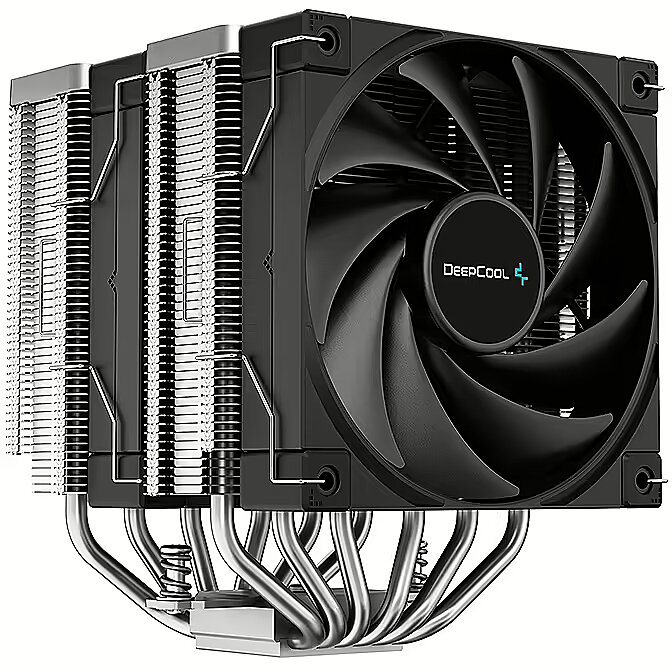

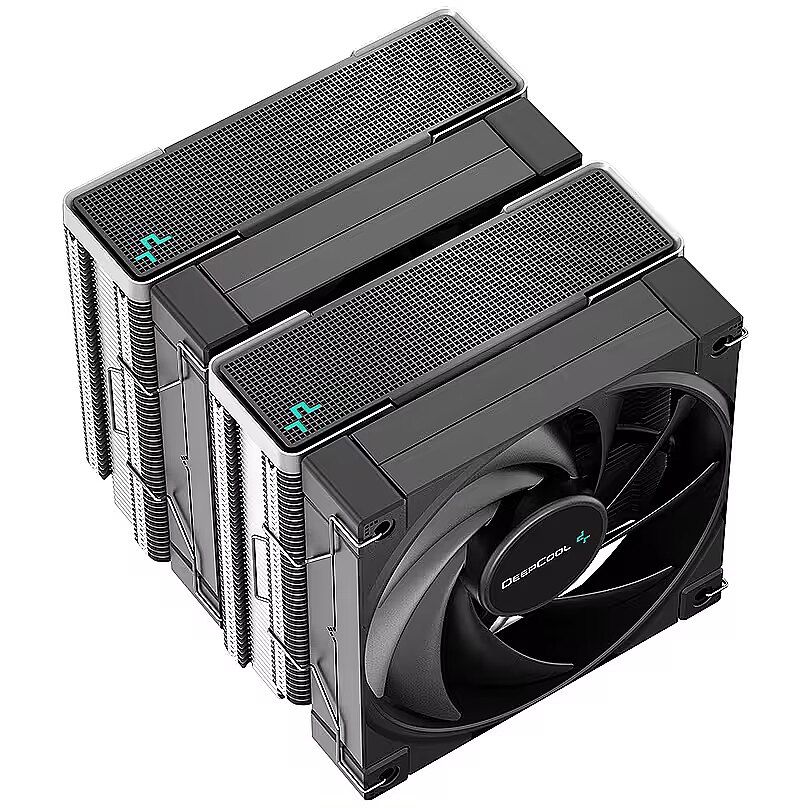

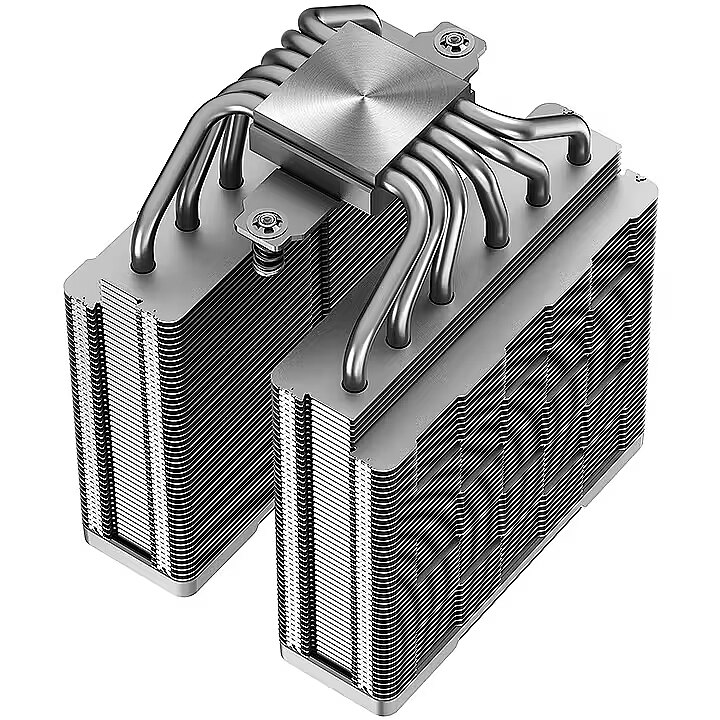

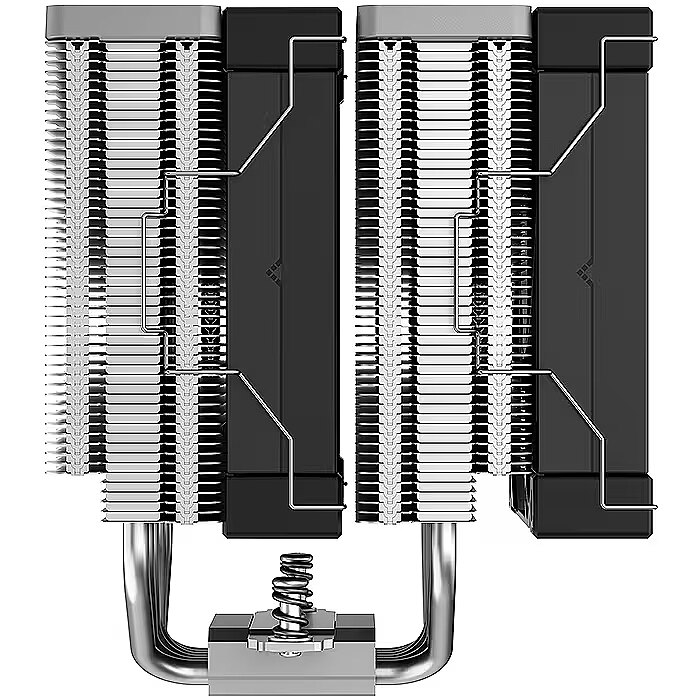

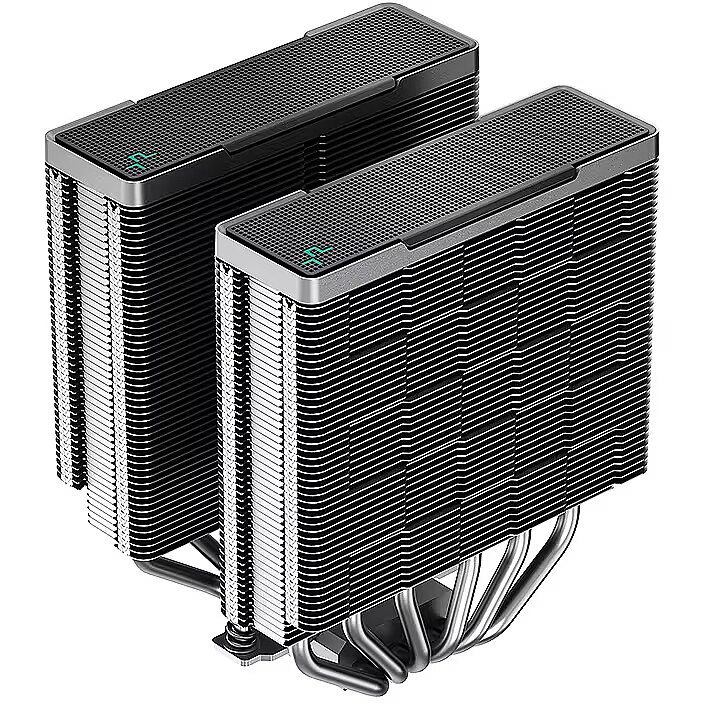

Technical_details - DeepCool AK620, CPU cooler The DeepCool AK620 is a high-performance CPU cooler with six copper heat pipes. With its dense dual-tower fin array and two 120 FDB fans, it ensures superior cooling and quiet efficiency. The AK620 features a precision-machined convex copper base and six copper heat pipes that allow for improved heat transfer. The dense matrix fin array in a dual-tower heatsink layout provides better efficiency for high-performance systems. Two 120 PWM fans with superior fluid dynamic bearings offer silent operation without loss of cooling performance for a balanced tuning. With a maximum thermal output of 260W and improved airflow to reduce temperatures, the AK620 is also suitable for demanding system applications. The all-metal mounting bracket kit offers a stable and easy installation process for both Intel and AMD platforms. Type: Processor cooler EAN code: 6933412727316 Manufacturer part number: R-AK620-BKNNMT-G Type: CPU cooler with fan CPU cooler design: dual tower Suitable sockets: 1150, 1151, 1155, 2011, 2011-3, AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+, AM4, 2066, 1200 Fastening: screwed Loudness: 28dB CPU: up to max. TDP | 260 watts Equipment: thermal paste/pad Speed: 500 to 1,850 rpm Heat pipe connections: 6 pcs. Fan Bearing: FDB - Fluid Dynamic Bearing Power connector: 4-pin PWM Power consumption: 1.44 watts Dimensions: Fan1 | Quantity: 1 piece Width: 120mm Height: 120mm Depth: 25mm Dimensions: Fan2 | Quantity: 1 piece Width: 120mm Height: 120mm Depth: 25mm Dimensions: Overall | Width: 129mm x Height: 160mm x Depth: 138mm Weight: Total | 1.5kg
Warranty - 24
warrantyLength - 36
warrantyType - G
Weight - 1,71
weight - 1710
Weight & dimensions - Depth - 138 mm

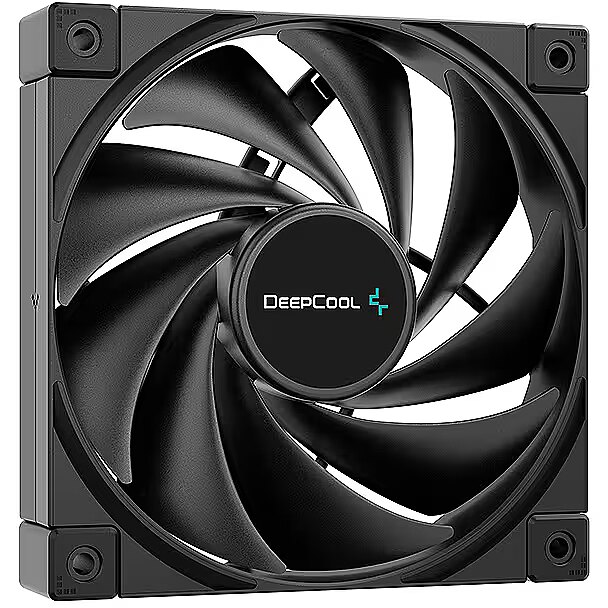

Weight & dimensions - Fan dimensions (W x D x H) - 120 x 120 x 25 mm
Weight & dimensions - Heat pipes diameter - 6 mm
Weight & dimensions - Height - 160 mm
Weight & dimensions - Radiator depth - 11 cm
Weight & dimensions - Radiator height - 15.7 cm
Weight & dimensions - Radiator width - 12.7 cm
Weight & dimensions - Weight - 1.46 kg
Weight & dimensions - Width - 129 mm
Weight & dimensions > Fan dimensions (W x D x H) - 129×138×160 mm
