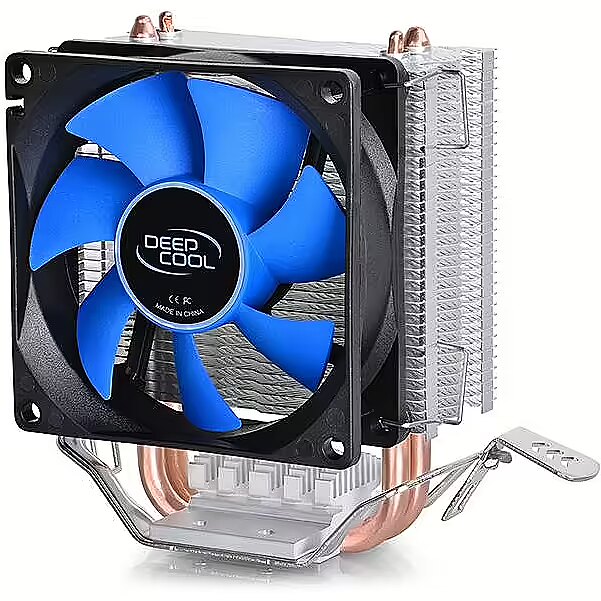

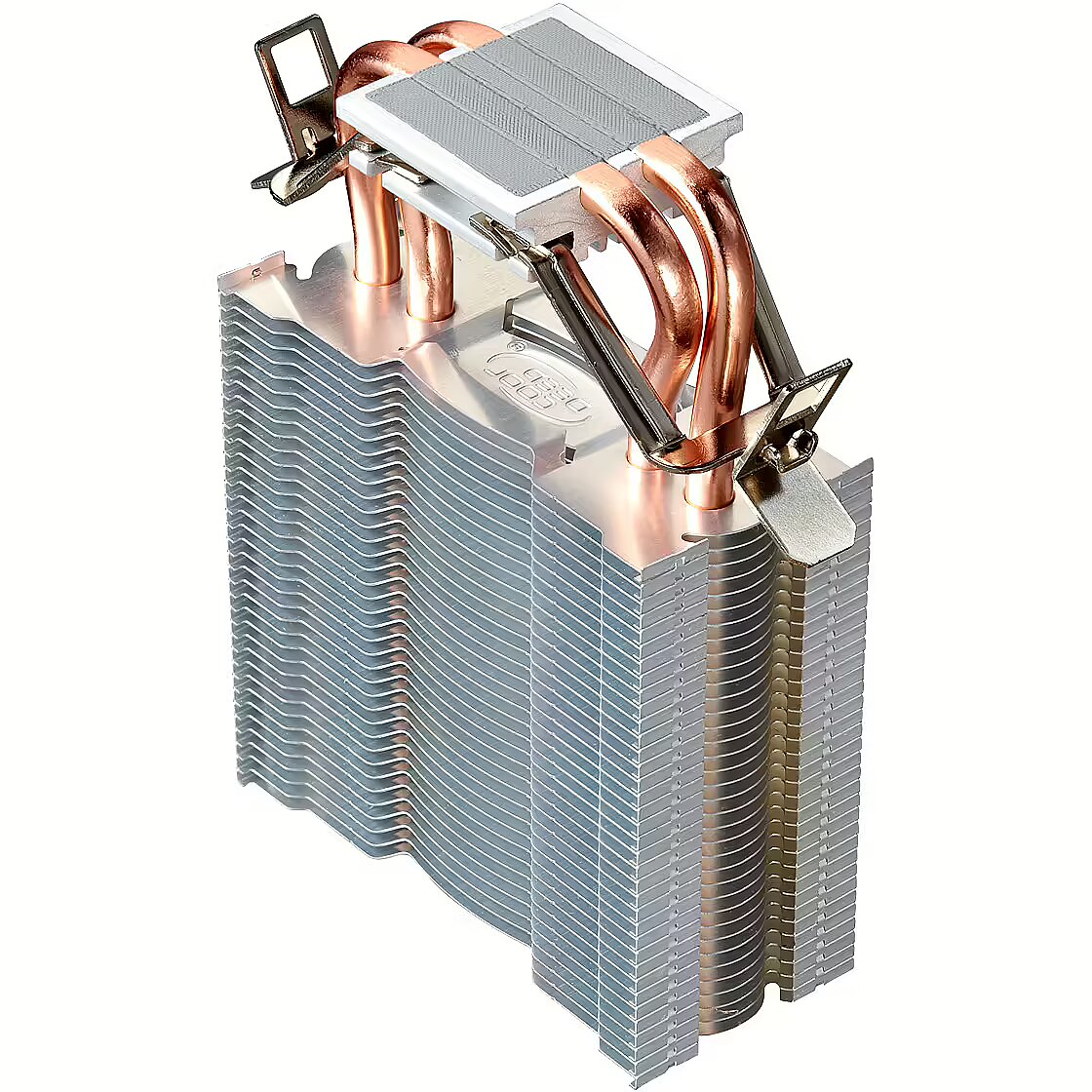

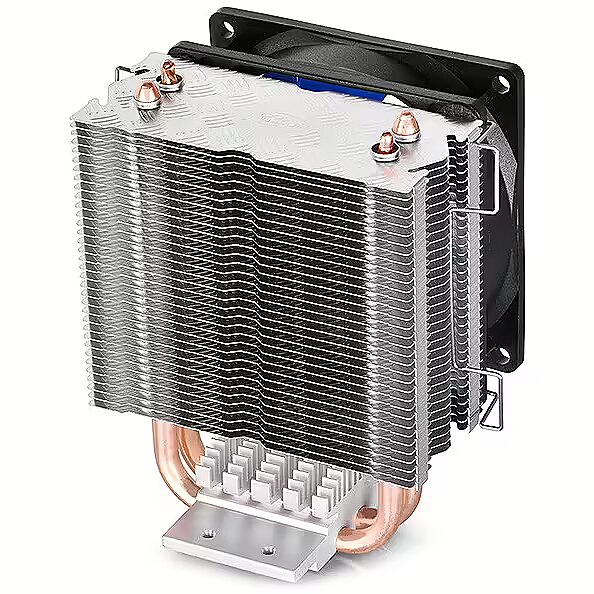

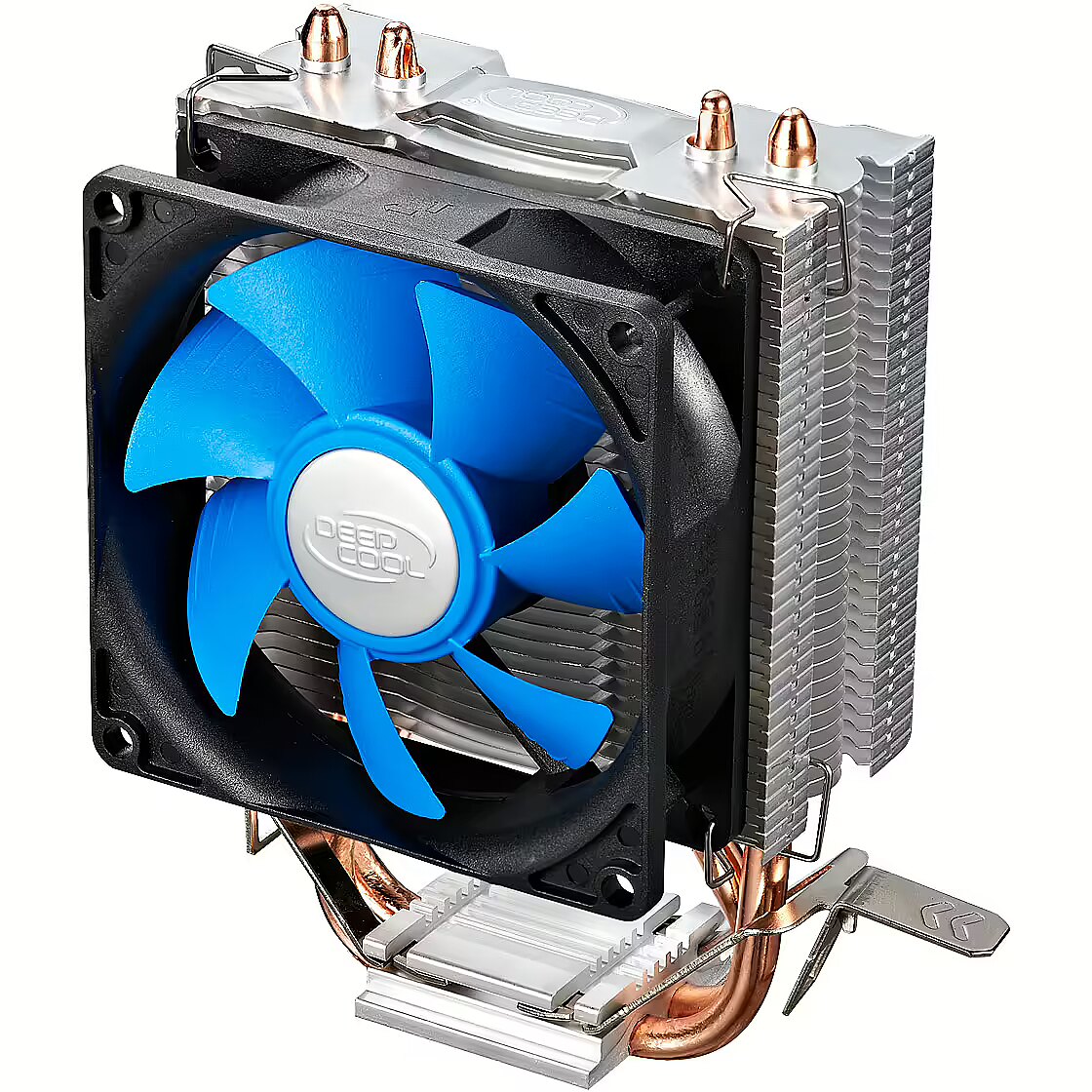

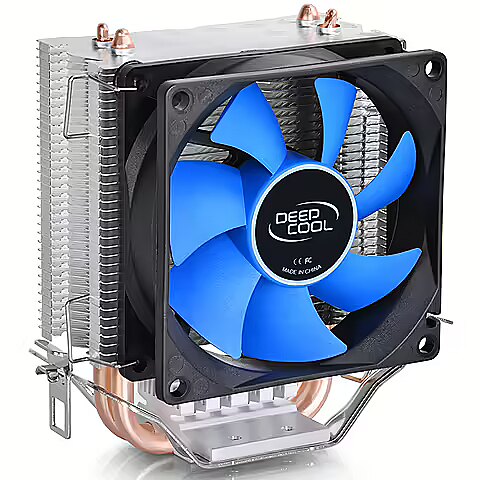

Deepcool Ice Edge Mini FS V2.0

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 151505 Product code: DP-MCH2-IEMV2
Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.fi website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 2 years
Main product parameters All parameters
  • Cooler class: Basic
  • Cooling capacity (TDP), W: 100
  • Height, mm: 112
  • LED lighting color: Nav
  • Number of fans: 1
  • Producer: Deepcool
Similar Products
This product Deepcool Ice Edge Mini FS V2.0
Recommended Deepcool AK620 WH
Recommended Deepcool AK620 Digital
Recommended Deepcool ASSASSIN IV, White
Recommended Deepcool AG620 ARGB, Black
Show similar specs. Hide similar specs.
14.50 €
61.49 €
74.12 €
80.91 €
58.68 €
Compatibility AM2 AM2+ AM3 AM3+ AM4 FM1 FM2 FM2+ LGA1150 LGA1151 LGA1155 LGA1156 LGA1200 LGA775 AM4 AM5 LGA1150 LGA1151 LGA1155 LGA1156 LGA1200 LGA1700 LGA2011-3 LGA2066 AM2 AM2+ AM3 AM3+ AM4 AM5 FM1 FM2 FM2+ LGA1150 LGA1151 LGA1155 LGA1156 LGA1200 LGA1700 LGA2011 LGA2011-3 LGA2066 AM4 AM5 LGA1150 LGA1151 LGA1155 LGA1200 LGA1700 LGA2011 LGA2011-3 LGA2066 AM4 AM5 LGA1150 LGA1151 LGA1155 LGA1200 LGA1700 LGA2011 LGA2011-3 LGA2066
Cooler class Basic Extreme Extreme Extreme Pro
Cooling capacity (TDP), W 100 250 Nav norādīts
Fan colour Blue Melna White Melna White Melna
Fan size, mm 80 120 120 140 120
Fan speed (MAX), rpm 2200 1850 1850 1700 1850
Fan speed (MIN), rpm Nav norādīts 500 500 500 300
Height, mm 112 160 162 164 157
LED lighting color Nav Nav RGB Nav RGB
Noise level (MAX), dB(A) 24.7 28.0 28.0 29.3 29.4
Number of fans 1 2 2 2 2
Output Interface 3-pin (DC) 4-pin (PWM) 4-pin (PWM) 4-pin (PWM) 4-pin (PWM)
Producer Deepcool Deepcool Deepcool Deepcool Deepcool
Radiator colour Silver White Melna White Melna
All parameters
Compatibility : AM2, AM2+, AM3, AM3+, AM4, FM1, FM2, FM2+, LGA1150, LGA1151, LGA1155, LGA1156, LGA1200, LGA775
Cooler class : Basic
Cooling capacity (TDP), W : 100
Fan colour : Blue, Melna
Fan size, mm : 80
Fan speed (MAX), rpm : 2200
Fan speed (MIN), rpm : Nav norādīts
Height, mm : 112
LED lighting color : Nav
Noise level (MAX), dB(A) : 24.7
Number of fans : 1
Output Interface : 3-pin (DC)
Producer : Deepcool
Radiator colour : Silver
More detailed specification
Additional information in manufacturers website Deepcool Ice Edge Mini FS V2.0
Category - Root/Electronics/PC parts/Cooling/Processor fans
Code - DP-MCH2-IEMV2
Design - Base plate material - Copper
Design - Fan connector - 3-pin
Design - Number of fan blades - 7
Design - Number of fans - 1 fan(s)
Design - Number of heat pipes - 2
Design - Product colour - Black
Design - Product colour - Blue
Design - Product colour - Silver
Design - Radiator material - Aluminum
dimensionalWeight - 335
EAN - 6933412725527
Eans - 6933412725527
Features > Heat-resistant - 70-95W TDP
Gross weight - 0.321 kg
Link - http://www.deepcool-us.com/Product/ICEEDGE_MINI_FS/
Name - Deepcool "Ice Edge Mini FS" universal cooler, 2 heatpipes, Intel LGA1700/1200/1151/1150/1155 and AMD AM5/AM4 | Universal | Deepcool | "Iceedge mini FS" | Universal
Name - Deepcool chłodzenie AC Ice Edge Mini FS v2.0
Other features > Dimensions (WxDxH) - 127X62X129.5mm mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 120 mm
Package features > Gross height (mm) - 129 mm
Package features > Gross width (mm) - 120 mm
Package features > Packing quantity - 1 pc(s)
Package features > Palette Qty - 465 pc(s)
Package features > Paper/Pasteboard - 179 g
Package features > Tare weight (kg) - 0.179 kg
Package features > Volume (m3) - 0.0018576 m³
Package features > WEEE tax - No

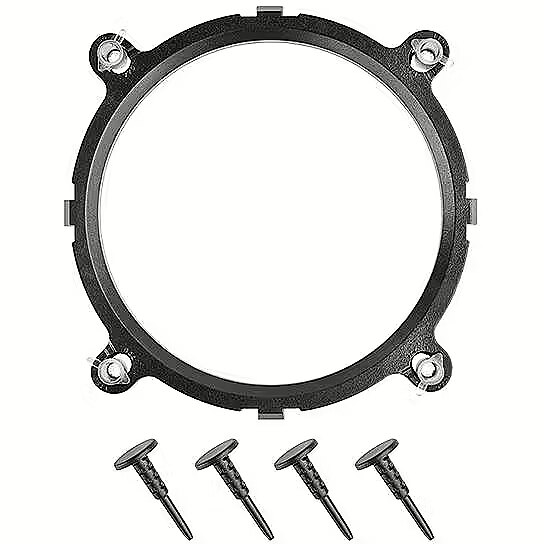

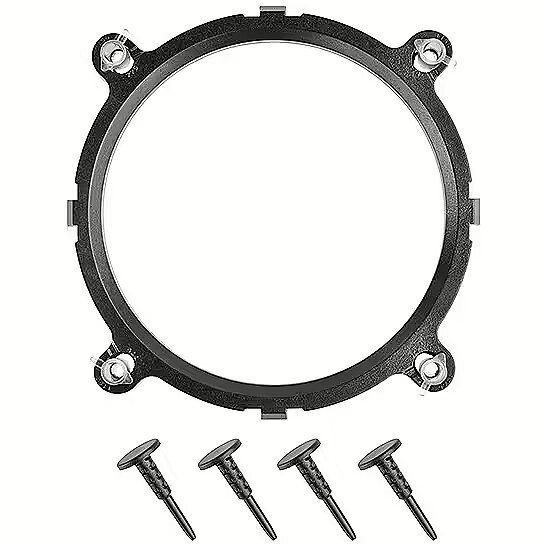

Packaging content - CPU bracket(s) - Yes
Packaging content - Mounting kit - Yes
Packaging content - Number of screws - 4
Packaging content - Package type - Box
Packaging content - Screws included - Yes
Performance - Compatible processor series - AMD A
Performance - Compatible processor series - AMD Athlon II X2
Performance - Compatible processor series - AMD Athlon II X3
Performance - Compatible processor series - AMD Athlon II X4
Performance - Compatible processor series - AMD Athlon™ X4
Performance - Compatible processor series - AMD FX™
Performance - Compatible processor series - AMD Phenom II X2
Performance - Compatible processor series - AMD Phenom II X3
Performance - Compatible processor series - AMD Phenom II X4
Performance - Compatible processor series - AMD Phenom II X6
Performance - Compatible processor series - Intel Pentium G
Performance - Compatible processor series - Intel® Celeron®
Performance - Compatible processor series - Intel® Celeron® G
Performance - Compatible processor series - Intel® Core™2 Duo
Performance - Compatible processor series - Intel® Core™2 Quad
Performance - Compatible processor series - Intel® Core™ i3
Performance - Compatible processor series - Intel® Core™ i5
Performance - Compatible processor series - Intel® Core™ i7
Performance - Compatible processor series - Intel® Pentium®
Performance - Fan bearing technology - Hydro bearing
Performance - Fan diameter - 8 cm
Performance - Fan speed (max) - 2420 RPM
Performance - Fan speed (min) - 1980 RPM
Performance - Maximum airflow - 25.13 cfm
Performance - Noise level (high speed) - 24.7 dB
Performance - Quantity per pack - 1 pc(s)
Performance - Rotational speed (max) - 2200 RPM
Performance - Suitable location - Processor
Performance - Supported processor sockets - LGA 775 (Socket T)
Performance - Supported processor sockets - LGA 1150 (Socket H3)
Performance - Supported processor sockets - LGA 1151 (Socket H4)
Performance - Supported processor sockets - LGA 1155 (Socket H2)
Performance - Supported processor sockets - LGA 1156 (Socket H)
Performance - Supported processor sockets - Socket AM2
Performance - Supported processor sockets - Socket AM2+
Performance - Supported processor sockets - Socket AM3
Performance - Supported processor sockets - Socket AM3+
Performance - Supported processor sockets - Socket AM4
Performance - Supported processor sockets - Socket FM1
Performance - Supported processor sockets - Socket FM2
Performance - Supported processor sockets - Socket FM2+
Performance - Type - Air cooler
Performance > Compatible processor series - Intel:Core i5 (partial)Core i3Core 2 Quad (partial)Core 2 DuoPentiumCeleronAMD:Phenom II X4/X3 (partial)Phenom X4/X3 (partial)Athlon II X2Athlon X2 (partial)AthlonSempron AMDPhenom™ II X4 / Phenom™ II X3 / Phenom™ II X2 / Phenom™ X4 / Phenom™ X3 / Athlon™ II X4 / Athlon™ II X3 / Athlon™ II X2 / Athlon™ X2 / Athlon™ / Sempron™
Power - Fan current - 0.12 A
Power - Fan voltage - 12 V
Power - Power consumption (typical) - 1.44 W
Producer - Deepcool
producerCode - DP-MCH2-IEMV2
ProducerCode - DPMCH2IEMV2
productName - DeepCool ICE EDGE MINI FS V2.0 Processor Air cooler 8 cm Black, Blue, Silver 1 pc(s)
productSize - Normal
ShortDescription -
sizeX - 131
sizeY - 122
sizeZ - 105

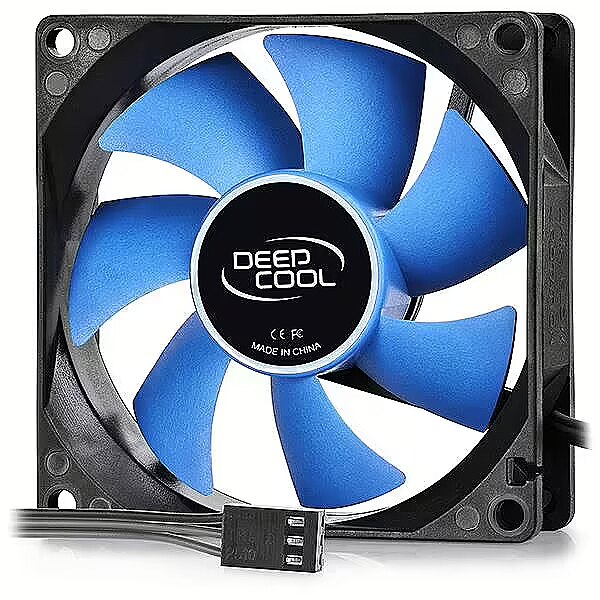

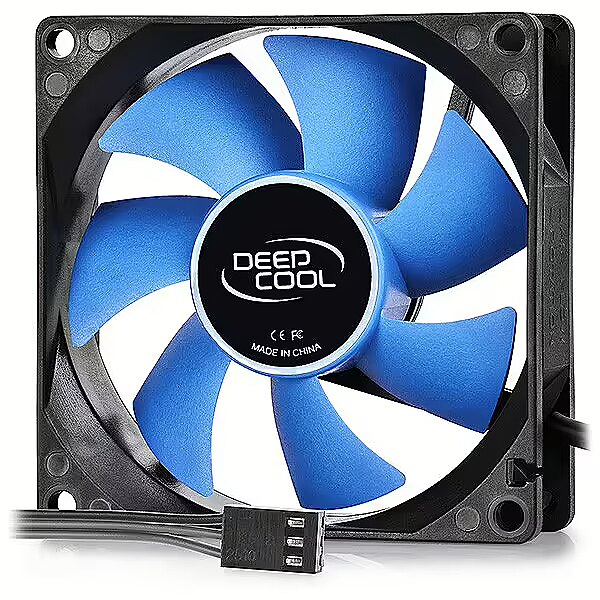

Technical details > Fan function - Fan Dimension: 80 x 80 x 25 mmSpeed : 2200±10%RPM R.P.MMax Air Flow (CFM): 28 CFMNoise: 25 dBABearing Type: Hydro BearingConnector: 3-pin
Technical details > Heat function - Aluminium
Technical details > Net weight - 0.142 kg

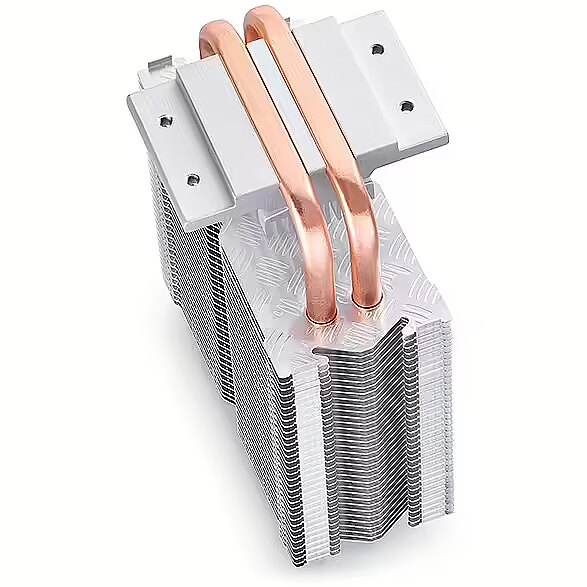

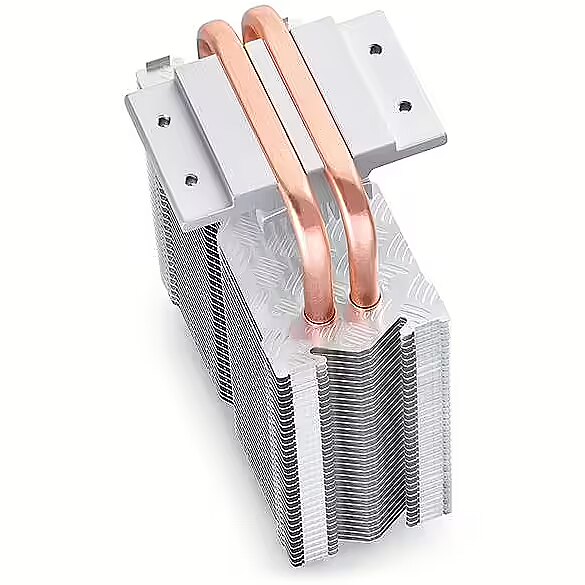

Technical details > Other features - * Maximum compatible CPU wattage: 95W TDP. *2 sintered powder heatpipes directly touch the CPU surface and conduct heat from the processor quickly to protect it from overheating.*Well built aluminum heatsink dissipates heat effeciently.
Technical details > Processor brand name - Universal
Technical details > Producer - Deepcool
Technical details > Producer product name - "Iceedge mini FS"
Technical details > Warranty - 24 month(s)
Warranty - 24
warrantyLength - 24
warrantyType - G
weight - 330
Weight & dimensions - Depth - 112 mm
Weight & dimensions - Fan dimensions (W x D x H) - 80 x 80 x 25 mm
Weight & dimensions - Heat pipes diameter - 6 mm
Weight & dimensions - Height - 75 mm
Weight & dimensions - Weight - 264 g
Weight & dimensions - Width - 119 mm
Weight & dimensions > Depth - 127X62X129.5mm cm
Weight & dimensions > Height - 127X62X129.5mm cm
Weight & dimensions > Width - 127X62X129.5mm cm
