Brand - ARCTIC
BrandPartCode - ACFRE00092A
Category - Computer Cooling Systems
Category - Root/Electronics/PC parts/Cooling/Processor fans
Category_1 - Computer Cases and Cooling
Category_2 - Watercooling
Design - Base plate material - Copper
Design - Fan connector - 4-pin
Design - Number of fans - 3 fan(s)
Design - Product colour - Black
Design - Radiator material - Aluminium
Eans - 4895213702812
EAN_code - 4895213702812
GTIN - 4895213702812
Logistics data - Harmonized System (HS) code - 84733080
LongDesc - Our coolers have pushed the limits further every year - and all that at dropping noise levels. We have put our utmost effort into innovative technologies and fair prices, what made us well known for products with an unparalleled price/performance ratio. We provide you headroom for over-clocking and guarantee you lowest noise levels at affordable prices.

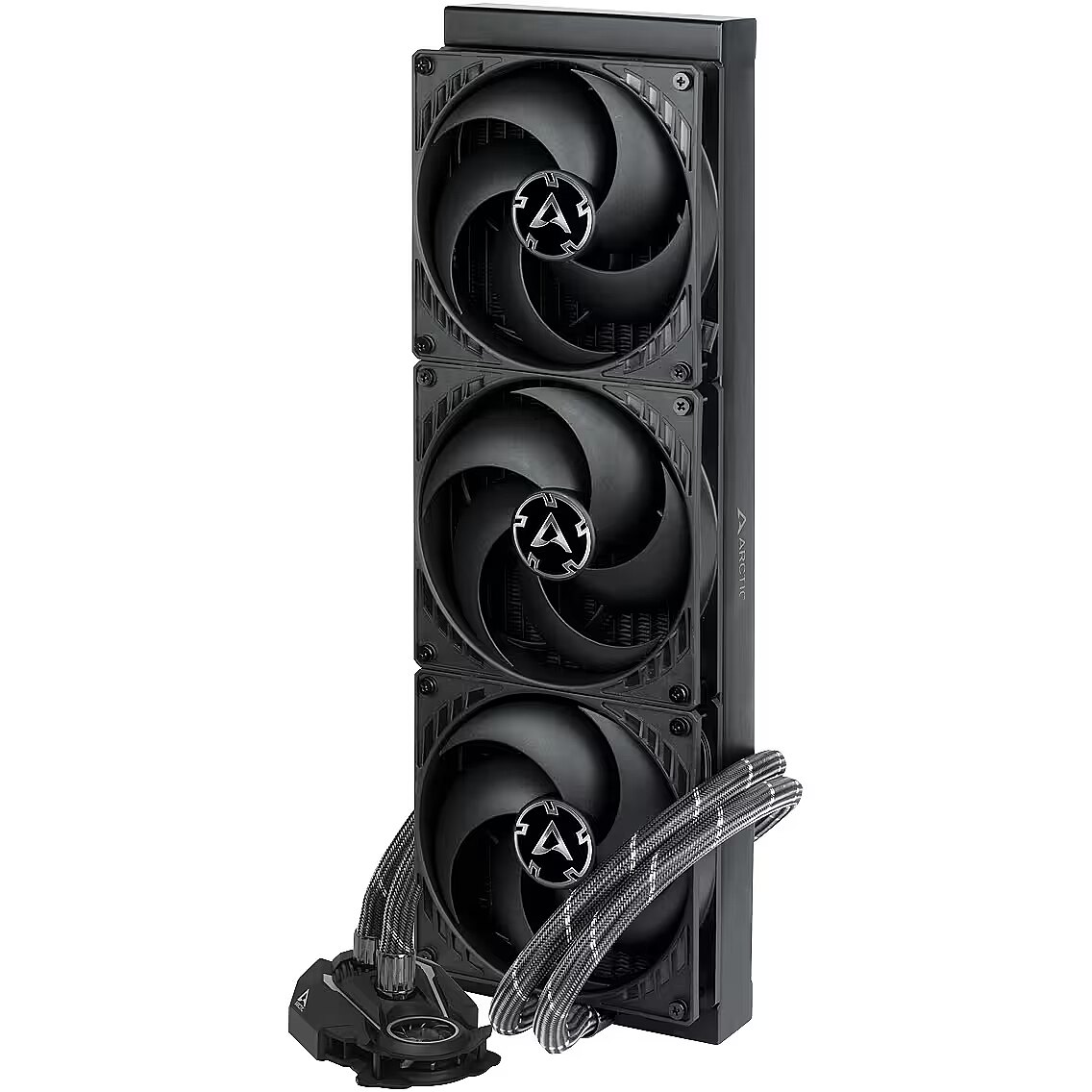

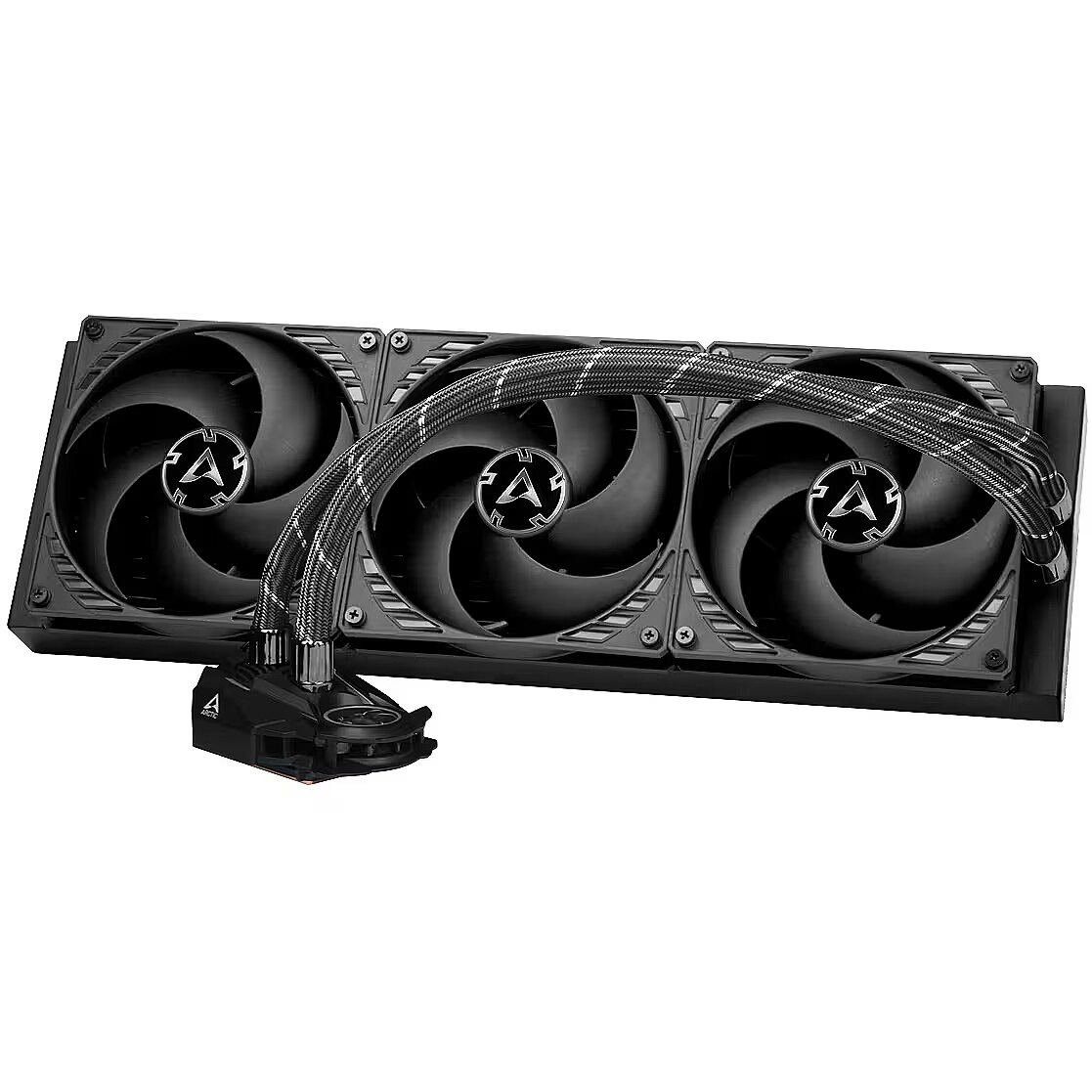

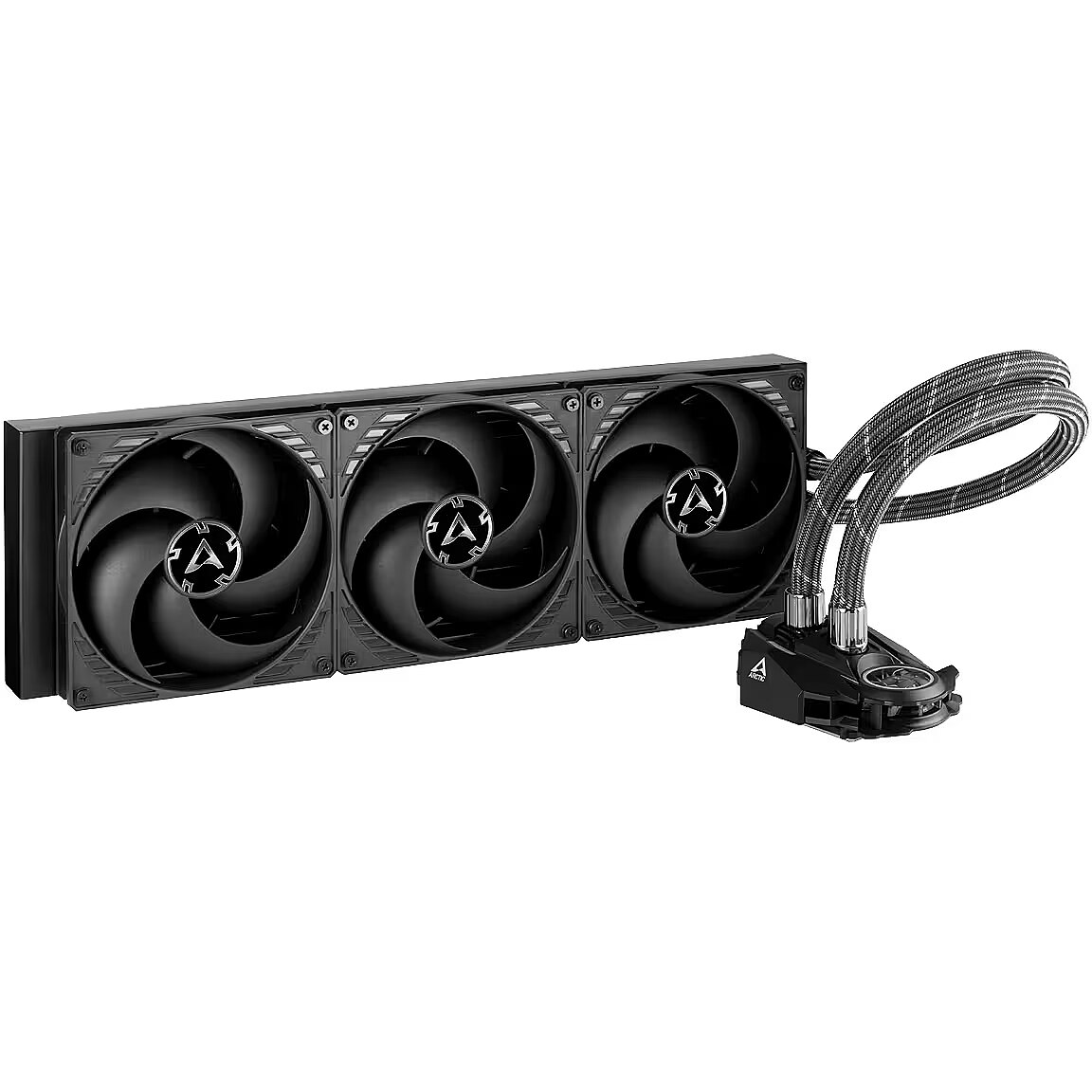

LongProductName - Liquid Freezer II - 420 : All-in-One CPU Water Cooler with 420 mm radiator and 140 mm P14 PWM-Fan, compatible Intel 1200, 115x, 2011-3, 2066, and AMD AM4, AM3
LongSummaryDescription - ARCTIC Liquid Freezer II - 420 - Multi Compatible All-In-One CPU Water Cooler. Type: All-in-one liquid cooler, Fan diameter: 14 cm, Maximum airflow: 72.8 cfm, Maximum air pressure: 2.4 mmH2O. Product colour: Black
Manufacturer - Arctic
Manufacturer_code - ACFRE00092A
Name - Arctic Liquid Freezer II 420 - ACFRE00092A
Name - Arctic Liquid Freezer II – chłodzenie wodne 420mm
Other features - Country of origin - China
Other features - Thermal grease - Yes

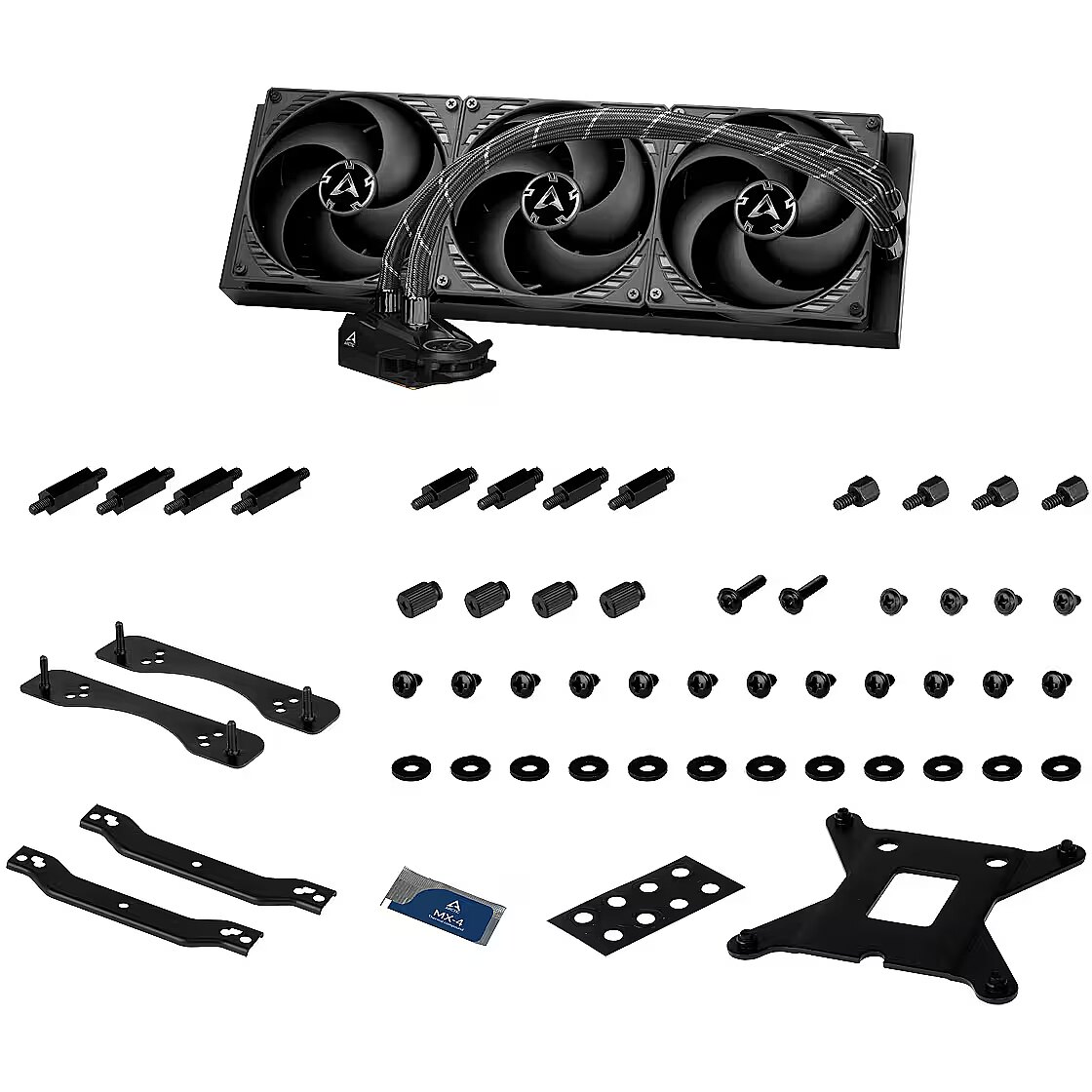

Packaging content - CPU bracket(s) - Yes
Packaging content - Package type - Box
Packaging content - Screws included - Yes
Performance - Fan bearing technology - Fluid Dynamic Bearing (FDB)
Performance - Fan diameter - 14 cm
Performance - Fan speed (max) - 1700 RPM
Performance - Fan speed (min) - 200 RPM
Performance - Maximum airflow - 72.8 cfm
Performance - Maximum air pressure - 2.4 mmH2O
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Pump motor speed (max) - 2000 RPM
Performance - Pump motor speed (min) - 800 RPM
Performance - Quantity per pack - 1 pc(s)
Performance - Suitable location - Processor
Performance - Supported processor sockets - LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 2011-v3 (Socket R), LGA 2066, Socket AM3, Socket AM3+, Socket AM4, Socket AM5
Performance - Type - All-in-one liquid cooler
Performance - VRM fan speed (max) - 3000 RPM
Performance - VRM fan speed (min) - 1000 RPM
Power - Fan current - 0.12 A
Power - Fan voltage - 12 V
Power - Pump power consumption - 1 W
Power - VRM fan power consumption - 2.7 W
Producer - Arctic
ProducerCode - ACFRE00092A
ProductName - Liquid Freezer II - 420 - Multi Compatible All-In-One CPU Water Cooler
ShortDescription -
ShortSummaryDescription - ARCTIC Liquid Freezer II - 420 - Multi Compatible All-In-One CPU Water Cooler, All-in-one liquid cooler, 14 cm, 72.8 cfm, Black

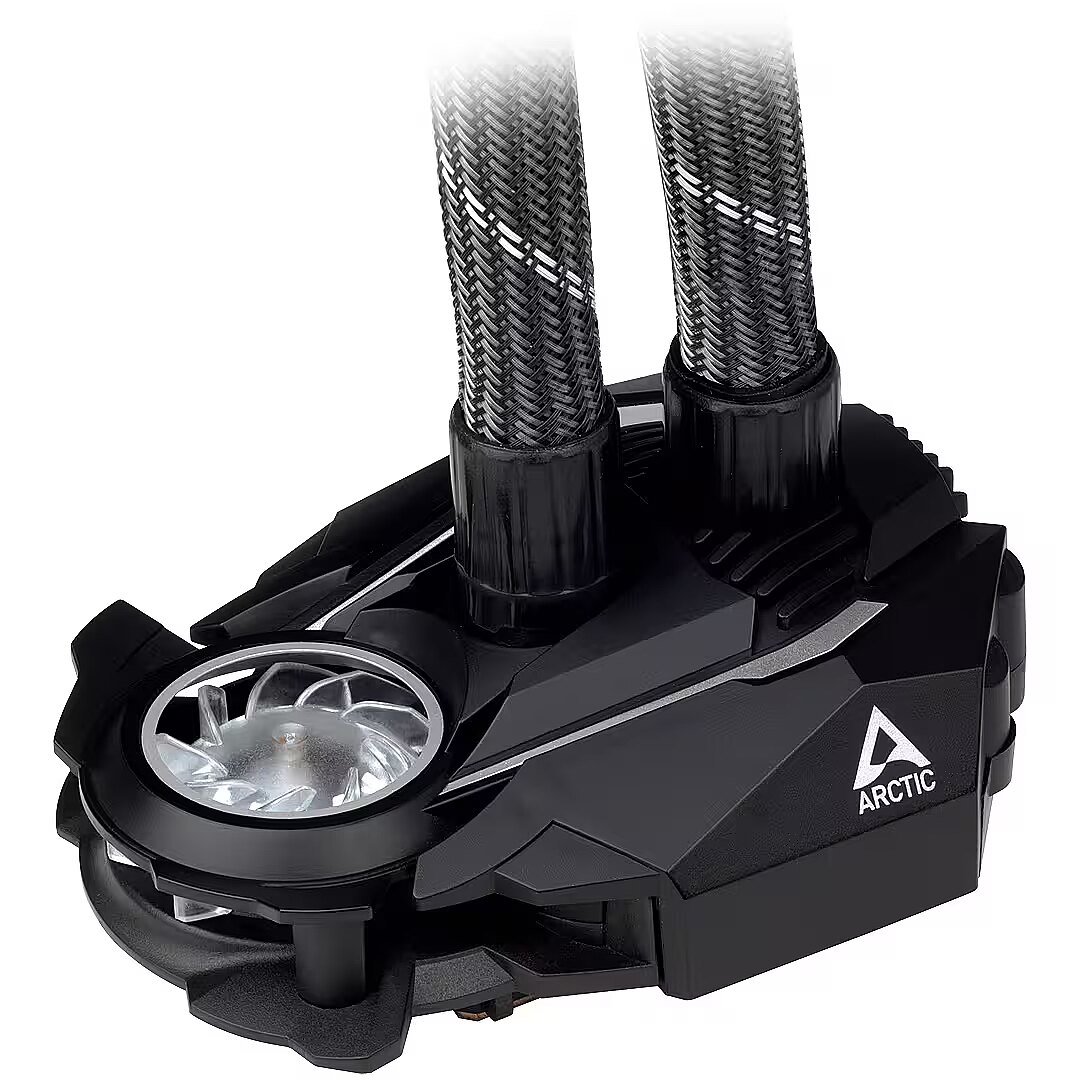

Technical_details - Liquid Freezer II 420mm, water cooling The Arctic Liquid Freezer II 420 is a multi-compatible all-in-one water cooler. The Liquid Freezer II combines the efficient PWM pump of the Liquid Freezer II with RGB fans optimized for static pressure. In this way you can achieve a completely different aesthetic with extremely low volume and equally low temperatures. The water pump has reduced hum and increased efficiency. Like the other components, it is also PWM controlled. This results in a significantly lower noise level at low and typical load, but also a much lower power consumption of 0.9W idle, 2.5W under typical load and 5.3W maximum under full load for the entire AiO. Unlike most other all-in-one liquid cooling manufacturers, Arctic relies on 38 mm thick radiators with a high fin density. A larger amount of water can be used in the circuit and the cooling surface can be significantly increased. The fibre-reinforced, long EPDM tubing of the Liquid Freezer II enables installation even in large housings and effectively prevents the cooling liquid from evaporating, so that you don't have to worry about refilling the compact water cooling system. Type: Water Cooling Color: Black EAN code: 4895213702812 Manufacturer part number: ACFRE00092A Type: Water Cooling Kit Suitable sockets: 1150, 1151, 1155, 1156, AM4, 2066, 1200 Fastening: screwed Loudness: 0.3 sones Speed: 200 to 1,700 rpm Heat sink material: copper Fan Bearing: FDB - Fluid Dynamic Bearing Airflow: 72.8cfm Air pressure: Up to 2.4 mm/H2O Radiator size: 3x 140 mm Pump: speeds | 1,000 rpm, 3,000 rpm System: closed system Power connector: 4-pin PWM Power consumption: 0.5 - 2.7 watts Feature: Fan with high static pressure for improved cooling performance (2.4 mm H2O), extended speed range 200 - 1700 rpm, low power consumption, less vibration and rubber buffers, improved service life, high-quality plain bearing, PWM for synchronous pump/fan control Accessories: available | including RGB controller Dimensions: Fan1 | Quantity: 3 pieces, width: 140 mm, height: 140 mm, depth: 25 mm Dimensions: Heatsink | Width: 138mm x Height: 38mm x Depth: 458mm Dimensions: Overall | Width: 138mm x Height: 63mm x Depth: 438mm Weight: Total | 1.6kg
Title - ARCTIC Liquid Freezer II - 420 - Multi Compatible All-In-One CPU Water Cooler
URL - https://www.arctic.ac/en/detail/18d9b925773146dfa33d96f3ade1ea9f
WarrantyInfo -
Weight - 3,00
Weight & dimensions - Fan dimensions (W x D x H) - 140 x 27 x 140 mm
Weight & dimensions - Package depth - 155 mm
Weight & dimensions - Package height - 170 mm
Weight & dimensions - Package weight - 2.73 kg
Weight & dimensions - Package width - 473 mm
Weight & dimensions - Pump depth - 5.3 cm
Weight & dimensions - Pump height - 7.8 cm
Weight & dimensions - Pump width - 9.8 cm
Weight & dimensions - Radiator depth - 13.8 cm
Weight & dimensions - Radiator height - 3.8 cm
Weight & dimensions - Radiator width - 45.8 cm
Weight & dimensions - Tube diameter - 1.24 cm
Weight & dimensions - Tube inner diameter - 6 mm
Weight & dimensions - Tube length - 45 cm
Weight & dimensions - Weight - 1.98 kg
