ID: 1048220
Product code: R-LS520-BKNNMM-G-1
In stock 13 units
Warranty: 2 years

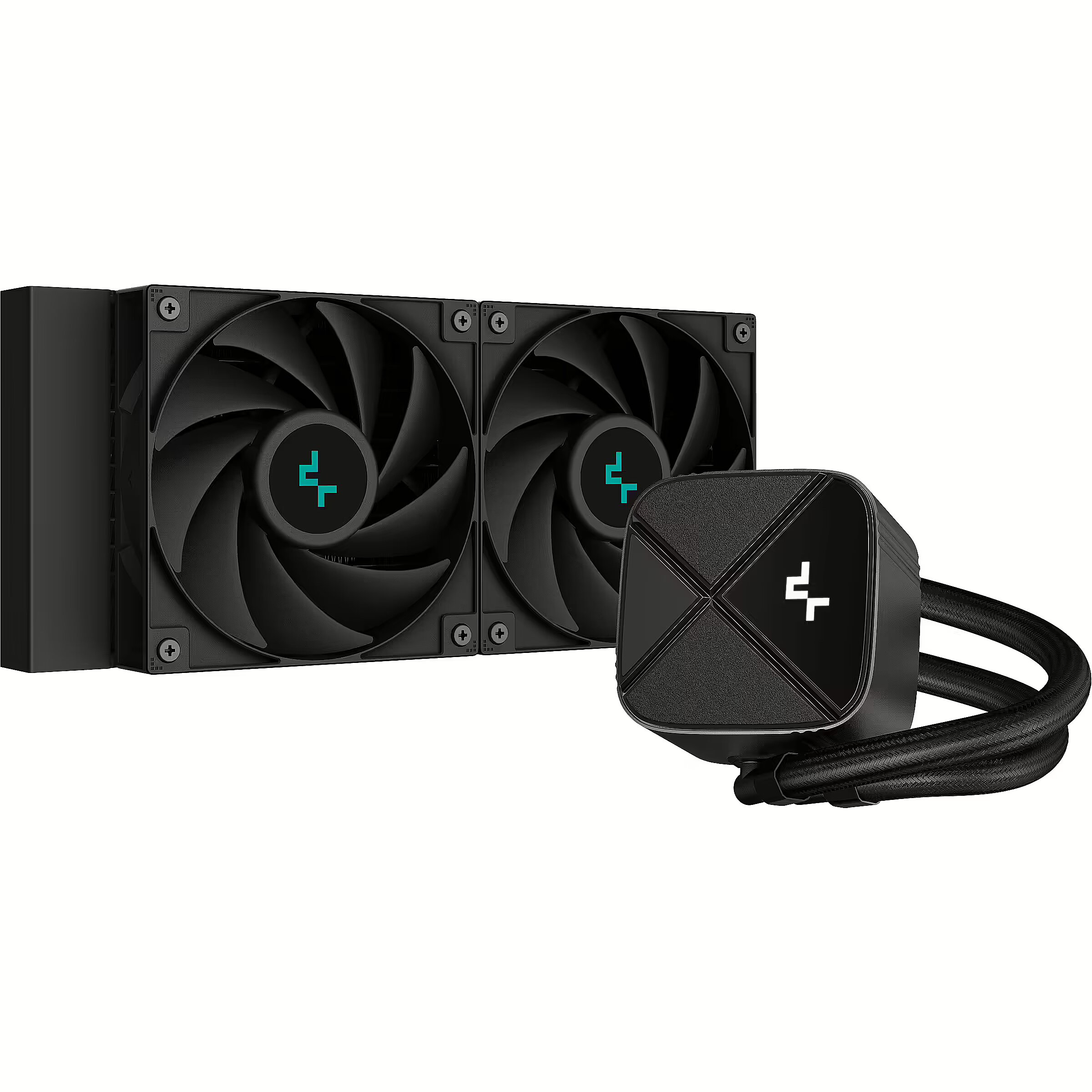

Deepcool LS520S Zero Dark, Liquid CPU Cooler
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: 19.11.2024
Main product parameters All parameters
- Colour of the LED lighting of the fans: Nav
- Cooling capacity (TDP), W: 280
- Number of fans: 2
- Producer: Deepcool
- Size, mm: 240
All parameters
Colour of the LED lighting of the fans
: Nav
Compatibility
: AM4, AM5, LGA1150, LGA1151, LGA1155, LGA1200, LGA1700
Cooling capacity (TDP), W
: 280
Fan colour
: Melna
Fan speed (MAX), rpm
: 1600
Fan speed (MIN), rpm
: 500
LCD display
: Nav
Noise level (MAX), dB(A)
: 32.9
Number of fans
: 2
Pipe length, mm
: 410
Producer
: Deepcool
Radiator colour
: Melna
Size, mm
: 240
More detailed specification
category - Liquid Cooling|Sets & Bundles|AIO Liquid Coolers|240 mm AiOs
code - R-LS520-BKNNMM-G-1
Code - R-LS520-BKNNMM-G-1

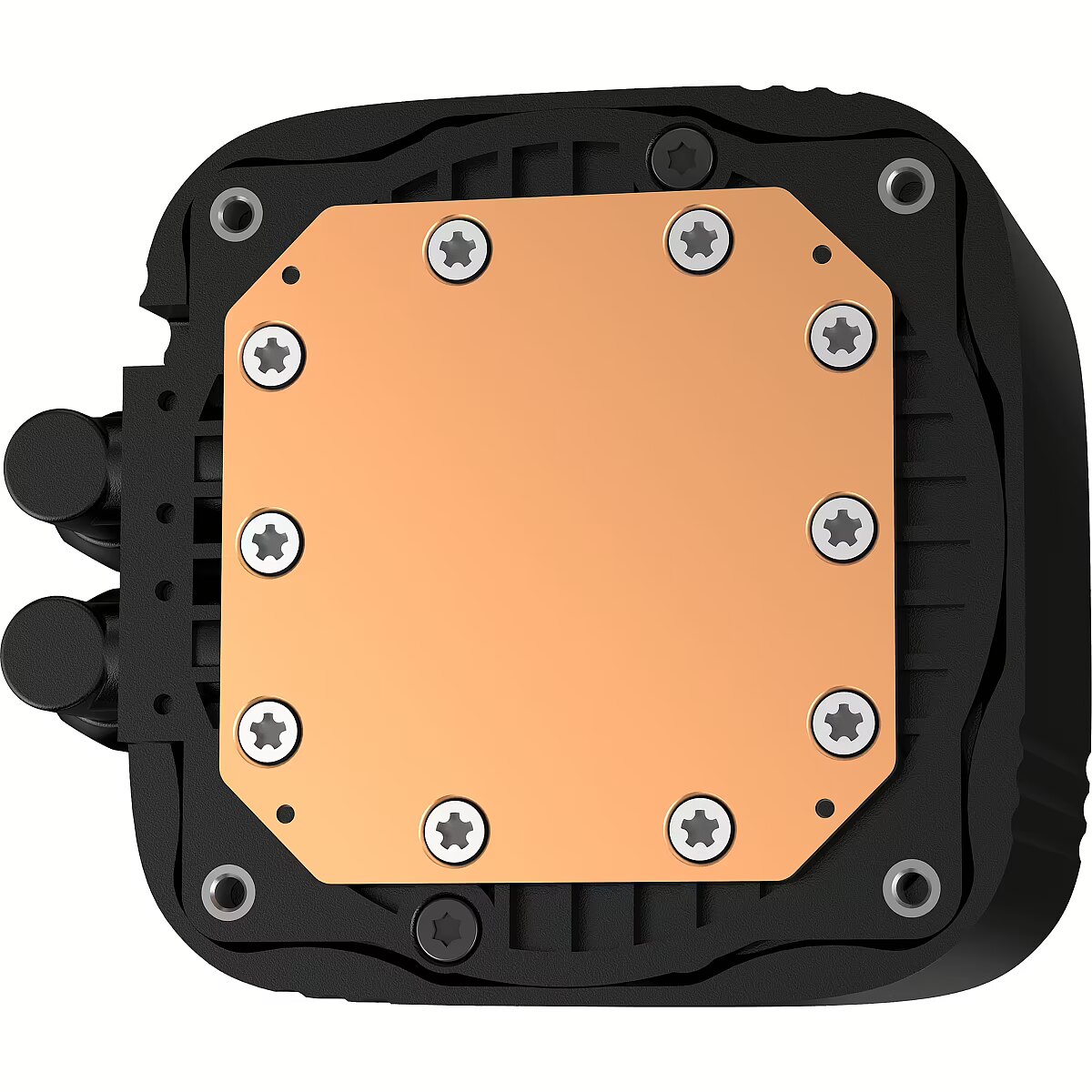

Design - Base plate material - Copper
Design - Fan connector - 4-pin
Design - Illumination colour - Multi
Design - Illumination LED - Yes
Design - LED connector type - 3-pin
Design - Number of fan blades - 9
Design - Number of fans - 2 fan(s)
Design - Product colour - Black
Design - Radiator material - Aluminum
dimensionalWeight - 2284
EAN - 6933412728429
ean - 6933412728429
name - DeepCool LS520S Zero Dark Komplett-Wasserkühlung, 240 mm - schwarz
Name - Deepcool | Digital Liquid CPU Cooler | LS520S ZERO DARK | Intel, AMD
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 420 mm
Package features > Gross height (mm) - 160 mm
Package features > Gross width (mm) - 160 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 556 pc(s)
Package features > Paper/Pasteboard - 450.00 g
Package features > Plastic (No PET) - 50.00 g
Package features > Tare weight (kg) - 0.50 kg
Package features > Volume (m3) - 0.010752 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - CPU bracket(s) - Yes

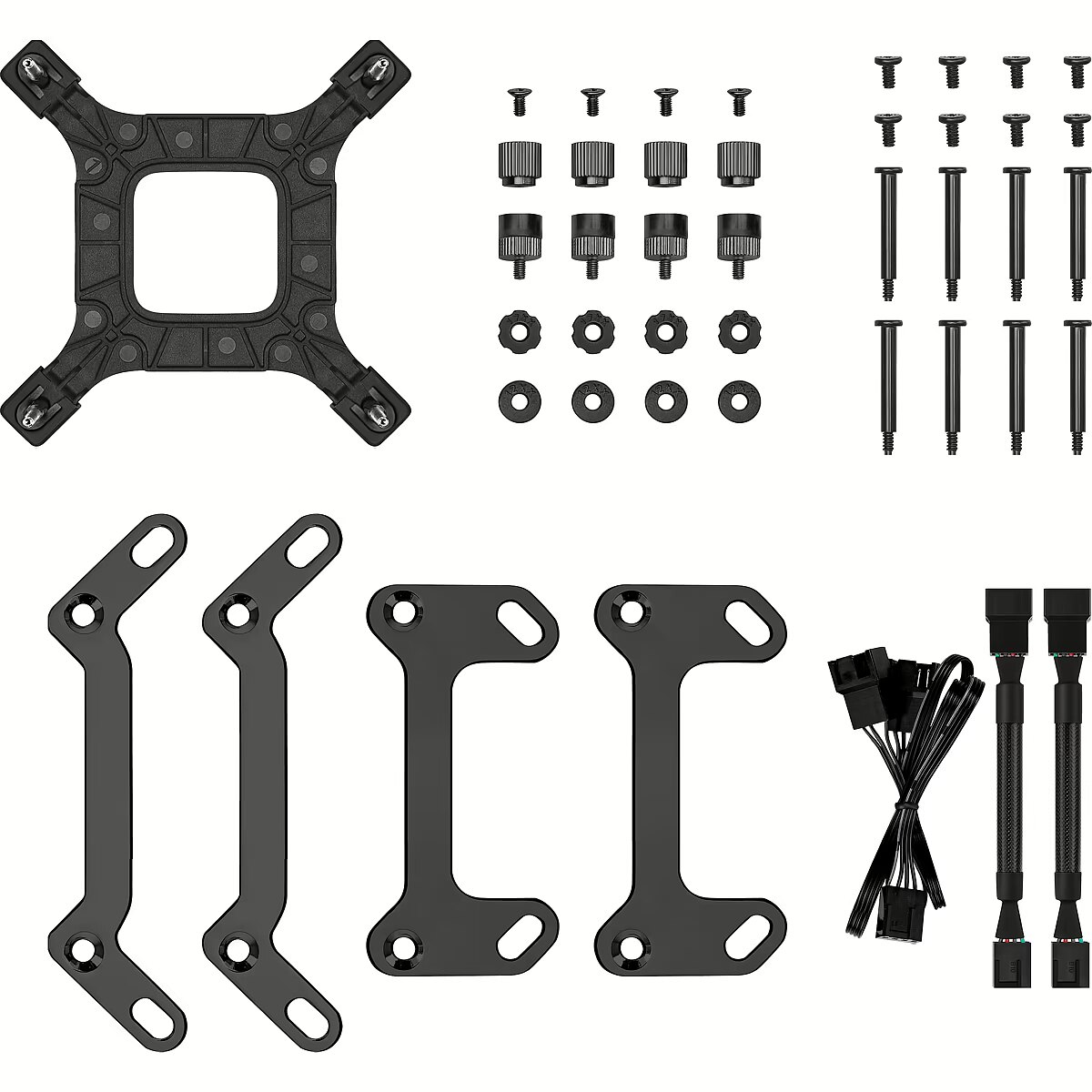

Packaging content - Mounting kit - Yes
Packaging content - Package type - Box
Packaging content - Screws included - Yes
Performance - Fan bearing technology - Hydro bearing
Performance - Fan diameter - 12 cm
Performance - Fan noise level (max) - 32.9 dB
Performance - Fan speed (max) - 2250 RPM
Performance - Fan speed (min) - 500 RPM
Performance - Maximum airflow - 85.85 cfm
Performance - Maximum air pressure - 3.27 mmH2O
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Pump motor speed - 3100 RPM
Performance - Pump noise level - 19 dB
Performance - Quantity per pack - 1 pc(s)
Performance - Suitable location - Processor
Performance - Supported processor sockets - LGA 1150 (Socket H3)
Performance - Supported processor sockets - LGA 1151 (Socket H4)
Performance - Supported processor sockets - LGA 1155 (Socket H2)
Performance - Supported processor sockets - LGA 1200 (Socket H5)
Performance - Supported processor sockets - LGA 1700
Performance - Supported processor sockets - Socket AM4
Performance - Supported processor sockets - Socket AM5
Performance - Type - All-in-one liquid cooler
Power - Fan current - 0.25 A
Power - Fan power consumption - 3 W
Power - Fan voltage - 12 V
Power - LED voltage - 5 V
Power - Pump current - 380 mA
Power - Pump power consumption - 4.56 W
Power - Pump voltage - 12 V
producerCode - R-LS520-BKNNMM-G-1
productName - WATER COOLING DEEPCOOL R-LS520
productSize - Normal
sizeX - 420
sizeY - 160
sizeZ - 170
Technical details > Gross weight - 1.80 kg
Technical details > Net weight - 1.30 kg
Technical details > Processor brand name - Intel, AMD
Technical details > Producer - Deepcool
Technical details > Producer product family - Digital Liquid CPU Cooler
Technical details > Producer product name - LS520S ZERO DARK
Technical details > Warranty - 24 month(s)
Warranty - 24
warrantyLength - 60
warrantyType - G
weight - 1850
Weight & dimensions - Fan dimensions (W x D x H) - 120 x 120 x 25 mm
Weight & dimensions - Fan thickness - 2.5 cm
Weight & dimensions - Pump depth - 7.3 cm
Weight & dimensions - Pump height - 5.5 cm
Weight & dimensions - Pump width - 8.5 cm

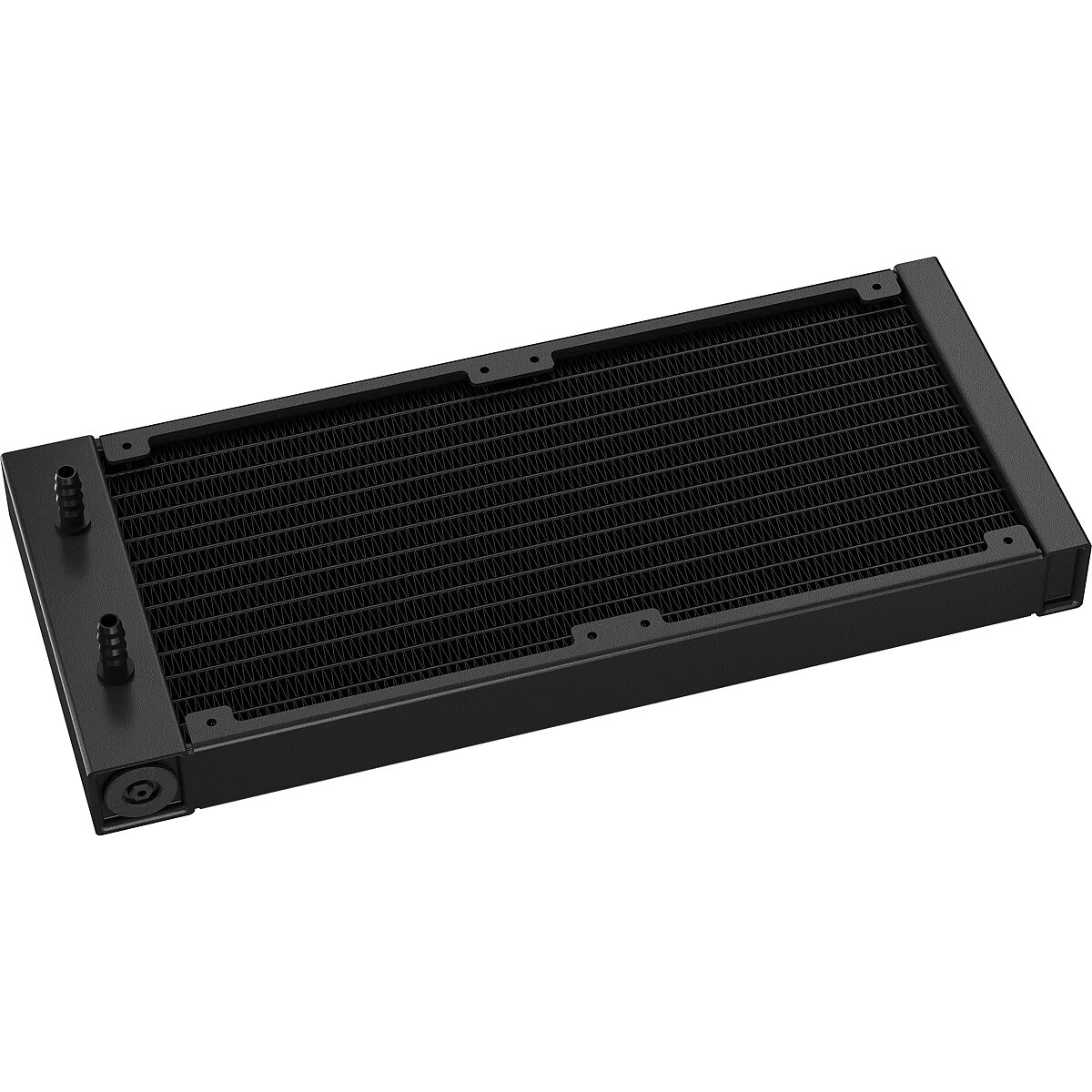

Weight & dimensions - Radiator depth - 28.2 cm
Weight & dimensions - Radiator height - 2.7 cm
Weight & dimensions - Radiator width - 12 cm
Weight & dimensions - Tube length - 41 cm
Weight & dimensions - Weight - 1.35 kg
