ID: 720640
Product code: FD-F-AS1-1405
Can be ordered 10 units Availability: 14 days after order approval
Warranty: 2 years

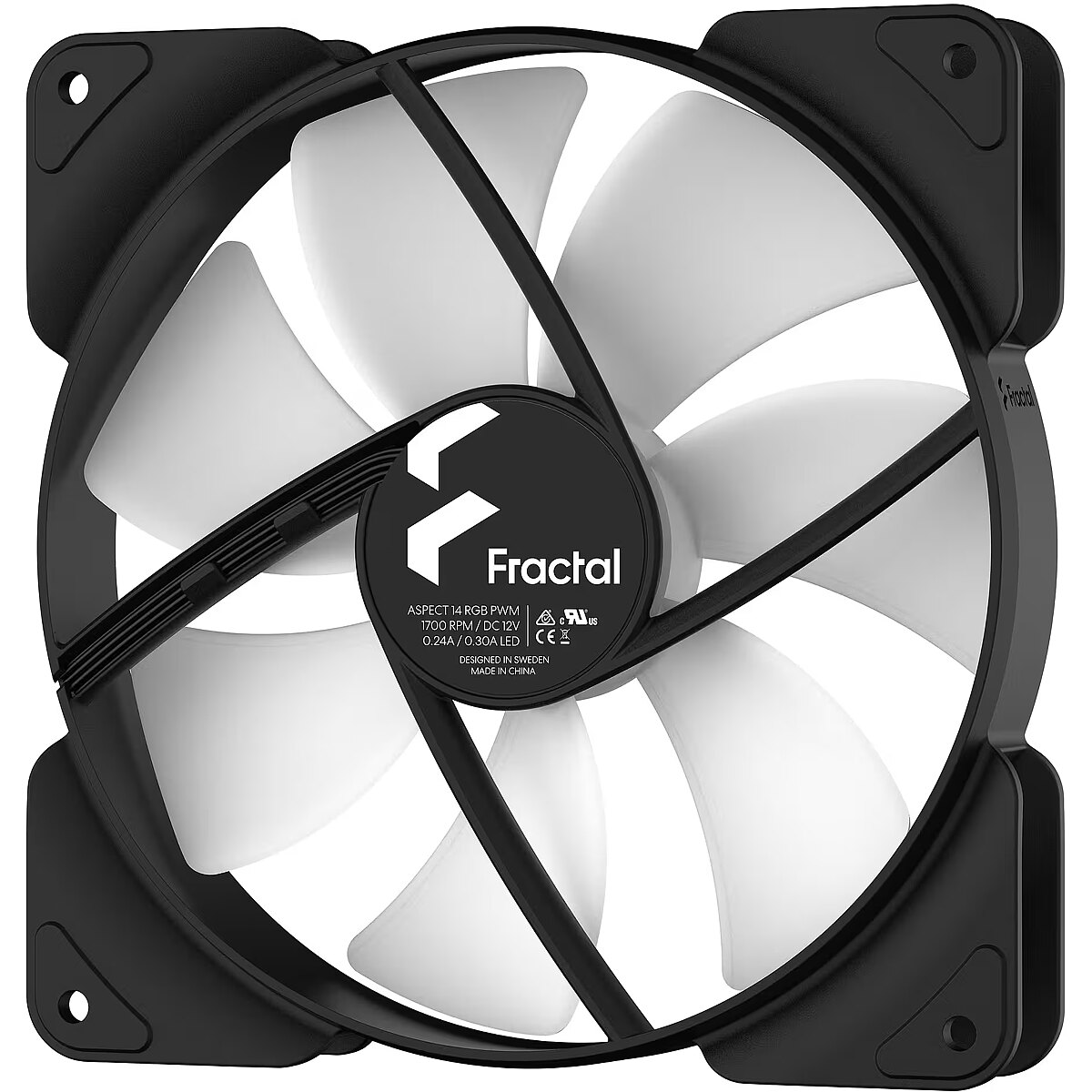

Fractal Design Aspect 14 RGB PWM Black Frame
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: 10.12.2024
Main product parameters All parameters
- Producer: Fractal Design
- LED izgaismojuma krāsa: RGB
- Output Interface: 4-pin (PWM)
- Revolutions (MIN), rpm: 500
- RPM (MAX), rpm: 1700
- Size, mm: 140
- Sound level (MAX), dB(A): 35.5
- Units in package: 1
All parameters
Producer
: Fractal Design
Type of lighting
: 5V RGB (3-pin)
Basic information
LED izgaismojuma krāsa
: RGB
Output Interface
: 4-pin (PWM)
RPM (MAX), rpm
: 1700
Size, mm
: 140
Sound level (MAX), dB(A)
: 35.5
Units in package
: 1
More detailed specification
Air flow rates - 78 cfm
Category_1 - Computer Cases and Cooling
Category_2 - Fans
Code - FD-F-AS1-1405
Connector type - 4-pin
Cooling technology - Air
Description - Wentylator Fractal Design Aspect 14 RGB PWM Black
Opierając się na podstawowej funkcjonalności popularnych na rynku, takich jak Dynamic i Prisma, seria Aspect wprowadza ekscytującą nową estetykę do gamy fanów Fractal. Godne uwagi cechy to aerodynamiczne rozpórki stojana zmniejszające turbulencje, technologia Trip Wire zwiększająca wydajność ostrza, łożyska karabinowe i wbudowane wsparcie łańcucha w celu uproszczenia zarządzania kablami. Mniejsze turbulencje dzięki aerodynamicznym rozpórkom stojana 6 indywidualnie adresowalnych diod LED RGB montowanych w koncentratorze Sterowanie PWM z szerokim zakresem prędkości obrotowej
dimension depth - 25 mm
dimension height - 210 mm
Dimensions - 140 x 140 x 25 mm
dimension weight - 190 g
dimension width - 140 mm
EAN - 7340172703372
ean - 7340172703372
EAN_code - 7340172703372
Fan - 14 cm
Fan speed (max) - 1700 rpm
Fan speed (min) - 500 rpm
guarantee - 24
guarantee_type - normal
Illumination - ARGB
Manufacturer - Fractal Design
Manufacturer_code - FD-F-AS1-1405
name - Aspect 14 RGB PWM Black Frame 140 mm
Name - Fractal Design Aspect 14 RGB PWM Black Frame - FD-F-AS1-1405
Name - Fractal Design | Aspect 14 RGB PWM Black Frame | Case fan
Noise - 10 dB
Number of fans - 1
Other features - Liczba ostrzy: 7 Typowa moc wejściowa wentylatora: 2,16 W Napięcie wejściowe wentylatora: 12 V MTTF: 90.000 h Długość kabla: 50 cm Kolor: czarny Napięcie znamionowe LED: 5 V Prąd znamionowy LED: 0,3 A Znamionowa moc wejściowa LED: 1,5 W
Other features > Air pressure - 0.3-2.05 mm-H2O
Other features > Bearing technology - Rifle
Other features > Rotational speed - 500-1700 RPM
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 170 mm
Package features > Gross depth master carton - 490 mm
Package features > Gross height (mm) - 30 mm
Package features > Gross height master carton - 349 mm
Package features > Gross width (mm) - 143 mm
Package features > Gross width master carton - 365 mm
Package features > Net weight master carton - 11.76 kg
Package features > Packing quantity - 60 pc(s)
Package features > Palette Qty - 1620 pc(s)
Package features > Paper/Pasteboard - 30.00 g
Package features > PET - 13 g
Package features > Plastic (No PET) - 300.00 g
Package features > Tare other - 12 g
Package features > Tare weight (kg) - 0.1 kg
Package features > Tare weight master carton - 0.624 kg
Package features > Volume (m3) - 0.0007293 m³
Package features > WEEE tax - No
Performance > Airflow - 34-132.5 m³/h
Performance > Type - Case fan
producer - Fractal Design
Technical details > Fan connector - 4-pin
Technical details > Gross weight - 0.196 kg
Technical details > Net weight - 0.096 kg
Technical details > Noise level (max) - 19.5 dB
Technical details > Other features - Less turbulence thanks to aerodynamic stator struts; 6 individually addressable hub-mounted RGB LEDs; Supports ASUS AURA, Gigabytes Fusion, MSI Mystic Light and ASRock Polychrome; Trip Wire technology introduces a micro-turbulent layer for enhanced blade efficiency; Supports chaining for both power and RGB wires to simplify cable management; Rifle bearings – more efficient than standard sleeve; Combines aesthetic design and reliable performance; PWM control with a wide RPM speed range (PWM versions only)
Technical details > Producer - Fractal Design
Technical details > Producer product name - Aspect 14 RGB PWM Black Frame
Type of cooling - Active
vendpn - FD-F-AS1-1405
Warranty - 24
Warranty - 24 month(s)
Weight - 0,19
Weight - 155 g
