ID: 720631
Product code: FD-F-AS1-1203
Can be ordered 10 units Availability: 14 days after order approval
Warranty: 2 years

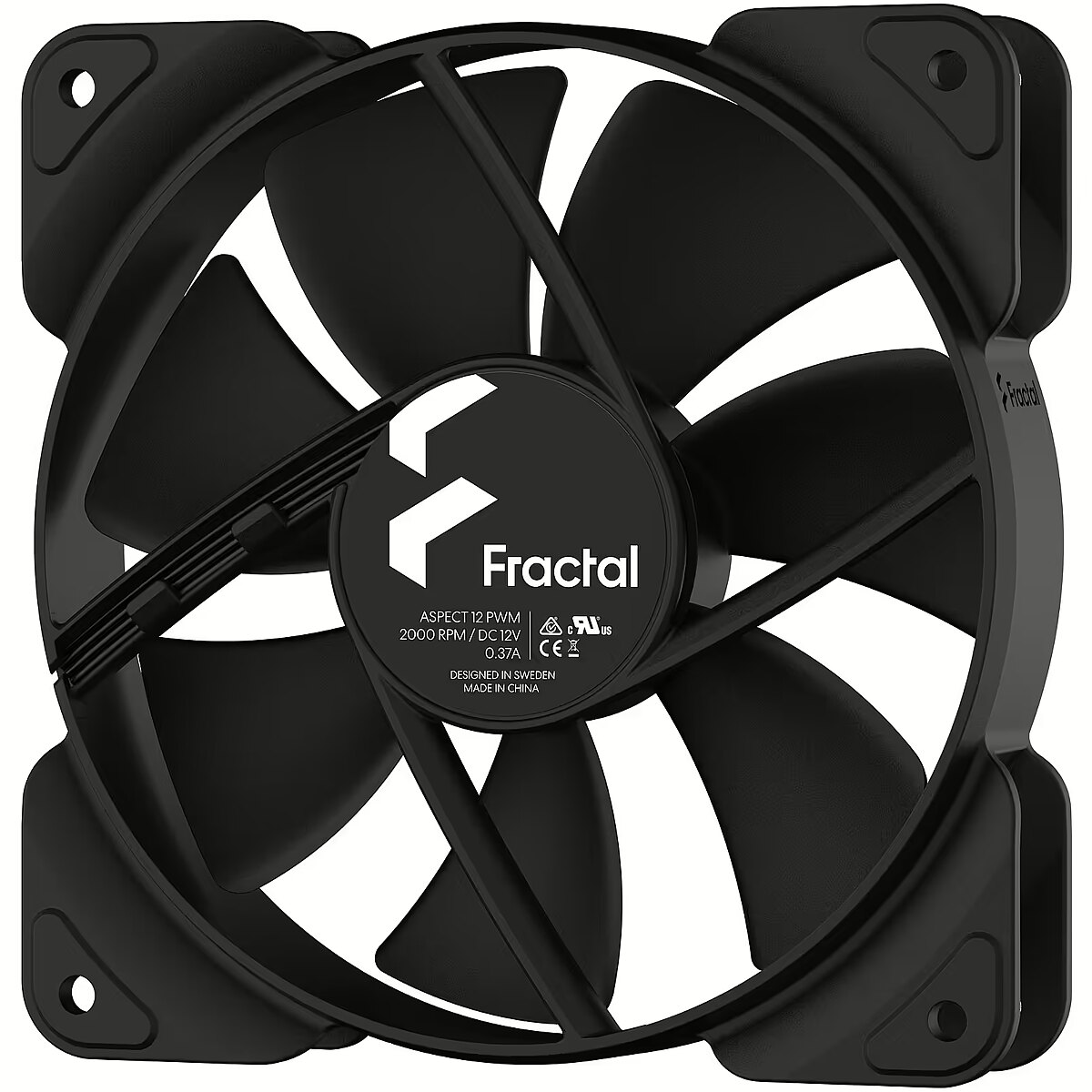

Fractal Design Aspect 12 PWM
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: 10.12.2024
Main product parameters All parameters
- Producer: Fractal Design
- LED izgaismojuma krāsa: Nav
- Output Interface: 4-pin (PWM)
- Revolutions (MIN), rpm: 500
- RPM (MAX), rpm: 2000
- Size, mm: 120
- Sound level (MAX), dB(A): 33.2
- Units in package: 1
All parameters
Producer
: Fractal Design
Basic information
LED izgaismojuma krāsa
: Nav
Output Interface
: 4-pin (PWM)
RPM (MAX), rpm
: 2000
Size, mm
: 120
Sound level (MAX), dB(A)
: 33.2
Units in package
: 1
More detailed specification
Air flow rates - 56 cfm
Category_1 - Computer Cases and Cooling
Category_2 - Fans
Code - FD-F-AS1-1203
Connector type - 4-pin
Cooling technology - Air
Description - Wentylator Fractal Design Aspect 12 PWM Black
Opierając się na podstawowej funkcjonalności popularnych na rynku, takich jak Dynamic i Prisma, seria Aspect wprowadza ekscytującą nową estetykę do gamy fanów Fractal. Godne uwagi cechy to aerodynamiczne rozpórki stojana zmniejszające turbulencje, technologia Trip Wire zwiększająca wydajność ostrza, łożyska karabinowe i wbudowane wsparcie łańcucha w celu uproszczenia zarządzania kablami. Mniejsze turbulencje dzięki aerodynamicznym rozpórkom stojana Technologia Trip Wire wprowadza warstwę mikroturbulentną dla zwiększenia wydajności ostrza Sterowanie PWM z szerokim zakresem prędkości obrotowej
Design > Colour of product - Black
dimension depth - 25 mm
dimension height - 190 mm
Dimensions - 120 x 120 x 25 mm
dimension weight - 185 g
dimension width - 120 mm
EAN - 7340172703303
ean - 7340172703303
EAN_code - 7340172703303
Fan - 12 cm
Fan speed (max) - 2000 rpm
Fan speed (min) - 500 rpm
guarantee - 24
guarantee_type - normal
Illumination - No
Manufacturer - Fractal Design
Manufacturer_code - FD-F-AS1-1203
name - Aspect 12 PWM Fan Black 120 mm
Name - Fractal Design Aspect 12 PWM Black - FD-F-AS1-1203
Name - Fractal Design | Aspect 12 PWM | Black | Case fan
Noise - 10 dB
Number of fans - 1
Other features - Liczba ostrzy: 7 Typowa moc wejściowa wentylatora: 1,68 W Napięcie wejściowe wentylatora: 12 V MTTF: 90.000 h Długość kabla: 50 cm Kolor: czarny
Other features > Bearing technology - Rifle
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 150 mm
Package features > Gross height (mm) - 30 mm
Package features > Gross width (mm) - 123 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Paper/Pasteboard - 22.00 g
Package features > Plastic (No PET) - 7.00 g
Package features > Tare weight (kg) - 0.02 kg
Package features > Volume (m3) - 0.0005535 m³
Package features > WEEE tax - No
Performance > Maximum airflow - 56 cfm
Performance > Maximum air pressure - 2.34 mmH2O
Performance > Minimum airflow - 13 cfm
Performance > Minimum air pressure - 0.230 mmH2O
Performance > Type - Case fan
producer - Fractal Design
Technical details > Fan connector - 4-pin
Technical details > Fan speed (max) - 2000 RPM
Technical details > Fan speed (min) - 500 RPM
Technical details > Gross weight - 0.163 kg
Technical details > Net weight - 0.141 kg
Technical details > Noise level (max) - Technical details > Other features - Less turbulence thanks to aerodynamic stator struts; Trip Wire technology introduces a micro-turbulent layer for enhanced blade efficiency; Supports chaining to simplify cable management; Rifle bearings – more efficient than standard sleeve; Combines aesthetic design and reliable performance; PWM control with a wide RPM speed range
Technical details > Producer - Fractal Design
Technical details > Producer product name - Aspect 12 PWM
Type of cooling - Active
vendpn - FD-F-AS1-1203
Warranty - 24
Warranty - 24 month(s)
Weight - 0,16
Weight - 135 g
Weight & dimensions > Fan dimensions (W x D x H) - 120 x 120 x 25 mm
Category_1 - Computer Cases and Cooling
Category_2 - Fans
Code - FD-F-AS1-1203
Connector type - 4-pin
Cooling technology - Air
Description - Wentylator Fractal Design Aspect 12 PWM Black
Opierając się na podstawowej funkcjonalności popularnych na rynku, takich jak Dynamic i Prisma, seria Aspect wprowadza ekscytującą nową estetykę do gamy fanów Fractal. Godne uwagi cechy to aerodynamiczne rozpórki stojana zmniejszające turbulencje, technologia Trip Wire zwiększająca wydajność ostrza, łożyska karabinowe i wbudowane wsparcie łańcucha w celu uproszczenia zarządzania kablami. Mniejsze turbulencje dzięki aerodynamicznym rozpórkom stojana Technologia Trip Wire wprowadza warstwę mikroturbulentną dla zwiększenia wydajności ostrza Sterowanie PWM z szerokim zakresem prędkości obrotowej
Design > Colour of product - Black
dimension depth - 25 mm
dimension height - 190 mm
Dimensions - 120 x 120 x 25 mm
dimension weight - 185 g
dimension width - 120 mm
EAN - 7340172703303
ean - 7340172703303
EAN_code - 7340172703303
Fan - 12 cm
Fan speed (max) - 2000 rpm
Fan speed (min) - 500 rpm
guarantee - 24
guarantee_type - normal
Illumination - No
Manufacturer - Fractal Design
Manufacturer_code - FD-F-AS1-1203
name - Aspect 12 PWM Fan Black 120 mm
Name - Fractal Design Aspect 12 PWM Black - FD-F-AS1-1203
Name - Fractal Design | Aspect 12 PWM | Black | Case fan
Noise - 10 dB
Number of fans - 1
Other features - Liczba ostrzy: 7 Typowa moc wejściowa wentylatora: 1,68 W Napięcie wejściowe wentylatora: 12 V MTTF: 90.000 h Długość kabla: 50 cm Kolor: czarny
Other features > Bearing technology - Rifle
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 150 mm
Package features > Gross height (mm) - 30 mm
Package features > Gross width (mm) - 123 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Paper/Pasteboard - 22.00 g
Package features > Plastic (No PET) - 7.00 g
Package features > Tare weight (kg) - 0.02 kg
Package features > Volume (m3) - 0.0005535 m³
Package features > WEEE tax - No
Performance > Maximum airflow - 56 cfm
Performance > Maximum air pressure - 2.34 mmH2O
Performance > Minimum airflow - 13 cfm
Performance > Minimum air pressure - 0.230 mmH2O
Performance > Type - Case fan
producer - Fractal Design
Technical details > Fan connector - 4-pin
Technical details > Fan speed (max) - 2000 RPM
Technical details > Fan speed (min) - 500 RPM
Technical details > Gross weight - 0.163 kg
Technical details > Net weight - 0.141 kg
Technical details > Noise level (max) - Technical details > Other features - Less turbulence thanks to aerodynamic stator struts; Trip Wire technology introduces a micro-turbulent layer for enhanced blade efficiency; Supports chaining to simplify cable management; Rifle bearings – more efficient than standard sleeve; Combines aesthetic design and reliable performance; PWM control with a wide RPM speed range
Technical details > Producer - Fractal Design
Technical details > Producer product name - Aspect 12 PWM
Type of cooling - Active
vendpn - FD-F-AS1-1203
Warranty - 24
Warranty - 24 month(s)
Weight - 0,16
Weight - 135 g
Weight & dimensions > Fan dimensions (W x D x H) - 120 x 120 x 25 mm
