ID: 601152
Product code: ACFAN00150A
In stock 27 units / In office 1 units
Warranty: 2 years

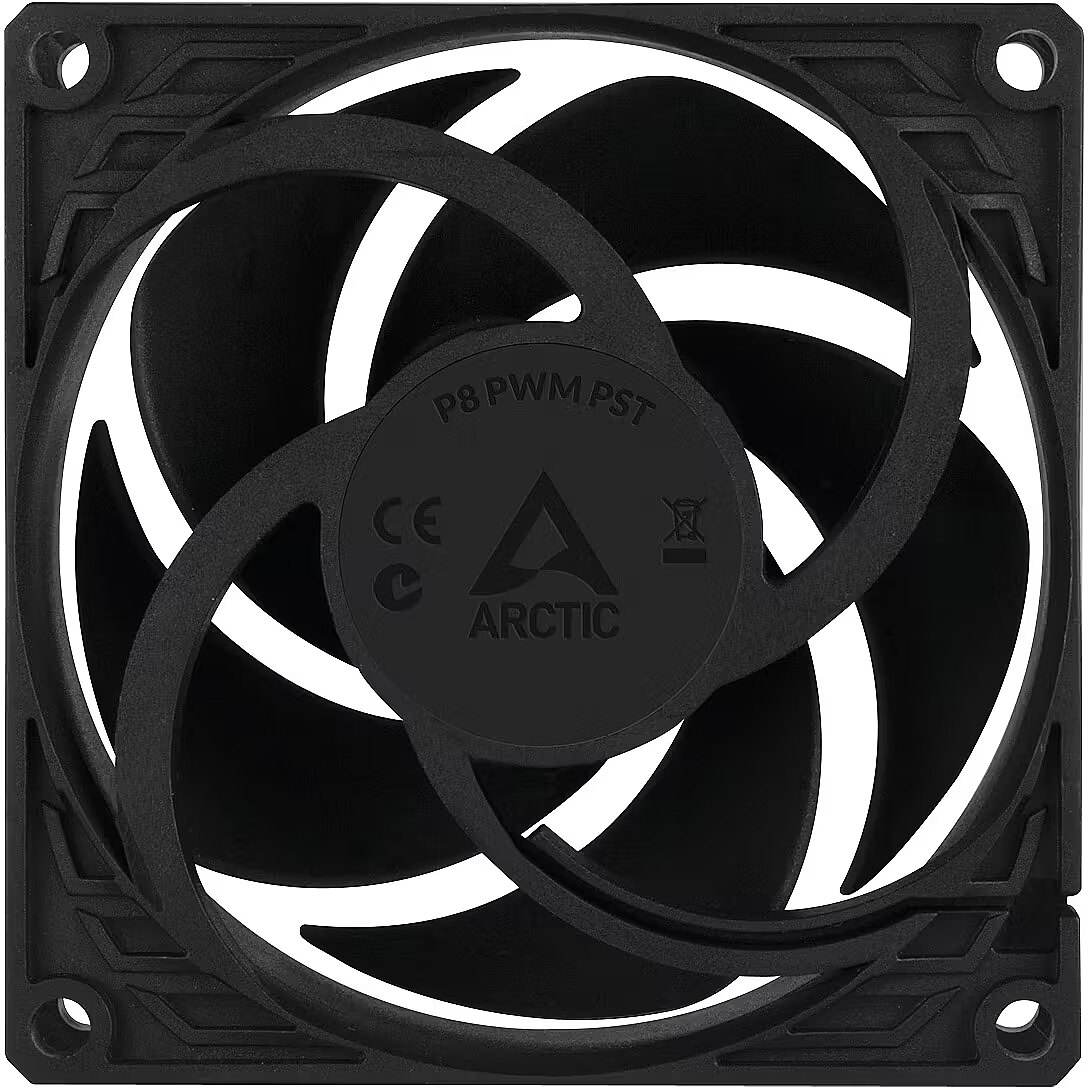

Arctic P8 PWM PST, Black
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: on Wednesday, 27.11.2024
Main product parameters All parameters
- Producer: Arctic
- LED izgaismojuma krāsa: Nav
- Output Interface: 4-pin (PWM)
- Revolutions (MIN), rpm: 200
- RPM (MAX), rpm: 3000
- Size, mm: 80
- Sound level (MAX), dB(A): 23.5
- Units in package: 1
All parameters
Producer
: Arctic
Type of lighting
: Bez apgaismojuma
Basic information
LED izgaismojuma krāsa
: Nav
Output Interface
: 4-pin (PWM)
RPM (MAX), rpm
: 3000
Size, mm
: 80
Sound level (MAX), dB(A)
: 23.5
Units in package
: 1
More detailed specification
Air flow - 23.4 cfm
Bearing type - Fluid
Brand - ARCTIC
BrandPartCode - ACFAN00150A
BrandPartCode - ACFAN00154A
category - Aircooling|Fans|PWM Fans
Category - Computer Cooling Systems
Category - Root/Electronics/PC parts/Cooling/Casing fans
Category Code - COS
code - ACFAN00150A
Colour - Black
Description - P8 PWM PST Pressure-optimised 80 mm Fan with PWM PST During the development of the new P8 PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P8 PWM PST is particularly suitable for use on heatsinks and radiators.
Design - Fan connector - 4-pin
Design - Number of fan blades - 5
Design - Number of fans - 1 fan(s)
Design - Number of fans - 5 fan(s)
Design - Product colour - Black
Dimensions - 80x80x25mm
ean - 4895213702034
EAN - 4895213702072
Eans - 4895213702034
Fan size group - 80mm
Fan speed - 200 - 3000 rpm
Full Description Line - P8 PWM PST|Air flow 23.4 cfm|Colour Black|Dimensions 80x80x25mm
Gross Weight Kg - 0,1
GTIN - 4895213702034
GTIN - 4895213702072
LongDesc - Not only that we at ARCTIC free the IT world from noise – we care for the right sound as well!As an international company, our expertise extends over noise reduction in PCs to consumer electronics products.
LongProductName - 80 x 25 mm, 200 - 3000 RPM, 23.4 CFM, 40.3 m³/h, 0.3 Sone, 12V DC, 81 g
LongProductName - 80 x 25 mm, 200 - 3000 RPM, 23.4 CFM, 40.3 m³/h, 0.3 Sone, 12V DC, 81 g, Value Pack
LongSummaryDescription - ARCTIC P8 PWM PST - Pressure-optimised 80 mm Fan with PWM PST. Type: Fan, Fan diameter: 8 cm, Rotational speed (min): 200 RPM, Rotational speed (max): 3000 RPM, Noise level: 0.3 sone, Maximum airflow: 23.4 cfm, Airflow: 40.3 m³/h, Maximum air pressure: 1.9 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 80 mm, Depth: 25 mm, Height: 80 mm. Product colour: Black
LongSummaryDescription - ARCTIC P8 PWM PST Value Pack - Pressure-optimised 80 mm Fan with PWM PST. Type: Fan, Fan diameter: 8 cm, Rotational speed (min): 200 RPM, Rotational speed (max): 3000 RPM, Noise level: 0.3 sone, Maximum airflow: 23.4 cfm, Airflow: 40.3 m³/h, Maximum air pressure: 1.9 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 80 mm, Depth: 25 mm, Height: 80 mm. Product colour: Black
Mainboard connection - 4-pin
Manufacturer Code - ACFAN00150A
Manufacturer Name - Arctic Cooling
Model - ACFAN00150A
Model name - P8 PWM PST
name - Arctic P8 PWM PST Lüfter, schwarz - 80 mm
Name - Arctic P8 PWM PST wentylator, czarny - 80 mm
Other features - Country of origin - China
Other features - Mounting hole pattern (W x D) - 71.5 x 71.5 mm
Packaging content - Manual - Yes
Packaging content - Number of screws - 4

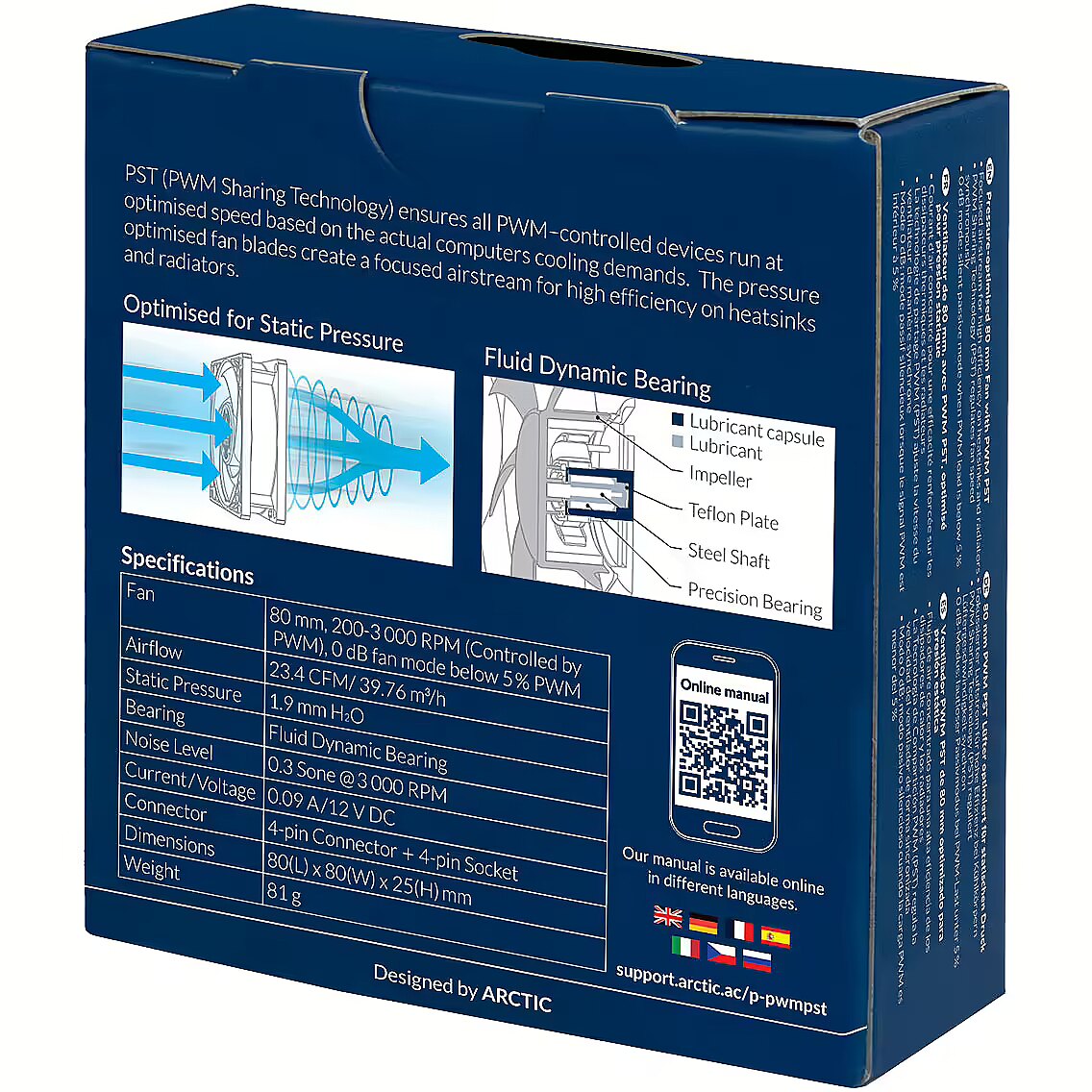

Packaging content - Package type - Box
Packaging content - Screws included - Yes
Performance - Airflow - 40.3 m³/h
Performance - Bearing type - Fluid Dynamic Bearing (FDB)
Performance - Compatible processor series - Not supported
Performance - Fan diameter - 8 cm
Performance - Maximum airflow - 23.4 cfm
Performance - Maximum air pressure - 1.9 mmH2O
Performance - Noise level - 0.3 sone
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Rotational speed (max) - 3000 RPM
Performance - Rotational speed (min) - 200 RPM
Performance - Suitable location - Computer case
Performance - Supported processor sockets - Not supported
Performance - Type - Fan
Power - Voltage - 12 V
Producer - Arctic
ProducerCode - ACFAN00150A
ProductName - P8 PWM PST - Pressure-optimised 80 mm Fan with PWM PST
ProductName - P8 PWM PST Value Pack - Pressure-optimised 80 mm Fan with PWM PST
Shipping Box Depth Shipping/Package Box Dimensions - 44 cm
Shipping Box Height Shipping/Package Box Dimensions - 29 cm
Shipping box quantity - 150
Shipping Box Weight Shipping/Package Box Dimensions - 15.4 kg
Shipping Box Width Shipping/Package Box Dimensions - 26 cm
ShortDescription -
Short description - Lüfter Gehäuse Arctic P8 PWM PST (black) / 4-pin
ShortSummaryDescription - ARCTIC P8 PWM PST - Pressure-optimised 80 mm Fan with PWM PST, Fan, 8 cm, 3000 RPM, 0.3 sone, 23.4 cfm, 40.3 m³/h
ShortSummaryDescription - ARCTIC P8 PWM PST Value Pack - Pressure-optimised 80 mm Fan with PWM PST, Fan, 8 cm, 3000 RPM, 0.3 sone, 23.4 cfm, 40.3 m³/h
Title - ARCTIC P8 PWM PST - Pressure-optimised 80 mm Fan with PWM PST
Title - ARCTIC P8 PWM PST Value Pack - Pressure-optimised 80 mm Fan with PWM PST
Unit Brutto Volume - 0.0002212 cubm
Unit Gross Weight - 0.103 kg
Unit Net Weight - 0.081 kg
URL - https://www.arctic.ac/eu_en/p8-pwm-pst.html
Vendor Homepage - www.arctic.de/en/P8-PWM-PST/ACFAN00150A
Warranty - 24 months
WarrantyInfo - 10 year
Weight & dimensions - Cable length - 0.4 m
Weight & dimensions - Depth - 25 mm
Weight & dimensions - Height - 80 mm
Weight & dimensions - Package depth - 26 mm
Weight & dimensions - Package depth - 86 mm
Weight & dimensions - Package height - 82.5 mm
Weight & dimensions - Package height - 89 mm
Weight & dimensions - Package weight - 99 g
Weight & dimensions - Package weight - 463 g
Weight & dimensions - Package width - 82.5 mm
Weight & dimensions - Package width - 127 mm
Weight & dimensions - Weight - 81 g
Weight & dimensions - Width - 80 mm
