ID: 600631
Product code: ACFAN00121A
In stock 30 units
Warranty: 2 years

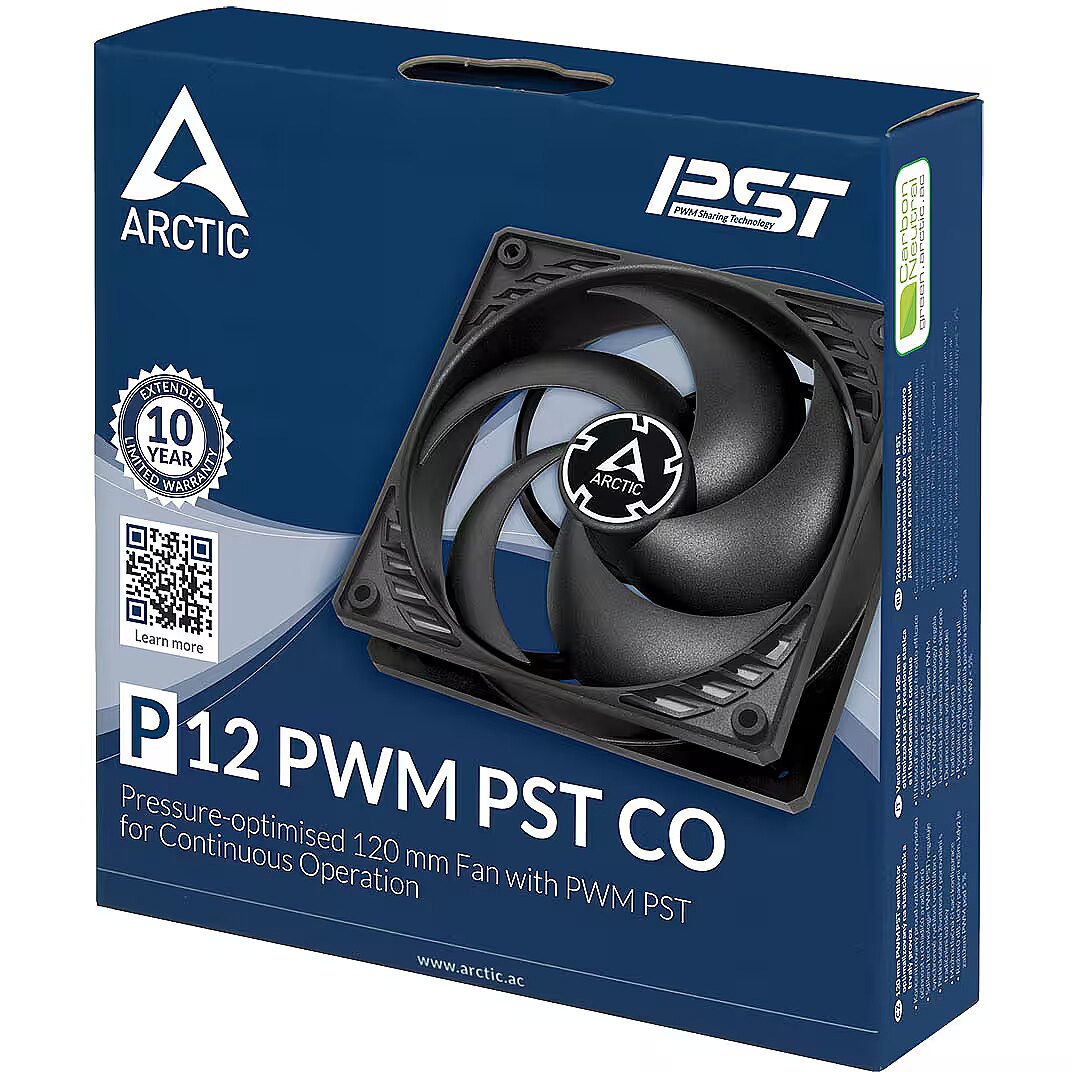

Arctic P12 PWM PST CO, Black
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: on Wednesday, 27.11.2024
Main product parameters All parameters
- Producer: Arctic
- LED izgaismojuma krāsa: Nav
- Output Interface: 4-pin (PWM)
- Revolutions (MIN), rpm: 200
- RPM (MAX), rpm: 1800
- Size, mm: 120
- Sound level (MAX), dB(A): 22.5
- Units in package: 1
All parameters
Producer
: Arctic
Type of lighting
: Bez apgaismojuma
Basic information
LED izgaismojuma krāsa
: Nav
Output Interface
: 4-pin (PWM)
RPM (MAX), rpm
: 1800
Size, mm
: 120
Sound level (MAX), dB(A)
: 22.5
Units in package
: 1
More detailed specification
Air flow - 56.3 cfm
Bearing type - Ball
Brand - ARCTIC
BrandPartCode - ACFAN00121A
category - Aircooling|Fans|PWM Fans
Category - Computer Cooling Systems
Category 1 - Gehäuse
Category 2 - Gehäuselüfter
Category Code - COS
code - ACFAN00121A
Colour - Black
Description - P12 PWM PST CO STRONG COOLING PERFORMANCE Numerous improvements, such as an updated engine technology and a newly developed fan design, have noticeably increased the performance of P-fans. In internal performance tests leveled to 28 dB (A), the new P-fans left many competitors behind. More information can be found in our FAQ.
Design - Fan connector - 4-pin + 4-pin
Design - Number of fan blades - 5
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
ean - 4895213701358
EAN - 4895213701358
Fan size group - 120mm
Fan speed - 200 - 1800 rpm
Full Description Line - P12 PWM PST CO|Air flow 56.3 cfm|Colour Black
GTIN - 0872767009301
GTIN - 872767009301
GTIN - 4895213701358
Logistics data - Harmonized System (HS) code - 84733080
LongDesc - Our coolers have pushed the limits further every year - and all that at dropping noise levels. We have put our utmost effort into innovative technologies and fair prices, what made us well known for products with an unparalleled price/performance ratio. We provide you headroom for over-clocking and guarantee you lowest noise levels at affordable prices.
LongProductName - 120 mm, 200 - 1800 RPM, PWM, 56.3 CFM, 95.65 m3/h, 12 V DC, 4-pin + 4-pin, 145 g
LongSummaryDescription - ARCTIC P12 PWM PST CO Pressure-optimised 120 mm Fan with PWM PST for Continuous Operation. Type: Fan, Fan diameter: 12 cm, Rotational speed (min): 200 RPM, Rotational speed (max): 1800 RPM, Noise level (high speed): 24.5 dB, Noise level: 0.3 sone, Maximum airflow: 56.3 cfm, Airflow: 95.65 m³/h, Maximum air pressure: 2.2 mmH2O, Bearing type: Dual ball bearing. Voltage: 12 V. Width: 120 mm, Depth: 120 mm, Height: 25 mm. Product colour: Black
Mainboard connection - 4-pin
Manufacturer - ARCTIC
Model - ACFAN00121A
Model name - P12 PWM PST CO
MPN - ACFAN00121A
Name - 120mm Arctic P12 PWM PST CO 24/7
name - Arctic P12 PWM PST CO Lüfter, schwarz - 120mm
Other features - Country of origin - China
Packaging content - Number of screws - 4
Packaging content - Package type - Box
Packaging content - Screws included - Yes
Performance - Airflow - 95.65 m³/h
Performance - Bearing type - Dual ball bearing
Performance - Compatible processor series - Not supported
Performance - Fan diameter - 12 cm
Performance - Maximum airflow - 56.3 cfm
Performance - Maximum air pressure - 2.2 mmH2O
Performance - Noise level - 0.3 sone
Performance - Noise level (high speed) - 24.5 dB
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Rotational speed (max) - 1800 RPM
Performance - Rotational speed (min) - 200 RPM
Performance - Suitable location - Computer case
Performance - Supported processor sockets - Not supported
Performance - Type - Fan
Power - Power consumption (typical) - 0.96 W
Power - Rated current - 0.08 A
Power - Starting voltage - 3.9 V
Power - Voltage - 12 V
ProductName - P12 PWM PST CO Pressure-optimised 120 mm Fan with PWM PST for Continuous Operation
Shipping Box Depth Shipping/Package Box Dimensions - 39 cm
Shipping Box Height Shipping/Package Box Dimensions - 52 cm
Shipping box quantity - 72
Shipping Box Weight Shipping/Package Box Dimensions - 12.9 kg
Shipping Box Width Shipping/Package Box Dimensions - 18 cm
ShortSummaryDescription - ARCTIC P12 PWM PST CO Pressure-optimised 120 mm Fan with PWM PST for Continuous Operation, Fan, 12 cm, 1800 RPM, 24.5 dB, 56.3 cfm, 95.65 m³/h
Title - ARCTIC P12 PWM PST CO Pressure-optimised 120 mm Fan with PWM PST for Continuous Operation
Unit Box Height - 0.025
Unit Box Length - 0.12
Unit Box Width - 0.12
Unit Brutto Volume - 0.000507 cubm
Unit Gross Weight - 0.179 kg
Unit Net Weight - 0.145 kg
URL - https://www.arctic.ac/eu_en/p12-pwm-pst-co.html
Vendor Homepage - www.arctic.de/en/P12-PWM-PST-CO/ACFAN00121A
Warranty - 24 months
WarrantyInfo - 10 years
Weight - 0.16
Weight & dimensions - Cable length - 0.4 m
Weight & dimensions - Depth - 120 mm
Weight & dimensions - Height - 25 mm
Weight & dimensions - Package depth - 123 mm
Weight & dimensions - Package height - 27 mm
Weight & dimensions - Package weight - 176 g
Weight & dimensions - Package width - 123 mm
Weight & dimensions - Weight - 145 g
Weight & dimensions - Width - 120 mm
