ID: 172753
Product code: NF-A20 5V PWM
Can be ordered 42 units Availability: 14 days after order approval
Warranty: 3 years

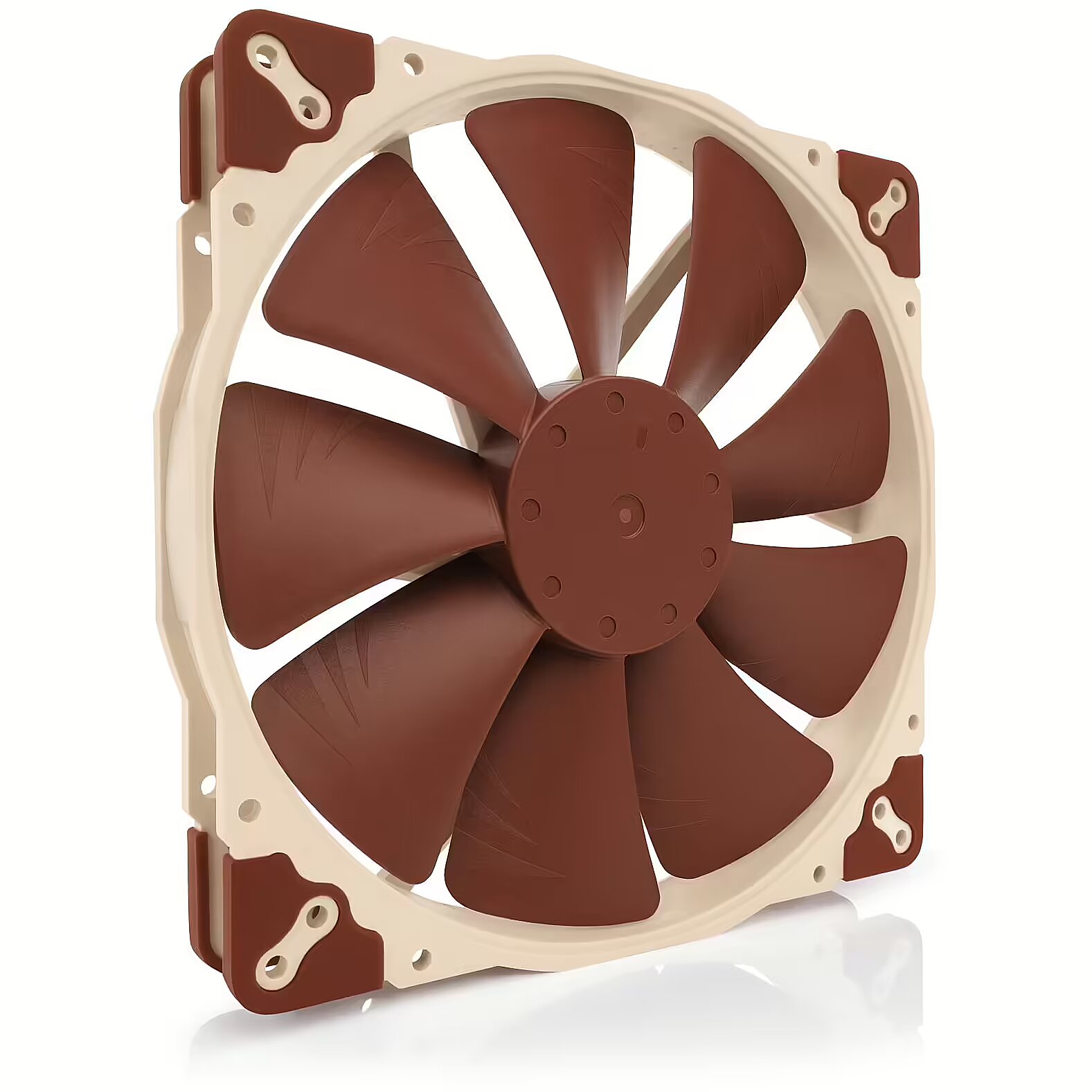

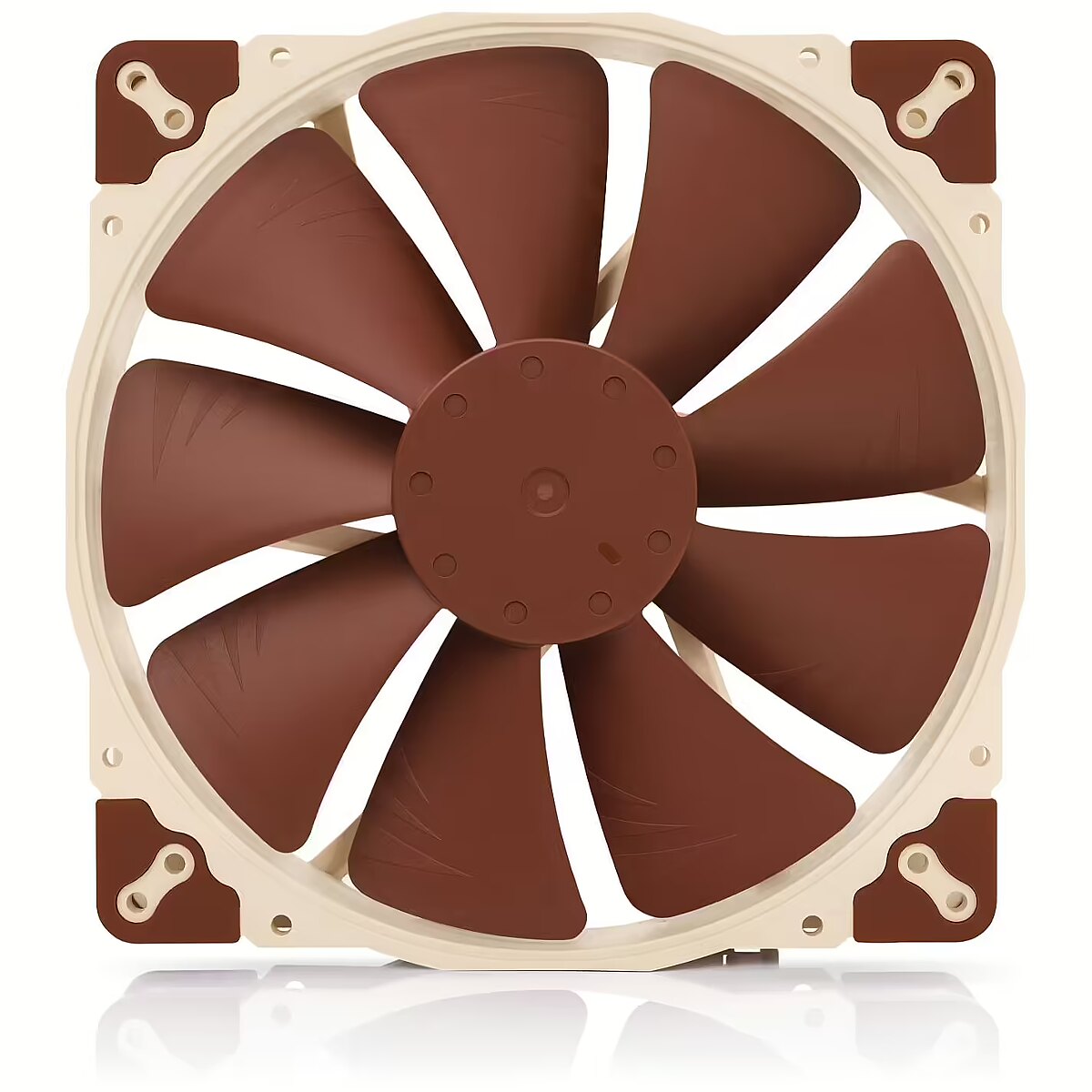

Noctua NF-A20 5V PWM
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: 27.11.2024
Main product parameters All parameters
- Producer: Noctua
- LED izgaismojuma krāsa: Nav
- Output Interface: 4-pin (PWM)
- Revolutions (MIN), rpm: 350
- RPM (MAX), rpm: 800
- Size, mm: 200
- Sound level (MAX), dB(A): 18.1
- Units in package: 1
All parameters
Producer
: Noctua
Type of lighting
: Bez apgaismojuma
Basic information
LED izgaismojuma krāsa
: Nav
Output Interface
: 4-pin (PWM)
RPM (MAX), rpm
: 800
Size, mm
: 200
Sound level (MAX), dB(A)
: 18.1
Units in package
: 1
More detailed specification
category - Aircooling|Fans|PWM Fans
Category_1 - Computer Cases and Cooling
Category_2 - Fans
code - NF-A20 5V PWM
Design - Fan connector - 4-pin
Design - Number of fan blades - 9
Design - Number of fans - 1 fan(s)
Design - Product colour - Beige
Design - Product colour - Red
dimensionalWeight - 649
ean - 9010018100075
EAN_code - 9010018100075
Logistics data - Master (outer) case gross weight - 8 kg
Logistics data - Master (outer) case height - 315 mm
Logistics data - Master (outer) case length - 420 mm
Logistics data - Master (outer) case width - 300 mm
Logistics data - Products per master (outer) case - 10 pc(s)
Manufacturer - Noctua
Manufacturer_code - NF-A20 5V PWM
name - Noctua NF-A20 5V PWM Lüfter - 200mm
Name - Noctua NF-A20 5V PWM
Other features - Mean time to failure (MTTF) - 150000 h
Packaging content - Cables included - Fan
Packaging content - Screws included - Yes
Performance - Airflow - 146.9 m³/h
Performance - Bearing type - Self-Stabilising Oil-pressure Bearing (SSO)
Performance - Compatible processor series - Not supported
Performance - Fan diameter - 20 cm
Performance - Maximum air pressure - 1.08 mmH2O
Performance - Noise level with LNA (max) - 18.1 dB
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Rotational speed (max) - 800 RPM
Performance - Rotational speed (min) - 350 RPM
Performance - Suitable for - Computer case
Performance - Supported processor sockets - Not supported
Performance - Type - Fan
Power - Maximum current - 0.17 A
Power - Power supply - 0.85 W
Power - Voltage - 5 V
producerCode - NF-A20 5V PWM
productName - Noctua NF A20 5V PWM Computer case Fan 20 cm Beige, Red
productSize - Normal
sizeX - 285
sizeY - 40
sizeZ - 285
warrantyLength - 72
warrantyType - F
Weight - 0,78
weight - 715
Weight & dimensions - Fan dimensions (W x D x H) - 200 x 200 x 30 mm
Weight & dimensions - Package depth - 38 mm
Weight & dimensions - Package height - 285 mm
Weight & dimensions - Package weight - 721 g
Weight & dimensions - Package width - 285 mm
